mfsSat.c File Reference

#include "mfsInt.h"

Include dependency graph for mfsSat.c:

Go to the source code of this file.

Functions
ABC_NAMESPACE_IMPL_START int	Abc_NtkMfsSolveSat_iter (Mfs_Man_t *p)
	DECLARATIONS ///.
int	Abc_NtkMfsSolveSat (Mfs_Man_t *p, Abc_Obj_t *pNode)
int	Abc_NtkAddOneHotness (Mfs_Man_t *p)

Function Documentation

Abc_NtkAddOneHotness()

int Abc_NtkAddOneHotness

(

Mfs_Man_t *

p

)

Function*************************************************************

Synopsis [Adds one-hotness constraints for the window inputs.]

Description []

SideEffects []

SeeAlso []

Definition at line 155 of file mfsSat.c.

{
    Aig_Obj_t * pObj1, * pObj2;
    int i, k, Lits[2];
    for ( i = 0; i < Vec_PtrSize(p->pAigWin->vCis); i++ )
    for ( k = i+1; k < Vec_PtrSize(p->pAigWin->vCis); k++ )
    {
        pObj1 = Aig_ManCi( p->pAigWin, i );
        pObj2 = Aig_ManCi( p->pAigWin, k );
        Lits[0] = toLitCond( p->pCnf->pVarNums[pObj1->Id], 1 );
        Lits[1] = toLitCond( p->pCnf->pVarNums[pObj2->Id], 1 );
        if ( !sat_solver_addclause( p->pSat, Lits, Lits+2 ) )
        {
            sat_solver_delete( p->pSat );
            p->pSat = NULL;
            return 0;
        }
    }
    return 1;
}

Here is the call graph for this function:

Here is the caller graph for this function:

Abc_NtkMfsSolveSat()

int Abc_NtkMfsSolveSat	(	Mfs_Man_t *	p,
		Abc_Obj_t *	pNode )

Function*************************************************************

Synopsis [Enumerates through the SAT assignments.]

Description []

SideEffects []

SeeAlso []

Definition at line 95 of file mfsSat.c.

{
    Aig_Obj_t * pObjPo;
    int RetValue, i;
    // collect projection variables
    Vec_IntClear( p->vProjVarsSat );
    Vec_PtrForEachEntryStart( Aig_Obj_t *, p->pAigWin->vCos, pObjPo, i, Aig_ManCoNum(p->pAigWin) - Abc_ObjFaninNum(pNode) )
    {
        assert( p->pCnf->pVarNums[pObjPo->Id] >= 0 );
        Vec_IntPush( p->vProjVarsSat, p->pCnf->pVarNums[pObjPo->Id] );
    }

    // prepare the truth table of care set
    p->nFanins = Vec_IntSize( p->vProjVarsSat );
    p->nWords = Abc_TruthWordNum( p->nFanins );
    memset( p->uCare, 0, sizeof(unsigned) * p->nWords );

    // iterate through the SAT assignments
    p->nCares = 0;
    p->nTotConfLim = p->pPars->nBTLimit;
    while ( (RetValue = Abc_NtkMfsSolveSat_iter(p)) == 1 );
    if ( RetValue == -1 )
        return 0;

    // write statistics
    p->nMintsCare  += p->nCares;
    p->nMintsTotal += (1<<p->nFanins);

    if ( p->pPars->fVeryVerbose )
    {
        printf( "Node %4d : Care = %2d. Total = %2d.  ", pNode->Id, p->nCares, (1<<p->nFanins) );
        Extra_PrintBinary( stdout, p->uCare, (1<<p->nFanins) );
        printf( "\n" );
    }

    // map the care
    if ( p->nFanins > 4 )
        return 1;
    if ( p->nFanins == 4 )
        p->uCare[0] = p->uCare[0] | (p->uCare[0] << 16);
    if ( p->nFanins == 3 )
        p->uCare[0] = p->uCare[0] | (p->uCare[0] << 8) | (p->uCare[0] << 16) | (p->uCare[0] << 24);
    if ( p->nFanins == 2 )
        p->uCare[0] = p->uCare[0] | (p->uCare[0] <<  4) | (p->uCare[0] <<  8) | (p->uCare[0] << 12) |
              (p->uCare[0] << 16) | (p->uCare[0] << 20) | (p->uCare[0] << 24) | (p->uCare[0] << 28);
    assert( p->nFanins != 1 );
    return 1;
}

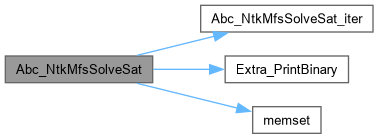

Here is the call graph for this function:

Here is the caller graph for this function:

Abc_NtkMfsSolveSat_iter()

ABC_NAMESPACE_IMPL_START int Abc_NtkMfsSolveSat_iter

(

Mfs_Man_t *

p

)

DECLARATIONS ///.

CFile****************************************************************

FileName [mfsSat.c]

SystemName [ABC: Logic synthesis and verification system.]

PackageName [The good old minimization with complete don't-cares.]

Synopsis [Procedures to compute don't-cares using SAT.]

Author [Alan Mishchenko]

Affiliation [UC Berkeley]

Date [Ver. 1.0. Started - June 20, 2005.]

Revision [

Id

mfsSat.c,v 1.00 2005/06/20 00:00:00 alanmi Exp

] FUNCTION DEFINITIONS /// Function*************************************************************

Synopsis [Enumerates through the SAT assignments.]

Description []

SideEffects []

SeeAlso []

Definition at line 45 of file mfsSat.c.

{
    int Lits[MFS_FANIN_MAX];
    int RetValue, nBTLimit, iVar, b, Mint;
//    int nConfs = p->pSat->stats.conflicts;
    if ( p->nTotConfLim && p->nTotConfLim <= p->pSat->stats.conflicts )
        return -1;
    nBTLimit = p->nTotConfLim? p->nTotConfLim - p->pSat->stats.conflicts : 0;
    RetValue = sat_solver_solve( p->pSat, NULL, NULL, (ABC_INT64_T)nBTLimit, (ABC_INT64_T)0, (ABC_INT64_T)0, (ABC_INT64_T)0 );
    assert( RetValue == l_Undef || RetValue == l_True || RetValue == l_False );
//printf( "%c", RetValue==l_Undef ? '?' : (RetValue==l_False ? '-' : '+') );
//printf( "%d ", p->pSat->stats.conflicts-nConfs );
//if ( RetValue==l_False )
//printf( "\n" );
    if ( RetValue == l_Undef )
        return -1;
    if ( RetValue == l_False )
        return 0;
    p->nCares++;
    // add SAT assignment to the solver
    Mint = 0;
    Vec_IntForEachEntry( p->vProjVarsSat, iVar, b )
    {
        Lits[b] = toLit( iVar );
        if ( sat_solver_var_value( p->pSat, iVar ) )
        {
            Mint |= (1 << b);
            Lits[b] = lit_neg( Lits[b] );
        }
    }
    assert( !Abc_InfoHasBit(p->uCare, Mint) );
    Abc_InfoSetBit( p->uCare, Mint );
    // add the blocking clause
    RetValue = sat_solver_addclause( p->pSat, Lits, Lits + Vec_IntSize(p->vProjVarsSat) );
    if ( RetValue == 0 )
        return 0;
    return 1;
}

Here is the caller graph for this function:
