pdrTsim3.c File Reference

#include "pdrInt.h"
#include "aig/gia/giaAig.h"

Include dependency graph for pdrTsim3.c:

Go to the source code of this file.

Classes
struct	Txs3_Man_t_
	DECLARATIONS ///. More...

Functions
Txs3_Man_t *	Txs3_ManStart (Pdr_Man_t *pMan, Aig_Man_t *pAig, Vec_Int_t *vPrio)
	FUNCTION DEFINITIONS ///.
void	Txs3_ManStop (Txs3_Man_t *p)
void	Txs3_ManCollectCone_rec (Txs3_Man_t *p, Gia_Obj_t *pObj)
void	Txs3_ManCollectCone (Txs3_Man_t *p, int fVerbose)
Pdr_Set_t *	Txs3_ManTernarySim (Txs3_Man_t *p, int k, Pdr_Set_t *pCube)

Function Documentation

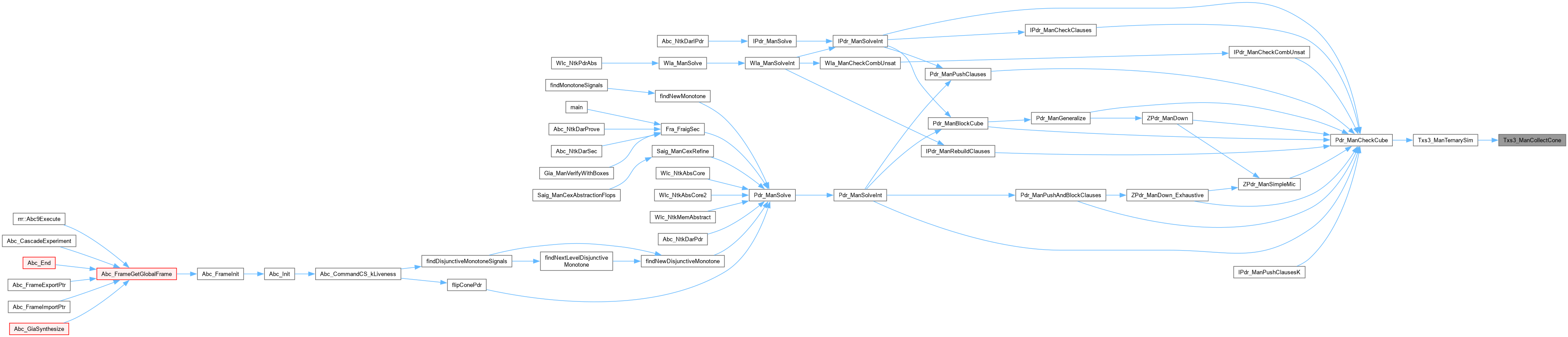

Txs3_ManCollectCone()

void Txs3_ManCollectCone	(	Txs3_Man_t *	p,
		int	fVerbose )

Definition at line 140 of file pdrTsim3.c.

{
    Gia_Obj_t * pObj; int i, Entry;
//    printf( "Collecting cones for clause with %d literals.\n", Vec_IntSize(vCoObjs) );
    Vec_IntClear( p->vCiObjs );
    Vec_IntClear( p->vFosPre );
    Vec_IntClear( p->vFosAbs );
    Vec_IntClear( p->vNodes );
    Gia_ManConst0(p->pGia)->Value = ~0;
    Gia_ManForEachObjVec( p->vCoObjs, p->pGia, pObj, i )
        Txs3_ManCollectCone_rec( p, Gia_ObjFanin0(pObj) );
if ( fVerbose )
printf( "%d %d %d \n", Vec_IntSize(p->vCiObjs), Vec_IntSize(p->vFosPre), Vec_IntSize(p->vFosAbs) );
    p->nPiLits = Vec_IntSize(p->vCiObjs);
    // sort primary inputs
    Vec_IntSelectSort( Vec_IntArray(p->vCiObjs), Vec_IntSize(p->vCiObjs) );
    // sort and add present flop variables
    Vec_IntSelectSortReverse( Vec_IntArray(p->vFosPre), Vec_IntSize(p->vFosPre) );
    Vec_IntForEachEntry( p->vFosPre, Entry, i )
        Vec_IntPush( p->vCiObjs, Entry );
    // sort and add absent flop variables
    Vec_IntSelectSortReverse( Vec_IntArray(p->vFosAbs), Vec_IntSize(p->vFosAbs) );
    Vec_IntForEachEntry( p->vFosAbs, Entry, i )
        Vec_IntPush( p->vCiObjs, Entry );
    // cleanup
    Gia_ManForEachObjVec( p->vCiObjs, p->pGia, pObj, i )
        pObj->Value = 0;
    Gia_ManForEachObjVec( p->vNodes, p->pGia, pObj, i )
        pObj->Value = 0;
}

Here is the call graph for this function:

Here is the caller graph for this function:

Txs3_ManCollectCone_rec()

void Txs3_ManCollectCone_rec	(	Txs3_Man_t *	p,
		Gia_Obj_t *	pObj )

Function*************************************************************

Synopsis [Marks the TFI cone and collects CIs and nodes.]

Description [For this procedure to work Value should not be ~0 at the beginning.]

SideEffects []

SeeAlso []

Definition at line 115 of file pdrTsim3.c.

{
    if ( !~pObj->Value )
        return;
    pObj->Value = ~0;
    if ( Gia_ObjIsCi(pObj) )
    {
        int Entry;
        if ( Gia_ObjIsPi(p->pGia, pObj) )
        {
            Vec_IntPush( p->vCiObjs, Gia_ObjId(p->pGia, pObj) );
            return;
        }
        Entry = Gia_ObjCioId(pObj) - Gia_ManPiNum(p->pGia);
        if ( Vec_IntEntry(p->vPrio, Entry) ) // present flop
            Vec_IntPush( p->vFosPre, Gia_ObjId(p->pGia, pObj) );
        else // asbstracted flop
            Vec_IntPush( p->vFosAbs, Gia_ObjId(p->pGia, pObj) );
        return;
    }
    assert( Gia_ObjIsAnd(pObj) );
    Txs3_ManCollectCone_rec( p, Gia_ObjFanin0(pObj) );
    Txs3_ManCollectCone_rec( p, Gia_ObjFanin1(pObj) );
    Vec_IntPush( p->vNodes, Gia_ObjId(p->pGia, pObj) );
}

Here is the call graph for this function:

Here is the caller graph for this function:

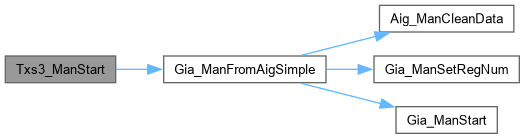

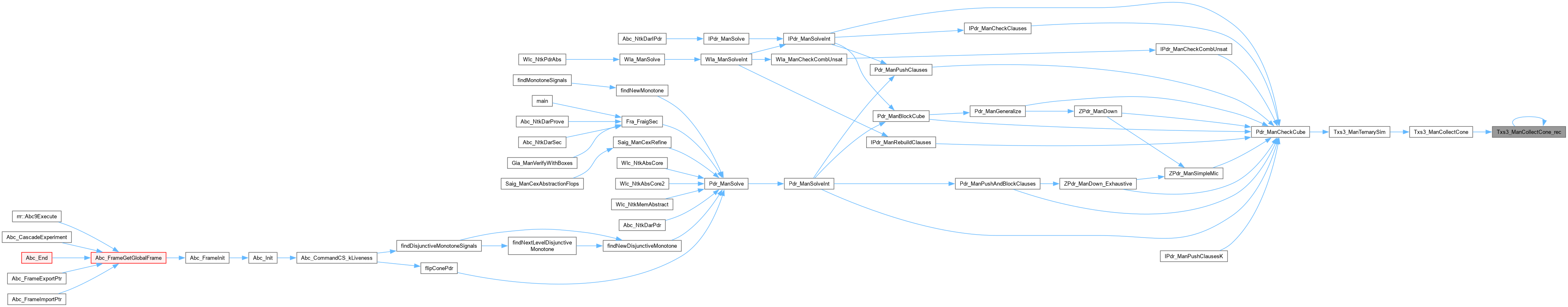

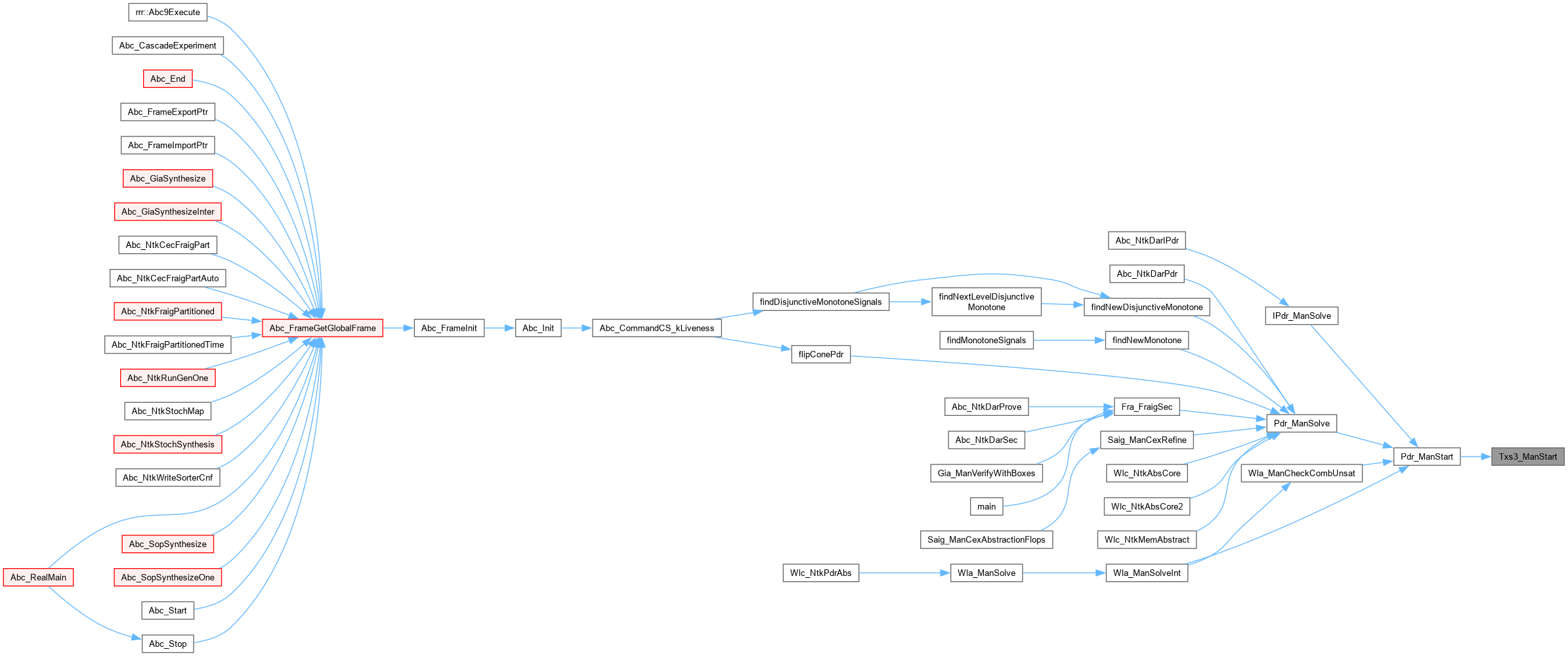

Txs3_ManStart()

Txs3_Man_t * Txs3_ManStart	(	Pdr_Man_t *	pMan,
		Aig_Man_t *	pAig,
		Vec_Int_t *	vPrio )

FUNCTION DEFINITIONS ///.

Function*************************************************************

Synopsis [Start and stop the ternary simulation engine.]

Description []

SideEffects []

SeeAlso []

Definition at line 63 of file pdrTsim3.c.

{
    Txs3_Man_t * p;
//    Aig_Obj_t * pObj;
//    int i;
    assert( Vec_IntSize(vPrio) == Aig_ManRegNum(pAig) );
    p = ABC_CALLOC( Txs3_Man_t, 1 );
    p->pGia    = Gia_ManFromAigSimple(pAig); // user's AIG
//    Aig_ManForEachObj( pAig, pObj, i )
//        assert( i == 0 || pObj->iData == Abc_Var2Lit(i, 0) );
    p->vPrio   = vPrio;                // priority of each flop
    p->vCiObjs = Vec_IntAlloc( 100 );  // cone leaves (CI obj IDs)
    p->vFosPre = Vec_IntAlloc( 100 );  // present flop outputs
    p->vFosAbs = Vec_IntAlloc( 100 );  // absracted flop outputs
    p->vCoObjs = Vec_IntAlloc( 100 );  // cone roots (CO obj IDs)
    p->vCiVals = Vec_IntAlloc( 100 );  // cone leaf values (0/1 CI values)
    p->vCoVals = Vec_IntAlloc( 100 );  // cone root values (0/1 CO values)
    p->vNodes  = Vec_IntAlloc( 100 );  // cone nodes (node obj IDs)
    p->vTemp   = Vec_IntAlloc( 100 );  // cone nodes (node obj IDs)
    p->vPiLits = Vec_IntAlloc( 100 );  // resulting array of PI literals
    p->vFfLits = Vec_IntAlloc( 100 );  // resulting array of flop literals
    p->pMan    = pMan;                 // calling manager
    return p;
}

Here is the call graph for this function:

Here is the caller graph for this function:

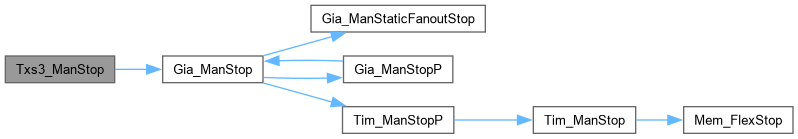

Txs3_ManStop()

void Txs3_ManStop

(

Txs3_Man_t *

p

)

Definition at line 87 of file pdrTsim3.c.

{
    Gia_ManStop( p->pGia );
    Vec_IntFree( p->vCiObjs );
    Vec_IntFree( p->vFosPre );
    Vec_IntFree( p->vFosAbs );
    Vec_IntFree( p->vCoObjs );
    Vec_IntFree( p->vCiVals );
    Vec_IntFree( p->vCoVals );
    Vec_IntFree( p->vNodes );
    Vec_IntFree( p->vTemp );
    Vec_IntFree( p->vPiLits );
    Vec_IntFree( p->vFfLits );
    ABC_FREE( p );
}

Here is the call graph for this function:

Here is the caller graph for this function:

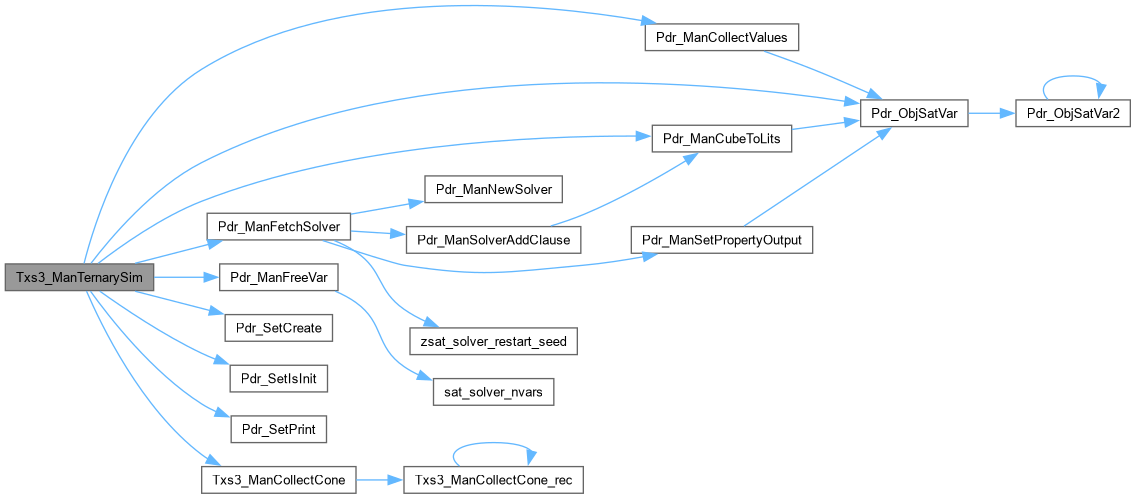

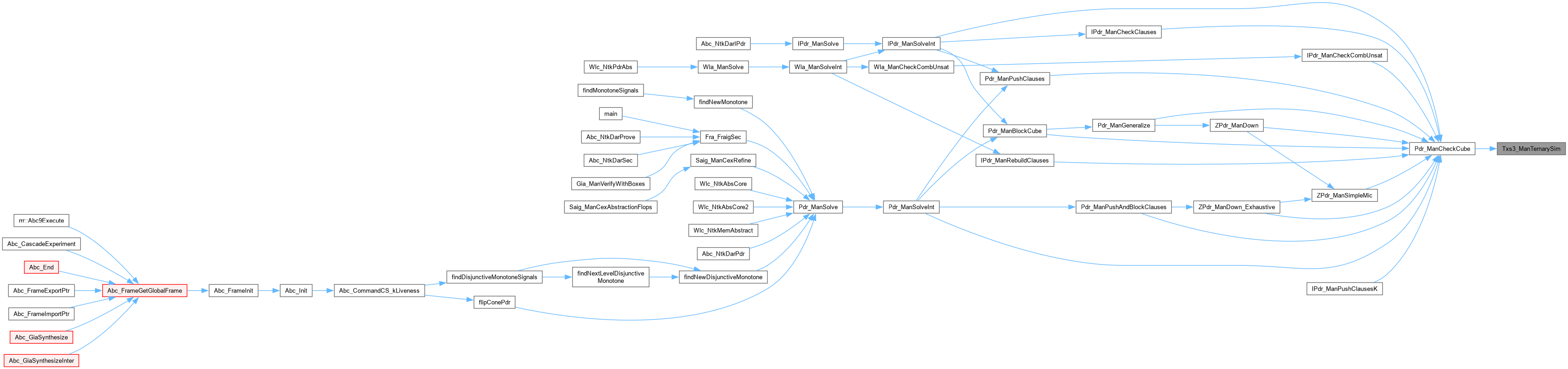

Txs3_ManTernarySim()

Pdr_Set_t * Txs3_ManTernarySim	(	Txs3_Man_t *	p,
		int	k,
		Pdr_Set_t *	pCube )

Function*************************************************************

Synopsis [Shrinks values using ternary simulation.]

Description [The cube contains the set of flop index literals which, when converted into a clause and applied to the combinational outputs, led to a satisfiable SAT run in frame k (values stored in the SAT solver). If the cube is NULL, it is assumed that the first property output was asserted and failed. The resulting array is a set of flop index literals that asserts the COs. Priority contains 0 for i-th entry if the i-th FF is desirable to remove.]

SideEffects []

SeeAlso []

Definition at line 188 of file pdrTsim3.c.

{
//    int fTryNew = 1;
//    int fUseLit = 1;
    int fVerbose = 0;
    sat_solver * pSat;
    Pdr_Set_t * pRes;
    Gia_Obj_t * pObj;
    Vec_Int_t * vVar2Ids, * vLits;
    int i, Lit, LitAux, Var, Value, RetValue, nCoreLits, * pCoreLits;//, nLits;
//    if ( k == 0 )
//        fVerbose = 1;
    // collect CO objects
    Vec_IntClear( p->vCoObjs );
    if ( pCube == NULL ) // the target is the property output
    {
        pObj = Gia_ManCo(p->pGia, p->pMan->iOutCur);
        Vec_IntPush( p->vCoObjs, Gia_ObjId(p->pGia, pObj) );
    }
    else // the target is the cube
    {
        int i;
        for ( i = 0; i < pCube->nLits; i++ )
        {
            if ( pCube->Lits[i] == -1 )
                continue;
            pObj = Gia_ManCo(p->pGia, Gia_ManPoNum(p->pGia) + Abc_Lit2Var(pCube->Lits[i]));
            Vec_IntPush( p->vCoObjs, Gia_ObjId(p->pGia, pObj) );
        }
    }
if ( 0 )
{
Abc_Print( 1, "Trying to justify cube " );
if ( pCube )
    Pdr_SetPrint( stdout, pCube, Gia_ManRegNum(p->pGia), NULL );
else
    Abc_Print( 1, "<prop=fail>" );
Abc_Print( 1, " in frame %d.\n", k );
}

    // collect CI objects
    Txs3_ManCollectCone( p, fVerbose );
    // collect values
    Pdr_ManCollectValues( p->pMan, k, p->vCiObjs, p->vCiVals );
    Pdr_ManCollectValues( p->pMan, k, p->vCoObjs, p->vCoVals );

    // read solver
    pSat = Pdr_ManFetchSolver( p->pMan, k );
    LitAux = Abc_Var2Lit( Pdr_ManFreeVar(p->pMan, k), 0 );
    // add the clause (complemented cube) in terms of next state variables
    if ( pCube == NULL ) // the target is the property output
    {
        vLits = p->pMan->vLits;
        Lit = Abc_Var2Lit( Pdr_ObjSatVar(p->pMan, k, 2, Aig_ManCo(p->pMan->pAig, p->pMan->iOutCur)), 1 ); // neg literal (property holds)
        Vec_IntFill( vLits, 1, Lit );
    }
    else
        vLits = Pdr_ManCubeToLits( p->pMan, k, pCube, 1, 1 );
    // add activation literal
    Vec_IntPush( vLits, LitAux );
    RetValue = sat_solver_addclause( pSat, Vec_IntArray(vLits), Vec_IntArray(vLits) + Vec_IntSize(vLits) );
    assert( RetValue == 1 );
    sat_solver_compress( pSat );

    // collect assumptions
    Vec_IntClear( p->vTemp );
    Vec_IntPush( p->vTemp, Abc_LitNot(LitAux) );
    // iterate through the values of the CI variables
    Vec_IntForEachEntryTwo( p->vCiObjs, p->vCiVals, Var, Value, i )
    {
        Aig_Obj_t * pObj = Aig_ManObj( p->pMan->pAig, Var );
//        iVar = Pdr_ObjSatVar( p->pMan, k, fNext ? 2 - lit_sign(pCube->Lits[i]) : 3, pObj ); assert( iVar >= 0 );
        int iVar = Pdr_ObjSatVar( p->pMan, k, 3, pObj ); assert( iVar >= 0 );
        assert( Aig_ObjIsCi(pObj) );
        Vec_IntPush( p->vTemp, Abc_Var2Lit(iVar, !Value) );
    }
    if ( fVerbose )
    {
        printf( "Clause with %d lits on lev %d\n", pCube ? pCube->nLits : 0, k );
        Vec_IntPrint( p->vTemp );
    }

/*
    // solve with assumptions
//printf( "%d -> ", Vec_IntSize(p->vTemp) );
{
abctime clk = Abc_Clock();
// assume all except flops
    Vec_IntForEachEntryStop( p->vTemp, Lit, i, p->nPiLits + 1 )
        if ( !sat_solver_push(pSat, Lit) )
        {
            assert( 0 );
        }
    nLits = sat_solver_minimize_assumptions( pSat, Vec_IntArray(p->vTemp) + p->nPiLits + 1, Vec_IntSize(p->vTemp) - p->nPiLits - 1, p->pMan->pPars->nConfLimit );
    Vec_IntShrink( p->vTemp, p->nPiLits + 1 + nLits );

p->pMan->tAbs += Abc_Clock() - clk;
    for ( i = 0; i <= p->nPiLits; i++ )
        sat_solver_pop(pSat);
}
//printf( "%d    ", nLits );
*/


    //check one last time
    RetValue = sat_solver_solve( pSat, Vec_IntArray(p->vTemp), Vec_IntLimit(p->vTemp), 0, 0, 0, 0 );
    assert( RetValue == l_False );

    // use analyze final
    nCoreLits = sat_solver_final(pSat, &pCoreLits);
    //assert( Vec_IntSize(p->vTemp) <= nCoreLits );

    Vec_IntClear( p->vTemp );
    for ( i = 0; i < nCoreLits; i++ )
        Vec_IntPush( p->vTemp, Abc_LitNot(pCoreLits[i]) );
    Vec_IntSelectSort( Vec_IntArray(p->vTemp), Vec_IntSize(p->vTemp) );

    if ( fVerbose )
        Vec_IntPrint( p->vTemp );

    // collect the resulting sets
    Vec_IntClear( p->vPiLits );
    Vec_IntClear( p->vFfLits );
    vVar2Ids = (Vec_Int_t *)Vec_PtrGetEntry( &p->pMan->vVar2Ids, k );
    Vec_IntForEachEntry( p->vTemp, Lit, i )
    {
        if ( Lit != Abc_LitNot(LitAux) )
        {
            int Id = Vec_IntEntry( vVar2Ids, Abc_Lit2Var(Lit) );
            Aig_Obj_t * pObj = Aig_ManObj( p->pMan->pAig, Id );
            assert( Aig_ObjIsCi(pObj) );
            if ( Saig_ObjIsPi(p->pMan->pAig, pObj) )
                Vec_IntPush( p->vPiLits, Abc_Var2Lit(Aig_ObjCioId(pObj), Abc_LitIsCompl(Lit)) );
            else
                Vec_IntPush( p->vFfLits, Abc_Var2Lit(Aig_ObjCioId(pObj) - Saig_ManPiNum(p->pMan->pAig), Abc_LitIsCompl(Lit)) );
        }
    }
    assert( Vec_IntSize(p->vTemp) == Vec_IntSize(p->vPiLits) + Vec_IntSize(p->vFfLits) + 1 );

    // move abstracted literals from flops to inputs
    if ( p->pMan->pPars->fUseAbs && p->pMan->vAbsFlops )
    {
        int i, iLit, k = 0;
        Vec_IntForEachEntry( p->vFfLits, iLit, i )
        {
            if ( Vec_IntEntry(p->pMan->vAbsFlops, Abc_Lit2Var(iLit)) ) // used flop
                Vec_IntWriteEntry( p->vFfLits, k++, iLit );
            else
                Vec_IntPush( p->vPiLits, 2*Saig_ManPiNum(p->pMan->pAig) + iLit );
        }
        Vec_IntShrink( p->vFfLits, k );
    }

    if ( fVerbose )
        Vec_IntPrint( p->vPiLits );
    if ( fVerbose )
        Vec_IntPrint( p->vFfLits );
    if ( fVerbose )
        printf( "\n" );

    // derive the final set
    pRes = Pdr_SetCreate( p->vFfLits, p->vPiLits );
    //ZH: Disabled assertion because this invariant doesn't hold with down
    //because of the join operation which can bring in initial states
    assert( k == 0 || !Pdr_SetIsInit(pRes, -1) );
    return pRes;
}
