#include "saig.h"
#include "sat/bsat/satSolver.h"
#include "sat/cnf/cnf.h"

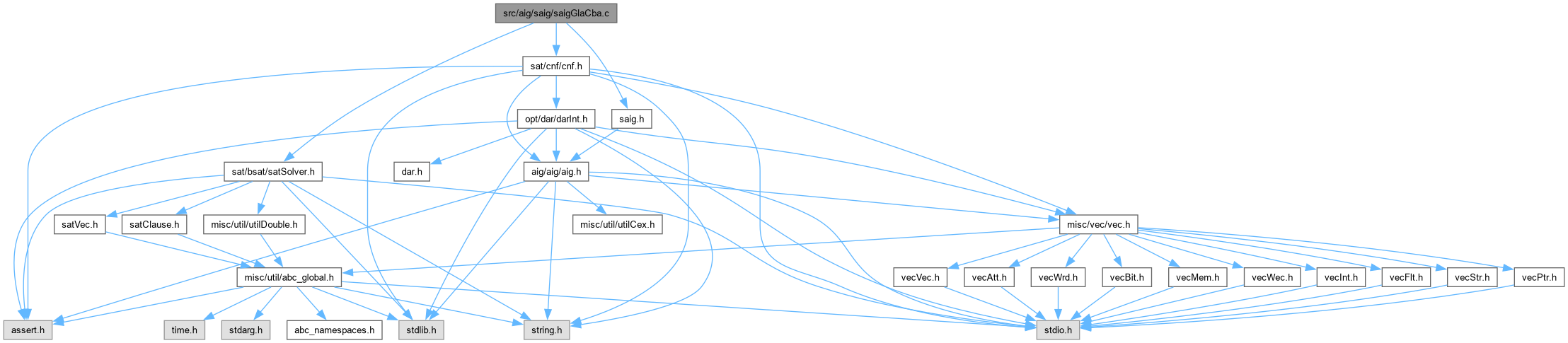

Include dependency graph for saigGlaCba.c:

Classes
struct	Aig_Gla1Man_t_

Typedefs
typedef typedefABC_NAMESPACE_IMPL_START struct Aig_Gla1Man_t_	Aig_Gla1Man_t
	DECLARATIONS ///.

Functions
void	Aig_Gla1CollectAbstr (Aig_Gla1Man_t *p)

void	Aig_Gla1DeriveAbs_rec (Aig_Man_t pNew, Aig_Obj_t pObj)

Aig_Man_t *	Aig_Gla1DeriveAbs (Aig_Gla1Man_t *p)

int	Aig_Gla1ObjAddToSolver (Aig_Gla1Man_t p, Aig_Obj_t pObj, int k)

void	Aig_Gla1CollectAssigned (Aig_Gla1Man_t p, Vec_Int_t vGateClasses)

Aig_Gla1Man_t *	Aig_Gla1ManStart (Aig_Man_t pAig, Vec_Int_t vGateClassesOld, int fNaiveCnf)

void	Aig_Gla1ManStop (Aig_Gla1Man_t *p)

Abc_Cex_t *	Aig_Gla1DeriveCex (Aig_Gla1Man_t *p, int iFrame)

void	Aig_Gla1PrintAbstr (Aig_Gla1Man_t *p, int f, int r, int v, int c)

void	Aig_Gla1ExtendIncluded (Aig_Gla1Man_t *p)

Vec_Int_t *	Aig_Gla1ManPerform (Aig_Man_t pAig, Vec_Int_t vGateClassesOld, int nStart, int nFramesMax, int nConfLimit, int TimeLimit, int fNaiveCnf, int fVerbose, int *piFrame)

Typedef Documentation

◆ Aig_Gla1Man_t

typedef typedefABC_NAMESPACE_IMPL_START struct Aig_Gla1Man_t_ Aig_Gla1Man_t

DECLARATIONS ///.

CFile****************************************************************

FileName [saigGlaCba.c]

SystemName [ABC: Logic synthesis and verification system.]

PackageName [Sequential AIG package.]

Synopsis [Gate level abstraction.]

Author [Alan Mishchenko]

Affiliation [UC Berkeley]

Date [Ver. 1.0. Started - June 20, 2005.]

Revision [

Id: saigGlaCba.c,v 1.00 2005/06/20 00:00:00 alanmi Exp

]

Definition at line 32 of file saigGlaCba.c.

Function Documentation

◆ Aig_Gla1CollectAbstr()

void Aig_Gla1CollectAbstr ( Aig_Gla1Man_t * p )

Function*************************************************************

Synopsis [Derives abstraction components (PIs, PPIs, flops, nodes).]

Description []

SideEffects []

SeeAlso []

Definition at line 163 of file saigGlaCba.c.

{
    Aig_Obj_t * pObj;
    int i, Entry;
/*
    // make sure every neighbor of included objects is assigned a variable
    Vec_IntForEachEntry( p->vIncluded, Entry, i )
    {
        if ( Entry == 0 )
            continue;
        assert( Entry == 1 );
        pObj = Aig_ManObj( p->pAig, i );
        if ( Vec_IntFind( p->vAssigned, Aig_ObjId(pObj) ) == -1 )
            printf( "Aig_Gla1CollectAbstr(): Object not found\n" );
        if ( Aig_ObjIsNode(pObj) )
        {
            if ( Vec_IntFind( p->vAssigned, Aig_ObjFaninId0(pObj) ) == -1 )
                printf( "Aig_Gla1CollectAbstr(): Node's fanin is not found\n" );
            if ( Vec_IntFind( p->vAssigned, Aig_ObjFaninId1(pObj) ) == -1 )
                printf( "Aig_Gla1CollectAbstr(): Node's fanin is not found\n" );
        }
        else if ( Saig_ObjIsLo(p->pAig, pObj) )
        {
            Aig_Obj_t * pObjLi;
            pObjLi = Saig_ObjLoToLi(p->pAig, pObj);
            if ( Vec_IntFind( p->vAssigned, Aig_ObjFaninId0(pObjLi) ) == -1 )
                printf( "Aig_Gla1CollectAbstr(): Flop's fanin is not found\n" );
        }
        else assert( Aig_ObjIsConst1(pObj) );
    }
*/
    Vec_IntClear( p->vPis );
    Vec_IntClear( p->vPPis );
    Vec_IntClear( p->vFlops );
    Vec_IntClear( p->vNodes );
    Vec_IntForEachEntryReverse( p->vAssigned, Entry, i )
    {
        pObj = Aig_ManObj( p->pAig, Entry );
        if ( Saig_ObjIsPi(p->pAig, pObj) )
            Vec_IntPush( p->vPis, Aig_ObjId(pObj) );
        else if ( !Vec_IntEntry(p->vIncluded, Aig_ObjId(pObj)) )
            Vec_IntPush( p->vPPis, Aig_ObjId(pObj) );
        else if ( Aig_ObjIsNode(pObj) )
            Vec_IntPush( p->vNodes, Aig_ObjId(pObj) );
        else if ( Saig_ObjIsLo(p->pAig, pObj) )
            Vec_IntPush( p->vFlops, Aig_ObjId(pObj) );
        else assert( Aig_ObjIsConst1(pObj) );
    }
}

Here is the caller graph for this function:

◆ Aig_Gla1CollectAssigned()

void Aig_Gla1CollectAssigned	(	Aig_Gla1Man_t *	p,
		Vec_Int_t *	vGateClasses )

Function*************************************************************

Synopsis [Returns the array of neighbors.]

Description []

SideEffects []

SeeAlso []

Definition at line 441 of file saigGlaCba.c.

{
    Aig_Obj_t * pObj;
    int i, Entry;
    Vec_IntForEachEntryReverse( vGateClasses, Entry, i )
    {
        if ( Entry == 0 )
            continue;
        assert( Entry == 1 );
        pObj = Aig_ManObj( p->pAig, i );
        Aig_Gla1FetchVecId( p, pObj );
        if ( Aig_ObjIsNode(pObj) )
        {
            Aig_Gla1FetchVecId( p, Aig_ObjFanin0(pObj) );
            Aig_Gla1FetchVecId( p, Aig_ObjFanin1(pObj) );
        }
        else if ( Saig_ObjIsLo(p->pAig, pObj) )
            Aig_Gla1FetchVecId( p, Aig_ObjFanin0(Saig_ObjLoToLi(p->pAig, pObj)) );
        else assert( Aig_ObjIsConst1(pObj) );
    }
}

Here is the caller graph for this function:

◆ Aig_Gla1DeriveAbs()

Aig_Man_t * Aig_Gla1DeriveAbs ( Aig_Gla1Man_t * p )

Function*************************************************************

Synopsis [Derives abstraction.]

Description []

SideEffects []

SeeAlso []

Definition at line 245 of file saigGlaCba.c.

{
    Aig_Man_t * pNew;
    Aig_Obj_t * pObj;
    int i, RetValue;
    assert( Saig_ManPoNum(p->pAig) == 1 );
    // start the new manager
    pNew = Aig_ManStart( 5000 );
    pNew->pName = Abc_UtilStrsav( p->pAig->pName );
    // create constant
    Aig_ManCleanData( p->pAig );
    Aig_ManConst1(p->pAig)->pData = Aig_ManConst1(pNew);
    // create PIs
    Aig_ManForEachObjVec( p->vPis, p->pAig, pObj, i )
        pObj->pData = Aig_ObjCreateCi(pNew);
    // create additional PIs
    Aig_ManForEachObjVec( p->vPPis, p->pAig, pObj, i )
        pObj->pData = Aig_ObjCreateCi(pNew);
    // create ROs
    Aig_ManForEachObjVec( p->vFlops, p->pAig, pObj, i )
        pObj->pData = Aig_ObjCreateCi(pNew);
    // create internal nodes
    Aig_ManForEachObjVec( p->vNodes, p->pAig, pObj, i )
//        pObj->pData = Aig_And( pNew, Aig_ObjChild0Copy(pObj), Aig_ObjChild1Copy(pObj) );
        Aig_Gla1DeriveAbs_rec( pNew, pObj );
    // create PO
    Saig_ManForEachPo( p->pAig, pObj, i )
        pObj->pData = Aig_ObjCreateCo( pNew, Aig_ObjChild0Copy(pObj) );
    // create RIs
    Aig_ManForEachObjVec( p->vFlops, p->pAig, pObj, i )
    {
        assert( Saig_ObjIsLo(p->pAig, pObj) );
        pObj = Saig_ObjLoToLi( p->pAig, pObj );
        pObj->pData = Aig_ObjCreateCo( pNew, Aig_ObjChild0Copy(pObj) );
    }
    Aig_ManSetRegNum( pNew, Vec_IntSize(p->vFlops) );
    // clean up
    RetValue = Aig_ManCleanup( pNew );
    if ( RetValue > 0 )
        printf( "Aig_Gla1DeriveAbs(): Internal error! Object count mismatch.\n" );
    assert( RetValue == 0 );
    return pNew;
}

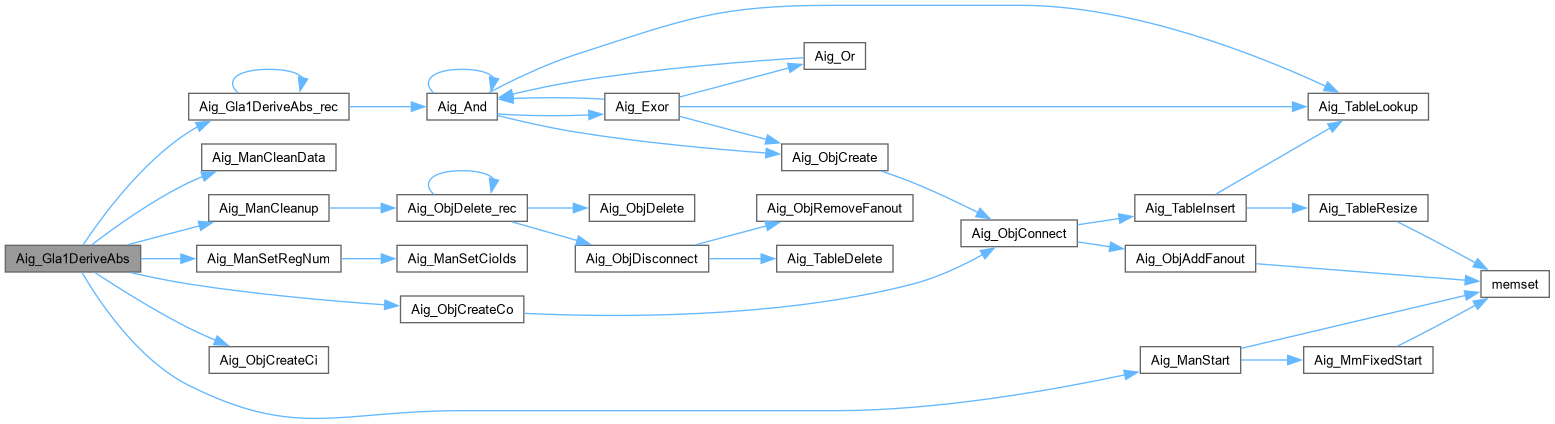

Here is the call graph for this function:

Here is the caller graph for this function:

◆ Aig_Gla1DeriveAbs_rec()

void Aig_Gla1DeriveAbs_rec	(	Aig_Man_t *	pNew,
		Aig_Obj_t *	pObj )

Function*************************************************************

Synopsis [Duplicates the AIG manager recursively.]

Description []

SideEffects []

SeeAlso []

Definition at line 224 of file saigGlaCba.c.

{
    if ( pObj->pData )
        return;
    assert( Aig_ObjIsNode(pObj) );
    Aig_Gla1DeriveAbs_rec( pNew, Aig_ObjFanin0(pObj) );
    Aig_Gla1DeriveAbs_rec( pNew, Aig_ObjFanin1(pObj) );
    pObj->pData = Aig_And( pNew, Aig_ObjChild0Copy(pObj), Aig_ObjChild1Copy(pObj) );
}

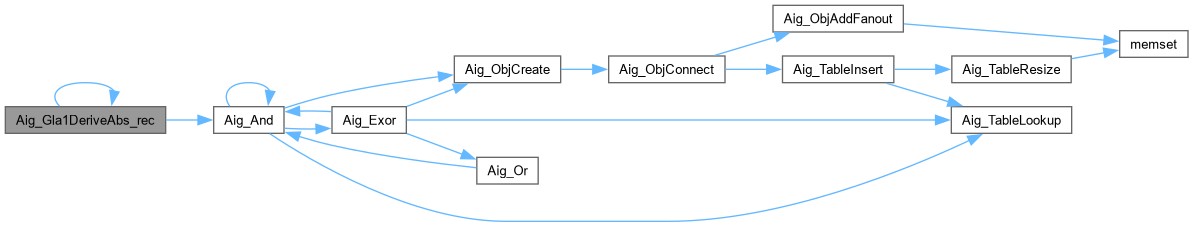

Here is the call graph for this function:

Here is the caller graph for this function:

◆ Aig_Gla1DeriveCex()

Abc_Cex_t * Aig_Gla1DeriveCex	(	Aig_Gla1Man_t *	p,
		int	iFrame )

Function*************************************************************

Synopsis []

Description []

SideEffects []

SeeAlso []

Definition at line 581 of file saigGlaCba.c.

{
    Abc_Cex_t * pCex;
    Aig_Obj_t * pObj;
    int i, f, iVecId, iSatId;
    pCex = Abc_CexAlloc( Vec_IntSize(p->vFlops), Vec_IntSize(p->vPis) + Vec_IntSize(p->vPPis), iFrame+1 );
    pCex->iFrame = iFrame;
    Aig_ManForEachObjVec( p->vPis, p->pAig, pObj, i )
    {
        iVecId = Vec_IntEntry( p->vObj2Vec, Aig_ObjId(pObj) );
        assert( iVecId > 0 );
        for ( f = 0; f <= iFrame; f++ )
        {
            iSatId = Vec_IntEntry( p->vVec2Var, iVecId * p->nFrames + f );
            if ( iSatId == 0 )
                continue;
            assert( iSatId > 0 );
            if ( sat_solver_var_value(p->pSat, iSatId) )
                Abc_InfoSetBit( pCex->pData, pCex->nRegs + f * pCex->nPis + i );
        }
    }
    Aig_ManForEachObjVec( p->vPPis, p->pAig, pObj, i )
    {
        iVecId = Vec_IntEntry( p->vObj2Vec, Aig_ObjId(pObj) );
        assert( iVecId > 0 );
        for ( f = 0; f <= iFrame; f++ )
        {
            iSatId = Vec_IntEntry( p->vVec2Var, iVecId * p->nFrames + f );
            if ( iSatId == 0 )
                continue;
            assert( iSatId > 0 );
            if ( sat_solver_var_value(p->pSat, iSatId) )
                Abc_InfoSetBit( pCex->pData, pCex->nRegs + f * pCex->nPis + Vec_IntSize(p->vPis) + i );
        }
    }
    return pCex;
}

Here is the call graph for this function:

Here is the caller graph for this function:

◆ Aig_Gla1ExtendIncluded()

void Aig_Gla1ExtendIncluded ( Aig_Gla1Man_t * p )

Function*************************************************************

Synopsis [Prints current abstraction statistics.]

Description []

SideEffects []

SeeAlso []

Definition at line 651 of file saigGlaCba.c.

{
    Aig_Obj_t * pObj;
    int i, k;
    Aig_ManForEachNode( p->pAig, pObj, i )
    {
        if ( !Vec_IntEntry( p->vIncluded, i ) )
            continue;
        Cnf_ComputeClauses( p->pAig, pObj, p->vLeaves, p->vVolume, NULL, p->vCover, p->vNodes );
        Vec_PtrForEachEntry( Aig_Obj_t *, p->vVolume, pObj, k )
        {
            assert( Aig_ObjId(pObj) <= i );
            Vec_IntWriteEntry( p->vIncluded, Aig_ObjId(pObj), 1 );
        }
    }
}

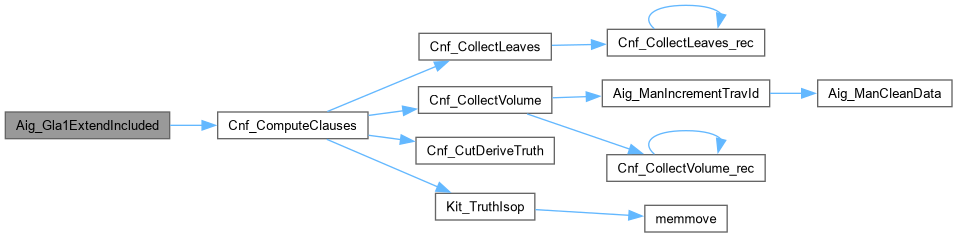

Here is the call graph for this function:

Here is the caller graph for this function:

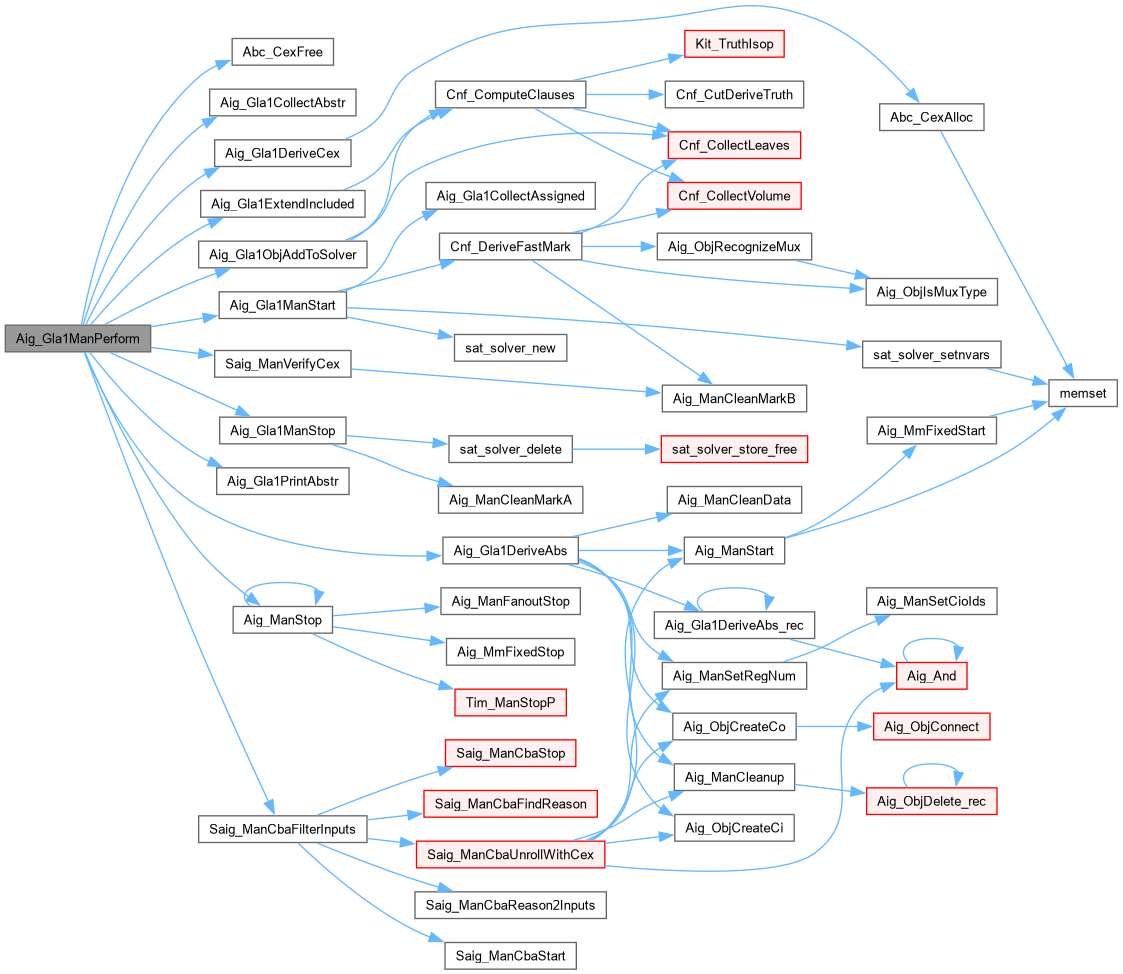

◆ Aig_Gla1ManPerform()

Vec_Int_t * Aig_Gla1ManPerform	(	Aig_Man_t *	pAig,
		Vec_Int_t *	vGateClassesOld,
		int	nStart,
		int	nFramesMax,
		int	nConfLimit,
		int	TimeLimit,
		int	fNaiveCnf,
		int	fVerbose,
		int *	piFrame )

Function*************************************************************

Synopsis [Performs gate-level localization abstraction.]

Description [Returns array of objects included in the abstraction. This array may contain only const1, flop outputs, and internal nodes, that is, objects that should have clauses added to the SAT solver.]

SideEffects []

SeeAlso []

Definition at line 681 of file saigGlaCba.c.

{
    Vec_Int_t * vResult = NULL;
    Aig_Gla1Man_t * p;
    Aig_Man_t * pAbs;
    Aig_Obj_t * pObj;
    Abc_Cex_t * pCex;
    Vec_Int_t * vPPiRefine;
    int f, g, r, i, iSatVar, Lit, Entry, RetValue;
    int nConfBef, nConfAft;
    clock_t clk, clkTotal = clock();
    clock_t nTimeToStop = TimeLimit ? TimeLimit * CLOCKS_PER_SEC + clock(): 0;
    assert( Saig_ManPoNum(pAig) == 1 );

    if ( nFramesMax == 0 )
        nFramesMax = ABC_INFINITY;

    if ( fVerbose )
    {
        if ( TimeLimit )
            printf( "Abstracting from frame %d to frame %d with timeout %d sec.\n", nStart, nFramesMax, TimeLimit );
        else
            printf( "Abstracting from frame %d to frame %d with no timeout.\n", nStart, nFramesMax );
    }

    // start the solver
    p = Aig_Gla1ManStart( pAig, vGateClassesOld, fNaiveCnf );
    p->nFramesMax = nFramesMax;
    p->nConfLimit = nConfLimit;
    p->fVerbose   = fVerbose;

    // include constant node
    Vec_IntWriteEntry( p->vIncluded, 0, 1 );
    Aig_Gla1FetchVecId( p, Aig_ManConst1(pAig) );

    // set runtime limit
    if ( TimeLimit )
        sat_solver_set_runtime_limit( p->pSat, nTimeToStop );

    // iterate over the timeframes
    for ( f = 0; f < nFramesMax; f++ )
    {
        // initialize abstraction in this timeframe
        Aig_ManForEachObjVec( p->vAssigned, pAig, pObj, i )
            if ( Vec_IntEntry(p->vIncluded, Aig_ObjId(pObj)) )
                if ( !Aig_Gla1ObjAddToSolver( p, pObj, f ) )
                    printf( "Error!  SAT solver became UNSAT.\n" );

        // skip checking if we are not supposed to
        if ( f < nStart )
            continue;

        // create output literal to represent property failure
        pObj    = Aig_ManCo( pAig, 0 );
        iSatVar = Aig_Gla1FetchVar( p, Aig_ObjFanin0(pObj), f );
        Lit     = toLitCond( iSatVar, Aig_ObjFaninC0(pObj) );

        // try solving the abstraction
        Aig_Gla1CollectAbstr( p );
        for ( r = 0; r < ABC_INFINITY; r++ )
        {
            // try to find a counter-example
            clk = clock();
            nConfBef = p->pSat->stats.conflicts;
            RetValue = sat_solver_solve( p->pSat, &Lit, &Lit + 1,
                (ABC_INT64_T)nConfLimit, (ABC_INT64_T)0, (ABC_INT64_T)0, (ABC_INT64_T)0 );
            nConfAft = p->pSat->stats.conflicts;
            p->timeSat += clock() - clk;
            if ( RetValue != l_True )
            {
                if ( fVerbose )
                {
                    if ( r == 0 )
                        printf( "== %3d ==", f );
                    else
                        printf( "         " );
                    if ( TimeLimit && clock() > nTimeToStop )
                        printf( "       SAT solver timed out after %d seconds.\n", TimeLimit );
                    else if ( RetValue != l_False )
                        printf( "       SAT solver returned UNDECIDED after %5d conflicts.\n", nConfAft - nConfBef );
                    else
                    {
                        printf( "       SAT solver returned UNSAT after %5d conflicts.  ", nConfAft - nConfBef );
                        Abc_PrintTime( 1, "Total time", clock() - clkTotal );
                    }
                }
                break;
            }
            clk = clock();
            // derive abstraction
            pAbs = Aig_Gla1DeriveAbs( p );
            // derive counter-example
            pCex = Aig_Gla1DeriveCex( p, f );
            // verify the counter-example
            RetValue = Saig_ManVerifyCex( pAbs, pCex );
            if ( RetValue == 0 )
                printf( "Error!  CEX is invalid.\n" );
            // perform refinement
            vPPiRefine = Saig_ManCbaFilterInputs( pAbs, Vec_IntSize(p->vPis), pCex, 0 );
            Vec_IntForEachEntry( vPPiRefine, Entry, i )
            {
                pObj = Aig_ManObj( pAig, Vec_IntEntry(p->vPPis, Entry) );
                assert( Aig_ObjIsNode(pObj) || Saig_ObjIsLo(p->pAig, pObj) );
                assert( Vec_IntEntry( p->vIncluded, Aig_ObjId(pObj) ) == 0 );
                Vec_IntWriteEntry( p->vIncluded, Aig_ObjId(pObj), 1 );
                for ( g = 0; g <= f; g++ )
                    if ( !Aig_Gla1ObjAddToSolver( p, pObj, g ) )
                        printf( "Error!  SAT solver became UNSAT.\n" );
            }
            if ( Vec_IntSize(vPPiRefine) == 0 )
            {
                Vec_IntFreeP( &p->vIncluded );
                Vec_IntFree( vPPiRefine );
                Aig_ManStop( pAbs );
                Abc_CexFree( pCex );
                break;
            }
            Vec_IntFree( vPPiRefine );
            Aig_ManStop( pAbs );
            Abc_CexFree( pCex );
            p->timeRef += clock() - clk;

            // prepare abstraction
            Aig_Gla1CollectAbstr( p );
            if ( fVerbose )
                Aig_Gla1PrintAbstr( p, f, r, p->pSat->size, nConfAft - nConfBef );
        }
        if ( RetValue != l_False )
            break;
    }
    p->timeTotal = clock() - clkTotal;
    if ( f == nFramesMax )
        printf( "Finished %d frames without exceeding conflict limit (%d).\n", f, nConfLimit );
    else if ( p->vIncluded == NULL )
        printf( "The problem is SAT in frame %d. The CEX is currently not produced.\n", f );
    else
        printf( "Ran out of conflict limit (%d) at frame %d.\n", nConfLimit, f );
    *piFrame = f;
    // print stats
    if ( fVerbose )
    {
        ABC_PRTP( "Sat   ", p->timeSat,   p->timeTotal );
        ABC_PRTP( "Ref   ", p->timeRef,   p->timeTotal );
        ABC_PRTP( "Total ", p->timeTotal, p->timeTotal );
    }
    // prepare return value
    if ( !fNaiveCnf && p->vIncluded )
        Aig_Gla1ExtendIncluded( p );
    vResult = p->vIncluded;  p->vIncluded = NULL;
    Aig_Gla1ManStop( p );
    return vResult;
}

Here is the call graph for this function:

◆ Aig_Gla1ManStart()

Aig_Gla1Man_t * Aig_Gla1ManStart	(	Aig_Man_t *	pAig,
		Vec_Int_t *	vGateClassesOld,
		int	fNaiveCnf )

Function*************************************************************

Synopsis []

Description []

SideEffects []

SeeAlso []

Definition at line 474 of file saigGlaCba.c.

{
    Aig_Gla1Man_t * p;
    int i;

    p = ABC_CALLOC( Aig_Gla1Man_t, 1 );
    p->pAig      = pAig;
    p->nFrames   = 32;

    // unrolling
    p->vObj2Vec  = Vec_IntStart( Aig_ManObjNumMax(pAig) );
    p->vVec2Var  = Vec_IntAlloc( 1 << 20 );
    p->vVar2Inf  = Vec_IntAlloc( 1 << 20 );

    // skip first vector ID
    for ( i = 0; i < p->nFrames; i++ )
        Vec_IntPush( p->vVec2Var, -1 );
    // skip  first SAT variable
    Vec_IntPush( p->vVar2Inf, -1 );
    Vec_IntPush( p->vVar2Inf, -1 );

    // abstraction
    p->vAssigned = Vec_IntAlloc( 1000 );
    if ( vGateClassesOld )
    {
        p->vIncluded = Vec_IntDup( vGateClassesOld );
        Aig_Gla1CollectAssigned( p, vGateClassesOld );
        assert( fNaiveCnf );
    }
    else
        p->vIncluded = Vec_IntStart( Aig_ManObjNumMax(pAig) );

    // components
    p->vPis      = Vec_IntAlloc( 1000 );
    p->vPPis     = Vec_IntAlloc( 1000 );
    p->vFlops    = Vec_IntAlloc( 1000 );
    p->vNodes    = Vec_IntAlloc( 1000 );

    // CNF computation
    if ( !fNaiveCnf )
    {
        p->vLeaves   = Vec_PtrAlloc( 100 );
        p->vVolume   = Vec_PtrAlloc( 100 );
        p->vCover    = Vec_IntAlloc( 1 << 16 );
        p->vObj2Cnf  = Vec_PtrStart( Aig_ManObjNumMax(pAig) );
        p->vLits     = Vec_IntAlloc( 100 );
        Cnf_DeriveFastMark( pAig );
    }

    // start the SAT solver
    p->pSat = sat_solver_new();
    sat_solver_setnvars( p->pSat, 256 );
    return p;
}

Here is the call graph for this function:

Here is the caller graph for this function:

◆ Aig_Gla1ManStop()

void Aig_Gla1ManStop ( Aig_Gla1Man_t * p )

Function*************************************************************

Synopsis []

Description []

SideEffects []

SeeAlso []

Definition at line 541 of file saigGlaCba.c.

{
    Vec_IntFreeP( &p->vObj2Vec );
    Vec_IntFreeP( &p->vVec2Var );
    Vec_IntFreeP( &p->vVar2Inf );

    Vec_IntFreeP( &p->vAssigned );
    Vec_IntFreeP( &p->vIncluded );

    Vec_IntFreeP( &p->vPis );
    Vec_IntFreeP( &p->vPPis );
    Vec_IntFreeP( &p->vFlops );
    Vec_IntFreeP( &p->vNodes );

    if ( p->vObj2Cnf )
    {
        Vec_PtrFreeP( &p->vLeaves );
        Vec_PtrFreeP( &p->vVolume );
        Vec_IntFreeP( &p->vCover );
        Vec_VecFreeP( (Vec_Vec_t **)&p->vObj2Cnf );
        Vec_IntFreeP( &p->vLits );
        Aig_ManCleanMarkA( p->pAig );
    }

    if ( p->pSat )
        sat_solver_delete( p->pSat );
    ABC_FREE( p );
}

Here is the call graph for this function:

Here is the caller graph for this function:

◆ Aig_Gla1ObjAddToSolver()

int Aig_Gla1ObjAddToSolver	(	Aig_Gla1Man_t *	p,
		Aig_Obj_t *	pObj,
		int	k )

Function*************************************************************

Synopsis [Adds CNF for the given object in the given frame.]

Description [Returns 0, if the solver becames UNSAT.]

SideEffects []

SeeAlso []

Definition at line 354 of file saigGlaCba.c.

{
    if ( k == p->nFrames )
    {
        int i, j, nVecIds = Vec_IntSize( p->vVec2Var ) / p->nFrames;
        Vec_Int_t * vVec2VarNew = Vec_IntAlloc( 4 * nVecIds * p->nFrames );
        for ( i = 0; i < nVecIds; i++ )
        {
            for ( j = 0; j < p->nFrames; j++ )
                Vec_IntPush( vVec2VarNew, Vec_IntEntry( p->vVec2Var, i * p->nFrames + j ) );
            for ( j = 0; j < p->nFrames; j++ )
                Vec_IntPush( vVec2VarNew, i ? 0 : -1 );
        }
        Vec_IntFree( p->vVec2Var );
        p->vVec2Var = vVec2VarNew;
        p->nFrames *= 2;
    }
    assert( k < p->nFrames );
    assert( Vec_IntEntry(p->vIncluded, Aig_ObjId(pObj)) );
    if ( Aig_ObjIsConst1(pObj) )
        return Aig_Gla1AddConst( p->pSat, Aig_Gla1FetchVar(p, pObj, k), 0 );
    if ( Saig_ObjIsLo(p->pAig, pObj) )
    {
        Aig_Obj_t * pObjLi = Saig_ObjLoToLi(p->pAig, pObj);
        if ( k == 0 )
        {
            Aig_Gla1FetchVecId( p, Aig_ObjFanin0(pObjLi) );
            return Aig_Gla1AddConst( p->pSat, Aig_Gla1FetchVar(p, pObj, k), 1 );
        }
        return Aig_Gla1AddBuffer( p->pSat, Aig_Gla1FetchVar(p, pObj, k),
                   Aig_Gla1FetchVar(p, Aig_ObjFanin0(pObjLi), k-1),
                   Aig_ObjFaninC0(pObjLi) );
    }
    else
    {
        Vec_Int_t * vClauses;
        int i, Entry;
        assert( Aig_ObjIsNode(pObj) );
        if ( p->vObj2Cnf == NULL )
            return Aig_Gla1AddNode( p->pSat, Aig_Gla1FetchVar(p, pObj, k),
                       Aig_Gla1FetchVar(p, Aig_ObjFanin0(pObj), k),
                       Aig_Gla1FetchVar(p, Aig_ObjFanin1(pObj), k),
                       Aig_ObjFaninC0(pObj), Aig_ObjFaninC1(pObj) );
        // derive clauses
        assert( pObj->fMarkA );
        vClauses = (Vec_Int_t *)Vec_PtrEntry( p->vObj2Cnf, Aig_ObjId(pObj) );
        if ( vClauses == NULL )
        {
            Vec_PtrWriteEntry( p->vObj2Cnf, Aig_ObjId(pObj), (vClauses = Vec_IntAlloc(16)) );
            Cnf_ComputeClauses( p->pAig, pObj, p->vLeaves, p->vVolume, NULL, p->vCover, vClauses );
        }
        // derive variables
        Cnf_CollectLeaves( pObj, p->vLeaves, 0 );
        Vec_PtrForEachEntry( Aig_Obj_t *, p->vLeaves, pObj, i )
            Aig_Gla1FetchVar( p, pObj, k );
        // translate clauses
        assert( Vec_IntSize(vClauses) >= 2 );
        assert( Vec_IntEntry(vClauses, 0) == 0 );
        Vec_IntForEachEntry( vClauses, Entry, i )
        {
            if ( Entry == 0 )
            {
                Vec_IntClear( p->vLits );
                continue;
            }
            Vec_IntPush( p->vLits, (Entry & 1) ^ (2 * Aig_Gla1FetchVar(p, Aig_ManObj(p->pAig, Entry >> 1), k)) );
            if ( i == Vec_IntSize(vClauses) - 1 || Vec_IntEntry(vClauses, i+1) == 0 )
            {
                if ( !sat_solver_addclause( p->pSat, Vec_IntArray(p->vLits), Vec_IntArray(p->vLits)+Vec_IntSize(p->vLits) ) )
                    return 0;
            }
        }
        return 1;
    }
}

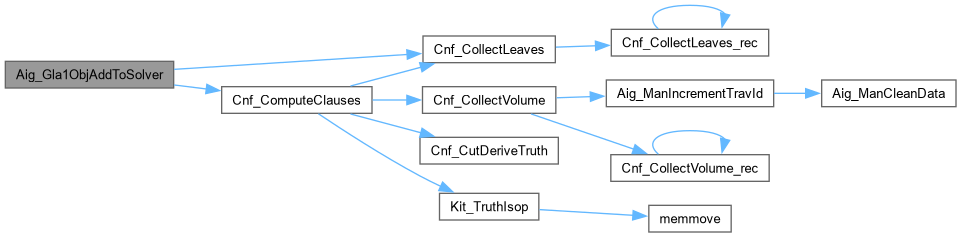

Here is the call graph for this function:

Here is the caller graph for this function:

◆ Aig_Gla1PrintAbstr()

void Aig_Gla1PrintAbstr	(	Aig_Gla1Man_t *	p,
		int	f,
		int	r,
		int	v,
		int	c )

Function*************************************************************

Synopsis [Prints current abstraction statistics.]

Description []

SideEffects []

SeeAlso []

Definition at line 630 of file saigGlaCba.c.

{
    if ( r == 0 )
        printf( "== %3d ==", f );
    else
        printf( "         " );
    printf( " %4d  PI =%6d  PPI =%6d  FF =%6d  Node =%6d  Var =%7d  Conf =%6d\n",
        r, Vec_IntSize(p->vPis), Vec_IntSize(p->vPPis), Vec_IntSize(p->vFlops), Vec_IntSize(p->vNodes), v, c );
}

Here is the caller graph for this function:

Classes

Typedefs

Functions

Typedef Documentation

◆ Aig_Gla1Man_t

Function Documentation

◆ Aig_Gla1CollectAbstr()

◆ Aig_Gla1CollectAssigned()

◆ Aig_Gla1DeriveAbs()

◆ Aig_Gla1DeriveAbs_rec()

◆ Aig_Gla1DeriveCex()

◆ Aig_Gla1ExtendIncluded()

◆ Aig_Gla1ManPerform()

◆ Aig_Gla1ManStart()

◆ Aig_Gla1ManStop()

◆ Aig_Gla1ObjAddToSolver()

◆ Aig_Gla1PrintAbstr()
