sscInt.h File Reference

#include "aig/gia/gia.h"
#include "sat/bsat/satSolver.h"
#include "ssc.h"

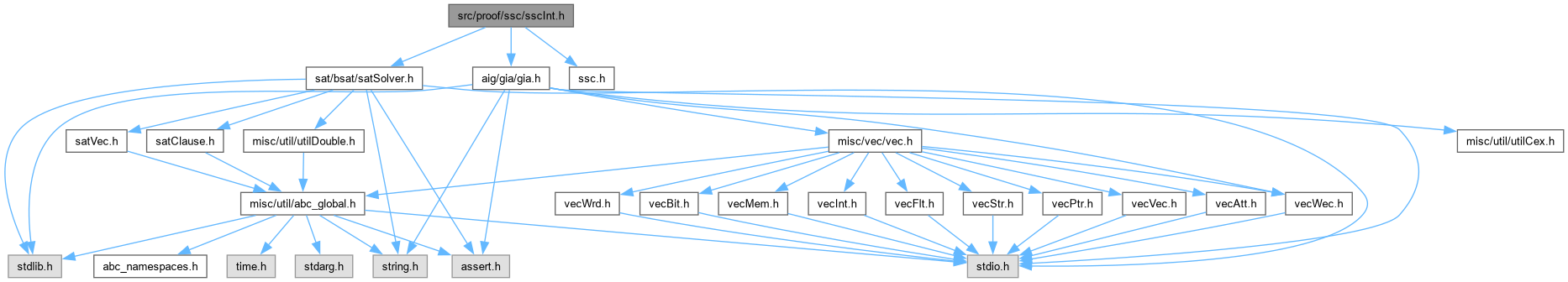

Include dependency graph for sscInt.h:

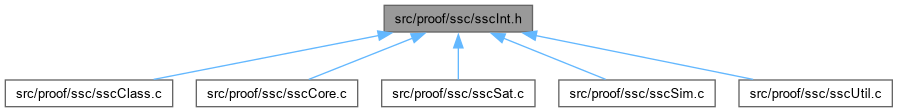

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Classes
struct	Ssc_Man_t_

Typedefs
typedef typedefABC_NAMESPACE_HEADER_START struct Ssc_Man_t_	Ssc_Man_t
	INCLUDES ///.

Functions
void	Ssc_GiaClassesInit (Gia_Man_t *p)
	FUNCTION DECLARATIONS ///.
int	Ssc_GiaClassesRefine (Gia_Man_t *p)
void	Ssc_GiaClassesCheckPairs (Gia_Man_t *p, Vec_Int_t *vDisPairs)
int	Ssc_GiaSimClassRefineOneBit (Gia_Man_t *p, int i)
void	Ssc_CnfNodeAddToSolver (Ssc_Man_t *p, Gia_Obj_t *pObj)
void	Ssc_ManSatSolverRecycle (Ssc_Man_t *p)
void	Ssc_ManStartSolver (Ssc_Man_t *p)
Vec_Int_t *	Ssc_ManFindPivotSat (Ssc_Man_t *p)
int	Ssc_ManCheckEquivalence (Ssc_Man_t *p, int iRepr, int iObj, int fCompl)
void	Ssc_GiaResetPiPattern (Gia_Man_t *p, int nWords)
void	Ssc_GiaRandomPiPattern (Gia_Man_t *p, int nWords, Vec_Int_t *vPivot)
int	Ssc_GiaTransferPiPattern (Gia_Man_t *pAig, Gia_Man_t *pCare, Vec_Int_t *vPivot)
void	Ssc_GiaSavePiPattern (Gia_Man_t *p, Vec_Int_t *vPat)
void	Ssc_GiaSimRound (Gia_Man_t *p)
Vec_Int_t *	Ssc_GiaFindPivotSim (Gia_Man_t *p)
int	Ssc_GiaEstimateCare (Gia_Man_t *p, int nWords)
Gia_Man_t *	Ssc_GenerateOneHot (int nVars)

Typedef Documentation

Ssc_Man_t

typedef typedefABC_NAMESPACE_HEADER_START struct Ssc_Man_t_ Ssc_Man_t

INCLUDES ///.

CFile****************************************************************

FileName [sscInt.h]

SystemName [ABC: Logic synthesis and verification system.]

PackageName [Choice computation for tech-mapping.]

Synopsis [Internal declarations.]

Author [Alan Mishchenko]

Affiliation [UC Berkeley]

Date [Ver. 1.0. Started - June 29, 2008.]

Revision [

Id

sscInt.h,v 1.00 2008/07/29 00:00:00 alanmi Exp

] PARAMETERS /// BASIC TYPES ///

Definition at line 46 of file sscInt.h.

Function Documentation

Ssc_CnfNodeAddToSolver()

void Ssc_CnfNodeAddToSolver ( Ssc_Man_t * p, Gia_Obj_t * pObj )

extern

Ssc_GenerateOneHot()

Gia_Man_t * Ssc_GenerateOneHot ( int nVars )

extern

Ssc_GiaClassesCheckPairs()

void Ssc_GiaClassesCheckPairs ( Gia_Man_t * p, Vec_Int_t * vDisPairs )

extern

Function*************************************************************

Synopsis [Check if the pairs have been disproved.]

Description []

SideEffects []

SeeAlso []

Definition at line 309 of file sscClass.c.

{
    int i, iRepr, iObj, Result = 1;
    Vec_IntForEachEntryDouble( vDisPairs, iRepr, iObj, i )
        if ( iRepr == Gia_ObjRepr(p, iObj) )
            printf( "Pair (%d, %d) are still equivalent.\n", iRepr, iObj ), Result = 0;
//    if ( Result )
//        printf( "Classes are refined correctly.\n" );
}

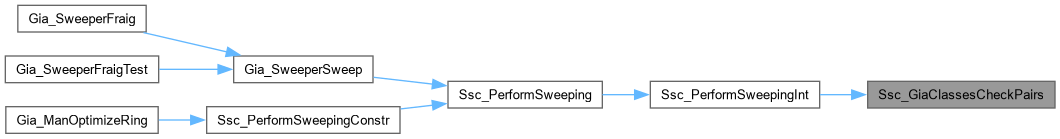

Here is the caller graph for this function:

Ssc_GiaClassesInit()

void Ssc_GiaClassesInit ( Gia_Man_t * p )

extern

FUNCTION DECLARATIONS ///.

Function*************************************************************

Synopsis [Refines equivalence classes.]

Description []

SideEffects []

SeeAlso []

Definition at line 265 of file sscClass.c.

{
    Gia_Obj_t * pObj;
    int i;
    assert( p->pReprs == NULL );
    p->pReprs = ABC_CALLOC( Gia_Rpr_t, Gia_ManObjNum(p) );
    p->pNexts = ABC_CALLOC( int, Gia_ManObjNum(p) );
    Gia_ManForEachObj( p, pObj, i )
        Gia_ObjSetRepr( p, i, Gia_ObjIsCand(pObj) ? 0 : GIA_VOID );
    if ( p->vClassOld == NULL )
        p->vClassOld = Vec_IntAlloc( 100 );
    if ( p->vClassNew == NULL )
        p->vClassNew = Vec_IntAlloc( 100 );
}

Here is the caller graph for this function:

Ssc_GiaClassesRefine()

int Ssc_GiaClassesRefine ( Gia_Man_t * p )

extern

Definition at line 279 of file sscClass.c.

{
    Vec_Int_t * vRefinedC;
    Gia_Obj_t * pObj;
    int i, Counter = 0;
    assert( p->pReprs != NULL );
    vRefinedC = Vec_IntAlloc( 100 );
    Gia_ManForEachCand( p, pObj, i )
        if ( Gia_ObjIsTail(p, i) )
            Counter += Ssc_GiaSimClassRefineOne( p, Gia_ObjRepr(p, i) );
        else if ( Gia_ObjIsConst(p, i) && !Ssc_GiaSimIsConst0(p, i) )
            Vec_IntPush( vRefinedC, i );
    Ssc_GiaSimProcessRefined( p, vRefinedC );
    Counter += Vec_IntSize( vRefinedC );
    Vec_IntFree( vRefinedC );
    return Counter;
}

Here is the call graph for this function:

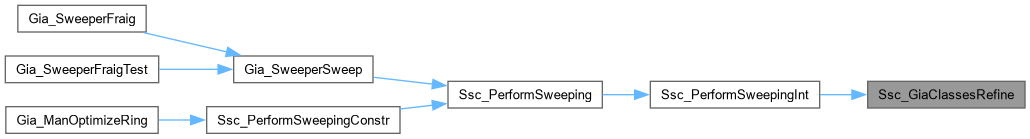

Here is the caller graph for this function:

Ssc_GiaEstimateCare()

int Ssc_GiaEstimateCare ( Gia_Man_t * p, int nWords )

extern

Definition at line 351 of file sscSim.c.

{
    Ssc_GiaRandomPiPattern( p, nWords, NULL );
    Ssc_GiaSimRound( p );
    return Ssc_GiaCountCaresSim( p );
}

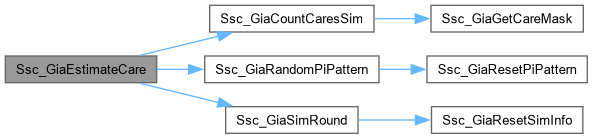

Here is the call graph for this function:

Here is the caller graph for this function:

Ssc_GiaFindPivotSim()

Vec_Int_t * Ssc_GiaFindPivotSim ( Gia_Man_t * p )

extern

Definition at line 323 of file sscSim.c.

{
    Vec_Int_t * vInit;
    Ssc_GiaRandomPiPattern( p, 1, NULL );
    Ssc_GiaSimRound( p );
    vInit = Ssc_GiaGetOneSim( p );
    return vInit;
}

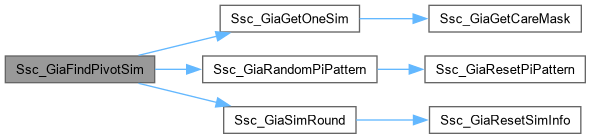

Here is the call graph for this function:

Ssc_GiaRandomPiPattern()

void Ssc_GiaRandomPiPattern ( Gia_Man_t * p, int nWords, Vec_Int_t * vPivot )

extern

Definition at line 163 of file sscSim.c.

{
    word * pSimPi;
    int i, w;
    Ssc_GiaResetPiPattern( p, nWords );
    pSimPi = Gia_ObjSimPi( p, 0 );
    for ( i = 0; i < Gia_ManPiNum(p); i++, pSimPi += nWords )
    {
        pSimPi[0] = vPivot ? Ssc_Random1(Vec_IntEntry(vPivot, i)) : Ssc_Random2();
        for ( w = 1; w < nWords; w++ )
            pSimPi[w] = Ssc_Random();
//        if ( i < 10 )
//            Extra_PrintBinary( stdout, (unsigned *)pSimPi, 64 ), printf( "\n" );
    }
}

Here is the call graph for this function:

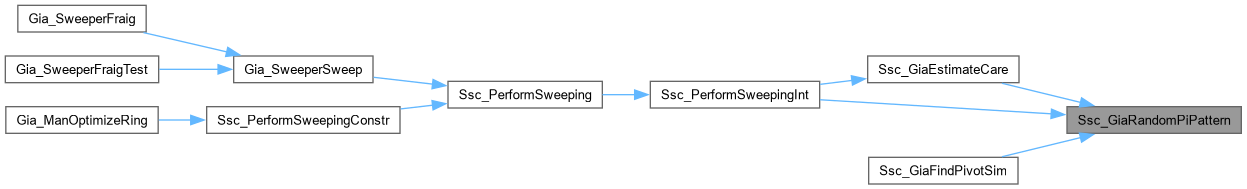

Here is the caller graph for this function:

Ssc_GiaResetPiPattern()

void Ssc_GiaResetPiPattern ( Gia_Man_t * p, int nWords )

extern

Function*************************************************************

Synopsis []

Description []

SideEffects []

SeeAlso []

Definition at line 141 of file sscSim.c.

{
    p->iPatsPi = 0;
    if ( p->vSimsPi == NULL )
        p->vSimsPi = Vec_WrdStart(0);
    Vec_WrdFill( p->vSimsPi, nWords * Gia_ManCiNum(p), 0 );
    assert( nWords == Gia_ObjSimWords( p ) );
}

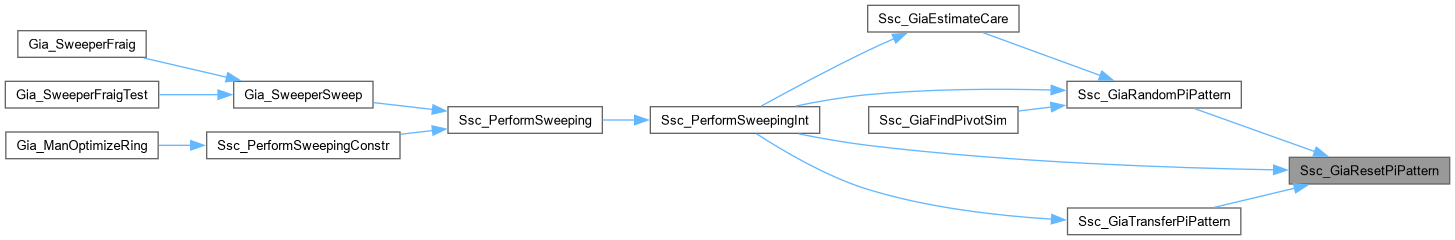

Here is the caller graph for this function:

Ssc_GiaSavePiPattern()

void Ssc_GiaSavePiPattern ( Gia_Man_t * p, Vec_Int_t * vPat )

extern

Definition at line 149 of file sscSim.c.

{
    word * pSimPi;
    int i;
    assert( Vec_IntSize(vPat) == Gia_ManCiNum(p) );
    if ( p->iPatsPi == 64 * Gia_ObjSimWords(p) )
        Vec_WrdDoubleSimInfo( p->vSimsPi, Gia_ManCiNum(p) );
    assert( p->iPatsPi < 64 * Gia_ObjSimWords(p) );
    pSimPi = Gia_ObjSimPi( p, 0 );
    for ( i = 0; i < Gia_ManCiNum(p); i++, pSimPi += Gia_ObjSimWords(p) )
        if ( Vec_IntEntry(vPat, i) )
            Abc_InfoSetBit( (unsigned *)pSimPi, p->iPatsPi );
    p->iPatsPi++;
}

Here is the call graph for this function:

Here is the caller graph for this function:

Ssc_GiaSimClassRefineOneBit()

int Ssc_GiaSimClassRefineOneBit ( Gia_Man_t * p, int i )

extern

Function*************************************************************

Synopsis [Refines one equivalence class using individual bit-pattern.]

Description []

SideEffects []

SeeAlso []

Definition at line 162 of file sscClass.c.

{
    Gia_Obj_t * pObj;
    int Ent;
    assert( Gia_ObjIsHead( p, i ) );
    Vec_IntClear( p->vClassOld );
    Vec_IntClear( p->vClassNew );
    Vec_IntPush( p->vClassOld, i );
    pObj = Gia_ManObj(p, i);
    Gia_ClassForEachObj1( p, i, Ent )
    {
        if ( Ssc_GiaSimAreEqualBit( p, i, Ent ) )
            Vec_IntPush( p->vClassOld, Ent );
        else
            Vec_IntPush( p->vClassNew, Ent );
    }
    if ( Vec_IntSize( p->vClassNew ) == 0 )
        return 0;
    Ssc_GiaSimClassCreate( p, p->vClassOld );
    Ssc_GiaSimClassCreate( p, p->vClassNew );
    return 1;
}

Here is the call graph for this function:

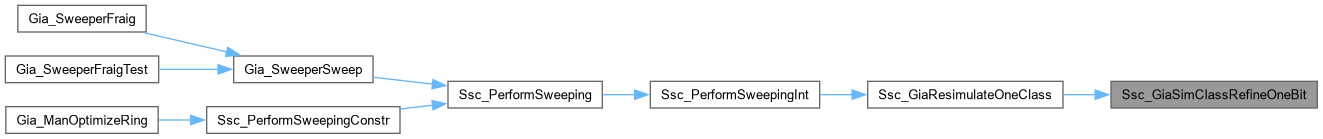

Here is the caller graph for this function:

Ssc_GiaSimRound()

void Ssc_GiaSimRound ( Gia_Man_t * p )

extern

Definition at line 247 of file sscSim.c.

{
    Gia_Obj_t * pObj;
    word * pSim, * pSim0, * pSim1;
    int i, nWords = Gia_ObjSimWords(p);
    Ssc_GiaResetSimInfo( p );
    assert( nWords == Vec_WrdSize(p->vSims) / Gia_ManObjNum(p) );
    // constant node
    Ssc_SimConst( Gia_ObjSim(p, 0), nWords, 0 );
    // primary inputs
    pSim = Gia_ObjSim( p, 1 );
    pSim0 = Gia_ObjSimPi( p, 0 );
    Gia_ManForEachCi( p, pObj, i )
    {
        assert( pSim == Gia_ObjSimObj( p, pObj ) );
        Ssc_SimDup( pSim, pSim0, nWords, 0 );
        pSim += nWords;
        pSim0 += nWords;
    }
    // intermediate nodes
    pSim = Gia_ObjSim( p, 1+Gia_ManCiNum(p) );
    Gia_ManForEachAnd( p, pObj, i )
    {
        assert( pSim == Gia_ObjSim( p, i ) );
        pSim0 = pSim - pObj->iDiff0 * nWords;
        pSim1 = pSim - pObj->iDiff1 * nWords;
        Ssc_SimAnd( pSim, pSim0, pSim1, nWords, Gia_ObjFaninC0(pObj), Gia_ObjFaninC1(pObj) );
        pSim += nWords;
    }
    // primary outputs
    pSim = Gia_ObjSim( p, Gia_ManObjNum(p) - Gia_ManPoNum(p) );
    Gia_ManForEachPo( p, pObj, i )
    {
        assert( pSim == Gia_ObjSimObj( p, pObj ) );
        pSim0 = pSim - pObj->iDiff0 * nWords;
        Ssc_SimDup( pSim, pSim0, nWords, Gia_ObjFaninC0(pObj) );
//        Extra_PrintBinary( stdout, pSim, 64 ), printf( "\n" );
        pSim += nWords;
    }
}

Here is the call graph for this function:

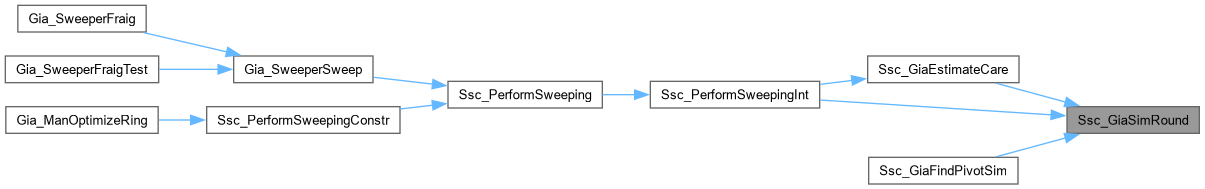

Here is the caller graph for this function:

Ssc_GiaTransferPiPattern()

int Ssc_GiaTransferPiPattern ( Gia_Man_t * pAig, Gia_Man_t * pCare, Vec_Int_t * vPivot )

extern

Function*************************************************************

Synopsis [Transfer the simulation pattern from pCare to pAig.]

Description []

SideEffects []

SeeAlso []

Definition at line 201 of file sscSim.c.

{
    extern word * Ssc_GiaGetCareMask( Gia_Man_t * p );
    Gia_Obj_t * pObj;
    int i, w, nWords = Gia_ObjSimWords( pCare );
    word * pCareMask = Ssc_GiaGetCareMask( pCare );
    int Count = Ssc_SimCountBits( pCareMask, nWords );
    word * pSimPiCare, * pSimPiAig;
    if ( Count == 0 )
    {
        ABC_FREE( pCareMask );
        return 0;
    }
    Ssc_GiaResetPiPattern( pAig, nWords );
    Gia_ManForEachCi( pCare, pObj, i )
    {
        pSimPiAig  = Gia_ObjSimPi( pAig, i );
        pSimPiCare = Gia_ObjSimObj( pCare, pObj );
        for ( w = 0; w < nWords; w++ )
            if ( Vec_IntEntry(vPivot, i) )
                pSimPiAig[w] = pSimPiCare[w] | ~pCareMask[w];
            else
                pSimPiAig[w] = pSimPiCare[w] & pCareMask[w];
    }
    ABC_FREE( pCareMask );
    return Count;
}

Here is the call graph for this function:

Here is the caller graph for this function:

Ssc_ManCheckEquivalence()

int Ssc_ManCheckEquivalence ( Ssc_Man_t * p, int iRepr, int iNode, int fCompl )

extern

Function*************************************************************

Synopsis []

Description []

SideEffects []

SeeAlso []

Definition at line 348 of file sscSat.c.

{
    int pLitsSat[2], RetValue;
    abctime clk;
    assert( iRepr != iNode );
    if ( iRepr > iNode )
        return l_Undef;
    assert( iRepr < iNode );
//    if ( p->nTimeOut )
//        sat_solver_set_runtime_limit( p->pSat, p->nTimeOut * CLOCKS_PER_SEC + Abc_Clock() );

    // create CNF
    if ( iRepr )
    Ssc_ManCnfNodeAddToSolver( p, iRepr );
    Ssc_ManCnfNodeAddToSolver( p, iNode );
    sat_solver_compress( p->pSat );

    // order the literals
    pLitsSat[0] = Abc_Var2Lit( Ssc_ObjSatVar(p, iRepr), 0 );
    pLitsSat[1] = Abc_Var2Lit( Ssc_ObjSatVar(p, iNode), fCompl ^ (int)(iRepr > 0) );

    // solve under assumptions
    // A = 1; B = 0
    clk = Abc_Clock();
    RetValue = sat_solver_solve( p->pSat, pLitsSat, pLitsSat + 2, (ABC_INT64_T)p->pPars->nBTLimit, (ABC_INT64_T)0, (ABC_INT64_T)0, (ABC_INT64_T)0 );
    if ( RetValue == l_False )
    {
        pLitsSat[0] = Abc_LitNot( pLitsSat[0] ); // compl
        pLitsSat[1] = Abc_LitNot( pLitsSat[1] ); // compl
        RetValue = sat_solver_addclause( p->pSat, pLitsSat, pLitsSat + 2 );
        assert( RetValue );
        p->timeSatUnsat += Abc_Clock() - clk;
    }
    else if ( RetValue == l_True )
    {
        Ssc_ManCollectSatPattern( p, p->vPattern );
        p->timeSatSat += Abc_Clock() - clk;
        return l_True;
    }
    else // if ( RetValue1 == l_Undef )
    {
        p->timeSatUndec += Abc_Clock() - clk;
        return l_Undef;
    }

    // if the old node was constant 0, we already know the answer
    if ( iRepr == 0 )
        return l_False;

    // solve under assumptions
    // A = 0; B = 1
    clk = Abc_Clock();
    RetValue = sat_solver_solve( p->pSat, pLitsSat, pLitsSat + 2, (ABC_INT64_T)p->pPars->nBTLimit, (ABC_INT64_T)0, (ABC_INT64_T)0, (ABC_INT64_T)0 );
    if ( RetValue == l_False )
    {
        pLitsSat[0] = Abc_LitNot( pLitsSat[0] );
        pLitsSat[1] = Abc_LitNot( pLitsSat[1] );
        RetValue = sat_solver_addclause( p->pSat, pLitsSat, pLitsSat + 2 );
        assert( RetValue );
        p->timeSatUnsat += Abc_Clock() - clk;
    }
    else if ( RetValue == l_True )
    {
        Ssc_ManCollectSatPattern( p, p->vPattern );
        p->timeSatSat += Abc_Clock() - clk;
        return l_True;
    }
    else // if ( RetValue1 == l_Undef )
    {
        p->timeSatUndec += Abc_Clock() - clk;
        return l_Undef;
    }
    return l_False;
}

Here is the call graph for this function:

Here is the caller graph for this function:

Ssc_ManFindPivotSat()

Vec_Int_t * Ssc_ManFindPivotSat ( Ssc_Man_t * p )

extern

Definition at line 323 of file sscSat.c.

{
    Vec_Int_t * vInit;
    int status = sat_solver_solve( p->pSat, NULL, NULL, p->pPars->nBTLimit, 0, 0, 0 );
    if ( status == l_False )
        return (Vec_Int_t *)(ABC_PTRINT_T)1;
    if ( status == l_Undef )
        return NULL;
    assert( status == l_True );
    vInit = Vec_IntAlloc( Gia_ManCiNum(p->pFraig) );
    Ssc_ManCollectSatPattern( p, vInit );
    return vInit;
}

Here is the call graph for this function:

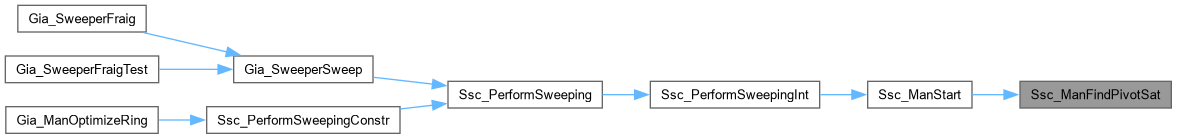

Here is the caller graph for this function:

Ssc_ManSatSolverRecycle()

void Ssc_ManSatSolverRecycle ( Ssc_Man_t * p )

extern

Ssc_ManStartSolver()

void Ssc_ManStartSolver ( Ssc_Man_t * p )

extern

Function*************************************************************

Synopsis [Starts the SAT solver for constraints.]

Description []

SideEffects []

SeeAlso []

Definition at line 261 of file sscSat.c.

{
    Aig_Man_t * pMan = Gia_ManToAigSimple( p->pFraig );
    Cnf_Dat_t * pDat = Cnf_Derive( pMan, 0 );
    Gia_Obj_t * pObj;
    sat_solver * pSat;
    int i, status;
    assert( p->pSat == NULL && p->vId2Var == NULL );
    assert( Aig_ManObjNumMax(pMan) == Gia_ManObjNum(p->pFraig) );
    Aig_ManStop( pMan );
    // save variable mapping
    p->nSatVarsPivot = p->nSatVars = pDat->nVars;
    p->vId2Var = Vec_IntStart( Gia_ManCandNum(p->pAig) + Gia_ManCandNum(p->pCare) + 10 ); // mapping of each node into its SAT var
    p->vVar2Id = Vec_IntStart( Gia_ManCandNum(p->pAig) + Gia_ManCandNum(p->pCare) + 10 ); // mapping of each SAT var into its node
    Ssc_ObjSetSatVar( p, 0, pDat->pVarNums[0] );
    Gia_ManForEachCi( p->pFraig, pObj, i )
    {
        int iObj = Gia_ObjId( p->pFraig, pObj );
        Ssc_ObjSetSatVar( p, iObj, pDat->pVarNums[iObj] );
    }
//Cnf_DataWriteIntoFile( pDat, "dump.cnf", 1, NULL, NULL );
    // start the SAT solver
    pSat = sat_solver_new();
    sat_solver_setnvars( pSat, pDat->nVars + 1000 );
    for ( i = 0; i < pDat->nClauses; i++ )
    {
        if ( !sat_solver_addclause( pSat, pDat->pClauses[i], pDat->pClauses[i+1] ) )
        {
            Cnf_DataFree( pDat );
            sat_solver_delete( pSat );
            return;
        }
    }
    Cnf_DataFree( pDat );
    status = sat_solver_simplify( pSat );
    if ( status == 0 )
    {
        sat_solver_delete( pSat );
        return;
    }
    p->pSat = pSat;
}

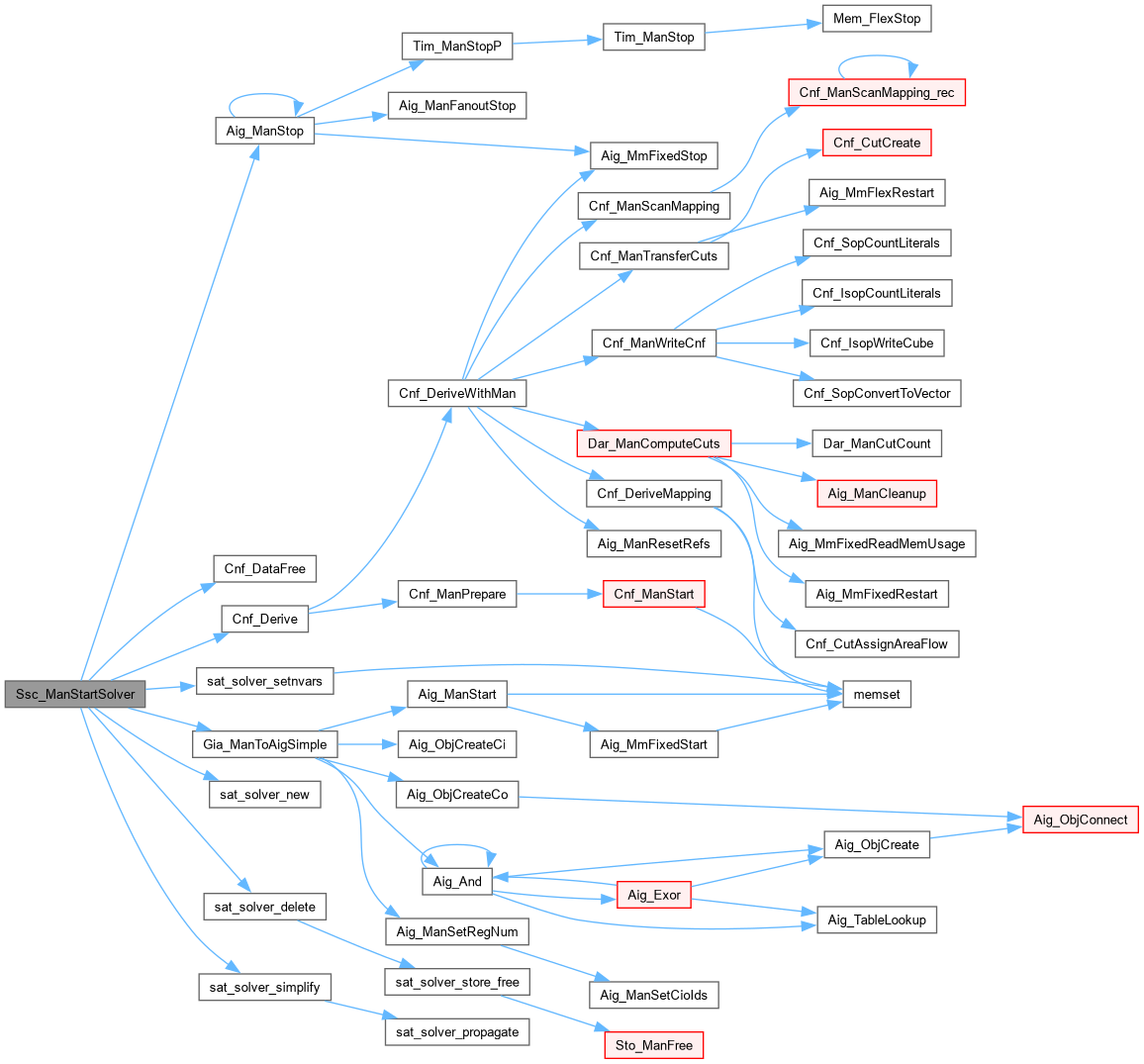

Here is the call graph for this function:

Here is the caller graph for this function:
