bmcBmc.c File Reference

#include "proof/fra/fra.h"
#include "sat/cnf/cnf.h"
#include "sat/bsat/satStore.h"
#include "sat/satoko/satoko.h"
#include "bmc.h"
#include "misc/util/utilMem.h"

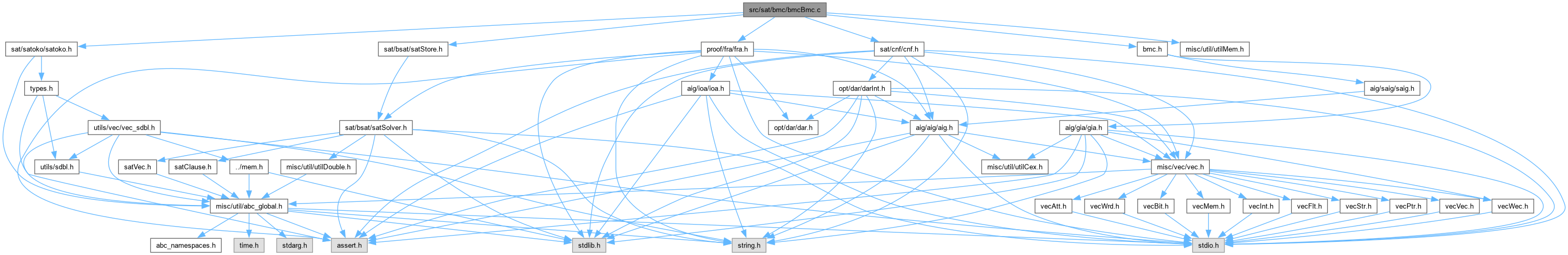

Include dependency graph for bmcBmc.c:

Go to the source code of this file.

Functions
ABC_NAMESPACE_IMPL_START Aig_Man_t *	Saig_ManFramesBmc (Aig_Man_t *pAig, int nFrames)
	DECLARATIONS ///.
int	Saig_ManFramesCount_rec (Aig_Man_t *p, Aig_Obj_t *pObj)
Aig_Man_t *	Saig_ManFramesBmcLimit (Aig_Man_t *pAig, int nFrames, int nSizeMax)
ABC_NAMESPACE_IMPL_END ABC_NAMESPACE_IMPL_START int *	Sat2_SolverGetModel (satoko_t *p, int *pVars, int nVars)
int	Saig_ManBmcSimple (Aig_Man_t *pAig, int nFrames, int nSizeMax, int nConfLimit, int fRewrite, int fVerbose, int *piFrame, int nCofFanLit, int fUseSatoko)

Function Documentation

Saig_ManBmcSimple()

int Saig_ManBmcSimple	(	Aig_Man_t *	pAig,
		int	nFrames,
		int	nSizeMax,
		int	nConfLimit,
		int	fRewrite,
		int	fVerbose,
		int *	piFrame,
		int	nCofFanLit,
		int	fUseSatoko )

Function*************************************************************

Synopsis [Performs BMC for the given AIG.]

Description []

SideEffects []

SeeAlso []

Definition at line 207 of file bmcBmc.c.

{
    extern Aig_Man_t * Gia_ManCofactorAig( Aig_Man_t * p, int nFrames, int nCofFanLit );
    sat_solver * pSat = NULL;
    satoko_t * pSat2 = NULL;
    Cnf_Dat_t * pCnf;
    Aig_Man_t * pFrames, * pAigTemp;
    Aig_Obj_t * pObj;
    int status, Lit, i, RetValue = -1;
    abctime clk;

    // derive the timeframes
    clk = Abc_Clock();
    if ( nCofFanLit )
    {
        pFrames = Gia_ManCofactorAig( pAig, nFrames, nCofFanLit );
        if ( pFrames == NULL )
            return -1;
    }
    else if ( nSizeMax > 0 )
    {
        pFrames = Saig_ManFramesBmcLimit( pAig, nFrames, nSizeMax );
        nFrames = Aig_ManCoNum(pFrames) / Saig_ManPoNum(pAig) + ((Aig_ManCoNum(pFrames) % Saig_ManPoNum(pAig)) > 0);
    }
    else
        pFrames = Saig_ManFramesBmc( pAig, nFrames );
    if ( piFrame )
        *piFrame = nFrames;
    if ( fVerbose )
    {
        printf( "Running \"bmc\". AIG:  PI/PO/Reg = %d/%d/%d.  Node = %6d. Lev = %5d.\n",
            Saig_ManPiNum(pAig), Saig_ManPoNum(pAig), Saig_ManRegNum(pAig),
            Aig_ManNodeNum(pAig), Aig_ManLevelNum(pAig) );
        printf( "Time-frames (%d):  PI/PO = %d/%d.  Node = %6d. Lev = %5d.  ",
            nFrames, Aig_ManCiNum(pFrames), Aig_ManCoNum(pFrames),
            Aig_ManNodeNum(pFrames), Aig_ManLevelNum(pFrames) );
        ABC_PRT( "Time", Abc_Clock() - clk );
        fflush( stdout );
    }
    // rewrite the timeframes
    if ( fRewrite )
    {
        clk = Abc_Clock();
//        pFrames = Dar_ManBalance( pAigTemp = pFrames, 0 );
        pFrames = Dar_ManRwsat( pAigTemp = pFrames, 1, 0 );
        Aig_ManStop( pAigTemp );
        if ( fVerbose )
        {
            printf( "Time-frames after rewriting:  Node = %6d. Lev = %5d.  ",
                Aig_ManNodeNum(pFrames), Aig_ManLevelNum(pFrames) );
            ABC_PRT( "Time", Abc_Clock() - clk );
            fflush( stdout );
        }
    }
    // create the SAT solver
    clk = Abc_Clock();
    pCnf = Cnf_Derive( pFrames, Aig_ManCoNum(pFrames) );
//if ( s_fInterrupt )
//return -1;
    if ( fUseSatoko )
    {
        satoko_opts_t opts;
        satoko_default_opts(&opts);
        opts.conf_limit = nConfLimit;
        pSat2 = satoko_create();
        satoko_configure(pSat2, &opts);
        satoko_setnvars(pSat2, pCnf->nVars);
        for ( i = 0; i < pCnf->nClauses; i++ )
            if ( !satoko_add_clause( pSat2, pCnf->pClauses[i], pCnf->pClauses[i+1]-pCnf->pClauses[i] ) )
                assert( 0 );
    }
    else
    {
        pSat = sat_solver_new();
        sat_solver_setnvars( pSat, pCnf->nVars );
        for ( i = 0; i < pCnf->nClauses; i++ )
            if ( !sat_solver_addclause( pSat, pCnf->pClauses[i], pCnf->pClauses[i+1] ) )
                assert( 0 );
    }
    if ( fVerbose )
    {
        printf( "CNF: Variables = %6d. Clauses = %7d. Literals = %8d. ", pCnf->nVars, pCnf->nClauses, pCnf->nLiterals );
        ABC_PRT( "Time", Abc_Clock() - clk );
        fflush( stdout );
    }
    status = pSat ? sat_solver_simplify(pSat) : 1;
    if ( status == 0 )
    {
        if ( fVerbose )
        {
            printf( "The BMC problem is trivially UNSAT\n" );
            fflush( stdout );
        }
    }
    else
    {
        abctime clkPart = Abc_Clock();
        Aig_ManForEachCo( pFrames, pObj, i )
        {
            Lit = toLitCond( pCnf->pVarNums[pObj->Id], 0 );
            if ( fVerbose )
            {
                printf( "Solving output %2d of frame %3d ... \r",
                    i % Saig_ManPoNum(pAig), i / Saig_ManPoNum(pAig) );
            }
            clk = Abc_Clock();
            if ( pSat2 )
                status = satoko_solve_assumptions_limit( pSat2, &Lit, 1, nConfLimit );
            else
                status = sat_solver_solve( pSat, &Lit, &Lit + 1, (ABC_INT64_T)nConfLimit, (ABC_INT64_T)0, (ABC_INT64_T)0, (ABC_INT64_T)0 );
            if ( fVerbose && (i % Saig_ManPoNum(pAig) == Saig_ManPoNum(pAig) - 1) )
            {
                printf( "Solved %2d outputs of frame %3d.  ",
                    Saig_ManPoNum(pAig), i / Saig_ManPoNum(pAig) );
                printf( "Conf =%8.0f. Imp =%11.0f. ",
                    (double)(pSat ? pSat->stats.conflicts    : satoko_conflictnum(pSat2)),
                    (double)(pSat ? pSat->stats.propagations : satoko_stats(pSat2)->n_propagations) );
                ABC_PRT( "T", Abc_Clock() - clkPart );
                clkPart = Abc_Clock();
                fflush( stdout );
            }
            if ( status == l_False )
            {
/*
                Lit = lit_neg( Lit );
                RetValue = sat_solver_addclause( pSat, &Lit, &Lit + 1 );
                assert( RetValue );
                if ( pSat->qtail != pSat->qhead )
                {
                    RetValue = sat_solver_simplify(pSat);
                    assert( RetValue );
                }
*/
            }
            else if ( status == l_True )
            {
                Vec_Int_t * vCiIds = Cnf_DataCollectPiSatNums( pCnf, pFrames );
                int * pModel = pSat2 ? Sat2_SolverGetModel(pSat2, vCiIds->pArray, vCiIds->nSize) : Sat_SolverGetModel(pSat, vCiIds->pArray, vCiIds->nSize);
                pModel[Aig_ManCiNum(pFrames)] = pObj->Id;
                pAig->pSeqModel = Fra_SmlCopyCounterExample( pAig, pFrames, pModel );
                ABC_FREE( pModel );
                Vec_IntFree( vCiIds );

                if ( piFrame )
                    *piFrame = i / Saig_ManPoNum(pAig);
                RetValue = 0;
                break;
            }
            else
            {
                if ( piFrame )
                    *piFrame = i / Saig_ManPoNum(pAig);
                RetValue = -1;
                break;
            }
        }
    }
    if ( pSat )  sat_solver_delete( pSat );
    if ( pSat2 ) satoko_destroy( pSat2 );
    Cnf_DataFree( pCnf );
    Aig_ManStop( pFrames );
    return RetValue;
}

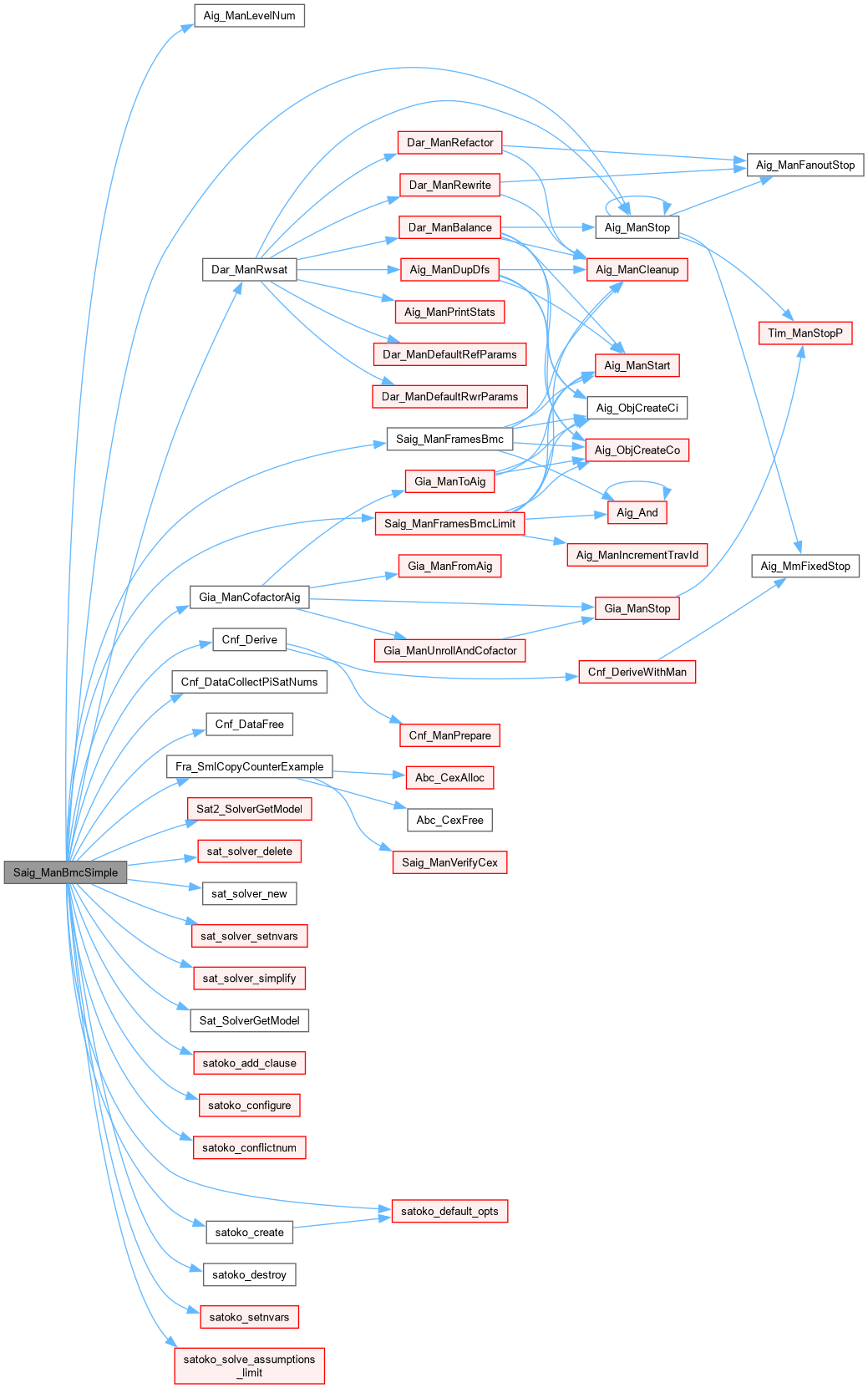

Here is the call graph for this function:

Here is the caller graph for this function:

Saig_ManFramesBmc()

ABC_NAMESPACE_IMPL_START Aig_Man_t * Saig_ManFramesBmc	(	Aig_Man_t *	pAig,
		int	nFrames )

DECLARATIONS ///.

CFile****************************************************************

FileName [bmcBmc.c]

SystemName [ABC: Logic synthesis and verification system.]

PackageName [SAT-based bounded model checking.]

Synopsis [Simple BMC package.]

Author [Alan Mishchenko]

Affiliation [UC Berkeley]

Date [Ver. 1.0. Started - June 20, 2005.]

Revision [

Id

bmcBmc.c,v 1.00 2005/06/20 00:00:00 alanmi Exp

] FUNCTION DEFINITIONS /// Function*************************************************************

Synopsis [Create timeframes of the manager for BMC.]

Description [The resulting manager is combinational. POs correspond to \ the property outputs in each time-frame.]

SideEffects []

SeeAlso []

Definition at line 49 of file bmcBmc.c.

{
    Aig_Man_t * pFrames;
    Aig_Obj_t * pObj, * pObjLi, * pObjLo;
    int i, f;
    assert( Saig_ManRegNum(pAig) > 0 );
    pFrames = Aig_ManStart( Aig_ManNodeNum(pAig) * nFrames );
    // map the constant node
    Aig_ManConst1(pAig)->pData = Aig_ManConst1( pFrames );
    // create variables for register outputs
    Saig_ManForEachLo( pAig, pObj, i )
        pObj->pData = Aig_ManConst0( pFrames );
    // add timeframes
    for ( f = 0; f < nFrames; f++ )
    {
        // create PI nodes for this frame
        Saig_ManForEachPi( pAig, pObj, i )
            pObj->pData = Aig_ObjCreateCi( pFrames );
        // add internal nodes of this frame
        Aig_ManForEachNode( pAig, pObj, i )
            pObj->pData = Aig_And( pFrames, Aig_ObjChild0Copy(pObj), Aig_ObjChild1Copy(pObj) );
        // create POs for this frame
        Saig_ManForEachPo( pAig, pObj, i )
            Aig_ObjCreateCo( pFrames, Aig_ObjChild0Copy(pObj) );
        if ( f == nFrames - 1 )
            break;
        // save register inputs
        Saig_ManForEachLi( pAig, pObj, i )
            pObj->pData = Aig_ObjChild0Copy(pObj);
        // transfer to register outputs
        Saig_ManForEachLiLo(  pAig, pObjLi, pObjLo, i )
            pObjLo->pData = pObjLi->pData;
    }
    Aig_ManCleanup( pFrames );
    return pFrames;
}

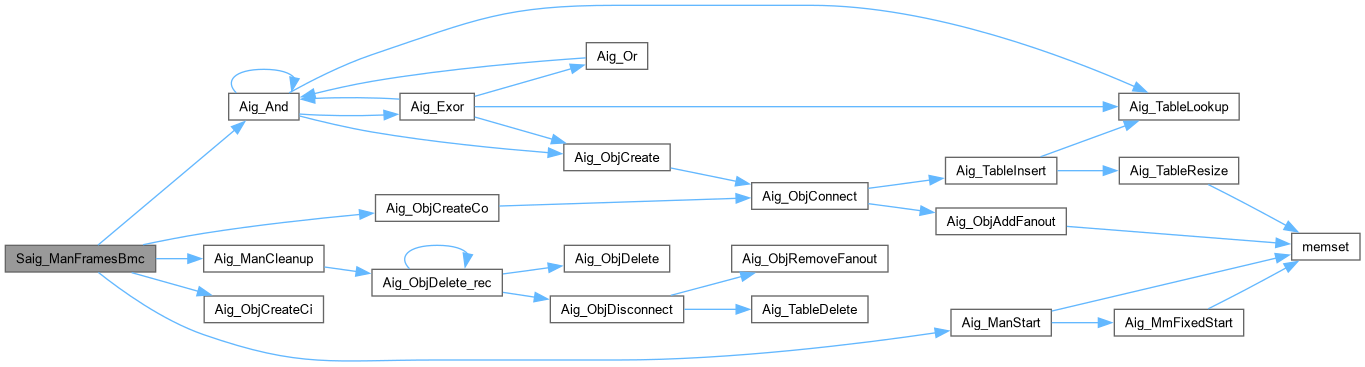

Here is the call graph for this function:

Here is the caller graph for this function:

Saig_ManFramesBmcLimit()

Aig_Man_t * Saig_ManFramesBmcLimit	(	Aig_Man_t *	pAig,
		int	nFrames,
		int	nSizeMax )

Function*************************************************************

Synopsis [Create timeframes of the manager for BMC.]

Description [The resulting manager is combinational. POs correspond to the property outputs in each time-frame. The unrolling is stopped as soon as the number of nodes in the frames exceeds the given maximum size.]

SideEffects []

SeeAlso []

Definition at line 122 of file bmcBmc.c.

{
    Aig_Man_t * pFrames;
    Aig_Obj_t * pObj, * pObjLi, * pObjLo, * pObjPo;
    int i, f, Counter = 0;
    assert( Saig_ManRegNum(pAig) > 0 );
    pFrames = Aig_ManStart( nSizeMax );
    Aig_ManIncrementTravId( pFrames );
    // map the constant node
    Aig_ManConst1(pAig)->pData = Aig_ManConst1( pFrames );
    // create variables for register outputs
    Saig_ManForEachLo( pAig, pObj, i )
        pObj->pData = Aig_ManConst0( pFrames );
    // add timeframes
    Counter = 0;
    for ( f = 0; f < nFrames; f++ )
    {
        // create PI nodes for this frame
        Saig_ManForEachPi( pAig, pObj, i )
            pObj->pData = Aig_ObjCreateCi( pFrames );
        // add internal nodes of this frame
        Aig_ManForEachNode( pAig, pObj, i )
            pObj->pData = Aig_And( pFrames, Aig_ObjChild0Copy(pObj), Aig_ObjChild1Copy(pObj) );
        // create POs for this frame
        Saig_ManForEachPo( pAig, pObj, i )
        {
            pObjPo = Aig_ObjCreateCo( pFrames, Aig_ObjChild0Copy(pObj) );
            Counter += Saig_ManFramesCount_rec( pFrames, Aig_ObjFanin0(pObjPo) );
        }
        if ( Counter >= nSizeMax )
        {
            Aig_ManCleanup( pFrames );
            return pFrames;
        }
        if ( f == nFrames - 1 )
            break;
        // save register inputs
        Saig_ManForEachLi( pAig, pObj, i )
            pObj->pData = Aig_ObjChild0Copy(pObj);
        // transfer to register outputs
        Saig_ManForEachLiLo(  pAig, pObjLi, pObjLo, i )
            pObjLo->pData = pObjLi->pData;
    }
    Aig_ManCleanup( pFrames );
    return pFrames;
}

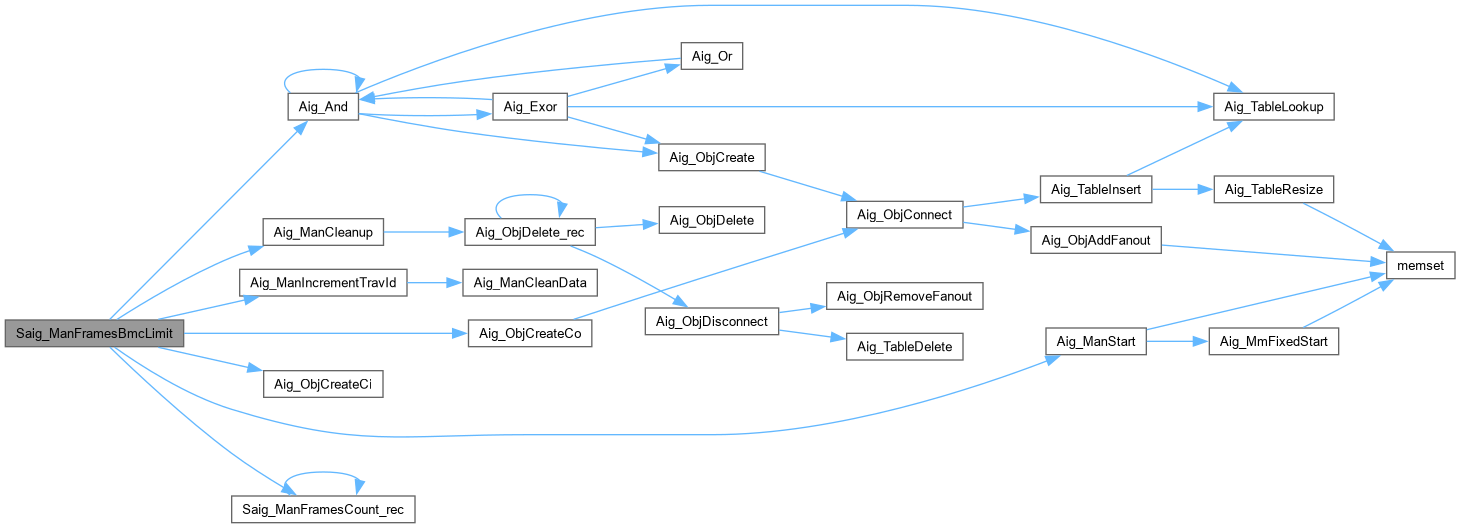

Here is the call graph for this function:

Here is the caller graph for this function:

Saig_ManFramesCount_rec()

int Saig_ManFramesCount_rec	(	Aig_Man_t *	p,
		Aig_Obj_t *	pObj )

Function*************************************************************

Synopsis [Returns the number of internal nodes that are not counted yet.]

Description []

SideEffects []

SeeAlso []

Definition at line 97 of file bmcBmc.c.

{
    if ( !Aig_ObjIsNode(pObj) )
        return 0;
    if ( Aig_ObjIsTravIdCurrent(p, pObj) )
        return 0;
    Aig_ObjSetTravIdCurrent(p, pObj);
    return 1 + Saig_ManFramesCount_rec( p, Aig_ObjFanin0(pObj) ) +
        Saig_ManFramesCount_rec( p, Aig_ObjFanin1(pObj) );
}

Here is the call graph for this function:

Here is the caller graph for this function:

Sat2_SolverGetModel()

ABC_NAMESPACE_IMPL_END ABC_NAMESPACE_IMPL_START int * Sat2_SolverGetModel	(	satoko_t *	p,
		int *	pVars,
		int	nVars )

Function*************************************************************

Synopsis [Returns a counter-example.]

Description []

SideEffects []

SeeAlso []

Definition at line 186 of file bmcBmc.c.

{
    int * pModel;
    int i;
    pModel = ABC_CALLOC( int, nVars+1 );
    for ( i = 0; i < nVars; i++ )
        pModel[i] = satoko_read_cex_varvalue(p, pVars[i]);
    return pModel;
}

Here is the call graph for this function:

Here is the caller graph for this function:
