cgt.h File Reference

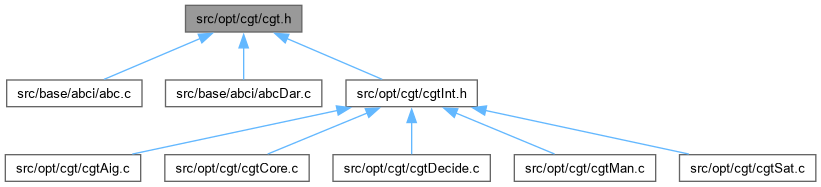

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Classes
struct	Cgt_Par_t_

Typedefs
typedef typedefABC_NAMESPACE_HEADER_START struct Cgt_Par_t_	Cgt_Par_t
	INCLUDES ///.

Functions
void	Cgt_SetDefaultParams (Cgt_Par_t *p)
	MACRO DEFINITIONS ///.
Vec_Vec_t *	Cgt_ClockGatingCandidates (Aig_Man_t *pAig, Aig_Man_t *pCare, Cgt_Par_t *pPars, Vec_Int_t *vUseful)
Vec_Vec_t *	Cgt_ClockGatingInt (Aig_Man_t *pAig, Aig_Man_t *pCare, Cgt_Par_t *pPars, Vec_Int_t *vUseful)
Aig_Man_t *	Cgt_ClockGating (Aig_Man_t *pAig, Aig_Man_t *pCare, Cgt_Par_t *pPars)

Typedef Documentation

Cgt_Par_t

typedef typedefABC_NAMESPACE_HEADER_START struct Cgt_Par_t_ Cgt_Par_t

INCLUDES ///.

CFile****************************************************************

FileName [cgt.h]

SystemName [ABC: Logic synthesis and verification system.]

PackageName [Clock gating package.]

Synopsis [External declarations.]

Author [Alan Mishchenko]

Affiliation [UC Berkeley]

Date [Ver. 1.0. Started - June 20, 2005.]

Revision [

Id

cgt.h,v 1.00 2005/06/20 00:00:00 alanmi Exp

] PARAMETERS /// BASIC TYPES ///

Definition at line 48 of file cgt.h.

Function Documentation

Cgt_ClockGating()

Aig_Man_t * Cgt_ClockGating ( Aig_Man_t * pAig, Aig_Man_t * pCare, Cgt_Par_t * pPars )

extern

Definition at line 298 of file cgtCore.c.

{
    Aig_Man_t * pGated;
    Vec_Vec_t * vGates = Cgt_ClockGatingInt( pAig, pCare, pPars, NULL );
    int nNodesUsed;
    if ( pPars->fVerbose )
    {
//        printf( "Before CG: " );
//        Aig_ManPrintStats( pAig );
    }
    pGated = Cgt_ManDeriveGatedAig( pAig, vGates, pPars->fAreaOnly, &nNodesUsed );
    if ( pPars->fVerbose )
    {
//        printf( "After  CG: " );
//        Aig_ManPrintStats( pGated );
        printf( "Nodes: Before CG = %6d. After CG = %6d. (%6.2f %%).  Total after CG = %6d.\n",
            Aig_ManNodeNum(pAig), nNodesUsed,
            100.0*nNodesUsed/Aig_ManNodeNum(pAig),
            Aig_ManNodeNum(pGated) );
    }
    Vec_VecFree( vGates );
    return pGated;
}

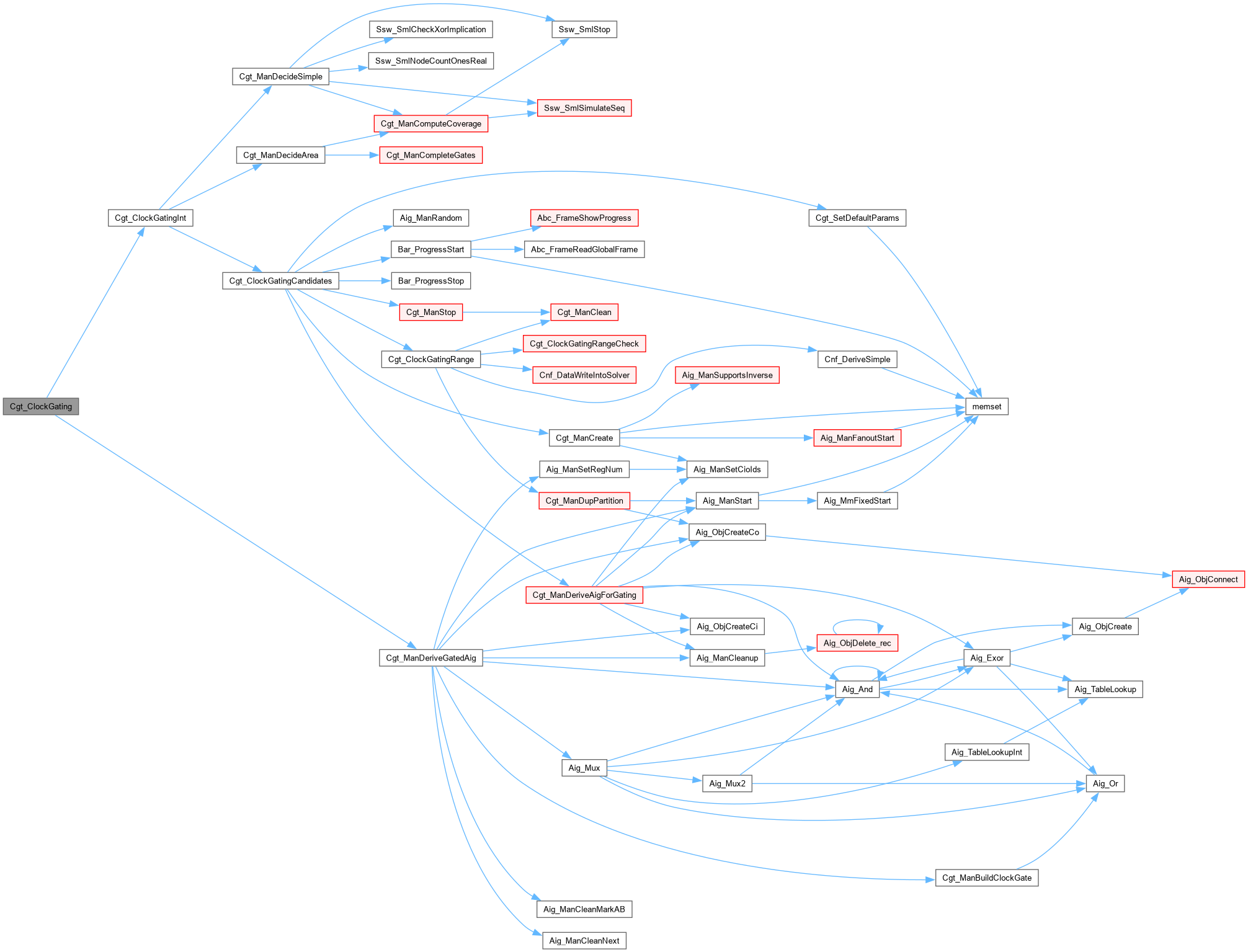

Here is the call graph for this function:

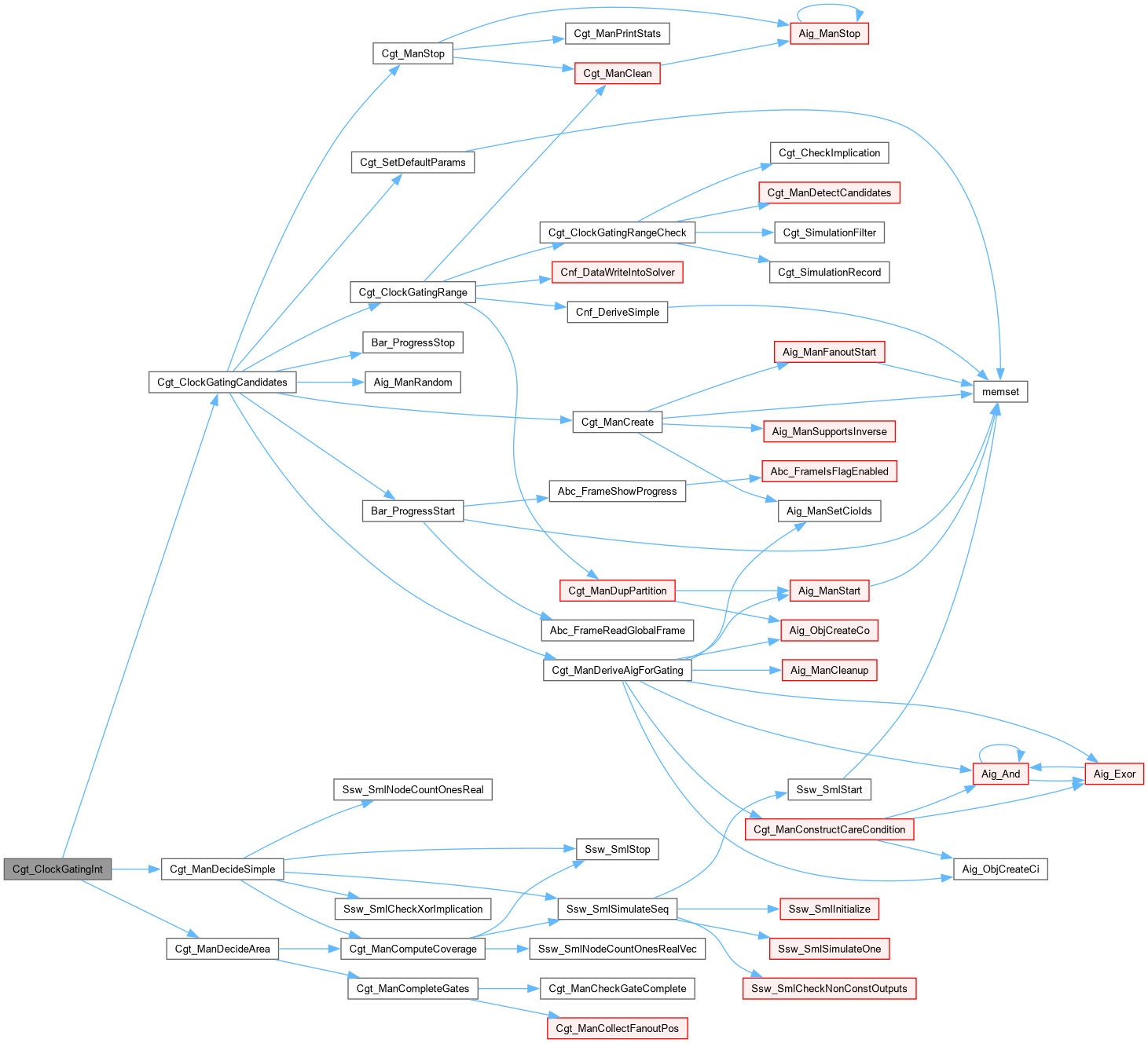

Here is the caller graph for this function:

Cgt_ClockGatingCandidates()

Vec_Vec_t * Cgt_ClockGatingCandidates ( Aig_Man_t * pAig, Aig_Man_t * pCare, Cgt_Par_t * pPars, Vec_Int_t * vUseful )

extern

Function*************************************************************

Synopsis [Performs clock-gating for the AIG.]

Description []

SideEffects []

SeeAlso []

Definition at line 245 of file cgtCore.c.

{
    Bar_Progress_t * pProgress = NULL;
    Cgt_Par_t Pars;
    Cgt_Man_t * p;
    Vec_Vec_t * vGatesAll;
    int iStart;
    abctime clk = Abc_Clock(), clkTotal = Abc_Clock();
    // reset random numbers
    Aig_ManRandom( 1 );
    if ( pPars == NULL )
        Cgt_SetDefaultParams( pPars = &Pars );
    p = Cgt_ManCreate( pAig, pCare, pPars );
    p->vUseful = vUseful;
    p->pFrame = Cgt_ManDeriveAigForGating( p );
p->timeAig += Abc_Clock() - clk;
    assert( Aig_ManCoNum(p->pFrame) == Saig_ManRegNum(p->pAig) );
    pProgress = Bar_ProgressStart( stdout, Aig_ManCoNum(p->pFrame) );
    for ( iStart = 0; iStart < Aig_ManCoNum(p->pFrame); )
    {
        Bar_ProgressUpdate( pProgress, iStart, NULL );
        iStart = Cgt_ClockGatingRange( p, iStart );
    }
    Bar_ProgressStop( pProgress );
    vGatesAll = p->vGatesAll;
    p->vGatesAll = NULL;
p->timeTotal = Abc_Clock() - clkTotal;
    Cgt_ManStop( p );
    return vGatesAll;
}

Here is the call graph for this function:

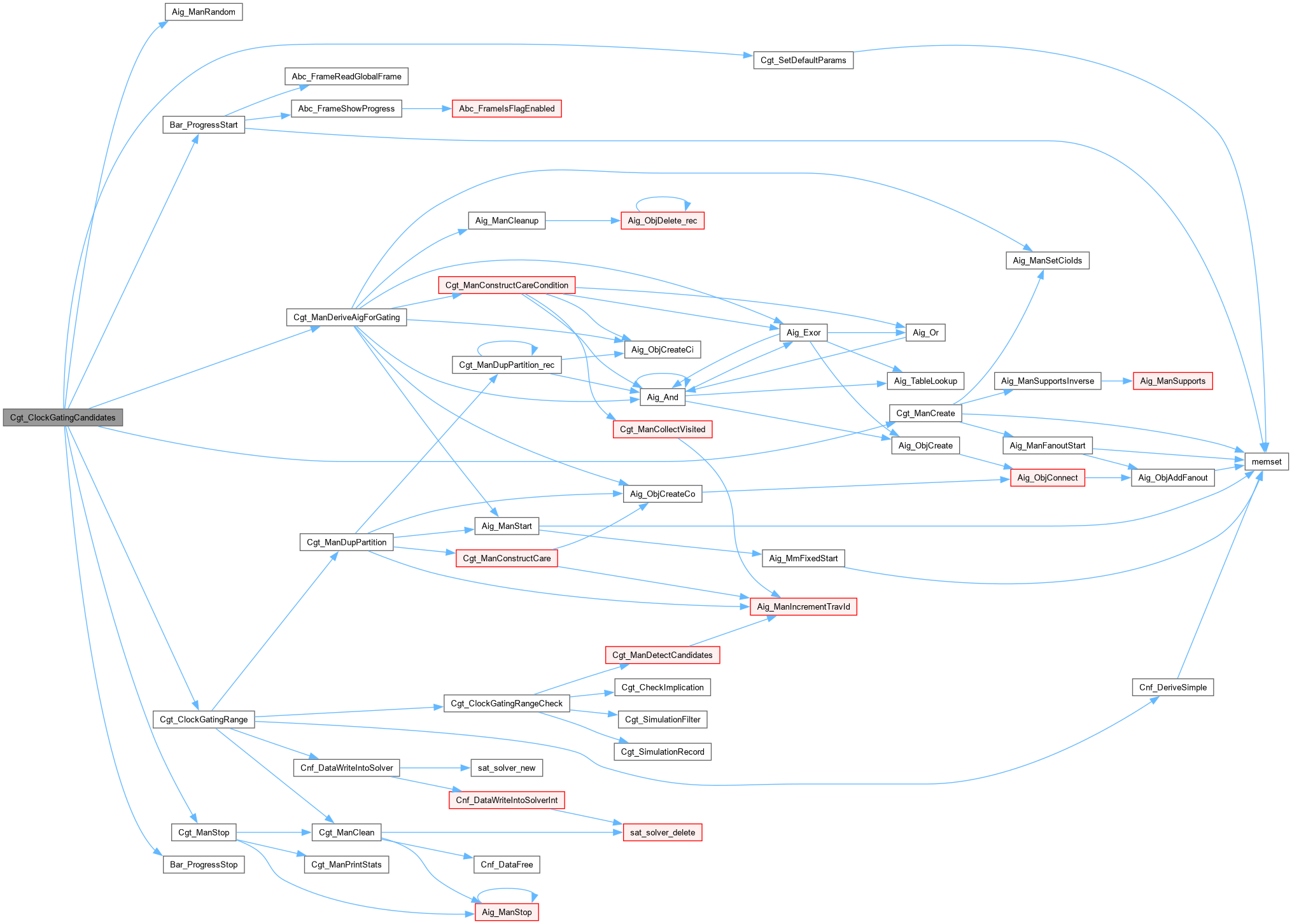

Here is the caller graph for this function:

Cgt_ClockGatingInt()

Vec_Vec_t * Cgt_ClockGatingInt ( Aig_Man_t * pAig, Aig_Man_t * pCare, Cgt_Par_t * pPars, Vec_Int_t * vUseful )

extern

Function*************************************************************

Synopsis [Performs clock-gating for the AIG.]

Description []

SideEffects []

SeeAlso []

Definition at line 287 of file cgtCore.c.

{
    Vec_Vec_t * vGatesAll, * vGates;
    vGatesAll = Cgt_ClockGatingCandidates( pAig, pCare, pPars, vUseful );
    if ( pPars->fAreaOnly )
        vGates = Cgt_ManDecideArea( pAig, vGatesAll, pPars->nOdcMax, pPars->fVerbose );
    else
        vGates = Cgt_ManDecideSimple( pAig, vGatesAll, pPars->nOdcMax, pPars->fVerbose );
    Vec_VecFree( vGatesAll );
    return vGates;
}

Here is the call graph for this function:

Here is the caller graph for this function:

Cgt_SetDefaultParams()

void Cgt_SetDefaultParams ( Cgt_Par_t * p )

extern

MACRO DEFINITIONS ///.

FUNCTION DECLARATIONS ///

MACRO DEFINITIONS ///.

CFile****************************************************************

FileName [cgtCore.c]

SystemName [ABC: Logic synthesis and verification system.]

PackageName [Clock gating package.]

Synopsis []

Author [Alan Mishchenko]

Affiliation [UC Berkeley]

Date [Ver. 1.0. Started - June 20, 2005.]

Revision [

Id

cgtCore.c,v 1.00 2005/06/20 00:00:00 alanmi Exp

] FUNCTION DEFINITIONS /// Function*************************************************************

Synopsis [This procedure sets default parameters.]

Description []

SideEffects []

SeeAlso []

Definition at line 46 of file cgtCore.c.

{
    memset( p, 0, sizeof(Cgt_Par_t) );
    p->nLevelMax  =    25;   // the max number of levels to look for clock-gates
    p->nCandMax   =  1000;   // the max number of candidates at each node
    p->nOdcMax    =     0;   // the max number of ODC levels to consider
    p->nConfMax   =    10;   // the max number of conflicts at a node
    p->nVarsMin   =  1000;   // the min number of vars to recycle the SAT solver
    p->nFlopsMin  =    10;   // the min number of flops to recycle the SAT solver
    p->fAreaOnly  =     0;   // derive clock-gating to minimize area
    p->fVerbose   =     0;   // verbosity flag
}
