sswRarity.c File Reference

#include "sswInt.h"
#include "aig/gia/giaAig.h"
#include "base/main/main.h"
#include "sat/bmc/bmc.h"

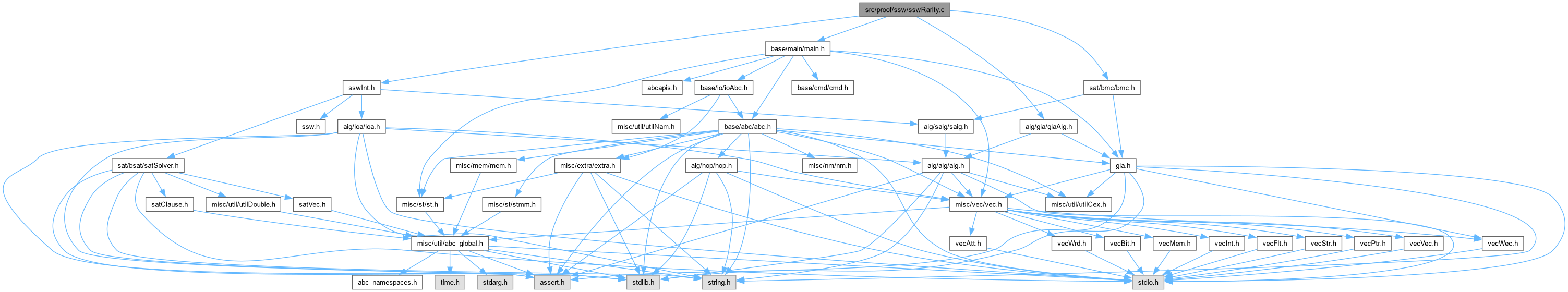

Include dependency graph for sswRarity.c:

Go to the source code of this file.

Classes
struct	Ssw_RarMan_t_

Typedefs
typedef typedefABC_NAMESPACE_IMPL_START struct Ssw_RarMan_t_	Ssw_RarMan_t
	DECLARATIONS ///.

Functions
void	Ssw_RarSetDefaultParams (Ssw_RarPars_t *p)
	FUNCTION DEFINITIONS ///.
void	Ssw_RarManPrepareRandom (int nRandSeed)
void	Ssw_RarManAssingRandomPis (Ssw_RarMan_t *p)
Abc_Cex_t *	Ssw_RarDeriveCex (Ssw_RarMan_t *p, int iFrame, int iPo, int iPatFinal, int fVerbose)
void	transpose32 (unsigned A[32])
void	transpose64 (word A[64])
void	transpose64Simple (word A[64], word B[64])
void	TransposeTest ()
void	Ssw_RarTranspose (Ssw_RarMan_t *p)
void	Ssw_RarManInitialize (Ssw_RarMan_t *p, Vec_Int_t *vInit)
int	Ssw_RarManPoIsConst0 (void *pMan, Aig_Obj_t *pObj)
int	Ssw_RarManObjIsConst (void *pMan, Aig_Obj_t *pObj)
int	Ssw_RarManObjsAreEqual (void *pMan, Aig_Obj_t *pObj0, Aig_Obj_t *pObj1)
unsigned	Ssw_RarManObjHashWord (void *pMan, Aig_Obj_t *pObj)
int	Ssw_RarManObjWhichOne (Ssw_RarMan_t *p, Aig_Obj_t *pObj)
int	Ssw_RarManCheckNonConstOutputs (Ssw_RarMan_t *p, int iFrame, abctime Time)
void	Ssw_RarManSimulate (Ssw_RarMan_t *p, Vec_Int_t *vInit, int fUpdate, int fFirst)
int	Ssw_RarCheckTrivial (Aig_Man_t *pAig, int fVerbose)
int	Ssw_RarSimulate (Aig_Man_t *pAig, Ssw_RarPars_t *pPars)
Vec_Int_t *	Ssw_RarRandomPermFlop (int nFlops, int nUnused)
int	Ssw_RarSimulateGia (Gia_Man_t *p, Ssw_RarPars_t *pPars)
	DECLARATIONS ///.
int	Ssw_RarSignalFilter (Aig_Man_t *pAig, Ssw_RarPars_t *pPars)
int	Ssw_RarSignalFilterGia (Gia_Man_t *p, Ssw_RarPars_t *pPars)

Typedef Documentation

Ssw_RarMan_t

typedef typedefABC_NAMESPACE_IMPL_START struct Ssw_RarMan_t_ Ssw_RarMan_t

DECLARATIONS ///.

CFile****************************************************************

FileName [sswRarity.c]

SystemName [ABC: Logic synthesis and verification system.]

PackageName [Inductive prover with constraints.]

Synopsis [Rarity-driven refinement of equivalence classes.]

Author [Alan Mishchenko]

Affiliation [UC Berkeley]

Date [Ver. 1.0. Started - September 1, 2008.]

Revision [

Id

sswRarity.c,v 1.00 2008/09/01 00:00:00 alanmi Exp

]

Definition at line 33 of file sswRarity.c.

Function Documentation

Ssw_RarCheckTrivial()

int Ssw_RarCheckTrivial	(	Aig_Man_t *	pAig,
		int	fVerbose )

Function*************************************************************

Synopsis []

Description []

SideEffects []

SeeAlso []

Definition at line 941 of file sswRarity.c.

{
    Aig_Obj_t * pObj;
    int i;
    Saig_ManForEachPo( pAig, pObj, i )
    {
        if ( pAig->nConstrs && i >= Saig_ManPoNum(pAig) - pAig->nConstrs )
            return 0;
        if ( pObj->fPhase )
        {
            ABC_FREE( pAig->pSeqModel );
            pAig->pSeqModel = Abc_CexAlloc( Aig_ManRegNum(pAig), Saig_ManPiNum(pAig), 1 );
            pAig->pSeqModel->iPo = i;
            if ( fVerbose )
                Abc_Print( 1, "Output %d is trivally SAT in frame 0. \n", i );
            return 1;
        }
    }
    return 0;
}

Here is the call graph for this function:

Here is the caller graph for this function:

Ssw_RarDeriveCex()

Abc_Cex_t * Ssw_RarDeriveCex	(	Ssw_RarMan_t *	p,
		int	iFrame,
		int	iPo,
		int	iPatFinal,
		int	fVerbose )

Function*************************************************************

Synopsis [Derives the counter-example.]

Description []

SideEffects []

SeeAlso []

Definition at line 177 of file sswRarity.c.

{
    Abc_Cex_t * pCex;
    Aig_Obj_t * pObj;
    Vec_Int_t * vTrace;
    word * pSim;
    int i, r, f, iBit, iPatThis;
    // compute the pattern sequence
    iPatThis = iPatFinal;
    vTrace = Vec_IntStartFull( iFrame / p->pPars->nFrames + 1 );
    Vec_IntWriteEntry( vTrace, iFrame / p->pPars->nFrames, iPatThis );
    for ( r = iFrame / p->pPars->nFrames - 1; r >= 0; r-- )
    {
        iPatThis = Vec_IntEntry( p->vPatBests, r * p->pPars->nWords + iPatThis / 64 );
        Vec_IntWriteEntry( vTrace, r, iPatThis );
    }
    // create counter-example
    pCex = Abc_CexAlloc( Aig_ManRegNum(p->pAig), Saig_ManPiNum(p->pAig), iFrame+1 );
    pCex->iFrame = iFrame;
    pCex->iPo = iPo;
    // insert the bits
    iBit = Aig_ManRegNum(p->pAig);
    for ( f = 0; f <= iFrame; f++ )
    {
        Ssw_RarManAssingRandomPis( p );
        iPatThis = Vec_IntEntry( vTrace, f / p->pPars->nFrames );
        Saig_ManForEachPi( p->pAig, pObj, i )
        {
            pSim = Ssw_RarObjSim( p, Aig_ObjId(pObj) );
            if ( Abc_InfoHasBit( (unsigned *)pSim, iPatThis ) )
                Abc_InfoSetBit( pCex->pData, iBit );
            iBit++;
        }
    }
    Vec_IntFree( vTrace );
    assert( iBit == pCex->nBits );
    // verify the counter example
    if ( !Saig_ManVerifyCex( p->pAig, pCex ) )
    {
        Abc_Print( 1, "Ssw_RarDeriveCex(): Counter-example is invalid.\n" );
//        Abc_CexFree( pCex );
//        pCex = NULL;
    }
    else
    {
//      Abc_Print( 1, "Counter-example verification is successful.\n" );
    }
    return pCex;
}

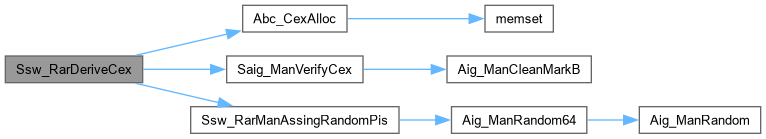

Here is the call graph for this function:

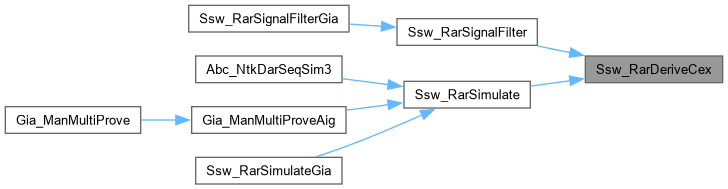

Here is the caller graph for this function:

Ssw_RarManAssingRandomPis()

void Ssw_RarManAssingRandomPis

(

Ssw_RarMan_t *

p

)

Function*************************************************************

Synopsis [Initializes random primary inputs.]

Description []

SideEffects []

SeeAlso []

Definition at line 150 of file sswRarity.c.

{
    word * pSim;
    Aig_Obj_t * pObj;
    int w, i;
    Saig_ManForEachPi( p->pAig, pObj, i )
    {
        pSim = Ssw_RarObjSim( p, Aig_ObjId(pObj) );
        for ( w = 0; w < p->pPars->nWords; w++ )
            pSim[w] = Aig_ManRandom64(0);
//        pSim[0] <<= 1;
//        pSim[0] = (pSim[0] << 2) | 2;
        pSim[0] = (pSim[0] << 4) | ((i & 1) ? 0xA : 0xC);
    }
}

Here is the call graph for this function:

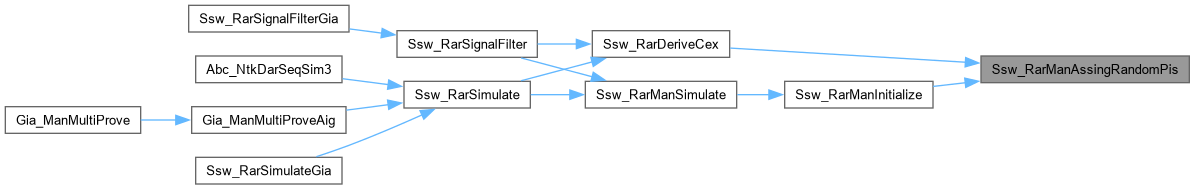

Here is the caller graph for this function:

Ssw_RarManCheckNonConstOutputs()

int Ssw_RarManCheckNonConstOutputs	(	Ssw_RarMan_t *	p,
		int	iFrame,
		abctime	Time )

Function*************************************************************

Synopsis [Check if any of the POs becomes non-constant.]

Description []

SideEffects []

SeeAlso []

Definition at line 597 of file sswRarity.c.

{
    Aig_Obj_t * pObj;
    int i;
    p->iFailPo  = -1;
    p->iFailPat = -1;
    Saig_ManForEachPo( p->pAig, pObj, i )
    {
        if ( p->pAig->nConstrs && i >= Saig_ManPoNum(p->pAig) - p->pAig->nConstrs )
            break;
        if ( p->vCexes && Vec_PtrEntry(p->vCexes, i) )
            continue;
        if ( Ssw_RarManPoIsConst0(p, pObj) )
            continue;
        p->iFailPo  = i;
        p->iFailPat = Ssw_RarManObjWhichOne( p, pObj );
        if ( !p->pPars->fSolveAll )
            break;
        // remember the one solved
        p->pPars->nSolved++;
        if ( p->vCexes == NULL )
            p->vCexes = Vec_PtrStart( Saig_ManPoNum(p->pAig) );
        assert( Vec_PtrEntry(p->vCexes, i) == NULL );
        Vec_PtrWriteEntry( p->vCexes, i, (void *)(ABC_PTRINT_T)1 );
        if ( p->pPars->pFuncOnFail && p->pPars->pFuncOnFail(i, NULL) )
            return 2; // quitting due to callback
        // print final report
        if ( !p->pPars->fNotVerbose )
        {
            int nOutDigits = Abc_Base10Log( Saig_ManPoNum(p->pAig) );
            Abc_Print( 1, "Output %*d was asserted in frame %4d (solved %*d out of %*d outputs).  ",
                nOutDigits, p->iFailPo, iFrame,
                nOutDigits, p->pPars->nSolved,
                nOutDigits, Saig_ManPoNum(p->pAig) );
            Abc_PrintTime( 1, "Time", Time );
        }
    }
    if ( p->iFailPo >= 0 ) // found CEX
        return 1;
    else
        return 0;
}

Here is the call graph for this function:

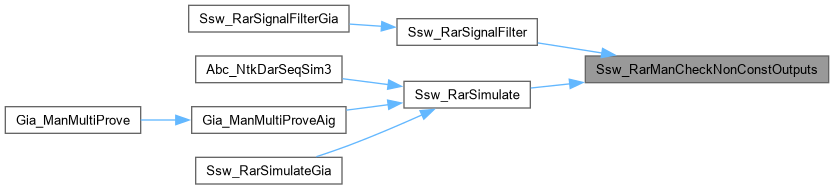

Here is the caller graph for this function:

Ssw_RarManInitialize()

void Ssw_RarManInitialize	(	Ssw_RarMan_t *	p,
		Vec_Int_t *	vInit )

Function*************************************************************

Synopsis [Sets random inputs and specialied flop outputs.]

Description []

SideEffects []

SeeAlso []

Definition at line 415 of file sswRarity.c.

{
    Aig_Obj_t * pObj, * pObjLi;
    word * pSim, * pSimLi;
    int w, i;
    // constant
    pObj = Aig_ManConst1( p->pAig );
    pSim = Ssw_RarObjSim( p, Aig_ObjId(pObj) );
    for ( w = 0; w < p->pPars->nWords; w++ )
        pSim[w] = ~(word)0;
    // primary inputs
    Ssw_RarManAssingRandomPis( p );
    // flop outputs
    if ( vInit )
    {
        assert( Vec_IntSize(vInit) == Saig_ManRegNum(p->pAig) * p->pPars->nWords );
        Saig_ManForEachLo( p->pAig, pObj, i )
        {
            pSim = Ssw_RarObjSim( p, Aig_ObjId(pObj) );
            for ( w = 0; w < p->pPars->nWords; w++ )
                pSim[w] = Vec_IntEntry(vInit, w * Saig_ManRegNum(p->pAig) + i) ? ~(word)0 : (word)0;
        }
    }
    else
    {
        Saig_ManForEachLiLo( p->pAig, pObjLi, pObj, i )
        {
            pSimLi = Ssw_RarObjSim( p, Aig_ObjId(pObjLi) );
            pSim   = Ssw_RarObjSim( p, Aig_ObjId(pObj) );
            for ( w = 0; w < p->pPars->nWords; w++ )
                pSim[w] = pSimLi[w];
        }
    }
}

Here is the call graph for this function:

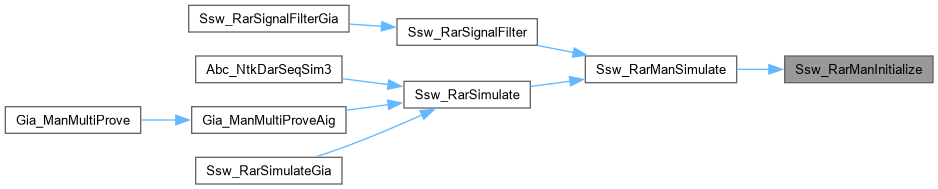

Here is the caller graph for this function:

Ssw_RarManObjHashWord()

unsigned Ssw_RarManObjHashWord	(	void *	pMan,
		Aig_Obj_t *	pObj )

Function*************************************************************

Synopsis [Computes hash value of the node using its simulation info.]

Description []

SideEffects []

SeeAlso []

Definition at line 530 of file sswRarity.c.

{
    Ssw_RarMan_t * p = (Ssw_RarMan_t *)pMan;
    static int s_SPrimes[128] = {
        1009, 1049, 1093, 1151, 1201, 1249, 1297, 1361, 1427, 1459,
        1499, 1559, 1607, 1657, 1709, 1759, 1823, 1877, 1933, 1997,
        2039, 2089, 2141, 2213, 2269, 2311, 2371, 2411, 2467, 2543,
        2609, 2663, 2699, 2741, 2797, 2851, 2909, 2969, 3037, 3089,
        3169, 3221, 3299, 3331, 3389, 3461, 3517, 3557, 3613, 3671,
        3719, 3779, 3847, 3907, 3943, 4013, 4073, 4129, 4201, 4243,
        4289, 4363, 4441, 4493, 4549, 4621, 4663, 4729, 4793, 4871,
        4933, 4973, 5021, 5087, 5153, 5227, 5281, 5351, 5417, 5471,
        5519, 5573, 5651, 5693, 5749, 5821, 5861, 5923, 6011, 6073,
        6131, 6199, 6257, 6301, 6353, 6397, 6481, 6563, 6619, 6689,
        6737, 6803, 6863, 6917, 6977, 7027, 7109, 7187, 7237, 7309,
        7393, 7477, 7523, 7561, 7607, 7681, 7727, 7817, 7877, 7933,
        8011, 8039, 8059, 8081, 8093, 8111, 8123, 8147
    };
    unsigned * pSims;
    unsigned uHash;
    int i;
    uHash = 0;
    pSims = (unsigned *)Ssw_RarObjSim( p, pObj->Id );
    for ( i = 0; i < 2 * p->pPars->nWords; i++ )
        uHash ^= pSims[i] * s_SPrimes[i & 0x7F];
    return uHash;
}

Here is the caller graph for this function:

Ssw_RarManObjIsConst()

int Ssw_RarManObjIsConst	(	void *	pMan,
		Aig_Obj_t *	pObj )

Function*************************************************************

Synopsis [Returns 1 if simulation info is composed of all zeros.]

Description []

SideEffects []

SeeAlso []

Definition at line 483 of file sswRarity.c.

{
    Ssw_RarMan_t * p = (Ssw_RarMan_t *)pMan;
    word * pSim = Ssw_RarObjSim( p, Aig_ObjId(pObj) );
    word Flip = pObj->fPhase ? ~(word)0 : 0;
    int w;
    for ( w = 0; w < p->pPars->nWords; w++ )
        if ( pSim[w] ^ Flip )
            return 0;
    return 1;
}

Here is the caller graph for this function:

Ssw_RarManObjsAreEqual()

int Ssw_RarManObjsAreEqual	(	void *	pMan,
		Aig_Obj_t *	pObj0,
		Aig_Obj_t *	pObj1 )

Function*************************************************************

Synopsis [Returns 1 if simulation infos are equal.]

Description []

SideEffects []

SeeAlso []

Definition at line 506 of file sswRarity.c.

{
    Ssw_RarMan_t * p = (Ssw_RarMan_t *)pMan;
    word * pSim0 = Ssw_RarObjSim( p, pObj0->Id );
    word * pSim1 = Ssw_RarObjSim( p, pObj1->Id );
    word Flip = (pObj0->fPhase != pObj1->fPhase) ? ~(word)0 : 0;
    int w;
    for ( w = 0; w < p->pPars->nWords; w++ )
        if ( pSim0[w] ^ pSim1[w] ^ Flip )
            return 0;
    return 1;
}

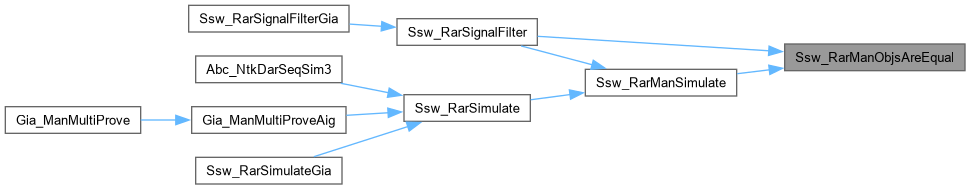

Here is the caller graph for this function:

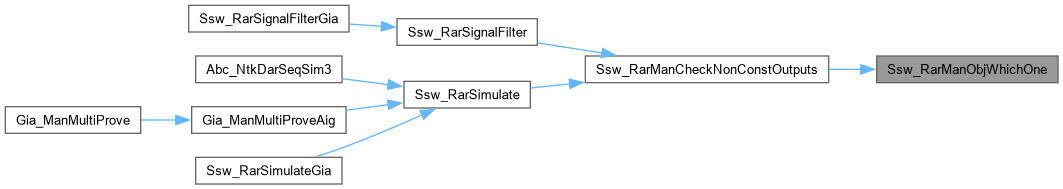

Ssw_RarManObjWhichOne()

int Ssw_RarManObjWhichOne	(	Ssw_RarMan_t *	p,
		Aig_Obj_t *	pObj )

Function*************************************************************

Synopsis [Returns 1 if simulation info is composed of all zeros.]

Description []

SideEffects []

SeeAlso []

Definition at line 569 of file sswRarity.c.

{
    word * pSim = Ssw_RarObjSim( p, Aig_ObjId(pObj) );
    word Flip = 0;//pObj->fPhase ? ~(word)0 : 0; // bug fix!
    int w, i;
    for ( w = 0; w < p->pPars->nWords; w++ )
        if ( pSim[w] ^ Flip )
        {
            for ( i = 0; i < 64; i++ )
                if ( ((pSim[w] ^ Flip) >> i) & 1 )
                    break;
            assert( i < 64 );
            return w * 64 + i;
        }
    return -1;
}

Here is the caller graph for this function:

Ssw_RarManPoIsConst0()

int Ssw_RarManPoIsConst0	(	void *	pMan,
		Aig_Obj_t *	pObj )

Function*************************************************************

Synopsis [Returns 1 if simulation info is composed of all zeros.]

Description []

SideEffects []

SeeAlso []

Definition at line 461 of file sswRarity.c.

{
    Ssw_RarMan_t * p = (Ssw_RarMan_t *)pMan;
    word * pSim = Ssw_RarObjSim( p, Aig_ObjId(pObj) );
    int w;
    for ( w = 0; w < p->pPars->nWords; w++ )
        if ( pSim[w] )
            return 0;
    return 1;
}

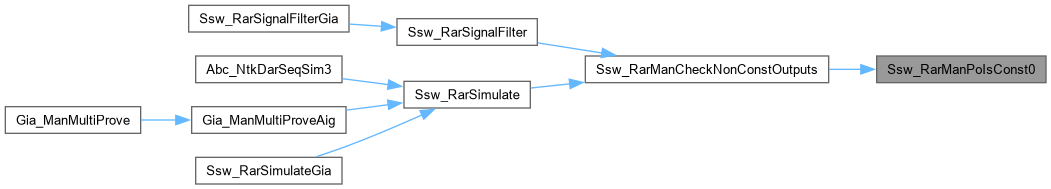

Here is the caller graph for this function:

Ssw_RarManPrepareRandom()

void Ssw_RarManPrepareRandom

(

int

nRandSeed

)

Function*************************************************************

Synopsis [Prepares random number generator.]

Description []

SideEffects []

SeeAlso []

Definition at line 131 of file sswRarity.c.

{
    int i;
    Aig_ManRandom( 1 );
    for ( i = 0; i < nRandSeed; i++ )
        Aig_ManRandom( 0 );
}

Here is the call graph for this function:

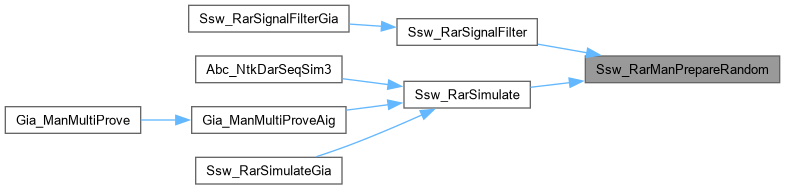

Here is the caller graph for this function:

Ssw_RarManSimulate()

void Ssw_RarManSimulate	(	Ssw_RarMan_t *	p,
		Vec_Int_t *	vInit,
		int	fUpdate,
		int	fFirst )

Function*************************************************************

Synopsis [Performs one round of simulation.]

Description []

SideEffects []

SeeAlso []

Definition at line 651 of file sswRarity.c.

{
    Aig_Obj_t * pObj, * pRepr;
    word * pSim, * pSim0, * pSim1;
    word Flip, Flip0, Flip1;
    int w, i;
    // initialize
    Ssw_RarManInitialize( p, vInit );
    Vec_PtrClear( p->vUpdConst );
    Vec_PtrClear( p->vUpdClass );
    Aig_ManIncrementTravId( p->pAig );
    // check comb inputs
    if ( fUpdate )
    Aig_ManForEachCi( p->pAig, pObj, i )
    {
        pRepr = Aig_ObjRepr(p->pAig, pObj);
        if ( pRepr == NULL || Aig_ObjIsTravIdCurrent( p->pAig, pRepr ) )
            continue;
        if ( Ssw_RarManObjsAreEqual( p, pObj, pRepr ) )
            continue;
        // save for update
        if ( pRepr == Aig_ManConst1(p->pAig) )
            Vec_PtrPush( p->vUpdConst, pObj );
        else
        {
            Vec_PtrPush( p->vUpdClass, pRepr );
            Aig_ObjSetTravIdCurrent( p->pAig, pRepr );
        }
    }
    // simulate
    Aig_ManForEachNode( p->pAig, pObj, i )
    {
        pSim  = Ssw_RarObjSim( p, Aig_ObjId(pObj) );
        pSim0 = Ssw_RarObjSim( p, Aig_ObjFaninId0(pObj) );
        pSim1 = Ssw_RarObjSim( p, Aig_ObjFaninId1(pObj) );
        Flip0 = Aig_ObjFaninC0(pObj) ? ~(word)0 : 0;
        Flip1 = Aig_ObjFaninC1(pObj) ? ~(word)0 : 0;
        for ( w = 0; w < p->pPars->nWords; w++ )
            pSim[w] = (Flip0 ^ pSim0[w]) & (Flip1 ^ pSim1[w]);


        if ( !fUpdate )
            continue;
        // check classes
        pRepr = Aig_ObjRepr(p->pAig, pObj);
        if ( pRepr == NULL || Aig_ObjIsTravIdCurrent( p->pAig, pRepr ) )
            continue;
        if ( Ssw_RarManObjsAreEqual( p, pObj, pRepr ) )
            continue;
        // save for update
        if ( pRepr == Aig_ManConst1(p->pAig) )
            Vec_PtrPush( p->vUpdConst, pObj );
        else
        {
            Vec_PtrPush( p->vUpdClass, pRepr );
            Aig_ObjSetTravIdCurrent( p->pAig, pRepr );
        }
    }
    // transfer to POs
    Aig_ManForEachCo( p->pAig, pObj, i )
    {
        pSim  = Ssw_RarObjSim( p, Aig_ObjId(pObj) );
        pSim0 = Ssw_RarObjSim( p, Aig_ObjFaninId0(pObj) );
        Flip  = Aig_ObjFaninC0(pObj) ? ~(word)0 : 0;
        for ( w = 0; w < p->pPars->nWords; w++ )
            pSim[w] = Flip ^ pSim0[w];
    }
    // refine classes
    if ( fUpdate )
    {
        if ( fFirst )
        {
            Vec_Ptr_t * vCands = Vec_PtrAlloc( 1000 );
            Aig_ManForEachObj( p->pAig, pObj, i )
                if ( Ssw_ObjIsConst1Cand( p->pAig, pObj ) )
                    Vec_PtrPush( vCands, pObj );
            assert( Vec_PtrSize(vCands) == Ssw_ClassesCand1Num(p->ppClasses) );
            Ssw_ClassesPrepareRehash( p->ppClasses, vCands, 0 );
            Vec_PtrFree( vCands );
        }
        else
        {
            Ssw_ClassesRefineConst1Group( p->ppClasses, p->vUpdConst, 1 );
            Ssw_ClassesRefineGroup( p->ppClasses, p->vUpdClass, 1 );
        }
    }
}

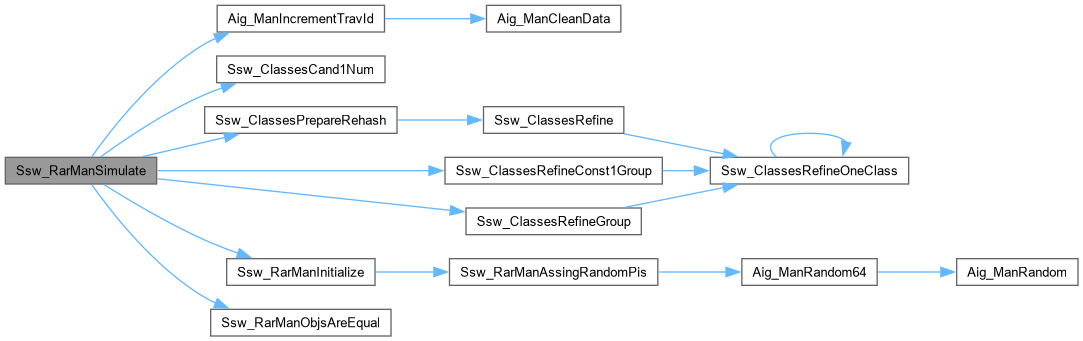

Here is the call graph for this function:

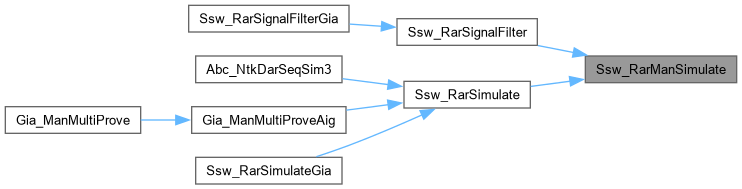

Here is the caller graph for this function:

Ssw_RarRandomPermFlop()

Vec_Int_t * Ssw_RarRandomPermFlop	(	int	nFlops,
		int	nUnused )

Function*************************************************************

Synopsis [Derive random flop permutation.]

Description []

SideEffects []

SeeAlso []

Definition at line 1152 of file sswRarity.c.

{
    Vec_Int_t * vPerm;
    int i, k, * pArray;
    srand( 1 );
    printf( "Generating random permutation of %d flops.\n", nFlops );
    vPerm = Vec_IntStartNatural( nFlops );
    pArray = Vec_IntArray( vPerm );
    for ( i = 0; i < nFlops; i++ )
    {
        k = rand() % nFlops;
        ABC_SWAP( int, pArray[i], pArray[k] );
    }
    printf( "Randomly adding %d unused flops.\n", nUnused );
    for ( i = 0; i < nUnused; i++ )
    {
        k = rand() % Vec_IntSize(vPerm);
        Vec_IntPush( vPerm, -1 );
        pArray = Vec_IntArray( vPerm );
        ABC_SWAP( int, pArray[Vec_IntSize(vPerm)-1], pArray[k] );
    }
//    Vec_IntPrint(vPerm);
    return vPerm;
}

Here is the caller graph for this function:

Ssw_RarSetDefaultParams()

void Ssw_RarSetDefaultParams

(

Ssw_RarPars_t *

p

)

FUNCTION DEFINITIONS ///.

Function*************************************************************

Synopsis []

Description []

SideEffects []

SeeAlso []

Definition at line 102 of file sswRarity.c.

{
    memset( p, 0, sizeof(Ssw_RarPars_t) );
    p->nFrames       =  20;
    p->nWords        =  50;
    p->nBinSize      =   8;
    p->nRounds       =   0;
    p->nRestart      =   0;
    p->nRandSeed     =   0;
    p->TimeOut       =   0;
    p->TimeOutGap    =   0;
    p->fSolveAll     =   0;
    p->fDropSatOuts  =   0;
    p->fSetLastState =   0;
    p->fVerbose      =   0;
    p->fNotVerbose   =   0;
}

Here is the call graph for this function:

Here is the caller graph for this function:

Ssw_RarSignalFilter()

int Ssw_RarSignalFilter	(	Aig_Man_t *	pAig,
		Ssw_RarPars_t *	pPars )

Function*************************************************************

Synopsis [Filter equivalence classes of nodes.]

Description []

SideEffects []

SeeAlso []

Definition at line 1221 of file sswRarity.c.

{
    Ssw_RarMan_t * p;
    int r, f = -1, i, k;
    abctime clkTotal = Abc_Clock();
    abctime nTimeToStop = pPars->TimeOut ? pPars->TimeOut * CLOCKS_PER_SEC + Abc_Clock(): 0;
    int nNumRestart = 0;
    int nSavedSeed = pPars->nRandSeed;
    int RetValue = -1;
    assert( Aig_ManRegNum(pAig) > 0 );
    assert( Aig_ManConstrNum(pAig) == 0 );
    // consider the case of empty AIG
    if ( Aig_ManNodeNum(pAig) == 0 )
        return -1;
    // check trivially SAT miters
    if ( pPars->fMiter && Ssw_RarCheckTrivial( pAig, 1 ) )
        return 0;
    if ( pPars->fVerbose )
        Abc_Print( 1, "Rarity equiv filtering with %d words, %d frames, %d rounds, %d seed, and %d sec timeout.\n",
            pPars->nWords, pPars->nFrames, pPars->nRounds, pPars->nRandSeed, pPars->TimeOut );
    // reset random numbers
    Ssw_RarManPrepareRandom( nSavedSeed );

    // create manager
    p = Ssw_RarManStart( pAig, pPars );
    // compute starting state if needed
    assert( p->vInits == NULL );
    if ( pPars->pCex )
    {
        p->vInits = Ssw_RarFindStartingState( pAig, pPars->pCex );
        Abc_Print( 1, "Beginning simulation from the state derived using the counter-example.\n" );
    }
    else
        p->vInits = Vec_IntStart( Aig_ManRegNum(pAig) );
    // duplicate the array
    for ( i = 1; i < pPars->nWords; i++ )
        for ( k = 0; k < Aig_ManRegNum(pAig); k++ )
            Vec_IntPush( p->vInits, Vec_IntEntry(p->vInits, k) );
    assert( Vec_IntSize(p->vInits) == Aig_ManRegNum(pAig) * pPars->nWords );

    // create trivial equivalence classes with all nodes being candidates for constant 1
    if ( pAig->pReprs == NULL )
        p->ppClasses = Ssw_ClassesPrepareSimple( pAig, pPars->fLatchOnly, 0 );
    else
        p->ppClasses = Ssw_ClassesPrepareFromReprs( pAig );
    Ssw_ClassesSetData( p->ppClasses, p, Ssw_RarManObjHashWord, Ssw_RarManObjIsConst, Ssw_RarManObjsAreEqual );
    // print the stats
    if ( pPars->fVerbose )
    {
        Abc_Print( 1, "Initial  :  " );
        Ssw_ClassesPrint( p->ppClasses, 0 );
    }
    // refine classes using BMC
    for ( r = 0; !pPars->nRounds || (nNumRestart * pPars->nRestart + r < pPars->nRounds); r++ )
    {
        // start filtering equivalence classes
        if ( Ssw_ClassesCand1Num(p->ppClasses) == 0 && Ssw_ClassesClassNum(p->ppClasses) == 0 )
        {
            Abc_Print( 1, "All equivalences are refined away.\n" );
            break;
        }
        // simulate
        for ( f = 0; f < pPars->nFrames; f++ )
        {
            Ssw_RarManSimulate( p, f ? NULL : p->vInits, 1, !r && !f );
            if ( pPars->fMiter && Ssw_RarManCheckNonConstOutputs(p, -1, 0) )
            {
                if ( !pPars->fVerbose )
                    Abc_Print( 1, "%s", Abc_FrameIsBatchMode() ? "\n" : "\r" );
//                Abc_Print( 1, "Simulation asserted a PO in frame f: %d <= f < %d.\n", r * pPars->nFrames, (r+1) * pPars->nFrames );
                if ( pPars->fVerbose )
                    Abc_Print( 1, "Simulated %d frames for %d rounds with %d restarts.\n", pPars->nFrames, nNumRestart * pPars->nRestart + r, nNumRestart );
                Ssw_RarManPrepareRandom( nSavedSeed );
                Abc_CexFree( pAig->pSeqModel );
                pAig->pSeqModel = Ssw_RarDeriveCex( p, r * p->pPars->nFrames + f, p->iFailPo, p->iFailPat, 1 );
                // print final report
                Abc_Print( 1, "Output %d of miter \"%s\" was asserted in frame %d.  ", pAig->pSeqModel->iPo, pAig->pName, pAig->pSeqModel->iFrame );
                Abc_PrintTime( 1, "Time", Abc_Clock() - clkTotal );
                RetValue = 0;
                goto finish;
            }
            // check timeout
            if ( pPars->TimeOut && Abc_Clock() > nTimeToStop )
            {
                if ( pPars->fVerbose ) Abc_Print( 1, "\n" );
                Abc_Print( 1, "Simulated %d frames for %d rounds with %d restarts.  ", pPars->nFrames, nNumRestart * pPars->nRestart + r, nNumRestart );
                Abc_Print( 1, "Reached timeout (%d sec).\n",  pPars->TimeOut );
                goto finish;
            }
        }
        // get initialization patterns
        if ( pPars->pCex == NULL && pPars->nRestart && r == pPars->nRestart )
        {
            r = -1;
            nSavedSeed = (nSavedSeed + 1) % 1000;
            Ssw_RarManPrepareRandom( nSavedSeed );
            Vec_IntFill( p->vInits, Aig_ManRegNum(pAig) * pPars->nWords, 0 );
            nNumRestart++;
            Vec_IntClear( p->vPatBests );
            // clean rarity info
//            memset( p->pRarity, 0, sizeof(int) * (1 << nBinSize) * p->nGroups );
        }
        else
            Ssw_RarTransferPatterns( p, p->vInits );
        // printout
        if ( pPars->fVerbose )
        {
            Abc_Print( 1, "Round %3d:  ", r );
            Ssw_ClassesPrint( p->ppClasses, 0 );
        }
        else
        {
            Abc_Print( 1, "." );
        }
    }
finish:
    // report
    if ( r == pPars->nRounds && f == pPars->nFrames )
    {
        if ( !pPars->fVerbose )
            Abc_Print( 1, "%s", Abc_FrameIsBatchMode() ? "\n" : "\r" );
        Abc_Print( 1, "Simulation of %d frames for %d rounds with %d restarts did not assert POs.    ", pPars->nFrames, nNumRestart * pPars->nRestart + r, nNumRestart );
        Abc_PrintTime( 1, "Time", Abc_Clock() - clkTotal );
    }
    // cleanup
    Ssw_RarManStop( p );
    return RetValue;
}

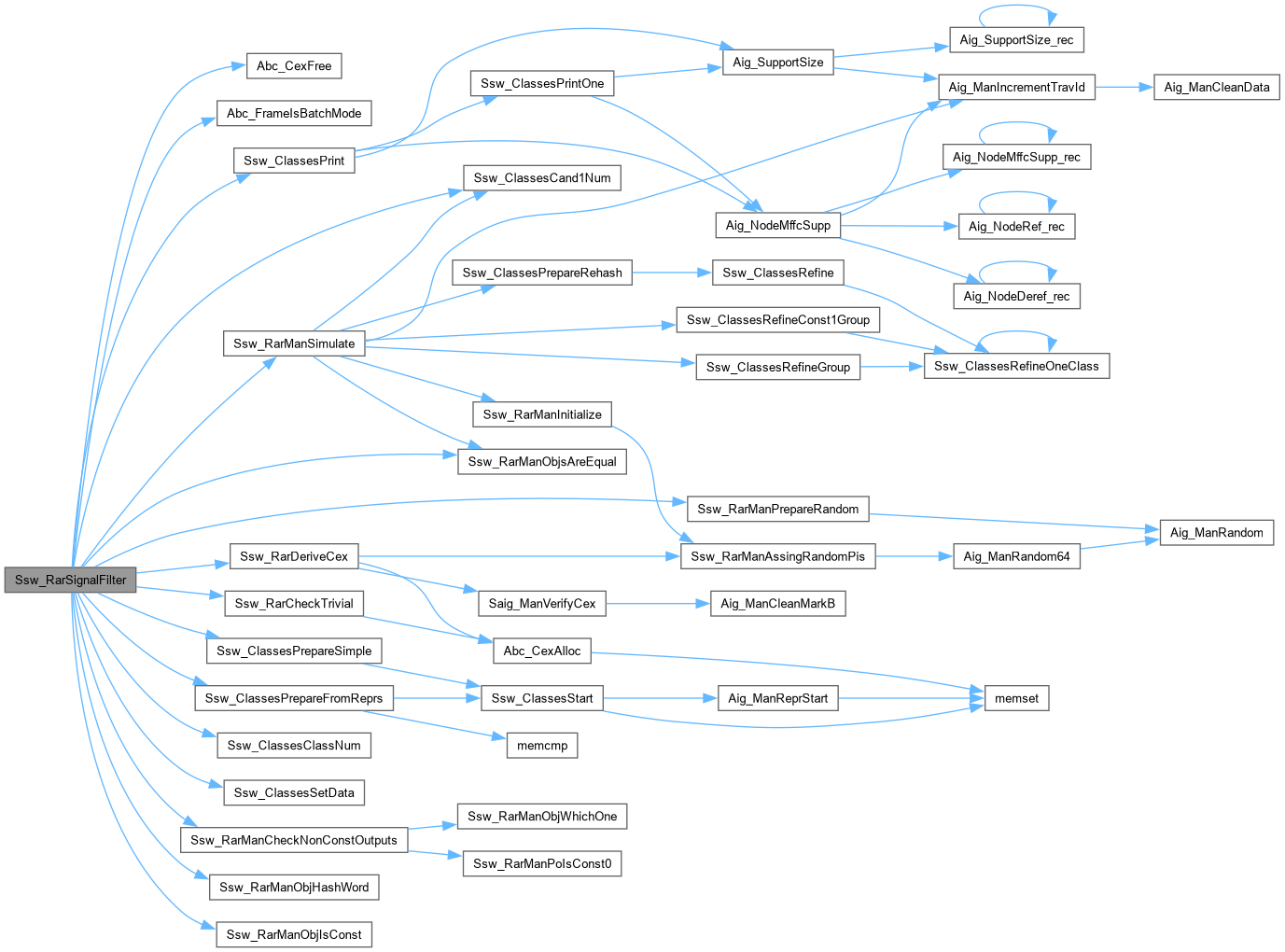

Here is the call graph for this function:

Here is the caller graph for this function:

Ssw_RarSignalFilterGia()

int Ssw_RarSignalFilterGia	(	Gia_Man_t *	p,
		Ssw_RarPars_t *	pPars )

Function*************************************************************

Synopsis [Filter equivalence classes of nodes.]

Description []

SideEffects []

SeeAlso []

Definition at line 1361 of file sswRarity.c.

{
    Aig_Man_t * pAig;
    int RetValue;
    pAig = Gia_ManToAigSimple( p );
    if ( p->pReprs != NULL )
    {
        Gia_ManReprToAigRepr2( pAig, p );
        ABC_FREE( p->pReprs );
        ABC_FREE( p->pNexts );
    }
    RetValue = Ssw_RarSignalFilter( pAig, pPars );
    Gia_ManReprFromAigRepr( pAig, p );
    // save counter-example
    Abc_CexFree( p->pCexSeq );
    p->pCexSeq = pAig->pSeqModel; pAig->pSeqModel = NULL;
    Aig_ManStop( pAig );
    return RetValue;
}

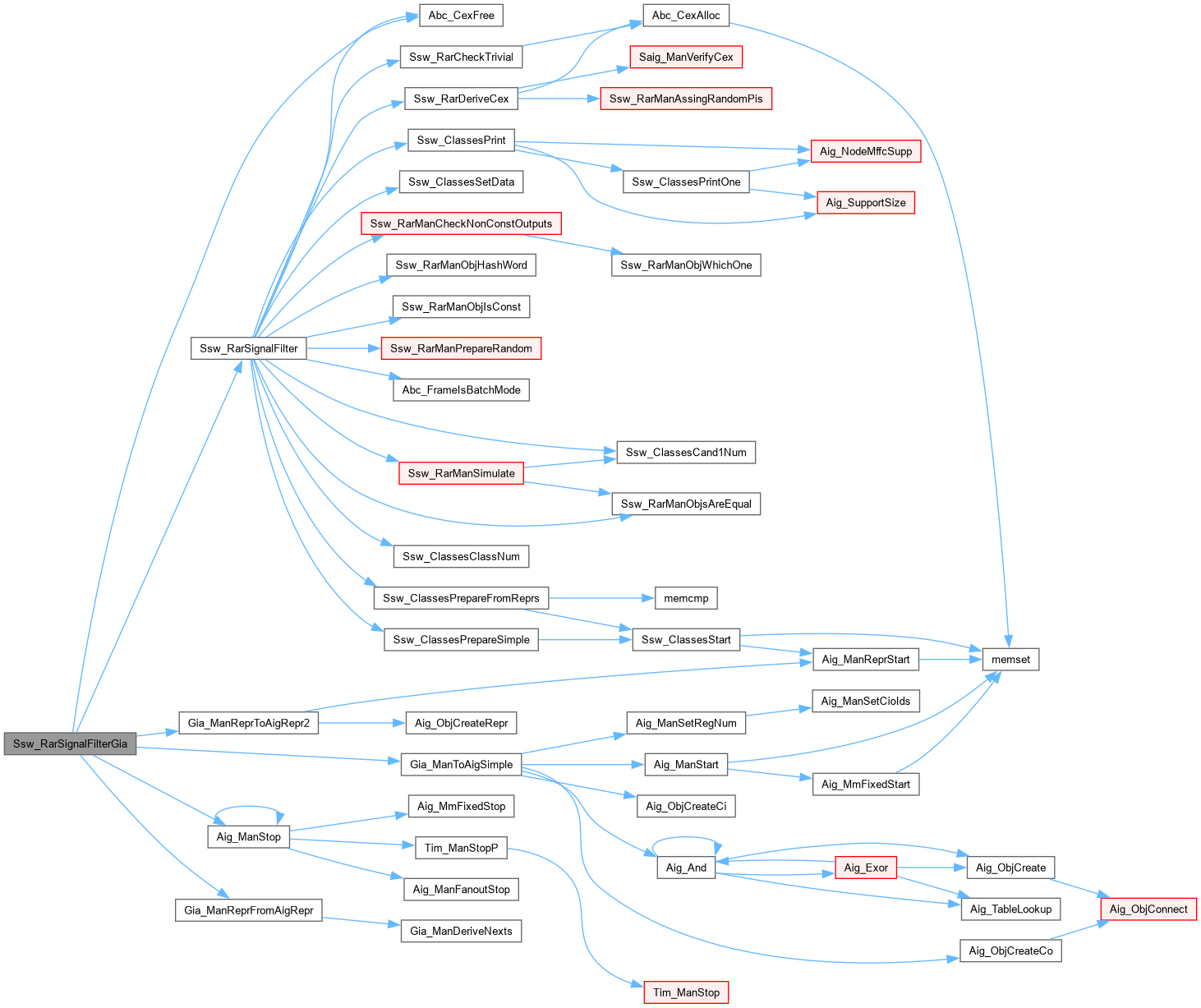

Here is the call graph for this function:

Ssw_RarSimulate()

int Ssw_RarSimulate	(	Aig_Man_t *	pAig,
		Ssw_RarPars_t *	pPars )

Function*************************************************************

Synopsis [Perform sequential simulation.]

Description []

SideEffects []

SeeAlso []

Definition at line 973 of file sswRarity.c.

{
    int fTryBmc = 0;
    int fMiter = 1;
    Ssw_RarMan_t * p;
    int r, f = -1;
    abctime clk, clkTotal = Abc_Clock();
    abctime nTimeToStop = pPars->TimeOut ? pPars->TimeOut * CLOCKS_PER_SEC + Abc_Clock(): 0;
    abctime timeLastSolved = 0;
    int nNumRestart = 0;
    int nSavedSeed = pPars->nRandSeed;
    int RetValue = -1;
    int iFrameFail = -1;
    assert( Aig_ManRegNum(pAig) > 0 );
    assert( Aig_ManConstrNum(pAig) == 0 );
    ABC_FREE( pAig->pSeqModel );
    // consider the case of empty AIG
//    if ( Aig_ManNodeNum(pAig) == 0 )
//        return -1;
    // check trivially SAT miters
//    if ( fMiter && Ssw_RarCheckTrivial( pAig, fVerbose ) )
//        return 0;
    if ( pPars->fVerbose )
        Abc_Print( 1, "Rarity simulation with %d words, %d frames, %d rounds, %d restart, %d seed, and %d sec timeout.\n",
            pPars->nWords, pPars->nFrames, pPars->nRounds, pPars->nRestart, pPars->nRandSeed, pPars->TimeOut );
    // reset random numbers
    Ssw_RarManPrepareRandom( nSavedSeed );

    // create manager
    p = Ssw_RarManStart( pAig, pPars );
    p->vInits = Vec_IntStart( Aig_ManRegNum(pAig) * pPars->nWords );

    // perform simulation rounds
    pPars->nSolved = 0;
    timeLastSolved = Abc_Clock();
    for ( r = 0; !pPars->nRounds || (nNumRestart * pPars->nRestart + r < pPars->nRounds); r++ )
    {
        clk = Abc_Clock();
        if ( fTryBmc )
        {
            Aig_Man_t * pNewAig = Saig_ManDupWithPhase( pAig, p->vInits );
            Saig_BmcPerform( pNewAig, 0, 100, 2000, 3, 0, 0, 1 /*fVerbose*/, 0, &iFrameFail, 0, 0 );
//            if ( pNewAig->pSeqModel != NULL )
//                Abc_Print( 1, "BMC has found a counter-example in frame %d.\n", iFrameFail );
            Aig_ManStop( pNewAig );
        }
        // simulate
        for ( f = 0; f < pPars->nFrames; f++ )
        {
            Ssw_RarManSimulate( p, f ? NULL : p->vInits, 0, 0 );
            if ( fMiter )
            {
                int Status = Ssw_RarManCheckNonConstOutputs(p, r * p->pPars->nFrames + f, Abc_Clock() - clkTotal);
                if ( Status == 2 )
                {
                    Abc_Print( 1, "Quitting due to callback on fail.\n" );
                    goto finish;
                }
                if ( Status == 1 ) // found CEX
                {
                    RetValue = 0;
                    if ( !pPars->fSolveAll )
                    {
                        if ( pPars->fVerbose ) Abc_Print( 1, "\n" );
        //                Abc_Print( 1, "Simulation asserted a PO in frame f: %d <= f < %d.\n", r * nFrames, (r+1) * nFrames );
                        Ssw_RarManPrepareRandom( nSavedSeed );
                        if ( pPars->fVerbose )
                            Abc_Print( 1, "Simulated %d frames for %d rounds with %d restarts.\n", pPars->nFrames, nNumRestart * pPars->nRestart + r, nNumRestart );
                        pAig->pSeqModel = Ssw_RarDeriveCex( p, r * p->pPars->nFrames + f, p->iFailPo, p->iFailPat, pPars->fVerbose );
                        // print final report
                        if ( !pPars->fSilent ) {
                            Abc_Print( 1, "Output %d of miter \"%s\" was asserted in frame %d.  ", pAig->pSeqModel->iPo, pAig->pName, pAig->pSeqModel->iFrame );
                            Abc_PrintTime( 1, "Time", Abc_Clock() - clkTotal );
                        }
                        goto finish;
                    }
                    timeLastSolved = Abc_Clock();
                }
                // else - did not find a counter example
            }
            // check timeout
            if ( pPars->TimeOut && Abc_Clock() > nTimeToStop )
            {
                if ( !pPars->fSilent )
                {
                if ( pPars->fVerbose && !pPars->fSolveAll ) Abc_Print( 1, "\n" );
                Abc_Print( 1, "Simulated %d frames for %d rounds with %d restarts and solved %d outputs.  ", pPars->nFrames, nNumRestart * pPars->nRestart + r, nNumRestart, pPars->nSolved );
                Abc_Print( 1, "Reached timeout (%d sec).\n",  pPars->TimeOut );
                }
                goto finish;
            }
            if ( pPars->TimeOutGap && timeLastSolved && Abc_Clock() > timeLastSolved + pPars->TimeOutGap * CLOCKS_PER_SEC )
            {
                if ( !pPars->fSilent )
                {
                if ( pPars->fVerbose && !pPars->fSolveAll ) Abc_Print( 1, "\n" );
                Abc_Print( 1, "Simulated %d frames for %d rounds with %d restarts and solved %d outputs.  ", pPars->nFrames, nNumRestart * pPars->nRestart + r, nNumRestart, pPars->nSolved );
                Abc_Print( 1, "Reached gap timeout (%d sec).\n",  pPars->TimeOutGap );
                }
                goto finish;
            }
            // check if all outputs are solved by now
            if ( pPars->fSolveAll && p->vCexes && Vec_PtrCountZero(p->vCexes) == 0 )
                goto finish;
        }
        // get initialization patterns
        if ( pPars->nRestart && r == pPars->nRestart )
        {
            r = -1;
            nSavedSeed = (nSavedSeed + 1) % 1000;
            Ssw_RarManPrepareRandom( nSavedSeed );
            Vec_IntFill( p->vInits, Aig_ManRegNum(pAig) * pPars->nWords, 0 );
            nNumRestart++;
            Vec_IntClear( p->vPatBests );
            // clean rarity info
//            memset( p->pRarity, 0, sizeof(int) * (1 << nBinSize) * p->nGroups );
        }
        else
            Ssw_RarTransferPatterns( p, p->vInits );
        // printout
        if ( pPars->fVerbose )
        {
            if ( pPars->fSolveAll )
            {
                Abc_Print( 1, "Starts =%6d   ",  nNumRestart );
                Abc_Print( 1, "Rounds =%6d   ",  nNumRestart * pPars->nRestart + ((r==-1)?0:r) );
                Abc_Print( 1, "Frames =%6d   ", (nNumRestart * pPars->nRestart + r) * pPars->nFrames );
                Abc_Print( 1, "CEX =%6d (%6.2f %%)   ", pPars->nSolved, 100.0*pPars->nSolved/Saig_ManPoNum(p->pAig) );
                Abc_PrintTime( 1, "Time", Abc_Clock() - clkTotal );
            }
            else
                Abc_Print( 1, "." );
        }

    }
finish:
    if ( pPars->fSetLastState && p->vInits )
    {
        assert( Vec_IntSize(p->vInits) % Aig_ManRegNum(pAig) == 0 );
        Vec_IntShrink( p->vInits, Aig_ManRegNum(pAig) );
        pAig->pData = p->vInits;  p->vInits = NULL;
    }
    if ( pPars->nSolved )
    {
/*
        if ( !pPars->fSilent )
        {
        if ( pPars->fVerbose && !pPars->fSolveAll ) Abc_Print( 1, "\n" );
        Abc_Print( 1, "Simulation of %d frames for %d rounds with %d restarts asserted %d (out of %d) POs.    ", pPars->nFrames, nNumRestart * pPars->nRestart + r, nNumRestart, pPars->nSolved, Saig_ManPoNum(p->pAig) );
        Abc_PrintTime( 1, "Time", Abc_Clock() - clkTotal );
        }
*/
    }
    else if ( r == pPars->nRounds && f == pPars->nFrames )
    {
        if ( !pPars->fSilent )
        {
        if ( pPars->fVerbose ) Abc_Print( 1, "\n" );
        Abc_Print( 1, "Simulation of %d frames for %d rounds with %d restarts did not assert POs.    ", pPars->nFrames, nNumRestart * pPars->nRestart + r, nNumRestart );
        Abc_PrintTime( 1, "Time", Abc_Clock() - clkTotal );
        }
    }
    // cleanup
    Ssw_RarManStop( p );
    return RetValue;
}

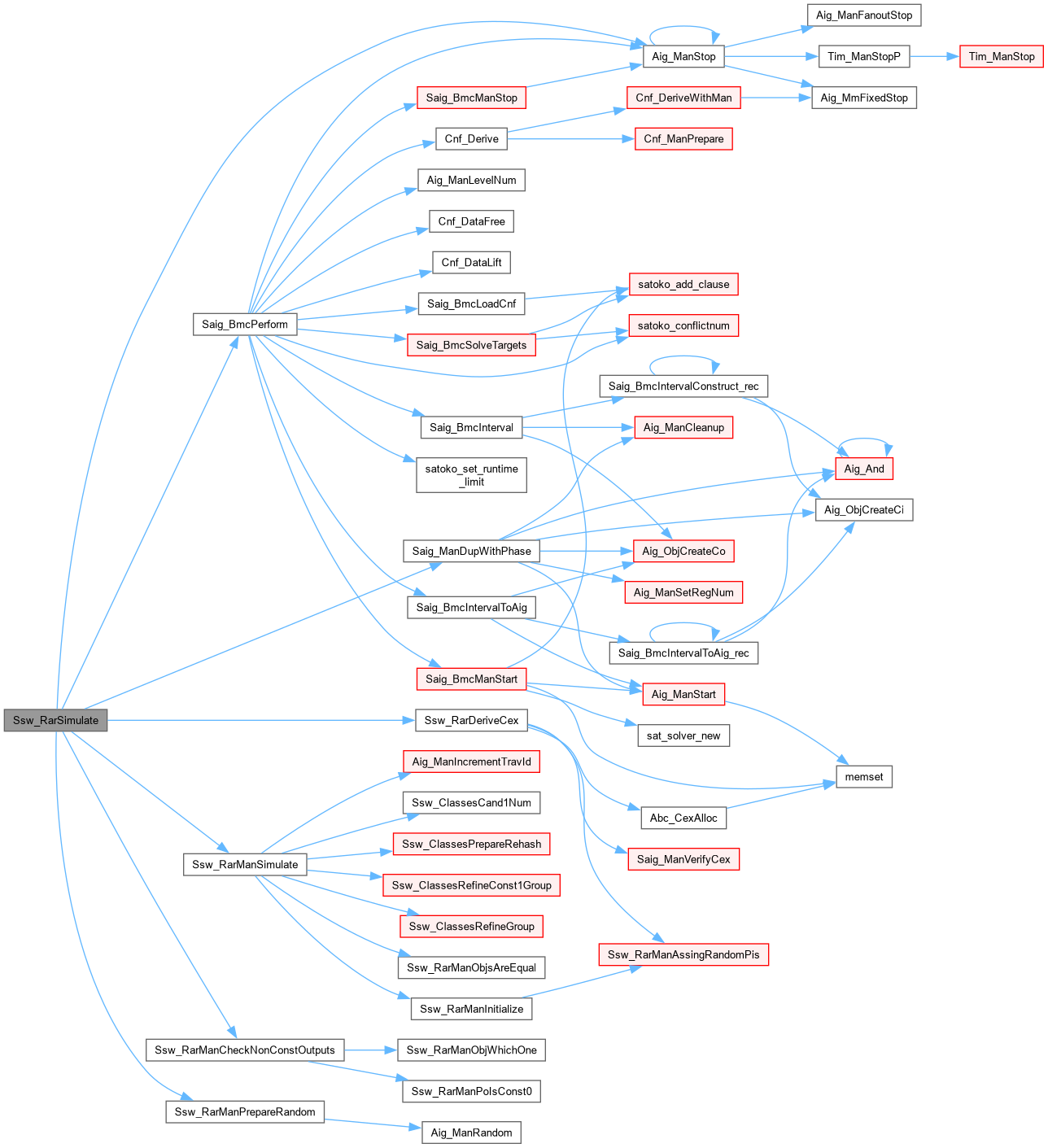

Here is the call graph for this function:

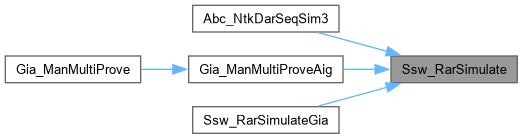

Here is the caller graph for this function:

Ssw_RarSimulateGia()

int Ssw_RarSimulateGia	(	Gia_Man_t *	p,
		Ssw_RarPars_t *	pPars )

DECLARATIONS ///.

Function*************************************************************

Synopsis [Perform sequential simulation.]

Description []

SideEffects []

SeeAlso []

Definition at line 1188 of file sswRarity.c.

{
    Aig_Man_t * pAig;
    int RetValue;
    if ( pPars->fUseFfGrouping )
    {
        Vec_Int_t * vPerm = Ssw_RarRandomPermFlop( Gia_ManRegNum(p), 10 );
        Gia_Man_t * pTemp = Gia_ManDupPermFlopGap( p, vPerm );
        Vec_IntFree( vPerm );
        pAig = Gia_ManToAigSimple( pTemp );
        Gia_ManStop( pTemp );
    }
    else
        pAig = Gia_ManToAigSimple( p );
    RetValue = Ssw_RarSimulate( pAig, pPars );
    // save counter-example
    Abc_CexFree( p->pCexSeq );
    p->pCexSeq = pAig->pSeqModel; pAig->pSeqModel = NULL;
    Aig_ManStop( pAig );
    return RetValue;
}

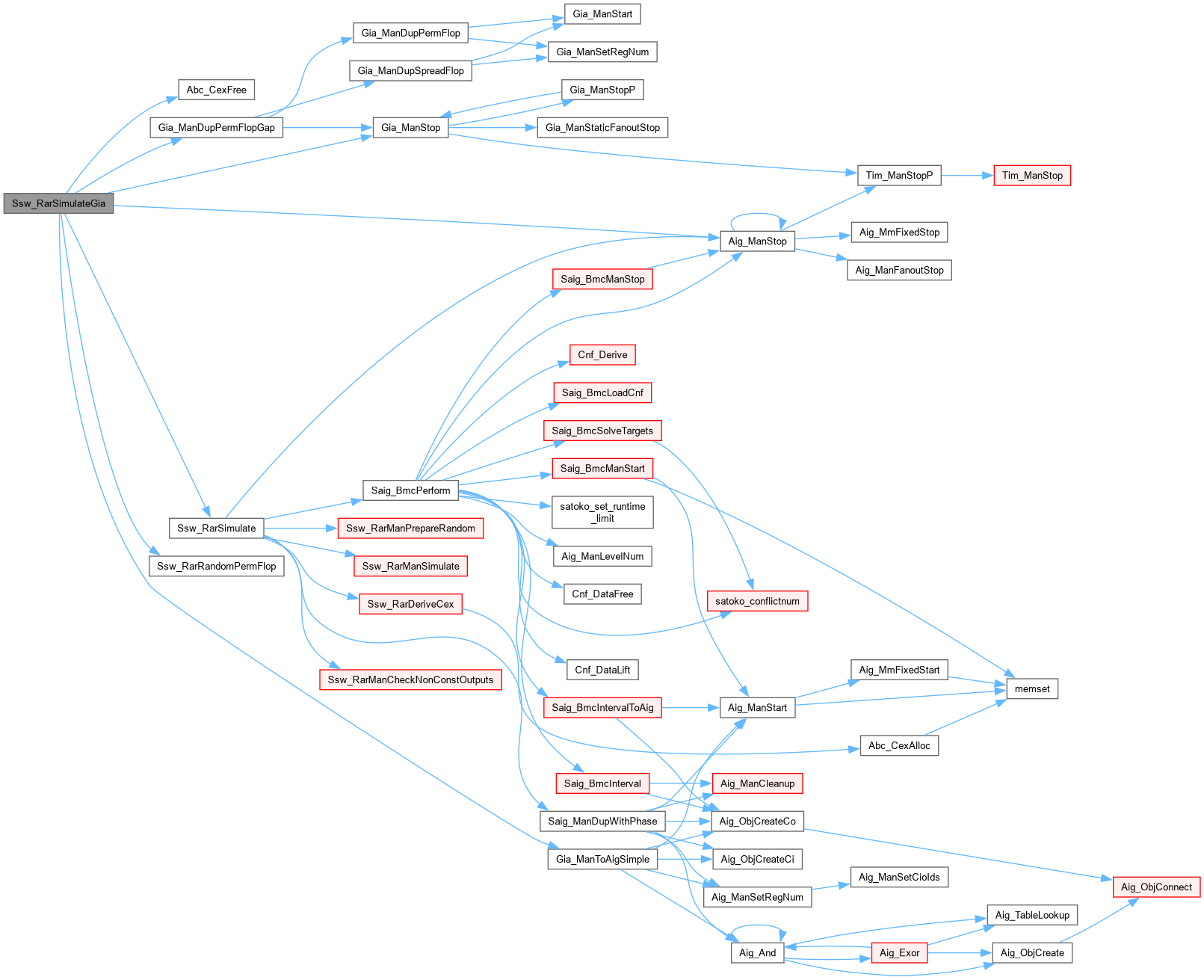

Here is the call graph for this function:

Ssw_RarTranspose()

void Ssw_RarTranspose

(

Ssw_RarMan_t *

p

)

Function*************************************************************

Synopsis [Transposing pObjData[ nRegs x nWords ] -> pPatData[ nWords x nRegs ].]

Description []

SideEffects []

SeeAlso []

Definition at line 360 of file sswRarity.c.

{
    Aig_Obj_t * pObj;
    word M[64];
    int w, r, i;
    for ( w = 0; w < p->pPars->nWords; w++ )
    for ( r = 0; r < p->nWordsReg; r++ )
    {
        // save input
        for ( i = 0; i < 64; i++ )
        {
            if ( r*64 + 63-i < Aig_ManRegNum(p->pAig) )
            {
                pObj = Saig_ManLi( p->pAig, r*64 + 63-i );
                M[i] = Ssw_RarObjSim( p, Aig_ObjId(pObj) )[w];
            }
            else
                M[i] = 0;
        }
        // transpose
        transpose64( M );
        // save output
        for ( i = 0; i < 64; i++ )
            Ssw_RarPatSim( p, w*64 + 63-i )[r] = M[i];
    }
/*
    Saig_ManForEachLi( p->pAig, pObj, i )
    {
        word * pBitData = Ssw_RarObjSim( p, Aig_ObjId(pObj) );
        Extra_PrintBinary( stdout, (unsigned *)pBitData, 64*p->pPars->nWords ); Abc_Print( 1, "\n" );
    }
    Abc_Print( 1, "\n" );
    for ( i = 0; i < p->pPars->nWords*64; i++ )
    {
        word * pBitData = Ssw_RarPatSim( p, i );
        Extra_PrintBinary( stdout, (unsigned *)pBitData, Aig_ManRegNum(p->pAig) ); Abc_Print( 1, "\n" );
    }
    Abc_Print( 1, "\n" );
*/
}

Here is the call graph for this function:

transpose32()

void transpose32

(

unsigned

A[32]

)

Function*************************************************************

Synopsis [Transposing 32-bit matrix.]

Description [Borrowed from "Hacker's Delight", by Henry Warren.]

SideEffects []

SeeAlso []

Definition at line 239 of file sswRarity.c.

{
    int j, k;
    unsigned t, m = 0x0000FFFF;
    for ( j = 16; j != 0; j = j >> 1, m = m ^ (m << j) )
    {
        for ( k = 0; k < 32; k = (k + j + 1) & ~j )
        {
            t = (A[k] ^ (A[k+j] >> j)) & m;
            A[k] = A[k] ^ t;
            A[k+j] = A[k+j] ^ (t << j);
        }
    }
}

transpose64()

void transpose64

(

word

A[64]

)

Function*************************************************************

Synopsis [Transposing 64-bit matrix.]

Description []

SideEffects []

SeeAlso []

Definition at line 265 of file sswRarity.c.

{
    int j, k;
    word t, m = 0x00000000FFFFFFFF;
    for ( j = 32; j != 0; j = j >> 1, m = m ^ (m << j) )
    {
        for ( k = 0; k < 64; k = (k + j + 1) & ~j )
        {
            t = (A[k] ^ (A[k+j] >> j)) & m;
            A[k] = A[k] ^ t;
            A[k+j] = A[k+j] ^ (t << j);
        }
    }
}

Here is the caller graph for this function:

transpose64Simple()

void transpose64Simple	(	word	A[64],
		word	B[64] )

Function*************************************************************

Synopsis [Transposing 64-bit matrix.]

Description []

SideEffects []

SeeAlso []

Definition at line 291 of file sswRarity.c.

{
    int i, k;
    for ( i = 0; i < 64; i++ )
        B[i] = 0;
    for ( i = 0; i < 64; i++ )
    for ( k = 0; k < 64; k++ )
        if ( (A[i] >> k) & 1 )
            B[k] |= ((word)1 << (63-i));
}

Here is the caller graph for this function:

TransposeTest()

void TransposeTest

(

)

Function*************************************************************

Synopsis [Testing the transposing code.]

Description []

SideEffects []

SeeAlso []

Definition at line 313 of file sswRarity.c.

{
    word M[64], N[64];
    int i;
    abctime clk;
    Aig_ManRandom64( 1 );
//    for ( i = 0; i < 64; i++ )
//        M[i] = Aig_ManRandom64( 0 );
    for ( i = 0; i < 64; i++ )
        M[i] = i? (word)0 : ~(word)0;
//    for ( i = 0; i < 64; i++ )
//        Extra_PrintBinary( stdout, (unsigned *)&M[i], 64 ), Abc_Print( 1, "\n" );

    clk = Abc_Clock();
    for ( i = 0; i < 100001; i++ )
        transpose64Simple( M, N );
    Abc_PrintTime( 1, "Time", Abc_Clock() - clk );

    clk = Abc_Clock();
    for ( i = 0; i < 100001; i++ )
        transpose64( M );
    Abc_PrintTime( 1, "Time", Abc_Clock() - clk );

    for ( i = 0; i < 64; i++ )
        if ( M[i] != N[i] )
            Abc_Print( 1, "Mismatch\n" );
/*
    Abc_Print( 1, "\n" );
    for ( i = 0; i < 64; i++ )
        Extra_PrintBinary( stdout, (unsigned *)&M[i], 64 ), Abc_Print( 1, "\n" );
    Abc_Print( 1, "\n" );
    for ( i = 0; i < 64; i++ )
        Extra_PrintBinary( stdout, (unsigned *)&N[i], 64 ), Abc_Print( 1, "\n" );
*/
}

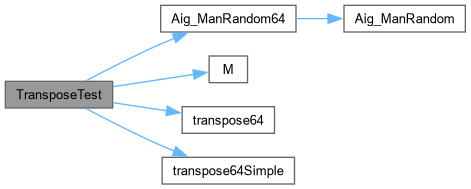

Here is the call graph for this function:
