abcUtil.c File Reference

#include "abc.h"
#include "base/main/main.h"
#include "map/mio/mio.h"
#include "bool/dec/dec.h"
#include "opt/fxu/fxu.h"
#include "aig/miniaig/ndr.h"
#include "misc/util/utilTruth.h"

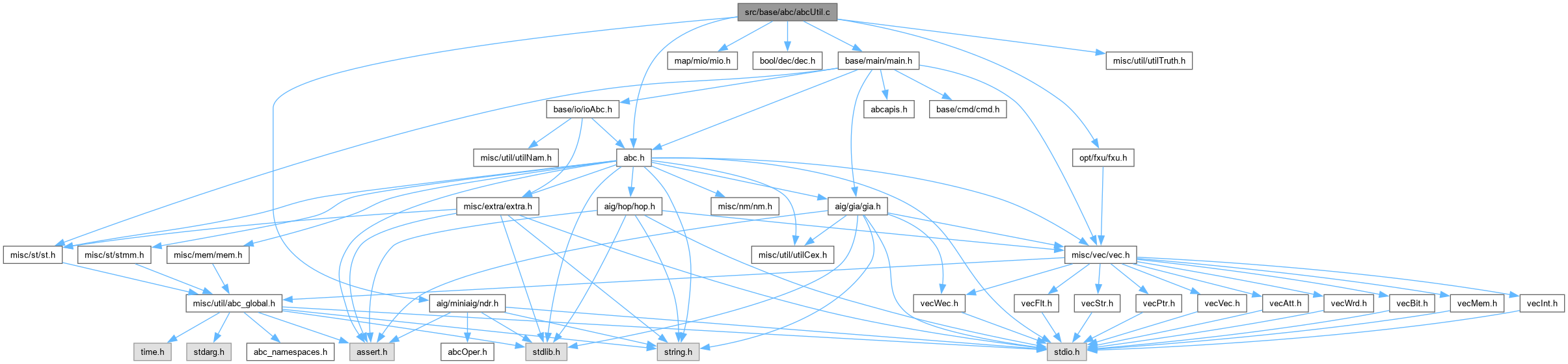

Include dependency graph for abcUtil.c:

Go to the source code of this file.

Functions
ABC_NAMESPACE_IMPL_START void *	Abc_NtkAttrFree (Abc_Ntk_t *pNtk, int Attr, int fFreeMan)
	DECLARATIONS ///.
void	Abc_NtkOrderCisCos (Abc_Ntk_t *pNtk)
int	Abc_NtkGetCubeNum (Abc_Ntk_t *pNtk)
int	Abc_NtkGetCubePairNum (Abc_Ntk_t *pNtk)
int	Abc_NtkGetLitNum (Abc_Ntk_t *pNtk)
int	Abc_NtkGetLitFactNum (Abc_Ntk_t *pNtk)
int	Abc_NtkGetMultiRefNum (Abc_Ntk_t *pNtk)
int	Abc_NtkGetBddNodeNum (Abc_Ntk_t *pNtk)
int	Abc_NtkGetAigNodeNum (Abc_Ntk_t *pNtk)
int	Abc_NtkGetClauseNum (Abc_Ntk_t *pNtk)
double	Abc_NtkGetMappedArea (Abc_Ntk_t *pNtk)
int	Abc_NtkGetExorNum (Abc_Ntk_t *pNtk)
int	Abc_NtkGetMuxNum (Abc_Ntk_t *pNtk)
int	Abc_NtkGetBufNum (Abc_Ntk_t *pNtk)
int	Abc_NtkGetLargeNodeNum (Abc_Ntk_t *pNtk)
int	Abc_NtkGetChoiceNum (Abc_Ntk_t *pNtk)
int	Abc_NtkGetFaninMax (Abc_Ntk_t *pNtk)
int	Abc_NtkGetFanoutMax (Abc_Ntk_t *pNtk)
int	Abc_NtkGetTotalFanins (Abc_Ntk_t *pNtk)
void	Abc_NtkCleanCopy (Abc_Ntk_t *pNtk)
void	Abc_NtkCleanCopy_rec (Abc_Ntk_t *pNtk)
void	Abc_NtkCleanData (Abc_Ntk_t *pNtk)
void	Abc_NtkFillTemp (Abc_Ntk_t *pNtk)
int	Abc_NtkCountCopy (Abc_Ntk_t *pNtk)
Vec_Ptr_t *	Abc_NtkSaveCopy (Abc_Ntk_t *pNtk)
void	Abc_NtkLoadCopy (Abc_Ntk_t *pNtk, Vec_Ptr_t *vCopies)
void	Abc_NtkCleanNext (Abc_Ntk_t *pNtk)
void	Abc_NtkCleanNext_rec (Abc_Ntk_t *pNtk)
void	Abc_NtkCleanMarkA (Abc_Ntk_t *pNtk)
void	Abc_NtkCleanMarkB (Abc_Ntk_t *pNtk)
void	Abc_NtkCleanMarkC (Abc_Ntk_t *pNtk)
void	Abc_NtkCleanMarkAB (Abc_Ntk_t *pNtk)
void	Abc_NtkCleanMarkABC (Abc_Ntk_t *pNtk)
int	Abc_NodeFindFanin (Abc_Obj_t *pNode, Abc_Obj_t *pFanin)
Abc_Obj_t *	Abc_NodeFindCoFanout (Abc_Obj_t *pNode)
Abc_Obj_t *	Abc_NodeFindNonCoFanout (Abc_Obj_t *pNode)
Abc_Obj_t *	Abc_NodeHasUniqueCoFanout (Abc_Obj_t *pNode)
void	Abc_NtkFixCoDriverProblem (Abc_Obj_t *pDriver, Abc_Obj_t *pNodeCo, int fDuplicate)
int	Abc_NtkLogicHasSimpleCos (Abc_Ntk_t *pNtk)
int	Abc_NtkLogicMakeSimpleCos2 (Abc_Ntk_t *pNtk, int fDuplicate)
void	Abc_NtkLogicMakeSimpleCosTest (Abc_Ntk_t *pNtk, int fDuplicate)
int	Abc_NtkLogicMakeSimpleCos (Abc_Ntk_t *pNtk, int fDuplicate)
void	Abc_VecObjPushUniqueOrderByLevel (Vec_Ptr_t *p, Abc_Obj_t *pNode)
int	Abc_NodeIsExorType (Abc_Obj_t *pNode)
int	Abc_NodeIsMuxType (Abc_Obj_t *pNode)
int	Abc_NtkCountMuxes (Abc_Ntk_t *pNtk)
int	Abc_NodeIsMuxControlType (Abc_Obj_t *pNode)
Abc_Obj_t *	Abc_NodeRecognizeMux (Abc_Obj_t *pNode, Abc_Obj_t **ppNodeT, Abc_Obj_t **ppNodeE)
int	Abc_NtkPrepareTwoNtks (FILE *pErr, Abc_Ntk_t *pNtk, char **argv, int argc, Abc_Ntk_t **ppNtk1, Abc_Ntk_t **ppNtk2, int *pfDelete1, int *pfDelete2, int fCheck)
void	Abc_NodeCollectFanins (Abc_Obj_t *pNode, Vec_Ptr_t *vNodes)
void	Abc_NodeCollectFanouts (Abc_Obj_t *pNode, Vec_Ptr_t *vNodes)
Vec_Ptr_t *	Abc_NtkCollectLatches (Abc_Ntk_t *pNtk)
int	Abc_NodeCompareLevelsIncrease (Abc_Obj_t **pp1, Abc_Obj_t **pp2)
int	Abc_NodeCompareLevelsDecrease (Abc_Obj_t **pp1, Abc_Obj_t **pp2)
Vec_Int_t *	Abc_NtkFanoutCounts (Abc_Ntk_t *pNtk)
Vec_Ptr_t *	Abc_NtkCollectObjects (Abc_Ntk_t *pNtk)
Vec_Int_t *	Abc_NtkGetCiIds (Abc_Ntk_t *pNtk)
void	Abc_NtkReassignIds (Abc_Ntk_t *pNtk)
void	Abc_NtkDetectMatching (Abc_Ntk_t *pNtk)
int	Abc_ObjPointerCompare (void **pp1, void **pp2)
void	Abc_NtkTransferCopy (Abc_Ntk_t *pNtk)
int	Abc_NtkCrossCut_rec (Abc_Obj_t *pObj, int *pnCutSize, int *pnCutSizeMax)
int	Abc_NtkCrossCut (Abc_Ntk_t *pNtk)
void	Abc_NtkPrint256 ()
int	Abc_NtkCompareConesCompare (int *pNum1, int *pNum2)
void	Abc_NtkCompareCones (Abc_Ntk_t *pNtk)
void	Abc_NtkCompareSupports (Abc_Ntk_t *pNtk)
void	Abc_NtkInvertConstraints (Abc_Ntk_t *pNtk)
void	Abc_NtkPrintCiLevels (Abc_Ntk_t *pNtk)
int	Abc_NtkAddBuffsEval (Abc_Obj_t *pNode, Abc_Obj_t *pFanin)
int	Abc_NtkAddBuffsEval2 (Abc_Obj_t *pNode, Abc_Obj_t *pFanin)
Abc_Obj_t *	Abc_NtkAddBuffsOne (Vec_Ptr_t *vBuffs, Abc_Obj_t *pFanin, int Level, int nLevelMax)
Abc_Ntk_t *	Abc_NtkAddBuffsInt (Abc_Ntk_t *pNtkInit, int fReverse, int nImprove, int fVerbose)
Abc_Ntk_t *	Abc_NtkAddBuffs (Abc_Ntk_t *pNtkInit, int fDirect, int fReverse, int nImprove, int fVerbose)
float	Abc_NtkComputeDelay (Abc_Ntk_t *pNtk)
void	Abc_NodeSopToCubes (Abc_Obj_t *pNodeOld, Abc_Ntk_t *pNtkNew, int fXor)
Abc_Ntk_t *	Abc_NtkSopToCubes (Abc_Ntk_t *pNtk, int fXor)
void	Abc_NtkReverseTopoOrder_rec (Abc_Obj_t *pObj, int fThisIsPivot)
void	Abc_NtkReverseTopoOrder (Abc_Ntk_t *p)
void	Abc_NtkReverse_rec (Abc_Obj_t *pObj, Vec_Int_t *vVisited)
void	Abc_NtkReverseTopoOrderTest (Abc_Ntk_t *p)
Abc_Ntk_t *	Abc_NtkFromPla (char **pPlas, int nInputs, int nOutputs)
void	Abc_NtkFromPlaTest ()
Abc_Ntk_t *	Abc_NtkSplitSop (Abc_Ntk_t *pNtk, int nCubesMax, int fVerbose)
int	Abc_NtkIsTopo (Abc_Ntk_t *pNtk)
void	Abc_NtkTransferPhases (Abc_Ntk_t *pNtkNew, Abc_Ntk_t *pNtk)
Abc_Ntk_t *	Abc_NtkDeriveWithOnePo (Abc_Ntk_t *pNtk, Vec_Int_t *vNodeIds, Vec_Int_t *vNodeValues)
Abc_Ntk_t *	Abc_NtkCreatePropertyMonitor (Abc_Ntk_t *p, Vec_Int_t *vNodeIds, Vec_Int_t *vNodeValues)
Abc_Ntk_t *	Abc_NtkCreatePropertyMonitorTest (Abc_Ntk_t *p)
int	Abc_GateToType (Abc_Obj_t *pObj)
Vec_Wec_t *	Abc_SopSynthesize (Vec_Ptr_t *vSops)
Vec_Wec_t *	Abc_GiaSynthesize (Vec_Ptr_t *vGias, Gia_Man_t *pMulti)
Gia_Man_t *	Abc_GiaSynthesizeInter (Gia_Man_t *p)
int	Abc_NtkClpOneGia_rec (Gia_Man_t *pNew, Abc_Obj_t *pNode)
Gia_Man_t *	Abc_NtkStrashToGia (Abc_Ntk_t *pNtk)
Gia_Man_t *	Abc_SopSynthesizeOne (char *pSop, int fClp)
int	Abc_NtkHasConstNode ()
Abc_Ntk_t *	Abc_NtkFromArray ()
void	Abc_PrintAT (Vec_Int_t *vRanks)
int	Abc_NtkMatchGpcPattern (Vec_Int_t *vRanks, int i, char *pGPC)
void	Abc_NtkUpdateGpcPattern (Vec_Int_t *vRank, int i, char *pGPC, int nGpcs, Vec_Int_t *vRank2, Vec_Int_t *vLevel)
int	Abc_NtkGetGpcLutCount (char *pGPC)
char **	Abc_NtkTransformGPCs (char **pGPCs, int nGPCs)
int	Abc_NtkCheckGpc (char *pGPC, char *pGPC0)
void	Abc_NtkATMap (int nXVars, int nYVars, int nAdder, char **pGPCs0, int nGPCs, int fReturn, int fVerbose)

Function Documentation

Abc_GateToType()

int Abc_GateToType

(

Abc_Obj_t *

pObj

)

Function*************************************************************

Synopsis []

Description []

SideEffects []

SeeAlso []

Definition at line 3102 of file abcUtil.c.

{
    char * pGateName = Mio_GateReadName((Mio_Gate_t *)pObj->pData);
    if ( !strncmp(pGateName, "buf",  3) )  return ABC_OPER_BIT_BUF;
    if ( !strncmp(pGateName, "inv",  3) )  return ABC_OPER_BIT_INV;
    if ( !strncmp(pGateName, "and",  3) )  return ABC_OPER_BIT_AND;
    if ( !strncmp(pGateName, "nand", 4) )  return ABC_OPER_BIT_NAND;
    if ( !strncmp(pGateName, "or",   2) )  return ABC_OPER_BIT_OR;
    if ( !strncmp(pGateName, "nor",  3) )  return ABC_OPER_BIT_NOR;
    if ( !strncmp(pGateName, "xor",  3) )  return ABC_OPER_BIT_XOR;
    if ( !strncmp(pGateName, "xnor", 4) )  return ABC_OPER_BIT_NXOR;
    if ( !strncmp(pGateName, "zero", 4) )  return ABC_OPER_CONST_F;
    if ( !strncmp(pGateName, "one",  3) )  return ABC_OPER_CONST_T;
    assert( 0 );
    return -1;
}

Here is the call graph for this function:

Here is the caller graph for this function:

Abc_GiaSynthesize()

Vec_Wec_t * Abc_GiaSynthesize	(	Vec_Ptr_t *	vGias,
		Gia_Man_t *	pMulti )

Definition at line 3148 of file abcUtil.c.

{
    Vec_Wec_t * vRes = NULL;
    Abc_Ntk_t * pNtk = Abc_NtkCreateFromGias( "top", vGias, pMulti );
    Abc_Ntk_t * pNtkNew;
    Abc_Obj_t * pObj, * pFanin;
    int i, k, iNode = 0;
    Abc_FrameReplaceCurrentNetwork( Abc_FrameReadGlobalFrame(), pNtk );
    Abc_FrameSetBatchMode( 1 );
    Cmd_CommandExecute( Abc_FrameGetGlobalFrame(), "clp; sop; fx; strash; compress2rs; dch; map -a;  strash; compress2rs; dch; map -a" );
    Abc_FrameSetBatchMode( 0 );
    pNtkNew = Abc_FrameReadNtk( Abc_FrameReadGlobalFrame() );
    vRes = Vec_WecStart( Abc_NtkPiNum(pNtkNew) + Abc_NtkNodeNum(pNtkNew) + Abc_NtkPoNum(pNtkNew) );
    Abc_NtkForEachPi( pNtkNew, pObj, i )
        pObj->iTemp = iNode++;
    Abc_NtkForEachNode( pNtkNew, pObj, i )
    {
        Vec_Int_t * vNode = Vec_WecEntry(vRes, iNode);
        Vec_IntPush( vNode, Abc_GateToType(pObj) );
        Vec_IntPush( vNode, iNode );
        Abc_ObjForEachFanin( pObj, pFanin, k )
            Vec_IntPush( vNode, pFanin->iTemp );
        pObj->iTemp = iNode++;
    }
    Abc_NtkForEachPo( pNtkNew, pObj, i )
        Vec_IntPushTwo( Vec_WecEntry(vRes, iNode++), ABC_OPER_BIT_BUF, Abc_ObjFanin0(pObj)->iTemp );
    assert( Vec_WecSize(vRes) == iNode );
    return vRes;
}

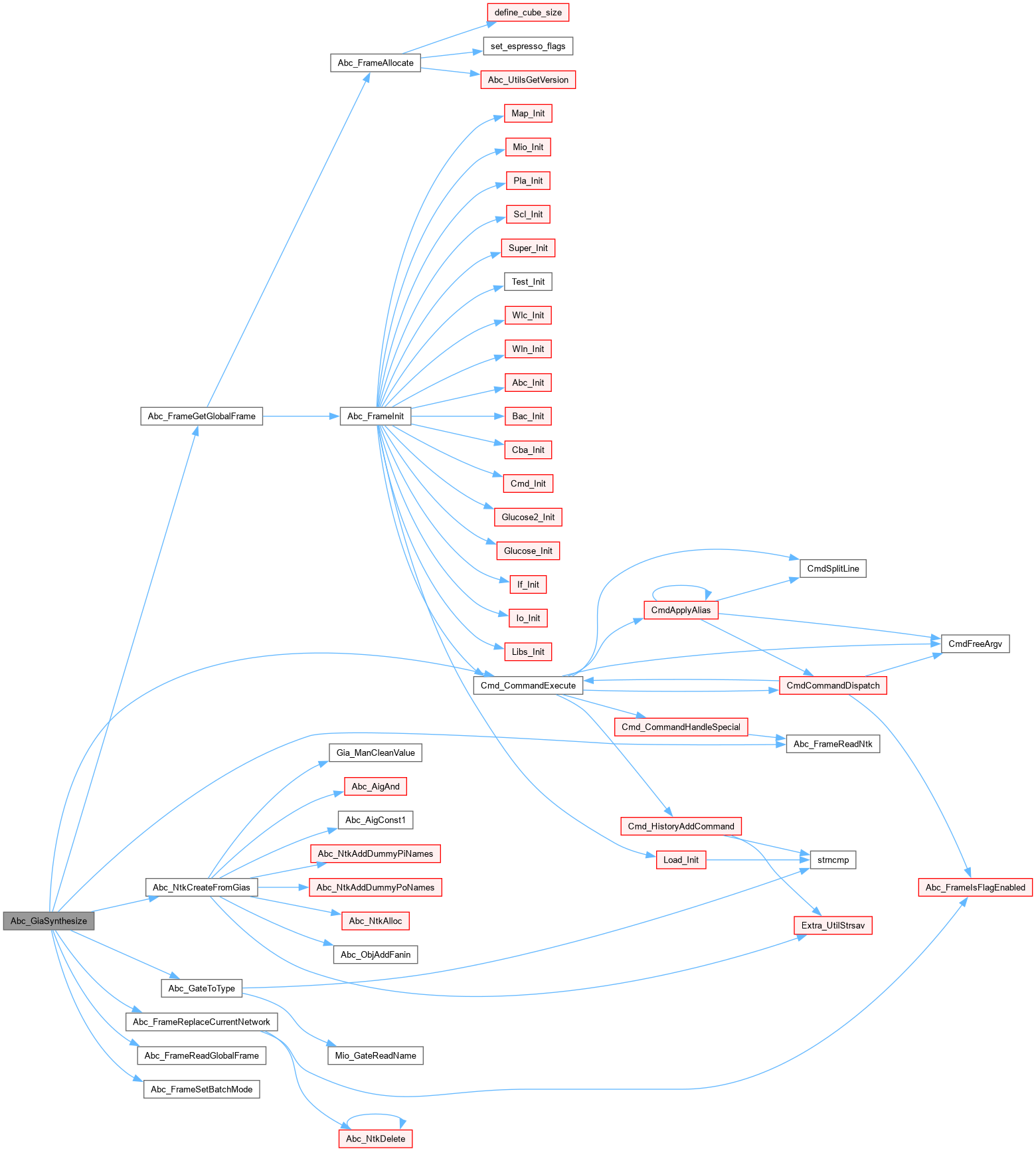

Here is the call graph for this function:

Here is the caller graph for this function:

Abc_GiaSynthesizeInter()

Gia_Man_t * Abc_GiaSynthesizeInter

(

Gia_Man_t *

p

)

Definition at line 3177 of file abcUtil.c.

{
    Abc_Ntk_t * pNtkNew, * pNtk;
    Vec_Ptr_t * vGias = Vec_PtrAlloc( 1 );
    Vec_PtrPush( vGias, p );
    pNtk = Abc_NtkCreateFromGias( "top", vGias, NULL );
    Vec_PtrFree( vGias );
    Abc_FrameReplaceCurrentNetwork( Abc_FrameReadGlobalFrame(), pNtk );
    Cmd_CommandExecute( Abc_FrameGetGlobalFrame(), "balance; collapse; muxes; strash; dc2" );
    pNtkNew = Abc_FrameReadNtk( Abc_FrameReadGlobalFrame() );
    return Abc_NtkClpGia( pNtkNew );
}

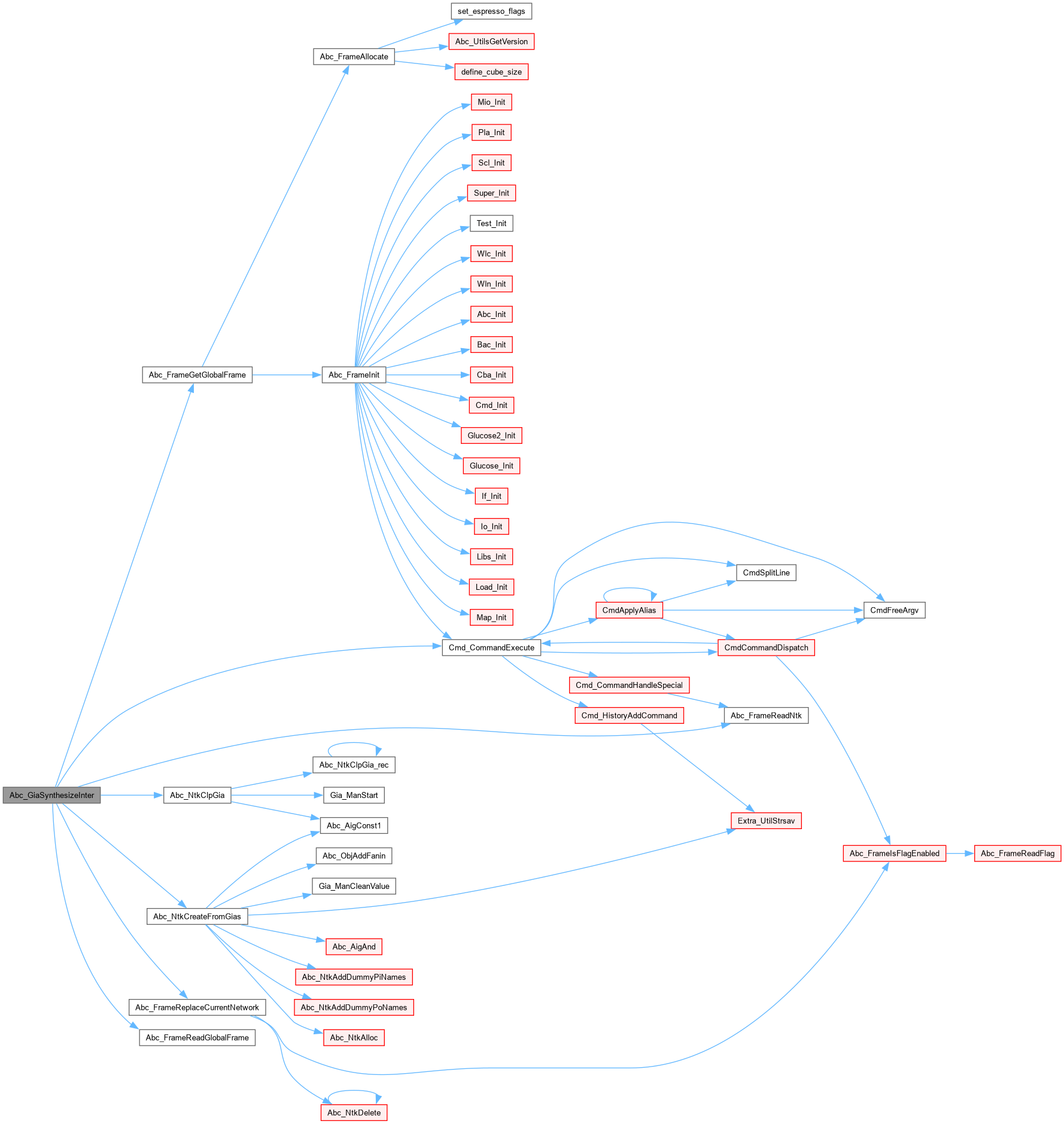

Here is the call graph for this function:

Here is the caller graph for this function:

Abc_NodeCollectFanins()

void Abc_NodeCollectFanins	(	Abc_Obj_t *	pNode,
		Vec_Ptr_t *	vNodes )

Function*************************************************************

Synopsis [Returns 1 if it is an AIG with choice nodes.]

Description []

SideEffects []

SeeAlso []

Definition at line 1627 of file abcUtil.c.

{
    Abc_Obj_t * pFanin;
    int i;
    Vec_PtrClear(vNodes);
    Abc_ObjForEachFanin( pNode, pFanin, i )
        Vec_PtrPush( vNodes, pFanin );
}

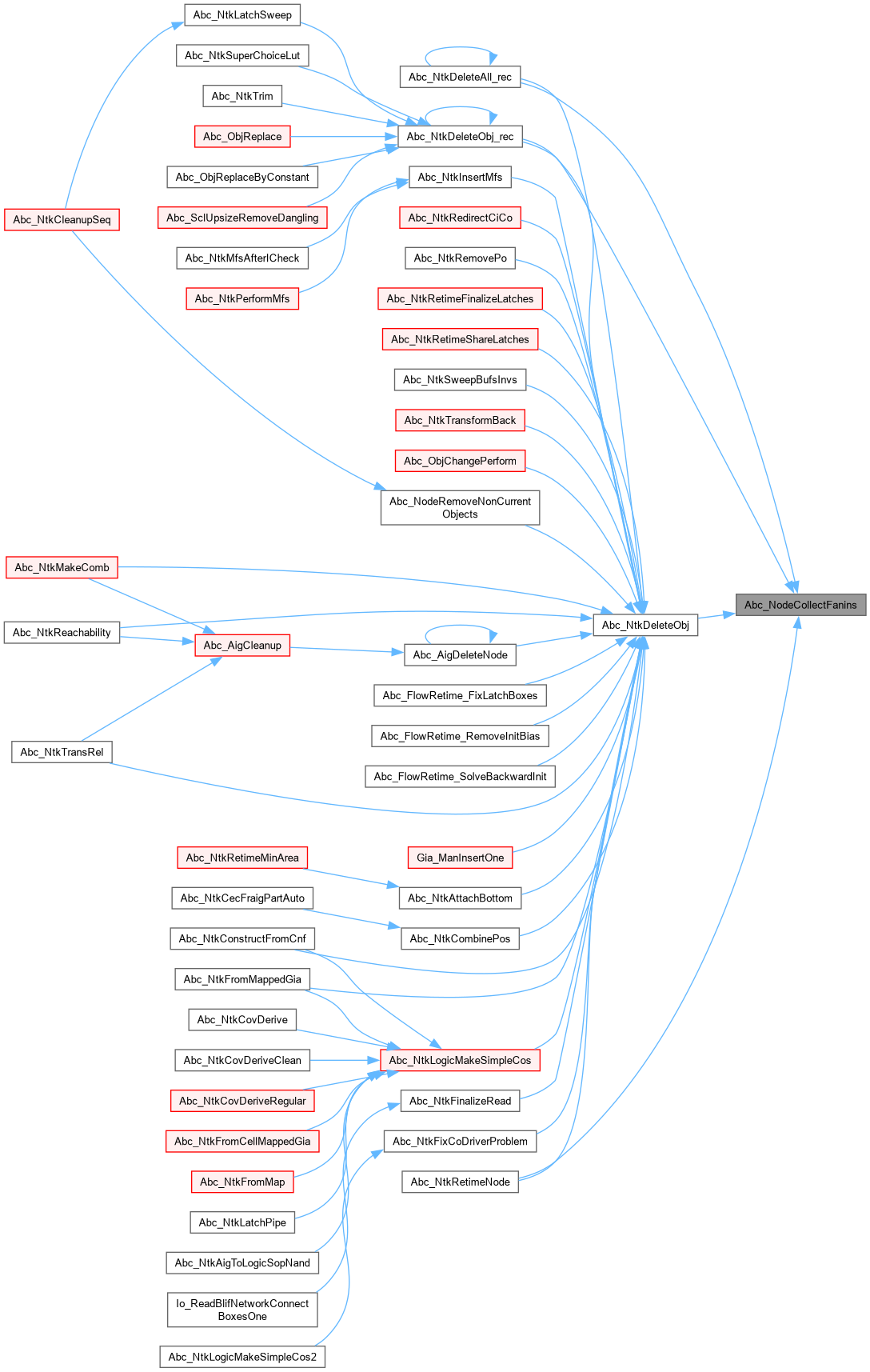

Here is the caller graph for this function:

Abc_NodeCollectFanouts()

void Abc_NodeCollectFanouts	(	Abc_Obj_t *	pNode,
		Vec_Ptr_t *	vNodes )

Function*************************************************************

Synopsis [Returns 1 if it is an AIG with choice nodes.]

Description []

SideEffects []

SeeAlso []

Definition at line 1647 of file abcUtil.c.

{
    Abc_Obj_t * pFanout;
    int i;
    Vec_PtrClear(vNodes);
    Abc_ObjForEachFanout( pNode, pFanout, i )
        Vec_PtrPush( vNodes, pFanout );
}

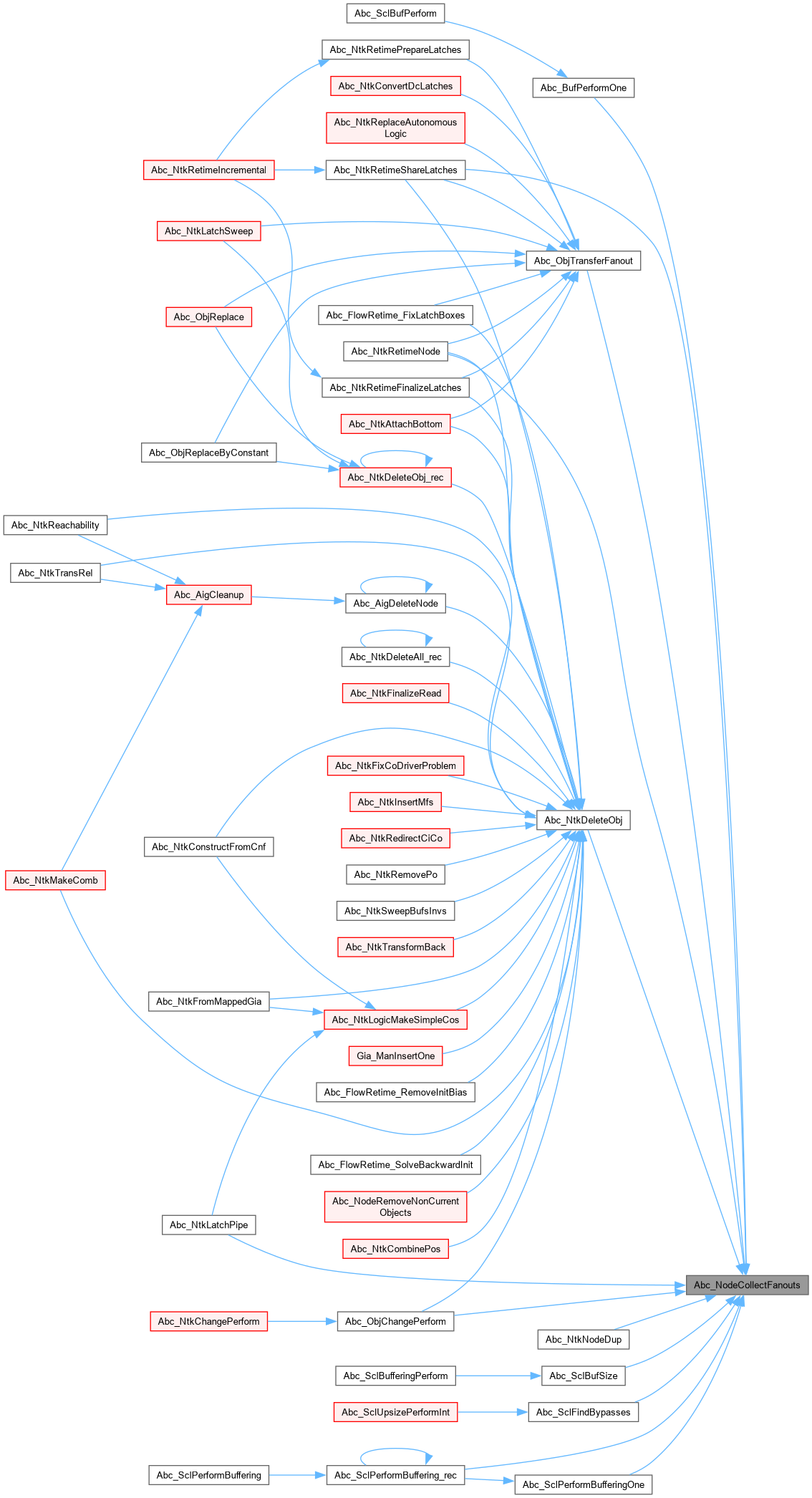

Here is the caller graph for this function:

Abc_NodeCompareLevelsDecrease()

int Abc_NodeCompareLevelsDecrease	(	Abc_Obj_t **	pp1,
		Abc_Obj_t **	pp2 )

Function*************************************************************

Synopsis [Procedure used for sorting the nodes in decreasing order of levels.]

Description []

SideEffects []

SeeAlso []

Definition at line 1715 of file abcUtil.c.

{
    int Diff = Abc_ObjRegular(*pp1)->Level - Abc_ObjRegular(*pp2)->Level;
    if ( Diff > 0 )
        return -1;
    if ( Diff < 0 )
        return 1;
    Diff = Abc_ObjRegular(*pp1)->Id - Abc_ObjRegular(*pp2)->Id;
    if ( Diff > 0 )
        return -1;
    if ( Diff < 0 )
        return 1;
    return 0;
}

Abc_NodeCompareLevelsIncrease()

int Abc_NodeCompareLevelsIncrease	(	Abc_Obj_t **	pp1,
		Abc_Obj_t **	pp2 )

Function*************************************************************

Synopsis [Procedure used for sorting the nodes in increasing order of levels.]

Description []

SideEffects []

SeeAlso []

Definition at line 1689 of file abcUtil.c.

{
    int Diff = Abc_ObjRegular(*pp1)->Level - Abc_ObjRegular(*pp2)->Level;
    if ( Diff < 0 )
        return -1;
    if ( Diff > 0 )
        return 1;
    Diff = Abc_ObjRegular(*pp1)->Id - Abc_ObjRegular(*pp2)->Id;
    if ( Diff < 0 )
        return -1;
    if ( Diff > 0 )
        return 1;
    return 0;
}

Here is the caller graph for this function:

Abc_NodeFindCoFanout()

Abc_Obj_t * Abc_NodeFindCoFanout

(

Abc_Obj_t *

pNode

)

Function*************************************************************

Synopsis [Checks if the internal node has CO fanout.]

Description []

SideEffects []

SeeAlso []

Definition at line 812 of file abcUtil.c.

{
    Abc_Obj_t * pFanout;
    int i;
    Abc_ObjForEachFanout( pNode, pFanout, i )
        if ( Abc_ObjIsCo(pFanout) )
            return pFanout;
    return NULL;
}

Here is the caller graph for this function:

Abc_NodeFindFanin()

int Abc_NodeFindFanin	(	Abc_Obj_t *	pNode,
		Abc_Obj_t *	pFanin )

Function*************************************************************

Synopsis [Returns the index of the given fanin.]

Description []

SideEffects []

SeeAlso []

Definition at line 791 of file abcUtil.c.

{
    Abc_Obj_t * pThis;
    int i;
    Abc_ObjForEachFanin( pNode, pThis, i )
        if ( pThis == pFanin )
            return i;
    return -1;
}

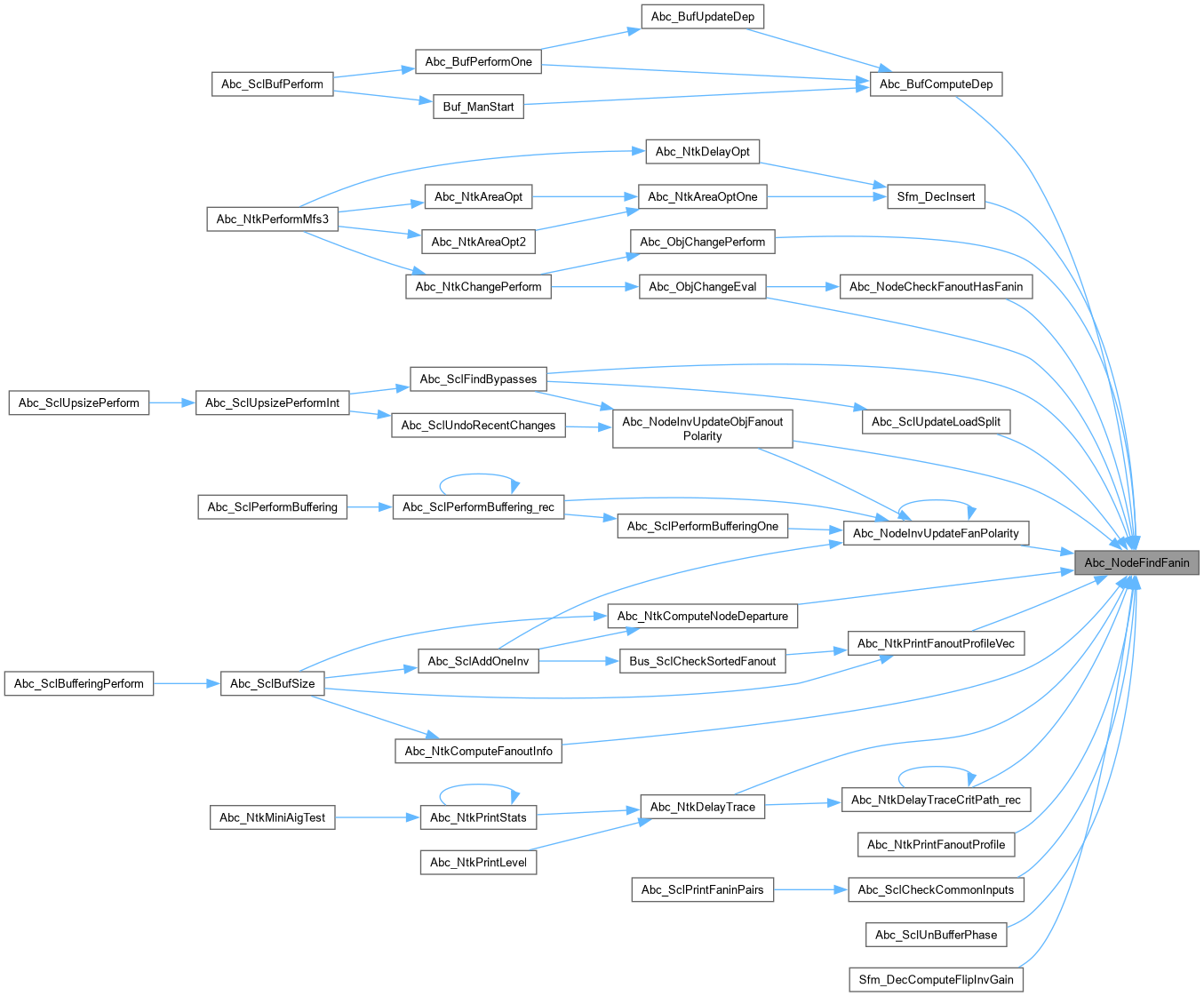

Here is the caller graph for this function:

Abc_NodeFindNonCoFanout()

Abc_Obj_t * Abc_NodeFindNonCoFanout

(

Abc_Obj_t *

pNode

)

Function*************************************************************

Synopsis [Checks if the internal node has CO fanout.]

Description []

SideEffects []

SeeAlso []

Definition at line 833 of file abcUtil.c.

{
    Abc_Obj_t * pFanout;
    int i;
    Abc_ObjForEachFanout( pNode, pFanout, i )
        if ( !Abc_ObjIsCo(pFanout) )
            return pFanout;
    return NULL;
}

Abc_NodeHasUniqueCoFanout()

Abc_Obj_t * Abc_NodeHasUniqueCoFanout

(

Abc_Obj_t *

pNode

)

Function*************************************************************

Synopsis [Checks if the internal node has CO drivers with the same name.]

Description [Checks if the internal node can borrow its name from CO fanouts. This is possible if all COs with non-complemented fanin edge pointing to this node have the same name.]

SideEffects []

SeeAlso []

Definition at line 856 of file abcUtil.c.

{
    Abc_Obj_t * pFanout, * pFanoutCo;
    int i;
    pFanoutCo = NULL;
    Abc_ObjForEachFanout( pNode, pFanout, i )
    {
        if ( !Abc_ObjIsCo(pFanout) )
            continue;
        if ( Abc_ObjFaninC0(pFanout) )
            continue;
        if ( pFanoutCo == NULL )
        {
            assert( Abc_ObjFaninNum(pFanout) == 1 );
            assert( Abc_ObjFanin0(pFanout) == pNode );
            pFanoutCo = pFanout;
            continue;
        }
        if ( strcmp( Abc_ObjName(pFanoutCo), Abc_ObjName(pFanout) ) ) // they have diff names
            return NULL;
    }
    return pFanoutCo;
}

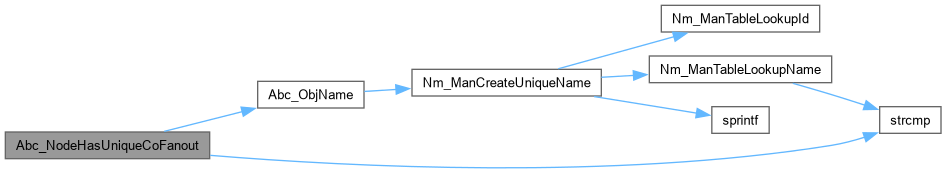

Here is the call graph for this function:

Abc_NodeIsExorType()

int Abc_NodeIsExorType

(

Abc_Obj_t *

pNode

)

Function*************************************************************

Synopsis [Returns 1 if the node is the root of EXOR/NEXOR.]

Description []

SideEffects []

SeeAlso []

Definition at line 1300 of file abcUtil.c.

{
    Abc_Obj_t * pNode0, * pNode1;
    // check that the node is regular
    assert( !Abc_ObjIsComplement(pNode) );
    // if the node is not AND, this is not EXOR
    if ( !Abc_AigNodeIsAnd(pNode) )
        return 0;
    // if the children are not complemented, this is not EXOR
    if ( !Abc_ObjFaninC0(pNode) || !Abc_ObjFaninC1(pNode) )
        return 0;
    // get children
    pNode0 = Abc_ObjFanin0(pNode);
    pNode1 = Abc_ObjFanin1(pNode);
    // if the children are not ANDs, this is not EXOR
    if ( Abc_ObjFaninNum(pNode0) != 2 || Abc_ObjFaninNum(pNode1) != 2 )
        return 0;
    // this is AIG, which means the fanins should be ordered
    assert( Abc_ObjFaninId0(pNode0) != Abc_ObjFaninId1(pNode1) ||
            Abc_ObjFaninId0(pNode1) != Abc_ObjFaninId1(pNode0) );
    // if grand children are not the same, this is not EXOR
    if ( Abc_ObjFaninId0(pNode0) != Abc_ObjFaninId0(pNode1) ||
         Abc_ObjFaninId1(pNode0) != Abc_ObjFaninId1(pNode1) )
         return 0;
    // finally, if the complemented edges are matched, this is not EXOR
    if ( Abc_ObjFaninC0(pNode0) == Abc_ObjFaninC0(pNode1) ||
         Abc_ObjFaninC1(pNode0) == Abc_ObjFaninC1(pNode1) )
         return 0;
    return 1;
}

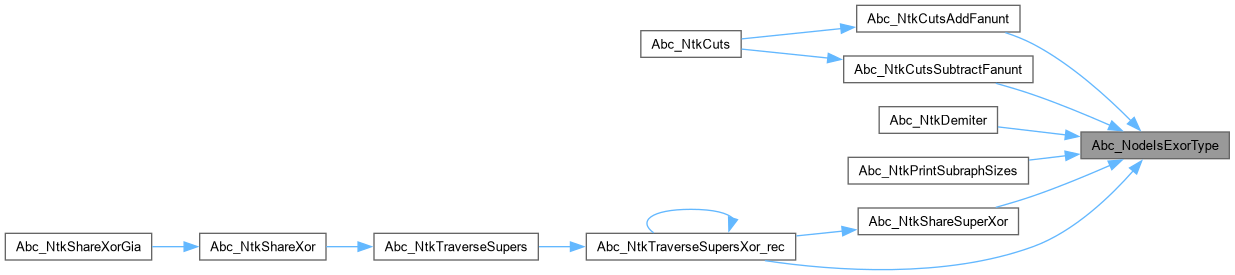

Here is the caller graph for this function:

Abc_NodeIsMuxControlType()

int Abc_NodeIsMuxControlType

(

Abc_Obj_t *

pNode

)

Function*************************************************************

Synopsis [Returns 1 if the node is the control type of the MUX.]

Description []

SideEffects []

SeeAlso []

Definition at line 1398 of file abcUtil.c.

{
    Abc_Obj_t * pNode0, * pNode1;
    // check that the node is regular
    assert( !Abc_ObjIsComplement(pNode) );
    // skip the node that do not have two fanouts
    if ( Abc_ObjFanoutNum(pNode) != 2 )
        return 0;
    // get the fanouts
    pNode0 = Abc_ObjFanout( pNode, 0 );
    pNode1 = Abc_ObjFanout( pNode, 1 );
    // if they have more than one fanout, we are not interested
    if ( Abc_ObjFanoutNum(pNode0) != 1 ||  Abc_ObjFanoutNum(pNode1) != 1 )
        return 0;
    // if the fanouts have the same fanout, this is MUX or EXOR (or a redundant gate (CA)(CB))
    return Abc_ObjFanout0(pNode0) == Abc_ObjFanout0(pNode1);
}

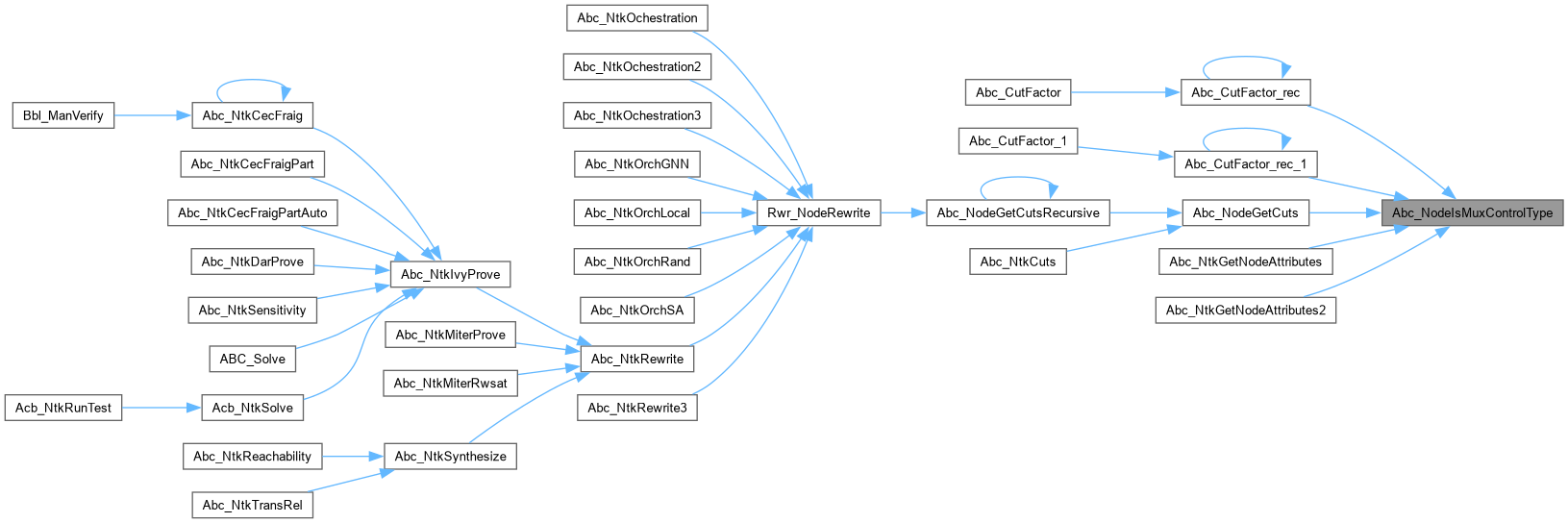

Here is the caller graph for this function:

Abc_NodeIsMuxType()

int Abc_NodeIsMuxType

(

Abc_Obj_t *

pNode

)

Function*************************************************************

Synopsis [Returns 1 if the node is the root of MUX or EXOR/NEXOR.]

Description []

SideEffects []

SeeAlso []

Definition at line 1342 of file abcUtil.c.

{
    Abc_Obj_t * pNode0, * pNode1;
    // check that the node is regular
    assert( !Abc_ObjIsComplement(pNode) );
    // if the node is not AND, this is not MUX
    if ( !Abc_AigNodeIsAnd(pNode) )
        return 0;
    // if the children are not complemented, this is not MUX
    if ( !Abc_ObjFaninC0(pNode) || !Abc_ObjFaninC1(pNode) )
        return 0;
    // get children
    pNode0 = Abc_ObjFanin0(pNode);
    pNode1 = Abc_ObjFanin1(pNode);
    // if the children are not ANDs, this is not MUX
    if ( !Abc_AigNodeIsAnd(pNode0) || !Abc_AigNodeIsAnd(pNode1) )
        return 0;
    // otherwise the node is MUX iff it has a pair of equal grandchildren with opposite polarity
    return (Abc_ObjFaninId0(pNode0) == Abc_ObjFaninId0(pNode1) && (Abc_ObjFaninC0(pNode0) ^ Abc_ObjFaninC0(pNode1))) ||
           (Abc_ObjFaninId0(pNode0) == Abc_ObjFaninId1(pNode1) && (Abc_ObjFaninC0(pNode0) ^ Abc_ObjFaninC1(pNode1))) ||
           (Abc_ObjFaninId1(pNode0) == Abc_ObjFaninId0(pNode1) && (Abc_ObjFaninC1(pNode0) ^ Abc_ObjFaninC0(pNode1))) ||
           (Abc_ObjFaninId1(pNode0) == Abc_ObjFaninId1(pNode1) && (Abc_ObjFaninC1(pNode0) ^ Abc_ObjFaninC1(pNode1)));
}

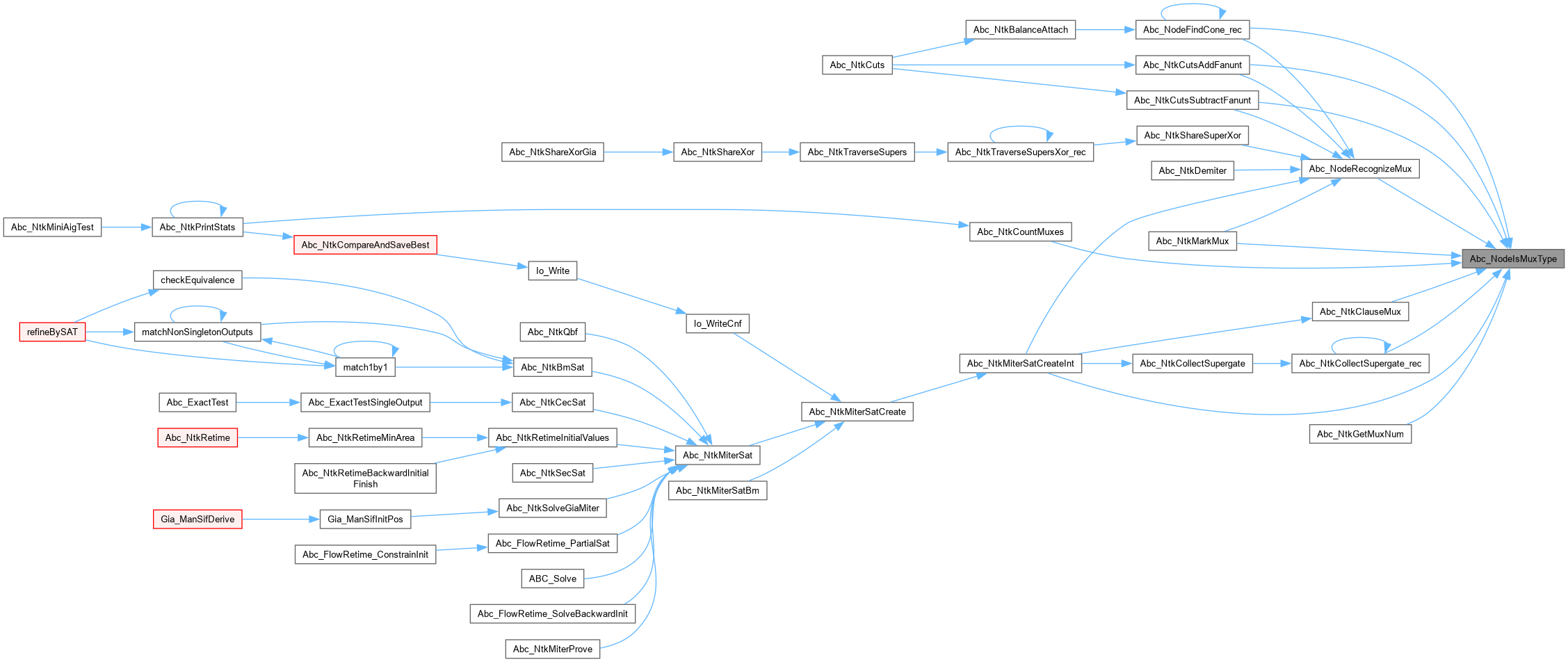

Here is the caller graph for this function:

Abc_NodeRecognizeMux()

Abc_Obj_t * Abc_NodeRecognizeMux	(	Abc_Obj_t *	pNode,
		Abc_Obj_t **	ppNodeT,
		Abc_Obj_t **	ppNodeE )

Function*************************************************************

Synopsis [Recognizes what nodes are control and data inputs of a MUX.]

Description [If the node is a MUX, returns the control variable C. Assigns nodes T and E to be the then and else variables of the MUX. Node C is never complemented. Nodes T and E can be complemented. This function also recognizes EXOR/NEXOR gates as MUXes.]

SideEffects []

SeeAlso []

Definition at line 1430 of file abcUtil.c.

{
    Abc_Obj_t * pNode0, * pNode1;
    assert( !Abc_ObjIsComplement(pNode) );
    assert( Abc_NodeIsMuxType(pNode) );
    // get children
    pNode0 = Abc_ObjFanin0(pNode);
    pNode1 = Abc_ObjFanin1(pNode);
    // find the control variable
//    if ( pNode1->p1 == Fraig_Not(pNode2->p1) )
    if ( Abc_ObjFaninId0(pNode0) == Abc_ObjFaninId0(pNode1) && (Abc_ObjFaninC0(pNode0) ^ Abc_ObjFaninC0(pNode1)) )
    {
//        if ( Fraig_IsComplement(pNode1->p1) )
        if ( Abc_ObjFaninC0(pNode0) )
        { // pNode2->p1 is positive phase of C
            *ppNodeT = Abc_ObjNot(Abc_ObjChild1(pNode1));//pNode2->p2);
            *ppNodeE = Abc_ObjNot(Abc_ObjChild1(pNode0));//pNode1->p2);
            return Abc_ObjChild0(pNode1);//pNode2->p1;
        }
        else
        { // pNode1->p1 is positive phase of C
            *ppNodeT = Abc_ObjNot(Abc_ObjChild1(pNode0));//pNode1->p2);
            *ppNodeE = Abc_ObjNot(Abc_ObjChild1(pNode1));//pNode2->p2);
            return Abc_ObjChild0(pNode0);//pNode1->p1;
        }
    }
//    else if ( pNode1->p1 == Fraig_Not(pNode2->p2) )
    else if ( Abc_ObjFaninId0(pNode0) == Abc_ObjFaninId1(pNode1) && (Abc_ObjFaninC0(pNode0) ^ Abc_ObjFaninC1(pNode1)) )
    {
//        if ( Fraig_IsComplement(pNode1->p1) )
        if ( Abc_ObjFaninC0(pNode0) )
        { // pNode2->p2 is positive phase of C
            *ppNodeT = Abc_ObjNot(Abc_ObjChild0(pNode1));//pNode2->p1);
            *ppNodeE = Abc_ObjNot(Abc_ObjChild1(pNode0));//pNode1->p2);
            return Abc_ObjChild1(pNode1);//pNode2->p2;
        }
        else
        { // pNode1->p1 is positive phase of C
            *ppNodeT = Abc_ObjNot(Abc_ObjChild1(pNode0));//pNode1->p2);
            *ppNodeE = Abc_ObjNot(Abc_ObjChild0(pNode1));//pNode2->p1);
            return Abc_ObjChild0(pNode0);//pNode1->p1;
        }
    }
//    else if ( pNode1->p2 == Fraig_Not(pNode2->p1) )
    else if ( Abc_ObjFaninId1(pNode0) == Abc_ObjFaninId0(pNode1) && (Abc_ObjFaninC1(pNode0) ^ Abc_ObjFaninC0(pNode1)) )
    {
//        if ( Fraig_IsComplement(pNode1->p2) )
        if ( Abc_ObjFaninC1(pNode0) )
        { // pNode2->p1 is positive phase of C
            *ppNodeT = Abc_ObjNot(Abc_ObjChild1(pNode1));//pNode2->p2);
            *ppNodeE = Abc_ObjNot(Abc_ObjChild0(pNode0));//pNode1->p1);
            return Abc_ObjChild0(pNode1);//pNode2->p1;
        }
        else
        { // pNode1->p2 is positive phase of C
            *ppNodeT = Abc_ObjNot(Abc_ObjChild0(pNode0));//pNode1->p1);
            *ppNodeE = Abc_ObjNot(Abc_ObjChild1(pNode1));//pNode2->p2);
            return Abc_ObjChild1(pNode0);//pNode1->p2;
        }
    }
//    else if ( pNode1->p2 == Fraig_Not(pNode2->p2) )
    else if ( Abc_ObjFaninId1(pNode0) == Abc_ObjFaninId1(pNode1) && (Abc_ObjFaninC1(pNode0) ^ Abc_ObjFaninC1(pNode1)) )
    {
//        if ( Fraig_IsComplement(pNode1->p2) )
        if ( Abc_ObjFaninC1(pNode0) )
        { // pNode2->p2 is positive phase of C
            *ppNodeT = Abc_ObjNot(Abc_ObjChild0(pNode1));//pNode2->p1);
            *ppNodeE = Abc_ObjNot(Abc_ObjChild0(pNode0));//pNode1->p1);
            return Abc_ObjChild1(pNode1);//pNode2->p2;
        }
        else
        { // pNode1->p2 is positive phase of C
            *ppNodeT = Abc_ObjNot(Abc_ObjChild0(pNode0));//pNode1->p1);
            *ppNodeE = Abc_ObjNot(Abc_ObjChild0(pNode1));//pNode2->p1);
            return Abc_ObjChild1(pNode0);//pNode1->p2;
        }
    }
    assert( 0 ); // this is not MUX
    return NULL;
}

Here is the call graph for this function:

Here is the caller graph for this function:

Abc_NodeSopToCubes()

void Abc_NodeSopToCubes	(	Abc_Obj_t *	pNodeOld,
		Abc_Ntk_t *	pNtkNew,
		int	fXor )

Function*************************************************************

Synopsis []

Description []

SideEffects []

SeeAlso []

Definition at line 2532 of file abcUtil.c.

{
    Abc_Obj_t * pNodeOr, * pNodeNew, * pFanin;
    char * pCube, * pSop = (char *)pNodeOld->pData;
    int v, Value, nVars = Abc_ObjFaninNum(pNodeOld), nFanins;
    // create the root node
    if ( Abc_SopGetCubeNum(pSop) < 2 )
    {
        pNodeNew = Abc_NtkDupObj( pNtkNew, pNodeOld, 0 );
        Abc_ObjForEachFanin( pNodeOld, pFanin, v )
            Abc_ObjAddFanin( pNodeNew, pFanin->pCopy );
        assert( pNodeOld->pCopy == pNodeNew );
        return;
    }
    // add the OR gate
    pNodeOr = Abc_NtkCreateNode( pNtkNew );
    if ( fXor )
        pNodeOr->pData = Abc_SopCreateXorSpecial( (Mem_Flex_t *)pNtkNew->pManFunc, Abc_SopGetCubeNum(pSop) );
    else
        pNodeOr->pData = Abc_SopCreateOr( (Mem_Flex_t *)pNtkNew->pManFunc, Abc_SopGetCubeNum(pSop), NULL );
    // check the logic function of the node
    Abc_SopForEachCube( pSop, nVars, pCube )
    {
        nFanins = 0;
        Abc_CubeForEachVar( pCube, Value, v )
            if ( Value == '0' || Value == '1' )
                nFanins++;
        if ( nFanins == 0 ) // const1 cube in ESOP
        {
            pNodeNew = Abc_NtkCreateNodeConst1( pNtkNew );
            Abc_ObjAddFanin( pNodeOr, pNodeNew );
            continue;
        }
        assert( nFanins > 0 );
        // create node
        pNodeNew = Abc_NtkCreateNode( pNtkNew );
        pNodeNew->pData = Abc_SopCreateAnd( (Mem_Flex_t *)pNtkNew->pManFunc, nFanins, NULL );
        nFanins = 0;
        Abc_CubeForEachVar( pCube, Value, v )
        {
            if ( Value != '0' && Value != '1' )
                continue;
            Abc_ObjAddFanin( pNodeNew, Abc_ObjFanin(pNodeOld, v)->pCopy );
            if ( Value == '0' )
                Abc_SopComplementVar( (char *)pNodeNew->pData, nFanins );
            nFanins++;
        }
        Abc_ObjAddFanin( pNodeOr, pNodeNew );
    }
    // check the complement
    if ( Abc_SopIsComplement(pSop) )
        Abc_SopComplement( (char *)pNodeOr->pData );
    // mark the old node with the new one
    assert( pNodeOld->pCopy == NULL );
    pNodeOld->pCopy = pNodeOr;
}

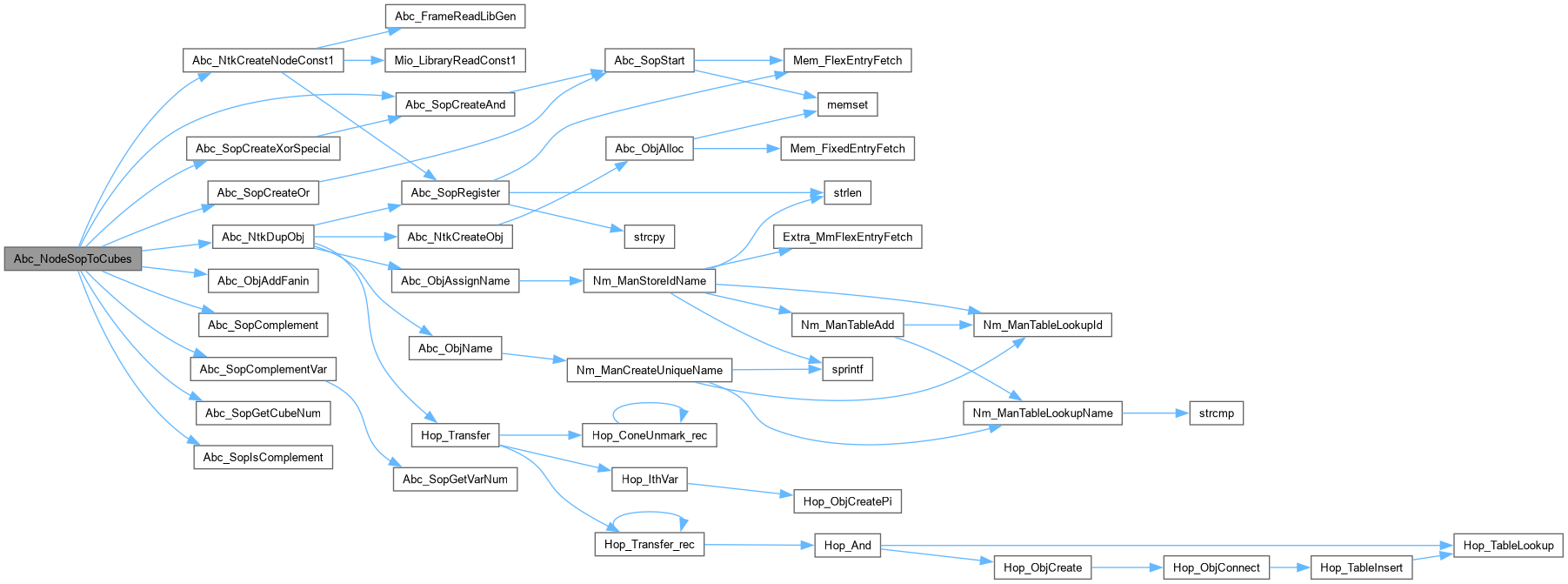

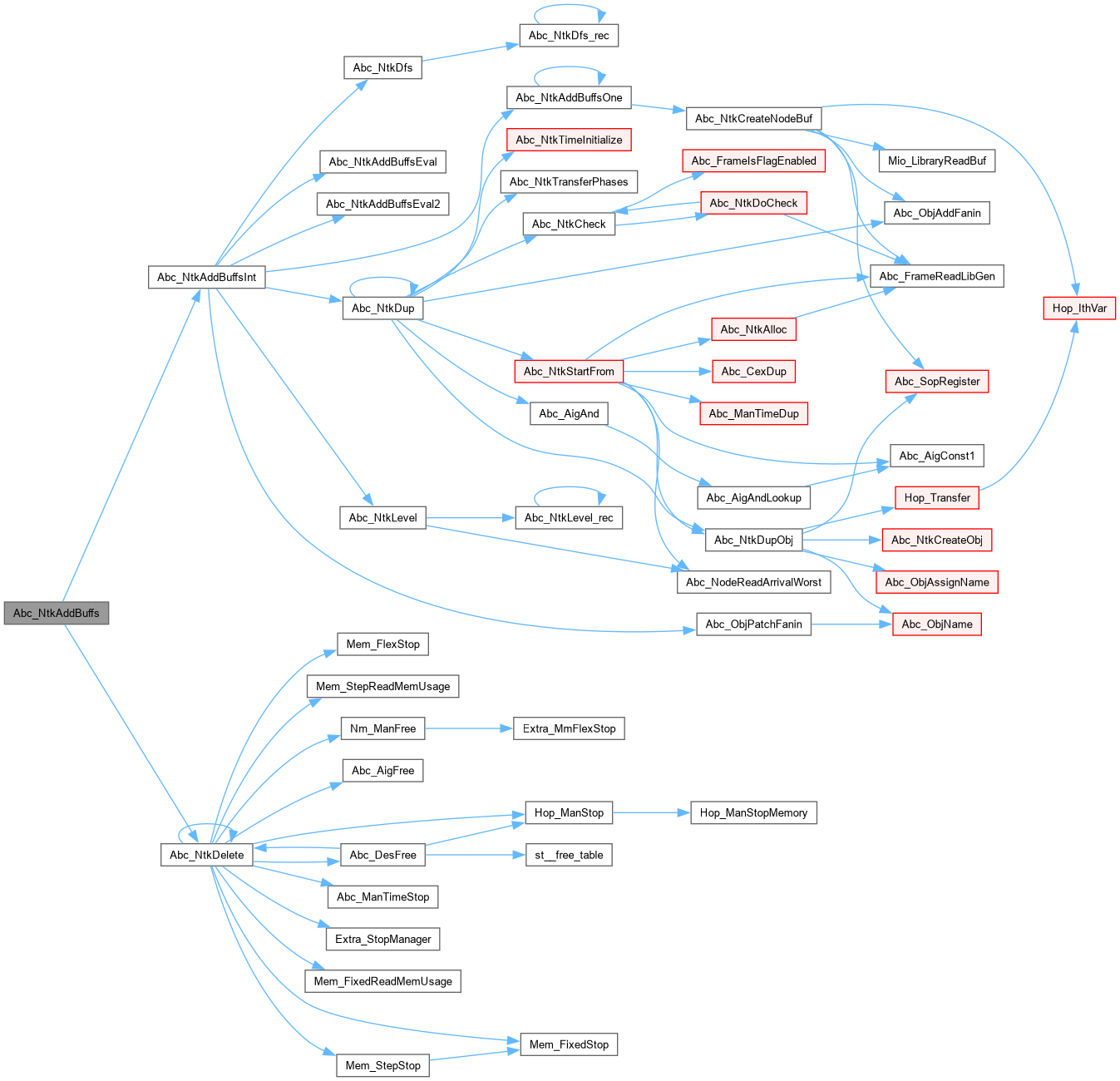

Here is the call graph for this function:

Here is the caller graph for this function:

Abc_NtkAddBuffs()

Abc_Ntk_t * Abc_NtkAddBuffs	(	Abc_Ntk_t *	pNtkInit,
		int	fDirect,
		int	fReverse,
		int	nImprove,
		int	fVerbose )

Definition at line 2456 of file abcUtil.c.

{
    Abc_Ntk_t * pNtkD, * pNtkR;
    if ( fDirect )
        return Abc_NtkAddBuffsInt( pNtkInit, 0, nImprove, fVerbose );
    if ( fReverse )
        return Abc_NtkAddBuffsInt( pNtkInit, 1, nImprove, fVerbose );
    pNtkD = Abc_NtkAddBuffsInt( pNtkInit, 0, nImprove, fVerbose );
    pNtkR = Abc_NtkAddBuffsInt( pNtkInit, 1, nImprove, fVerbose );
    if ( Abc_NtkNodeNum(pNtkD) < Abc_NtkNodeNum(pNtkR) )
    {
        Abc_NtkDelete( pNtkR );
        return pNtkD;
    }
    else
    {
        Abc_NtkDelete( pNtkD );
        return pNtkR;
    }
}

Here is the call graph for this function:

Abc_NtkAddBuffsEval()

int Abc_NtkAddBuffsEval	(	Abc_Obj_t *	pNode,
		Abc_Obj_t *	pFanin )

Function*************************************************************

Synopsis [Returns 1 if all other fanouts of pFanin are below pNode.]

Description []

SideEffects []

SeeAlso []

Definition at line 2289 of file abcUtil.c.

{
    Abc_Obj_t * pFanout;
    int i;
    Abc_ObjForEachFanout( pFanin, pFanout, i )
        if ( pFanout != pNode && pFanout->Level >= pNode->Level )
            return 0;
    return 1;
}

Here is the caller graph for this function:

Abc_NtkAddBuffsEval2()

int Abc_NtkAddBuffsEval2	(	Abc_Obj_t *	pNode,
		Abc_Obj_t *	pFanin )

Function*************************************************************

Synopsis [Returns 1 if there exist a fanout of pFanin higher than pNode.]

Description []

SideEffects []

SeeAlso []

Definition at line 2309 of file abcUtil.c.

{
    Abc_Obj_t * pFanout;
    int i;
    Abc_ObjForEachFanout( pFanin, pFanout, i )
        if ( pFanout != pNode && pFanout->Level > pNode->Level )
            return 1;
    return 0;
}

Here is the caller graph for this function:

Abc_NtkAddBuffsInt()

Abc_Ntk_t * Abc_NtkAddBuffsInt	(	Abc_Ntk_t *	pNtkInit,
		int	fReverse,
		int	nImprove,
		int	fVerbose )

Definition at line 2346 of file abcUtil.c.

{
    Vec_Ptr_t * vBuffs;
    Abc_Ntk_t * pNtk = Abc_NtkDup( pNtkInit );
    Abc_Obj_t * pObj, * pFanin, * pBuffer;
    int i, k, Iter, nLevelMax = Abc_NtkLevel( pNtk );
    Abc_NtkForEachCo( pNtk, pObj, i )
        pObj->Level = nLevelMax + 1;
    if ( fReverse )
    {
        Vec_Ptr_t * vNodes = Abc_NtkDfs( pNtk, 1 );
        assert( nLevelMax < (1<<18) );
        Vec_PtrForEachEntryReverse( Abc_Obj_t *, vNodes, pObj, i )
        {
            pObj->Level = (1<<18);
            Abc_ObjForEachFanout( pObj, pFanin, k )
                pObj->Level = Abc_MinInt( pFanin->Level - 1, pObj->Level );
            assert( pObj->Level > 0 );
        }
        Abc_NtkForEachCi( pNtk, pObj, i )
            pObj->Level = 0;

        // move the nodes down one step at a time
        for ( Iter = 0; Iter < nImprove; Iter++ )
        {
            int Counter = 0, TotalGain = 0;
            Vec_PtrForEachEntry( Abc_Obj_t *, vNodes, pObj, i )
            {
                int CountGain = -1;
                assert( pObj->Level > 0 );
                Abc_ObjForEachFanin( pObj, pFanin, k )
                {
                    assert( pFanin->Level < pObj->Level );
                    if ( pFanin->Level + 1 == pObj->Level )
                        break;
                }
                if ( k < Abc_ObjFaninNum(pObj) ) // cannot move
                    continue;
                Abc_ObjForEachFanin( pObj, pFanin, k )
                    CountGain += Abc_NtkAddBuffsEval( pObj, pFanin );
                if ( CountGain >= 0 ) // can move
                {
                    pObj->Level--;
                    Counter++;
                    TotalGain += CountGain;
                }
            }
            if ( fVerbose )
                printf( "Shifted %5d nodes down with total gain %5d.\n", Counter, TotalGain );
            if ( Counter == 0 )
                break;
        }
        Vec_PtrFree( vNodes );
    }
    else
    {
        // move the nodes up one step at a time
        Vec_Ptr_t * vNodes = Abc_NtkDfs( pNtk, 1 );
        for ( Iter = 0; Iter < nImprove; Iter++ )
        {
            int Counter = 0, TotalGain = 0;
            Vec_PtrForEachEntryReverse( Abc_Obj_t *, vNodes, pObj, i )
            {
                int CountGain = 1;
                assert( pObj->Level <= (unsigned)nLevelMax );
                Abc_ObjForEachFanout( pObj, pFanin, k )
                {
                    assert( pFanin->Level > pObj->Level );
                    if ( pFanin->Level == pObj->Level + 1 )
                        break;
                }
                if ( k < Abc_ObjFanoutNum(pObj) ) // cannot move
                    continue;
                Abc_ObjForEachFanin( pObj, pFanin, k )
                    CountGain -= !Abc_NtkAddBuffsEval2( pObj, pFanin );
                if ( CountGain >= 0 ) // can move
                {
                    pObj->Level++;
                    Counter++;
                    TotalGain += CountGain;
                }
            }
            if ( fVerbose )
                printf( "Shifted %5d nodes up with total gain %5d.\n", Counter, TotalGain );
            if ( Counter == 0 )
                break;
        }
        Vec_PtrFree( vNodes );
    }
    vBuffs = Vec_PtrStart( Abc_NtkObjNumMax(pNtk) * (nLevelMax + 1) );
    Abc_NtkForEachObj( pNtk, pObj, i )
    {
        if ( i == Vec_PtrSize(vBuffs) / (nLevelMax + 1) )
            break;
        if ( !Abc_ObjIsNode(pObj) && !Abc_ObjIsCo(pObj) )
            continue;
        Abc_ObjForEachFanin( pObj, pFanin, k )
        {
            assert( Abc_ObjLevel(pObj) - 1 >= Abc_ObjLevel(pFanin) );
            if ( Abc_ObjLevel(pObj) - 1 == Abc_ObjLevel(pFanin) )
                continue;
            pBuffer = Abc_NtkAddBuffsOne( vBuffs, pFanin, Abc_ObjLevel(pObj) - 1, nLevelMax );
            Abc_ObjPatchFanin( pObj, pFanin, pBuffer );
        }
    }
    Vec_PtrFree( vBuffs );
    Abc_NtkForEachCo( pNtk, pObj, i )
        pObj->Level = 0;
    return pNtk;
}

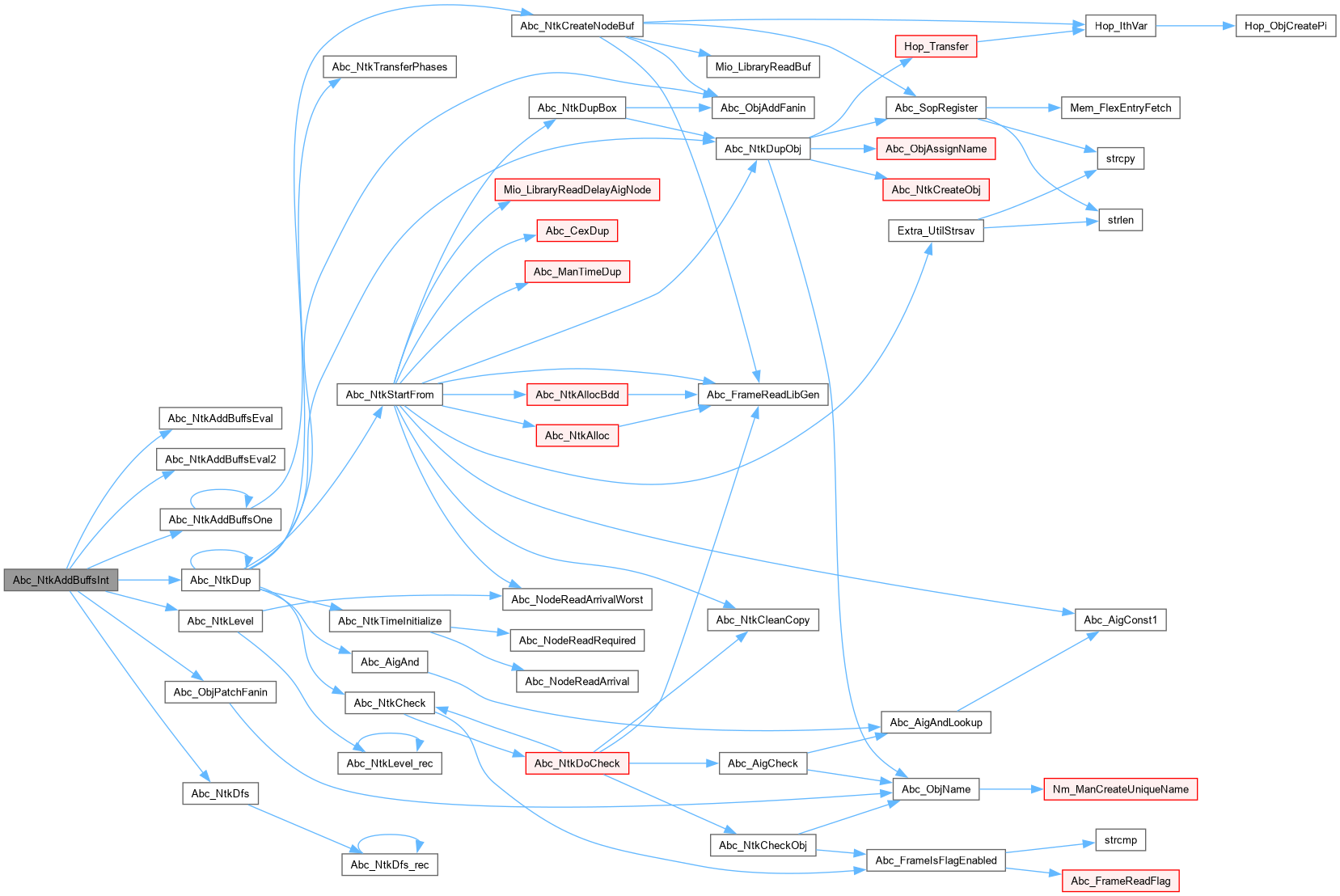

Here is the call graph for this function:

Here is the caller graph for this function:

Abc_NtkAddBuffsOne()

Abc_Obj_t * Abc_NtkAddBuffsOne	(	Vec_Ptr_t *	vBuffs,
		Abc_Obj_t *	pFanin,
		int	Level,
		int	nLevelMax )

Function*************************************************************

Synopsis []

Description []

SideEffects []

SeeAlso []

Definition at line 2330 of file abcUtil.c.

{
    Abc_Obj_t * pBuffer;
    assert( Level - 1 >= Abc_ObjLevel(pFanin) );
    pBuffer = (Abc_Obj_t *)Vec_PtrEntry( vBuffs, Abc_ObjId(pFanin) * nLevelMax + Level );
    if ( pBuffer == NULL )
    {
        if ( Level - 1 == Abc_ObjLevel(pFanin) )
            pBuffer = pFanin;
        else
            pBuffer = Abc_NtkAddBuffsOne( vBuffs, pFanin, Level - 1, nLevelMax );
        pBuffer = Abc_NtkCreateNodeBuf( Abc_ObjNtk(pFanin), pBuffer );
        Vec_PtrWriteEntry( vBuffs, Abc_ObjId(pFanin) * nLevelMax + Level, pBuffer );
    }
    return pBuffer;
}

Here is the call graph for this function:

Here is the caller graph for this function:

Abc_NtkATMap()

void Abc_NtkATMap	(	int	nXVars,
		int	nYVars,
		int	nAdder,
		char **	pGPCs0,
		int	nGPCs,
		int	fReturn,
		int	fVerbose )

Definition at line 3448 of file abcUtil.c.

{
    abctime clkStart = Abc_Clock();
    char ** pGPCs = Abc_NtkTransformGPCs(pGPCs0, nGPCs);
    int i, nGPCluts[100] = {0};
    for ( i = 0; i < nGPCs; i++ )
        if ( !Abc_NtkCheckGpc(pGPCs[i], pGPCs0[i]) )
            return;
    for ( i = 0; i < nGPCs; i++ )
        nGPCluts[i] = Abc_NtkGetGpcLutCount(pGPCs[i]);
    int x, n, Entry, iLevel = 0, Sum = 0, nGpcs = 0, nBits, fFinished, nRcaLuts = 0, nLuts = 0;
    for ( x = 0; x < nXVars; x++ )
        Sum += (1 << x) * nYVars;
    nBits = Abc_Base2Log( Sum+1 );
    printf( "Rectangular adder tree (X=%d Y=%d Sum=%d Out=%d) mapped with", nXVars, nYVars, Sum, nBits );
    for ( i = 0; i < nGPCs; i++ )
        printf( " GPC%d=%s", i, pGPCs0[i] );
    printf( "\n" );
    Vec_Int_t * vLevel;
    Vec_Int_t * vRank[3] = { Vec_IntAlloc(100), Vec_IntAlloc(100), Vec_IntAlloc(100) };
    Vec_Wec_t ** vGPCs = ABC_ALLOC( Vec_Wec_t *, nGPCs );
    for ( i = 0; i < nGPCs; i++ )
        vGPCs[i] = Vec_WecAlloc(100);
    Vec_IntFill( vRank[0], nBits, 0 );
    for ( x = 0; x < nXVars; x++ )
        Vec_IntAddToEntry( vRank[0], x, nYVars );
    if ( fVerbose ) {
        printf( "Ranks: " );
        for ( i = nBits-1; i >= 0; i-- )
            printf( "%4d", i );
        printf( "       : " );
        for ( i = nBits-1; i >= 0; i-- )
            printf( "%4d", i );
        printf( "  LUT6\n" );
    }
    for ( n = 0; n < nGPCs; n++ )
    for ( i = 0, fFinished = 0; !fFinished; i++ )
    {
        int fAdded = 0;
        vLevel = Vec_WecPushLevel( vGPCs[n] );
        Vec_IntFill( vLevel, nBits, 0 );
        Vec_IntFill( vRank[1], nBits, 0 );
        Vec_IntClear( vRank[2] );
        Vec_IntAppend( vRank[2], vRank[0] );
        fFinished = 1;
        if ( Vec_IntFindMax(vRank[0]) > nAdder ) {
            for ( x = 0; x < nBits; x++ )
                if ( (nGpcs = Abc_NtkMatchGpcPattern(vRank[0], x, pGPCs[n])) )
                    Abc_NtkUpdateGpcPattern(vRank[0], x, pGPCs[n], nGpcs, vRank[1], vLevel), fFinished = 0, fAdded = 1;
            nLuts += Vec_IntSum(vLevel) * nGPCluts[n];
            Vec_IntForEachEntry( vRank[1], Entry, x )
                Vec_IntAddToEntry( vRank[0], x, Entry );
        }
        if ( fVerbose && (fAdded || Vec_IntFindMax(vRank[2]) <= nAdder ) ) {
            printf( "Lev%02d: ", iLevel++ );
            Abc_PrintAT( vRank[2] );
            if ( fAdded ) {
                printf( "   GPC%d: ", n );
                Abc_PrintAT( vLevel );
                printf( "  %4d", Vec_IntSum(vLevel) * nGPCluts[n] );
            }
            else if ( Vec_IntFindMax(vRank[2]) <= nAdder ) {
                printf( "   ADD%d: ", nAdder );
                for ( x = 0; x < nBits; x++ )
                    if ( Vec_IntEntry(vRank[2], x) > 1 )
                        break;
                for ( i = nBits-1; i >= x; i-- )
                    printf( "%4d", 1 );
                for ( ; i >= 0; i-- )
                    printf( "    " );
                printf( "  %4d", (nBits-x)*(nAdder == 4 ? 2 : 1) );
            }
            printf( "\n" );
        }
        if ( fAdded ) {
            if ( fReturn ) {
                fFinished = 1;
                n = -1;
            }
        }
        else if ( Vec_IntFindMax(vRank[2]) <= nAdder ) {
            fFinished = 1;
            n = nGPCs;
        }
    }
    if ( Vec_IntFindMax(vRank[0]) > nAdder )
        printf( "Synthesis of the adder tree is incomplete. Try using the full adder \"3:11:1\" as the last GPC.\n" );
    else if ( fVerbose && Vec_IntFindMax(vRank[0]) <= nAdder ) {
        printf( "Lev%02d: ", iLevel++ );
        for ( i = nBits-1; i >= 0; i-- )
            printf( "%4d", 1 );
        printf( "\n" );
    }
    printf( "Statistics:  " );
    for ( n = 0; n < nGPCs; n++ )
        printf( "GPC%d = %d.  ", n, Vec_WecSum(vGPCs[n]) );
    for ( x = 0; x < nBits; x++ )
        if ( Vec_IntEntry(vRank[0], x) > 1 )
            break;
    nRcaLuts = (nBits-x)*(nAdder == 4 ? 2 : 1);
    printf( "ADD%d = %d.  ", nAdder, nRcaLuts );
    printf( "Total LUT count = %d.  ", nLuts+nRcaLuts );
    for ( i = 0; i < 3; i++ )
        Vec_IntFree( vRank[i] );
    for ( i = 0; i < nGPCs; i++ )
        Vec_WecFree( vGPCs[i] );
    ABC_FREE( vGPCs );
    for ( i = 0; i < nGPCs; i++ )
        ABC_FREE( pGPCs[i] );
    ABC_FREE( pGPCs );
    Abc_PrintTime( 0, "Total time", Abc_Clock() - clkStart );
}

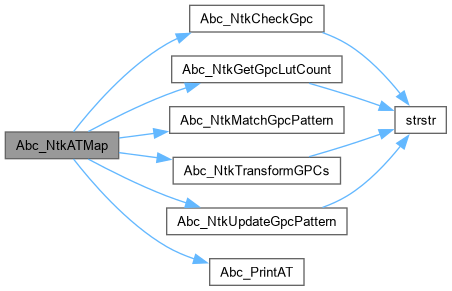

Here is the call graph for this function:

Abc_NtkAttrFree()

ABC_NAMESPACE_IMPL_START void * Abc_NtkAttrFree	(	Abc_Ntk_t *	pNtk,
		int	Attr,
		int	fFreeMan )

DECLARATIONS ///.

CFile****************************************************************

FileName [abcUtil.c]

SystemName [ABC: Logic synthesis and verification system.]

PackageName [Network and node package.]

Synopsis [Various utilities.]

Author [Alan Mishchenko]

Affiliation [UC Berkeley]

Date [Ver. 1.0. Started - June 20, 2005.]

Revision [

Id

abcUtil.c,v 1.00 2005/06/20 00:00:00 alanmi Exp

] FUNCTION DEFINITIONS /// Function*************************************************************

Synopsis [Frees one attribute manager.]

Description []

SideEffects []

SeeAlso []

Definition at line 55 of file abcUtil.c.

{
    void * pUserMan;
    Vec_Att_t * pAttrMan;
    pAttrMan = (Vec_Att_t *)Vec_PtrEntry( pNtk->vAttrs, Attr );
    Vec_PtrWriteEntry( pNtk->vAttrs, Attr, NULL );
    pUserMan = Vec_AttFree( pAttrMan, fFreeMan );
    return pUserMan;
}

Here is the caller graph for this function:

Abc_NtkCheckGpc()

int Abc_NtkCheckGpc	(	char *	pGPC,
		char *	pGPC0 )

Definition at line 3431 of file abcUtil.c.

{
    int RetValue = 0, k, Sum[2] = {0};
    char * pOut = strstr(pGPC, ":");
    for ( k = 0; pGPC[k] != ':'; k++ )
        Sum[0] += (1 << k) * Abc_TtReadHexDigit(pGPC[k]);
    for ( k = 0; pOut[1+k] != ':'; k++ )
        Sum[1] += (1 << k) * Abc_TtReadHexDigit(pOut[1+k]);
    //printf( "GPC %s has input sum %d and output sum %d\n", pGPC0, Sum[0], Sum[1] );
    if ( Sum[0]+1 > (1 << Abc_Base2Log(Sum[1]+1)) )
        printf( "The largest value of GPC inputs (%d) exceeds the capacity of outputs (%d) for GPC %s.\n", Sum[0], Sum[1], pGPC0 );
    else if ( Sum[1]+1 > (1 << Abc_Base2Log(Sum[0]+1)) )
        printf( "The largest value of GPC outputs (%d) exceeds the capacity of inputs (%d) for GPC %s.\n", Sum[1], Sum[0], pGPC0 );
    else
        RetValue = 1;
    return RetValue;
}

Here is the call graph for this function:

Here is the caller graph for this function:

Abc_NtkCleanCopy()

void Abc_NtkCleanCopy

(

Abc_Ntk_t *

pNtk

)

Function*************************************************************

Synopsis [Cleans the copy field of all objects.]

Description []

SideEffects []

SeeAlso []

Definition at line 540 of file abcUtil.c.

{
    Abc_Obj_t * pObj;
    int i;
    Abc_NtkForEachObj( pNtk, pObj, i )
        pObj->pCopy = NULL;
}

Abc_NtkCleanCopy_rec()

void Abc_NtkCleanCopy_rec

(

Abc_Ntk_t *

pNtk

)

Definition at line 547 of file abcUtil.c.

{
    Abc_Obj_t * pObj;
    int i;
    Abc_NtkCleanCopy( pNtk );
    Abc_NtkForEachBox( pNtk, pObj, i )
        Abc_NtkCleanCopy_rec( Abc_ObjModel(pObj) );
}

Here is the call graph for this function:

Here is the caller graph for this function:

Abc_NtkCleanData()

void Abc_NtkCleanData

(

Abc_Ntk_t *

pNtk

)

Function*************************************************************

Synopsis [Cleans the copy field of all objects.]

Description []

SideEffects []

SeeAlso []

Definition at line 567 of file abcUtil.c.

{
    Abc_Obj_t * pObj;
    int i;
    Abc_NtkForEachObj( pNtk, pObj, i )
        pObj->pData = NULL;
}

Here is the caller graph for this function:

Abc_NtkCleanMarkA()

void Abc_NtkCleanMarkA

(

Abc_Ntk_t *

pNtk

)

Function*************************************************************

Synopsis [Cleans the copy field of all objects.]

Description []

SideEffects []

SeeAlso []

Definition at line 696 of file abcUtil.c.

{
    Abc_Obj_t * pObj;
    int i;
    Abc_NtkForEachObj( pNtk, pObj, i )
        pObj->fMarkA = 0;
}

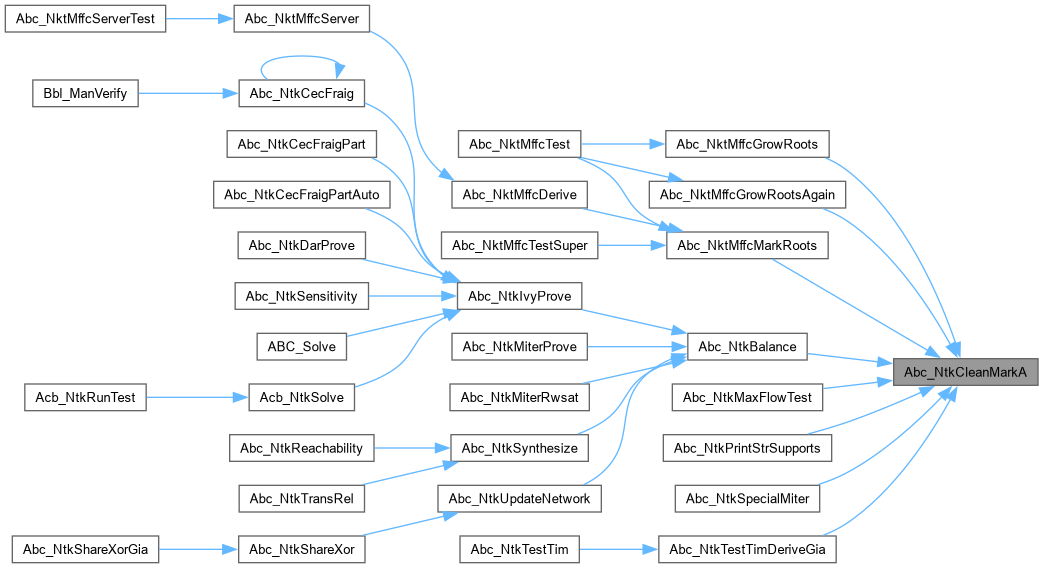

Here is the caller graph for this function:

Abc_NtkCleanMarkAB()

void Abc_NtkCleanMarkAB

(

Abc_Ntk_t *

pNtk

)

Function*************************************************************

Synopsis [Cleans the copy field of all objects.]

Description []

SideEffects []

SeeAlso []

Definition at line 753 of file abcUtil.c.

{
    Abc_Obj_t * pObj;
    int i;
    Abc_NtkForEachObj( pNtk, pObj, i )
        pObj->fMarkA = pObj->fMarkB = 0;
}

Here is the caller graph for this function:

Abc_NtkCleanMarkABC()

void Abc_NtkCleanMarkABC

(

Abc_Ntk_t *

pNtk

)

Function*************************************************************

Synopsis [Cleans the copy field of all objects.]

Description []

SideEffects []

SeeAlso []

Definition at line 772 of file abcUtil.c.

{
    Abc_Obj_t * pObj;
    int i;
    Abc_NtkForEachObj( pNtk, pObj, i )
        pObj->fMarkA = pObj->fMarkB = pObj->fMarkC = 0;
}

Here is the caller graph for this function:

Abc_NtkCleanMarkB()

void Abc_NtkCleanMarkB

(

Abc_Ntk_t *

pNtk

)

Function*************************************************************

Synopsis [Cleans the copy field of all objects.]

Description []

SideEffects []

SeeAlso []

Definition at line 715 of file abcUtil.c.

{
    Abc_Obj_t * pObj;
    int i;
    Abc_NtkForEachObj( pNtk, pObj, i )
        pObj->fMarkB = 0;
}

Abc_NtkCleanMarkC()

void Abc_NtkCleanMarkC

(

Abc_Ntk_t *

pNtk

)

Function*************************************************************

Synopsis [Cleans the copy field of all objects.]

Description []

SideEffects []

SeeAlso []

Definition at line 734 of file abcUtil.c.

{
    Abc_Obj_t * pObj;
    int i;
    Abc_NtkForEachObj( pNtk, pObj, i )
        pObj->fMarkC = 0;
}

Here is the caller graph for this function:

Abc_NtkCleanNext()

void Abc_NtkCleanNext

(

Abc_Ntk_t *

pNtk

)

Function*************************************************************

Synopsis [Cleans the copy field of all objects.]

Description []

SideEffects []

SeeAlso []

Definition at line 669 of file abcUtil.c.

{
    Abc_Obj_t * pObj;
    int i;
    Abc_NtkForEachObj( pNtk, pObj, i )
        pObj->pNext = NULL;
}

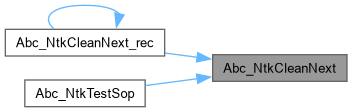

Here is the caller graph for this function:

Abc_NtkCleanNext_rec()

void Abc_NtkCleanNext_rec

(

Abc_Ntk_t *

pNtk

)

Definition at line 676 of file abcUtil.c.

{
    Abc_Obj_t * pObj;
    int i;
    Abc_NtkCleanNext( pNtk );
    Abc_NtkForEachBox( pNtk, pObj, i )
        Abc_NtkCleanNext_rec( Abc_ObjModel(pObj) );
}

Here is the call graph for this function:

Here is the caller graph for this function:

Abc_NtkClpOneGia_rec()

int Abc_NtkClpOneGia_rec	(	Gia_Man_t *	pNew,
		Abc_Obj_t *	pNode )

Function*************************************************************

Synopsis []

Description []

SideEffects []

SeeAlso []

Definition at line 3201 of file abcUtil.c.

{
    int iLit0, iLit1;
    if ( Abc_NodeIsTravIdCurrent(pNode) || Abc_ObjFaninNum(pNode) == 0 || Abc_ObjIsCi(pNode) )
        return pNode->iTemp;
    assert( Abc_ObjIsNode( pNode ) );
    Abc_NodeSetTravIdCurrent( pNode );
    iLit0 = Abc_NtkClpOneGia_rec( pNew, Abc_ObjFanin0(pNode) );
    iLit1 = Abc_NtkClpOneGia_rec( pNew, Abc_ObjFanin1(pNode) );
    iLit0 = Abc_LitNotCond( iLit0, Abc_ObjFaninC0(pNode) );
    iLit1 = Abc_LitNotCond( iLit1, Abc_ObjFaninC1(pNode) );
    return (pNode->iTemp = Gia_ManHashAnd(pNew, iLit0, iLit1));
}

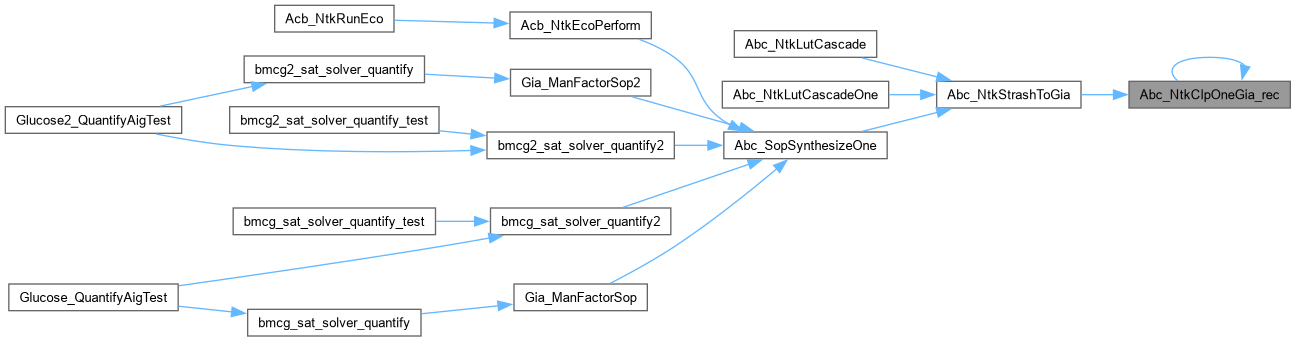

Here is the call graph for this function:

Here is the caller graph for this function:

Abc_NtkCollectLatches()

Vec_Ptr_t * Abc_NtkCollectLatches

(

Abc_Ntk_t *

pNtk

)

Function*************************************************************

Synopsis [Collects all latches in the network.]

Description []

SideEffects []

SeeAlso []

Definition at line 1667 of file abcUtil.c.

{
    Vec_Ptr_t * vLatches;
    Abc_Obj_t * pObj;
    int i;
    vLatches = Vec_PtrAlloc( 10 );
    Abc_NtkForEachObj( pNtk, pObj, i )
        Vec_PtrPush( vLatches, pObj );
    return vLatches;
}

Abc_NtkCollectObjects()

Vec_Ptr_t * Abc_NtkCollectObjects

(

Abc_Ntk_t *

pNtk

)

Function*************************************************************

Synopsis [Collects all objects into one array.]

Description []

SideEffects []

SeeAlso []

Definition at line 1765 of file abcUtil.c.

{
    Vec_Ptr_t * vNodes;
    Abc_Obj_t * pNode;
    int i;
    vNodes = Vec_PtrAlloc( 100 );
    Abc_NtkForEachObj( pNtk, pNode, i )
        Vec_PtrPush( vNodes, pNode );
    return vNodes;
}

Here is the caller graph for this function:

Abc_NtkCompareCones()

void Abc_NtkCompareCones

(

Abc_Ntk_t *

pNtk

)

Function*************************************************************

Synopsis [Analyze choice node support.]

Description []

SideEffects []

SeeAlso []

Definition at line 2126 of file abcUtil.c.

{
    Vec_Ptr_t * vSupp, * vNodes, * vReverse;
    Abc_Obj_t * pObj, * pTemp;
    int Iter, i, k, Counter, CounterCos, CounterCosNew;
    int * pPerms;

    // sort COs by support size
    pPerms = ABC_ALLOC( int, Abc_NtkCoNum(pNtk) );
    pSupps = ABC_ALLOC( int, Abc_NtkCoNum(pNtk) );
    Abc_NtkForEachCo( pNtk, pObj, i )
    {
        pPerms[i] = i;
        vSupp = Abc_NtkNodeSupport( pNtk, &pObj, 1 );
        pSupps[i] = Vec_PtrSize(vSupp);
        Vec_PtrFree( vSupp );
    }
    qsort( (void *)pPerms, (size_t)Abc_NtkCoNum(pNtk), sizeof(int), (int (*)(const void *, const void *)) Abc_NtkCompareConesCompare );

    // consider COs in this order
    Iter = 0;
    Abc_NtkForEachCo( pNtk, pObj, i )
    {
        pObj = Abc_NtkCo( pNtk, pPerms[i] );
        if ( pObj->fMarkA )
            continue;
        Iter++;

        vSupp = Abc_NtkNodeSupport( pNtk, &pObj, 1 );
        vNodes = Abc_NtkDfsNodes( pNtk, &pObj, 1 );
        vReverse = Abc_NtkDfsReverseNodesContained( pNtk, (Abc_Obj_t **)Vec_PtrArray(vSupp), Vec_PtrSize(vSupp) );
        // count the number of nodes in the reverse cone
        Counter = 0;
        for ( k = 1; k < Vec_PtrSize(vReverse) - 1; k++ )
            for ( pTemp = (Abc_Obj_t *)Vec_PtrEntry(vReverse, k); pTemp; pTemp = (Abc_Obj_t *)pTemp->pCopy )
                Counter++;
        CounterCos = CounterCosNew = 0;
        for ( pTemp = (Abc_Obj_t *)Vec_PtrEntryLast(vReverse); pTemp; pTemp = (Abc_Obj_t *)pTemp->pCopy )
        {
            assert( Abc_ObjIsCo(pTemp) );
            CounterCos++;
            if ( pTemp->fMarkA == 0 )
                CounterCosNew++;
            pTemp->fMarkA = 1;
        }
        // print statistics
        printf( "%4d CO %5d :  Supp = %5d.  Lev = %3d.  Cone = %5d.  Rev = %5d.  COs = %3d (%3d).\n",
            Iter, pPerms[i], Vec_PtrSize(vSupp), Abc_ObjLevel(Abc_ObjFanin0(pObj)), Vec_PtrSize(vNodes), Counter, CounterCos, CounterCosNew );

        if ( Vec_PtrSize(vSupp) < 10 )
        {
            // free arrays
            Vec_PtrFree( vSupp );
            Vec_PtrFree( vNodes );
            Vec_PtrFree( vReverse );
            break;
        }

        // free arrays
        Vec_PtrFree( vSupp );
        Vec_PtrFree( vNodes );
        Vec_PtrFree( vReverse );

    }
    Abc_NtkForEachCo( pNtk, pObj, i )
        pObj->fMarkA = 0;

    ABC_FREE( pPerms );
    ABC_FREE( pSupps );
}

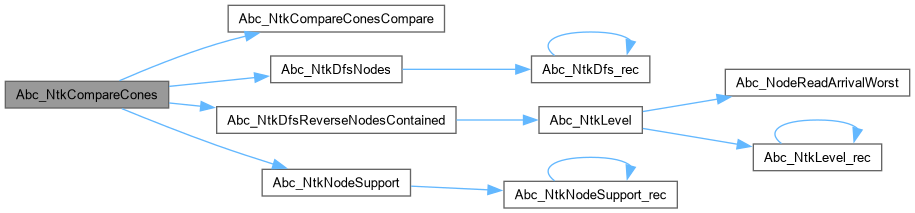

Here is the call graph for this function:

Abc_NtkCompareConesCompare()

int Abc_NtkCompareConesCompare	(	int *	pNum1,
		int *	pNum2 )

Function*************************************************************

Synopsis [Compares the supergates by their level.]

Description []

SideEffects []

SeeAlso []

Definition at line 2106 of file abcUtil.c.

{
    if ( pSupps[*pNum1] > pSupps[*pNum2] )
        return -1;
    if ( pSupps[*pNum1] < pSupps[*pNum2] )
        return 1;
    return 0;
}

Here is the caller graph for this function:

Abc_NtkCompareSupports()

void Abc_NtkCompareSupports

(

Abc_Ntk_t *

pNtk

)

Function*************************************************************

Synopsis [Analyze choice node support.]

Description []

SideEffects []

SeeAlso []

Definition at line 2208 of file abcUtil.c.

{
    Vec_Ptr_t * vSupp;
    Abc_Obj_t * pObj, * pTemp;
    int i, nNodesOld;
    assert( Abc_NtkIsStrash(pNtk) );
    Abc_AigForEachAnd( pNtk, pObj, i )
    {
        if ( !Abc_AigNodeIsChoice(pObj) )
            continue;

        vSupp = Abc_NtkNodeSupport( pNtk, &pObj, 1 );
        nNodesOld = Vec_PtrSize(vSupp);
        Vec_PtrFree( vSupp );

        for ( pTemp = (Abc_Obj_t *)pObj->pData; pTemp; pTemp = (Abc_Obj_t *)pTemp->pData )
        {
            vSupp = Abc_NtkNodeSupport( pNtk, &pTemp, 1 );
            if ( nNodesOld != Vec_PtrSize(vSupp) )
                printf( "Choice orig = %3d  Choice new = %3d\n", nNodesOld, Vec_PtrSize(vSupp) );
            Vec_PtrFree( vSupp );
        }
    }
}

Here is the call graph for this function:

Abc_NtkComputeDelay()

float Abc_NtkComputeDelay

(

Abc_Ntk_t *

pNtk

)

Function*************************************************************

Synopsis [Computes max delay using log(n) delay model.]

Description []

SideEffects []

SeeAlso []

Definition at line 2488 of file abcUtil.c.

{
    static double GateDelays[20] = { 1.00, 1.00, 2.00, 2.58, 3.00, 3.32, 3.58, 3.81, 4.00, 4.17, 4.32, 4.46, 4.58, 4.70, 4.81, 4.91, 5.00, 5.09, 5.17, 5.25 };
    Vec_Ptr_t * vNodes;
    Abc_Obj_t * pObj, * pFanin;
    float DelayMax, Delays[15] = {0};
    int nFaninMax, i, k;
    // calculate relative gate delays
    nFaninMax = Abc_NtkGetFaninMax( pNtk );
    assert( nFaninMax > 1 && nFaninMax < 15 );
    for ( i = 0; i <= nFaninMax; i++ )
        Delays[i] = GateDelays[i]/GateDelays[nFaninMax];
    // set max CI delay
    Abc_NtkForEachCi( pNtk, pObj, i )
        pObj->dTemp = 0.0;
    // compute delays for each node
    vNodes = Abc_NtkDfs( pNtk, 1 );
    Vec_PtrForEachEntry( Abc_Obj_t *, vNodes, pObj, i )
    {
        pObj->dTemp = 0.0;
        Abc_ObjForEachFanin( pObj, pFanin, k )
            pObj->dTemp = Abc_MaxFloat( pObj->dTemp, pFanin->dTemp );
        pObj->dTemp += Delays[Abc_ObjFaninNum(pObj)];
    }
    Vec_PtrFree( vNodes );
    DelayMax = 0.0;
    // find max CO delay
    Abc_NtkForEachCo( pNtk, pObj, i )
        DelayMax = Abc_MaxFloat( DelayMax, Abc_ObjFanin0(pObj)->dTemp );
    return DelayMax;
}

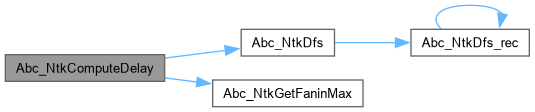

Here is the call graph for this function:

Abc_NtkCountCopy()

int Abc_NtkCountCopy

(

Abc_Ntk_t *

pNtk

)

Function*************************************************************

Synopsis [Counts the number of nodes having non-trivial copies.]

Description []

SideEffects []

SeeAlso []

Definition at line 605 of file abcUtil.c.

{
    Abc_Obj_t * pObj;
    int i, Counter = 0;
    Abc_NtkForEachObj( pNtk, pObj, i )
    {
        if ( Abc_ObjIsNode(pObj) )
            Counter += (pObj->pCopy != NULL);
    }
    return Counter;
}

Here is the caller graph for this function:

Abc_NtkCountMuxes()

int Abc_NtkCountMuxes

(

Abc_Ntk_t *

pNtk

)

Function*************************************************************

Synopsis [Returns 1 if the node is the root of MUX or EXOR/NEXOR.]

Description []

SideEffects []

SeeAlso []

Definition at line 1377 of file abcUtil.c.

{
    Abc_Obj_t * pNode;
    int i;
    int Counter = 0;
    Abc_NtkForEachNode( pNtk, pNode, i )
        Counter += Abc_NodeIsMuxType( pNode );
    return Counter;
}

Here is the call graph for this function:

Here is the caller graph for this function:

Abc_NtkCreatePropertyMonitor()

Abc_Ntk_t * Abc_NtkCreatePropertyMonitor	(	Abc_Ntk_t *	p,
		Vec_Int_t *	vNodeIds,
		Vec_Int_t *	vNodeValues )

Function*************************************************************

Synopsis [Derives the AIG representing a property.]

Description [Given is a sequential logic network (Abc_Ntk_t) and an array of nodes (vector of object IDs) and their values (vector of 0s or 1s). This procedure creates a sequential AIG (Abc_Ntk_t), which can be given to a sequential model checker (in particular "pdr") to prove that the given combination of values never appears at the intenal nodes of the network, or produce a counter-example showing that it can appear.]

SideEffects []

SeeAlso []

Definition at line 3029 of file abcUtil.c.

{
    Abc_Ntk_t * pMonitor, * pStrashed, * pResult;
    // sequential cleanup parameters
    int fLatchConst  =   1;
    int fLatchEqual  =   1;
    int fSaveNames   =   1;
    int fUseMvSweep  =   0;
    int nFramesSymb  =   1;
    int nFramesSatur = 512;
    int fVerbose     =   0;
    int fVeryVerbose =   0;
    // expecting sequential logic network
    assert( Abc_NtkIsLogic(p) );
    assert( Abc_NtkLatchNum(p) > 0 );
    assert( Vec_IntSize(vNodeIds) > 0 );
    assert( Vec_IntSize(vNodeIds) == Vec_IntSize(vNodeValues) );
    // derive ABC network whose only output is 1 iff the given nodes have the given values
    pMonitor = Abc_NtkDeriveWithOnePo( p, vNodeIds, vNodeValues );
    // perform structural hashing
    pStrashed = Abc_NtkStrash( pMonitor, 0, 1, 0 );
    Abc_NtkDelete( pMonitor );
    // it is a good idea to run sequential cleanup before giving the network to PDR
    pResult = Abc_NtkDarLatchSweep( pStrashed, fLatchConst, fLatchEqual, fSaveNames, fUseMvSweep, nFramesSymb, nFramesSatur, fVerbose, fVeryVerbose );
    Abc_NtkDelete( pStrashed );
    return pResult;
}

Here is the call graph for this function:

Here is the caller graph for this function:

Abc_NtkCreatePropertyMonitorTest()

Abc_Ntk_t * Abc_NtkCreatePropertyMonitorTest

(

Abc_Ntk_t *

p

)

Function*************************************************************

Synopsis [Testbench.]

Description []

SideEffects []

SeeAlso []

Definition at line 3068 of file abcUtil.c.

{
    Abc_Ntk_t * pNtk;
    Vec_Int_t * vNodeIds = Vec_IntAlloc( 100 );
    Vec_Int_t * vNodeValues = Vec_IntAlloc( 100 );

    // this test will only work for the network, which has nodes with internal IDs such as these
    Vec_IntPush( vNodeIds, 90 );
    Vec_IntPush( vNodeIds, 80 );
    Vec_IntPush( vNodeIds, 100 );

    Vec_IntPush( vNodeValues, 1 );
    Vec_IntPush( vNodeValues, 0 );
    Vec_IntPush( vNodeValues, 1 );

    pNtk = Abc_NtkCreatePropertyMonitor( p, vNodeIds, vNodeValues );

    Vec_IntFree( vNodeIds );
    Vec_IntFree( vNodeValues );

    return pNtk;
}

Here is the call graph for this function:

Abc_NtkCrossCut()

int Abc_NtkCrossCut

(

Abc_Ntk_t *

pNtk

)

Function*************************************************************

Synopsis [Computes cross-cut of the circuit.]

Description []

SideEffects []

SeeAlso []

Definition at line 2049 of file abcUtil.c.

{
    Abc_Obj_t * pObj;
    int nCutSize = 0, nCutSizeMax = 0;
    int i;
    Abc_NtkCleanCopy( pNtk );
    Abc_NtkIncrementTravId( pNtk );
    Abc_NtkForEachCo( pNtk, pObj, i )
    {
        Abc_NtkCrossCut_rec( pObj, &nCutSize, &nCutSizeMax );
        nCutSize--;
    }
    assert( nCutSize == 0 );
    printf( "Max cross cut size = %6d.  Ratio = %6.2f %%\n", nCutSizeMax, 100.0 * nCutSizeMax/Abc_NtkObjNum(pNtk) );
    return nCutSizeMax;
}

Here is the call graph for this function:

Abc_NtkCrossCut_rec()

int Abc_NtkCrossCut_rec	(	Abc_Obj_t *	pObj,
		int *	pnCutSize,
		int *	pnCutSizeMax )

Function*************************************************************

Synopsis [Computes cross-cut of the circuit.]

Description [Returns 1 if it is the last visit to the node.]

SideEffects []

SeeAlso []

Definition at line 2002 of file abcUtil.c.

{
    Abc_Obj_t * pFanin;
    int i, nDecrem = 0;
    int fReverse = 0;
    if ( Abc_ObjIsCi(pObj) )
        return 0;
    // if visited, increment visit counter
    if ( Abc_NodeIsTravIdCurrent( pObj ) )
        return Abc_ObjCrossCutInc( pObj );
    Abc_NodeSetTravIdCurrent( pObj );
    // visit the fanins
    if ( !Abc_ObjIsCi(pObj) )
    {
        if ( fReverse )
        {
            Abc_ObjForEachFanin( pObj, pFanin, i )
            {
                pFanin = Abc_ObjFanin( pObj, Abc_ObjFaninNum(pObj) - 1 - i );
                nDecrem += Abc_NtkCrossCut_rec( pFanin, pnCutSize, pnCutSizeMax );
            }
        }
        else
        {
            Abc_ObjForEachFanin( pObj, pFanin, i )
                nDecrem += Abc_NtkCrossCut_rec( pFanin, pnCutSize, pnCutSizeMax );
        }
    }
    // count the node
    (*pnCutSize)++;
    if ( *pnCutSizeMax < *pnCutSize )
        *pnCutSizeMax = *pnCutSize;
    (*pnCutSize) -= nDecrem;
    return Abc_ObjCrossCutInc( pObj );
}

Here is the call graph for this function:

Here is the caller graph for this function:

Abc_NtkDeriveWithOnePo()

Abc_Ntk_t * Abc_NtkDeriveWithOnePo	(	Abc_Ntk_t *	pNtk,
		Vec_Int_t *	vNodeIds,
		Vec_Int_t *	vNodeValues )

Function*************************************************************

Synopsis [Starts a new network using existing network as a model.]

Description []

SideEffects []

SeeAlso []

Definition at line 2948 of file abcUtil.c.

{
    int fCopyNames = 1;
    Abc_Ntk_t * pNtkNew;
    Abc_Obj_t * pObj, * pFanin, * pObjNew, * pOutputNew;
    Vec_Ptr_t * vFanins = Vec_PtrAlloc( 100 );
    int i, k, Id, Value;
    // start the network
    pNtkNew = Abc_NtkAlloc( pNtk->ntkType, pNtk->ntkFunc, 1 );
    // duplicate the name and the spec
    pNtkNew->pName = Extra_UtilStrsav(pNtk->pName);
    pNtkNew->pSpec = Extra_UtilStrsav(pNtk->pSpec);
    // clean the node copy fields
    Abc_NtkCleanCopy( pNtk );
    // map the constant nodes
    if ( Abc_NtkIsStrash(pNtk) && Abc_NtkIsStrash(pNtkNew) )
        Abc_AigConst1(pNtk)->pCopy = Abc_AigConst1(pNtkNew);
    // clone CIs/CIs/boxes
    Abc_NtkForEachPi( pNtk, pObj, i )
        Abc_NtkDupObj( pNtkNew, pObj, fCopyNames );
    //Abc_NtkForEachPo( pNtk, pObj, i )
    //    Abc_NtkDupObj( pNtkNew, pObj, fCopyNames );
    // create one PO
    pObjNew = Abc_NtkCreateObj( pNtkNew, ABC_OBJ_PO );
    Abc_ObjAssignName( pObjNew, "monitor", NULL );
    // create boxes
    Abc_NtkForEachBox( pNtk, pObj, i )
        Abc_NtkDupBox( pNtkNew, pObj, fCopyNames );

    // duplicate nodes (CIs/COs/latches are already duplicated)
    Abc_NtkForEachObj( pNtk, pObj, i )
        if ( pObj->pCopy == NULL && !Abc_ObjIsPo(pObj) )
            Abc_NtkDupObj(pNtkNew, pObj, 0);
    // reconnect all objects except boxes (they are already connected) and POs (they will be connected later)
    Abc_NtkForEachObj( pNtk, pObj, i )
        if ( !Abc_ObjIsPo(pObj) && !Abc_ObjIsBox(pObj) && !Abc_ObjIsBo(pObj) )
            Abc_ObjForEachFanin( pObj, pFanin, k )
                Abc_ObjAddFanin( pObj->pCopy, pFanin->pCopy );

    // AND nodes (with interters if needed)
    pOutputNew = NULL;
    Vec_IntForEachEntryTwo( vNodeIds, vNodeValues, Id, Value, i )
    {
        pObjNew = Abc_NtkObj( pNtk, Id )->pCopy;
        if ( Value == 0 ) // negative polarity - add inverter
            pObjNew = Abc_NtkCreateNodeInv( pNtkNew, pObjNew );
        if ( pOutputNew == NULL )
            pOutputNew = pObjNew;
        else
        {
            Vec_PtrFillTwo( vFanins, 2, pOutputNew, pObjNew );
            pOutputNew = Abc_NtkCreateNodeAnd( pNtkNew, vFanins );
        }
    }
    Vec_PtrFree( vFanins );
    // create the only POs, which is the AND of the corresponding nodes
    Abc_ObjAddFanin( Abc_NtkPo(pNtkNew, 0), pOutputNew );

    // check that the CI/CO/latches are copied correctly
    assert( Abc_NtkPoNum(pNtkNew)    == 1 );
    assert( Abc_NtkCiNum(pNtkNew)    == Abc_NtkCiNum(pNtk) );
    assert( Abc_NtkLatchNum(pNtkNew) == Abc_NtkLatchNum(pNtk) );
    return pNtkNew;
}

Here is the call graph for this function:

Here is the caller graph for this function:

Abc_NtkDetectMatching()

void Abc_NtkDetectMatching

(

Abc_Ntk_t *

pNtk

)

Function*************************************************************

Synopsis [Detect cases when non-trivial FF matching is possible.]

Description []

SideEffects []

SeeAlso []

Definition at line 1893 of file abcUtil.c.

{
/*
    Abc_Obj_t * pLatch, * pFanin;
    int i, nTFFs, nJKFFs;
    nTFFs = nJKFFs = 0;
    Abc_NtkForEachLatch( pNtk, pLatch, i )
    {
        pFanin = Abc_ObjFanin0(pLatch);
        if ( Abc_ObjFaninNum(pFanin) != 2 )
            continue;
        if ( Abc_NodeIsExorType(pLatch) )
        {
            if ( Abc_ObjFanin0(Abc_ObjFanin0(pFanin)) == pLatch ||
                 Abc_ObjFanin1(Abc_ObjFanin0(pFanin)) == pLatch )
                 nTFFs++;
        }
        if ( Abc_ObjFaninNum( Abc_ObjFanin0(pFanin) ) != 2 ||
             Abc_ObjFaninNum( Abc_ObjFanin1(pFanin) ) != 2 )
            continue;

        if ( (Abc_ObjFanin0(Abc_ObjFanin0(pFanin)) == pLatch ||
              Abc_ObjFanin1(Abc_ObjFanin0(pFanin)) == pLatch) &&
             (Abc_ObjFanin0(Abc_ObjFanin1(pFanin)) == pLatch ||
              Abc_ObjFanin1(Abc_ObjFanin1(pFanin)) == pLatch) )
        {
            nJKFFs++;
        }
    }
    printf( "D = %6d.   T = %6d.   JK = %6d.  (%6.2f %%)\n",
        Abc_NtkLatchNum(pNtk), nTFFs, nJKFFs, 100.0 * nJKFFs / Abc_NtkLatchNum(pNtk) );
*/
}

Abc_NtkFanoutCounts()

Vec_Int_t * Abc_NtkFanoutCounts

(

Abc_Ntk_t *

pNtk

)

Function*************************************************************

Synopsis [Creates the array of fanout counters.]

Description []

SideEffects []

SeeAlso []

Definition at line 1741 of file abcUtil.c.

{
    Vec_Int_t * vFanNums;
    Abc_Obj_t * pObj;
    int i;
    vFanNums = Vec_IntAlloc( 0 );
    Vec_IntFill( vFanNums, Abc_NtkObjNumMax(pNtk), -1 );
    Abc_NtkForEachObj( pNtk, pObj, i )
        if ( Abc_ObjIsCi(pObj) || Abc_ObjIsNode(pObj) )
            Vec_IntWriteEntry( vFanNums, i, Abc_ObjFanoutNum(pObj) );
    return vFanNums;
}

Here is the caller graph for this function:

Abc_NtkFillTemp()

void Abc_NtkFillTemp

(

Abc_Ntk_t *

pNtk

)

Function*************************************************************

Synopsis [Cleans the copy field of all objects.]

Description []

SideEffects []

SeeAlso []

Definition at line 586 of file abcUtil.c.

{
    Abc_Obj_t * pObj;
    int i;
    Abc_NtkForEachObj( pNtk, pObj, i )
        pObj->iTemp = -1;
}

Here is the caller graph for this function:

Abc_NtkFixCoDriverProblem()

void Abc_NtkFixCoDriverProblem	(	Abc_Obj_t *	pDriver,
		Abc_Obj_t *	pNodeCo,
		int	fDuplicate )

Function*************************************************************

Synopsis [Fixes the CO driver problem.]

Description []

SideEffects []

SeeAlso []

Definition at line 891 of file abcUtil.c.

{
    Abc_Ntk_t * pNtk = pDriver->pNtk;
    Abc_Obj_t * pDriverNew, * pFanin;
    int k;
    if ( fDuplicate && !Abc_ObjIsCi(pDriver) )
    {
        pDriverNew = Abc_NtkDupObj( pNtk, pDriver, 0 );
        Abc_ObjForEachFanin( pDriver, pFanin, k )
            Abc_ObjAddFanin( pDriverNew, pFanin );
        if ( Abc_ObjFaninC0(pNodeCo) )
        {
            // change polarity of the duplicated driver
            Abc_NodeComplement( pDriverNew );
            Abc_ObjXorFaninC( pNodeCo, 0 );
        }
    }
    else
    {
        // add inverters and buffers when necessary
        if ( Abc_ObjFaninC0(pNodeCo) )
        {
            pDriverNew = Abc_NtkCreateNodeInv( pNtk, pDriver );
            Abc_ObjXorFaninC( pNodeCo, 0 );
        }
        else
            pDriverNew = Abc_NtkCreateNodeBuf( pNtk, pDriver );
    }
    // update the fanin of the PO node
    Abc_ObjPatchFanin( pNodeCo, pDriver, pDriverNew );
    assert( Abc_ObjFanoutNum(pDriverNew) == 1 );
    // remove the old driver if it dangles
    // (this happens when the duplicated driver had only one complemented fanout)
    if ( Abc_ObjFanoutNum(pDriver) == 0 )
        Abc_NtkDeleteObj( pDriver );
}

Here is the call graph for this function:

Here is the caller graph for this function:

Abc_NtkFromArray()

Abc_Ntk_t * Abc_NtkFromArray

(

)

Definition at line 3301 of file abcUtil.c.

{
    Vec_Ptr_t * vNodes  = Vec_PtrAlloc( s_ArraySize ); int i, nPos = 0;
    Abc_Ntk_t * pNtkNew = Abc_NtkAlloc( ABC_NTK_LOGIC, ABC_FUNC_SOP, 1 );
    Abc_Obj_t * pObjNew = Abc_NtkHasConstNode() ? Abc_NtkCreateNode(pNtkNew) : NULL;
    if ( pObjNew ) pObjNew->pData = Abc_SopCreateConst0((Mem_Flex_t *)pNtkNew->pManFunc);
    Vec_PtrPush( vNodes, pObjNew );
    for ( i = 1; i < s_ArraySize; i++ )
        if ( !s_ArrayData[2*i] && !s_ArrayData[2*i+1] )
            Vec_PtrPush( vNodes, Abc_NtkCreatePi(pNtkNew) );
        else
            break;
    for ( ; i < s_ArraySize; i++ )
    {
        char * pSop = NULL;
        if ( s_ArrayData[2*i] > s_ArrayData[2*i+1] )
            pSop = Abc_SopCreateXor( (Mem_Flex_t *)pNtkNew->pManFunc, 2 );
        else if ( s_ArrayData[2*i] < s_ArrayData[2*i+1] )
            pSop = Abc_SopCreateAnd( (Mem_Flex_t *)pNtkNew->pManFunc, 2, NULL );
        else
            break;
        pObjNew = Abc_NtkCreateNode( pNtkNew );
        Abc_ObjAddFanin( pObjNew, (Abc_Obj_t *)Vec_PtrEntry(vNodes, Abc_Lit2Var(s_ArrayData[2*i]))   );
        Abc_ObjAddFanin( pObjNew, (Abc_Obj_t *)Vec_PtrEntry(vNodes, Abc_Lit2Var(s_ArrayData[2*i+1])) );
        if ( Abc_LitIsCompl(s_ArrayData[2*i])   )  Abc_SopComplementVar( pSop, 0 );
        if ( Abc_LitIsCompl(s_ArrayData[2*i+1]) )  Abc_SopComplementVar( pSop, 1 );
        pObjNew->pData = pSop;
        Vec_PtrPush( vNodes, pObjNew );
    }
    for ( ; i < s_ArraySize; i++ )
    {
        char * pSop = NULL;
        assert( s_ArrayData[2*i] == s_ArrayData[2*i+1] );
        pObjNew = Abc_NtkCreateNode( pNtkNew );
        Abc_ObjAddFanin( pObjNew, (Abc_Obj_t *)Vec_PtrEntry(vNodes, Abc_Lit2Var(s_ArrayData[2*i]))   );
        if ( Abc_LitIsCompl(s_ArrayData[2*i]) )
            pSop = Abc_SopCreateInv( (Mem_Flex_t *)pNtkNew->pManFunc );
        else
            pSop = Abc_SopCreateBuf( (Mem_Flex_t *)pNtkNew->pManFunc );
        pObjNew->pData = pSop;
        Vec_PtrPush( vNodes, pObjNew );
        nPos++;
    }
    for ( i = 0; i < nPos; i++ )
        Abc_ObjAddFanin( Abc_NtkCreatePo(pNtkNew), (Abc_Obj_t *)Vec_PtrEntry(vNodes, s_ArraySize-nPos+i) );
    Vec_PtrFree( vNodes );
    pNtkNew->pName = Extra_UtilStrsav("test");
    Abc_NtkAddDummyPiNames( pNtkNew );
    Abc_NtkAddDummyPoNames( pNtkNew );
    Abc_NtkAddDummyBoxNames( pNtkNew );
    if ( !Abc_NtkCheck( pNtkNew ) )
        Abc_Print( 1, "Abc_NtkFromArray(): Network check has failed.\n" );
    return pNtkNew;
}

Here is the call graph for this function:

Abc_NtkFromPla()

Abc_Ntk_t * Abc_NtkFromPla	(	char **	pPlas,
		int	nInputs,
		int	nOutputs )

Function*************************************************************

Synopsis [Converts multi-output PLA into an AIG with logic sharing.]

Description [The first argument is an array of char*-strings representing individual output of a multi-output PLA. The number of inputs (nInputs) and the number of outputs (nOutputs) are the second and third arguments. This procedure returns the AIG manager with the given number of inputs and outputs representing the PLA as a logic network with sharing.

For example, if the original PLA is 1000 10 0110 01 0011 01 the individual PLA for each the two outputs should be 1000 1 and 0110 1 0011 1

Reprsentation in terms of two char*-strings will be: char * pPlas[2] = { "1000 1\n", "0110 1\n0011 1\n" };
The call to the procedure may look as follows: Abc_Ntk_t * pNtkAig = Abc_NtkFromPla( pPlas, 4, 2 );]

SideEffects []

SeeAlso []

Definition at line 2757 of file abcUtil.c.

{
    Fxu_Data_t Params, * p = &Params;
    Abc_Ntk_t * pNtkSop, * pNtkAig;
    Abc_Obj_t * pNode, * pFanin;
    int i, k;
    // allocate logic network with SOP local functions
    pNtkSop = Abc_NtkAlloc( ABC_NTK_LOGIC, ABC_FUNC_SOP, 1 );
    pNtkSop->pName = Extra_FileNameGeneric("pla");
    // create primary inputs/outputs
    for ( i = 0; i < nInputs; i++ )
        Abc_NtkCreatePi( pNtkSop );
    for ( i = 0; i < nOutputs; i++ )
        Abc_NtkCreatePo( pNtkSop );
    Abc_NtkAddDummyPiNames( pNtkSop );
    Abc_NtkAddDummyPoNames( pNtkSop );
    // create internal nodes
    for ( i = 0; i < nOutputs; i++ )
    {
        pNode = Abc_NtkCreateNode( pNtkSop );
        Abc_NtkForEachPi( pNtkSop, pFanin, k )
            Abc_ObjAddFanin( pNode, pFanin );
        pNode->pData = Abc_SopRegister( (Mem_Flex_t *)pNtkSop->pManFunc, pPlas[i] );
        Abc_ObjAddFanin( Abc_NtkPo(pNtkSop, i), pNode );
        // check that the number of inputs is the same
        assert( Abc_SopGetVarNum((char*)pNode->pData) == nInputs );
    }
    if ( !Abc_NtkCheck( pNtkSop ) )
        fprintf( stdout, "Abc_NtkFromPla(): Network check has failed.\n" );
    // perform fast_extract
    Abc_NtkSetDefaultFxParams( p );
    Abc_NtkFastExtract( pNtkSop, p );
    Abc_NtkFxuFreeInfo( p );
    // convert to an AIG
    pNtkAig = Abc_NtkStrash( pNtkSop, 0, 1, 0 );
    Abc_NtkDelete( pNtkSop );
    return pNtkAig;
}

Here is the call graph for this function:

Here is the caller graph for this function:

Abc_NtkFromPlaTest()

void Abc_NtkFromPlaTest

(

)

Definition at line 2795 of file abcUtil.c.

{
    char * pPlas[2] = { "1000 1\n", "0110 1\n0011 1\n" };
    Abc_Ntk_t * pNtkAig = Abc_NtkFromPla( pPlas, 4, 2 );
    Io_WriteBlifLogic( pNtkAig, "temp.blif", 0 );
    Abc_NtkDelete( pNtkAig );
}

Here is the call graph for this function:

Abc_NtkGetAigNodeNum()

int Abc_NtkGetAigNodeNum

(

Abc_Ntk_t *

pNtk

)

Function*************************************************************

Synopsis [Reads the number of BDD nodes.]

Description []

SideEffects []

SeeAlso []

Definition at line 276 of file abcUtil.c.

{
    Abc_Obj_t * pNode;
    int i, nNodes = 0;
    assert( Abc_NtkIsAigLogic(pNtk) );
    Abc_NtkForEachNode( pNtk, pNode, i )
    {
        assert( pNode->pData );
        if ( Abc_ObjFaninNum(pNode) < 2 )
            continue;
//printf( "%d ", Hop_DagSize( pNode->pData ) );
        nNodes += pNode->pData? Hop_DagSize( (Hop_Obj_t *)pNode->pData ) : 0;
    }
    return nNodes;
}

Here is the call graph for this function:

Here is the caller graph for this function:

Abc_NtkGetBddNodeNum()

int Abc_NtkGetBddNodeNum

(

Abc_Ntk_t *

pNtk

)

Function*************************************************************

Synopsis [Reads the number of BDD nodes.]

Description []

SideEffects []

SeeAlso []

Definition at line 247 of file abcUtil.c.

{
    int nNodes = 0;
#ifdef ABC_USE_CUDD
    Abc_Obj_t * pNode;
    int i;
    assert( Abc_NtkIsBddLogic(pNtk) );
    Abc_NtkForEachNode( pNtk, pNode, i )
    {
        assert( pNode->pData );
        if ( Abc_ObjFaninNum(pNode) < 2 )
            continue;
        nNodes += pNode->pData? -1 + Cudd_DagSize( (DdNode *)pNode->pData ) : 0;
    }
#endif
    return nNodes;
}

Here is the caller graph for this function:

Abc_NtkGetBufNum()

int Abc_NtkGetBufNum

(

Abc_Ntk_t *

pNtk

)

Function*************************************************************

Synopsis [Counts the number of exors.]

Description []

SideEffects []

SeeAlso []

Definition at line 423 of file abcUtil.c.

{
    Abc_Obj_t * pNode;
    int i, Counter = 0;
    Abc_NtkForEachNode( pNtk, pNode, i )
        Counter += (Abc_ObjFaninNum(pNode) == 1);
    return Counter;
}

Here is the caller graph for this function:

Abc_NtkGetChoiceNum()

int Abc_NtkGetChoiceNum

(

Abc_Ntk_t *

pNtk

)

Function*************************************************************

Synopsis [Returns 1 if it is an AIG with choice nodes.]

Description []

SideEffects []

SeeAlso []

Definition at line 463 of file abcUtil.c.

{
    Abc_Obj_t * pNode;
    int i, Counter;
    if ( !Abc_NtkIsStrash(pNtk) )
        return 0;
    Counter = 0;
    Abc_NtkForEachNode( pNtk, pNode, i )
        Counter += Abc_AigNodeIsChoice( pNode );
    return Counter;
}

Here is the caller graph for this function:

Abc_NtkGetCiIds()

Vec_Int_t * Abc_NtkGetCiIds

(

Abc_Ntk_t *

pNtk

)

Function*************************************************************

Synopsis [Returns the array of CI IDs.]

Description []

SideEffects []

SeeAlso []

Definition at line 1787 of file abcUtil.c.

{
    Vec_Int_t * vCiIds;
    Abc_Obj_t * pObj;
    int i;
    vCiIds = Vec_IntAlloc( Abc_NtkCiNum(pNtk) );
    Abc_NtkForEachCi( pNtk, pObj, i )
        Vec_IntPush( vCiIds, pObj->Id );
    return vCiIds;
}

Abc_NtkGetClauseNum()

int Abc_NtkGetClauseNum

(

Abc_Ntk_t *

pNtk

)

Function*************************************************************

Synopsis [Reads the number of BDD nodes.]

Description []

SideEffects []

SeeAlso []

Definition at line 303 of file abcUtil.c.

{
    int nClauses = 0;
#ifdef ABC_USE_CUDD
    extern int Abc_CountZddCubes( DdManager * dd, DdNode * zCover );
    Abc_Obj_t * pNode;
    DdNode * bCover, * zCover, * bFunc;
    DdManager * dd = (DdManager *)pNtk->pManFunc;
    int i;
    assert( Abc_NtkIsBddLogic(pNtk) );
    Abc_NtkForEachNode( pNtk, pNode, i )
    {
        assert( pNode->pData );
        bFunc = (DdNode *)pNode->pData;

        bCover = Cudd_zddIsop( dd, bFunc, bFunc, &zCover );
        Cudd_Ref( bCover );
        Cudd_Ref( zCover );
        nClauses += Abc_CountZddCubes( dd, zCover );
        Cudd_RecursiveDeref( dd, bCover );
        Cudd_RecursiveDerefZdd( dd, zCover );

        bCover = Cudd_zddIsop( dd, Cudd_Not(bFunc), Cudd_Not(bFunc), &zCover );
        Cudd_Ref( bCover );
        Cudd_Ref( zCover );
        nClauses += Abc_CountZddCubes( dd, zCover );
        Cudd_RecursiveDeref( dd, bCover );
        Cudd_RecursiveDerefZdd( dd, zCover );
    }
#endif
    return nClauses;
}

Abc_NtkGetCubeNum()

int Abc_NtkGetCubeNum

(

Abc_Ntk_t *

pNtk

)

Function*************************************************************

Synopsis [Reads the number of cubes of the node.]

Description []

SideEffects []

SeeAlso []

Definition at line 117 of file abcUtil.c.

{
    Abc_Obj_t * pNode;
    int i, nCubes = 0;
    assert( Abc_NtkHasSop(pNtk) );
    Abc_NtkForEachNode( pNtk, pNode, i )
    {
        if ( Abc_NodeIsConst(pNode) )
            continue;
        assert( pNode->pData );
        nCubes += Abc_SopGetCubeNum( (char *)pNode->pData );
    }
    return nCubes;
}

Here is the call graph for this function:

Here is the caller graph for this function:

Abc_NtkGetCubePairNum()

int Abc_NtkGetCubePairNum

(

Abc_Ntk_t *

pNtk

)

Function*************************************************************

Synopsis [Reads the number of cubes of the node.]

Description []

SideEffects []

SeeAlso []

Definition at line 143 of file abcUtil.c.

{
    Abc_Obj_t * pNode;
    int i;
    word nCubes, nCubePairs = 0;
    assert( Abc_NtkHasSop(pNtk) );
    Abc_NtkForEachNode( pNtk, pNode, i )
    {
        if ( Abc_NodeIsConst(pNode) )
            continue;
        assert( pNode->pData );
        nCubes = (word)Abc_SopGetCubeNum( (char *)pNode->pData );
        if ( nCubes > 1 )
            nCubePairs += nCubes * (nCubes - 1) / 2;
    }
    return (int)(nCubePairs > (1<<30) ? (1<<30) : nCubePairs);
}

Here is the call graph for this function:

Abc_NtkGetExorNum()

int Abc_NtkGetExorNum

(

Abc_Ntk_t *

pNtk

)

Function*************************************************************

Synopsis [Counts the number of exors.]

Description []

SideEffects []

SeeAlso []

Definition at line 383 of file abcUtil.c.

{
    Abc_Obj_t * pNode;
    int i, Counter = 0;
    Abc_NtkForEachNode( pNtk, pNode, i )
        Counter += pNode->fExor;
    return Counter;
}

Here is the caller graph for this function:

Abc_NtkGetFaninMax()

int Abc_NtkGetFaninMax

(

Abc_Ntk_t *

pNtk

)

Function*************************************************************

Synopsis [Reads the maximum number of fanins.]

Description []

SideEffects []

SeeAlso []

Definition at line 486 of file abcUtil.c.

{
    Abc_Obj_t * pNode;
    int i, nFaninsMax = 0;
    Abc_NtkForEachNode( pNtk, pNode, i )
    {
        if ( nFaninsMax < Abc_ObjFaninNum(pNode) )
            nFaninsMax = Abc_ObjFaninNum(pNode);
    }
    return nFaninsMax;
}

Here is the caller graph for this function:

Abc_NtkGetFanoutMax()

int Abc_NtkGetFanoutMax

(

Abc_Ntk_t *

pNtk

)

Definition at line 497 of file abcUtil.c.

{
    Abc_Obj_t * pNode;
    int i, nFaninsMax = 0;
    Abc_NtkForEachNode( pNtk, pNode, i )
    {
        if ( nFaninsMax < Abc_ObjFanoutNum(pNode) )
            nFaninsMax = Abc_ObjFanoutNum(pNode);
    }
    return nFaninsMax;
}

Here is the caller graph for this function:

Abc_NtkGetGpcLutCount()

int Abc_NtkGetGpcLutCount

(

char *

pGPC

)

Definition at line 3400 of file abcUtil.c.

{
    char * pOut = strstr(pGPC, ":");
    char * pLut = strstr(pOut+1, ":");
    return atoi(pLut+1);
}

Here is the call graph for this function:

Here is the caller graph for this function:

Abc_NtkGetLargeNodeNum()

int Abc_NtkGetLargeNodeNum

(

Abc_Ntk_t *

pNtk

)

Function*************************************************************

Synopsis [Counts the number of exors.]

Description []

SideEffects []

SeeAlso []

Definition at line 443 of file abcUtil.c.

{
    Abc_Obj_t * pNode;
    int i, Counter = 0;
    Abc_NtkForEachNode( pNtk, pNode, i )
        Counter += (Abc_ObjFaninNum(pNode) > 1);
    return Counter;
}

Here is the caller graph for this function:

Abc_NtkGetLitFactNum()

int Abc_NtkGetLitFactNum

(

Abc_Ntk_t *

pNtk

)

Function*************************************************************

Synopsis [Counts the number of literals in the factored forms.]

Description []

SideEffects []

SeeAlso []

Definition at line 196 of file abcUtil.c.

{
    Dec_Graph_t * pFactor;
    Abc_Obj_t * pNode;
    int nNodes, i;
    assert( Abc_NtkHasSop(pNtk) );
    nNodes = 0;
    Abc_NtkForEachNode( pNtk, pNode, i )
    {
        if ( Abc_NodeIsConst(pNode) )
            continue;
        pFactor = Dec_Factor( (char *)pNode->pData );
        nNodes += 1 + Dec_GraphNodeNum(pFactor);
        Dec_GraphFree( pFactor );
    }
    return nNodes;
}

Here is the call graph for this function:

Here is the caller graph for this function:

Abc_NtkGetLitNum()

int Abc_NtkGetLitNum

(

Abc_Ntk_t *

pNtk

)

Function*************************************************************

Synopsis [Reads the number of literals in the SOPs of the nodes.]

Description []

SideEffects []

SeeAlso []

Definition at line 172 of file abcUtil.c.

{
    Abc_Obj_t * pNode;
    int i, nLits = 0;
    assert( Abc_NtkHasSop(pNtk) );
    Abc_NtkForEachNode( pNtk, pNode, i )
    {
        assert( pNode->pData );
        nLits += Abc_SopGetLitNum( (char *)pNode->pData );
    }
    return nLits;
}

Here is the call graph for this function:

Here is the caller graph for this function:

Abc_NtkGetMappedArea()

double Abc_NtkGetMappedArea

(

Abc_Ntk_t *

pNtk

)

Function*************************************************************

Synopsis [Computes the area of the mapped circuit.]

Description []

SideEffects []

SeeAlso []

Definition at line 347 of file abcUtil.c.

{
    Abc_Obj_t * pObj;
    double TotalArea;
    int i;
    assert( Abc_NtkHasMapping(pNtk) );
    TotalArea = 0.0;
    Abc_NtkForEachNode( pNtk, pObj, i )
    {
        if ( Abc_ObjIsBarBuf(pObj) )
            continue;
//        assert( pObj->pData );
        if ( pObj->pData == NULL )
        {
            printf( "Node without mapping is encountered.\n" );
            continue;
        }
        TotalArea += Mio_GateReadArea( (Mio_Gate_t *)pObj->pData );
        // assuming that twin gates follow each other
        if ( Abc_NtkFetchTwinNode(pObj) )
            i++;
    }
    return TotalArea;
}

Here is the call graph for this function:

Here is the caller graph for this function:

Abc_NtkGetMultiRefNum()

int Abc_NtkGetMultiRefNum

(

Abc_Ntk_t *

pNtk

)

Function*************************************************************

Synopsis [Counts the number of nodes with more than 1 reference.]

Description []

SideEffects []

SeeAlso []

Definition at line 225 of file abcUtil.c.

{
    Abc_Obj_t * pNode;
    int nNodes, i;
    assert( Abc_NtkIsStrash(pNtk) );
    nNodes = 0;
    Abc_NtkForEachNode( pNtk, pNode, i )
        nNodes += (int)(Abc_ObjFanoutNum(pNode) > 1);
    return nNodes;
}

Here is the caller graph for this function:

Abc_NtkGetMuxNum()

int Abc_NtkGetMuxNum

(

Abc_Ntk_t *

pNtk

)

Function*************************************************************

Synopsis [Counts the number of exors.]

Description []

SideEffects []

SeeAlso []

Definition at line 403 of file abcUtil.c.

{
    Abc_Obj_t * pNode;
    int i, Counter = 0;
    Abc_NtkForEachNode( pNtk, pNode, i )
        Counter += Abc_NodeIsMuxType(pNode);
    return Counter;
}

Here is the call graph for this function:

Abc_NtkGetTotalFanins()

int Abc_NtkGetTotalFanins

(

Abc_Ntk_t *

pNtk

)

Function*************************************************************

Synopsis [Reads the total number of all fanins.]

Description []

SideEffects []

SeeAlso []

Definition at line 520 of file abcUtil.c.

{
    Abc_Obj_t * pNode;
    int i, nFanins = 0;
    Abc_NtkForEachNode( pNtk, pNode, i )
        nFanins += Abc_ObjFaninNum(pNode);
    return nFanins;
}

Here is the caller graph for this function:

Abc_NtkHasConstNode()

int Abc_NtkHasConstNode

(

)

Definition at line 3290 of file abcUtil.c.

{
    int i;
    for ( i = 1; i < s_ArraySize; i++ )
        if ( s_ArrayData[2*i] || s_ArrayData[2*i+1] )
            break;
    for ( ; i < s_ArraySize; i++ )
        if ( s_ArrayData[2*i] < 2 && s_ArrayData[2*i+1] < 2 )
            return 1;
    return 0;
}

Here is the caller graph for this function:

Abc_NtkInvertConstraints()

void Abc_NtkInvertConstraints

(

Abc_Ntk_t *

pNtk

)

Function*************************************************************

Synopsis [Complements the constraint outputs.]

Description []

SideEffects []

SeeAlso []

Definition at line 2244 of file abcUtil.c.

{
    Abc_Obj_t * pObj;
    int i;
    if ( Abc_NtkConstrNum(pNtk) == 0 )
        return;
    Abc_NtkForEachPo( pNtk, pObj, i )
    {
        if ( i >= Abc_NtkPoNum(pNtk) - Abc_NtkConstrNum(pNtk) )
            Abc_ObjXorFaninC( pObj, 0 );
    }
}

Here is the caller graph for this function:

Abc_NtkIsTopo()

int Abc_NtkIsTopo

(

Abc_Ntk_t *

pNtk

)

Function*************************************************************

Synopsis [Checks if the logic network is in the topological order.]

Description []

SideEffects []

SeeAlso []

Definition at line 2888 of file abcUtil.c.

{
    Abc_Obj_t * pObj, * pFanin;
    int i, k, Counter = 0;
    Abc_NtkIncrementTravId( pNtk );
    Abc_NtkForEachCi( pNtk, pObj, i )
        Abc_NodeSetTravIdCurrent(pObj);
    Abc_NtkForEachNode( pNtk, pObj, i )
    {
        // check if fanins are in the topo order
        Abc_ObjForEachFanin( pObj, pFanin, k )
            if ( !Abc_NodeIsTravIdCurrent(pFanin) )
                break;
        if ( k != Abc_ObjFaninNum(pObj) )
        {
            if ( Counter++ == 0 )
                printf( "Node %d is out of topo order.\n", Abc_ObjId(pObj) );
        }
        Abc_NodeSetTravIdCurrent(pObj);
    }
    if ( Counter )
        printf( "Topological order does not hold for %d internal nodes.\n", Counter );
    return (int)(Counter == 0);
}

Here is the caller graph for this function:

Abc_NtkLoadCopy()

void Abc_NtkLoadCopy	(	Abc_Ntk_t *	pNtk,
		Vec_Ptr_t *	vCopies )

Function*************************************************************

Synopsis [Loads copy field of the objects.]

Description []

SideEffects []

SeeAlso []

Definition at line 650 of file abcUtil.c.

{
    Abc_Obj_t * pObj;
    int i;
    Abc_NtkForEachObj( pNtk, pObj, i )
        pObj->pCopy = (Abc_Obj_t *)Vec_PtrEntry( vCopies, i );
}

Here is the caller graph for this function:

Abc_NtkLogicHasSimpleCos()

int Abc_NtkLogicHasSimpleCos

(

Abc_Ntk_t *

pNtk

)

Function*************************************************************

Synopsis [Returns 1 if COs of a logic network are simple.]

Description [The COs of a logic network are simple under three conditions: (1) The edge from CO to its driver is not complemented. (2) If CI is a driver of a CO, they have the same name.] (3) If two COs share the same driver, they have the same name.]

SideEffects []

SeeAlso []

Definition at line 942 of file abcUtil.c.

{
    Abc_Obj_t * pNode, * pDriver;
    int i;
    assert( Abc_NtkIsLogic(pNtk) );
    Abc_NtkIncrementTravId( pNtk );
    Abc_NtkForEachCo( pNtk, pNode, i )
    {
        // if the driver is complemented, this is an error
        pDriver = Abc_ObjFanin0(pNode);
        if ( Abc_ObjFaninC0(pNode) )
            return 0;
        // if the driver is a CI and has different name, this is an error
        if ( Abc_ObjIsCi(pDriver) && strcmp(Abc_ObjName(pDriver), Abc_ObjName(pNode)) )
            return 0;
        // if the driver is visited for the first time, remember the CO name
        if ( !Abc_NodeIsTravIdCurrent(pDriver) )
        {
            pDriver->pNext = (Abc_Obj_t *)Abc_ObjName(pNode);
            Abc_NodeSetTravIdCurrent(pDriver);
            continue;
        }
        // the driver has second CO - if they have different name, this is an error
        if ( strcmp((char *)pDriver->pNext, Abc_ObjName(pNode)) ) // diff names
            return 0;
    }
    return 1;
}

Here is the call graph for this function:

Here is the caller graph for this function:

Abc_NtkLogicMakeSimpleCos()

int Abc_NtkLogicMakeSimpleCos	(	Abc_Ntk_t *	pNtk,
		int	fDuplicate )

Function*************************************************************

Synopsis [Transforms the network to have simple COs.]

Description []

SideEffects []

SeeAlso []

Definition at line 1080 of file abcUtil.c.

{
    int fAddBuffers = 1;
    Vec_Ptr_t * vDrivers, * vCoTerms;
    Abc_Obj_t * pNode, * pDriver, * pDriverNew, * pFanin;
    int i, k, LevelMax, nTotal = 0;
    assert( Abc_NtkIsLogic(pNtk) );
    LevelMax = Abc_NtkLevel(pNtk);
//    Abc_NtkLogicMakeSimpleCosTest( pNtk, fDuplicate );

    // fix constant drivers
    Abc_NtkForEachCo( pNtk, pNode, i )
    {
        pDriver = Abc_ObjFanin0(pNode);
        if ( !Abc_NodeIsConst(pDriver) )
            continue;
        pDriverNew = (Abc_ObjFaninC0(pNode) == Abc_NodeIsConst0(pDriver)) ? Abc_NtkCreateNodeConst1(pNtk) : Abc_NtkCreateNodeConst0(pNtk);
        if ( Abc_ObjFaninC0(pNode) )
            Abc_ObjXorFaninC( pNode, 0 );
        Abc_ObjPatchFanin( pNode, pDriver, pDriverNew );
        if ( Abc_ObjFanoutNum(pDriver) == 0 )
            Abc_NtkDeleteObj( pDriver );
    }

    // collect drivers pointed by complemented edges
    vDrivers = Vec_PtrAlloc( 100 );
    Abc_NtkIncrementTravId( pNtk );
    Abc_NtkForEachCo( pNtk, pNode, i )
    {
        if ( !Abc_ObjFaninC0(pNode) )
            continue;
        pDriver = Abc_ObjFanin0(pNode);
        if ( Abc_NodeIsTravIdCurrent(pDriver) )
            continue;
        Abc_NodeSetTravIdCurrent(pDriver);
        Vec_PtrPush( vDrivers, pDriver );
    }
    // fix complemented drivers
    if ( Vec_PtrSize(vDrivers) > 0 )
    {
        int nDupGates = 0, nDupInvs = 0, nDupChange = 0;
        Vec_Ptr_t * vFanouts = Vec_PtrAlloc( 100 );
        Vec_PtrForEachEntry( Abc_Obj_t *, vDrivers, pDriver, i )
        {
            int fHasDir = 0, fHasInv = 0, fHasOther = 0;
            Abc_ObjForEachFanout( pDriver, pNode, k )
            {
                if ( !Abc_ObjIsCo(pNode) )
                {
                    assert( !Abc_ObjFaninC0(pNode) );
                    fHasOther = 1;
                    continue;
                }
                if ( Abc_ObjFaninC0(pNode) )
                    fHasInv = 1;
                else //if ( Abc_ObjFaninC0(pNode) )
                    fHasDir = 1;
            }
            assert( fHasInv );
            if ( Abc_ObjIsCi(pDriver) || fHasDir || (fHasOther && Abc_NtkHasMapping(pNtk)) ) // cannot change
            {
                // duplicate if critical
                if ( fDuplicate && Abc_ObjIsNode(pDriver) && Abc_ObjLevel(pDriver) == LevelMax )
                {
                    pDriverNew = Abc_NtkDupObj( pNtk, pDriver, 0 );
                    Abc_ObjForEachFanin( pDriver, pFanin, k )
                        Abc_ObjAddFanin( pDriverNew, pFanin );
                    Abc_NodeComplement( pDriverNew );
                    nDupGates++;
                }
                else // add inverter
                {
                    pDriverNew = Abc_NtkCreateNodeInv( pNtk, pDriver );
                    nDupInvs++;
                }
                // collect CO fanouts to be redirected to the new node
                Vec_PtrClear( vFanouts );
                Abc_ObjForEachFanout( pDriver, pNode, k )
                    if ( Abc_ObjIsCo(pNode) && Abc_ObjFaninC0(pNode) )
                        Vec_PtrPush( vFanouts, pNode );
                assert( Vec_PtrSize(vFanouts) > 0 );
                Vec_PtrForEachEntry( Abc_Obj_t *, vFanouts, pNode, k )
                {
                    Abc_ObjXorFaninC( pNode, 0 );
                    Abc_ObjPatchFanin( pNode, pDriver, pDriverNew );
                    assert( Abc_ObjIsCi(pDriver) || Abc_ObjFanoutNum(pDriver) > 0 );
                }
            }
            else // can change
            {
                // change polarity of the driver
                assert( Abc_ObjIsNode(pDriver) );
                Abc_NodeComplement( pDriver );
                Abc_ObjForEachFanout( pDriver, pNode, k )
                {
                    if ( Abc_ObjIsCo(pNode) )
                    {
                        assert( Abc_ObjFaninC0(pNode) );
                        Abc_ObjXorFaninC( pNode, 0 );
                    }
                    else if ( Abc_ObjIsNode(pNode) )
                        Abc_NodeComplementInput( pNode, pDriver );
                    else assert( 0 );
                }
                nDupChange++;
            }
        }
        Vec_PtrFree( vFanouts );
//        printf( "Resolving inverted CO drivers: Invs = %d. Dups = %d. Changes = %d.\n",
//            nDupInvs, nDupGates, nDupChange );
        nTotal += nDupInvs + nDupGates;
    }
    Vec_PtrFree( vDrivers );

    // collect COs that needs fixing by adding buffers or duplicating
    vCoTerms = Vec_PtrAlloc( 100 );
    Abc_NtkIncrementTravId( pNtk );

    // The following cases should be addressed only if the network is written
    // into a BLIF file. Otherwise, it is possible to skip them:
    // (1) if a CO points to a CI with a different name
    // (2) if an internal node drives more than one CO
    if ( fAddBuffers )
    Abc_NtkForEachCo( pNtk, pNode, i )
    {
        // if the driver is a CI and has different name, this is an error
        pDriver = Abc_ObjFanin0(pNode);
        if ( Abc_ObjIsCi(pDriver) && strcmp(Abc_ObjName(pDriver), Abc_ObjName(pNode)) )
        {
            Vec_PtrPush( vCoTerms, pNode );
            continue;
        }
        // if the driver is visited for the first time, remember the CO name
        if ( !Abc_NodeIsTravIdCurrent(pDriver) )
        {
            pDriver->pNext = (Abc_Obj_t *)Abc_ObjName(pNode);
            Abc_NodeSetTravIdCurrent(pDriver);
            continue;
        }
        // the driver has second CO - if they have different name, this is an error
        if ( strcmp((char *)pDriver->pNext, Abc_ObjName(pNode)) ) // diff names
        {
            Vec_PtrPush( vCoTerms, pNode );
            continue;
        }
    }
    // fix duplication problem
    if ( Vec_PtrSize(vCoTerms) > 0 )
    {
        int nDupBufs = 0, nDupGates = 0;
        Vec_PtrForEachEntry( Abc_Obj_t *, vCoTerms, pNode, i )
        {
            pDriver = Abc_ObjFanin0(pNode);
            // duplicate if critical
            if ( fDuplicate && Abc_ObjIsNode(pDriver) && (Abc_NtkHasMapping(pNtk) || Abc_ObjLevel(pDriver) == LevelMax) )
            {
                pDriverNew = Abc_NtkDupObj( pNtk, pDriver, 0 );
                Abc_ObjForEachFanin( pDriver, pFanin, k )
                    Abc_ObjAddFanin( pDriverNew, pFanin );
                nDupGates++;
            }
            else // add buffer
            {
                pDriverNew = Abc_NtkCreateNodeBuf( pNtk, pDriver );
                Abc_ObjAssignName( pDriverNew, Abc_ObjName(pDriver), "_buf" );
                nDupBufs++;
            }
            // swing the PO
            Abc_ObjPatchFanin( pNode, pDriver, pDriverNew );
            assert( Abc_ObjIsCi(pDriver) || Abc_ObjFanoutNum(pDriver) > 0 );
        }
//        printf( "Resolving shared CO drivers: Bufs = %d. Dups = %d.\n", nDupBufs, nDupGates );
        nTotal += nDupBufs + nDupGates;
    }
    Vec_PtrFree( vCoTerms );
    return nTotal;
}

Here is the call graph for this function:

Here is the caller graph for this function:

Abc_NtkLogicMakeSimpleCos2()

int Abc_NtkLogicMakeSimpleCos2	(	Abc_Ntk_t *	pNtk,
		int	fDuplicate )

Function*************************************************************

Synopsis [Transforms the network to have simple COs.]

Description [The COs of a logic network are simple under three conditions: (1) The edge from CO to its driver is not complemented. (2) If CI is a driver of a CO, they have the same name.] (3) If two COs share the same driver, they have the same name. In some cases, such as FPGA mapping, we prevent the increase in delay by duplicating the driver nodes, rather than adding invs/bufs.]

SideEffects []

SeeAlso []

Definition at line 987 of file abcUtil.c.

{
    Abc_Obj_t * pNode, * pDriver;
    int i, nDupGates = 0;
    assert( Abc_NtkIsLogic(pNtk) );
    Abc_NtkIncrementTravId( pNtk );
    Abc_NtkForEachCo( pNtk, pNode, i )
    {
        // if the driver is complemented, this is an error
        pDriver = Abc_ObjFanin0(pNode);
        if ( Abc_ObjFaninC0(pNode) )
        {
            Abc_NtkFixCoDriverProblem( pDriver, pNode, fDuplicate );
            nDupGates++;
            continue;
        }
        // if the driver is a CI and has different name, this is an error
        if ( Abc_ObjIsCi(pDriver) && strcmp(Abc_ObjName(pDriver), Abc_ObjName(pNode)) )
        {
            Abc_NtkFixCoDriverProblem( pDriver, pNode, fDuplicate );
            nDupGates++;
            continue;
        }
        // if the driver is visited for the first time, remember the CO name
        if ( !Abc_NodeIsTravIdCurrent(pDriver) )
        {
            pDriver->pNext = (Abc_Obj_t *)Abc_ObjName(pNode);
            Abc_NodeSetTravIdCurrent(pDriver);
            continue;
        }
        // the driver has second CO - if they have different name, this is an error
        if ( strcmp((char *)pDriver->pNext, Abc_ObjName(pNode)) ) // diff names
        {
            Abc_NtkFixCoDriverProblem( pDriver, pNode, fDuplicate );
            nDupGates++;
            continue;
        }
    }
    assert( Abc_NtkLogicHasSimpleCos(pNtk) );
    return nDupGates;
}

Here is the call graph for this function:

Abc_NtkLogicMakeSimpleCosTest()

void Abc_NtkLogicMakeSimpleCosTest	(	Abc_Ntk_t *	pNtk,
		int	fDuplicate )

Function*************************************************************

Synopsis [Transforms the network to have simple COs.]

Description []

SideEffects []

SeeAlso []

Definition at line 1041 of file abcUtil.c.

{
    int nObjs = Abc_NtkObjNumMax(pNtk);
    unsigned * pType = ABC_CALLOC( unsigned, nObjs );
    Abc_Obj_t * pNode;
    int i, Counts[4] = {0}, Consts[2] = {0}, Inputs[2] = {0};
    // collect info
    Abc_NtkForEachCo( pNtk, pNode, i )
    {
        if ( Abc_ObjFaninId0(pNode) == 0 )
            Consts[Abc_ObjFaninC0(pNode)]++;
        if ( Abc_ObjIsCi(Abc_ObjFanin0(pNode)) )
            Inputs[Abc_ObjFaninC0(pNode)]++;
        pType[Abc_ObjFaninId0(pNode)] |= (1 << Abc_ObjFaninC0(pNode));
    }
    // count the numbers
    for ( i = 0; i < nObjs; i++ )
        Counts[pType[i]]++;
    for ( i = 0; i < 4; i++ )
        printf( "%d = %d     ", i, Counts[i] );
    for ( i = 0; i < 2; i++ )
        printf( "c%d = %d     ", i, Consts[i] );
    for ( i = 0; i < 2; i++ )
        printf( "i%d = %d    ", i, Inputs[i] );
    printf( "\n" );
    ABC_FREE( pType );
}

Abc_NtkMatchGpcPattern()

int Abc_NtkMatchGpcPattern	(	Vec_Int_t *	vRanks,
		int	i,
		char *	pGPC )

Definition at line 3377 of file abcUtil.c.

{
    int k, Cur, Min = ABC_INFINITY;
    for ( k = 0; pGPC[k] != ':' && i+k < Vec_IntSize(vRanks); k++ ) {
        if ( Abc_TtReadHexDigit(pGPC[k]) == 0 )
            continue;
        Cur = Vec_IntEntry(vRanks, i+k) / Abc_TtReadHexDigit(pGPC[k]);
        if ( Min > Cur )
            Min = Cur;
    }
    return Min;
}

Here is the caller graph for this function:

Abc_NtkOrderCisCos()

void Abc_NtkOrderCisCos

(

Abc_Ntk_t *

pNtk

)

Function*************************************************************

Synopsis [Order CI/COs.]

Description []

SideEffects []

SeeAlso []

Definition at line 76 of file abcUtil.c.

{
    Abc_Obj_t * pObj, * pTerm;
    int i, k;
    Vec_PtrClear( pNtk->vCis );
    Vec_PtrClear( pNtk->vCos );
    Abc_NtkForEachPi( pNtk, pObj, i )
        Vec_PtrPush( pNtk->vCis, pObj );
    Abc_NtkForEachPo( pNtk, pObj, i )
        Vec_PtrPush( pNtk->vCos, pObj );
    Abc_NtkForEachBox( pNtk, pObj, i )
    {
        if ( Abc_ObjIsLatch(pObj) )
            continue;
        Abc_ObjForEachFanin( pObj, pTerm, k )
            Vec_PtrPush( pNtk->vCos, pTerm );
        Abc_ObjForEachFanout( pObj, pTerm, k )
            Vec_PtrPush( pNtk->vCis, pTerm );
    }
    Abc_NtkForEachBox( pNtk, pObj, i )
    {
        if ( !Abc_ObjIsLatch(pObj) )
            continue;
        Abc_ObjForEachFanin( pObj, pTerm, k )
            Vec_PtrPush( pNtk->vCos, pTerm );
        Abc_ObjForEachFanout( pObj, pTerm, k )
            Vec_PtrPush( pNtk->vCis, pTerm );
    }
}

Here is the caller graph for this function:

Abc_NtkPrepareTwoNtks()

int Abc_NtkPrepareTwoNtks	(	FILE *	pErr,
		Abc_Ntk_t *	pNtk,
		char **	argv,
		int	argc,
		Abc_Ntk_t **	ppNtk1,
		Abc_Ntk_t **	ppNtk2,
		int *	pfDelete1,
		int *	pfDelete2,
		int	fCheck )

Function*************************************************************

Synopsis [Prepares two network for a two-argument command similar to "verify".]

Description []

SideEffects []

SeeAlso []

Definition at line 1522 of file abcUtil.c.

{
    FILE * pFile;
    Abc_Ntk_t * pNtk1, * pNtk2, * pNtkTemp;
    int util_optind = 0;

    *pfDelete1 = 0;
    *pfDelete2 = 0;
    if ( argc == util_optind )
    { // use the spec
        if ( pNtk == NULL )
        {
            fprintf( pErr, "Empty current network.\n" );
            return 0;
        }
        if ( pNtk->pSpec == NULL )
        {
            fprintf( pErr, "The external spec is not given.\n" );
            return 0;
        }
        pFile = fopen( pNtk->pSpec, "r" );
        if ( pFile == NULL )
        {
            fprintf( pErr, "Cannot open the external spec file \"%s\".\n", pNtk->pSpec );
            return 0;
        }
        else
            fclose( pFile );
        pNtk1 = Abc_NtkDup(pNtk);
        pNtk2 = Io_Read( pNtk->pSpec, Io_ReadFileType(pNtk->pSpec), fCheck, 0 );
        if ( pNtk2 == NULL )
            return 0;
        *pfDelete1 = 1;
        *pfDelete2 = 1;
    }
    else if ( argc == util_optind + 1 )
    {
        if ( pNtk == NULL )
        {
            fprintf( pErr, "Empty current network.\n" );
            return 0;
        }
        pNtk1 = Abc_NtkDup(pNtk);
        pNtk2 = Io_Read( argv[util_optind], Io_ReadFileType(argv[util_optind]), fCheck, 0 );
        if ( pNtk2 == NULL )
            return 0;
        *pfDelete1 = 1;
        *pfDelete2 = 1;
    }
    else if ( argc == util_optind + 2 )
    {
        pNtk1 = Io_Read( argv[util_optind], Io_ReadFileType(argv[util_optind]), fCheck, 0 );
        if ( pNtk1 == NULL )
            return 0;
        pNtk2 = Io_Read( argv[util_optind+1], Io_ReadFileType(argv[util_optind+1]), fCheck, 0 );
        if ( pNtk2 == NULL )
        {
            Abc_NtkDelete( pNtk1 );
            return 0;
        }
        *pfDelete1 = 1;
        *pfDelete2 = 1;
    }
    else
    {
        fprintf( pErr, "Wrong number of arguments.\n" );
        return 0;
    }

    // make sure the networks are strashed
    if ( !Abc_NtkIsStrash(pNtk1) )
    {
        pNtkTemp = Abc_NtkStrash( pNtk1, 0, 1, 0 );
        if ( *pfDelete1 )
            Abc_NtkDelete( pNtk1 );
        pNtk1 = pNtkTemp;
        *pfDelete1 = 1;
    }
    if ( !Abc_NtkIsStrash(pNtk2) )
    {
        pNtkTemp = Abc_NtkStrash( pNtk2, 0, 1, 0 );
        if ( *pfDelete2 )
            Abc_NtkDelete( pNtk2 );
        pNtk2 = pNtkTemp;
        *pfDelete2 = 1;
    }

    *ppNtk1 = pNtk1;
    *ppNtk2 = pNtk2;
    return 1;
}

Here is the call graph for this function:

Abc_NtkPrint256()

void Abc_NtkPrint256

(

)

Function*************************************************************

Synopsis [Prints all 3-var functions.]

Description []

SideEffects []

SeeAlso []

Definition at line 2078 of file abcUtil.c.

{
    FILE * pFile;
    unsigned i;
    pFile = fopen( "4varfs.txt", "w" );
    for ( i = 1; i < (1<<16)-1; i++ )
    {
        fprintf( pFile, "read_truth " );
        Extra_PrintBinary( pFile, &i, 16 );
        fprintf( pFile, "; clp; st; w 1.blif; map; cec 1.blif\n" );
    }
    fclose( pFile );
}

Here is the call graph for this function:

Abc_NtkPrintCiLevels()

void Abc_NtkPrintCiLevels

(

Abc_Ntk_t *

pNtk

)

Function*************************************************************

Synopsis []

Description []

SideEffects []

SeeAlso []

Definition at line 2268 of file abcUtil.c.

{
    Abc_Obj_t * pObj;
    int i;
    Abc_NtkForEachCi( pNtk, pObj, i )
        printf( "%c=%d ", 'a'+i, pObj->Level );
    printf( "\n" );
}

Abc_NtkReassignIds()

void Abc_NtkReassignIds

(

Abc_Ntk_t *

pNtk

)

Function*************************************************************

Synopsis [Puts the nodes into the DFS order and reassign their IDs.]

Description []

SideEffects []

SeeAlso []

Definition at line 1809 of file abcUtil.c.

{
    Vec_Ptr_t * vNodes;
    Vec_Ptr_t * vObjsNew;
    Abc_Obj_t * pNode, * pTemp, * pConst1;
    int i, k;
    assert( Abc_NtkIsStrash(pNtk) );
//printf( "Total = %d. Current = %d.\n", Abc_NtkObjNumMax(pNtk), Abc_NtkObjNum(pNtk) );
    // start the array of objects with new IDs
    vObjsNew = Vec_PtrAlloc( pNtk->nObjs );
    // put constant node first
    pConst1 = Abc_AigConst1(pNtk);
    assert( pConst1->Id == 0 );
    Vec_PtrPush( vObjsNew, pConst1 );
    // put PI nodes next
    Abc_NtkForEachPi( pNtk, pNode, i )
    {
        pNode->Id = Vec_PtrSize( vObjsNew );
        Vec_PtrPush( vObjsNew, pNode );
    }
    // put PO nodes next
    Abc_NtkForEachPo( pNtk, pNode, i )
    {
        pNode->Id = Vec_PtrSize( vObjsNew );
        Vec_PtrPush( vObjsNew, pNode );
    }
    // put latches and their inputs/outputs next
    Abc_NtkForEachBox( pNtk, pNode, i )
    {
        pNode->Id = Vec_PtrSize( vObjsNew );
        Vec_PtrPush( vObjsNew, pNode );
        Abc_ObjForEachFanin( pNode, pTemp, k )
        {
            pTemp->Id = Vec_PtrSize( vObjsNew );
            Vec_PtrPush( vObjsNew, pTemp );
        }
        Abc_ObjForEachFanout( pNode, pTemp, k )
        {
            pTemp->Id = Vec_PtrSize( vObjsNew );
            Vec_PtrPush( vObjsNew, pTemp );
        }
    }
    // finally, internal nodes in the DFS order
    vNodes = Abc_AigDfs( pNtk, 1, 0 );
    Vec_PtrForEachEntry( Abc_Obj_t *, vNodes, pNode, i )
    {
        if ( pNode == pConst1 )
            continue;
        pNode->Id = Vec_PtrSize( vObjsNew );
        Vec_PtrPush( vObjsNew, pNode );
    }
    Vec_PtrFree( vNodes );
    assert( Vec_PtrSize(vObjsNew) == pNtk->nObjs );

    // update the fanin/fanout arrays
    Abc_NtkForEachObj( pNtk, pNode, i )
    {
        Abc_ObjForEachFanin( pNode, pTemp, k )
            pNode->vFanins.pArray[k] = pTemp->Id;
        Abc_ObjForEachFanout( pNode, pTemp, k )
            pNode->vFanouts.pArray[k] = pTemp->Id;
    }

    // replace the array of objs
    Vec_PtrFree( pNtk->vObjs );
    pNtk->vObjs = vObjsNew;

    // rehash the AIG
    Abc_AigRehash( (Abc_Aig_t *)pNtk->pManFunc );

    // update the name manager!!!
}

Here is the call graph for this function:

Here is the caller graph for this function:

Abc_NtkReverse_rec()

void Abc_NtkReverse_rec	(	Abc_Obj_t *	pObj,
		Vec_Int_t *	vVisited )

Definition at line 2682 of file abcUtil.c.

{
    Abc_Obj_t * pNext;
    int i;
    if ( Abc_NodeIsTravIdCurrent( pObj ) )
        return;
    Abc_NodeSetTravIdCurrent( pObj );
    Abc_ObjForEachFanout( pObj, pNext, i )
        Abc_NtkReverse_rec( pNext, vVisited );
    Vec_IntPush( vVisited, Abc_ObjId(pObj) );
}

Here is the call graph for this function:

Here is the caller graph for this function:

Abc_NtkReverseTopoOrder()

void Abc_NtkReverseTopoOrder

(

Abc_Ntk_t *

p

)

Definition at line 2664 of file abcUtil.c.

{
    Abc_Obj_t * pObj;
    int i;
    assert( p->vTopo == NULL );
    p->vTopo = Vec_IntAlloc( 10 * Abc_NtkObjNumMax(p) );
    Vec_IntFill( p->vTopo, 2 * Abc_NtkObjNumMax(p), 0 );
    Abc_NtkForEachNode( p, pObj, i )
    {
        if ( Abc_NtkTopoHasBeg(pObj) )
            continue;
        Abc_NtkIncrementTravId( p );
        Abc_NtkReverseTopoOrder_rec( pObj, 1 );
    }
    printf( "Nodes = %d.   Size = %d.  Ratio = %f.\n",
        Abc_NtkNodeNum(p), Vec_IntSize(p->vTopo), 1.0*Vec_IntSize(p->vTopo)/Abc_NtkNodeNum(p) );
}

Here is the call graph for this function:

Here is the caller graph for this function:

Abc_NtkReverseTopoOrder_rec()

void Abc_NtkReverseTopoOrder_rec	(	Abc_Obj_t *	pObj,
		int	fThisIsPivot )

Definition at line 2630 of file abcUtil.c.

{
    Abc_Obj_t * pNext, * pPivot = NULL;
    int i;
    if ( Abc_NodeIsTravIdCurrent( pObj ) )
        return;
    Abc_NodeSetTravIdCurrent( pObj );
    if ( Abc_ObjIsPo(pObj) )
    {
        Vec_IntPush( pObj->pNtk->vTopo, Abc_ObjId(pObj) );
        return;
    }
    assert( Abc_ObjIsNode(pObj) );
    // mark begining
    if ( fThisIsPivot )
        Abc_NtkTopoSetBeg( pObj );
    // find fanout without topo
    Abc_ObjForEachFanout( pObj, pNext, i )
        if ( !Abc_NtkTopoHasBeg(pNext) )
        {
            assert( !Abc_NtkTopoHasEnd(pNext) );
            Abc_NtkReverseTopoOrder_rec( pNext, 1 );
            pPivot = pNext;
            break;
        }
    Abc_ObjForEachFanout( pObj, pNext, i )
        if ( pNext != pPivot )
            Abc_NtkReverseTopoOrder_rec( pNext, 0 );
    // mark end
    if ( fThisIsPivot )
        Abc_NtkTopoSetEnd( pObj );
    // save current node
    Vec_IntPush( pObj->pNtk->vTopo, Abc_ObjId(pObj) );
}

Here is the call graph for this function:

Here is the caller graph for this function:

Abc_NtkReverseTopoOrderTest()

void Abc_NtkReverseTopoOrderTest

(

Abc_Ntk_t *

p

)

Definition at line 2693 of file abcUtil.c.

{
    Vec_Int_t * vVisited;
    Abc_Obj_t * pObj;
    int i;//, k, iBeg, iEnd;
    abctime clk = Abc_Clock();
    Abc_NtkReverseTopoOrder( p );
/*
    printf( "Reverse topological order for nodes:\n" );
    Abc_NtkForEachNode( p, pObj, i )
    {
        iBeg = Abc_NtkTopoHasBeg( pObj );
        iEnd = Abc_NtkTopoHasEnd( pObj );
        printf( "Node %4d : ", Abc_ObjId(pObj) );
        for ( k = iEnd - 1; k >= iBeg; k-- )
            printf( "%d ", Vec_IntEntry(p->vTopo, k) );
        printf( "\n" );
    }
*/
    Vec_IntFreeP( &p->vTopo );
    Abc_PrintTime( 1, "Time", Abc_Clock() - clk );
    // compute regular fanout orders
    clk = Abc_Clock();
    vVisited = Vec_IntAlloc( 1000 );
    Abc_NtkForEachNode( p, pObj, i )
    {
        Vec_IntClear( vVisited );
        Abc_NtkIncrementTravId( p );
        Abc_NtkReverse_rec( pObj, vVisited );
    }
    Vec_IntFree( vVisited );
    Abc_PrintTime( 1, "Time", Abc_Clock() - clk );
}

Here is the call graph for this function:

Abc_NtkSaveCopy()

Vec_Ptr_t * Abc_NtkSaveCopy

(

Abc_Ntk_t *

pNtk

)

Function*************************************************************

Synopsis [Saves copy field of the objects.]

Description []

SideEffects []

SeeAlso []

Definition at line 628 of file abcUtil.c.

{
    Vec_Ptr_t * vCopies;
    Abc_Obj_t * pObj;
    int i;
    vCopies = Vec_PtrStart( Abc_NtkObjNumMax(pNtk) );
    Abc_NtkForEachObj( pNtk, pObj, i )
        Vec_PtrWriteEntry( vCopies, i, pObj->pCopy );
    return vCopies;
}

Here is the caller graph for this function:

Abc_NtkSopToCubes()

Abc_Ntk_t * Abc_NtkSopToCubes	(	Abc_Ntk_t *	pNtk,
		int	fXor )

Definition at line 2588 of file abcUtil.c.

{
    Abc_Ntk_t * pNtkNew;
    Abc_Obj_t * pNode;
    Vec_Ptr_t * vNodes;
    int i;
    assert( Abc_NtkIsSopLogic(pNtk) );
    Abc_NtkCleanCopy( pNtk );
    pNtkNew = Abc_NtkStartFrom( pNtk, ABC_NTK_LOGIC, ABC_FUNC_SOP );
    // perform conversion in the topological order
    vNodes = Abc_NtkDfs( pNtk, 0 );
    Vec_PtrForEachEntry( Abc_Obj_t *, vNodes, pNode, i )
        Abc_NodeSopToCubes( pNode, pNtkNew, fXor );
    Vec_PtrFree( vNodes );
    // make sure everything is okay
    Abc_NtkFinalize( pNtk, pNtkNew );
    if ( !Abc_NtkCheck( pNtkNew ) )
    {
        printf( "Abc_NtkSopToCubes: The network check has failed.\n" );
        Abc_NtkDelete( pNtkNew );
        return NULL;
    }
    return pNtkNew;
}

Here is the call graph for this function:

Abc_NtkSplitSop()

Abc_Ntk_t * Abc_NtkSplitSop	(	Abc_Ntk_t *	pNtk,
		int	nCubesMax,
		int	fVerbose )

Function*************************************************************

Synopsis [Checks if the logic network is in the topological order.]

Description []

SideEffects []

SeeAlso []

Definition at line 2814 of file abcUtil.c.

{
    Vec_Ptr_t * vNodes;
    Abc_Ntk_t * pNtkNew;
    Abc_Obj_t * pObj, * pFanin, * pObjNew, * pObjNewRoot;
    int i, k, j, nCubes, nCubesThis, nSplits;
    char * pSopStr, * pSopStr2, * pTempSop, Symb;
    if ( pNtk == NULL )
        return NULL;
    assert( !Abc_NtkIsStrash(pNtk) && !Abc_NtkIsNetlist(pNtk) );
    // start the network
    pNtkNew = Abc_NtkStartFrom( pNtk, pNtk->ntkType, pNtk->ntkFunc );
    // copy the internal nodes
    vNodes = Abc_NtkDfs( pNtk, 0 );
    Vec_PtrForEachEntry( Abc_Obj_t *, vNodes, pObj, i )
    {
        assert( Abc_ObjIsNode(pObj) );
        pObjNewRoot = Abc_NtkDupObj( pNtkNew, pObj, 0 );
        nCubes = Abc_SopGetCubeNum( (char *)pObj->pData );
        if ( nCubes <= nCubesMax )
        {
            Abc_ObjForEachFanin( pObj, pFanin, k )
                Abc_ObjAddFanin( pObj->pCopy, pFanin->pCopy );
            continue;
        }
        nSplits = (nCubes / nCubesMax) + (int)(nCubes % nCubesMax > 0);
        pSopStr = (char *)pObjNewRoot->pData;
        pObjNewRoot->pData = Abc_SopCreateOr((Mem_Flex_t *)pNtkNew->pManFunc, nSplits, NULL);
        if ( Abc_SopIsComplement(pSopStr) )
        {
            Abc_SopComplement( pSopStr );
            Abc_SopComplement( (char *)pObjNewRoot->pData );
        }
        pTempSop = (char *)pObj->pData; pObj->pData = (char *)"?";
        for ( j = 0; j < nSplits; j++ )
        {
            // clone the node
            pObjNew = Abc_NtkDupObj( pNtkNew, pObj, 0 );
            Abc_ObjAddFanin( pObjNewRoot, pObjNew );
            // get its cubes
            Abc_ObjForEachFanin( pObj, pFanin, k )
                Abc_ObjAddFanin( pObj->pCopy, pFanin->pCopy );
            // create SOP for this node
            nCubesThis = (j < nCubes / nCubesMax) ? nCubesMax : nCubes % nCubesMax;
            pSopStr2 = pSopStr + (Abc_ObjFaninNum(pObj) + 3) * nCubesThis;
            Symb = *pSopStr2; *pSopStr2 = 0;
            pObjNew->pData = Abc_SopRegister( (Mem_Flex_t *)pNtkNew->pManFunc, pSopStr );
            *pSopStr2 = Symb;
            pSopStr = pSopStr2;
        }
        // update
        pObj->pData = pTempSop;
        pObj->pCopy = pObjNewRoot;
    }
    Vec_PtrFree( vNodes );
    Abc_NtkFinalize( pNtk, pNtkNew );
    // check correctness
    if ( !Abc_NtkCheck( pNtkNew ) )
        fprintf( stdout, "Abc_NtkDup(): Network check has failed.\n" );
    pNtk->pCopy = pNtkNew;
    return pNtkNew;
}

Here is the call graph for this function:

Abc_NtkStrashToGia()

Gia_Man_t * Abc_NtkStrashToGia

(

Abc_Ntk_t *

pNtk

)

Definition at line 3214 of file abcUtil.c.

{
    int i, iLit;
    Abc_Obj_t * pNode;
    Gia_Man_t * pNew, * pTemp;
    assert( Abc_NtkIsStrash(pNtk) );
    Abc_NtkForEachObj( pNtk, pNode, i )
        pNode->iTemp = -1;
    // start new manager
    pNew = Gia_ManStart( Abc_NtkObjNum(pNtk) );
    pNew->pName = Abc_UtilStrsav( pNtk->pName );
    pNew->pSpec = Abc_UtilStrsav( pNtk->pSpec );
    Gia_ManHashStart( pNew );
    // primary inputs
    Abc_AigConst1(pNtk)->iTemp = 1;
    Abc_NtkForEachCi( pNtk, pNode, i )
        pNode->iTemp = Gia_ManAppendCi(pNew);
    // create the first cone
    Abc_NtkIncrementTravId( pNtk );
    Abc_NtkForEachCo( pNtk, pNode, i )
    {
        iLit = Abc_NtkClpOneGia_rec( pNew, Abc_ObjFanin0(pNode) );
        iLit = Abc_LitNotCond( iLit, Abc_ObjFaninC0(pNode) );
        Gia_ManAppendCo( pNew, iLit );
    }
    // perform cleanup
    pNew = Gia_ManCleanup( pTemp = pNew );
    Gia_ManStop( pTemp );
    return pNew;
}

Here is the call graph for this function:

Here is the caller graph for this function:

Abc_NtkTransferCopy()

void Abc_NtkTransferCopy

(

Abc_Ntk_t *

pNtk

)

Function*************************************************************

Synopsis [Adjusts the copy pointers.]

Description [This procedure assumes that the network was transformed into another network, which was in turn transformed into yet another network. It makes the pCopy pointers of the original network point to the objects of the yet another network.]

SideEffects []

SeeAlso []

Definition at line 1962 of file abcUtil.c.

{
    Abc_Obj_t * pObj;
    int i;
    Abc_NtkForEachObj( pNtk, pObj, i )
        if ( !Abc_ObjIsNet(pObj) )
            pObj->pCopy = pObj->pCopy? Abc_ObjCopyCond(pObj->pCopy) : NULL;
}

Here is the caller graph for this function:

Abc_NtkTransferPhases()

void Abc_NtkTransferPhases	(	Abc_Ntk_t *	pNtkNew,
		Abc_Ntk_t *	pNtk )

Function*************************************************************

Synopsis [Transfers phase information to the new network.]

Description []

SideEffects []

SeeAlso []

Definition at line 2924 of file abcUtil.c.

{
    Abc_Obj_t * pObj;
    int i;
    assert( pNtk->vPhases != NULL );
    assert( Vec_IntSize(pNtk->vPhases) == Abc_NtkObjNumMax(pNtk) );
    assert( pNtkNew->vPhases == NULL );
    pNtkNew->vPhases = Vec_IntStart( Abc_NtkObjNumMax(pNtkNew) );
    Abc_NtkForEachObj( pNtk, pObj, i )
        if ( pObj->pCopy && !Abc_ObjIsNone( (Abc_Obj_t *)pObj->pCopy ) )
            Vec_IntWriteEntry( pNtkNew->vPhases, Abc_ObjId( (Abc_Obj_t *)pObj->pCopy ), Vec_IntEntry(pNtk->vPhases, i) );
}

Here is the caller graph for this function:

Abc_NtkTransformGPCs()

char ** Abc_NtkTransformGPCs	(	char **	pGPCs,
		int	nGPCs )

Definition at line 3414 of file abcUtil.c.

{
    char * pOut, * pLut, ** pRes = ABC_ALLOC( char *, nGPCs );
    int i, k, nLength;
    for ( i = 0; i < nGPCs; i++ ) {
        pRes[i] = Abc_UtilStrsav(pGPCs[i]);
        pOut = strstr(pRes[i], ":");
        nLength = (int)(pOut-pRes[i]);
        for ( k = 0; k < nLength/2; k++ )
            ABC_SWAP( char, pRes[i][k], pRes[i][nLength-1-k] )
        pLut = strstr(pOut+1, ":");
        nLength = (int)(pLut-pOut-1);
        for ( k = 0; k < nLength/2; k++ )
            ABC_SWAP( char, pOut[1+k], pOut[1+nLength-1-k] )
    }
    return pRes;
}

Here is the call graph for this function:

Here is the caller graph for this function:

Abc_NtkUpdateGpcPattern()

void Abc_NtkUpdateGpcPattern	(	Vec_Int_t *	vRank,
		int	i,
		char *	pGPC,
		int	nGpcs,
		Vec_Int_t *	vRank2,
		Vec_Int_t *	vLevel )

Definition at line 3389 of file abcUtil.c.

{
    int k; char * pOut = strstr(pGPC, ":");
    assert( pOut && pOut[0] == ':' );
    pOut++;
    Vec_IntAddToEntry( vLevel, i,  nGpcs );
    for ( k = 0; pGPC[k] != ':'; k++ )
        Vec_IntAddToEntry( vRank,  i+k, -nGpcs * Abc_TtReadHexDigit(pGPC[k]) );
    for ( k = 0; pOut[k] != ':'; k++ )
        Vec_IntAddToEntry( vRank2, i+k,  nGpcs * Abc_TtReadHexDigit(pOut[k]) );
}

Here is the call graph for this function:

Here is the caller graph for this function:

Abc_ObjPointerCompare()

int Abc_ObjPointerCompare	(	void **	pp1,
		void **	pp2 )

Function*************************************************************

Synopsis [Compares the pointers.]

Description []

SideEffects []

SeeAlso []

Definition at line 1939 of file abcUtil.c.

{
    if ( *pp1 < *pp2 )
        return -1;
    if ( *pp1 > *pp2 )
        return 1;
    return 0;
}

Here is the caller graph for this function:

Abc_PrintAT()

void Abc_PrintAT

(

Vec_Int_t *

vRanks

)

Function*************************************************************

Synopsis []

Description []

SideEffects []

SeeAlso []

Definition at line 3367 of file abcUtil.c.

{
    int i, Entry;
    Vec_IntForEachEntryReverse( vRanks, Entry, i )
        if ( Entry == 0 )
            printf( "    " );
        else
            printf( "%4d", Entry );
    //printf( "\n" );
}

Here is the caller graph for this function:

Abc_SopSynthesize()

Vec_Wec_t * Abc_SopSynthesize

(

Vec_Ptr_t *

vSops

)

Definition at line 3118 of file abcUtil.c.

{
    Vec_Wec_t * vRes = NULL;
    Abc_Ntk_t * pNtk = Abc_NtkCreateFromSops( "top", vSops );
    Abc_Ntk_t * pNtkNew;
    Abc_Obj_t * pObj, * pFanin;
    int i, k, iNode = 0;
    Abc_FrameReplaceCurrentNetwork( Abc_FrameReadGlobalFrame(), pNtk );
    //Cmd_CommandExecute( Abc_FrameGetGlobalFrame(), "fx; strash; balance; dc2; map -a" );
    Abc_FrameSetBatchMode( 1 );
    Cmd_CommandExecute( Abc_FrameGetGlobalFrame(), "st; collapse; sop; fx; strash; &get; &ps; &deepsyn -I 4 -J 50 -T 5 -S 111 -t; &ps; &put; map -a" );
    Abc_FrameSetBatchMode( 0 );
    pNtkNew = Abc_FrameReadNtk( Abc_FrameReadGlobalFrame() );
    vRes = Vec_WecStart( Abc_NtkPiNum(pNtkNew) + Abc_NtkNodeNum(pNtkNew) + Abc_NtkPoNum(pNtkNew) );
    Abc_NtkForEachPi( pNtkNew, pObj, i )
        pObj->iTemp = iNode++;
    Abc_NtkForEachNode( pNtkNew, pObj, i )
    {
        Vec_Int_t * vNode = Vec_WecEntry(vRes, iNode);
        Vec_IntPush( vNode, Abc_GateToType(pObj) );
        Vec_IntPush( vNode, iNode );
        Abc_ObjForEachFanin( pObj, pFanin, k )
            Vec_IntPush( vNode, pFanin->iTemp );
        pObj->iTemp = iNode++;
    }
    Abc_NtkForEachPo( pNtkNew, pObj, i )
        Vec_IntPushTwo( Vec_WecEntry(vRes, iNode++), ABC_OPER_BIT_BUF, Abc_ObjFanin0(pObj)->iTemp );
    assert( Vec_WecSize(vRes) == iNode );
    return vRes;
}

Here is the call graph for this function:

Here is the caller graph for this function:

Abc_SopSynthesizeOne()

Gia_Man_t * Abc_SopSynthesizeOne	(	char *	pSop,
		int	fClp )

Definition at line 3244 of file abcUtil.c.

{
    Abc_Ntk_t * pNtkNew, * pNtk;
    Vec_Ptr_t * vSops;
    if ( strlen(pSop) == 3 )
    {
        Gia_Man_t * pNew = Gia_ManStart( 1 );
        pNew->pName = Abc_UtilStrsav( "top" );
        //Gia_ManAppendCi( pNew );
        assert( pSop[1] == '0' || pSop[1] == '1' );
        Gia_ManAppendCo( pNew, pSop[1] == '1' );
        return pNew;
    }
    vSops = Vec_PtrAlloc( 1 );
    Vec_PtrPush( vSops, pSop );
    pNtk = Abc_NtkCreateFromSops( "top", vSops );
    Vec_PtrFree( vSops );
    Abc_FrameReplaceCurrentNetwork( Abc_FrameReadGlobalFrame(), pNtk );
    Abc_FrameSetBatchMode( 1 );
    if ( fClp )
    Cmd_CommandExecute( Abc_FrameGetGlobalFrame(), "clp; sop" );
    Cmd_CommandExecute( Abc_FrameGetGlobalFrame(), "fx; strash; balance; dc2" );
    Abc_FrameSetBatchMode( 0 );
    pNtkNew = Abc_FrameReadNtk( Abc_FrameReadGlobalFrame() );
    return Abc_NtkStrashToGia( pNtkNew );
}

Here is the call graph for this function:

Here is the caller graph for this function:

Abc_VecObjPushUniqueOrderByLevel()

void Abc_VecObjPushUniqueOrderByLevel	(	Vec_Ptr_t *	p,
		Abc_Obj_t *	pNode )

Function*************************************************************

Synopsis [Inserts a new node in the order by levels.]

Description []

SideEffects []

SeeAlso []

Definition at line 1269 of file abcUtil.c.

{
    Abc_Obj_t * pNode1, * pNode2;
    int i;
    if ( Vec_PtrPushUnique(p, pNode) )
        return;
    // find the p of the node
    for ( i = p->nSize-1; i > 0; i-- )
    {
        pNode1 = (Abc_Obj_t *)p->pArray[i  ];
        pNode2 = (Abc_Obj_t *)p->pArray[i-1];
        if ( Abc_ObjRegular(pNode1)->Level <= Abc_ObjRegular(pNode2)->Level )
            break;
        p->pArray[i  ] = pNode2;
        p->pArray[i-1] = pNode1;
    }
}
