mfsCore.c File Reference

#include "mfsInt.h"

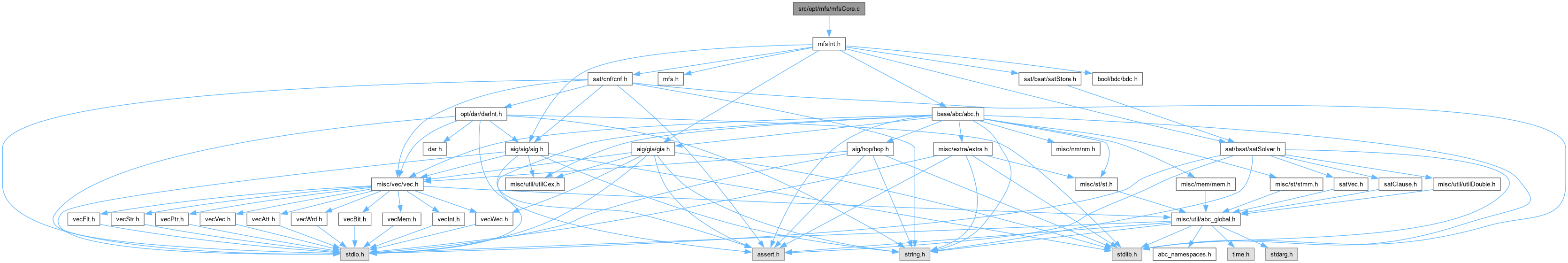

Include dependency graph for mfsCore.c:

Go to the source code of this file.

Functions
ABC_NAMESPACE_IMPL_START int	Abc_NtkMfsSolveSatResub (Mfs_Man_t *p, Abc_Obj_t *pNode, int iFanin, int fOnlyRemove, int fSkipUpdate)
	DECLARATIONS ///.
void	Abc_NtkMfsParsDefault (Mfs_Par_t *pPars)
	FUNCTION DEFINITIONS ///.
int	Abc_WinNode (Mfs_Man_t *p, Abc_Obj_t *pNode)
void	Abc_NtkMfsPowerResub (Mfs_Man_t *p, Mfs_Par_t *pPars)
int	Abc_NtkMfsResub (Mfs_Man_t *p, Abc_Obj_t *pNode)
int	Abc_NtkMfsNode (Mfs_Man_t *p, Abc_Obj_t *pNode)
int	Abc_NtkMfs (Abc_Ntk_t *pNtk, Mfs_Par_t *pPars)

Function Documentation

Abc_NtkMfs()

int Abc_NtkMfs	(	Abc_Ntk_t *	pNtk,
		Mfs_Par_t *	pPars )

Function*************************************************************

Synopsis []

Description []

SideEffects []

SeeAlso []

Definition at line 377 of file mfsCore.c.

{
    extern Aig_Man_t * Abc_NtkToDar( Abc_Ntk_t * pNtk, int fExors, int fRegisters );

    Bdc_Par_t Pars = {0}, * pDecPars = &Pars;
    ProgressBar * pProgress;
    Mfs_Man_t * p;
    Abc_Obj_t * pObj;
    Vec_Vec_t * vLevels;
    Vec_Ptr_t * vNodes;
    int i, k, nNodes, nFaninMax;
    abctime clk = Abc_Clock(), clk2;
    int nTotalNodesBeg = Abc_NtkNodeNum(pNtk);
    int nTotalEdgesBeg = Abc_NtkGetTotalFanins(pNtk);

    assert( Abc_NtkIsLogic(pNtk) );
    nFaninMax = Abc_NtkGetFaninMax(pNtk);
    if ( pPars->fResub )
    {
        if ( nFaninMax > 8 )
        {
            printf( "Nodes with more than %d fanins will not be processed.\n", 8 );
            nFaninMax = 8;
        }
    }
    else
    {
        if ( nFaninMax > MFS_FANIN_MAX )
        {
            printf( "Nodes with more than %d fanins will not be processed.\n", MFS_FANIN_MAX );
            nFaninMax = MFS_FANIN_MAX;
        }
    }
    // perform the network sweep
//    Abc_NtkSweep( pNtk, 0 );
    // convert into the AIG
    if ( !Abc_NtkToAig(pNtk) )
    {
        fprintf( stdout, "Converting to AIGs has failed.\n" );
        return 0;
    }
    assert( Abc_NtkHasAig(pNtk) );

    // start the manager
    p = Mfs_ManAlloc( pPars );
    p->pNtk = pNtk;
    p->nFaninMax = nFaninMax;

    // precomputer power-aware metrics
    if ( pPars->fPower )
    {
        extern Vec_Int_t * Abc_NtkPowerEstimate( Abc_Ntk_t * pNtk, int fProbOne );
        if ( pPars->fResub )
            p->vProbs = Abc_NtkPowerEstimate( pNtk, 0 );
        else
            p->vProbs = Abc_NtkPowerEstimate( pNtk, 1 );
#if 0
        printf( "Total switching before = %7.2f.\n", Abc_NtkMfsTotalSwitching(pNtk) );
#else
        p->TotalSwitchingBeg = Abc_NtkMfsTotalSwitching(pNtk);
#endif
    }

    if ( pNtk->pExcare )
    {
        Abc_Ntk_t * pTemp;
        if ( Abc_NtkPiNum((Abc_Ntk_t *)pNtk->pExcare) != Abc_NtkCiNum(pNtk) )
            printf( "The PI count of careset (%d) and logic network (%d) differ. Careset is not used.\n",
                Abc_NtkPiNum((Abc_Ntk_t *)pNtk->pExcare), Abc_NtkCiNum(pNtk) );
        else
        {
            pTemp = Abc_NtkStrash( (Abc_Ntk_t *)pNtk->pExcare, 0, 0, 0 );
            p->pCare = Abc_NtkToDar( pTemp, 0, 0 );
            Abc_NtkDelete( pTemp );
            p->vSuppsInv = Aig_ManSupportsInverse( p->pCare );
        }
    }
    if ( p->pCare != NULL )
        printf( "Performing optimization with %d external care clauses.\n", Aig_ManCoNum(p->pCare) );
    // prepare the BDC manager
    if ( !pPars->fResub )
    {
        pDecPars->nVarsMax = (nFaninMax < 3) ? 3 : nFaninMax;
        pDecPars->fVerbose = pPars->fVerbose;
        p->vTruth = Vec_IntAlloc( 0 );
        p->pManDec = Bdc_ManAlloc( pDecPars );
    }

    // label the register outputs
    if ( p->pCare )
    {
        Abc_NtkForEachCi( pNtk, pObj, i )
            pObj->pData = (void *)(ABC_PTRUINT_T)i;
    }

    // compute levels
    Abc_NtkLevel( pNtk );
    Abc_NtkStartReverseLevels( pNtk, pPars->nGrowthLevel );

    // compute don't-cares for each node
    nNodes = 0;
    p->nTotalNodesBeg = nTotalNodesBeg;
    p->nTotalEdgesBeg = nTotalEdgesBeg;
    if ( pPars->fResub )
    {
#if 0
        printf( "TotalSwitching (%7.2f --> ", Abc_NtkMfsTotalSwitching(pNtk) );
#endif
        if (pPars->fPower)
        {
            Abc_NtkMfsPowerResub( p, pPars);
        } else
        {
        pProgress = Extra_ProgressBarStart( stdout, Abc_NtkObjNumMax(pNtk) );
        Abc_NtkForEachNode( pNtk, pObj, i )
        {
            if ( p->pPars->nDepthMax && (int)pObj->Level > p->pPars->nDepthMax )
                continue;
            if ( Abc_ObjFaninNum(pObj) < 2 || Abc_ObjFaninNum(pObj) > nFaninMax )
                continue;
            if ( !p->pPars->fVeryVerbose )
                Extra_ProgressBarUpdate( pProgress, i, NULL );
            if ( pPars->fResub )
                Abc_NtkMfsResub( p, pObj );
            else
                Abc_NtkMfsNode( p, pObj );
        }
        Extra_ProgressBarStop( pProgress );
#if 0
        printf( " %7.2f )\n", Abc_NtkMfsTotalSwitching(pNtk) );
#endif
    }
    } else
    {
#if 0
        printf( "Total switching before  = %7.2f,  ----> ", Abc_NtkMfsTotalSwitching(pNtk) );
#endif
        pProgress = Extra_ProgressBarStart( stdout, Abc_NtkNodeNum(pNtk) );
        vLevels = Abc_NtkLevelize( pNtk );
        Vec_VecForEachLevelStart( vLevels, vNodes, k, 1 )
        {
            if ( !p->pPars->fVeryVerbose )
                Extra_ProgressBarUpdate( pProgress, nNodes, NULL );
            p->nNodesGainedLevel = 0;
            p->nTotConfLevel = 0;
            p->nTimeOutsLevel = 0;
            clk2 = Abc_Clock();
            Vec_PtrForEachEntry( Abc_Obj_t *, vNodes, pObj, i )
            {
                if ( p->pPars->nDepthMax && (int)pObj->Level > p->pPars->nDepthMax )
                    break;
                if ( Abc_ObjFaninNum(pObj) < 2 || Abc_ObjFaninNum(pObj) > nFaninMax )
                    continue;
                if ( pPars->fResub )
                    Abc_NtkMfsResub( p, pObj );
                else
                    Abc_NtkMfsNode( p, pObj );
            }
            nNodes += Vec_PtrSize(vNodes);
            if ( pPars->fVerbose )
            {
                /*
            printf( "Lev = %2d. Node = %5d. Ave gain = %5.2f. Ave conf = %5.2f. T/o = %6.2f %%  ",
                k, Vec_PtrSize(vNodes),
                1.0*p->nNodesGainedLevel/Vec_PtrSize(vNodes),
                1.0*p->nTotConfLevel/Vec_PtrSize(vNodes),
                100.0*p->nTimeOutsLevel/Vec_PtrSize(vNodes) );
            ABC_PRT( "Time", Abc_Clock() - clk2 );
            */
            }
        }
        Extra_ProgressBarStop( pProgress );
        Vec_VecFree( vLevels );
#if 0
        printf( " %7.2f.\n", Abc_NtkMfsTotalSwitching(pNtk) );
#endif
    }
    Abc_NtkStopReverseLevels( pNtk );

    // perform the sweeping
    if ( !pPars->fResub )
    {
        extern void Abc_NtkBidecResyn( Abc_Ntk_t * pNtk, int fVerbose );
//        Abc_NtkSweep( pNtk, 0 );
//        Abc_NtkBidecResyn( pNtk, 0 );
    }

    p->nTotalNodesEnd = Abc_NtkNodeNum(pNtk);
    p->nTotalEdgesEnd = Abc_NtkGetTotalFanins(pNtk);

    // undo labesl
    if ( p->pCare )
    {
        Abc_NtkForEachCi( pNtk, pObj, i )
            pObj->pData = NULL;
    }

    if ( pPars->fPower )
    {
#if 1
        p->TotalSwitchingEnd = Abc_NtkMfsTotalSwitching(pNtk);
//        printf( "Total switching after  = %7.2f.\n", Abc_NtkMfsTotalSwitching(pNtk) );
#else
        printf( "Total switching after  = %7.2f.\n", Abc_NtkMfsTotalSwitching(pNtk) );
#endif
    }

    // free the manager
    p->timeTotal = Abc_Clock() - clk;
    Mfs_ManStop( p );
    return 1;
}

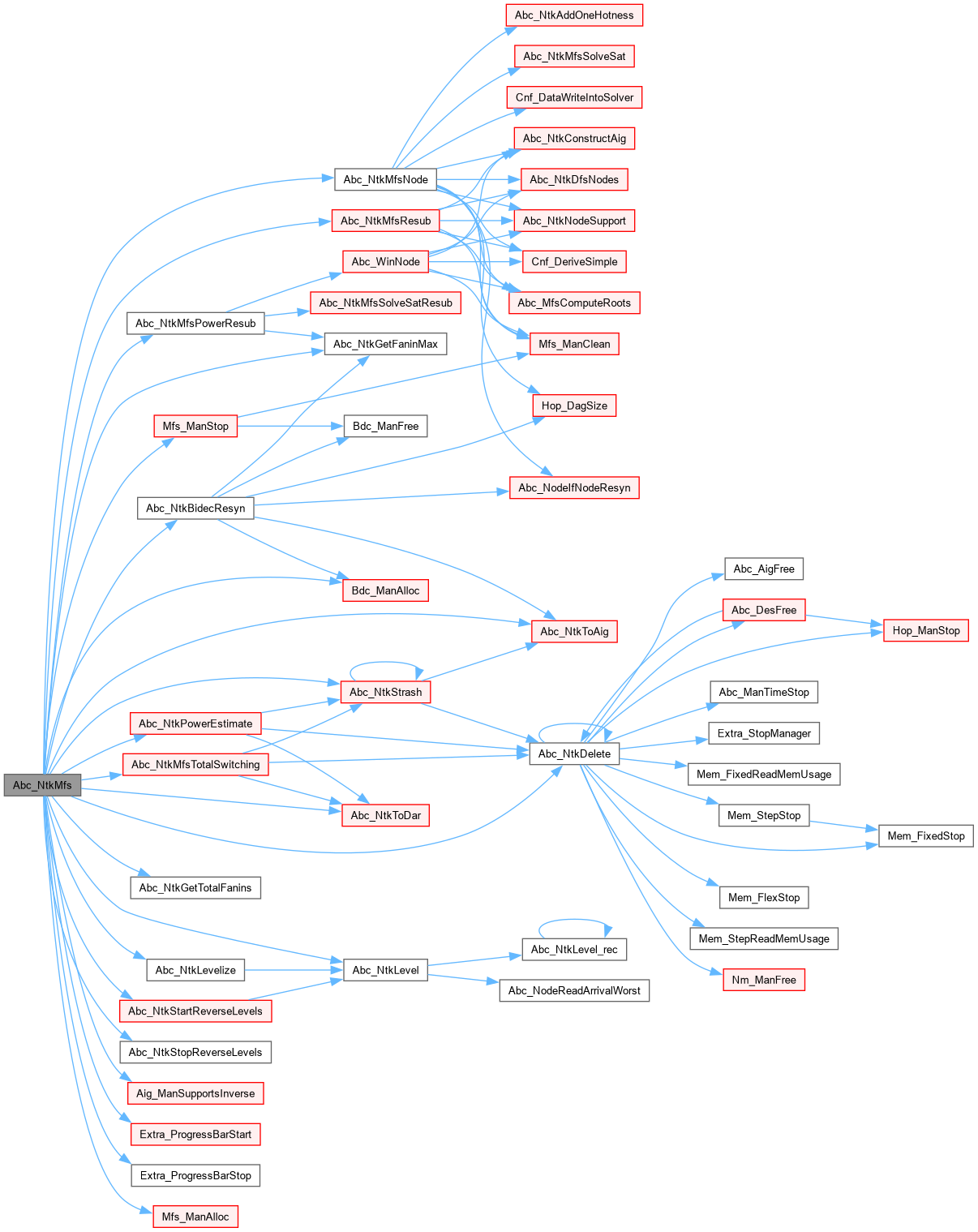

Here is the call graph for this function:

Abc_NtkMfsNode()

int Abc_NtkMfsNode	(	Mfs_Man_t *	p,
		Abc_Obj_t *	pNode )

Function*************************************************************

Synopsis []

Description []

SideEffects []

SeeAlso []

Definition at line 306 of file mfsCore.c.

{
    Hop_Obj_t * pObj;
    int RetValue;
    float dProb;
    extern Hop_Obj_t * Abc_NodeIfNodeResyn( Bdc_Man_t * p, Hop_Man_t * pHop, Hop_Obj_t * pRoot, int nVars, Vec_Int_t * vTruth, unsigned * puCare, float dProb );

    int nGain;
    abctime clk;
    p->nNodesTried++;
    // prepare data structure for this node
    Mfs_ManClean( p );
    // compute window roots, window support, and window nodes
clk = Abc_Clock();
    p->vRoots = Abc_MfsComputeRoots( pNode, p->pPars->nWinTfoLevs, p->pPars->nFanoutsMax );
    p->vSupp  = Abc_NtkNodeSupport( p->pNtk, (Abc_Obj_t **)Vec_PtrArray(p->vRoots), Vec_PtrSize(p->vRoots) );
    p->vNodes = Abc_NtkDfsNodes( p->pNtk, (Abc_Obj_t **)Vec_PtrArray(p->vRoots), Vec_PtrSize(p->vRoots) );
p->timeWin += Abc_Clock() - clk;
    // count the number of patterns
//    p->dTotalRatios += Abc_NtkConstraintRatio( p, pNode );
    // construct AIG for the window
clk = Abc_Clock();
    p->pAigWin = Abc_NtkConstructAig( p, pNode );
p->timeAig += Abc_Clock() - clk;
    // translate it into CNF
clk = Abc_Clock();
    p->pCnf = Cnf_DeriveSimple( p->pAigWin, Abc_ObjFaninNum(pNode) );
p->timeCnf += Abc_Clock() - clk;
    // create the SAT problem
clk = Abc_Clock();
    p->pSat = (sat_solver *)Cnf_DataWriteIntoSolver( p->pCnf, 1, 0 );
    if ( p->pSat && p->pPars->fOneHotness )
        Abc_NtkAddOneHotness( p );
    if ( p->pSat == NULL )
        return 0;
    // solve the SAT problem
    RetValue = Abc_NtkMfsSolveSat( p, pNode );
    p->nTotConfLevel += p->pSat->stats.conflicts;
p->timeSat += Abc_Clock() - clk;
    if ( RetValue == 0 )
    {
        p->nTimeOutsLevel++;
        p->nTimeOuts++;
        return 0;
    }
    // minimize the local function of the node using bi-decomposition
    assert( p->nFanins == Abc_ObjFaninNum(pNode) );
    dProb = p->pPars->fPower? ((float *)p->vProbs->pArray)[pNode->Id] : -1.0;
    pObj = Abc_NodeIfNodeResyn( p->pManDec, (Hop_Man_t *)pNode->pNtk->pManFunc, (Hop_Obj_t *)pNode->pData, p->nFanins, p->vTruth, p->uCare, dProb );
    nGain = Hop_DagSize((Hop_Obj_t *)pNode->pData) - Hop_DagSize(pObj);
    if ( nGain >= 0 )
    {
        p->nNodesDec++;
        p->nNodesGained += nGain;
        p->nNodesGainedLevel += nGain;
        pNode->pData = pObj;
    }
    return 1;
}

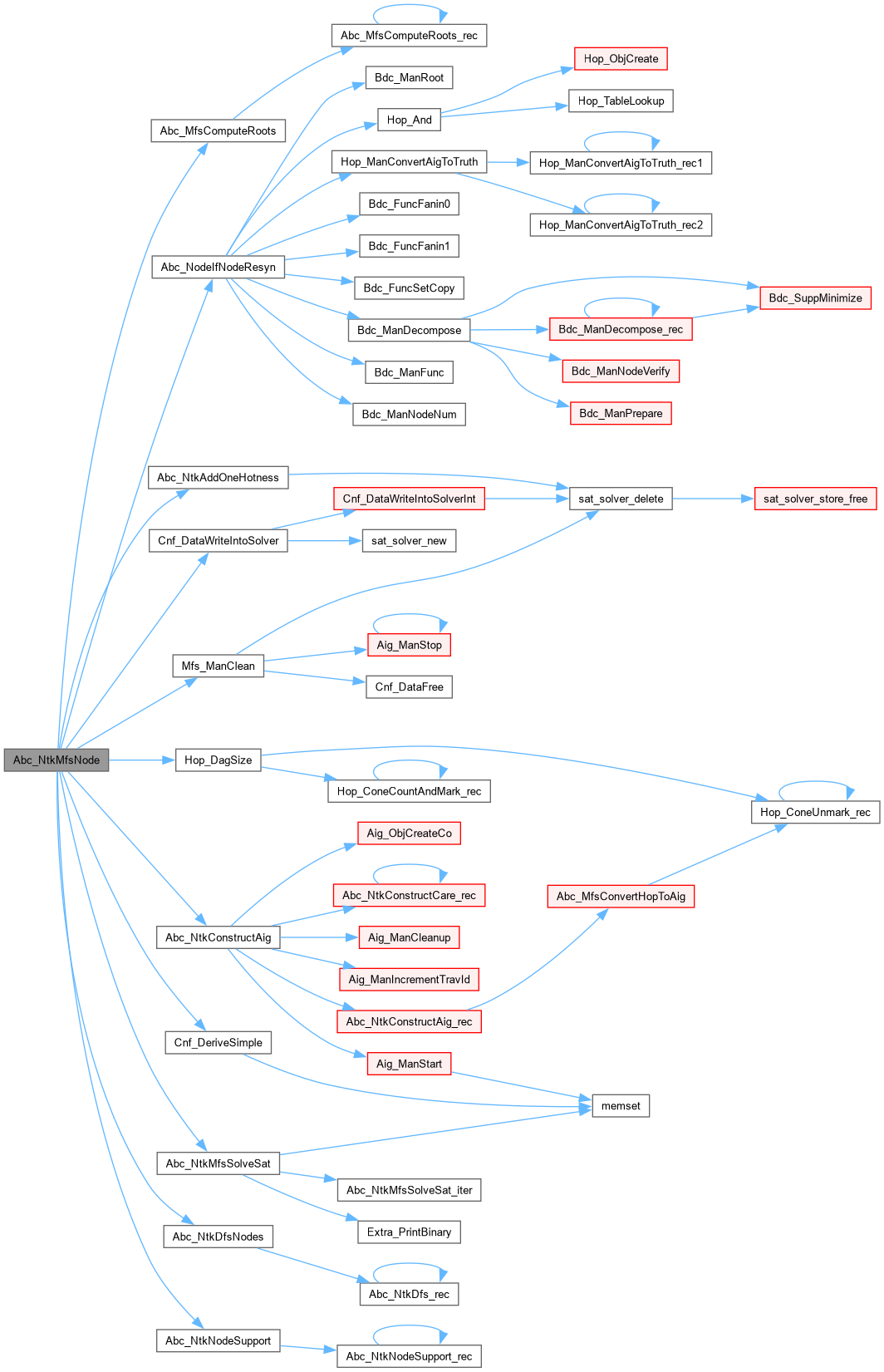

Here is the call graph for this function:

Here is the caller graph for this function:

Abc_NtkMfsParsDefault()

void Abc_NtkMfsParsDefault

(

Mfs_Par_t *

pPars

)

FUNCTION DEFINITIONS ///.

MACRO DEFINITIONS ///.

Function*************************************************************

Synopsis []

Description []

SideEffects []

SeeAlso []

Definition at line 47 of file mfsCore.c.

{
    memset( pPars, 0, sizeof(Mfs_Par_t) );
    pPars->nWinTfoLevs  =    2;
    pPars->nFanoutsMax  =   30;
    pPars->nDepthMax    =   20;
    pPars->nWinMax      =  300;
    pPars->nGrowthLevel =    0;
    pPars->nBTLimit     = 5000;
    pPars->fRrOnly      =    0;
    pPars->fResub       =    1;
    pPars->fArea        =    0;
    pPars->fMoreEffort  =    0;
    pPars->fSwapEdge    =    0;
    pPars->fOneHotness  =    0;
    pPars->fVerbose     =    0;
    pPars->fVeryVerbose =    0;
}

Here is the call graph for this function:

Abc_NtkMfsPowerResub()

void Abc_NtkMfsPowerResub	(	Mfs_Man_t *	p,
		Mfs_Par_t *	pPars )

Definition at line 154 of file mfsCore.c.

{
    int i, k;
    Abc_Obj_t *pFanin, *pNode;
    Abc_Ntk_t *pNtk = p->pNtk;
    int nFaninMax = Abc_NtkGetFaninMax(p->pNtk);

    Abc_NtkForEachNode( pNtk, pNode, k )
    {
        if ( p->pPars->nDepthMax && (int)pNode->Level > p->pPars->nDepthMax )
            continue;
        if ( Abc_ObjFaninNum(pNode) < 2 || Abc_ObjFaninNum(pNode) > nFaninMax )
            continue;
        if (Abc_WinNode(p, pNode) )  // something wrong
            continue;

        // solve the SAT problem
        // Abc_NtkMfsEdgePower( p, pNode );
        // try replacing area critical fanins
        Abc_ObjForEachFanin( pNode, pFanin, i )
            if ( Abc_MfsObjProb(p, pFanin) >= 0.35 && Abc_NtkMfsSolveSatResub( p, pNode, i, 0, 0 ) )
                continue;
    }

    Abc_NtkForEachNode( pNtk, pNode, k )
    {
        if ( p->pPars->nDepthMax && (int)pNode->Level > p->pPars->nDepthMax )
            continue;
        if ( Abc_ObjFaninNum(pNode) < 2 || Abc_ObjFaninNum(pNode) > nFaninMax )
            continue;
        if (Abc_WinNode(p, pNode) )  // something wrong
            continue;

        // solve the SAT problem
        // Abc_NtkMfsEdgePower( p, pNode );
        // try replacing area critical fanins
        Abc_ObjForEachFanin( pNode, pFanin, i )
            if ( Abc_MfsObjProb(p, pFanin) >= 0.35 && Abc_NtkMfsSolveSatResub( p, pNode, i, 0, 0 ) )
                continue;
    }

    Abc_NtkForEachNode( pNtk, pNode, k )
    {
        if ( p->pPars->nDepthMax && (int)pNode->Level > p->pPars->nDepthMax )
            continue;
        if ( Abc_ObjFaninNum(pNode) < 2 || Abc_ObjFaninNum(pNode) > nFaninMax )
            continue;
        if (Abc_WinNode(p, pNode) ) // something wrong
            continue;

        Abc_ObjForEachFanin( pNode, pFanin, i )
            if ( Abc_MfsObjProb(p, pFanin) >= 0.2 && Abc_NtkMfsSolveSatResub( p, pNode, i, 1, 0 ) )
                continue;
    }
/*
    Abc_NtkForEachNode( pNtk, pNode, k )
    {
        if ( p->pPars->nDepthMax && (int)pNode->Level > p->pPars->nDepthMax )
            continue;
        if ( Abc_ObjFaninNum(pNode) < 2 || Abc_ObjFaninNum(pNode) > nFaninMax - 2)
            continue;
        if (Abc_WinNode(p, pNode) ) // something wrong
            continue;

        Abc_ObjForEachFanin( pNode, pFanin, i )
            if ( Abc_MfsObjProb(p, pFanin) >= 0.37 && Abc_NtkMfsSolveSatResub2( p, pNode, i, -1 ) )
                continue;
    }
*/
}

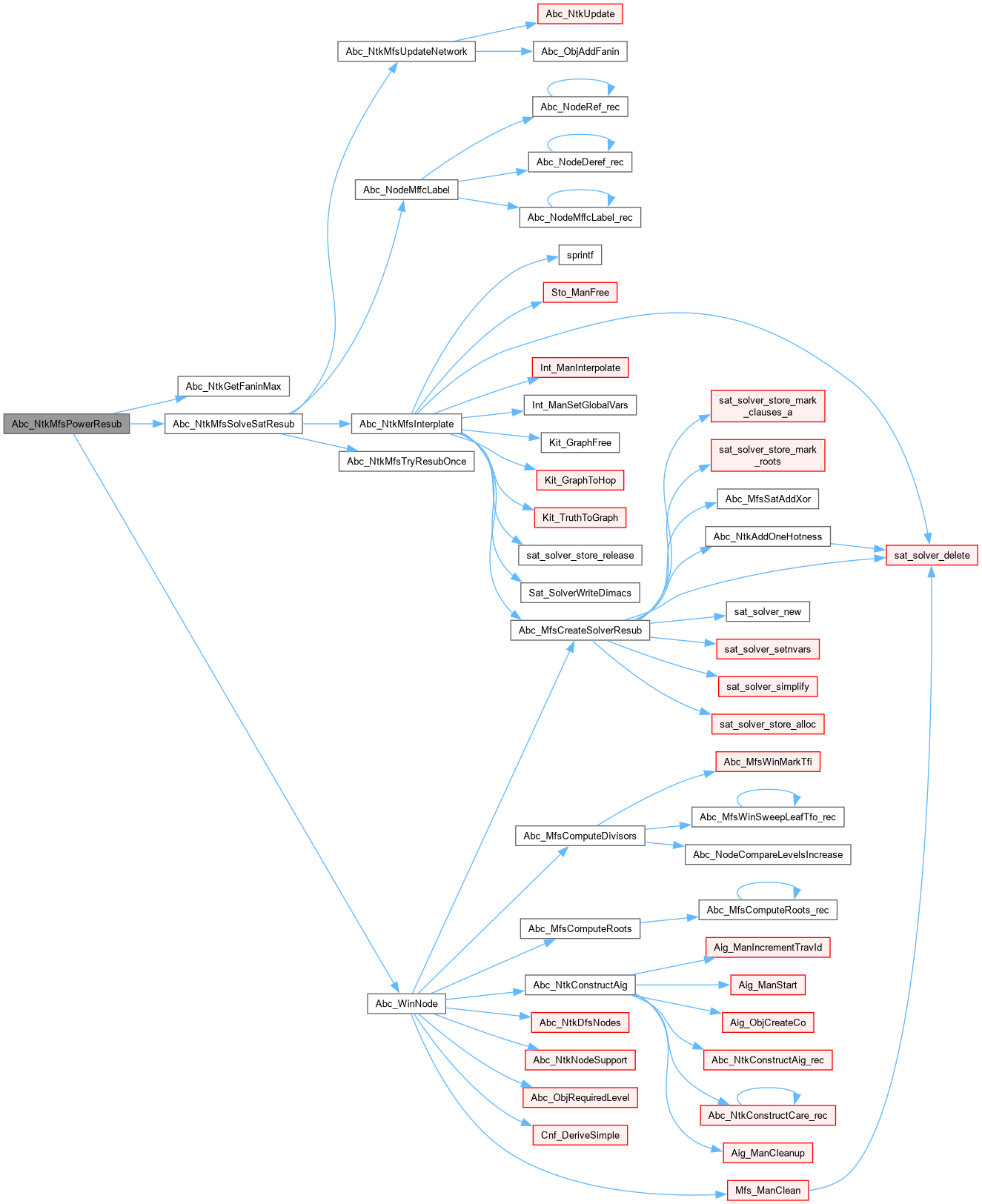

Here is the call graph for this function:

Here is the caller graph for this function:

Abc_NtkMfsResub()

int Abc_NtkMfsResub	(	Mfs_Man_t *	p,
		Abc_Obj_t *	pNode )

Function*************************************************************

Synopsis []

Description []

SideEffects []

SeeAlso []

Definition at line 236 of file mfsCore.c.

{
    abctime clk;
    p->nNodesTried++;
    // prepare data structure for this node
    Mfs_ManClean( p );
    // compute window roots, window support, and window nodes
clk = Abc_Clock();
    p->vRoots = Abc_MfsComputeRoots( pNode, p->pPars->nWinTfoLevs, p->pPars->nFanoutsMax );
    p->vSupp  = Abc_NtkNodeSupport( p->pNtk, (Abc_Obj_t **)Vec_PtrArray(p->vRoots), Vec_PtrSize(p->vRoots) );
    p->vNodes = Abc_NtkDfsNodes( p->pNtk, (Abc_Obj_t **)Vec_PtrArray(p->vRoots), Vec_PtrSize(p->vRoots) );
p->timeWin += Abc_Clock() - clk;
    if ( p->pPars->nWinMax && Vec_PtrSize(p->vNodes) > p->pPars->nWinMax )
    {
        p->nMaxDivs++;
        return 1;
    }
    // compute the divisors of the window
clk = Abc_Clock();
    p->vDivs  = Abc_MfsComputeDivisors( p, pNode, Abc_ObjRequiredLevel(pNode) - 1 );
    p->nTotalDivs += Vec_PtrSize(p->vDivs) - Abc_ObjFaninNum(pNode);
p->timeDiv += Abc_Clock() - clk;
    // construct AIG for the window
clk = Abc_Clock();
    p->pAigWin = Abc_NtkConstructAig( p, pNode );
p->timeAig += Abc_Clock() - clk;
    // translate it into CNF
clk = Abc_Clock();
    p->pCnf = Cnf_DeriveSimple( p->pAigWin, 1 + Vec_PtrSize(p->vDivs) );
p->timeCnf += Abc_Clock() - clk;
    // create the SAT problem
clk = Abc_Clock();
    p->pSat = Abc_MfsCreateSolverResub( p, NULL, 0, 0 );
    if ( p->pSat == NULL )
    {
        p->nNodesBad++;
        return 1;
    }
//clk = Abc_Clock();
//    if ( p->pPars->fGiaSat )
//        Abc_NtkMfsConstructGia( p );
//p->timeGia += Abc_Clock() - clk;
    // solve the SAT problem
    if ( p->pPars->fPower )
        Abc_NtkMfsEdgePower( p, pNode );
    else if ( p->pPars->fSwapEdge )
        Abc_NtkMfsEdgeSwapEval( p, pNode );
    else
    {
        Abc_NtkMfsResubNode( p, pNode );
        if ( p->pPars->fMoreEffort )
            Abc_NtkMfsResubNode2( p, pNode );
    }
p->timeSat += Abc_Clock() - clk;
//    if ( p->pPars->fGiaSat )
//        Abc_NtkMfsDeconstructGia( p );
    return 1;
}

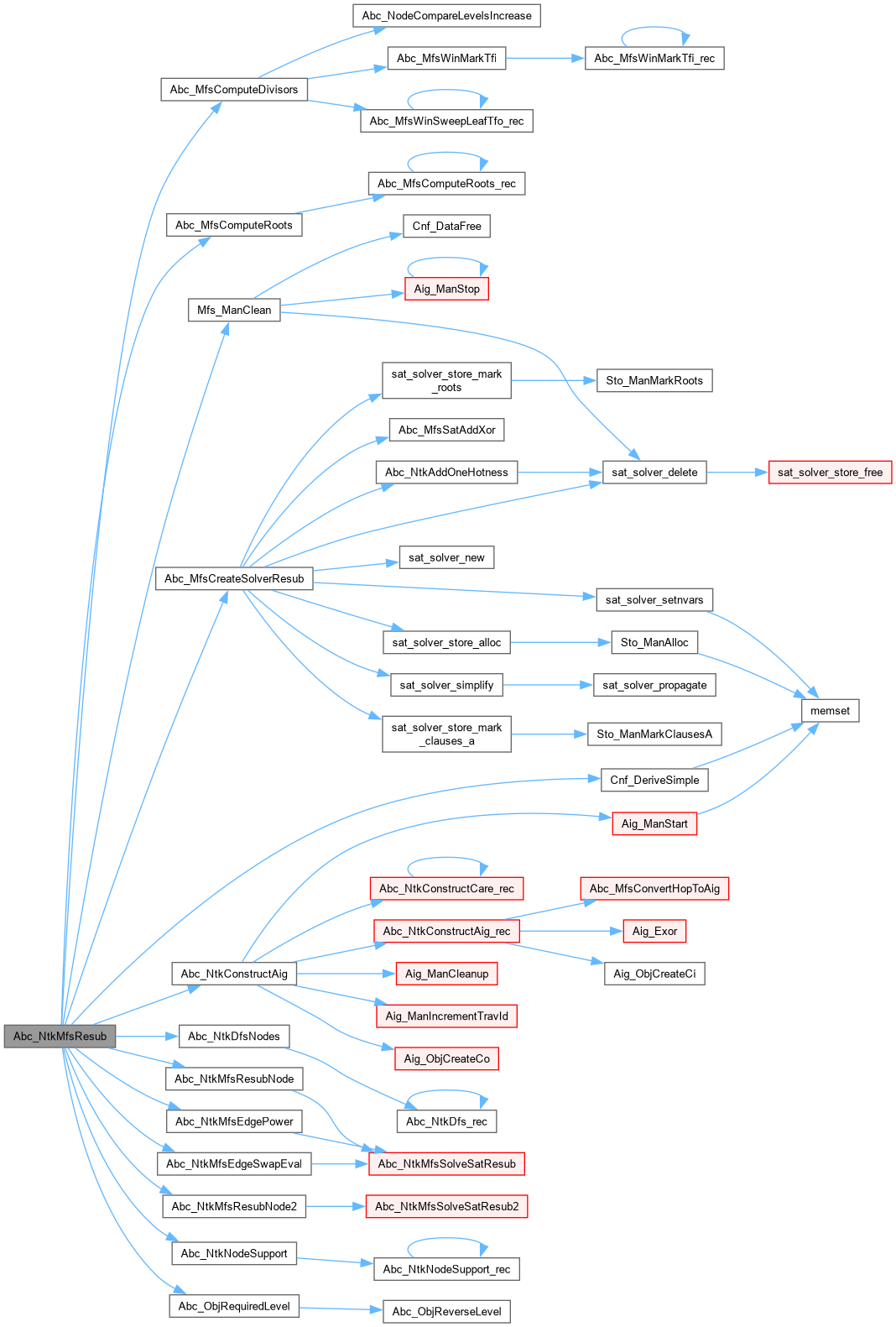

Here is the call graph for this function:

Here is the caller graph for this function:

Abc_NtkMfsSolveSatResub()

ABC_NAMESPACE_IMPL_START int Abc_NtkMfsSolveSatResub ( Mfs_Man_t * p, Abc_Obj_t * pNode, int iFanin, int fOnlyRemove, int fSkipUpdate )

extern

DECLARATIONS ///.

CFile****************************************************************

FileName [mfsCore.c]

SystemName [ABC: Logic synthesis and verification system.]

PackageName [The good old minimization with complete don't-cares.]

Synopsis [Core procedures of this package.]

Author [Alan Mishchenko]

Affiliation [UC Berkeley]

Date [Ver. 1.0. Started - June 20, 2005.]

Revision [

Id

mfsCore.c,v 1.00 2005/06/20 00:00:00 alanmi Exp

]

Function*************************************************************

Synopsis [Performs resubstitution for the node.]

Description []

SideEffects []

SeeAlso []

Definition at line 165 of file mfsResub.c.

{
    int fVeryVerbose = 0;//p->pPars->fVeryVerbose && Vec_PtrSize(p->vDivs) < 200;// || pNode->Id == 556;
    unsigned * pData;
    int pCands[MFS_FANIN_MAX];
    int RetValue, iVar, i, nCands, nWords, w;
    abctime clk;
    Abc_Obj_t * pFanin;
    Hop_Obj_t * pFunc;
    assert( iFanin >= 0 );
    p->nTryRemoves++;

    // clean simulation info
    Vec_PtrFillSimInfo( p->vDivCexes, 0, p->nDivWords );
    p->nCexes = 0;
    if ( p->pPars->fVeryVerbose )
    {
//        printf( "\n" );
        printf( "%5d : Lev =%3d. Leaf =%3d. Node =%3d. Divs =%3d.  Fanin = %4d (%d/%d), MFFC = %d\n",
            pNode->Id, pNode->Level, Vec_PtrSize(p->vSupp), Vec_PtrSize(p->vNodes), Vec_PtrSize(p->vDivs)-Abc_ObjFaninNum(pNode),
            Abc_ObjFaninId(pNode, iFanin), iFanin, Abc_ObjFaninNum(pNode),
            Abc_ObjFanoutNum(Abc_ObjFanin(pNode, iFanin)) == 1 ? Abc_NodeMffcLabel(Abc_ObjFanin(pNode, iFanin), NULL) : 0 );
    }

    // try fanins without the critical fanin
    nCands = 0;
    Vec_PtrClear( p->vMfsFanins );
    Abc_ObjForEachFanin( pNode, pFanin, i )
    {
        if ( i == iFanin )
            continue;
        Vec_PtrPush( p->vMfsFanins, pFanin );
        iVar = Vec_PtrSize(p->vDivs) - Abc_ObjFaninNum(pNode) + i;
        pCands[nCands++] = toLitCond( Vec_IntEntry( p->vProjVarsSat, iVar ), 1 );
    }
    RetValue = Abc_NtkMfsTryResubOnce( p, pCands, nCands );
    if ( RetValue == -1 )
        return 0;
    if ( RetValue == 1 )
    {
        if ( p->pPars->fVeryVerbose )
            printf( "Node %d: Fanin %d can be removed.\n", pNode->Id, iFanin );
        p->nNodesResub++;
        p->nNodesGainedLevel++;
        if ( fSkipUpdate )
            return 1;
clk = Abc_Clock();
        // derive the function
        pFunc = Abc_NtkMfsInterplate( p, pCands, nCands );
        if ( pFunc == NULL )
            return 0;
        // update the network
        Abc_NtkMfsUpdateNetwork( p, pNode, p->vMfsFanins, pFunc );
p->timeInt += Abc_Clock() - clk;
        p->nRemoves++;
        return 1;
    }

    if ( fOnlyRemove || p->pPars->fRrOnly )
        return 0;

    p->nTryResubs++;
    if ( fVeryVerbose )
    {
        for ( i = 0; i < 9; i++ )
            printf( " " );
        for ( i = 0; i < Vec_PtrSize(p->vDivs)-Abc_ObjFaninNum(pNode); i++ )
            printf( "%d", i % 10 );
        for ( i = 0; i < Abc_ObjFaninNum(pNode); i++ )
            if ( i == iFanin )
                printf( "*" );
            else
                printf( "%c", 'a' + i );
        printf( "\n" );
    }
    iVar = -1;
    while ( 1 )
    {
        if ( fVeryVerbose )
        {
            printf( "%3d: %3d ", p->nCexes, iVar );
            for ( i = 0; i < Vec_PtrSize(p->vDivs); i++ )
            {
                pData = (unsigned *)Vec_PtrEntry( p->vDivCexes, i );
                printf( "%d", Abc_InfoHasBit(pData, p->nCexes-1) );
            }
            printf( "\n" );
        }

        // find the next divisor to try
        nWords = Abc_BitWordNum(p->nCexes);
        assert( nWords <= p->nDivWords );
        for ( iVar = 0; iVar < Vec_PtrSize(p->vDivs)-Abc_ObjFaninNum(pNode); iVar++ )
        {
            if ( p->pPars->fPower )
            {
                Abc_Obj_t * pDiv = (Abc_Obj_t *)Vec_PtrEntry(p->vDivs, iVar);
                // only accept the divisor if it is "cool"
                if ( Abc_MfsObjProb(p, pDiv) >= 0.15 )
                    continue;
            }
            pData  = (unsigned *)Vec_PtrEntry( p->vDivCexes, iVar );
            for ( w = 0; w < nWords; w++ )
                if ( pData[w] != ~0 )
                    break;
            if ( w == nWords )
                break;
        }
        if ( iVar == Vec_PtrSize(p->vDivs)-Abc_ObjFaninNum(pNode) )
            return 0;

        pCands[nCands] = toLitCond( Vec_IntEntry(p->vProjVarsSat, iVar), 1 );
        RetValue = Abc_NtkMfsTryResubOnce( p, pCands, nCands+1 );
        if ( RetValue == -1 )
            return 0;
        if ( RetValue == 1 )
        {
            if ( p->pPars->fVeryVerbose )
                printf( "Node %d: Fanin %d can be replaced by divisor %d.\n", pNode->Id, iFanin, iVar );
            p->nNodesResub++;
            p->nNodesGainedLevel++;
            if ( fSkipUpdate )
                return 1;
clk = Abc_Clock();
            // derive the function
            pFunc = Abc_NtkMfsInterplate( p, pCands, nCands+1 );
            if ( pFunc == NULL )
                return 0;
            // update the network
            Vec_PtrPush( p->vMfsFanins, Vec_PtrEntry(p->vDivs, iVar) );
            Abc_NtkMfsUpdateNetwork( p, pNode, p->vMfsFanins, pFunc );
p->timeInt += Abc_Clock() - clk;
            p->nResubs++;
            return 1;
        }
        if ( p->nCexes >= p->pPars->nWinMax )
            break;
    }
    if ( p->pPars->fVeryVerbose )
        printf( "Node %d: Cannot find replacement for fanin %d.\n", pNode->Id, iFanin );
    return 0;
}

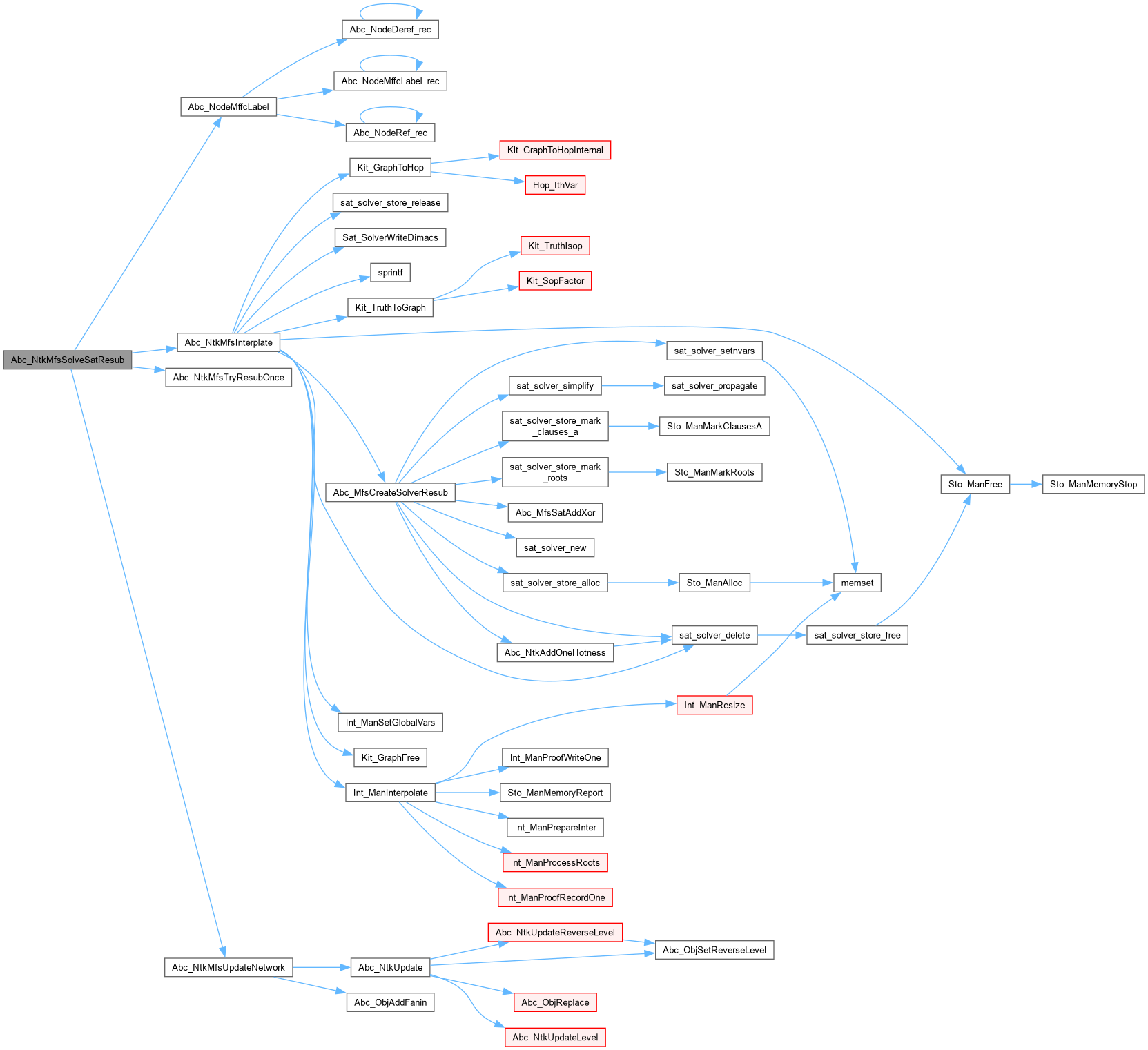

Here is the call graph for this function:

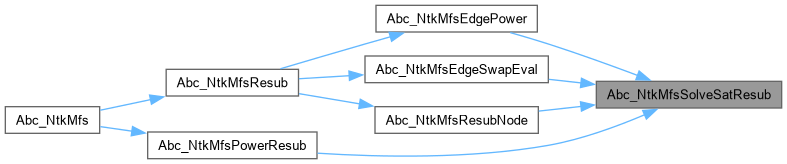

Here is the caller graph for this function:

Abc_WinNode()

int Abc_WinNode	(	Mfs_Man_t *	p,
		Abc_Obj_t *	pNode )

Definition at line 87 of file mfsCore.c.

{
//    abctime clk;
//    Abc_Obj_t * pFanin;
//    int i;

    p->nNodesTried++;
    // prepare data structure for this node
    Mfs_ManClean( p );
    // compute window roots, window support, and window nodes
    p->vRoots = Abc_MfsComputeRoots( pNode, p->pPars->nWinTfoLevs, p->pPars->nFanoutsMax );
    p->vSupp  = Abc_NtkNodeSupport( p->pNtk, (Abc_Obj_t **)Vec_PtrArray(p->vRoots), Vec_PtrSize(p->vRoots) );
    p->vNodes = Abc_NtkDfsNodes( p->pNtk, (Abc_Obj_t **)Vec_PtrArray(p->vRoots), Vec_PtrSize(p->vRoots) );
    if ( p->pPars->nWinMax && Vec_PtrSize(p->vNodes) > p->pPars->nWinMax )
        return 1;
    // compute the divisors of the window
    p->vDivs  = Abc_MfsComputeDivisors( p, pNode, Abc_ObjRequiredLevel(pNode) - 1 );
    p->nTotalDivs += Vec_PtrSize(p->vDivs) - Abc_ObjFaninNum(pNode);
    // construct AIG for the window
    p->pAigWin = Abc_NtkConstructAig( p, pNode );
    // translate it into CNF
    p->pCnf = Cnf_DeriveSimple( p->pAigWin, 1 + Vec_PtrSize(p->vDivs) );
    // create the SAT problem
    p->pSat = Abc_MfsCreateSolverResub( p, NULL, 0, 0 );
    if ( p->pSat == NULL )
    {
        p->nNodesBad++;
        return 1;
    }
    return 0;
}

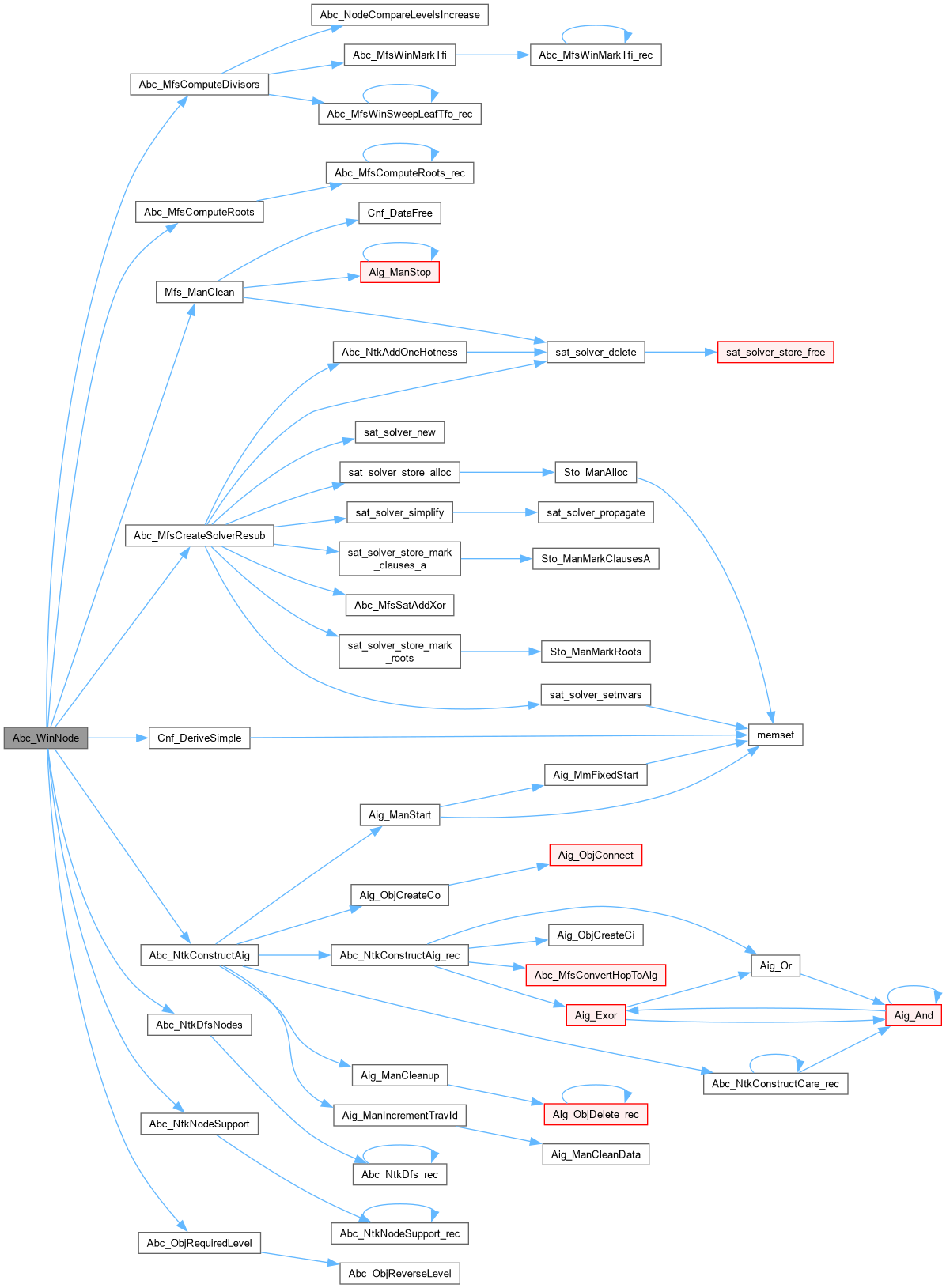

Here is the call graph for this function:

Here is the caller graph for this function:
