giaTranStoch.c File Reference

#include <base/abc/abc.h>
#include <aig/aig/aig.h>
#include <opt/dar/dar.h>
#include <aig/gia/gia.h>
#include <aig/gia/giaAig.h>
#include <base/main/main.h>
#include <base/main/mainInt.h>
#include <map/mio/mio.h>
#include <opt/sfm/sfm.h>
#include <opt/fxu/fxu.h>
#include <unistd.h>

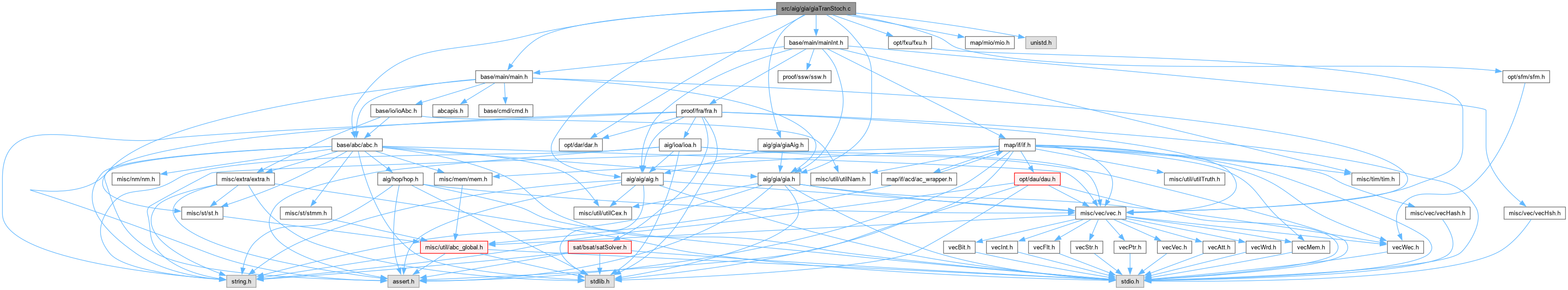

Include dependency graph for giaTranStoch.c:

Go to the source code of this file.

Classes
struct	Gia_ManTranStochParam

Typedefs
typedef struct Gia_ManTranStochParam	Gia_ManTranStochParam

Functions
ABC_NAMESPACE_IMPL_START Abc_Ntk_t *	Abc_NtkFromAigPhase (Aig_Man_t *pMan)
	DECLARATIONS ///.
Abc_Ntk_t *	Abc_NtkIf (Abc_Ntk_t *pNtk, If_Par_t *pPars)
int	Abc_NtkPerformMfs (Abc_Ntk_t *pNtk, Sfm_Par_t *pPars)
Aig_Man_t *	Abc_NtkToDar (Abc_Ntk_t *pNtk, int fExors, int fRegisters)
int	Abc_NtkFxPerform (Abc_Ntk_t *pNtk, int nNewNodesMax, int nLitCountMax, int fCanonDivs, int fVerbose, int fVeryVerbose)
Abc_Ntk_t *	Gia_ManTranStochPut (Gia_Man_t *pGia)
Abc_Ntk_t *	Gia_ManTranStochIf (Abc_Ntk_t *pNtk)
void	Gia_ManTranStochMfs2 (Abc_Ntk_t *pNtk)
Gia_Man_t *	Gia_ManTranStochGet (Abc_Ntk_t *pNtk)
void	Gia_ManTranStochFx (Abc_Ntk_t *pNtk)
Gia_Man_t *	Gia_ManTranStochRefactor (Gia_Man_t *pGia)
void	Gia_ManTranStochLock (Gia_ManTranStochParam *p)
void	Gia_ManTranStochUnlock (Gia_ManTranStochParam *p)
Gia_Man_t *	Gia_ManTranStochOpt1 (Gia_ManTranStochParam *p, Gia_Man_t *pOld)
Gia_Man_t *	Gia_ManTranStochOpt2 (Gia_ManTranStochParam *p)
Gia_Man_t *	Gia_ManTranStochOpt3 (Gia_ManTranStochParam *p)
Gia_Man_t *	Gia_ManTranStoch (Gia_Man_t *pGia, int nRestarts, int nHops, int nSeedBase, int fMspf, int fMerge, int fResetHop, int fZeroCostHop, int fRefactor, int fTruth, int fSingle, int fOriginalOnly, int fNewLine, Gia_Man_t *pExdc, int nThreads, int nVerbose)

Typedef Documentation

Gia_ManTranStochParam

typedef struct Gia_ManTranStochParam Gia_ManTranStochParam

Definition at line 128 of file giaTranStoch.c.

Function Documentation

Abc_NtkFromAigPhase()

ABC_NAMESPACE_IMPL_START Abc_Ntk_t * Abc_NtkFromAigPhase ( Aig_Man_t * pMan )

extern

DECLARATIONS ///.

CFile****************************************************************

FileName [giaTranStoch.c]

SystemName [ABC: Logic synthesis and verification system.]

PackageName [Scalable AIG package.]

Synopsis [Implementation of transduction method.]

Author [Yukio Miyasaka]

Affiliation [UC Berkeley]

Date [Ver. 1.0. Started - May 2023.]

Revision [

Id

giaTranStoch.c,v 1.00 2023/05/10 00:00:00 Exp

]

Function*************************************************************

Synopsis [Converts the network from the AIG manager into ABC.]

Description [This procedure should be called after seq sweeping, which changes the number of registers.]

SideEffects []

SeeAlso []

Definition at line 595 of file abcDar.c.

{
    Vec_Ptr_t * vNodes;
    Abc_Ntk_t * pNtkNew;
    Abc_Obj_t * pObjNew;
    Aig_Obj_t * pObj, * pObjLo, * pObjLi;
    int i;
    assert( pMan->nAsserts == 0 );
    // perform strashing
    pNtkNew = Abc_NtkAlloc( ABC_NTK_STRASH, ABC_FUNC_AIG, 1 );
    pNtkNew->nConstrs = pMan->nConstrs;
    pNtkNew->nBarBufs = pMan->nBarBufs;
    // duplicate the name and the spec
//    pNtkNew->pName = Extra_UtilStrsav(pMan->pName);
//    pNtkNew->pSpec = Extra_UtilStrsav(pMan->pSpec);
    Aig_ManConst1(pMan)->pData = Abc_AigConst1(pNtkNew);
    // create PIs
    Aig_ManForEachPiSeq( pMan, pObj, i )
    {
        pObjNew = Abc_NtkCreatePi( pNtkNew );
//        Abc_ObjAssignName( pObjNew, Abc_ObjName(pObjNew), NULL );
        pObj->pData = pObjNew;
    }
    // create POs
    Aig_ManForEachPoSeq( pMan, pObj, i )
    {
        pObjNew = Abc_NtkCreatePo( pNtkNew );
//        Abc_ObjAssignName( pObjNew, Abc_ObjName(pObjNew), NULL );
        pObj->pData = pObjNew;
    }
    assert( Abc_NtkCiNum(pNtkNew) == Aig_ManCiNum(pMan) - Aig_ManRegNum(pMan) );
    assert( Abc_NtkCoNum(pNtkNew) == Aig_ManCoNum(pMan) - Aig_ManRegNum(pMan) );
    // create as many latches as there are registers in the manager
    Aig_ManForEachLiLoSeq( pMan, pObjLi, pObjLo, i )
    {
        pObjNew = Abc_NtkCreateLatch( pNtkNew );
        pObjLi->pData = Abc_NtkCreateBi( pNtkNew );
        pObjLo->pData = Abc_NtkCreateBo( pNtkNew );
        Abc_ObjAddFanin( pObjNew, (Abc_Obj_t *)pObjLi->pData );
        Abc_ObjAddFanin( (Abc_Obj_t *)pObjLo->pData, pObjNew );
        Abc_LatchSetInit0( pObjNew );
//        Abc_ObjAssignName( (Abc_Obj_t *)pObjLi->pData, Abc_ObjName((Abc_Obj_t *)pObjLi->pData), NULL );
//        Abc_ObjAssignName( (Abc_Obj_t *)pObjLo->pData, Abc_ObjName((Abc_Obj_t *)pObjLo->pData), NULL );
    }
    // rebuild the AIG
    vNodes = Aig_ManDfs( pMan, 1 );
    Vec_PtrForEachEntry( Aig_Obj_t *, vNodes, pObj, i )
        if ( Aig_ObjIsBuf(pObj) )
            pObj->pData = (Abc_Obj_t *)Aig_ObjChild0Copy(pObj);
        else
            pObj->pData = Abc_AigAnd( (Abc_Aig_t *)pNtkNew->pManFunc, (Abc_Obj_t *)Aig_ObjChild0Copy(pObj), (Abc_Obj_t *)Aig_ObjChild1Copy(pObj) );
    Vec_PtrFree( vNodes );
    // connect the PO nodes
    Aig_ManForEachCo( pMan, pObj, i )
    {
        pObjNew = (Abc_Obj_t *)Aig_ObjChild0Copy(pObj);
        Abc_ObjAddFanin( Abc_NtkCo(pNtkNew, i), pObjNew );
    }

    Abc_NtkAddDummyPiNames( pNtkNew );
    Abc_NtkAddDummyPoNames( pNtkNew );
    Abc_NtkAddDummyBoxNames( pNtkNew );

    // check the resulting AIG
    if ( !Abc_NtkCheck( pNtkNew ) )
        Abc_Print( 1, "Abc_NtkFromAigPhase(): Network check has failed.\n" );
    return pNtkNew;
}

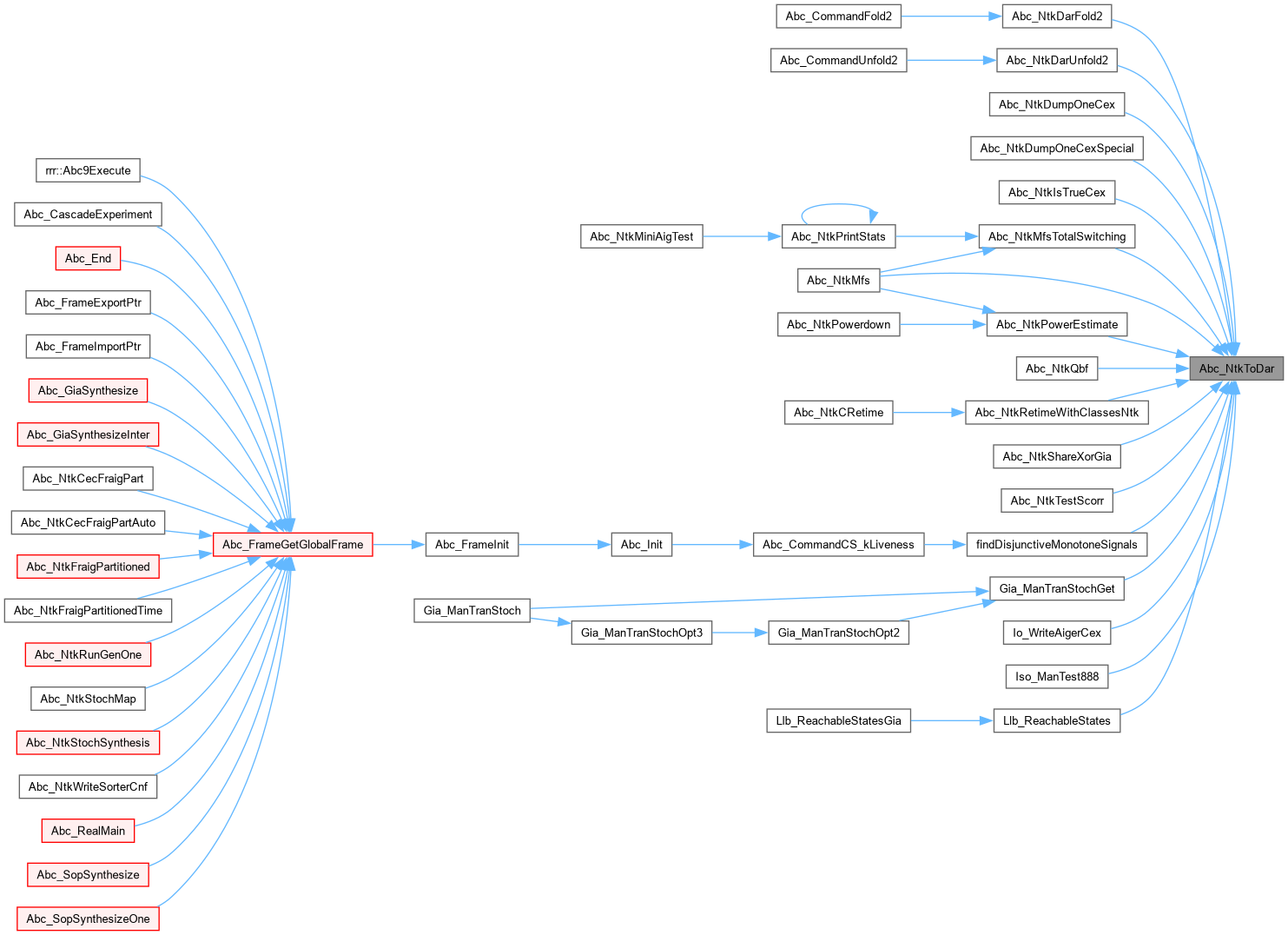

Here is the caller graph for this function:

Abc_NtkFxPerform()

int Abc_NtkFxPerform ( Abc_Ntk_t * pNtk, int nNewNodesMax, int LitCountMax, int fCanonDivs, int fVerbose, int fVeryVerbose )

extern

Function*************************************************************

Synopsis []

Description []

SideEffects []

SeeAlso []

Definition at line 309 of file abcFx.c.

{
    extern int Fx_FastExtract( Vec_Wec_t * vCubes, int ObjIdMax, int nNewNodesMax, int LitCountMax, int fCanonDivs, int fVerbose, int fVeryVerbose );
    Vec_Wec_t * vCubes;
    assert( Abc_NtkIsSopLogic(pNtk) );
    // check unique fanins
    if ( !Abc_NtkFxCheck(pNtk) )
    {
        printf( "Abc_NtkFastExtract: Nodes have duplicated fanins. FX is not performed.\n" );
        return 0;
    }
    // collect information about the covers
    vCubes = Abc_NtkFxRetrieve( pNtk );
    // call the fast extract procedure
    if ( Fx_FastExtract( vCubes, Abc_NtkObjNumMax(pNtk), nNewNodesMax, LitCountMax, fCanonDivs, fVerbose, fVeryVerbose ) > 0 )
    {
        // update the network
        Abc_NtkFxInsert( pNtk, vCubes );
        Vec_WecFree( vCubes );
        if ( !Abc_NtkCheck( pNtk ) )
            printf( "Abc_NtkFxPerform: The network check has failed.\n" );
        return 1;
    }
    else
        printf( "Warning: The network has not been changed by \"fx\".\n" );
    Vec_WecFree( vCubes );
    return 0;
}

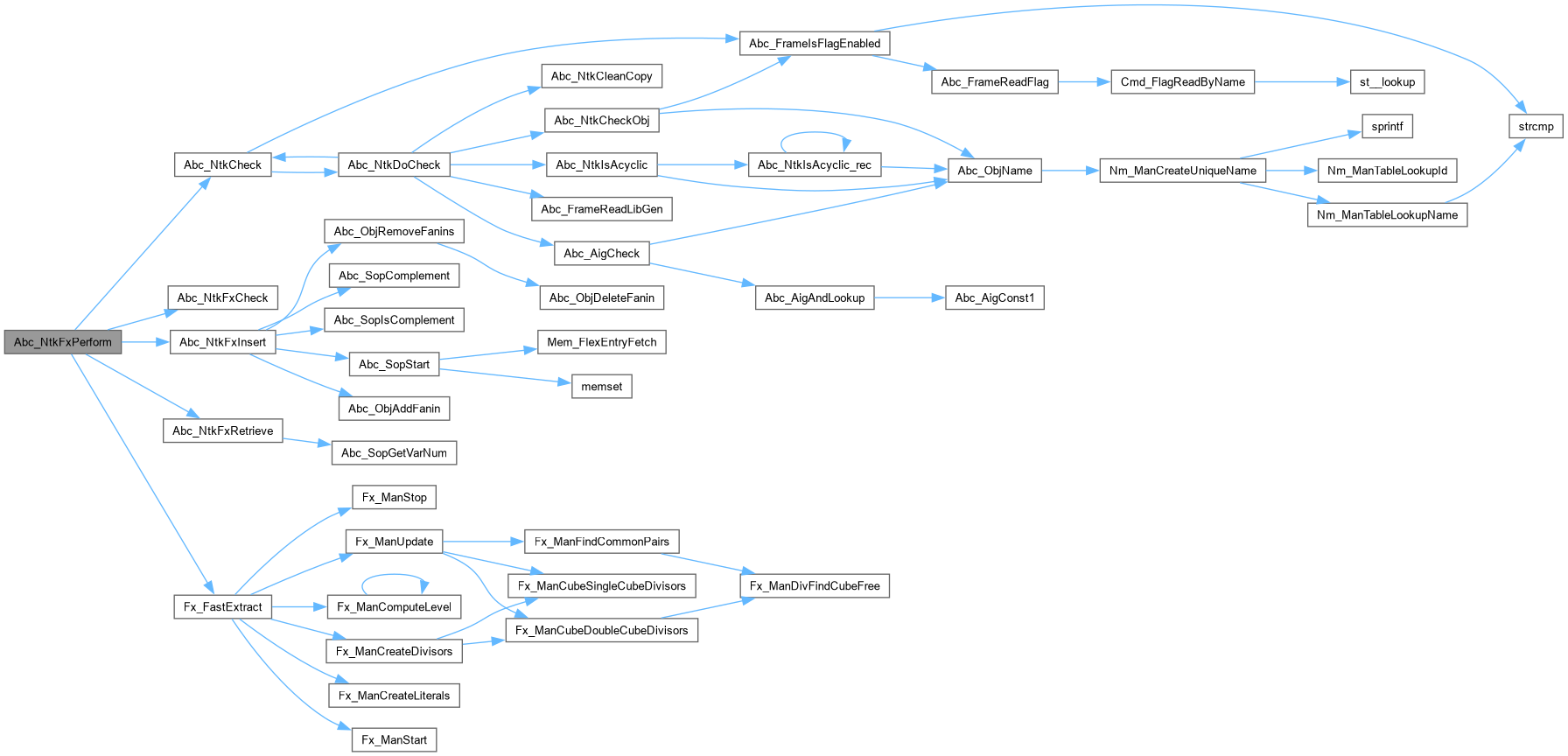

Here is the call graph for this function:

Here is the caller graph for this function:

Abc_NtkIf()

Abc_Ntk_t * Abc_NtkIf ( Abc_Ntk_t * pNtk, If_Par_t * pPars )

extern

Function*************************************************************

Synopsis [Interface with the FPGA mapping package.]

Description []

SideEffects []

SeeAlso []

Definition at line 107 of file abcIf.c.

{
    Abc_Ntk_t * pNtkNew, * pTemp;
    If_Man_t * pIfMan;

    assert( Abc_NtkIsStrash(pNtk) );

    // get timing information
    pPars->pTimesArr = Abc_NtkGetCiArrivalFloats(pNtk);
    pPars->pTimesReq = Abc_NtkGetCoRequiredFloats(pNtk);

    // update timing info to reflect logic level
    if ( (pPars->fDelayOpt || pPars->fDsdBalance || pPars->fUserRecLib || pPars->fUserSesLib || pPars->fUserLutDec || pPars->fUserLut2D ) && pNtk->pManTime )
    {
        int c;
        if ( pNtk->AndGateDelay == 0.0 )
        {
            if ( Abc_FrameReadLibGen() )
                pNtk->AndGateDelay = Mio_LibraryReadDelayAigNode((Mio_Library_t *)Abc_FrameReadLibGen());
            if ( pNtk->AndGateDelay == 0.0 )
            {
                pNtk->AndGateDelay = 1.0;
                printf( "The AIG-node delay is not set. Assuming unit-delay.\n" );
            }
        }
        for ( c = 0; c < Abc_NtkCiNum(pNtk); c++ )
            pPars->pTimesArr[c] /= pNtk->AndGateDelay;
        for ( c = 0; c < Abc_NtkCoNum(pNtk); c++ )
            pPars->pTimesReq[c] /= pNtk->AndGateDelay;
    }

    // set the latch paths
    if ( pPars->fLatchPaths && pPars->pTimesArr )
    {
        int c;
        for ( c = 0; c < Abc_NtkPiNum(pNtk); c++ )
            pPars->pTimesArr[c] = -ABC_INFINITY;
    }

    // create FPGA mapper
    pIfMan = Abc_NtkToIf( pNtk, pPars );
    if ( pIfMan == NULL )
        return NULL;
    if ( pPars->fPower )
        If_ManComputeSwitching( pIfMan );

    // create DSD manager
    if ( pPars->fUseDsd )
    {
        If_DsdMan_t * p = (If_DsdMan_t *)Abc_FrameReadManDsd();
        assert( pPars->nLutSize <= If_DsdManVarNum(p) );
        assert( (pPars->pLutStruct == NULL && If_DsdManLutSize(p) == 0) || (pPars->pLutStruct && pPars->pLutStruct[0] - '0' == If_DsdManLutSize(p)) );
        pIfMan->pIfDsdMan = (If_DsdMan_t *)Abc_FrameReadManDsd();
        if ( pPars->fDsdBalance )
            If_DsdManAllocIsops( pIfMan->pIfDsdMan, pPars->nLutSize );
    }

    // perform FPGA mapping
    if ( !If_ManPerformMapping( pIfMan ) )
    {
        If_ManStop( pIfMan );
        return NULL;
    }

    // transform the result of mapping into the new network
    pNtkNew = Abc_NtkFromIf( pIfMan, pNtk );
    if ( pNtkNew == NULL )
        return NULL;
    If_ManStop( pIfMan );
    if ( pPars->fDelayOpt || pPars->fDsdBalance || pPars->fUserRecLib )
    {
        pNtkNew = Abc_NtkStrash( pTemp = pNtkNew, 0, 0, 0 );
        Abc_NtkDelete( pTemp );
    }
    else if ( pPars->fBidec && pPars->nLutSize <= 8 )
        Abc_NtkBidecResyn( pNtkNew, 0 );

    // duplicate EXDC
    if ( pNtk->pExdc )
        pNtkNew->pExdc = Abc_NtkDup( pNtk->pExdc );
    // make sure that everything is okay
    if ( !Abc_NtkCheck( pNtkNew ) )
    {
        printf( "Abc_NtkIf: The network check has failed.\n" );
        Abc_NtkDelete( pNtkNew );
        return NULL;
    }
    return pNtkNew;
}

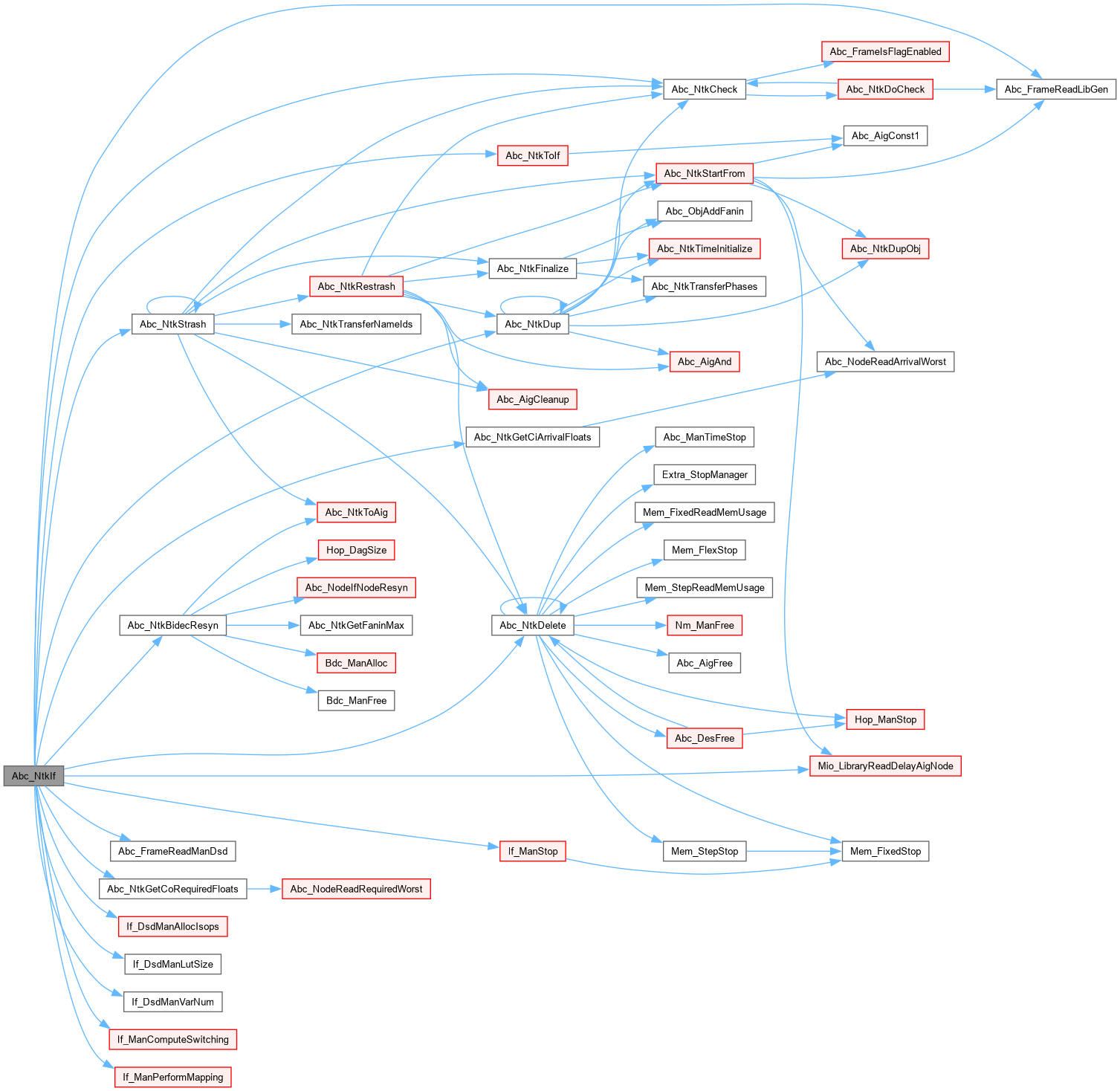

Here is the call graph for this function:

Here is the caller graph for this function:

Abc_NtkPerformMfs()

int Abc_NtkPerformMfs ( Abc_Ntk_t * pNtk, Sfm_Par_t * pPars )

extern

Function*************************************************************

Synopsis []

Description []

SideEffects []

SeeAlso []

Definition at line 357 of file abcMfs.c.

{
    Sfm_Ntk_t * p;
    int nFaninMax, nNodes;
    assert( Abc_NtkIsLogic(pNtk) );
    Abc_NtkSweep( pNtk, 0 );
    // count fanouts
    nFaninMax = Abc_NtkGetFaninMax( pNtk );
    if ( nFaninMax > 15 )
    {
        Abc_Print( 1, "Currently \"mfs\" cannot process the network containing nodes with more than 15 fanins.\n" );
        return 1;
    }
    if ( !Abc_NtkHasSop(pNtk) )
        if ( !Abc_NtkToSop( pNtk, -1, ABC_INFINITY ) )
        {
            printf( "Conversion to SOP has failed due to low resource limit.\n" );
            return 0;
        }
    // collect information
    p = Abc_NtkExtractMfs( pNtk, pPars->nFirstFixed );
    // perform optimization
    nNodes = Sfm_NtkPerform( p, pPars );
    if ( nNodes == 0 )
    {
//        Abc_Print( 1, "The network is not changed by \"mfs\".\n" );
    }
    else
    {
        Abc_NtkInsertMfs( pNtk, p );
        if( pPars->fVerbose )
            Abc_Print( 1, "The network has %d nodes changed by \"mfs\".\n", nNodes );
    }
    Sfm_NtkFree( p );
    return 1;
}

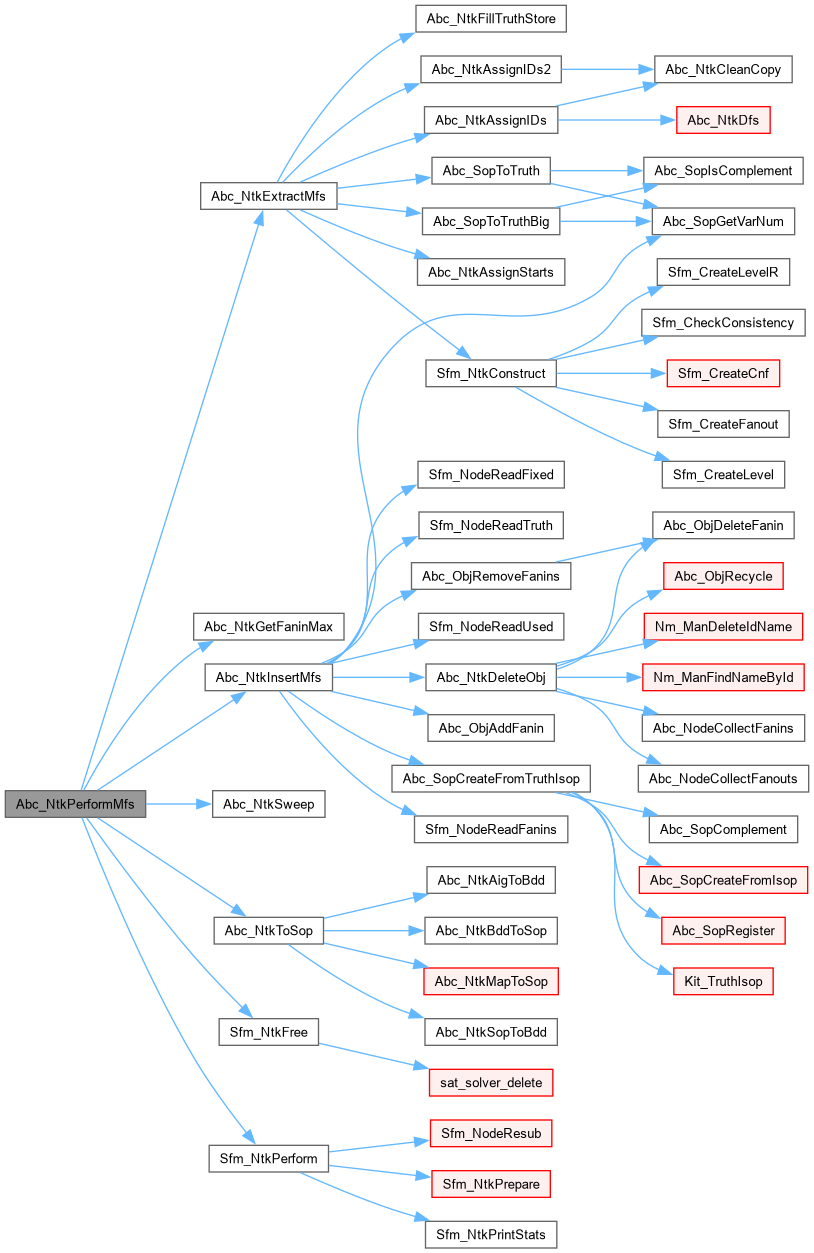

Here is the call graph for this function:

Here is the caller graph for this function:

Abc_NtkToDar()

Aig_Man_t * Abc_NtkToDar ( Abc_Ntk_t * pNtk, int fExors, int fRegisters )

extern

Function*************************************************************

Synopsis [Converts the network from the AIG manager into ABC.]

Description [Assumes that registers are ordered after PIs/POs.]

SideEffects []

SeeAlso []

Definition at line 237 of file abcDar.c.

{
    Vec_Ptr_t * vNodes;
    Aig_Man_t * pMan;
    Aig_Obj_t * pObjNew;
    Abc_Obj_t * pObj;
    int i, nNodes, nDontCares;
    // make sure the latches follow PIs/POs
    if ( fRegisters )
    {
        assert( Abc_NtkBoxNum(pNtk) == Abc_NtkLatchNum(pNtk) );
        Abc_NtkForEachCi( pNtk, pObj, i )
            if ( i < Abc_NtkPiNum(pNtk) )
            {
                assert( Abc_ObjIsPi(pObj) );
                if ( !Abc_ObjIsPi(pObj) )
                    Abc_Print( 1, "Abc_NtkToDar(): Temporary bug: The PI ordering is wrong!\n" );
            }
            else
                assert( Abc_ObjIsBo(pObj) );
        Abc_NtkForEachCo( pNtk, pObj, i )
            if ( i < Abc_NtkPoNum(pNtk) )
            {
                assert( Abc_ObjIsPo(pObj) );
                if ( !Abc_ObjIsPo(pObj) )
                    Abc_Print( 1, "Abc_NtkToDar(): Temporary bug: The PO ordering is wrong!\n" );
            }
            else
                assert( Abc_ObjIsBi(pObj) );
        // print warning about initial values
        nDontCares = 0;
        Abc_NtkForEachLatch( pNtk, pObj, i )
            if ( Abc_LatchIsInitDc(pObj) )
            {
                Abc_LatchSetInit0(pObj);
                nDontCares++;
            }
        if ( nDontCares )
        {
            Abc_Print( 1, "Warning: %d registers in this network have don't-care init values.\n", nDontCares );
            Abc_Print( 1, "The don't-care are assumed to be 0. The result may not verify.\n" );
            Abc_Print( 1, "Use command \"print_latch\" to see the init values of registers.\n" );
            Abc_Print( 1, "Use command \"zero\" to convert or \"init\" to change the values.\n" );
        }
    }
    // create the manager
    pMan = Aig_ManStart( Abc_NtkNodeNum(pNtk) + 100 );
    pMan->fCatchExor = fExors;
    pMan->nConstrs = pNtk->nConstrs;
    pMan->nBarBufs = pNtk->nBarBufs;
    pMan->pName = Extra_UtilStrsav( pNtk->pName );
    pMan->pSpec = Extra_UtilStrsav( pNtk->pSpec );
    // transfer the pointers to the basic nodes
    Abc_AigConst1(pNtk)->pCopy = (Abc_Obj_t *)Aig_ManConst1(pMan);
    Abc_NtkForEachCi( pNtk, pObj, i )
    {
        pObj->pCopy = (Abc_Obj_t *)Aig_ObjCreateCi(pMan);
        // initialize logic level of the CIs
        ((Aig_Obj_t *)pObj->pCopy)->Level = pObj->Level;
    }

    // complement the 1-values registers
    if ( fRegisters ) {
        Abc_NtkForEachLatch( pNtk, pObj, i )
            if ( Abc_LatchIsInit1(pObj) )
                Abc_ObjFanout0(pObj)->pCopy = Abc_ObjNot(Abc_ObjFanout0(pObj)->pCopy);
    }
    // perform the conversion of the internal nodes (assumes DFS ordering)
//    pMan->fAddStrash = 1;
    vNodes = Abc_NtkDfs( pNtk, 0 );
    Vec_PtrForEachEntry( Abc_Obj_t *, vNodes, pObj, i )
//    Abc_NtkForEachNode( pNtk, pObj, i )
    {
        pObj->pCopy = (Abc_Obj_t *)Aig_And( pMan, (Aig_Obj_t *)Abc_ObjChild0Copy(pObj), (Aig_Obj_t *)Abc_ObjChild1Copy(pObj) );
//        Abc_Print( 1, "%d->%d ", pObj->Id, ((Aig_Obj_t *)pObj->pCopy)->Id );
    }
    Vec_PtrFree( vNodes );
    pMan->fAddStrash = 0;
    // create the POs
    Abc_NtkForEachCo( pNtk, pObj, i )
        Aig_ObjCreateCo( pMan, (Aig_Obj_t *)Abc_ObjChild0Copy(pObj) );
    // complement the 1-valued registers
    Aig_ManSetRegNum( pMan, Abc_NtkLatchNum(pNtk) );
    if ( fRegisters )
        Aig_ManForEachLiSeq( pMan, pObjNew, i )
            if ( Abc_LatchIsInit1(Abc_ObjFanout0(Abc_NtkCo(pNtk,i))) )
                pObjNew->pFanin0 = Aig_Not(pObjNew->pFanin0);
    // remove dangling nodes
    nNodes = (Abc_NtkGetChoiceNum(pNtk) == 0)? Aig_ManCleanup( pMan ) : 0;
    if ( !fExors && nNodes )
        Abc_Print( 1, "Abc_NtkToDar(): Unexpected %d dangling nodes when converting to AIG!\n", nNodes );
//Aig_ManDumpVerilog( pMan, "test.v" );
    // save the number of registers
    if ( fRegisters )
    {
        Aig_ManSetRegNum( pMan, Abc_NtkLatchNum(pNtk) );
        pMan->vFlopNums = Vec_IntStartNatural( pMan->nRegs );
//        pMan->vFlopNums = NULL;
//        pMan->vOnehots = Abc_NtkConverLatchNamesIntoNumbers( pNtk );
        if ( pNtk->vOnehots )
            pMan->vOnehots = (Vec_Ptr_t *)Vec_VecDupInt( (Vec_Vec_t *)pNtk->vOnehots );
    }
    if ( !Aig_ManCheck( pMan ) )
    {
        Abc_Print( 1, "Abc_NtkToDar: AIG check has failed.\n" );
        Aig_ManStop( pMan );
        return NULL;
    }
    return pMan;
}

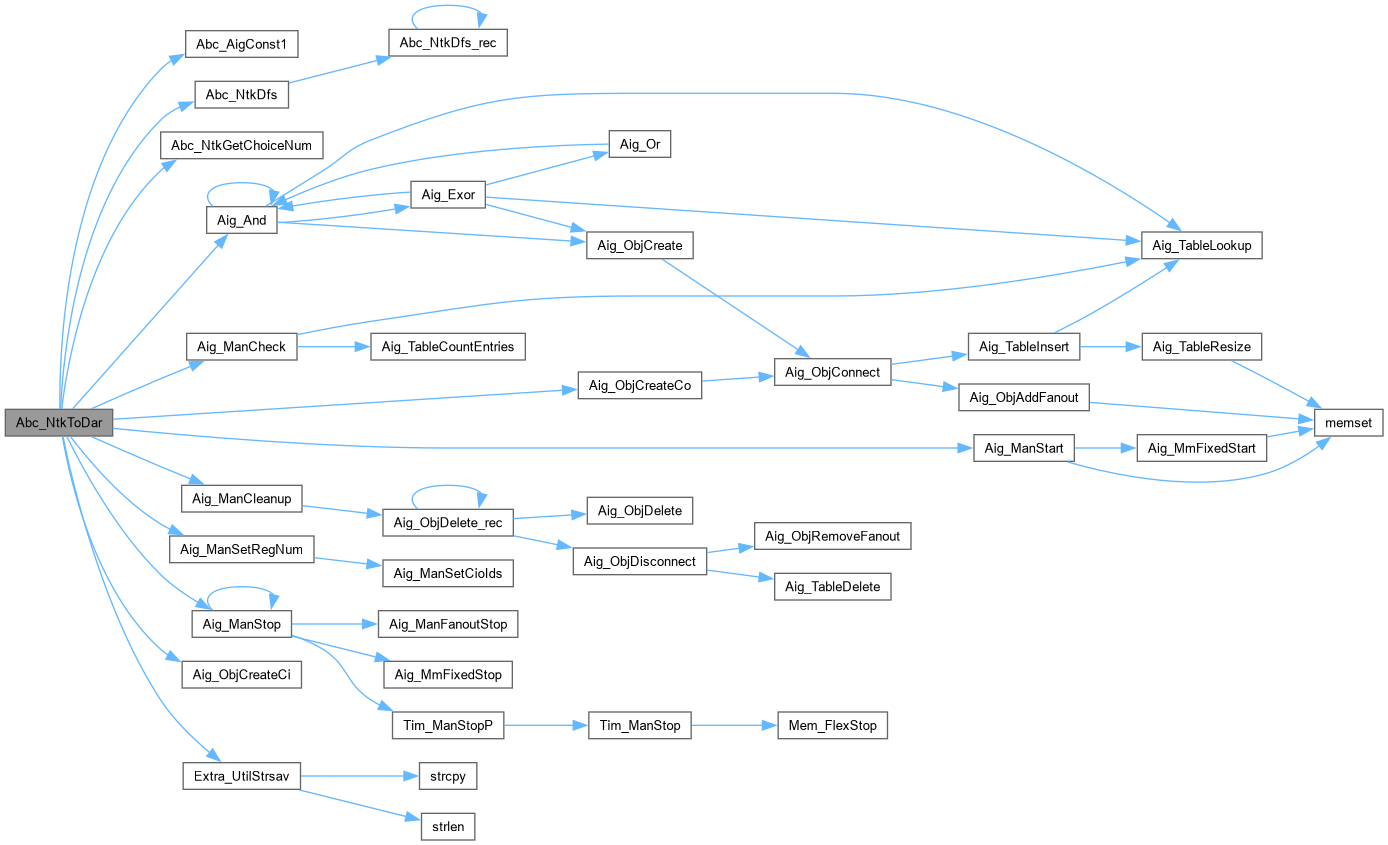

Here is the call graph for this function:

Here is the caller graph for this function:

Gia_ManTranStoch()

Gia_Man_t * Gia_ManTranStoch	(	Gia_Man_t *	pGia,
		int	nRestarts,
		int	nHops,
		int	nSeedBase,
		int	fMspf,
		int	fMerge,
		int	fResetHop,
		int	fZeroCostHop,
		int	fRefactor,
		int	fTruth,
		int	fSingle,
		int	fOriginalOnly,
		int	fNewLine,
		Gia_Man_t *	pExdc,
		int	nThreads,
		int	nVerbose )

Definition at line 261 of file giaTranStoch.c.

                                                                                                                                                                                                                                                                          {
  int i, j = 0;
  Gia_Man_t * pNew, * pBest, * pStart;
  Abc_Ntk_t * pNtk, * pNtkRes; Vec_Ptr_t * vpStarts;
  Gia_ManTranStochParam Par, *p = &Par;
  p->nRestarts = nRestarts;
  p->nHops = nHops;
  p->nSeedBase = nSeedBase;
  p->fMspf = fMspf;
  p->fMerge = fMerge;
  p->fResetHop = fResetHop;
  p->fZeroCostHop = fZeroCostHop;
  p->fRefactor = fRefactor;
  p->fTruth = fTruth;
  p->fNewLine = fNewLine;
  p->pExdc = pExdc;
  p->nVerbose = nVerbose;
#ifdef ABC_USE_PTHREADS
  p->fWorking = 0;
#endif
  // setup start points
  vpStarts = Vec_PtrAlloc( 4 );
  Vec_PtrPush( vpStarts, Gia_ManDup( pGia ) );
  if ( !fOriginalOnly ) {
    { // &put; collapse; st; &get;
      pNtk = Gia_ManTranStochPut( pGia );
      pNtkRes = Abc_NtkCollapse( pNtk, ABC_INFINITY, 0, 1, 0, 0, 0 );
      Abc_NtkDelete( pNtk );
      pNtk = pNtkRes;
      pNtkRes = Abc_NtkStrash( pNtk, 0, 1, 0 );
      Abc_NtkDelete( pNtk );
      pNtk = pNtkRes;
      pNew = Gia_ManTranStochGet( pNtk );
      Abc_NtkDelete( pNtk );
      Vec_PtrPush( vpStarts, pNew );
    }
    { // &ttopt;
      pNew = Gia_ManTtopt( pGia, Gia_ManCiNum( pGia ), Gia_ManCoNum( pGia ), 100 );
      Vec_PtrPush( vpStarts, pNew );
    }
    { // &put; collapse; sop; fx;
      pNtk = Gia_ManTranStochPut( pGia );
      pNtkRes = Abc_NtkCollapse( pNtk, ABC_INFINITY, 0, 1, 0, 0, 0 );
      Abc_NtkDelete( pNtk );
      pNtk = pNtkRes;
      Abc_NtkToSop( pNtk, -1, ABC_INFINITY );
      Gia_ManTranStochFx( pNtk );
      pNtkRes = Abc_NtkStrash( pNtk, 0, 1, 0 );
      Abc_NtkDelete( pNtk );
      pNtk = pNtkRes;
      pNew = Gia_ManTranStochGet( pNtk );
      Abc_NtkDelete( pNtk );
      Vec_PtrPush( vpStarts, pNew );
    }
  }
  if ( fSingle ) {
    pBest = (Gia_Man_t *)Vec_PtrEntry( vpStarts, 0 );
    for ( i = 1; i < Vec_PtrSize( vpStarts ); i++ ) {
      pStart = (Gia_Man_t *)Vec_PtrEntry( vpStarts, i );
      if ( Gia_ManAndNum( pStart ) < Gia_ManAndNum( pBest ) ) {
        Gia_ManStop( pBest );
        pBest = pStart;
        j = i;
      } else {
        Gia_ManStop( pStart );
      }
    }
    Vec_PtrClear( vpStarts );
    Vec_PtrPush( vpStarts, pBest );
  }
  // optimize
  pBest = Gia_ManDup( pGia );
  if ( nThreads == 1 ) {
    Vec_PtrForEachEntry( Gia_Man_t *, vpStarts, pStart, i ) {
      if ( p->nVerbose )
        printf( "*begin starting point %d: #nodes = %5d\n", i + j, Gia_ManAndNum( pStart ) );
      p->pStart = pStart;
      pNew = Gia_ManTranStochOpt3( p );
      if ( p->nVerbose )
        printf( "*end   starting point %d: #nodes = %5d\n", i + j, Gia_ManAndNum( pNew ) );
      if ( Gia_ManAndNum( pBest ) > Gia_ManAndNum( pNew ) ) {
        Gia_ManStop( pBest );
        pBest = pNew;
      } else {
        Gia_ManStop( pNew );
      }
      Gia_ManStop( pStart );
    }
  } else {
#ifdef ABC_USE_PTHREADS
    static pthread_mutex_t mutex;
    int k, status, nIte, fAssigned, fWorking;
    Gia_ManTranStochParam ThData[100];
    pthread_t WorkerThread[100];
    p->pRes = NULL;
    p->mutex = &mutex;
    if ( p->nVerbose )
      p->nVerbose--;
    for ( i = 0; i < nThreads; i++ ) {
      ThData[i] = *p;
      status = pthread_create( WorkerThread + i, NULL, Gia_ManTranStochWorkerThread, (void *)(ThData + i) );
      assert( status == 0 );
    }
    Vec_PtrForEachEntry( Gia_Man_t *, vpStarts, pStart, k ) {
      for ( nIte = 0; nIte <= p->nRestarts; nIte++ ) {
        fAssigned = 0;
        while ( !fAssigned ) {
          for ( i = 0; i < nThreads; i++ ) {
            if ( ThData[i].fWorking )
              continue;
            if ( ThData[i].pRes != NULL ) {
              if( nVerbose )
                printf( "*sp %d res %4d        : #nodes = %5d\n", ThData[i].nSp, ThData[i].nIte, Gia_ManAndNum( ThData[i].pRes ) );
              if ( Gia_ManAndNum( pBest ) > Gia_ManAndNum( ThData[i].pRes ) ) {
                Gia_ManStop( pBest );
                pBest = ThData[i].pRes;
              } else {
                Gia_ManStop( ThData[i].pRes );
              }
              ThData[i].pRes = NULL;
            }
            ThData[i].nSp = j + k;
            ThData[i].nIte = nIte;
            ThData[i].pStart = pStart;
            ThData[i].fWorking = 1;
            fAssigned = 1;
            break;
          }
        }
      }
    }
    fWorking = 1;
    while ( fWorking ) {
      fWorking = 0;
      for ( i = 0; i < nThreads; i++ ) {
        if( ThData[i].fWorking ) {
          fWorking = 1;
          continue;
        }
        if ( ThData[i].pRes != NULL ) {
          if( nVerbose )
            printf( "*sp %d res %4d        : #nodes = %5d\n", ThData[i].nSp, ThData[i].nIte, Gia_ManAndNum( ThData[i].pRes ) );
          if ( Gia_ManAndNum( pBest ) > Gia_ManAndNum( ThData[i].pRes ) ) {
            Gia_ManStop( pBest );
            pBest = ThData[i].pRes;
          } else {
            Gia_ManStop( ThData[i].pRes );
          }
          ThData[i].pRes = NULL;
        }
      }
    }
    for ( i = 0; i < nThreads; i++ ) {
      ThData[i].pStart = NULL;
      ThData[i].fWorking = 1;
    }
#else
    printf( "ERROR: pthread is off" );
#endif
    Vec_PtrForEachEntry( Gia_Man_t *, vpStarts, pStart, i )
      Gia_ManStop( pStart );
  }
  if ( nVerbose )
    printf( "best: %d\n", Gia_ManAndNum( pBest ) );
  Vec_PtrFree( vpStarts );
  ABC_FREE( pBest->pName );
  ABC_FREE( pBest->pSpec );
  pBest->pName = Abc_UtilStrsav( pGia->pName );
  pBest->pSpec = Abc_UtilStrsav( pGia->pSpec );
  return pBest;
}

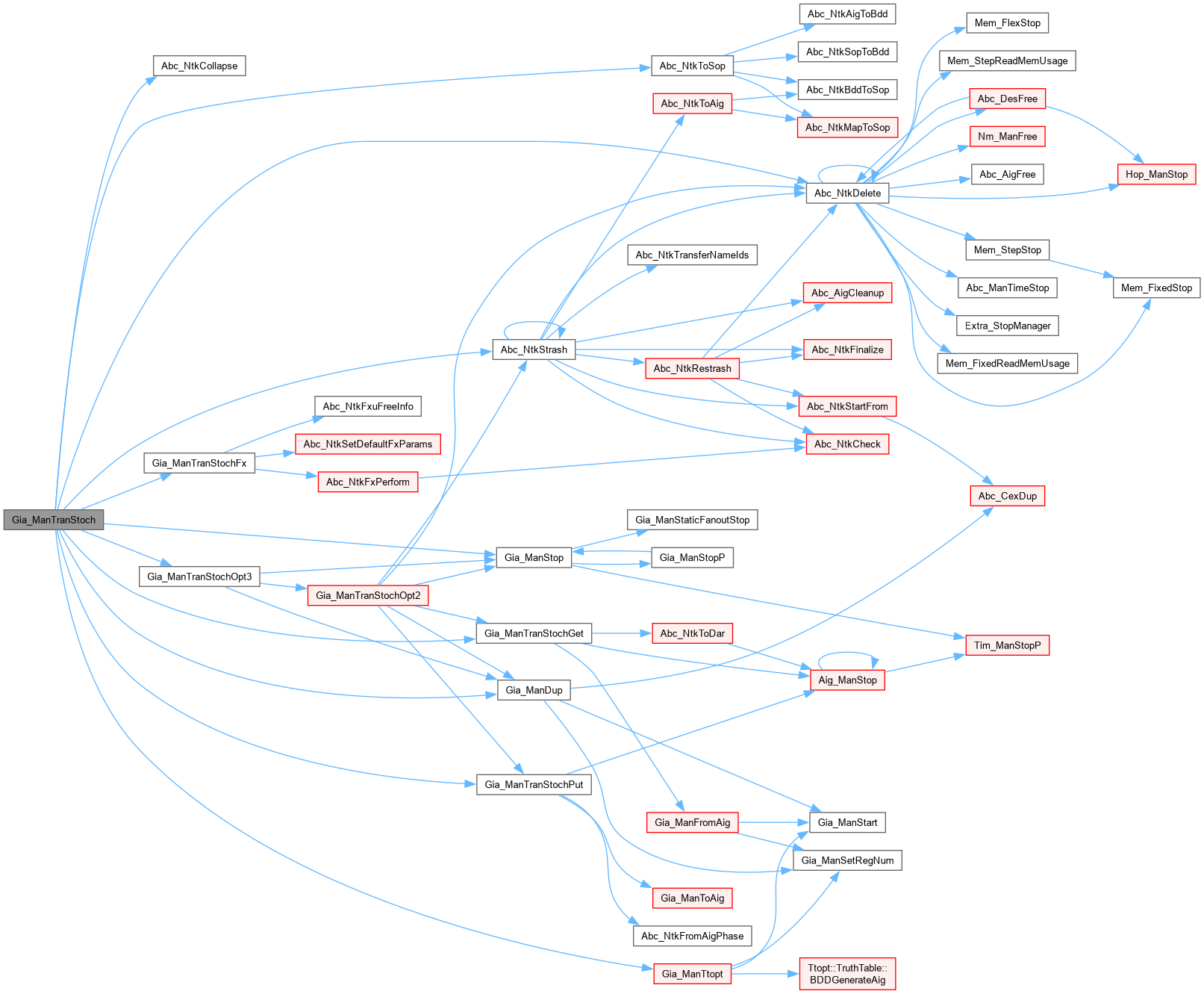

Here is the call graph for this function:

Gia_ManTranStochFx()

void Gia_ManTranStochFx

(

Abc_Ntk_t *

pNtk

)

Definition at line 82 of file giaTranStoch.c.

                                            {
  Fxu_Data_t Params, * p = &Params;
  Abc_NtkSetDefaultFxParams( p );
  Abc_NtkFxPerform( pNtk, p->nNodesExt, p->LitCountMax, p->fCanonDivs, p->fVerbose, p->fVeryVerbose );
  Abc_NtkFxuFreeInfo( p );
}

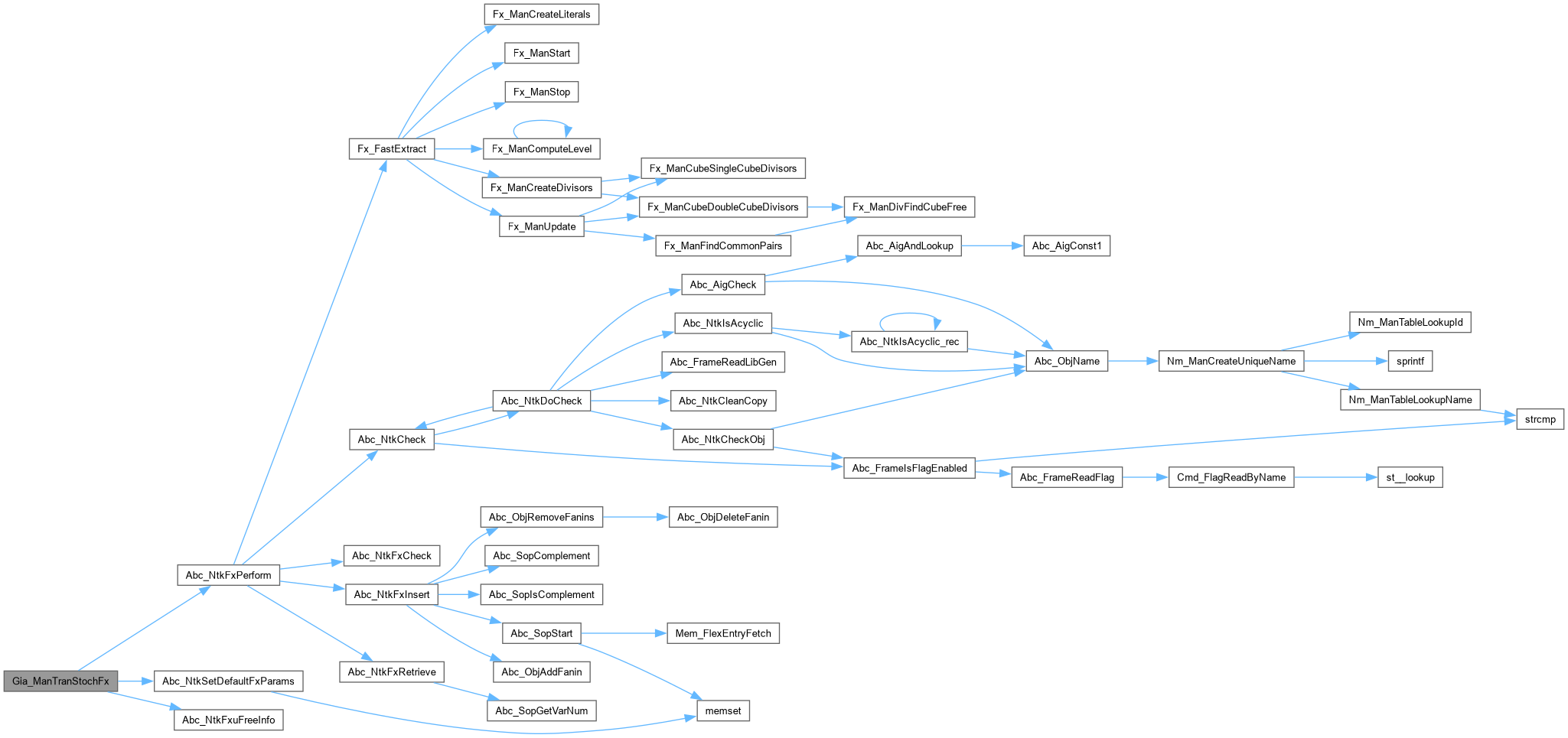

Here is the call graph for this function:

Here is the caller graph for this function:

Gia_ManTranStochGet()

Gia_Man_t * Gia_ManTranStochGet

(

Abc_Ntk_t *

pNtk

)

Definition at line 75 of file giaTranStoch.c.

                                                    {
  Gia_Man_t * pGia;
  Aig_Man_t * pAig = Abc_NtkToDar( pNtk, 0, 1 );
  pGia = Gia_ManFromAig( pAig );
  Aig_ManStop( pAig );
  return pGia;
}

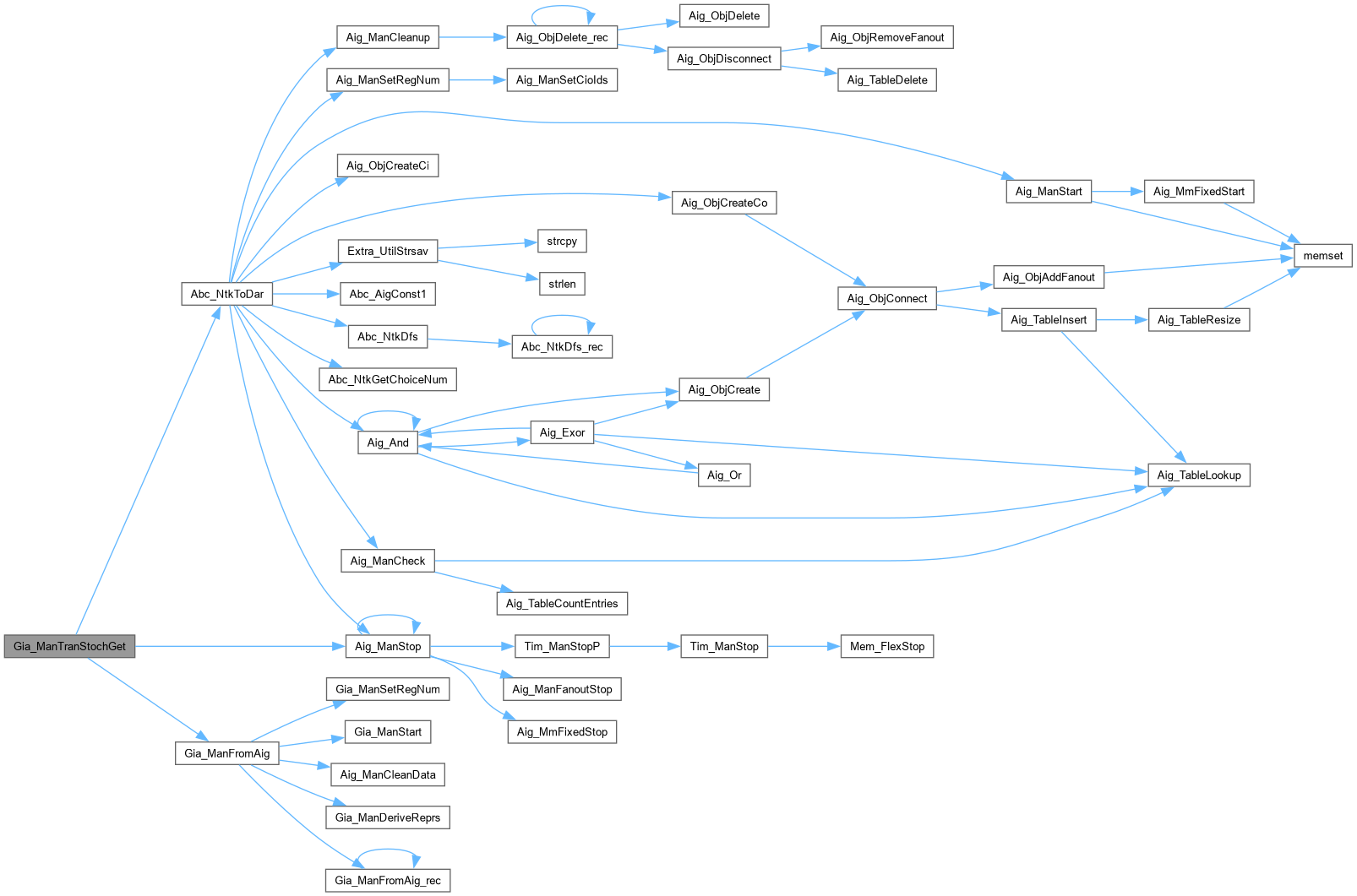

Here is the call graph for this function:

Here is the caller graph for this function:

Gia_ManTranStochIf()

Abc_Ntk_t * Gia_ManTranStochIf

(

Abc_Ntk_t *

pNtk

)

Definition at line 63 of file giaTranStoch.c.

                                                   {
  If_Par_t Pars, * pPars = &Pars;
  If_ManSetDefaultPars( pPars );
  pPars->pLutLib = (If_LibLut_t *)Abc_FrameReadLibLut();
  pPars->nLutSize = pPars->pLutLib->LutMax;
  return Abc_NtkIf( pNtk, pPars );
}

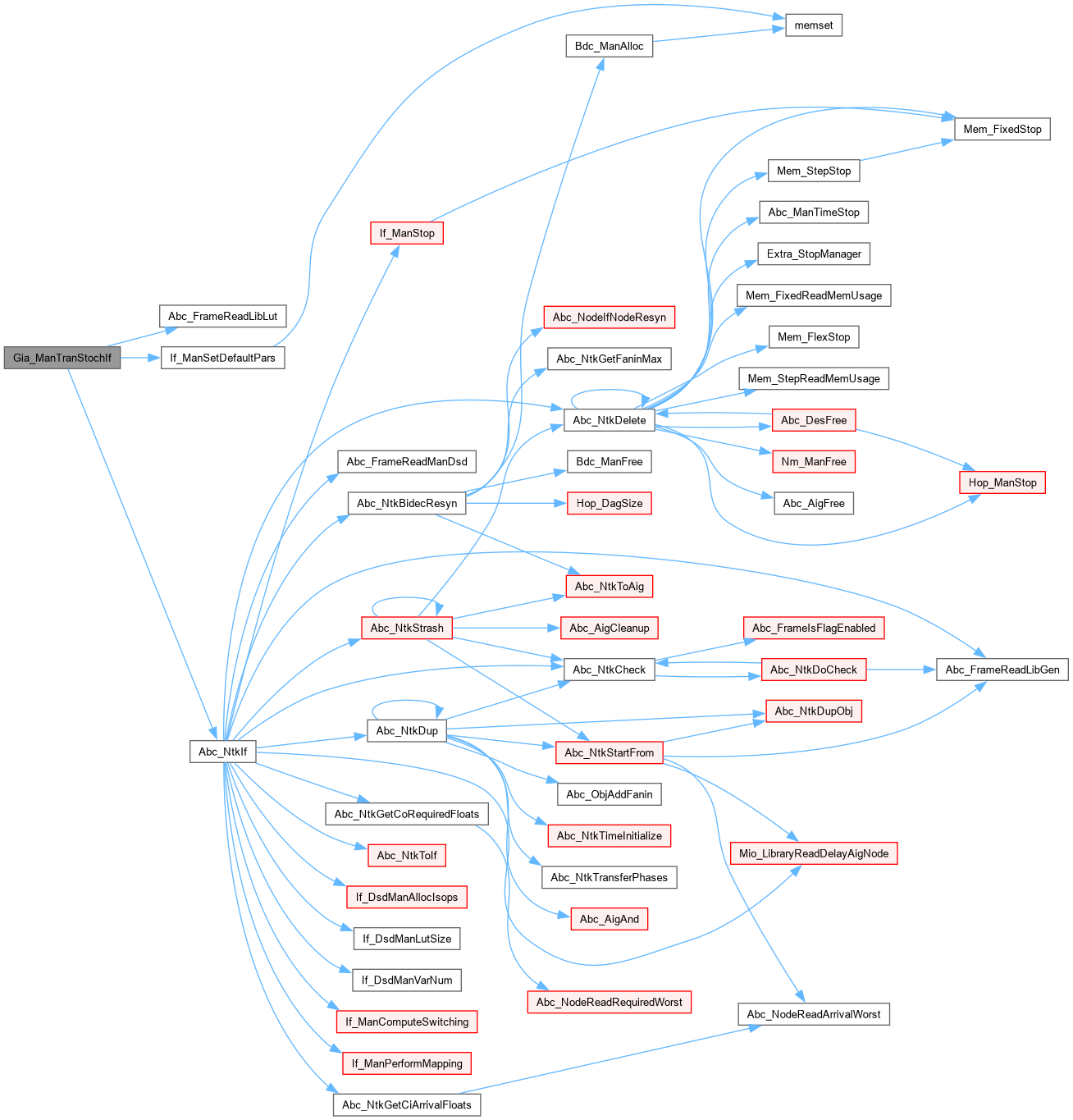

Here is the call graph for this function:

Here is the caller graph for this function:

Gia_ManTranStochLock()

void Gia_ManTranStochLock

(

Gia_ManTranStochParam *

p

)

Definition at line 130 of file giaTranStoch.c.

                                                       {
#ifdef ABC_USE_PTHREADS
  if ( p->fWorking )
    pthread_mutex_lock( p->mutex );
#endif
}

Here is the caller graph for this function:

Gia_ManTranStochMfs2()

void Gia_ManTranStochMfs2

(

Abc_Ntk_t *

pNtk

)

Definition at line 70 of file giaTranStoch.c.

                                              {
  Sfm_Par_t Pars, * pPars = &Pars;
  Sfm_ParSetDefault( pPars );
  Abc_NtkPerformMfs( pNtk, pPars );
}

Here is the call graph for this function:

Here is the caller graph for this function:

Gia_ManTranStochOpt1()

Gia_Man_t * Gia_ManTranStochOpt1	(	Gia_ManTranStochParam *	p,
		Gia_Man_t *	pOld )

Definition at line 143 of file giaTranStoch.c.

                                                                                {
  Gia_Man_t * pGia, * pNew;
  int i = 0, n;
  pGia = Gia_ManDup( pOld );
  do {
    n = Gia_ManAndNum( pGia );
    if ( p->fTruth )
      pNew = Gia_ManTransductionTt( pGia, (p->fMerge? 8: 7), p->fMspf, p->nSeed++, 0, 0, 0, 0, p->pExdc, p->fNewLine, p->nVerbose > 0? p->nVerbose - 1: 0 );
    else
      pNew = Gia_ManTransductionBdd( pGia, (p->fMerge? 8: 7), p->fMspf, p->nSeed++, 0, 0, 0, 0, p->pExdc, p->fNewLine, p->nVerbose > 0? p->nVerbose - 1: 0 );
    Gia_ManStop( pGia );
    pGia = pNew;
    if ( p->fRefactor ) {
      pNew = Gia_ManTranStochRefactor( pGia );
      Gia_ManStop( pGia );
      pGia = pNew;
    } else {
      Gia_ManTranStochLock( p );
      pNew = Gia_ManCompress2( pGia, 1, 0 );
      Gia_ManTranStochUnlock( p );
      Gia_ManStop( pGia );
      pGia = pNew;
    }
    if ( p->nVerbose )
      printf( "*                ite %d : #nodes = %5d\n", i, Gia_ManAndNum( pGia ) );
    i++;
  } while ( n > Gia_ManAndNum( pGia ) );
  return pGia;
}

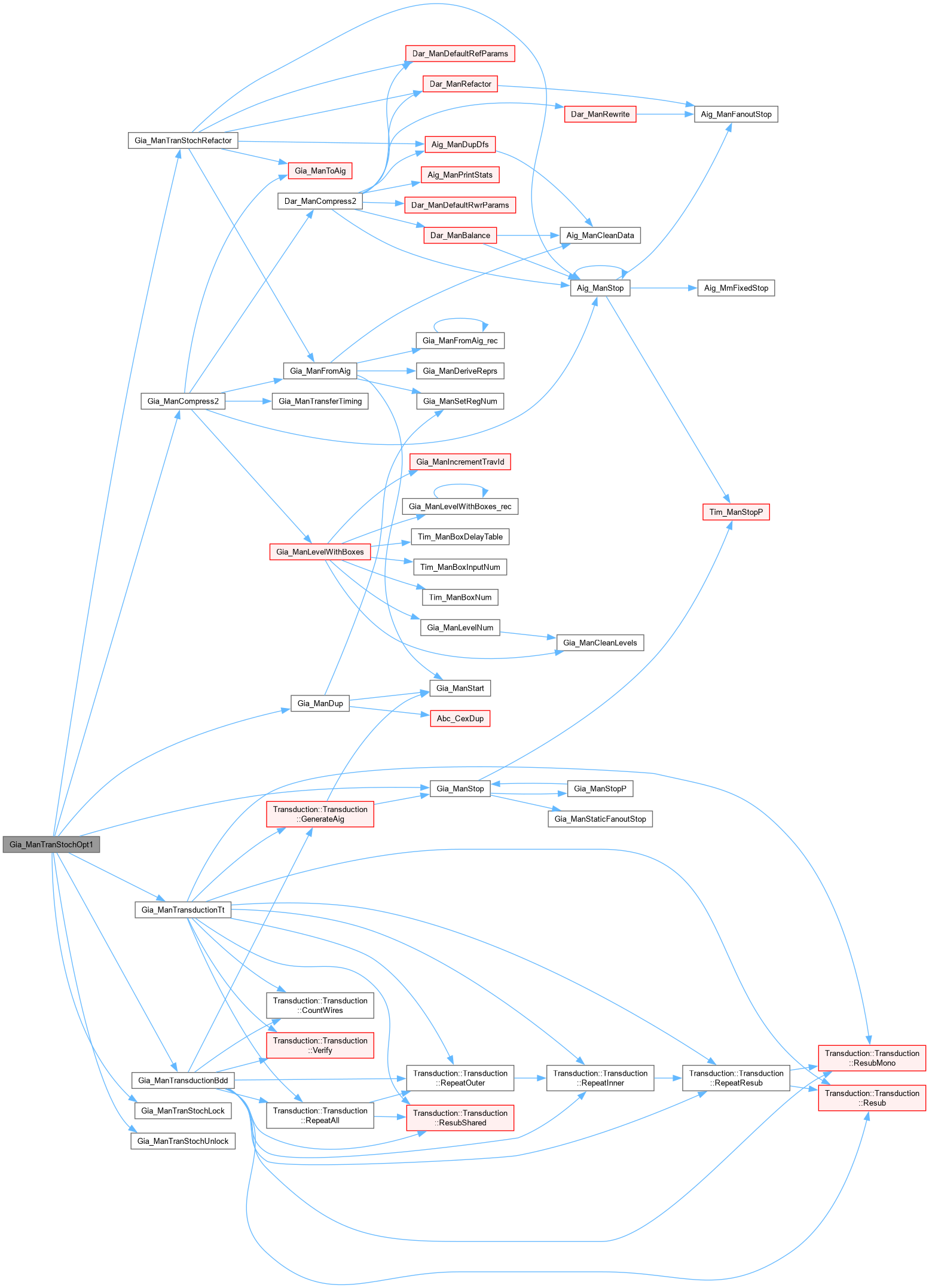

Here is the call graph for this function:

Here is the caller graph for this function:

Gia_ManTranStochOpt2()

Gia_Man_t * Gia_ManTranStochOpt2

(

Gia_ManTranStochParam *

p

)

Definition at line 173 of file giaTranStoch.c.

                                                              {
  int i, n = Gia_ManAndNum( p->pStart );
  Gia_Man_t * pGia, * pBest, * pNew;
  Abc_Ntk_t * pNtk, * pNtkRes;
  pGia = Gia_ManDup( p->pStart );
  pBest = Gia_ManDup( pGia );
  for ( i = 0; 1; i++ ) {
    pNew = Gia_ManTranStochOpt1( p, pGia );
    Gia_ManStop( pGia );
    pGia = pNew;
    if ( n > Gia_ManAndNum( pGia ) ) {
      n = Gia_ManAndNum( pGia );
      Gia_ManStop( pBest );
      pBest = Gia_ManDup( pGia );
      if ( p->fResetHop )
        i = 0;
    }
    if ( i == p->nHops )
      break;
    if ( p->fZeroCostHop ) {
      pNew = Gia_ManTranStochRefactor( pGia );
      Gia_ManStop( pGia );
      pGia = pNew;
    } else {
      Gia_ManTranStochLock( p );
      pNtk = Gia_ManTranStochPut( pGia );
      Gia_ManTranStochUnlock( p );
      Gia_ManStop( pGia );
      pNtkRes = Gia_ManTranStochIf( pNtk );
      Abc_NtkDelete( pNtk );
      pNtk = pNtkRes;
      Gia_ManTranStochMfs2( pNtk );
      Gia_ManTranStochLock( p );
      pNtkRes = Abc_NtkStrash( pNtk, 0, 1, 0 );
      Gia_ManTranStochUnlock( p );
      Abc_NtkDelete( pNtk );
      pNtk = pNtkRes;
      pGia = Gia_ManTranStochGet( pNtk );
      Abc_NtkDelete( pNtk );
    }
    if ( p->nVerbose )
      printf( "*         hop %d        : #nodes = %5d\n", i, Gia_ManAndNum( pGia ) );
  }
  Gia_ManStop( pGia );
  return pBest;
}

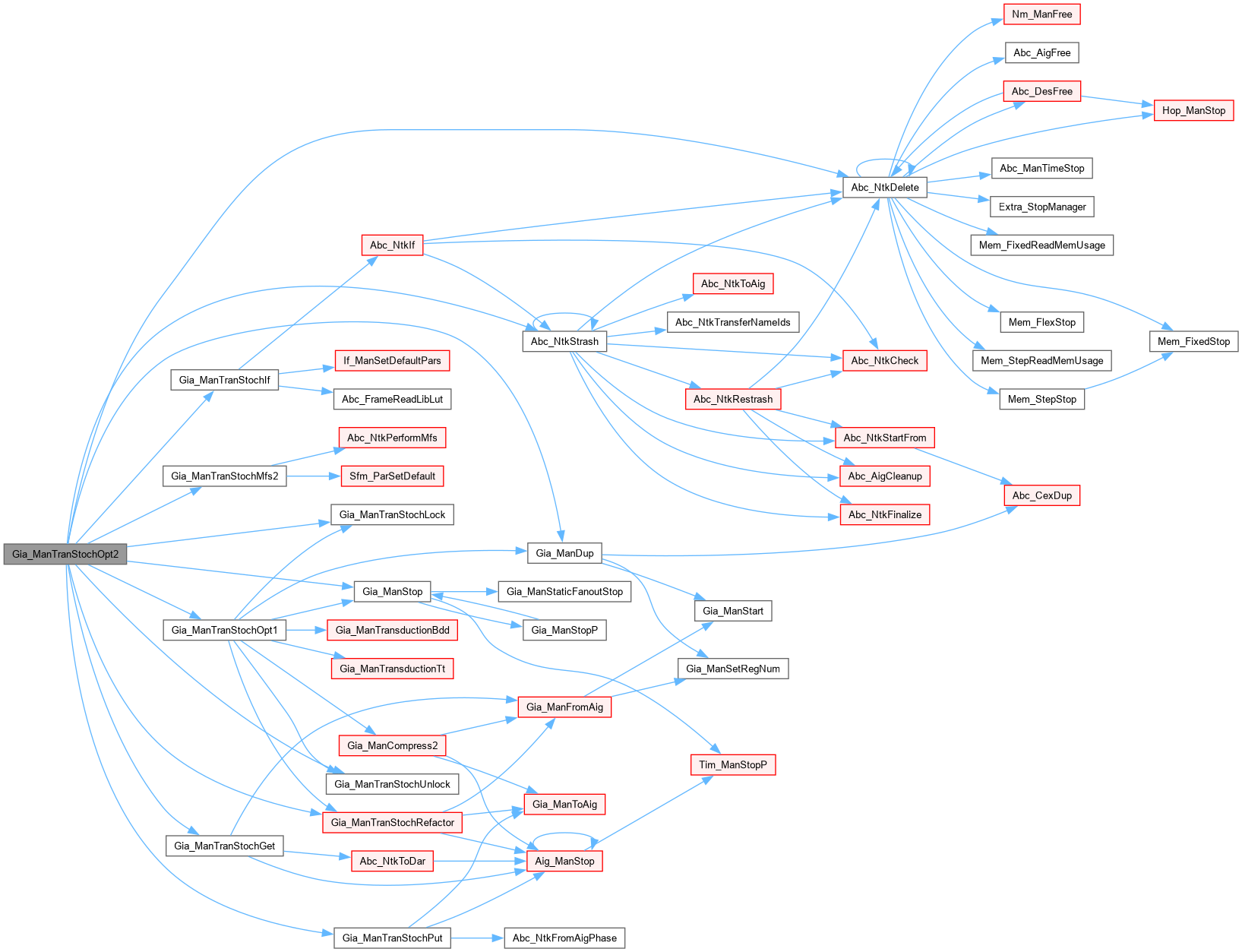

Here is the call graph for this function:

Here is the caller graph for this function:

Gia_ManTranStochOpt3()

Gia_Man_t * Gia_ManTranStochOpt3

(

Gia_ManTranStochParam *

p

)

Definition at line 220 of file giaTranStoch.c.

                                                              {
  int i, n = Gia_ManAndNum( p->pStart );
  Gia_Man_t * pBest, * pNew;
  pBest = Gia_ManDup( p->pStart );
  for ( i = 0; i <= p->nRestarts; i++ ) {
    p->nSeed = 1234 * (i + p->nSeedBase);
    pNew = Gia_ManTranStochOpt2( p );
    if ( p->nRestarts && p->nVerbose )
      printf( "*  res %2d              : #nodes = %5d\n", i, Gia_ManAndNum( pNew ) );
    if ( n > Gia_ManAndNum( pNew ) ) {
      n = Gia_ManAndNum( pNew );
      Gia_ManStop( pBest );
      pBest = pNew;
    } else {
      Gia_ManStop( pNew );
    }
  }
  return pBest;
}

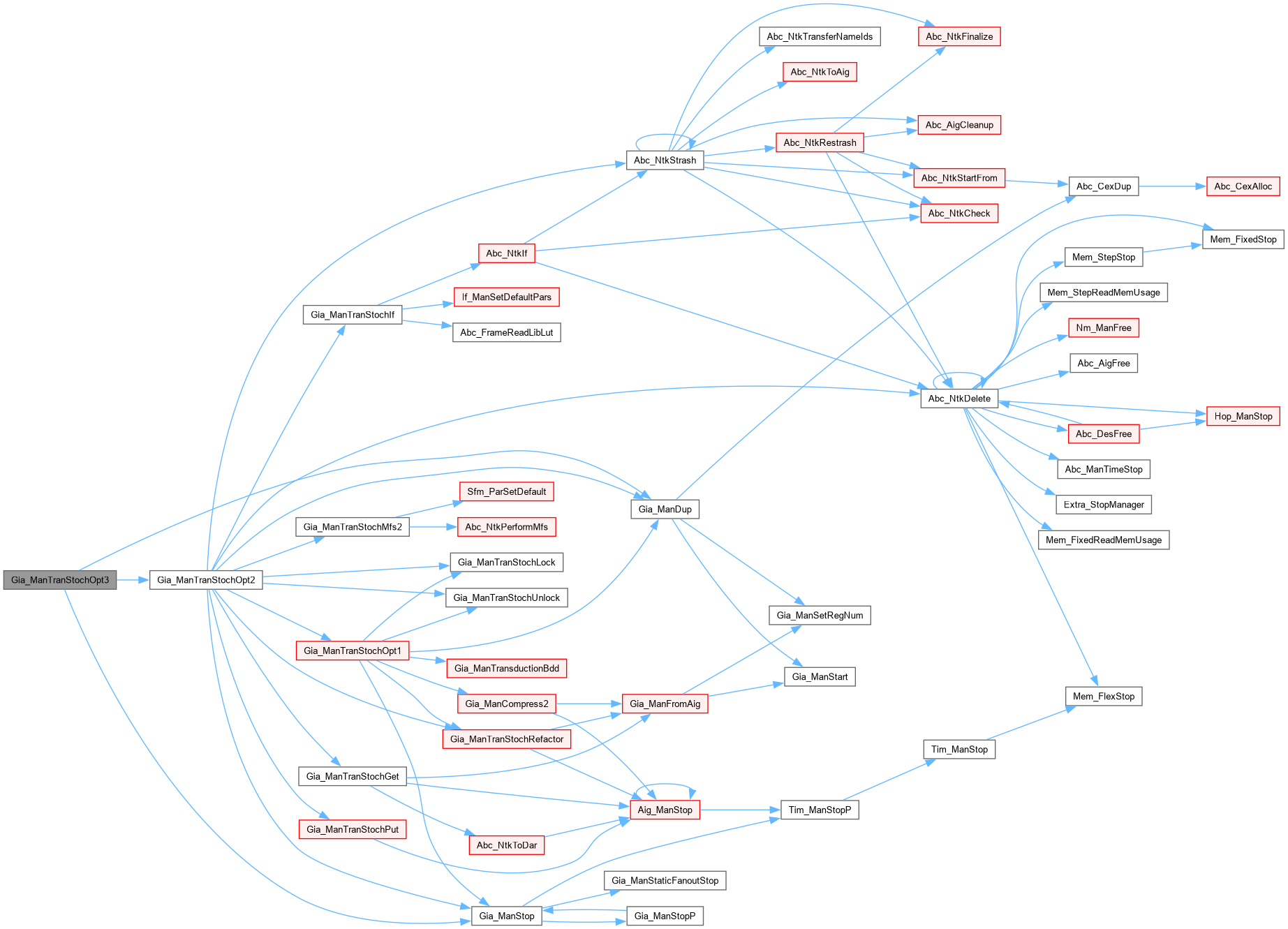

Here is the call graph for this function:

Here is the caller graph for this function:

Gia_ManTranStochPut()

Abc_Ntk_t * Gia_ManTranStochPut

(

Gia_Man_t *

pGia

)

Definition at line 56 of file giaTranStoch.c.

                                                    {
  Abc_Ntk_t * pNtk;
  Aig_Man_t * pMan = Gia_ManToAig( pGia, 0 );
  pNtk = Abc_NtkFromAigPhase( pMan );
  Aig_ManStop( pMan );
  return pNtk;
}

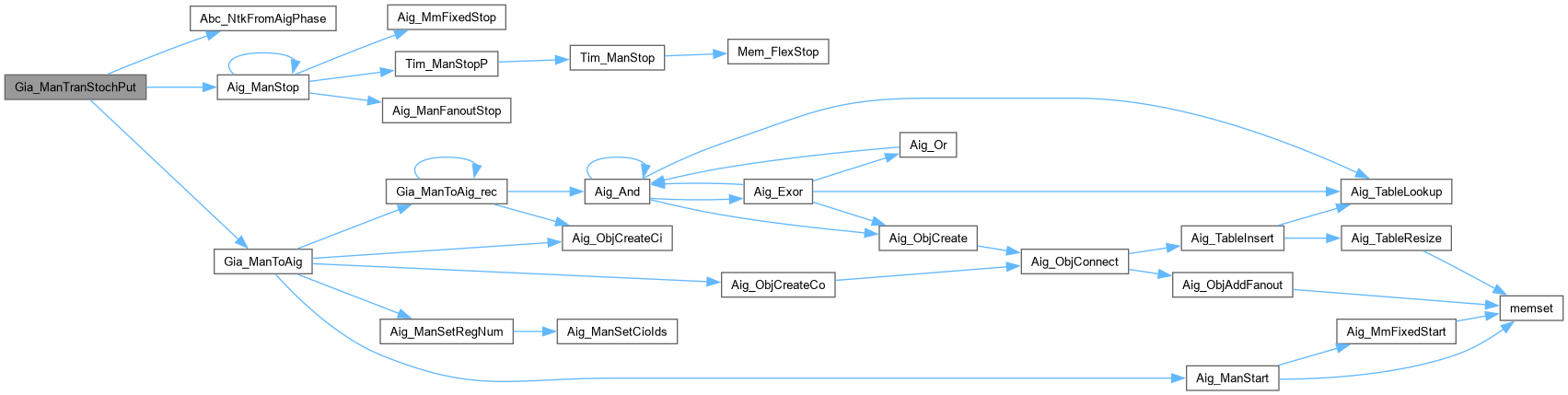

Here is the call graph for this function:

Here is the caller graph for this function:

Gia_ManTranStochRefactor()

Gia_Man_t * Gia_ManTranStochRefactor

(

Gia_Man_t *

pGia

)

Definition at line 88 of file giaTranStoch.c.

                                                         {
  Gia_Man_t * pNew;
  Aig_Man_t * pAig, * pTemp;
  Dar_RefPar_t Pars, * pPars = &Pars;
  Dar_ManDefaultRefParams( pPars );
  pPars->fUseZeros = 1;
  pAig = Gia_ManToAig( pGia, 0 );
  Dar_ManRefactor( pAig, pPars );
  pAig = Aig_ManDupDfs( pTemp = pAig );
  Aig_ManStop( pTemp );
  pNew = Gia_ManFromAig( pAig );
  Aig_ManStop( pAig );
  return pNew;
}

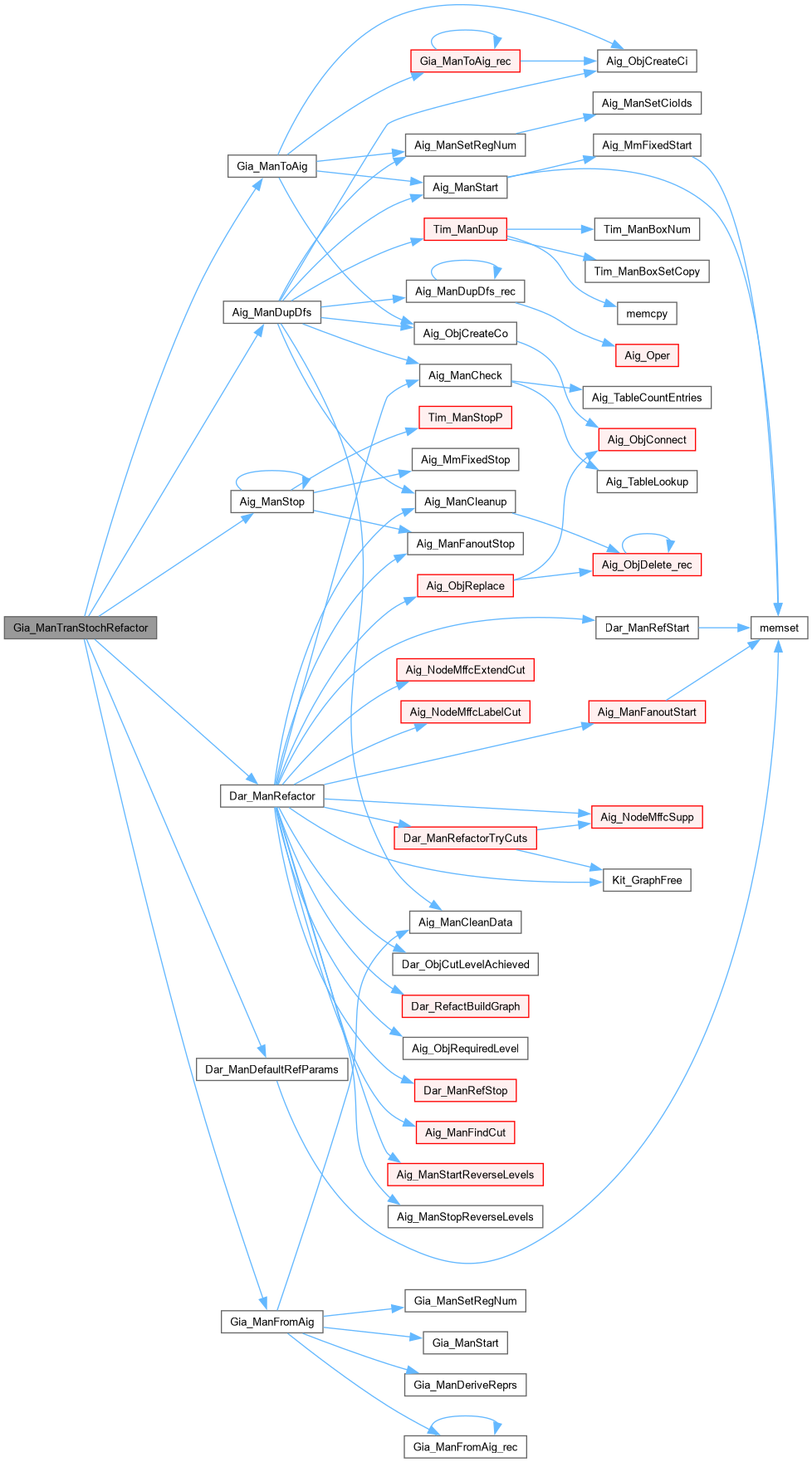

Here is the call graph for this function:

Here is the caller graph for this function:

Gia_ManTranStochUnlock()

void Gia_ManTranStochUnlock

(

Gia_ManTranStochParam *

p

)

Definition at line 136 of file giaTranStoch.c.

                                                         {
#ifdef ABC_USE_PTHREADS
  if ( p->fWorking )
    pthread_mutex_unlock( p->mutex );
#endif
}

Here is the caller graph for this function:
