pdrCore.c File Reference

#include "pdrInt.h"
#include "base/main/main.h"
#include "misc/hash/hash.h"

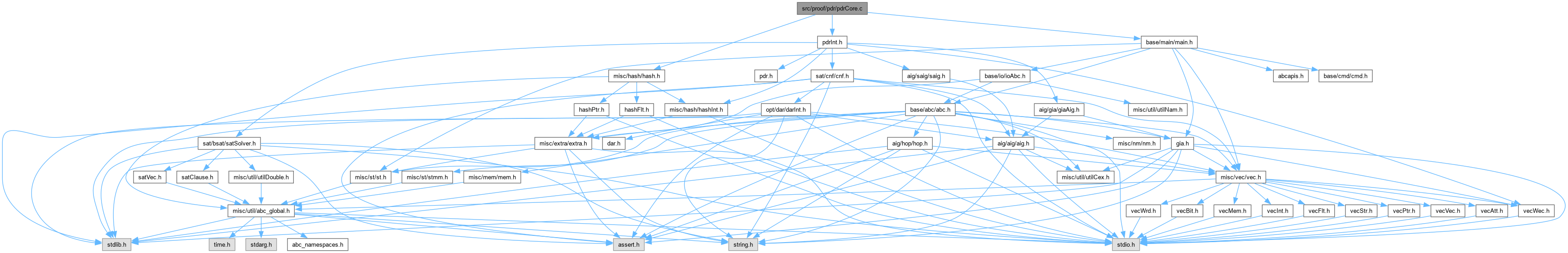

Include dependency graph for pdrCore.c:

Go to the source code of this file.

Functions
ABC_NAMESPACE_IMPL_START int	Gia_ManToBridgeResult (FILE *pFile, int Result, Abc_Cex_t *pCex, int iPoProved)
	DECLARATIONS ///.
int	Gia_ManToBridgeAbort (FILE *pFile, int Size, unsigned char *pBuffer)
void	Pdr_ManSetDefaultParams (Pdr_Par_t *pPars)
	FUNCTION DEFINITIONS ///.
Pdr_Set_t *	Pdr_ManReduceClause (Pdr_Man_t *p, int k, Pdr_Set_t *pCube)

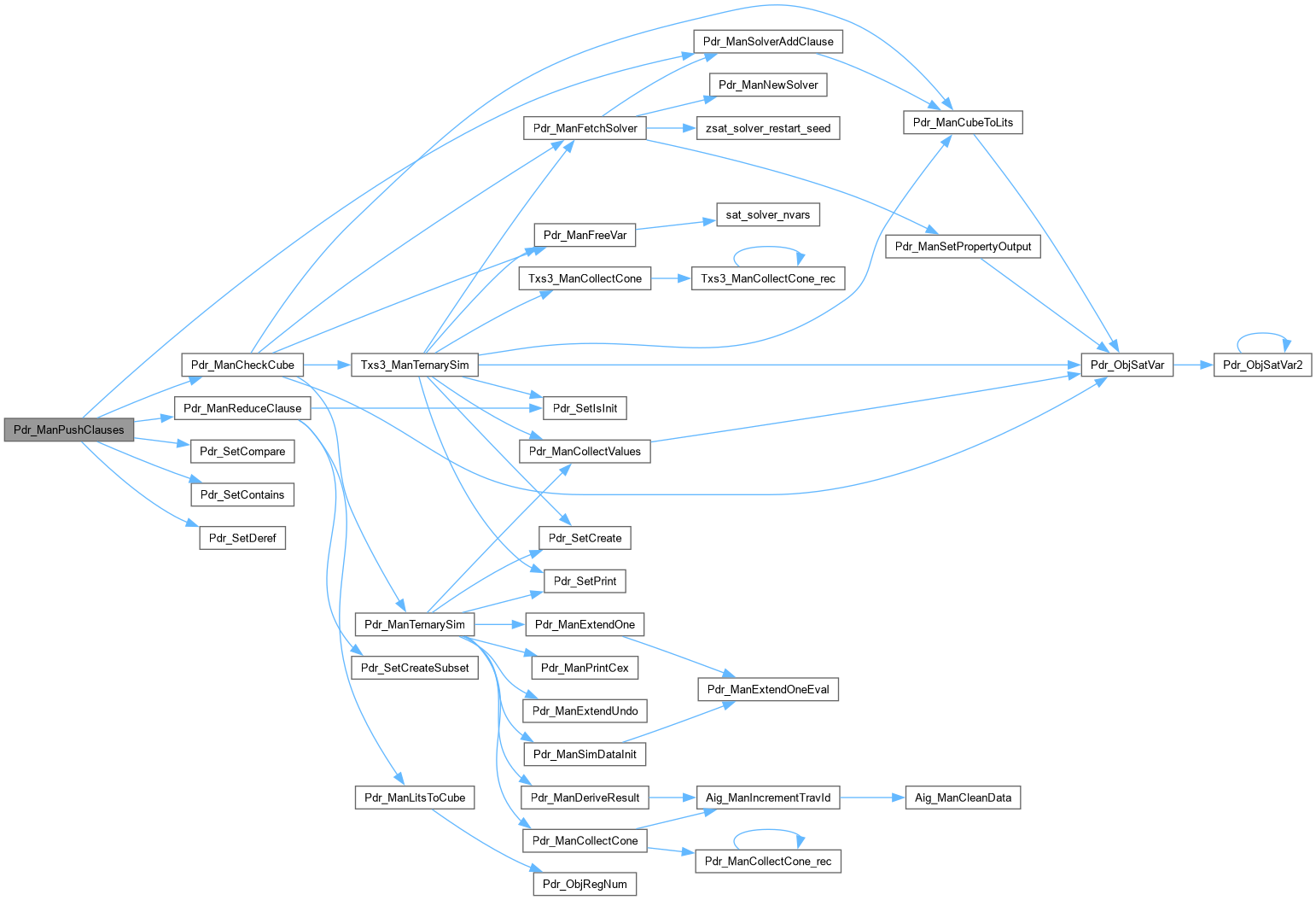

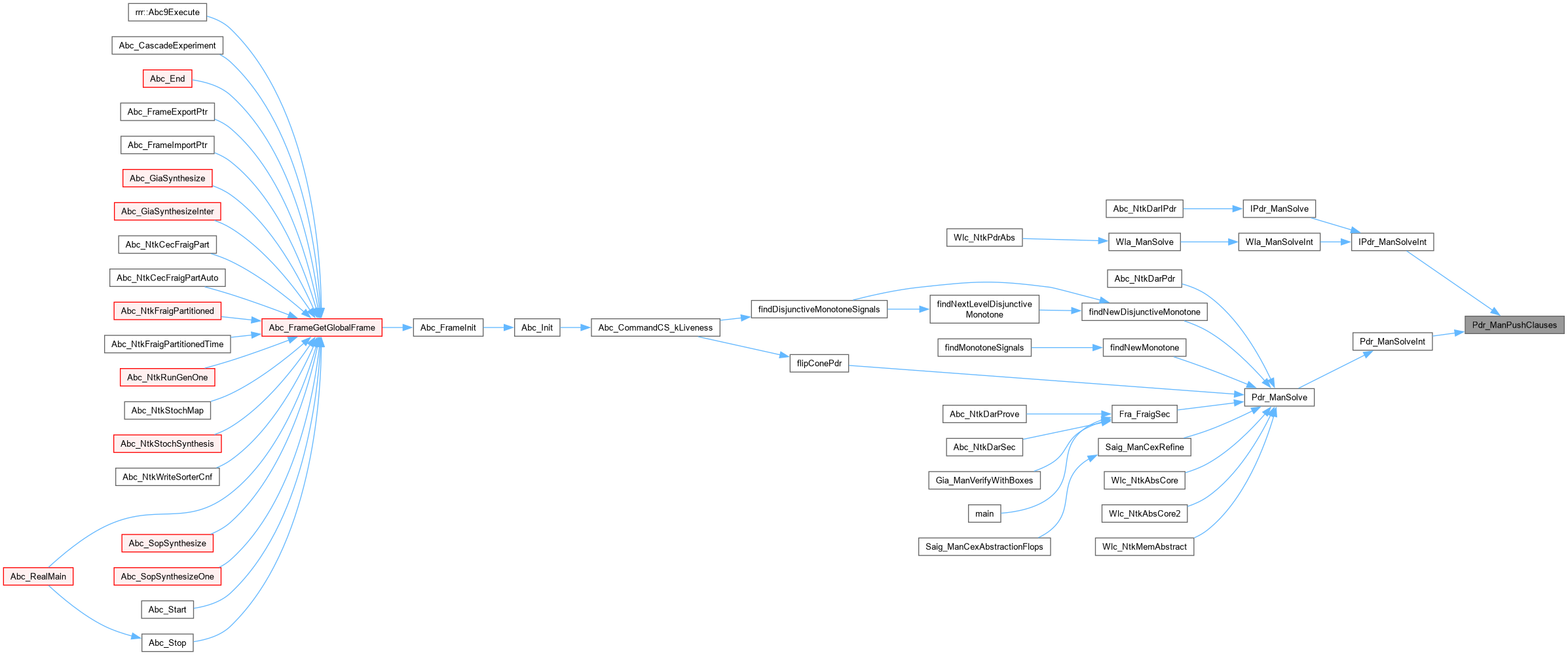

int	Pdr_ManPushClauses (Pdr_Man_t *p)

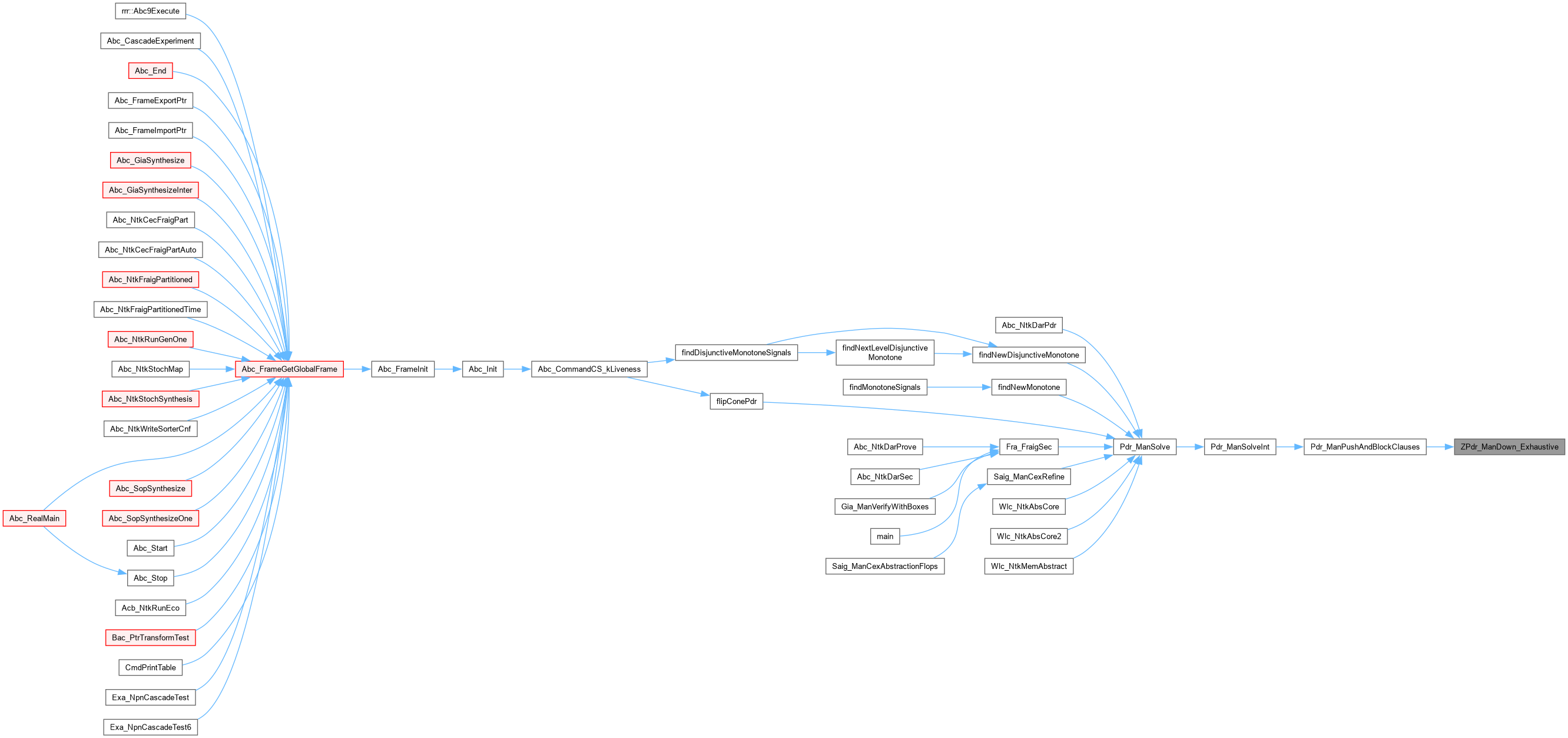

int	ZPdr_ManDown_Exhaustive (Pdr_Man_t *, int, Pdr_Set_t **, Pdr_Set_t *, Hash_Int_t *, Pdr_Set_t *, int *)

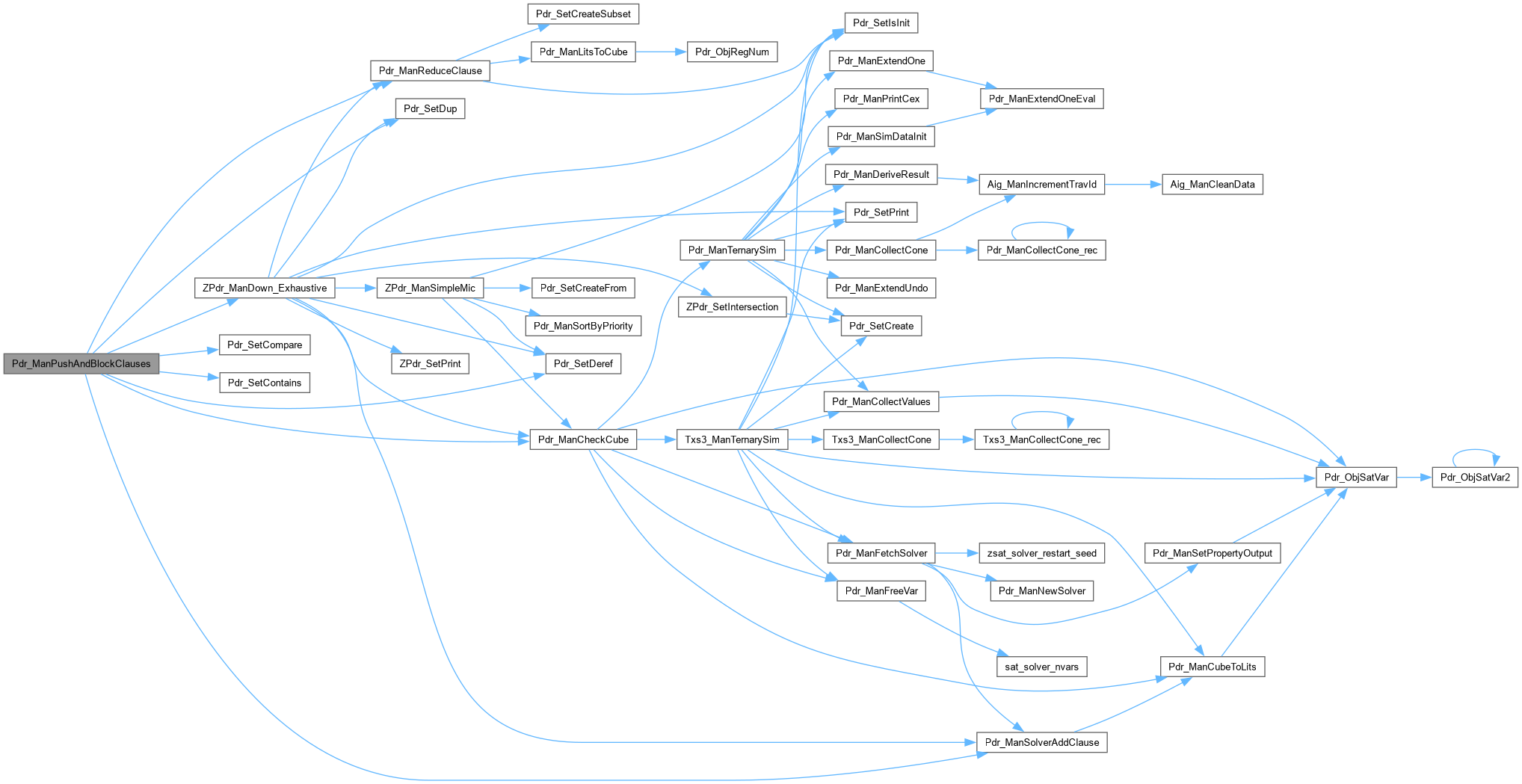

int	Pdr_ManPushAndBlockClauses (Pdr_Man_t *p)
int	Pdr_ManCheckContainment (Pdr_Man_t *p, int k, Pdr_Set_t *pSet)
int *	Pdr_ManSortByPriority (Pdr_Man_t *p, Pdr_Set_t *pCube)
int	ZPdr_ManSimpleMic (Pdr_Man_t *p, int k, Pdr_Set_t **ppCube)
int	ZPdr_ManDown (Pdr_Man_t *p, int k, Pdr_Set_t **ppCube, Pdr_Set_t *pPred, Hash_Int_t *keep, Pdr_Set_t *pIndCube, int *added)

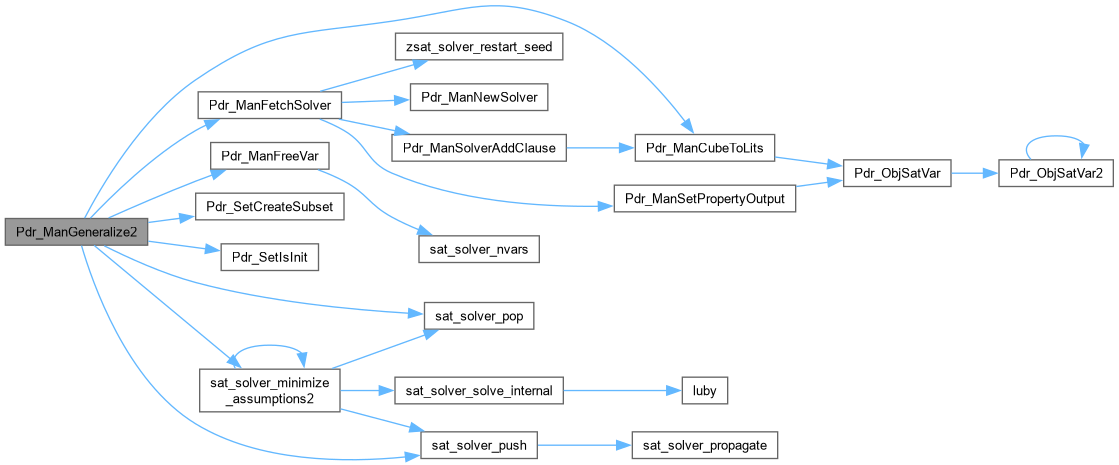

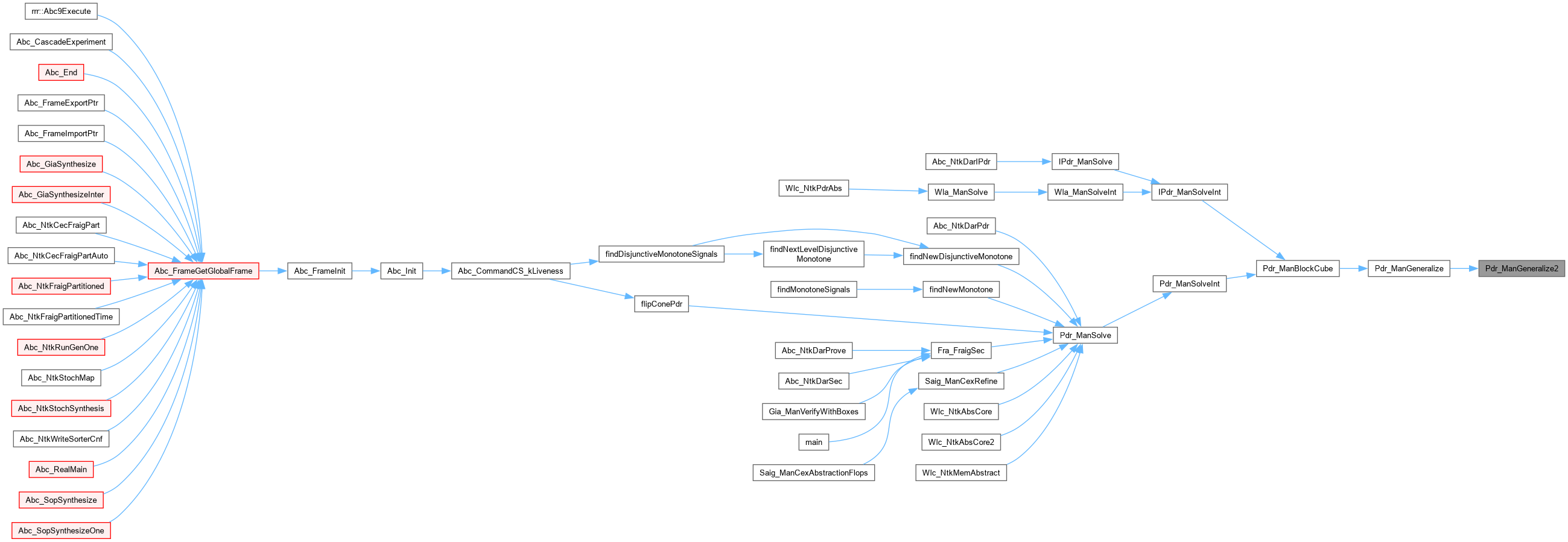

int	Pdr_ManGeneralize2 (Pdr_Man_t *p, int k, Pdr_Set_t *pCube, Pdr_Set_t **ppCubeMin)
int	Pdr_ManGeneralize (Pdr_Man_t *p, int k, Pdr_Set_t *pCube, Pdr_Set_t **ppPred, Pdr_Set_t **ppCubeMin)
int	Pdr_ManBlockCube (Pdr_Man_t *p, Pdr_Set_t *pCube)
int	Pdr_ManSolveInt (Pdr_Man_t *p)

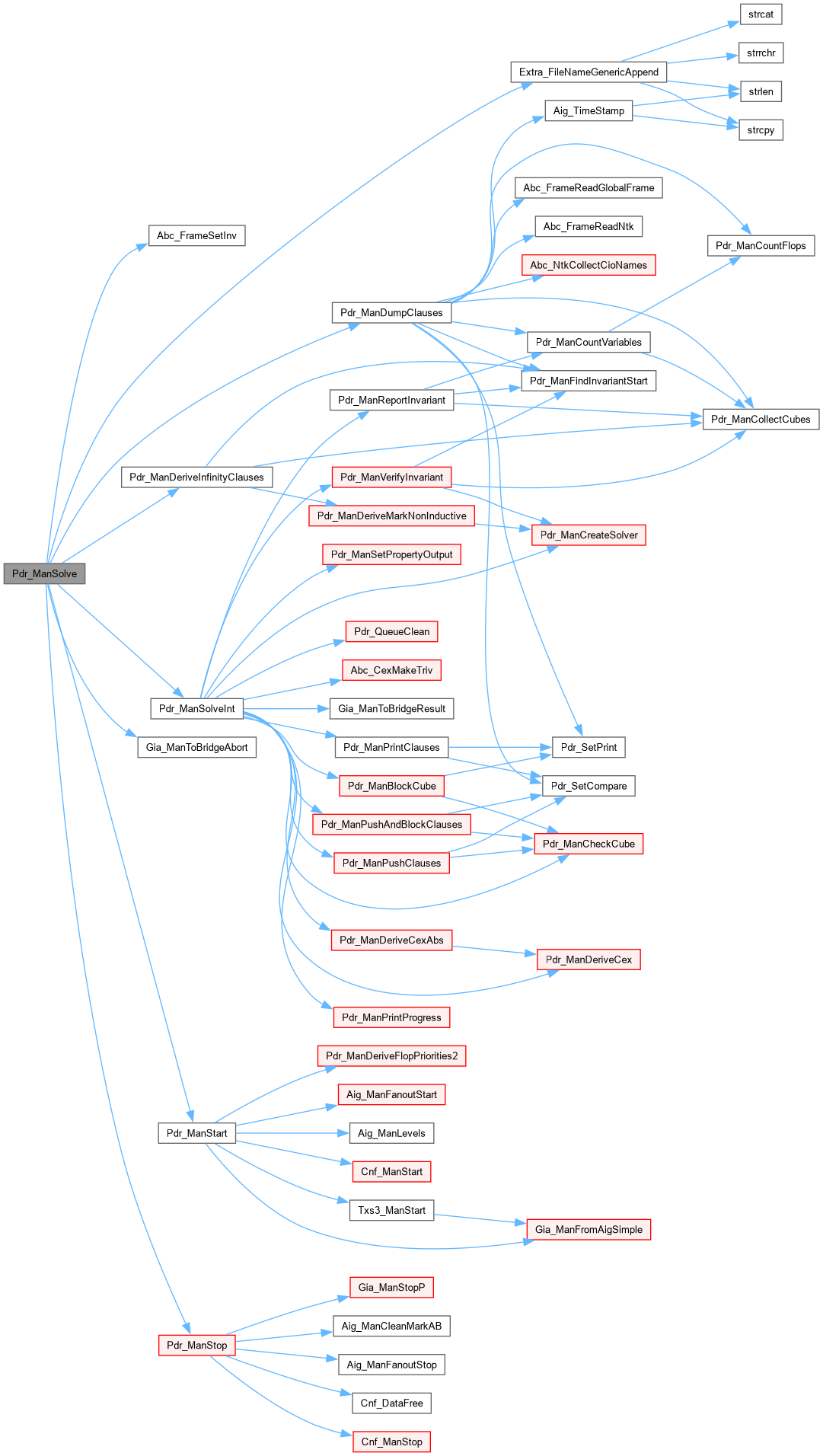

int	Pdr_ManSolve (Aig_Man_t *pAig, Pdr_Par_t *pPars)

Function Documentation

Gia_ManToBridgeAbort()

int Gia_ManToBridgeAbort ( FILE * pFile, int Size, unsigned char * pBuffer )

extern

Definition at line 178 of file utilBridge.c.

{
    Gia_CreateHeader( pFile, BRIDGE_ABORT, Size, pBuffer );
    return 1;
}

Here is the caller graph for this function:

Gia_ManToBridgeResult()

ABC_NAMESPACE_IMPL_START int Gia_ManToBridgeResult ( FILE * pFile, int Result, Abc_Cex_t * pCex, int iPoProved )

extern

DECLARATIONS ///.

CFile****************************************************************

FileName [pdrCore.c]

SystemName [ABC: Logic synthesis and verification system.]

PackageName [Property driven reachability.]

Synopsis [Core procedures.]

Author [Alan Mishchenko]

Affiliation [UC Berkeley]

Date [Ver. 1.0. Started - November 20, 2010.]

Revision [

Id

pdrCore.c,v 1.00 2010/11/20 00:00:00 alanmi Exp

]

Definition at line 287 of file utilBridge.c.

{
    if ( Result == 0 ) // sat
        Gia_ManFromBridgeCex( pFile, pCex );
    else if ( Result == 1 ) // unsat
        Gia_ManFromBridgeHolds( pFile, iPoProved );
    else if ( Result == -1 ) // undef
        Gia_ManFromBridgeUnknown( pFile, iPoProved );
    else assert( 0 );
    return 1;
}

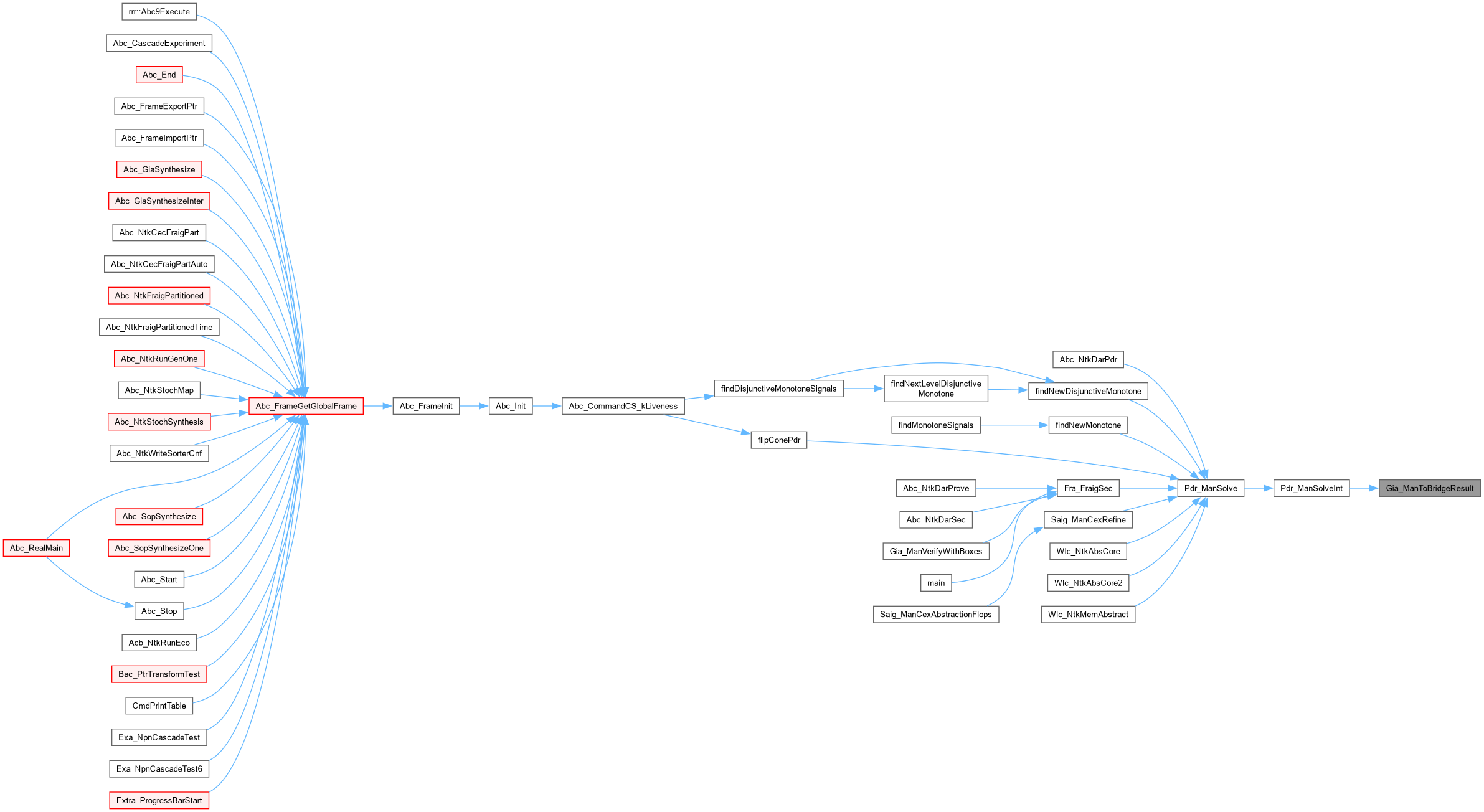

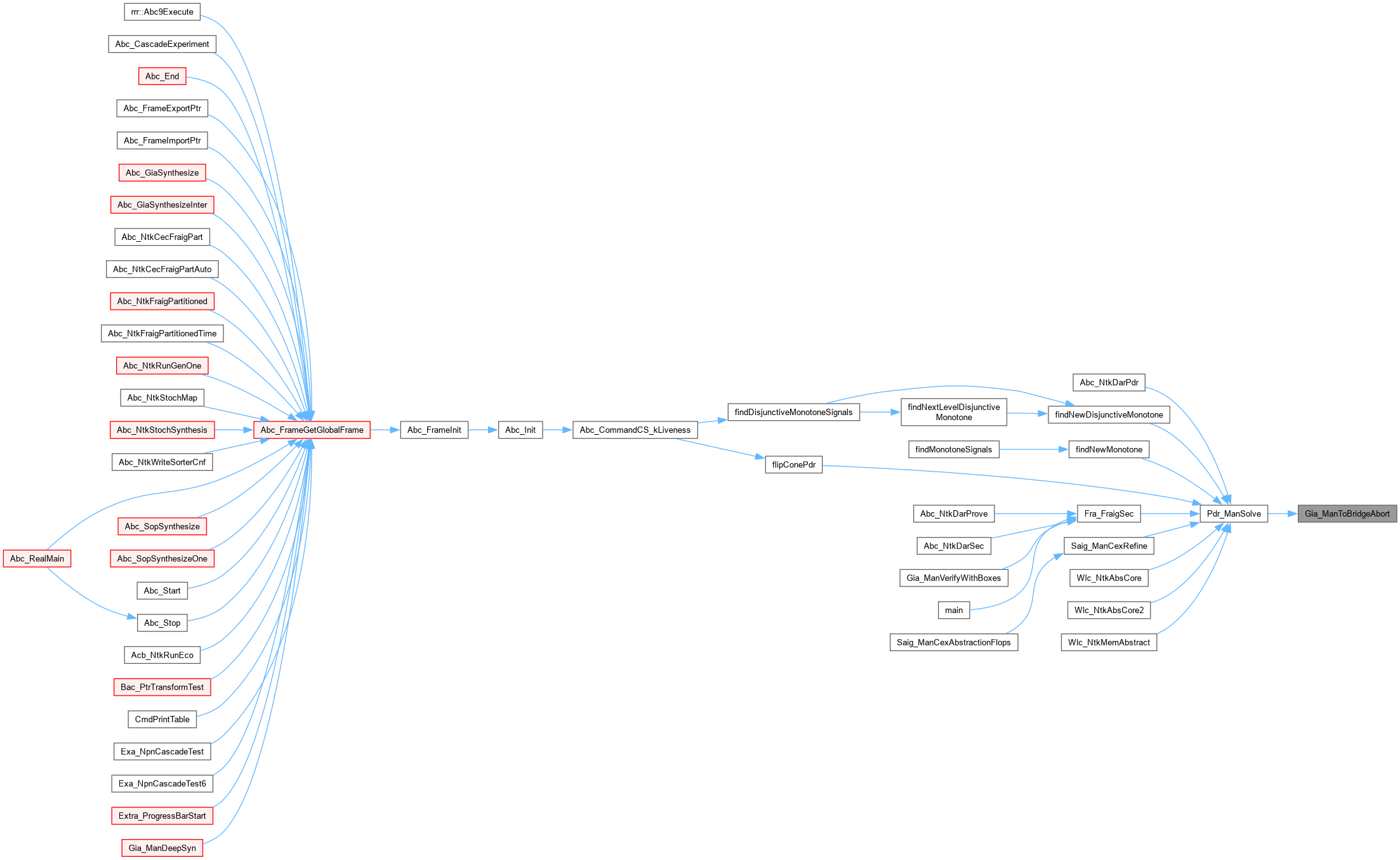

Here is the caller graph for this function:

Pdr_ManBlockCube()

int Pdr_ManBlockCube	(	Pdr_Man_t *	p,
		Pdr_Set_t *	pCube )

Function*************************************************************

Synopsis [Returns 1 if the state could be blocked.]

Description []

SideEffects []

SeeAlso []

Definition at line 1248 of file pdrCore.c.

{
    Pdr_Obl_t * pThis;
    Pdr_Set_t * pPred, * pCubeMin;
    int i, k, RetValue, Prio = ABC_INFINITY, Counter = 0;
    int kMax = Vec_PtrSize(p->vSolvers)-1;
    abctime clk;
    p->nBlocks++;
    // create first proof obligation
//    assert( p->pQueue == NULL );
    pThis = Pdr_OblStart( kMax, Prio--, pCube, NULL ); // consume ref
    Pdr_QueuePush( p, pThis );
    // try to solve it recursively
    while ( !Pdr_QueueIsEmpty(p) )
    {
        Counter++;
        pThis = Pdr_QueueHead( p );
        if ( pThis->iFrame == 0 || (p->pPars->fUseAbs && Pdr_SetIsInit(pThis->pState, -1)) )
            return 0; // SAT
        if ( pThis->iFrame > kMax ) // finished this level
            return 1;
        if ( p->nQueLim && p->nQueCur >= p->nQueLim )
        {
            p->nQueLim = p->nQueLim * 3 / 2;
            Pdr_QueueStop( p );
            return 1; // restart
        }
        pThis = Pdr_QueuePop( p );
        assert( pThis->iFrame > 0 );
        assert( !Pdr_SetIsInit(pThis->pState, -1) );
        p->iUseFrame = Abc_MinInt( p->iUseFrame, pThis->iFrame );
        clk = Abc_Clock();
        if ( Pdr_ManCheckContainment( p, pThis->iFrame, pThis->pState ) )
        {
            p->tContain += Abc_Clock() - clk;
            Pdr_OblDeref( pThis );
            continue;
        }
        p->tContain += Abc_Clock() - clk;

        // check if the cube is already contained
        RetValue = Pdr_ManCheckCubeCs( p, pThis->iFrame, pThis->pState );
        if ( RetValue == -1 ) // resource limit is reached
        {
            Pdr_OblDeref( pThis );
            return -1;
        }
        if ( RetValue ) // cube is blocked by clauses in this frame
        {
            Pdr_OblDeref( pThis );
            continue;
        }

        // check if the cube holds with relative induction
        pCubeMin = NULL;
        RetValue = Pdr_ManGeneralize( p, pThis->iFrame-1, pThis->pState, &pPred, &pCubeMin );
        if ( RetValue == -1 ) // resource limit is reached
        {
            Pdr_OblDeref( pThis );
            return -1;
        }
        if ( RetValue ) // cube is blocked inductively in this frame
        {
            assert( pCubeMin != NULL );
            // k is the last frame where pCubeMin holds
            k = pThis->iFrame;
            // check other frames
            assert( pPred == NULL );
            for ( k = pThis->iFrame; k < kMax; k++ )
            {
                RetValue = Pdr_ManCheckCube( p, k, pCubeMin, NULL, 0, 0, 1 );
                if ( RetValue == -1 )
                {
                    Pdr_OblDeref( pThis );
                    return -1;
                }
                if ( !RetValue )
                    break;
            }
            // add new clause
            if ( p->pPars->fVeryVerbose )
            {
                Abc_Print( 1, "Adding cube " );
                Pdr_SetPrint( stdout, pCubeMin, Aig_ManRegNum(p->pAig), NULL );
                Abc_Print( 1, " to frame %d.\n", k );
            }
            // set priority flops
            for ( i = 0; i < pCubeMin->nLits; i++ )
            {
                assert( pCubeMin->Lits[i] >= 0 );
                assert( (pCubeMin->Lits[i] / 2) < Aig_ManRegNum(p->pAig) );
                if ( (Vec_IntEntry(p->vPrio, pCubeMin->Lits[i] / 2) >> p->nPrioShift) == 0 )
                    p->nAbsFlops++;
                Vec_IntAddToEntry( p->vPrio, pCubeMin->Lits[i] / 2, 1 << p->nPrioShift );
            }
            Vec_VecPush( p->vClauses, k, pCubeMin );   // consume ref
            p->nCubes++;
            // add clause
            for ( i = 1; i <= k; i++ )
                Pdr_ManSolverAddClause( p, i, pCubeMin );
            // schedule proof obligation
            if ( (k < kMax || p->pPars->fReuseProofOblig) && !p->pPars->fShortest )
            {
                pThis->iFrame = k+1;
                pThis->prio   = Prio--;
                Pdr_QueuePush( p, pThis );
            }
            else
            {
                Pdr_OblDeref( pThis );
            }
        }
        else
        {
            assert( pCubeMin == NULL );
            assert( pPred != NULL );
            pThis->prio = Prio--;
            Pdr_QueuePush( p, pThis );
            pThis = Pdr_OblStart( pThis->iFrame-1, Prio--, pPred, Pdr_OblRef(pThis) );
            Pdr_QueuePush( p, pThis );
        }

        // check termination
        if ( p->pPars->pFuncStop && p->pPars->pFuncStop(p->pPars->RunId) )
            return -1;
        if ( p->timeToStop && Abc_Clock() > p->timeToStop )
            return -1;
        if ( p->timeToStopOne && Abc_Clock() > p->timeToStopOne )
            return -1;
        if ( p->pPars->nTimeOutGap && p->pPars->timeLastSolved && Abc_Clock() > p->pPars->timeLastSolved + p->pPars->nTimeOutGap * CLOCKS_PER_SEC )
            return -1;
    }
    return 1;
}

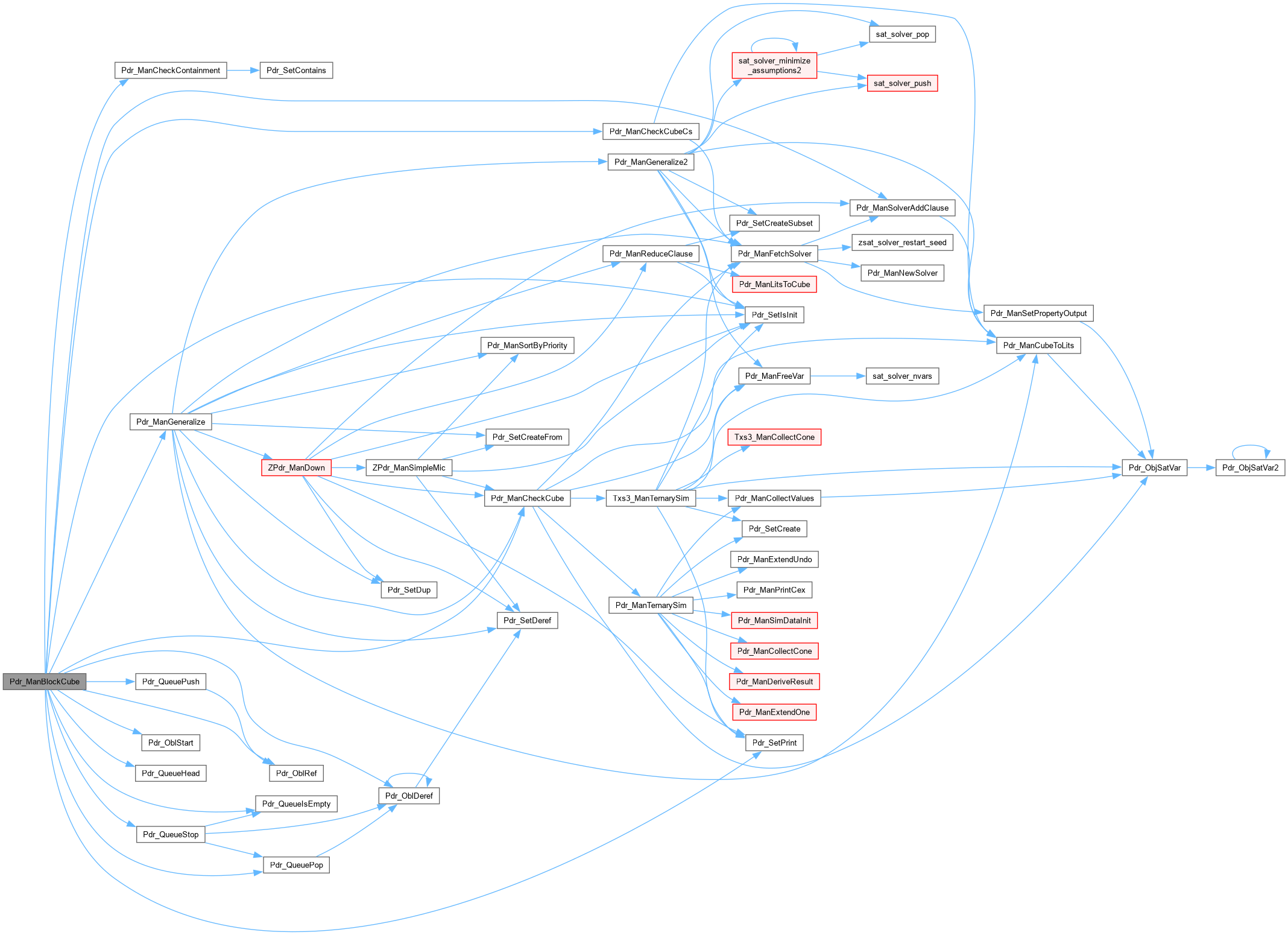

Here is the call graph for this function:

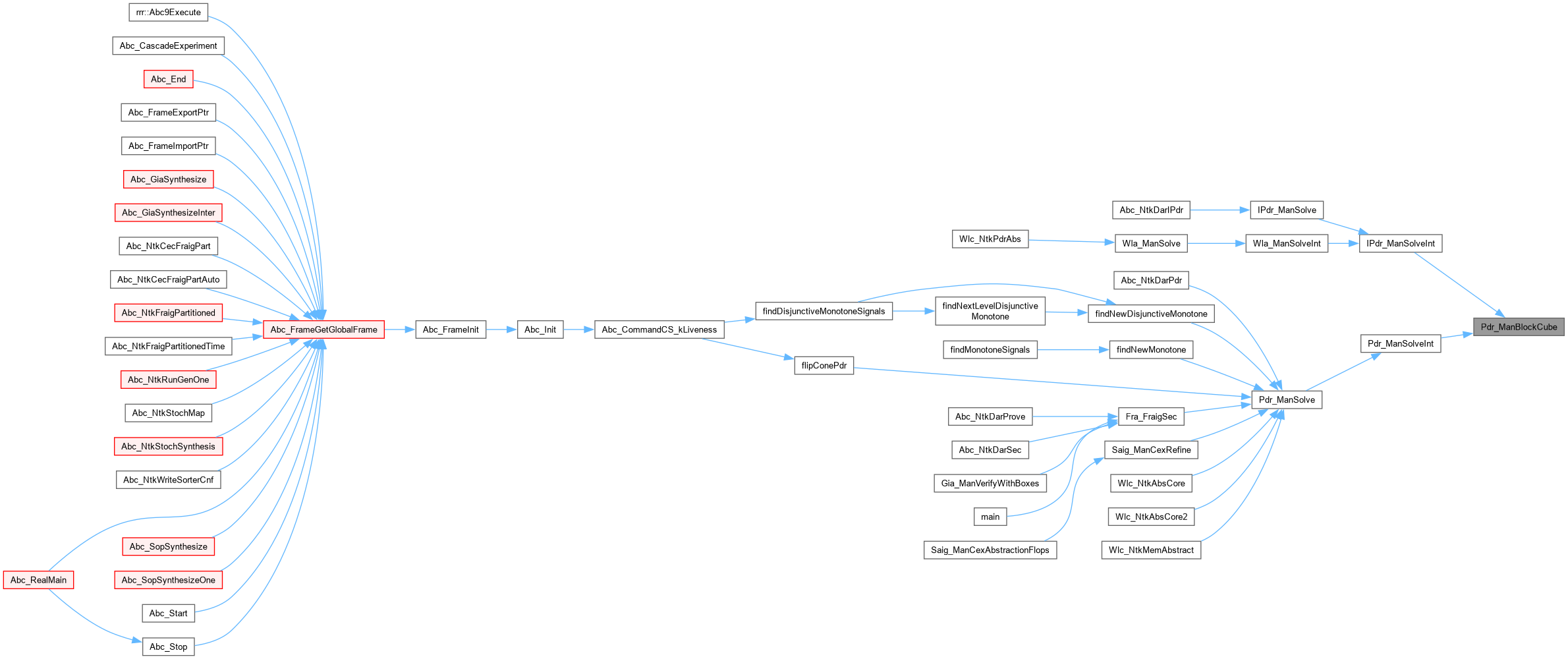

Here is the caller graph for this function:

Pdr_ManCheckContainment()

int Pdr_ManCheckContainment	(	Pdr_Man_t *	p,
		int	k,
		Pdr_Set_t *	pSet )

Function*************************************************************

Synopsis [Returns 1 if the clause is contained in higher clauses.]

Description []

SideEffects []

SeeAlso []

Definition at line 390 of file pdrCore.c.

{
    Pdr_Set_t * pThis;
    Vec_Ptr_t * vArrayK;
    int i, j, kMax = Vec_PtrSize(p->vSolvers)-1;
    Vec_VecForEachLevelStartStop( p->vClauses, vArrayK, i, k, kMax+1 )
        Vec_PtrForEachEntry( Pdr_Set_t *, vArrayK, pThis, j )
            if ( Pdr_SetContains( pSet, pThis ) )
                return 1;
    return 0;
}

Here is the call graph for this function:

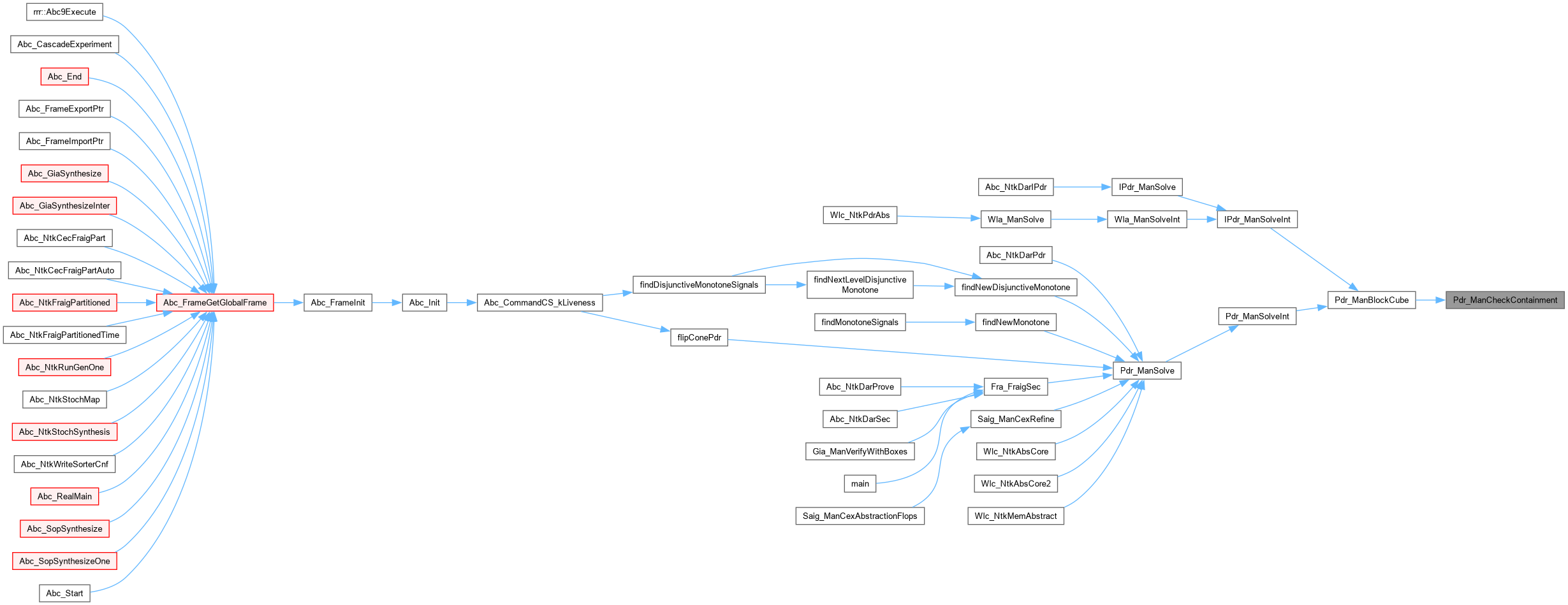

Here is the caller graph for this function:

Pdr_ManGeneralize()

int Pdr_ManGeneralize	(	Pdr_Man_t *	p,
		int	k,
		Pdr_Set_t *	pCube,
		Pdr_Set_t **	ppPred,
		Pdr_Set_t **	ppCubeMin )

Function*************************************************************

Synopsis [Returns 1 if the state could be blocked.]

Description []

SideEffects []

SeeAlso []

Definition at line 1035 of file pdrCore.c.

{
    Pdr_Set_t * pCubeMin, * pCubeTmp = NULL, * pPred = NULL, * pCubeCpy = NULL;
    int i, j, Lit, RetValue;
    abctime clk = Abc_Clock();
    int * pOrder;
    int added = 0;
    Hash_Int_t * keep = NULL;
    // if there is no induction, return
    *ppCubeMin = NULL;
    if ( p->pPars->fFlopOrder )
        Vec_IntSelectSortPrioReverseLit( pCube->Lits, pCube->nLits, p->vPrio );
    RetValue = Pdr_ManCheckCube( p, k, pCube, ppPred, p->pPars->nConfLimit, 0, 1 );
    if ( p->pPars->fFlopOrder )
        Vec_IntSelectSort( pCube->Lits, pCube->nLits );
    if ( RetValue == -1 )
        return -1;
    if ( RetValue == 0 )
    {
        p->tGeneral += Abc_Clock() - clk;
        return 0;
    }

    // reduce clause using assumptions
//    pCubeMin = Pdr_SetDup( pCube );
    pCubeMin = Pdr_ManReduceClause( p, k, pCube );
    if ( pCubeMin == NULL )
        pCubeMin = Pdr_SetDup( pCube );

    // perform simplified generalization
    if ( p->pPars->fSimpleGeneral )
    {
        assert( pCubeMin->nLits > 0 );
        if ( pCubeMin->nLits > 1 )
        {
            RetValue = Pdr_ManGeneralize2( p, k, pCubeMin, ppCubeMin );
            Pdr_SetDeref( pCubeMin );
            assert( ppCubeMin != NULL );
            pCubeMin = *ppCubeMin;
        }
        *ppCubeMin = pCubeMin;
        if ( p->pPars->fVeryVerbose )
        {
            printf("Cube:\n");
            for ( i = 0; i < pCubeMin->nLits; i++)
                printf ("%d ", pCubeMin->Lits[i]);
            printf("\n");
        }
        p->tGeneral += Abc_Clock() - clk;
        return 1;
    }

    keep = p->pPars->fSkipDown ? NULL : Hash_IntAlloc( 1 );

    // perform generalization
    if ( !p->pPars->fSkipGeneral )
    {
        // assume the unminimized cube
        if ( p->pPars->fSimpleGeneral )
        {
            sat_solver *  pSat = Pdr_ManFetchSolver( p, k );
            Vec_Int_t * vLits1 = Pdr_ManCubeToLits( p, k, pCubeMin, 1, 0 );
            int RetValue1 = sat_solver_addclause( pSat, Vec_IntArray(vLits1), Vec_IntArray(vLits1) + Vec_IntSize(vLits1) );
            assert( RetValue1 == 1 );
            sat_solver_compress( pSat );
        }

        // sort literals by their occurences
        pOrder = Pdr_ManSortByPriority( p, pCubeMin );
        // try removing literals
        for ( j = 0; j < pCubeMin->nLits; j++ )
        {
            // use ordering
    //        i = j;
            i = pOrder[j];

            assert( pCubeMin->Lits[i] != -1 );
            if ( keep && Hash_IntExists( keep, pCubeMin->Lits[i] ) )
            {
                //printf("Undroppable\n");
                continue;
            }

            // check init state
            if ( Pdr_SetIsInit(pCubeMin, i) )
                continue;

            // try removing this literal
            Lit = pCubeMin->Lits[i]; pCubeMin->Lits[i] = -1;
            if ( p->pPars->fSkipDown )
                RetValue = Pdr_ManCheckCube( p, k, pCubeMin, NULL, p->pPars->nConfLimit, 1, !p->pPars->fSimpleGeneral );
            else
                RetValue = Pdr_ManCheckCube( p, k, pCubeMin, &pPred, p->pPars->nConfLimit, 1, !p->pPars->fSimpleGeneral );
            if ( RetValue == -1 )
            {
                Pdr_SetDeref( pCubeMin );
                return -1;
            }
            pCubeMin->Lits[i] = Lit;
            if ( RetValue == 0 )
            {
                if ( p->pPars->fSkipDown )
                    continue;
                pCubeCpy = Pdr_SetCreateFrom( pCubeMin, i );
                RetValue = ZPdr_ManDown( p, k, &pCubeCpy, pPred, keep, pCubeMin, &added );
                if ( p->pPars->fCtgs )
                    //CTG handling code messes up with the internal order array
                    pOrder = Pdr_ManSortByPriority( p, pCubeMin );
                if ( RetValue == -1 )
                {
                    Pdr_SetDeref( pCubeMin );
                    Pdr_SetDeref( pCubeCpy );
                    Pdr_SetDeref( pPred );
                    return -1;
                }
                if ( RetValue == 0 )
                {
                    if ( keep )
                        Hash_IntWriteEntry( keep, pCubeMin->Lits[i], 0 );
                    if ( pCubeCpy )
                        Pdr_SetDeref( pCubeCpy );
                    continue;
                }
                //Inductive subclause
                added = 0;
                Pdr_SetDeref( pCubeMin );
                pCubeMin = pCubeCpy;
                assert( pCubeMin->nLits > 0 );
                pOrder = Pdr_ManSortByPriority( p, pCubeMin );
                j = -1;
                continue;
            }
            added = 0;

            // success - update the cube
            pCubeMin = Pdr_SetCreateFrom( pCubeTmp = pCubeMin, i );
            Pdr_SetDeref( pCubeTmp );
            assert( pCubeMin->nLits > 0 );

            // assume the minimized cube
            if ( p->pPars->fSimpleGeneral )
            {
                sat_solver *  pSat = Pdr_ManFetchSolver( p, k );
                Vec_Int_t * vLits1 = Pdr_ManCubeToLits( p, k, pCubeMin, 1, 0 );
                int RetValue1 = sat_solver_addclause( pSat, Vec_IntArray(vLits1), Vec_IntArray(vLits1) + Vec_IntSize(vLits1) );
                assert( RetValue1 == 1 );
                sat_solver_compress( pSat );
            }

            // get the ordering by decreasing priority
            pOrder = Pdr_ManSortByPriority( p, pCubeMin );
            j--;
        }

        if ( p->pPars->fTwoRounds )
        for ( j = 0; j < pCubeMin->nLits; j++ )
        {
            // use ordering
    //        i = j;
            i = pOrder[j];

            // check init state
            assert( pCubeMin->Lits[i] != -1 );
            if ( Pdr_SetIsInit(pCubeMin, i) )
                continue;
            // try removing this literal
            Lit = pCubeMin->Lits[i]; pCubeMin->Lits[i] = -1;
            RetValue = Pdr_ManCheckCube( p, k, pCubeMin, NULL, p->pPars->nConfLimit, 0, 1 );
            if ( RetValue == -1 )
            {
                Pdr_SetDeref( pCubeMin );
                return -1;
            }
            pCubeMin->Lits[i] = Lit;
            if ( RetValue == 0 )
                continue;

            // success - update the cube
            pCubeMin = Pdr_SetCreateFrom( pCubeTmp = pCubeMin, i );
            Pdr_SetDeref( pCubeTmp );
            assert( pCubeMin->nLits > 0 );

            // get the ordering by decreasing priority
            pOrder = Pdr_ManSortByPriority( p, pCubeMin );
            j--;
        }
    }

    assert( ppCubeMin != NULL );
    if ( p->pPars->fVeryVerbose )
    {
        printf("Cube:\n");
        for ( i = 0; i < pCubeMin->nLits; i++)
            printf ("%d ", pCubeMin->Lits[i]);
        printf("\n");
    }
    *ppCubeMin = pCubeMin;
    p->tGeneral += Abc_Clock() - clk;
    if ( keep ) Hash_IntFree( keep );
    return 1;
}

Here is the call graph for this function:

Here is the caller graph for this function:

Pdr_ManGeneralize2()

int Pdr_ManGeneralize2	(	Pdr_Man_t *	p,
		int	k,
		Pdr_Set_t *	pCube,
		Pdr_Set_t **	ppCubeMin )

Function*************************************************************

Synopsis [Performs generalization using a different idea.]

Description []

SideEffects []

SeeAlso []

Definition at line 880 of file pdrCore.c.

{
#if 0
    int fUseMinAss = 0;
    sat_solver * pSat = Pdr_ManFetchSolver( p, k );
    int Order = Vec_IntSelectSortPrioReverseLit( pCube->Lits, pCube->nLits, p->vPrio );
    Vec_Int_t * vLits1 = Pdr_ManCubeToLits( p, k, pCube, 1, 0 );
    int RetValue, Count = 0, iLit, Lits[2], nLits = Vec_IntSize( vLits1 );
    // create free variables
    int i, iUseVar, iAndVar;
    iAndVar = Pdr_ManFreeVar(p, k);
    for ( i = 1; i < nLits; i++ )
        Pdr_ManFreeVar(p, k);
    iUseVar = Pdr_ManFreeVar(p, k);
    for ( i = 1; i < nLits; i++ )
        Pdr_ManFreeVar(p, k);
    assert( iUseVar == iAndVar + nLits );
    // if there is only one positive literal, put it in front and always assume
    if ( fUseMinAss )
    {
        for ( i = 0; i < pCube->nLits && Count < 2; i++ )
            Count += !Abc_LitIsCompl(pCube->Lits[i]);
        if ( Count == 1 )
        {
            for ( i = 0; i < pCube->nLits; i++ )
                if ( !Abc_LitIsCompl(pCube->Lits[i]) )
                    break;
            assert( i < pCube->nLits );
            iLit = pCube->Lits[i];
            for ( ; i > 0; i-- )
                pCube->Lits[i] = pCube->Lits[i-1];
            pCube->Lits[0] = iLit;
        }
    }
    // add clauses for the additional AND-gates
    Vec_IntForEachEntry( vLits1, iLit, i )
    {
        sat_solver_add_buffer_enable( pSat, iAndVar + i, Abc_Lit2Var(iLit), iUseVar + i, Abc_LitIsCompl(iLit) );
        Vec_IntWriteEntry( vLits1, i, Abc_Var2Lit(iAndVar + i, 0) );
    }
    // add clauses for the additional OR-gate
    RetValue = sat_solver_addclause( pSat, Vec_IntArray(vLits1), Vec_IntLimit(vLits1) );
    assert( RetValue == 1 );
    // add implications
    vLits1 = Pdr_ManCubeToLits( p, k, pCube, 0, 1 );
    assert( Vec_IntSize(vLits1) == nLits );
    Vec_IntForEachEntry( vLits1, iLit, i )
    {
        Lits[0] = Abc_Var2Lit(iUseVar + i, 1);
        Lits[1] = iLit;
        RetValue = sat_solver_addclause( pSat, Lits, Lits+2 );
        assert( RetValue == 1 );
        Vec_IntWriteEntry( vLits1, i, Abc_Var2Lit(iUseVar + i, 0) );
    }
    sat_solver_compress( pSat );
    // perform minimization
    if ( fUseMinAss )
    {
        if ( Count == 1 ) // always assume the only positive literal
        {
            if ( !sat_solver_push(pSat, Vec_IntEntry(vLits1, 0)) ) // UNSAT with the first (mandatory) literal
                nLits = 1;
            else
                nLits = 1 + sat_solver_minimize_assumptions2( pSat, Vec_IntArray(vLits1)+1, nLits-1, p->pPars->nConfLimit );
            sat_solver_pop(pSat); // unassume the first literal
        }
        else
            nLits = sat_solver_minimize_assumptions2( pSat, Vec_IntArray(vLits1), nLits, p->pPars->nConfLimit );
        Vec_IntShrink( vLits1, nLits );
    }
    else
    {
        // try removing one literal at a time in the old-fashioned way
        int k, Entry;
        Vec_Int_t * vTemp = Vec_IntAlloc( nLits );
        for ( i = nLits - 1; i >= 0; i-- )
        {
            // if we are about to remove a positive lit, make sure at least one positive lit remains
            if ( !Abc_LitIsCompl(Vec_IntEntry(vLits1, i)) )
            {
                Vec_IntForEachEntry( vLits1, iLit, k )
                    if ( iLit != -1 && k != i && !Abc_LitIsCompl(iLit) )
                        break;
                if ( k == Vec_IntSize(vLits1) ) // no other positive literals, except the i-th one
                    continue;
            }
            // load remaining literals
            Vec_IntClear( vTemp );
            Vec_IntForEachEntry( vLits1, Entry, k )
                if ( Entry != -1 && k != i )
                    Vec_IntPush( vTemp, Entry );
                else if ( Entry != -1 ) // assume opposite literal
                    Vec_IntPush( vTemp, Abc_LitNot(Entry) );
            // solve with assumptions
            RetValue = sat_solver_solve( pSat, Vec_IntArray(vTemp), Vec_IntLimit(vTemp), p->pPars->nConfLimit, 0, 0, 0 );
            // commit the literal
            if ( RetValue == l_False )
            {
                int LitNot = Abc_LitNot(Vec_IntEntry(vLits1, i));
                int RetValue = sat_solver_addclause( pSat, &LitNot, &LitNot+1 );
                assert( RetValue );
            }
            // update the clause
            if ( RetValue == l_False )
                Vec_IntWriteEntry( vLits1, i, -1 );
        }
        Vec_IntFree( vTemp );
        // compact
        k = 0;
        Vec_IntForEachEntry( vLits1, Entry, i )
            if ( Entry != -1 )
                Vec_IntWriteEntry( vLits1, k++, Entry );
        Vec_IntShrink( vLits1, k );
    }
    // remap auxiliary literals into original literals
    Vec_IntForEachEntry( vLits1, iLit, i )
        Vec_IntWriteEntry( vLits1, i, pCube->Lits[Abc_Lit2Var(iLit)-iUseVar] );
    // make sure the cube has at least one positive literal
    if ( fUseMinAss )
    {
        Vec_IntForEachEntry( vLits1, iLit, i )
            if ( !Abc_LitIsCompl(iLit) )
                break;
        if ( i == Vec_IntSize(vLits1) ) // has no positive literals
        {
            // find positive lit in the cube
            for ( i = 0; i < pCube->nLits; i++ )
                if ( !Abc_LitIsCompl(pCube->Lits[i]) )
                    break;
            assert( i < pCube->nLits );
            Vec_IntPush( vLits1, pCube->Lits[i] );
//            printf( "-" );
        }
//        else
//            printf( "+" );
    }
    // create a subset cube
    *ppCubeMin = Pdr_SetCreateSubset( pCube, Vec_IntArray(vLits1), Vec_IntSize(vLits1) );
    assert( !Pdr_SetIsInit(*ppCubeMin, -1) );
    Order = 0;
#endif
    return 0;
}

Here is the call graph for this function:

Here is the caller graph for this function:

Pdr_ManPushAndBlockClauses()

int Pdr_ManPushAndBlockClauses

(

Pdr_Man_t *

p

)

Definition at line 246 of file pdrCore.c.

{
    Pdr_Set_t * pTemp, * pCubeK, * pCubeK1;
    Vec_Ptr_t * vArrayK, * vArrayK1;
    int i, j, k, m, RetValue = 0, RetValue2, kMax = Vec_PtrSize(p->vSolvers)-1;
    int iStartFrame = p->pPars->fShiftStart ? p->iUseFrame : 1;
    int Counter = 0;

    int blockCount;
    int blockAttemp;
    int added;
    int l;
    int RetValue3;
    Pdr_Set_t *pPred = NULL;
    Pdr_Set_t *pCubeCpy = NULL;

    abctime clk = Abc_Clock();
    assert( p->iUseFrame > 0 );
    Vec_VecForEachLevelStartStop( p->vClauses, vArrayK, k, iStartFrame, kMax )
    {
        Vec_PtrSort( vArrayK, (int (*)(const void *, const void *))Pdr_SetCompare );
        vArrayK1 = Vec_VecEntry( p->vClauses, k+1 );
        blockCount = 0;
        blockAttemp = 0;
        Vec_PtrForEachEntry( Pdr_Set_t *, vArrayK, pCubeK, j )
        {
            Counter++;

            // remove cubes in the same frame that are contained by pCubeK
            Vec_PtrForEachEntryStart( Pdr_Set_t *, vArrayK, pTemp, m, j+1 )
            {
                if ( !Pdr_SetContains( pTemp, pCubeK ) ) // pCubeK contains pTemp
                    continue;
                Pdr_SetDeref( pTemp );
                Vec_PtrWriteEntry( vArrayK, m, Vec_PtrEntryLast(vArrayK) );
                Vec_PtrPop(vArrayK);
                m--;
            }

            // check if the clause can be moved to the next frame
            added = 1;
            RetValue2 = Pdr_ManCheckCube( p, k, pCubeK, &pPred, 0, 0, 1 ); // ************************
            if ( RetValue2 == -1 )
                return -1;
            if ( !RetValue2 ) // try to block before pushing
            {
                if ( blockCount < blockAttemp )
                    continue;
                else
                {
                    blockAttemp++;
                    pCubeCpy = Pdr_SetDup(pCubeK);
                    RetValue3 = ZPdr_ManDown_Exhaustive( p, k, &pCubeCpy, pPred, Hash_IntAlloc( 1 ), NULL, &added );
                    if ( RetValue3 == -1 )
                    {
                        Pdr_SetDeref( pCubeCpy );
                        return -1;
                    }
                    if ( RetValue3 == 0 )
                    {
                        Pdr_SetDeref( pCubeCpy );
                        continue;
                    }
                    Pdr_SetDeref( pCubeK );
                    pCubeK = pCubeCpy;

                    for ( l = 1; l <= k; l++ )
                        Pdr_ManSolverAddClause( p, l, pCubeK );
                    blockCount++;
                }
            }
            else // directly push
            {
                Pdr_Set_t * pCubeMin;
                pCubeMin = Pdr_ManReduceClause( p, k, pCubeK );
                if ( pCubeMin != NULL )
                {
//                Abc_Print( 1, "%d ", pCubeK->nLits - pCubeMin->nLits );
                    Pdr_SetDeref( pCubeK );
                    pCubeK = pCubeMin;
                }
            }

            // if it can be moved, add it to the next frame
            Pdr_ManSolverAddClause( p, k+1, pCubeK );
            // check if the clause subsumes others
            Vec_PtrForEachEntry( Pdr_Set_t *, vArrayK1, pCubeK1, i )
            {
                if ( !Pdr_SetContains( pCubeK1, pCubeK ) ) // pCubeK contains pCubeK1
                    continue;
                Pdr_SetDeref( pCubeK1 );
                Vec_PtrWriteEntry( vArrayK1, i, Vec_PtrEntryLast(vArrayK1) );
                Vec_PtrPop(vArrayK1);
                i--;
            }
            // add the last clause
            Vec_PtrPush( vArrayK1, pCubeK );
            Vec_PtrWriteEntry( vArrayK, j, Vec_PtrEntryLast(vArrayK) );
            Vec_PtrPop(vArrayK);
            j--;
        }
        // printf("%d, %d\n", blockCount, blockAtemp);
        if ( Vec_PtrSize(vArrayK) == 0 )
            RetValue = 1;
    }

    // clean up the last one
    vArrayK = Vec_VecEntry( p->vClauses, kMax );
    Vec_PtrSort( vArrayK, (int (*)(const void *, const void *))Pdr_SetCompare );
    Vec_PtrForEachEntry( Pdr_Set_t *, vArrayK, pCubeK, j )
    {
        // remove cubes in the same frame that are contained by pCubeK
        Vec_PtrForEachEntryStart( Pdr_Set_t *, vArrayK, pTemp, m, j+1 )
        {
            if ( !Pdr_SetContains( pTemp, pCubeK ) ) // pCubeK contains pTemp
                continue;
/*
            Abc_Print( 1, "===\n" );
            Pdr_SetPrint( stdout, pCubeK, Aig_ManRegNum(p->pAig), NULL );
            Abc_Print( 1, "\n" );
            Pdr_SetPrint( stdout, pTemp, Aig_ManRegNum(p->pAig), NULL );
            Abc_Print( 1, "\n" );
*/
            Pdr_SetDeref( pTemp );
            Vec_PtrWriteEntry( vArrayK, m, Vec_PtrEntryLast(vArrayK) );
            Vec_PtrPop(vArrayK);
            m--;
        }
    }
    p->tPush += Abc_Clock() - clk;
    return RetValue;
}

Here is the call graph for this function:

Here is the caller graph for this function:

Pdr_ManPushClauses()

int Pdr_ManPushClauses

(

Pdr_Man_t *

p

)

Function*************************************************************

Synopsis [Returns 1 if the state could be blocked.]

Description []

SideEffects []

SeeAlso []

Definition at line 150 of file pdrCore.c.

{
    Pdr_Set_t * pTemp, * pCubeK, * pCubeK1;
    Vec_Ptr_t * vArrayK, * vArrayK1;
    int i, j, k, m, RetValue = 0, RetValue2, kMax = Vec_PtrSize(p->vSolvers)-1;
    int iStartFrame = p->pPars->fShiftStart ? p->iUseFrame : 1;
    int Counter = 0;
    abctime clk = Abc_Clock();
    assert( p->iUseFrame > 0 );
    Vec_VecForEachLevelStartStop( p->vClauses, vArrayK, k, iStartFrame, kMax )
    {
        Vec_PtrSort( vArrayK, (int (*)(const void *, const void *))Pdr_SetCompare );
        vArrayK1 = Vec_VecEntry( p->vClauses, k+1 );
        Vec_PtrForEachEntry( Pdr_Set_t *, vArrayK, pCubeK, j )
        {
            Counter++;

            // remove cubes in the same frame that are contained by pCubeK
            Vec_PtrForEachEntryStart( Pdr_Set_t *, vArrayK, pTemp, m, j+1 )
            {
                if ( !Pdr_SetContains( pTemp, pCubeK ) ) // pCubeK contains pTemp
                    continue;
                Pdr_SetDeref( pTemp );
                Vec_PtrWriteEntry( vArrayK, m, Vec_PtrEntryLast(vArrayK) );
                Vec_PtrPop(vArrayK);
                m--;
            }

            // check if the clause can be moved to the next frame
            RetValue2 = Pdr_ManCheckCube( p, k, pCubeK, NULL, 0, 0, 1 );
            if ( RetValue2 == -1 )
                return -1;
            if ( !RetValue2 )
                continue;

            {
                Pdr_Set_t * pCubeMin;
                pCubeMin = Pdr_ManReduceClause( p, k, pCubeK );
                if ( pCubeMin != NULL )
                {
//                Abc_Print( 1, "%d ", pCubeK->nLits - pCubeMin->nLits );
                    Pdr_SetDeref( pCubeK );
                    pCubeK = pCubeMin;
                }
            }

            // if it can be moved, add it to the next frame
            Pdr_ManSolverAddClause( p, k+1, pCubeK );
            // check if the clause subsumes others
            Vec_PtrForEachEntry( Pdr_Set_t *, vArrayK1, pCubeK1, i )
            {
                if ( !Pdr_SetContains( pCubeK1, pCubeK ) ) // pCubeK contains pCubeK1
                    continue;
                Pdr_SetDeref( pCubeK1 );
                Vec_PtrWriteEntry( vArrayK1, i, Vec_PtrEntryLast(vArrayK1) );
                Vec_PtrPop(vArrayK1);
                i--;
            }
            // add the last clause
            Vec_PtrPush( vArrayK1, pCubeK );
            Vec_PtrWriteEntry( vArrayK, j, Vec_PtrEntryLast(vArrayK) );
            Vec_PtrPop(vArrayK);
            j--;
        }
        if ( Vec_PtrSize(vArrayK) == 0 )
            RetValue = 1;
    }

    // clean up the last one
    vArrayK = Vec_VecEntry( p->vClauses, kMax );
    Vec_PtrSort( vArrayK, (int (*)(const void *, const void *))Pdr_SetCompare );
    Vec_PtrForEachEntry( Pdr_Set_t *, vArrayK, pCubeK, j )
    {
        // remove cubes in the same frame that are contained by pCubeK
        Vec_PtrForEachEntryStart( Pdr_Set_t *, vArrayK, pTemp, m, j+1 )
        {
            if ( !Pdr_SetContains( pTemp, pCubeK ) ) // pCubeK contains pTemp
                continue;
/*
            Abc_Print( 1, "===\n" );
            Pdr_SetPrint( stdout, pCubeK, Aig_ManRegNum(p->pAig), NULL );
            Abc_Print( 1, "\n" );
            Pdr_SetPrint( stdout, pTemp, Aig_ManRegNum(p->pAig), NULL );
            Abc_Print( 1, "\n" );
*/
            Pdr_SetDeref( pTemp );
            Vec_PtrWriteEntry( vArrayK, m, Vec_PtrEntryLast(vArrayK) );
            Vec_PtrPop(vArrayK);
            m--;
        }
    }
    p->tPush += Abc_Clock() - clk;
    return RetValue;
}

Here is the call graph for this function:

Here is the caller graph for this function:

Pdr_ManReduceClause()

Pdr_Set_t * Pdr_ManReduceClause	(	Pdr_Man_t *	p,
		int	k,
		Pdr_Set_t *	pCube )

Function*************************************************************

Synopsis [Reduces clause using analyzeFinal.]

Description [Assumes that the SAT solver just terminated an UNSAT call.]

SideEffects []

SeeAlso []

Definition at line 97 of file pdrCore.c.

{
    Pdr_Set_t * pCubeMin;
    Vec_Int_t * vLits;
    int i, Entry, nCoreLits, * pCoreLits;
    // get relevant SAT literals
    nCoreLits = sat_solver_final(Pdr_ManSolver(p, k), &pCoreLits);
    // translate them into register literals and remove auxiliary
    vLits = Pdr_ManLitsToCube( p, k, pCoreLits, nCoreLits );
    // skip if there is no improvement
    if ( Vec_IntSize(vLits) == pCube->nLits )
        return NULL;
    assert( Vec_IntSize(vLits) < pCube->nLits );
    // if the cube overlaps with init, add any literal
    Vec_IntForEachEntry( vLits, Entry, i )
        if ( Abc_LitIsCompl(Entry) == 0 ) // positive literal
            break;
    if ( i == Vec_IntSize(vLits) ) // only negative literals
    {
        // add the first positive literal
        for ( i = 0; i < pCube->nLits; i++ )
            if ( Abc_LitIsCompl(pCube->Lits[i]) == 0 ) // positive literal
            {
                Vec_IntPush( vLits, pCube->Lits[i] );
                break;
            }
        assert( i < pCube->nLits );
    }
    // generate a starting cube
    pCubeMin  = Pdr_SetCreateSubset( pCube, Vec_IntArray(vLits), Vec_IntSize(vLits) );
    assert( !Pdr_SetIsInit(pCubeMin, -1) );
/*
    // make sure the cube works
    {
    int RetValue;
    RetValue = Pdr_ManCheckCube( p, k, pCubeMin, NULL, 0, 0, 1 );
    assert( RetValue );
    }
*/
    return pCubeMin;
}

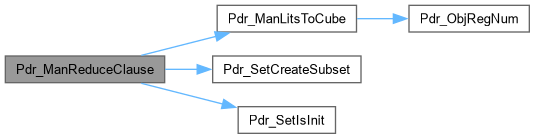

Here is the call graph for this function:

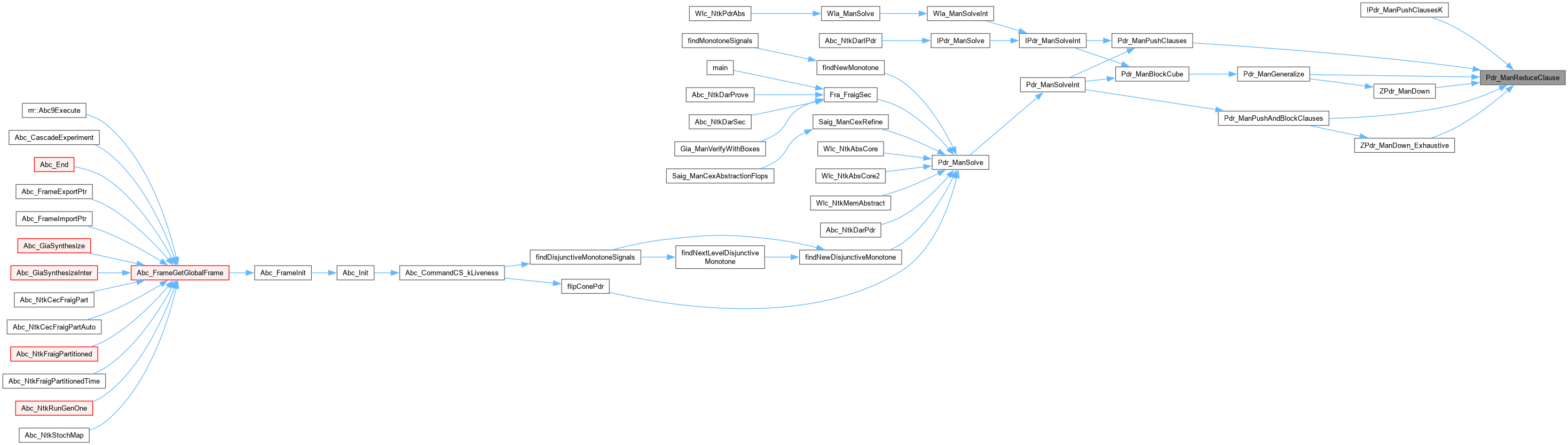

Here is the caller graph for this function:

Pdr_ManSetDefaultParams()

void Pdr_ManSetDefaultParams

(

Pdr_Par_t *

pPars

)

FUNCTION DEFINITIONS ///.

MACRO DEFINITIONS ///.

Function*************************************************************

Synopsis [Returns 1 if the state could be blocked.]

Description []

SideEffects []

SeeAlso []

Definition at line 50 of file pdrCore.c.

{
    memset( pPars, 0, sizeof(Pdr_Par_t) );
//    pPars->iOutput        =      -1;  // zero-based output number
    pPars->nRecycle       =     300;  // limit on vars for recycling
    pPars->nFrameMax      =   10000;  // limit on number of timeframes
    pPars->nTimeOut       =       0;  // timeout in seconds
    pPars->nTimeOutGap    =       0;  // timeout in seconds since the last solved
    pPars->nConfLimit     =       0;  // limit on SAT solver conflicts
    pPars->nConfGenLimit  =       0;  // limit on SAT solver conflicts during generalization
    pPars->nRestLimit     =       0;  // limit on the number of proof-obligations
    pPars->nRandomSeed   = 91648253;  // value to seed the SAT solver with
    pPars->fTwoRounds     =       0;  // use two rounds for generalization
    pPars->fMonoCnf       =       0;  // monolythic CNF
    pPars->fNewXSim       =       0;  // updated X-valued simulation
    pPars->fFlopPrio      =       0;  // use structural flop priorities
    pPars->fFlopOrder     =       0;  // order flops for 'analyze_final' during generalization
    pPars->fDumpInv       =       0;  // dump inductive invariant
    pPars->fUseSupp       =       1;  // using support variables in the invariant
    pPars->fShortest      =       0;  // forces bug traces to be shortest
    pPars->fUsePropOut    =       1;  // use property output
    pPars->fSkipDown      =       1;  // apply down in generalization
    pPars->fCtgs          =       0;  // handle CTGs in down
    pPars->fUseAbs        =       0;  // use abstraction
    pPars->fUseSimpleRef  =       0;  // simplified CEX refinement
    pPars->fVerbose       =       0;  // verbose output
    pPars->fVeryVerbose   =       0;  // very verbose output
    pPars->fNotVerbose    =       0;  // not printing line-by-line progress
    pPars->iFrame         =      -1;  // explored up to this frame
    pPars->nFailOuts      =       0;  // the number of disproved outputs
    pPars->nDropOuts      =       0;  // the number of timed out outputs
    pPars->timeLastSolved =       0;  // last one solved
    pPars->pInvFileName   =    NULL;  // invariant file name
    pPars->fBlocking      =       0;  // clause pushing with blocking
}

Here is the call graph for this function:

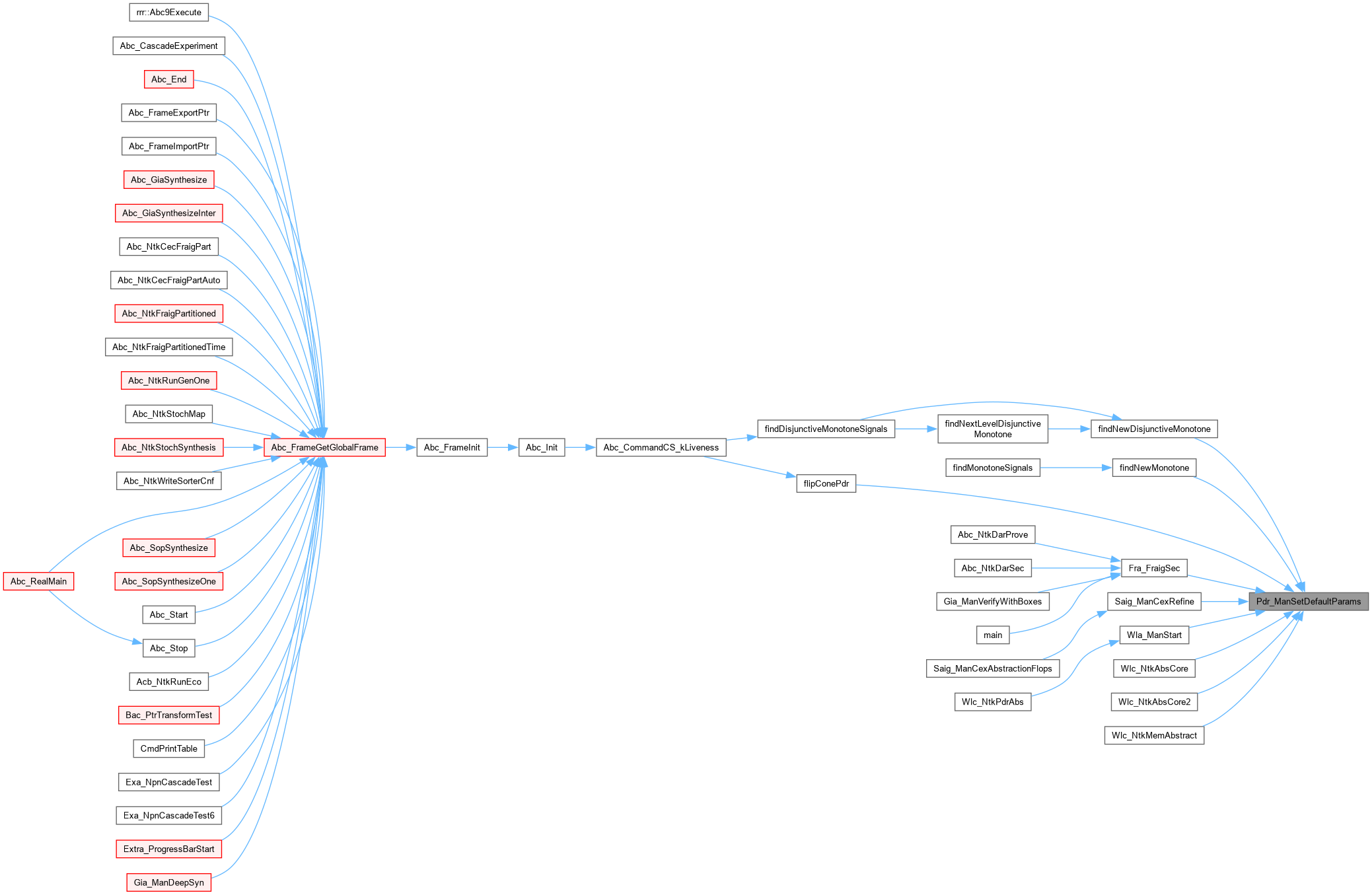

Here is the caller graph for this function:

Pdr_ManSolve()

int Pdr_ManSolve	(	Aig_Man_t *	pAig,
		Pdr_Par_t *	pPars )

Function*************************************************************

Synopsis []

Description []

SideEffects []

SeeAlso []

Definition at line 1765 of file pdrCore.c.

{
    Pdr_Man_t * p;
    int k, RetValue;
    abctime clk = Abc_Clock();
    if ( pPars->nTimeOutOne && !pPars->fSolveAll )
        pPars->nTimeOutOne = 0;
    if ( pPars->nTimeOutOne && pPars->nTimeOut == 0 )
        pPars->nTimeOut = pPars->nTimeOutOne * Saig_ManPoNum(pAig) / 1000 + (int)((pPars->nTimeOutOne * Saig_ManPoNum(pAig) % 1000) > 0);
    if ( pPars->fVerbose )
    {
//    Abc_Print( 1, "Running PDR by Niklas Een (aka IC3 by Aaron Bradley) with these parameters:\n" );
        Abc_Print( 1, "VarMax = %d. FrameMax = %d. QueMax = %d. TimeMax = %d. ",
            pPars->nRecycle,
            pPars->nFrameMax,
            pPars->nRestLimit,
            pPars->nTimeOut );
        Abc_Print( 1, "MonoCNF = %s. SkipGen = %s. SolveAll = %s.\n",
            pPars->fMonoCnf ?     "yes" : "no",
            pPars->fSkipGeneral ? "yes" : "no",
            pPars->fSolveAll ?    "yes" : "no" );
    }
    ABC_FREE( pAig->pSeqModel );
    p = Pdr_ManStart( pAig, pPars, NULL );
    RetValue = Pdr_ManSolveInt( p );
    if ( RetValue == 0 )
        assert( pAig->pSeqModel != NULL || p->vCexes != NULL );
    if ( p->vCexes )
    {
        assert( p->pAig->vSeqModelVec == NULL );
        p->pAig->vSeqModelVec = p->vCexes;
        p->vCexes = NULL;
    }
    if ( p->pPars->fDumpInv )
    {
        char * pFileName = pPars->pInvFileName ? pPars->pInvFileName : Extra_FileNameGenericAppend(p->pAig->pName, "_inv.pla");
        Abc_FrameSetInv( Pdr_ManDeriveInfinityClauses( p, RetValue!=1 ) );
        Pdr_ManDumpClauses( p, pFileName, RetValue==1 );
        printf( "Dumped inductive invariant in file \"%s\".\n", pFileName );
    }
    else if ( RetValue == 1 )
        Abc_FrameSetInv( Pdr_ManDeriveInfinityClauses( p, RetValue!=1 ) );
    p->tTotal += Abc_Clock() - clk;
    Pdr_ManStop( p );
    pPars->iFrame--;
    // convert all -2 (unknown) entries into -1 (undec)
    if ( pPars->vOutMap )
        for ( k = 0; k < Saig_ManPoNum(pAig); k++ )
            if ( Vec_IntEntry(pPars->vOutMap, k) == -2 ) // unknown
                Vec_IntWriteEntry( pPars->vOutMap, k, -1 ); // undec
    if ( pPars->fUseBridge )
        Gia_ManToBridgeAbort( stdout, 7, (unsigned char *)"timeout" );
    return RetValue;
}

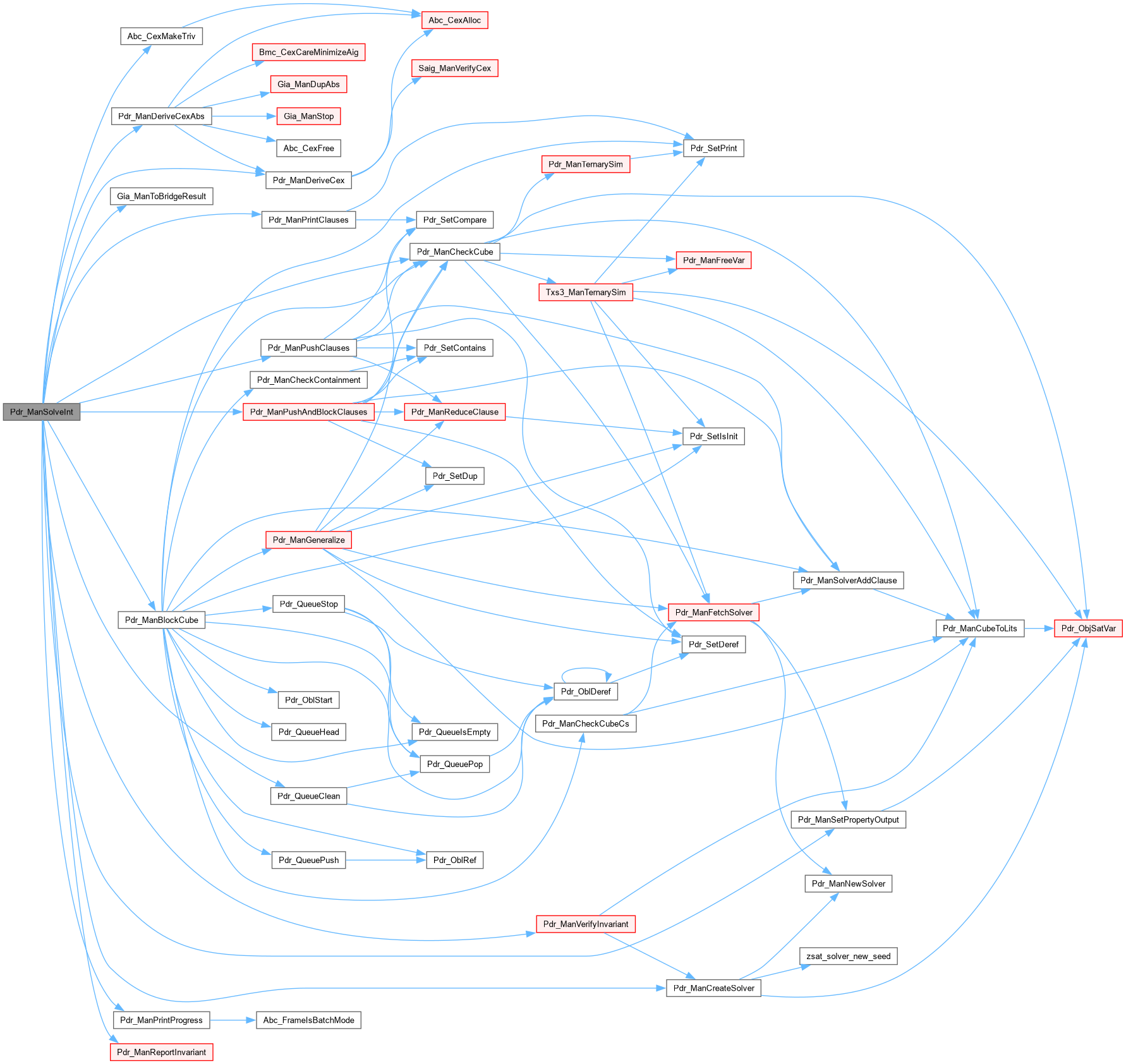

Here is the call graph for this function:

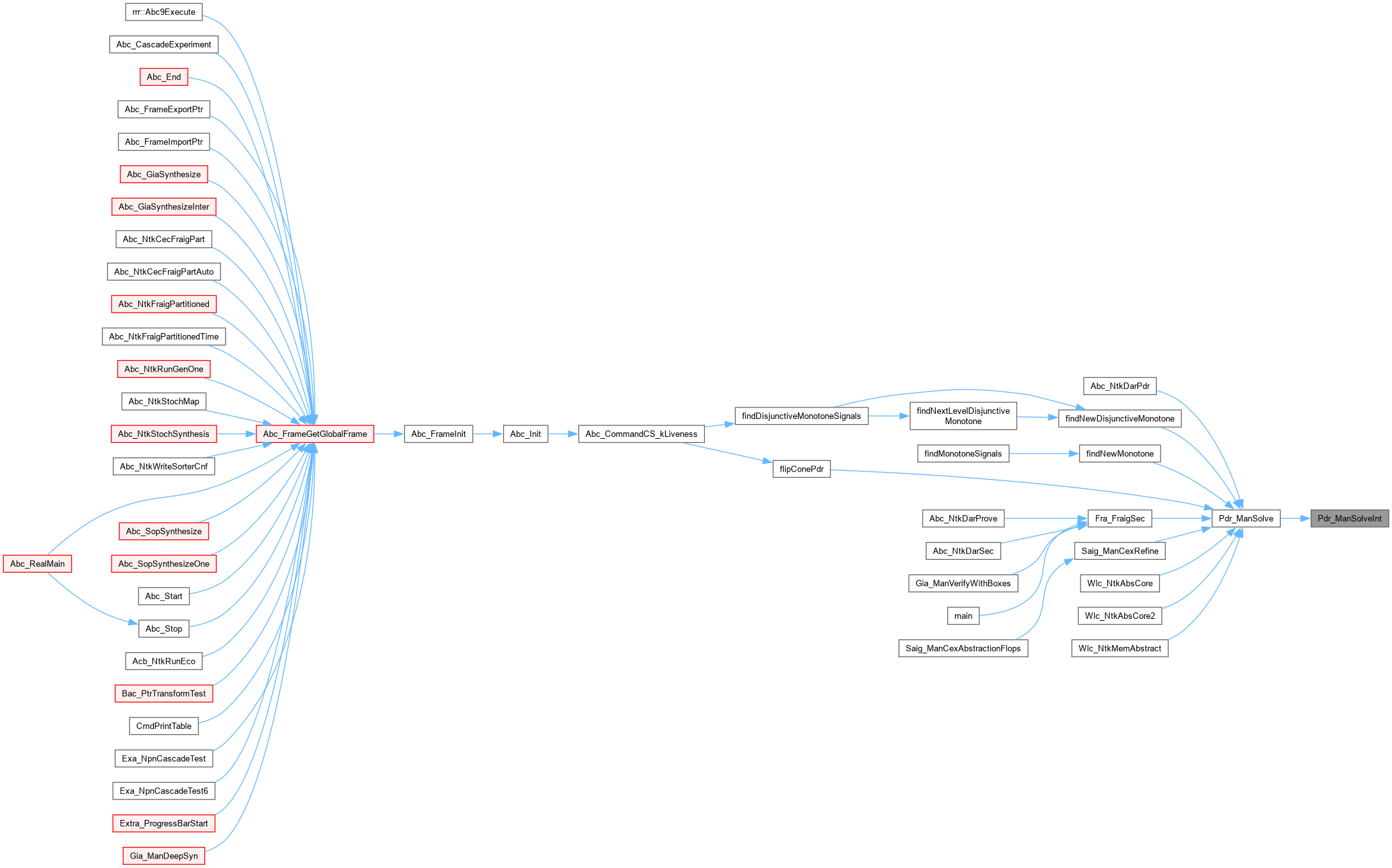

Here is the caller graph for this function:

Pdr_ManSolveInt()

int Pdr_ManSolveInt

(

Pdr_Man_t *

p

)

Function*************************************************************

Synopsis []

Description []

SideEffects []

SeeAlso []

Definition at line 1394 of file pdrCore.c.

{
    int fPrintClauses = 0;
    Pdr_Set_t * pCube = NULL;
    Aig_Obj_t * pObj;
    Abc_Cex_t * pCexNew;
    int iFrame, RetValue = -1;
    int nOutDigits = Abc_Base10Log( Saig_ManPoNum(p->pAig) );
    abctime clkStart = Abc_Clock(), clkOne = 0;
    p->timeToStop = p->pPars->nTimeOut ? p->pPars->nTimeOut * CLOCKS_PER_SEC + Abc_Clock(): 0;
    assert( Vec_PtrSize(p->vSolvers) == 0 );
    // in the multi-output mode, mark trivial POs (those fed by const0) as solved
    if ( p->pPars->fSolveAll )
        Saig_ManForEachPo( p->pAig, pObj, iFrame )
            if ( Aig_ObjChild0(pObj) == Aig_ManConst0(p->pAig) )
            {
                Vec_IntWriteEntry( p->pPars->vOutMap, iFrame, 1 ); // unsat
                p->pPars->nProveOuts++;
                if ( p->pPars->fUseBridge )
                    Gia_ManToBridgeResult( stdout, 1, NULL, iFrame );
            }
    // create the first timeframe
    p->pPars->timeLastSolved = Abc_Clock();
    Pdr_ManCreateSolver( p, (iFrame = 0) );
    while ( 1 )
    {
        int fRefined = 0;
        if ( p->pPars->fUseAbs && p->vAbsFlops == NULL && iFrame == 1 )
        {
//            int i, Prio;
            assert( p->vAbsFlops == NULL );
            p->vAbsFlops  = Vec_IntStart( Saig_ManRegNum(p->pAig) );
            p->vMapFf2Ppi = Vec_IntStartFull( Saig_ManRegNum(p->pAig) );
            p->vMapPpi2Ff = Vec_IntAlloc( 100 );
//            Vec_IntForEachEntry( p->vPrio, Prio, i )
//                if ( Prio >> p->nPrioShift  )
//                    Vec_IntWriteEntry( p->vAbsFlops, i, 1 );
        }
        //if ( p->pPars->fUseAbs && p->vAbsFlops )
        //    printf( "Starting frame %d with %d (%d) flops.\n", iFrame, Vec_IntCountPositive(p->vAbsFlops), Vec_IntCountPositive(p->vPrio) );
        p->nFrames = iFrame;
        assert( iFrame == Vec_PtrSize(p->vSolvers)-1 );
        p->iUseFrame = Abc_MaxInt(iFrame, 1);
        Saig_ManForEachPo( p->pAig, pObj, p->iOutCur )
        {
            // skip disproved outputs
            if ( p->vCexes && Vec_PtrEntry(p->vCexes, p->iOutCur) )
                continue;
            // skip output whose time has run out
            if ( p->pTime4Outs && p->pTime4Outs[p->iOutCur] == 0 )
                continue;
            // check if the output is trivially solved
            if ( Aig_ObjChild0(pObj) == Aig_ManConst0(p->pAig) )
                continue;
            // check if the output is trivially solved
            if ( Aig_ObjChild0(pObj) == Aig_ManConst1(p->pAig) )
            {
                if ( !p->pPars->fSolveAll )
                {
                    pCexNew = Abc_CexMakeTriv( Aig_ManRegNum(p->pAig), Saig_ManPiNum(p->pAig), Saig_ManPoNum(p->pAig), iFrame*Saig_ManPoNum(p->pAig)+p->iOutCur );
                    p->pAig->pSeqModel = pCexNew;
                    return 0; // SAT
                }
                pCexNew = (p->pPars->fUseBridge || p->pPars->fStoreCex) ? Abc_CexMakeTriv( Aig_ManRegNum(p->pAig), Saig_ManPiNum(p->pAig), Saig_ManPoNum(p->pAig), iFrame*Saig_ManPoNum(p->pAig)+p->iOutCur ) : (Abc_Cex_t *)(ABC_PTRINT_T)1;
                p->pPars->nFailOuts++;
                if ( p->pPars->vOutMap ) Vec_IntWriteEntry( p->pPars->vOutMap, p->iOutCur, 0 );
                if ( !p->pPars->fNotVerbose )
                Abc_Print( 1, "Output %*d was trivially asserted in frame %2d (solved %*d out of %*d outputs).\n",
                    nOutDigits, p->iOutCur, iFrame, nOutDigits, p->pPars->nFailOuts, nOutDigits, Saig_ManPoNum(p->pAig) );
                assert( Vec_PtrEntry(p->vCexes, p->iOutCur) == NULL );
                if ( p->pPars->fUseBridge )
                    Gia_ManToBridgeResult( stdout, 0, pCexNew, pCexNew->iPo );
                Vec_PtrWriteEntry( p->vCexes, p->iOutCur, pCexNew );
                if ( p->pPars->pFuncOnFail && p->pPars->pFuncOnFail(p->iOutCur, p->pPars->fStoreCex ? (Abc_Cex_t *)Vec_PtrEntry(p->vCexes, p->iOutCur) : NULL) )
                {
                    if ( p->pPars->fVerbose )
                        Pdr_ManPrintProgress( p, 1, Abc_Clock() - clkStart );
                    if ( !p->pPars->fSilent )
                        Abc_Print( 1, "Quitting due to callback on fail in frame %d.\n", iFrame );
                    p->pPars->iFrame = iFrame;
                    return -1;
                }
                if ( p->pPars->nFailOuts + p->pPars->nDropOuts == Saig_ManPoNum(p->pAig) )
                    return p->pPars->nFailOuts ? 0 : -1; // SAT or UNDEC
                p->pPars->timeLastSolved = Abc_Clock();
                continue;
            }
            // try to solve this output
            if ( p->pTime4Outs )
            {
                assert( p->pTime4Outs[p->iOutCur] > 0 );
                clkOne = Abc_Clock();
                p->timeToStopOne = p->pTime4Outs[p->iOutCur] + Abc_Clock();
            }
            while ( 1 )
            {
                if ( p->pPars->nTimeOutGap && p->pPars->timeLastSolved && Abc_Clock() > p->pPars->timeLastSolved + p->pPars->nTimeOutGap * CLOCKS_PER_SEC )
                {
                    if ( p->pPars->fVerbose )
                        Pdr_ManPrintProgress( p, 1, Abc_Clock() - clkStart );
                    if ( !p->pPars->fSilent )
                        Abc_Print( 1, "Reached gap timeout (%d seconds) in frame %d.\n",  p->pPars->nTimeOutGap, iFrame );
                    p->pPars->iFrame = iFrame;
                    return -1;
                }
                RetValue = Pdr_ManCheckCube( p, iFrame, NULL, &pCube, p->pPars->nConfLimit, 0, 1 );
                if ( RetValue == 1 )
                    break;
                if ( RetValue == -1 )
                {
                    if ( p->pPars->fVerbose )
                        Pdr_ManPrintProgress( p, 1, Abc_Clock() - clkStart );
                    if ( p->timeToStop && Abc_Clock() > p->timeToStop && !p->pPars->fSilent )
                        Abc_Print( 1, "Reached timeout (%d seconds) in frame %d.\n",  p->pPars->nTimeOut, iFrame );
                    else if ( p->pPars->nTimeOutGap && p->pPars->timeLastSolved && Abc_Clock() > p->pPars->timeLastSolved + p->pPars->nTimeOutGap * CLOCKS_PER_SEC )
                        Abc_Print( 1, "Reached gap timeout (%d seconds) in frame %d.\n",  p->pPars->nTimeOutGap, iFrame );
                    else if ( p->timeToStopOne && Abc_Clock() > p->timeToStopOne )
                    {
                        Pdr_QueueClean( p );
                        pCube = NULL;
                        break; // keep solving
                    }
                    else if ( p->pPars->nConfLimit )
                        Abc_Print( 1, "Reached conflict limit (%d) in frame %d.\n",  p->pPars->nConfLimit, iFrame );
                    else if ( p->pPars->fVerbose )
                        Abc_Print( 1, "Computation cancelled by the callback in frame %d.\n", iFrame );
                    p->pPars->iFrame = iFrame;
                    return -1;
                }
                if ( RetValue == 0 )
                {
                    RetValue = Pdr_ManBlockCube( p, pCube );
                    if ( RetValue == -1 )
                    {
                        if ( p->pPars->fVerbose )
                            Pdr_ManPrintProgress( p, 1, Abc_Clock() - clkStart );
                        if ( p->timeToStop && Abc_Clock() > p->timeToStop && !p->pPars->fSilent )
                            Abc_Print( 1, "Reached timeout (%d seconds) in frame %d.\n",  p->pPars->nTimeOut, iFrame );
                        else if ( p->pPars->nTimeOutGap && p->pPars->timeLastSolved && Abc_Clock() > p->pPars->timeLastSolved + p->pPars->nTimeOutGap * CLOCKS_PER_SEC )
                            Abc_Print( 1, "Reached gap timeout (%d seconds) in frame %d.\n",  p->pPars->nTimeOutGap, iFrame );
                        else if ( p->timeToStopOne && Abc_Clock() > p->timeToStopOne )
                        {
                            Pdr_QueueClean( p );
                            pCube = NULL;
                            break; // keep solving
                        }
                        else if ( p->pPars->nConfLimit )
                            Abc_Print( 1, "Reached conflict limit (%d) in frame %d.\n",  p->pPars->nConfLimit, iFrame );
                        else if ( p->pPars->fVerbose )
                            Abc_Print( 1, "Computation cancelled by the callback in frame %d.\n", iFrame );
                        p->pPars->iFrame = iFrame;
                        return -1;
                    }
                    if ( RetValue == 0 )
                    {
                        if ( fPrintClauses )
                        {
                            Abc_Print( 1, "*** Clauses after frame %d:\n", iFrame );
                            Pdr_ManPrintClauses( p, 0 );
                        }
                        if ( p->pPars->fVerbose && !p->pPars->fUseAbs )
                            Pdr_ManPrintProgress( p, !p->pPars->fSolveAll, Abc_Clock() - clkStart );
                        p->pPars->iFrame = iFrame;
                        if ( !p->pPars->fSolveAll )
                        {
                            abctime clk = Abc_Clock();
                            Abc_Cex_t * pCex = Pdr_ManDeriveCexAbs(p);
                            p->tAbs += Abc_Clock() - clk;
                            if ( pCex == NULL )
                            {
                                assert( p->pPars->fUseAbs );
                                Pdr_QueueClean( p );
                                pCube = NULL;
                                fRefined = 1;
                                break; // keep solving
                            }
                            p->pAig->pSeqModel = pCex;
                            return 0; // SAT
                        }
                        p->pPars->nFailOuts++;
                        pCexNew = (p->pPars->fUseBridge || p->pPars->fStoreCex) ? Pdr_ManDeriveCex(p) : (Abc_Cex_t *)(ABC_PTRINT_T)1;
                        if ( p->pPars->vOutMap ) Vec_IntWriteEntry( p->pPars->vOutMap, p->iOutCur, 0 );
                        assert( Vec_PtrEntry(p->vCexes, p->iOutCur) == NULL );
                        if ( p->pPars->fUseBridge )
                            Gia_ManToBridgeResult( stdout, 0, pCexNew, pCexNew->iPo );
                        Vec_PtrWriteEntry( p->vCexes, p->iOutCur, pCexNew );
                        if ( p->pPars->pFuncOnFail && p->pPars->pFuncOnFail(p->iOutCur, p->pPars->fStoreCex ? (Abc_Cex_t *)Vec_PtrEntry(p->vCexes, p->iOutCur) : NULL) )
                        {
                            if ( p->pPars->fVerbose )
                                Pdr_ManPrintProgress( p, 1, Abc_Clock() - clkStart );
                            if ( !p->pPars->fSilent )
                                Abc_Print( 1, "Quitting due to callback on fail in frame %d.\n", iFrame );
                            p->pPars->iFrame = iFrame;
                            return -1;
                        }
                        if ( !p->pPars->fNotVerbose )
                            Abc_Print( 1, "Output %*d was asserted in frame %2d (%2d) (solved %*d out of %*d outputs).\n",
                                nOutDigits, p->iOutCur, iFrame, iFrame, nOutDigits, p->pPars->nFailOuts, nOutDigits, Saig_ManPoNum(p->pAig) );
                        if ( p->pPars->nFailOuts == Saig_ManPoNum(p->pAig) )
                            return 0; // all SAT
                        Pdr_QueueClean( p );
                        pCube = NULL;
                        break; // keep solving
                    }
                    if ( p->pPars->fVerbose )
                        Pdr_ManPrintProgress( p, 0, Abc_Clock() - clkStart );
                }
            }
            if ( fRefined )
                break;
            if ( p->pTime4Outs )
            {
                abctime timeSince = Abc_Clock() - clkOne;
                assert( p->pTime4Outs[p->iOutCur] > 0 );
                p->pTime4Outs[p->iOutCur] = (p->pTime4Outs[p->iOutCur] > timeSince) ? p->pTime4Outs[p->iOutCur] - timeSince : 0;
                if ( p->pTime4Outs[p->iOutCur] == 0 && Vec_PtrEntry(p->vCexes, p->iOutCur) == NULL ) // undecided
                {
                    p->pPars->nDropOuts++;
                    if ( p->pPars->vOutMap )
                        Vec_IntWriteEntry( p->pPars->vOutMap, p->iOutCur, -1 );
                    if ( !p->pPars->fNotVerbose )
                        Abc_Print( 1, "Timing out on output %*d in frame %d.\n", nOutDigits, p->iOutCur, iFrame );
                }
                p->timeToStopOne = 0;
            }
        }
        if ( p->pPars->fUseAbs && p->vAbsFlops && !fRefined )
        {
            int i, Used;
            Vec_IntForEachEntry( p->vAbsFlops, Used, i )
                if ( Used && (Vec_IntEntry(p->vPrio, i) >> p->nPrioShift) == 0 )
                    Vec_IntWriteEntry( p->vAbsFlops, i, 0 );
        }
        if ( p->pPars->fVerbose )
            Pdr_ManPrintProgress( p, !fRefined, Abc_Clock() - clkStart );
        if ( fRefined )
            continue;
        //if ( p->pPars->fUseAbs && p->vAbsFlops )
        //    printf( "Finished frame %d with %d (%d) flops.\n", iFrame, Vec_IntCountPositive(p->vAbsFlops), Vec_IntCountPositive(p->vPrio) );
        // open a new timeframe
        p->nQueLim = p->pPars->nRestLimit;
        assert( pCube == NULL );
        Pdr_ManSetPropertyOutput( p, iFrame );
        Pdr_ManCreateSolver( p, ++iFrame );
        if ( fPrintClauses )
        {
            Abc_Print( 1, "*** Clauses after frame %d:\n", iFrame );
            Pdr_ManPrintClauses( p, 0 );
        }
        // push clauses into this timeframe
        if (p->pPars->fBlocking) // clause pushing with blocking
        {
            RetValue = Pdr_ManPushAndBlockClauses( p );
            if ( RetValue == -1 )
            {
                if ( p->pPars->fVerbose )
                    Pdr_ManPrintProgress( p, 1, Abc_Clock() - clkStart );
                if ( !p->pPars->fSilent )
                {
                    if ( p->timeToStop && Abc_Clock() > p->timeToStop )
                        Abc_Print( 1, "Reached timeout (%d seconds) in frame %d.\n",  p->pPars->nTimeOut, iFrame );
                    else
                        Abc_Print( 1, "Reached conflict limit (%d) in frame %d.\n",  p->pPars->nConfLimit, iFrame );
                }
                p->pPars->iFrame = iFrame;
                return -1;
            }
        }
        RetValue = Pdr_ManPushClauses( p );
        if ( RetValue == -1 )
        {
            if ( p->pPars->fVerbose )
                Pdr_ManPrintProgress( p, 1, Abc_Clock() - clkStart );
            if ( !p->pPars->fSilent )
            {
                if ( p->timeToStop && Abc_Clock() > p->timeToStop )
                    Abc_Print( 1, "Reached timeout (%d seconds) in frame %d.\n",  p->pPars->nTimeOut, iFrame );
                else
                    Abc_Print( 1, "Reached conflict limit (%d) in frame %d.\n",  p->pPars->nConfLimit, iFrame );
            }
            p->pPars->iFrame = iFrame;
            return -1;
        }
        if ( RetValue )
        {
            if ( p->pPars->fVerbose )
                Pdr_ManPrintProgress( p, 1, Abc_Clock() - clkStart );
            if ( !p->pPars->fSilent )
                Pdr_ManReportInvariant( p );
            if ( !p->pPars->fSilent )
                Pdr_ManVerifyInvariant( p );
            p->pPars->iFrame = iFrame;
            // count the number of UNSAT outputs
            p->pPars->nProveOuts = Saig_ManPoNum(p->pAig) - p->pPars->nFailOuts - p->pPars->nDropOuts;
            // convert previously 'unknown' into 'unsat'
            if ( p->pPars->vOutMap )
                for ( iFrame = 0; iFrame < Saig_ManPoNum(p->pAig); iFrame++ )
                    if ( Vec_IntEntry(p->pPars->vOutMap, iFrame) == -2 ) // unknown
                    {
                        Vec_IntWriteEntry( p->pPars->vOutMap, iFrame, 1 ); // unsat
                        if ( p->pPars->fUseBridge )
                            Gia_ManToBridgeResult( stdout, 1, NULL, iFrame );
                    }
            if ( p->pPars->nProveOuts == Saig_ManPoNum(p->pAig) )
                return 1; // UNSAT
            if ( p->pPars->nFailOuts > 0 )
                return 0; // SAT
            return -1;
        }
        if ( p->pPars->fVerbose )
            Pdr_ManPrintProgress( p, 0, Abc_Clock() - clkStart );

        // check termination
        if ( p->pPars->pFuncStop && p->pPars->pFuncStop(p->pPars->RunId) )
        {
            p->pPars->iFrame = iFrame;
            return -1;
        }
        if ( p->timeToStop && Abc_Clock() > p->timeToStop )
        {
            if ( fPrintClauses )
            {
                Abc_Print( 1, "*** Clauses after frame %d:\n", iFrame );
                Pdr_ManPrintClauses( p, 0 );
            }
            if ( p->pPars->fVerbose )
                Pdr_ManPrintProgress( p, 1, Abc_Clock() - clkStart );
            if ( !p->pPars->fSilent )
                Abc_Print( 1, "Reached timeout (%d seconds) in frame %d.\n",  p->pPars->nTimeOut, iFrame );
            p->pPars->iFrame = iFrame;
            return -1;
        }
        if ( p->pPars->nTimeOutGap && p->pPars->timeLastSolved && Abc_Clock() > p->pPars->timeLastSolved + p->pPars->nTimeOutGap * CLOCKS_PER_SEC )
        {
            if ( fPrintClauses )
            {
                Abc_Print( 1, "*** Clauses after frame %d:\n", iFrame );
                Pdr_ManPrintClauses( p, 0 );
            }
            if ( p->pPars->fVerbose )
                Pdr_ManPrintProgress( p, 1, Abc_Clock() - clkStart );
            if ( !p->pPars->fSilent )
                Abc_Print( 1, "Reached gap timeout (%d seconds) in frame %d.\n",  p->pPars->nTimeOutGap, iFrame );
            p->pPars->iFrame = iFrame;
            return -1;
        }
        if ( p->pPars->nFrameMax && iFrame >= p->pPars->nFrameMax )
        {
            if ( p->pPars->fVerbose )
                Pdr_ManPrintProgress( p, 1, Abc_Clock() - clkStart );
            if ( !p->pPars->fSilent )
                Abc_Print( 1, "Reached limit on the number of timeframes (%d).\n", p->pPars->nFrameMax );
            p->pPars->iFrame = iFrame;
            return -1;
        }
    }
    assert( 0 );
    return -1;
}

Here is the call graph for this function:

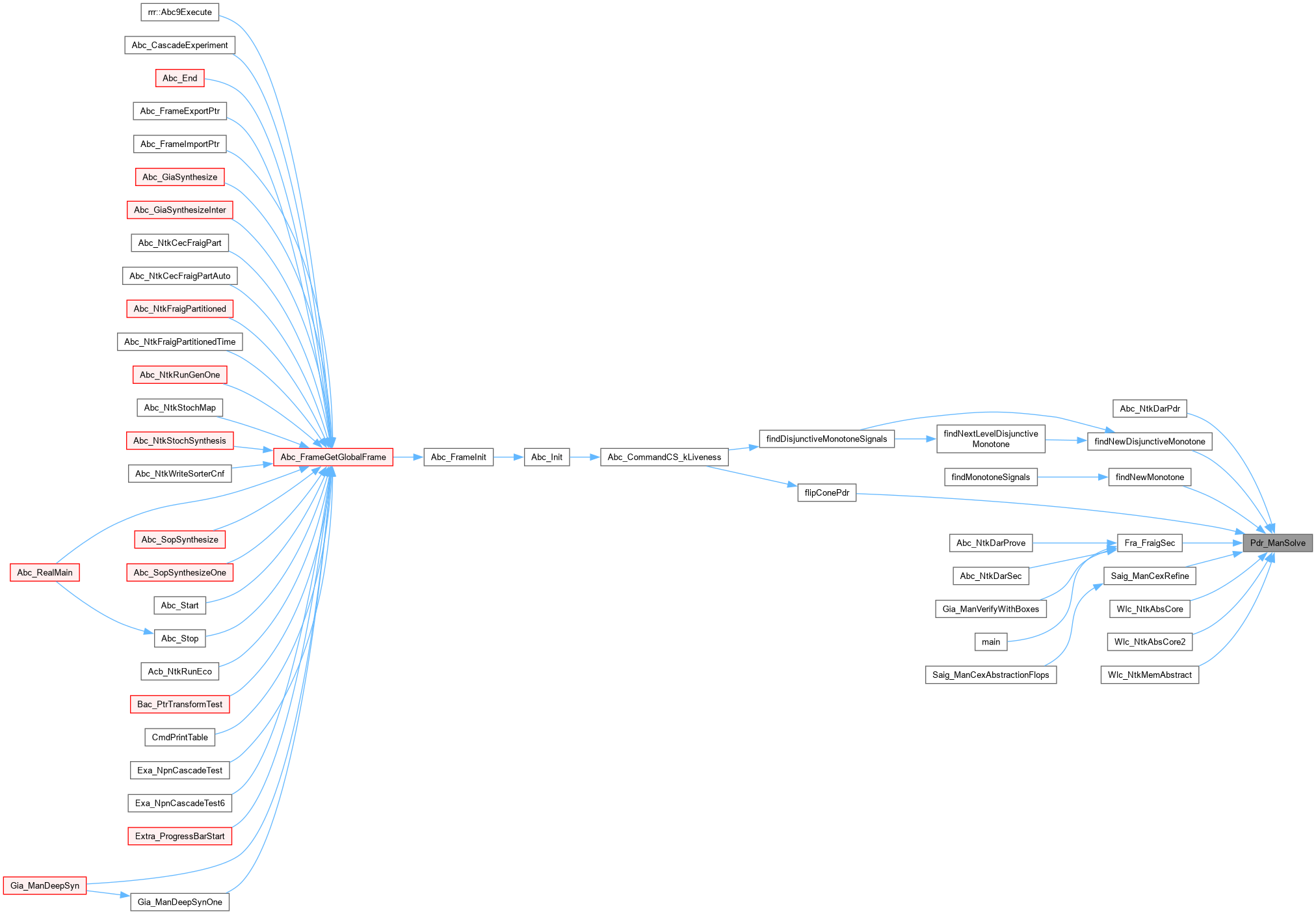

Here is the caller graph for this function:

Pdr_ManSortByPriority()

int * Pdr_ManSortByPriority	(	Pdr_Man_t *	p,
		Pdr_Set_t *	pCube )

Function*************************************************************

Synopsis [Sorts literals by priority.]

Description []

SideEffects []

SeeAlso []

Definition at line 414 of file pdrCore.c.

{
    int * pPrios = Vec_IntArray(p->vPrio);
    int * pArray = p->pOrder;
    int temp, i, j, best_i, nSize = pCube->nLits;
    // initialize variable order
    for ( i = 0; i < nSize; i++ )
        pArray[i] = i;
    for ( i = 0; i < nSize-1; i++ )
    {
        best_i = i;
        for ( j = i+1; j < nSize; j++ )
//            if ( pArray[j] < pArray[best_i] )
            if ( pPrios[pCube->Lits[pArray[j]]>>1] < pPrios[pCube->Lits[pArray[best_i]]>>1] ) // list lower priority first (these will be removed first)
                best_i = j;
        temp = pArray[i];
        pArray[i] = pArray[best_i];
        pArray[best_i] = temp;
    }
/*
    for ( i = 0; i < pCube->nLits; i++ )
        Abc_Print( 1, "%2d : %5d    %5d  %5d\n", i, pArray[i], pCube->Lits[pArray[i]]>>1, pPrios[pCube->Lits[pArray[i]]>>1] );
    Abc_Print( 1, "\n" );
*/
    return pArray;
}

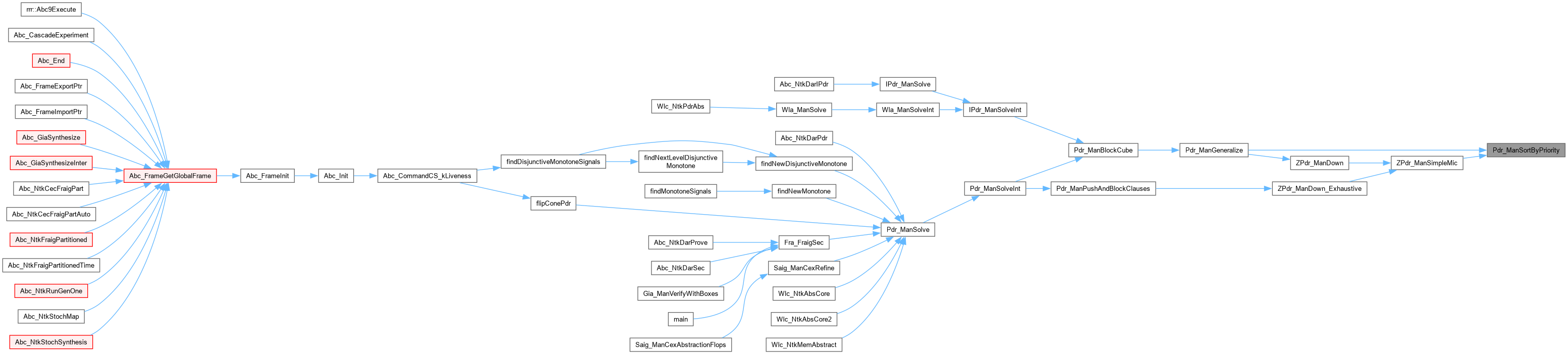

Here is the caller graph for this function:

ZPdr_ManDown()

int ZPdr_ManDown	(	Pdr_Man_t *	p,
		int	k,
		Pdr_Set_t **	ppCube,
		Pdr_Set_t *	pPred,
		Hash_Int_t *	keep,
		Pdr_Set_t *	pIndCube,
		int *	added )

Function*************************************************************

Synopsis []

Description []

SideEffects []

SeeAlso []

Definition at line 509 of file pdrCore.c.

{
    int RetValue = 0, CtgRetValue, i, ctgAttempts, l, micResult;
    int kMax = Vec_PtrSize(p->vSolvers)-1;
    Pdr_Set_t * pCubeTmp, * pCubeMin, * pCtg;
    while ( RetValue == 0 )
    {
        ctgAttempts = 0;
        while ( p->pPars->fCtgs && RetValue == 0 && k > 1 && ctgAttempts < 3 )
        {
            pCtg = Pdr_SetDup( pPred );
            //Check CTG for inductiveness
            if ( Pdr_SetIsInit( pCtg, -1 ) )
            {
                Pdr_SetDeref( pCtg );
                break;
            }
            if (*added == 0)
            {
                for ( i = 1; i <= k; i++ )
                    Pdr_ManSolverAddClause( p, i, pIndCube);
                *added = 1;
            }
            ctgAttempts++;
            CtgRetValue = Pdr_ManCheckCube( p, k-1, pCtg, NULL, p->pPars->nConfLimit, 0, 1 );
            if ( CtgRetValue != 1 )
            {
                Pdr_SetDeref( pCtg );
                break;
            }
            pCubeMin = Pdr_ManReduceClause( p, k-1, pCtg );
            if ( pCubeMin == NULL )
                pCubeMin = Pdr_SetDup ( pCtg );

            for ( l = k; l < kMax; l++ )
                if ( !Pdr_ManCheckCube( p, l, pCubeMin, NULL, 0, 0, 1 ) )
                    break;
            micResult = ZPdr_ManSimpleMic( p, l-1, &pCubeMin );
            assert ( micResult != -1 );

            // add new clause
            if ( p->pPars->fVeryVerbose )
            {
                Abc_Print( 1, "Adding cube " );
                Pdr_SetPrint( stdout, pCubeMin, Aig_ManRegNum(p->pAig), NULL );
                Abc_Print( 1, " to frame %d.\n", l );
            }
            // set priority flops
            for ( i = 0; i < pCubeMin->nLits; i++ )
            {
                assert( pCubeMin->Lits[i] >= 0 );
                assert( (pCubeMin->Lits[i] / 2) < Aig_ManRegNum(p->pAig) );
                if ( (Vec_IntEntry(p->vPrio, pCubeMin->Lits[i] / 2) >> p->nPrioShift) == 0 )
                    p->nAbsFlops++;
                Vec_IntAddToEntry( p->vPrio, pCubeMin->Lits[i] / 2, 1 << p->nPrioShift );
            }

            Vec_VecPush( p->vClauses, l, pCubeMin );   // consume ref
            p->nCubes++;
            // add clause
            for ( i = 1; i <= l; i++ )
                Pdr_ManSolverAddClause( p, i, pCubeMin );
            Pdr_SetDeref( pPred );
            RetValue = Pdr_ManCheckCube( p, k, *ppCube, &pPred, p->pPars->nConfLimit, 0, 1 );
            assert( RetValue >= 0 );
            Pdr_SetDeref( pCtg );
            if ( RetValue == 1 )
            {
                //printf ("IT'S A ONE\n");
                return 1;
            }
        }

        //join
        if ( p->pPars->fVeryVerbose )
        {
            printf("Cube:\n");
            ZPdr_SetPrint( *ppCube );
            printf("\nPred:\n");
            ZPdr_SetPrint( pPred );
        }
        *ppCube = ZPdr_SetIntersection( pCubeTmp = *ppCube, pPred, keep );
        Pdr_SetDeref( pCubeTmp );
        Pdr_SetDeref( pPred );
        if ( *ppCube == NULL )
            return 0;
        if ( p->pPars->fVeryVerbose )
        {
            printf("Intersection:\n");
            ZPdr_SetPrint( *ppCube );
        }
        if ( Pdr_SetIsInit( *ppCube, -1 ) )
        {
            if ( p->pPars->fVeryVerbose )
                printf ("Failed initiation\n");
            return 0;
        }
        RetValue = Pdr_ManCheckCube( p, k, *ppCube, &pPred, p->pPars->nConfLimit, 0, 1 );
        if ( RetValue == -1 )
            return -1;
        if ( RetValue == 1 )
        {
            //printf ("*********IT'S A ONE\n");
            break;
        }
        if ( RetValue == 0 && (*ppCube)->nLits == 1)
        {
            Pdr_SetDeref( pPred ); // fixed memory leak
            // A workaround for the incomplete assignment returned by the SAT
            // solver
            return 0;
        }
    }
    return 1;
}

Here is the call graph for this function:

Here is the caller graph for this function:

ZPdr_ManDown_Exhaustive()

int ZPdr_ManDown_Exhaustive	(	Pdr_Man_t *	p,
		int	k,
		Pdr_Set_t **	ppCube,
		Pdr_Set_t *	pPred,
		Hash_Int_t *	keep,
		Pdr_Set_t *	pIndCube,
		int *	added )

Definition at line 625 of file pdrCore.c.

{
    int RetValue = 0, CtgRetValue, i, ctgAttempts, l, micResult;
    int j;
    int kMax = Vec_PtrSize(p->vSolvers)-1;
    int kTmp = k;
    Pdr_Set_t * pCubeTmp, * pCubeMin, * pCtg;
    Pdr_Set_t * pPredTmp = pPred, * pCubePre = *ppCube;
    Pdr_Set_t * pCubeMinCopy;
    while ( RetValue == 0 )
    {
        ctgAttempts = 0;
        while ( RetValue == 0 && kTmp > 1 && ctgAttempts < 3 )
        {
            pCtg = Pdr_SetDup( pPredTmp );
            //Check CTG for inductiveness
            if ( Pdr_SetIsInit( pCtg, -1 ) )
            {
                Pdr_SetDeref( pCtg );
                break;
            }
            if (*added == 0)
            {
                for ( i = 1; i <= k; i++ )
                    Pdr_ManSolverAddClause( p, i, pIndCube);
                *added = 1;
            }
            if ( pPredTmp != pPred )
                Pdr_SetDeref( pPredTmp );
            CtgRetValue = Pdr_ManCheckCube( p, kTmp-1, pCtg, &pPredTmp, p->pPars->nConfLimit, 0, 1 );
            if ( CtgRetValue == -1 )
            {
                Pdr_SetDeref( pCtg );
                Pdr_SetDeref( pPred );
                if ( pCubePre != *ppCube )
                    Pdr_SetDeref( pCubePre );
                return -1;
            }
            if ( CtgRetValue == 0 )
            {
                if (pCubePre != *ppCube)
                    Pdr_SetDeref( pCubePre );
                if (kTmp == 1)
                {
                    Pdr_SetDeref( pCtg );
                    ctgAttempts++;
                    kTmp = k;
                    pPredTmp = pPred;
                    pCubePre = *ppCube;
                }
                else
                {
                    pCubePre = pCtg;
                    kTmp = kTmp - 1;
                }
                continue;
            }


            pCubeMin = Pdr_ManReduceClause( p, kTmp-1, pCtg );
            if ( pCubeMin == NULL )
                pCubeMin = Pdr_SetDup( pCtg );

            pCubeMinCopy = Pdr_SetDup( pCubeMin );
            // generalize before pushing
            micResult = ZPdr_ManSimpleMic( p, kTmp-1, &pCubeMin );
            if ( micResult == -1 )
            {
                Pdr_SetDeref( pCtg );
                Pdr_SetDeref( pCubeMin );
                Pdr_SetDeref( pCubeMinCopy );
                Pdr_SetDeref( pPred );
                if ( pCubePre != *ppCube )
                    Pdr_SetDeref( pCubePre );
                return -1;
            }
            for ( l = kTmp; l < kMax; l++ )
                if ( Pdr_ManCheckCube( p, l, pCubeMin, NULL, p->pPars->nConfLimit, 0, 1 ) != 1 )
                    break;
            // add clause
            for ( i = 1; i <= l; i++ )
                Pdr_ManSolverAddClause( p, i, pCubeMin );
            Vec_VecPush( p->vClauses, l, pCubeMin );   // consume ref
            p->nCubes++;

            // try to push the original cube farther
            for ( j = l; j < kMax; j++ )
                if ( Pdr_ManCheckCube( p, j, pCubeMinCopy, NULL, p->pPars->nConfLimit, 0, 1 ) != 1 )
                    break;
            if ( j > l )
            {
                micResult = ZPdr_ManSimpleMic( p, j-1, &pCubeMinCopy );
                if ( micResult == -1 )
                {
                    Pdr_SetDeref( pCtg );
                    Pdr_SetDeref( pCubeMinCopy );
                    Pdr_SetDeref( pPred );
                    if ( pCubePre != *ppCube )
                        Pdr_SetDeref( pCubePre );
                    return -1;
                }
                // add clause
                for ( i = 1; i <= j; i++ )
                    Pdr_ManSolverAddClause( p, i, pCubeMinCopy );
                Vec_VecPush( p->vClauses, j, pCubeMinCopy );
                p->nCubes++;
            }

            // add new clause
            if ( p->pPars->fVeryVerbose )
            {
                Abc_Print( 1, "Adding cube " );
                Pdr_SetPrint( stdout, pCubeMin, Aig_ManRegNum(p->pAig), NULL );
                Abc_Print( 1, " to frame %d.\n", l );
            }
            // set priority flops for both cubes
            for ( i = 0; i < pCubeMin->nLits; i++ )
            {
                assert( pCubeMin->Lits[i] >= 0 );
                assert( (pCubeMin->Lits[i] / 2) < Aig_ManRegNum(p->pAig) );
                if ( (Vec_IntEntry(p->vPrio, pCubeMin->Lits[i] / 2) >> p->nPrioShift) == 0 )
                    p->nAbsFlops++;
                Vec_IntAddToEntry( p->vPrio, pCubeMin->Lits[i] / 2, 1 << p->nPrioShift );
            }
            for ( i = 0; i < pCubeMinCopy->nLits; i++ )
            {
                assert( pCubeMinCopy->Lits[i] >= 0 );
                assert( (pCubeMinCopy->Lits[i] / 2) < Aig_ManRegNum(p->pAig) );
                if ( (Vec_IntEntry(p->vPrio, pCubeMinCopy->Lits[i] / 2) >> p->nPrioShift) == 0 )
                    p->nAbsFlops++;
                Vec_IntAddToEntry( p->vPrio, pCubeMinCopy->Lits[i] / 2, 1 << p->nPrioShift );
            }

            Pdr_SetDeref( pPred );
            RetValue = Pdr_ManCheckCube( p, k, *ppCube, &pPred, p->pPars->nConfLimit, 0, 1 );
            if ( RetValue == -1 )
            {
                if ( pCubePre != *ppCube )
                    Pdr_SetDeref( pCubePre );
                Pdr_SetDeref( pCtg );
                return -1;
            }
            Pdr_SetDeref( pCtg );
            if ( RetValue == 1 )
            {
                //printf ("IT'S A ONE\n");
                if ( pCubePre != *ppCube )
                    Pdr_SetDeref( pCubePre );
                return 1;
            }
            RetValue = Pdr_ManCheckCube( p, kTmp, pCubePre, &pPredTmp, p->pPars->nConfLimit, 0, 1 );
            if ( RetValue == -1 )
            {
                if ( pCubePre != *ppCube )
                    Pdr_SetDeref( pCubePre );
                Pdr_SetDeref( pPred );
                return -1;
            }
            if (RetValue == 1)
            {
                ctgAttempts++;
                if ( pCubePre != *ppCube )
                    Pdr_SetDeref( pCubePre );
                kTmp = k;
                pPredTmp = pPred;
                pCubePre = *ppCube;
            }
        }

        if (pCubePre != *ppCube)
            Pdr_SetDeref( pCubePre );
        if ( pPredTmp != pPred )
            Pdr_SetDeref( pPredTmp );
        //join
        if ( p->pPars->fVeryVerbose )
        {
            printf("Cube:\n");
            ZPdr_SetPrint( *ppCube );
            printf("\nPred:\n");
            ZPdr_SetPrint( pPred );
        }
        *ppCube = ZPdr_SetIntersection( pCubeTmp = *ppCube, pPred, keep );
        Pdr_SetDeref( pCubeTmp );
        Pdr_SetDeref( pPred );
        if ( *ppCube == NULL )
            return 0;
        if ( p->pPars->fVeryVerbose )
        {
            printf("Intersection:\n");
            ZPdr_SetPrint( *ppCube );
        }
        if ( Pdr_SetIsInit( *ppCube, -1 ) )
        {
            if ( p->pPars->fVeryVerbose )
                printf ("Failed initiation\n");
            return 0;
        }
        RetValue = Pdr_ManCheckCube( p, k, *ppCube, &pPred, p->pPars->nConfLimit, 0, 1 );
        if ( RetValue == -1 )
            return -1;
        if ( RetValue == 1 )
        {
            //printf ("*********IT'S A ONE\n");
            break;
        }
        if ( RetValue == 0 && (*ppCube)->nLits == 1)
        {
            Pdr_SetDeref( pPred ); // fixed memory leak
            // A workaround for the incomplete assignment returned by the SAT
            // solver
            return 0;
        }
        kTmp = k;
        pPredTmp = pPred;
        pCubePre = *ppCube;
    }
    return 1;
}

Here is the call graph for this function:

Here is the caller graph for this function:

ZPdr_ManSimpleMic()

int ZPdr_ManSimpleMic	(	Pdr_Man_t *	p,
		int	k,
		Pdr_Set_t **	ppCube )

Function*************************************************************

Synopsis []

Description []

SideEffects []

SeeAlso []

Definition at line 453 of file pdrCore.c.

{
    int * pOrder;
    int i, j, Lit, RetValue;
    Pdr_Set_t * pCubeTmp;
    // perform generalization
    if ( p->pPars->fSkipGeneral )
      return 0;

    // sort literals by their occurences
    pOrder = Pdr_ManSortByPriority( p, *ppCube );
    // try removing literals
    for ( j = 0; j < (*ppCube)->nLits; j++ )
    {
        // use ordering
    //        i = j;
        i = pOrder[j];

        assert( (*ppCube)->Lits[i] != -1 );
        // check init state
        if ( Pdr_SetIsInit(*ppCube, i) )
            continue;
        // try removing this literal
        Lit = (*ppCube)->Lits[i]; (*ppCube)->Lits[i] = -1;
        RetValue = Pdr_ManCheckCube( p, k, *ppCube, NULL, p->pPars->nConfLimit, 0, 1 );
        if ( RetValue == -1 )
            return -1;
        (*ppCube)->Lits[i] = Lit;
        if ( RetValue == 0 )
            continue;

        // success - update the cube
        *ppCube = Pdr_SetCreateFrom( pCubeTmp = *ppCube, i );
        Pdr_SetDeref( pCubeTmp );
        assert( (*ppCube)->nLits > 0 );

        // get the ordering by decreasing priority
        pOrder = Pdr_ManSortByPriority( p, *ppCube );
        j--;
    }
    return 0;
}

Here is the call graph for this function:

Here is the caller graph for this function:
