cecCec.c File Reference

#include "cecInt.h"
#include "proof/fra/fra.h"
#include "aig/gia/giaAig.h"
#include "misc/extra/extra.h"
#include "sat/cnf/cnf.h"

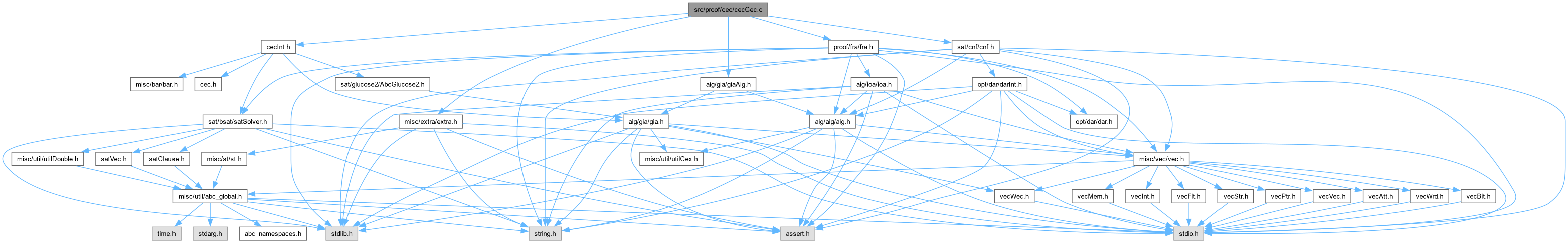

Include dependency graph for cecCec.c:

Go to the source code of this file.

Functions
ABC_NAMESPACE_IMPL_START void	Cec_ManTransformPattern (Gia_Man_t *p, int iOut, int *pValues)
	DECLARATIONS ///.
int	Cec_ManVerifyOld (Gia_Man_t *pMiter, int fVerbose, int *piOutFail, abctime clkTotal, int fSilent)
int	Cec_ManHandleSpecialCases (Gia_Man_t *p, Cec_ParCec_t *pPars)
int	Cec_ManVerifyNaive (Gia_Man_t *p, Cec_ParCec_t *pPars)
int	Cec_ManVerify (Gia_Man_t *pInit, Cec_ParCec_t *pPars)
	MACRO DEFINITIONS ///.
int	Cec_ManVerifySimple (Gia_Man_t *p)
int	Cec_ManVerifyTwo (Gia_Man_t *p0, Gia_Man_t *p1, int fVerbose)
int	Cec_ManVerifyTwoInv (Gia_Man_t *p0, Gia_Man_t *p1, int fVerbose)
int	Cec_ManVerifyTwoAigs (Aig_Man_t *pAig0, Aig_Man_t *pAig1, int fVerbose)
Aig_Man_t *	Cec_LatchCorrespondence (Aig_Man_t *pAig, int nConfs, int fUseCSat)
Aig_Man_t *	Cec_SignalCorrespondence (Aig_Man_t *pAig, int nConfs, int fUseCSat)
Aig_Man_t *	Cec_FraigCombinational (Aig_Man_t *pAig, int nConfs, int fVerbose)

Function Documentation

Cec_FraigCombinational()

Aig_Man_t * Cec_FraigCombinational	(	Aig_Man_t *	pAig,
		int	nConfs,
		int	fVerbose )

Function*************************************************************

Synopsis [Implementation of fraiging.]

Description []

SideEffects []

SeeAlso []

Definition at line 579 of file cecCec.c.

{
    Gia_Man_t * pGia;
    Cec_ParFra_t FraPars, * pFraPars = &FraPars;
    Cec_ManFraSetDefaultParams( pFraPars );
    pFraPars->fSatSweeping = 1;
    pFraPars->nBTLimit  = nConfs;
    pFraPars->nItersMax = 20;
    pFraPars->fVerbose  = fVerbose;
    pGia = Gia_ManFromAigSimple( pAig );
    Cec_ManSatSweeping( pGia, pFraPars, 0 );
    Gia_ManReprToAigRepr( pAig, pGia );
    Gia_ManStop( pGia );
    return Aig_ManDupSimple( pAig );
}

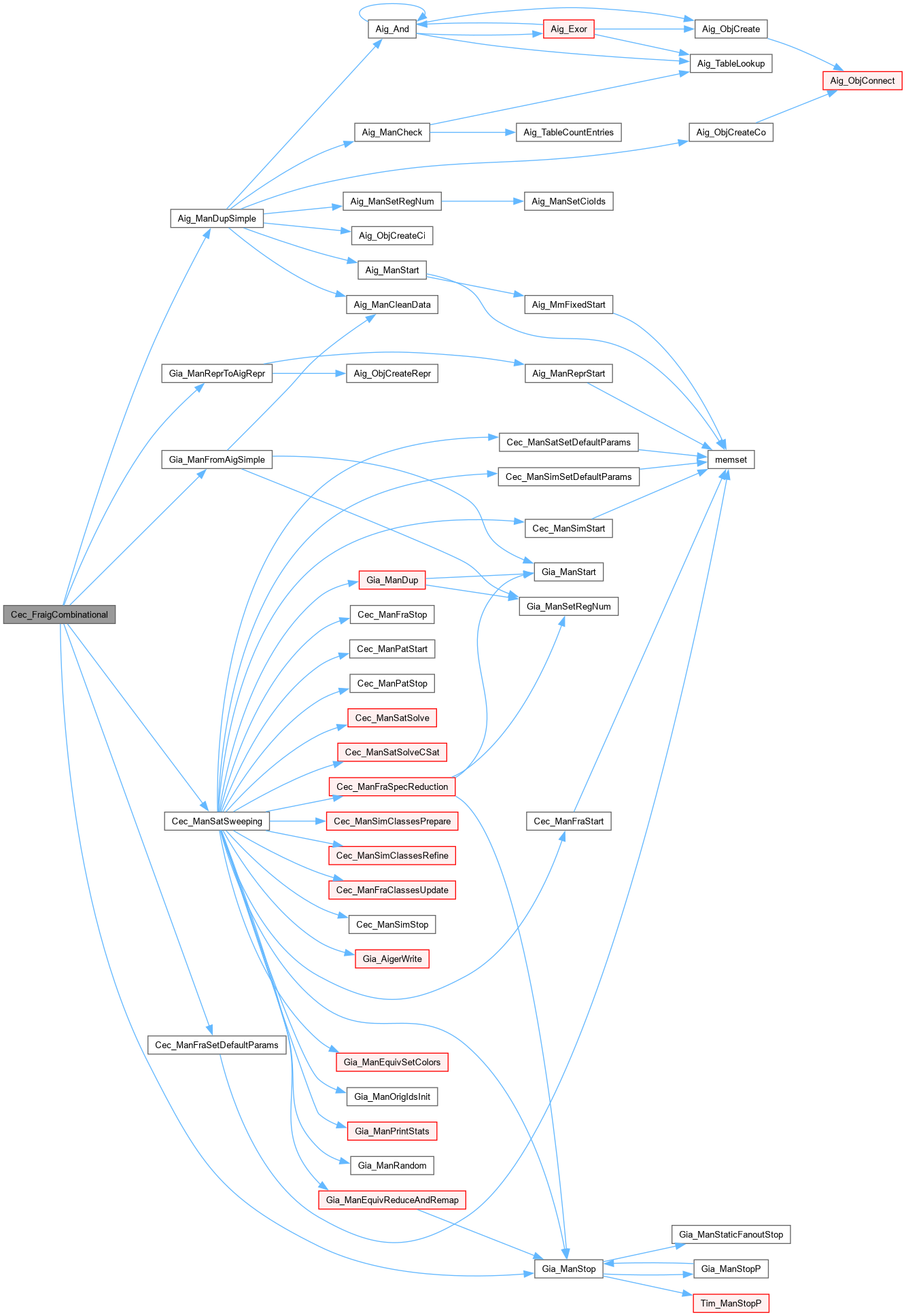

Here is the call graph for this function:

Cec_LatchCorrespondence()

Aig_Man_t * Cec_LatchCorrespondence	(	Aig_Man_t *	pAig,
		int	nConfs,
		int	fUseCSat )

Function*************************************************************

Synopsis [Implementation of new signal correspodence.]

Description []

SideEffects []

SeeAlso []

Definition at line 528 of file cecCec.c.

{
    Gia_Man_t * pGia;
    Cec_ParCor_t CorPars, * pCorPars = &CorPars;
    Cec_ManCorSetDefaultParams( pCorPars );
    pCorPars->fLatchCorr = 1;
    pCorPars->fUseCSat   = fUseCSat;
    pCorPars->nBTLimit   = nConfs;
    pGia = Gia_ManFromAigSimple( pAig );
    Cec_ManLSCorrespondenceClasses( pGia, pCorPars );
    Gia_ManReprToAigRepr( pAig, pGia );
    Gia_ManStop( pGia );
    return Aig_ManDupSimple( pAig );
}

Here is the call graph for this function:

Here is the caller graph for this function:

Cec_ManHandleSpecialCases()

int Cec_ManHandleSpecialCases	(	Gia_Man_t *	p,
		Cec_ParCec_t *	pPars )

Function*************************************************************

Synopsis []

Description []

SideEffects []

SeeAlso []

Definition at line 142 of file cecCec.c.

{
    Gia_Obj_t * pObj1, * pObj2;
    Gia_Obj_t * pDri1, * pDri2;
    int i;
    abctime clk = Abc_Clock();
    Gia_ManSetPhase( p );
    Gia_ManForEachPo( p, pObj1, i )
    {
        pObj2 = Gia_ManPo( p, ++i );
        // check if they different on all-0 pattern
        // (for example, when they have the same driver but complemented)
        if ( Gia_ObjPhase(pObj1) != Gia_ObjPhase(pObj2) )
        {
            if ( !pPars->fSilent )
            {
            Abc_Print( 1, "Networks are NOT EQUIVALENT. Output %d trivially differs (different phase).  ", i/2 );
            Abc_PrintTime( 1, "Time", Abc_Clock() - clk );
            }
            pPars->iOutFail = i/2;
            Cec_ManTransformPattern( p, i/2, NULL );
            return 0;
        }
        // get the drivers
        pDri1 = Gia_ObjFanin0(pObj1);
        pDri2 = Gia_ObjFanin0(pObj2);
        // drivers are different PIs
        if ( Gia_ObjIsPi(p, pDri1) && Gia_ObjIsPi(p, pDri2) && pDri1 != pDri2 )
        {
            if ( !pPars->fSilent )
            {
            Abc_Print( 1, "Networks are NOT EQUIVALENT. Output %d trivially differs (different PIs).  ", i/2 );
            Abc_PrintTime( 1, "Time", Abc_Clock() - clk );
            }
            pPars->iOutFail = i/2;
            Cec_ManTransformPattern( p, i/2, NULL );
            // if their compl attributes are the same - one should be complemented
            assert( Gia_ObjFaninC0(pObj1) == Gia_ObjFaninC0(pObj2) );
            Abc_InfoSetBit( p->pCexComb->pData, Gia_ObjCioId(pDri1) );
            return 0;
        }
        // one of the drivers is a PI; another is a constant 0
        if ( (Gia_ObjIsPi(p, pDri1) && Gia_ObjIsConst0(pDri2)) ||
             (Gia_ObjIsPi(p, pDri2) && Gia_ObjIsConst0(pDri1)) )
        {
            if ( !pPars->fSilent )
            {
            Abc_Print( 1, "Networks are NOT EQUIVALENT. Output %d trivially differs (PI vs. constant).  ", i/2 );
            Abc_PrintTime( 1, "Time", Abc_Clock() - clk );
            }
            pPars->iOutFail = i/2;
            Cec_ManTransformPattern( p, i/2, NULL );
            // the compl attributes are the same - the PI should be complemented
            assert( Gia_ObjFaninC0(pObj1) == Gia_ObjFaninC0(pObj2) );
            if ( Gia_ObjIsPi(p, pDri1) )
                Abc_InfoSetBit( p->pCexComb->pData, Gia_ObjCioId(pDri1) );
            else
                Abc_InfoSetBit( p->pCexComb->pData, Gia_ObjCioId(pDri2) );
            return 0;
        }
    }
    if ( Gia_ManAndNum(p) == 0 )
    {
        if ( !pPars->fSilent )
        {
        Abc_Print( 1, "Networks are equivalent.  " );
        Abc_PrintTime( 1, "Time", Abc_Clock() - clk );
        }
        return 1;
    }
    return -1;
}

Here is the call graph for this function:

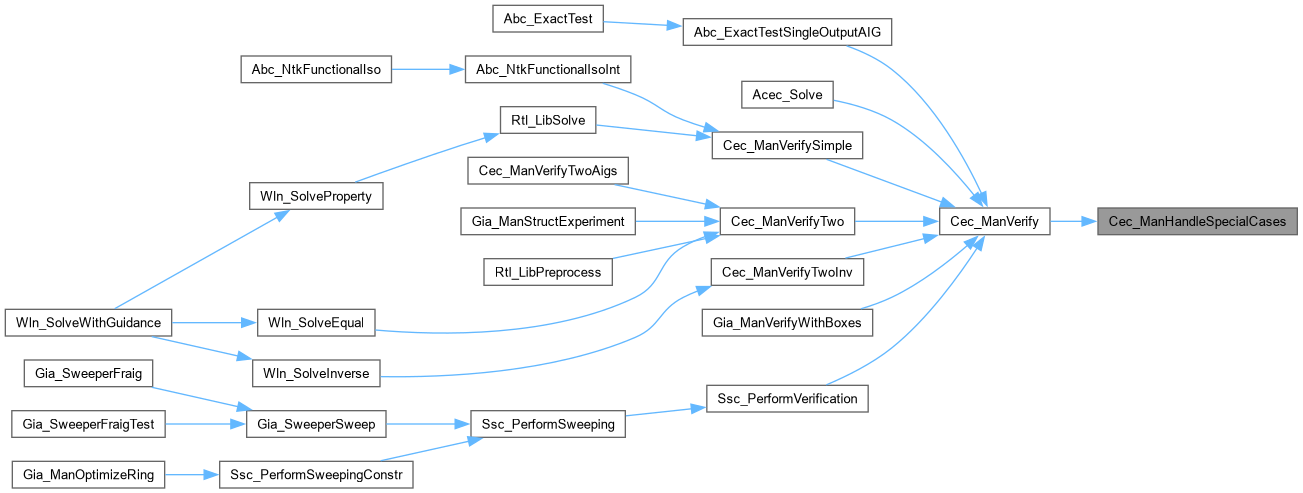

Here is the caller graph for this function:

Cec_ManTransformPattern()

ABC_NAMESPACE_IMPL_START void Cec_ManTransformPattern	(	Gia_Man_t *	p,
		int	iOut,
		int *	pValues )

DECLARATIONS ///.

CFile****************************************************************

FileName [cecCec.c]

SystemName [ABC: Logic synthesis and verification system.]

PackageName [Combinational equivalence checking.]

Synopsis [Integrated combinatinal equivalence checker.]

Author [Alan Mishchenko]

Affiliation [UC Berkeley]

Date [Ver. 1.0. Started - June 20, 2005.]

Revision [

Id

cecCec.c,v 1.00 2005/06/20 00:00:00 alanmi Exp

] FUNCTION DEFINITIONS /// Function*************************************************************

Synopsis [Saves the input pattern with the given number.]

Description []

SideEffects []

SeeAlso []

Definition at line 49 of file cecCec.c.

{
    int i;
    assert( p->pCexComb == NULL );
    p->pCexComb = Abc_CexAlloc( 0, Gia_ManCiNum(p), 1 );
    p->pCexComb->iPo = iOut;
    for ( i = 0; i < Gia_ManCiNum(p); i++ )
        if ( pValues && pValues[i] )
            Abc_InfoSetBit( p->pCexComb->pData, i );
}

Here is the call graph for this function:

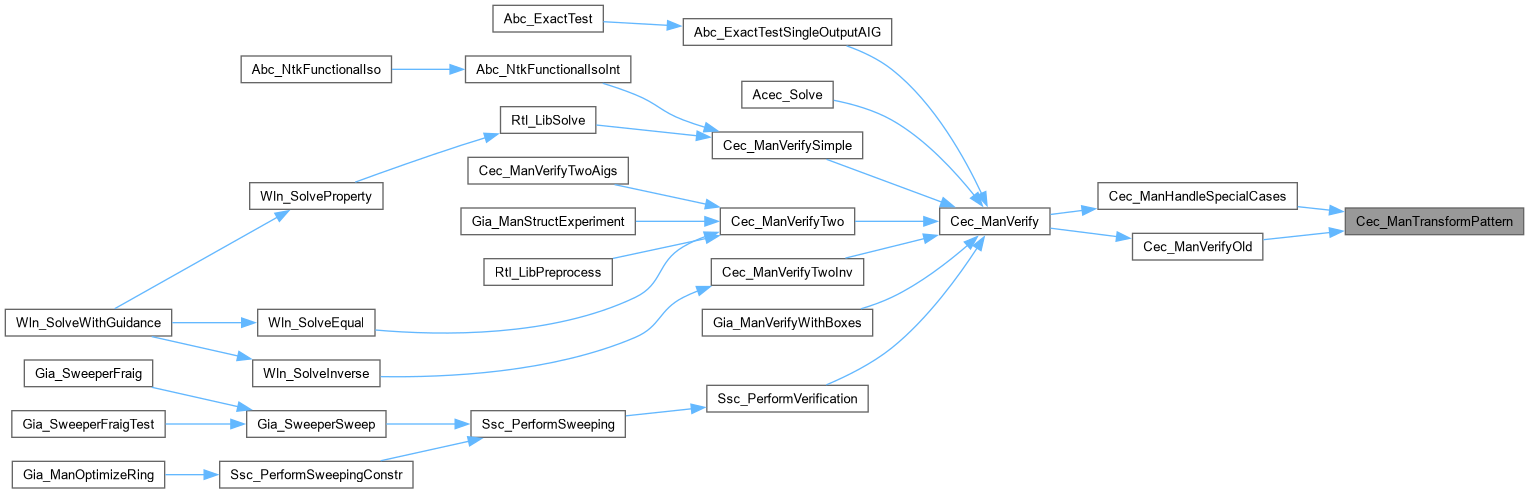

Here is the caller graph for this function:

Cec_ManVerify()

int Cec_ManVerify	(	Gia_Man_t *	pInit,
		Cec_ParCec_t *	pPars )

MACRO DEFINITIONS ///.

Function*************************************************************

Synopsis [New CEC engine.]

Description []

SideEffects []

SeeAlso []

Definition at line 326 of file cecCec.c.

{
    int fDumpUndecided = 0;
    Cec_ParFra_t ParsFra, * pParsFra = &ParsFra;
    Gia_Man_t * p, * pNew;
    int RetValue;
    abctime clk = Abc_Clock();
    abctime clkTotal = Abc_Clock();
    // consider special cases:
    // 1) (SAT) a pair of POs have different value under all-0 pattern
    // 2) (SAT) a pair of POs has different PI/Const drivers
    // 3) (UNSAT) 1-2 do not hold and there is no nodes
    RetValue = Cec_ManHandleSpecialCases( pInit, pPars );
    if ( RetValue == 0 || RetValue == 1 )
        return RetValue;
    // preprocess
    p = Gia_ManDup( pInit );
    Gia_ManEquivFixOutputPairs( p );
    p = Gia_ManCleanup( pNew = p );
    Gia_ManStop( pNew );
    if ( pPars->fNaive )
    {
        RetValue = Cec_ManVerifyNaive( p, pPars );
        Gia_ManStop( p );
        return RetValue;
    }
    if ( pInit->vSimsPi )
    {
        p->vSimsPi = Vec_WrdDup(pInit->vSimsPi);
        p->nSimWords = pInit->nSimWords;
    }
    // sweep for equivalences
    Cec_ManFraSetDefaultParams( pParsFra );
    pParsFra->nItersMax    = 1000;
    pParsFra->nBTLimit     = pPars->nBTLimit;
    pParsFra->TimeLimit    = pPars->TimeLimit;
    pParsFra->fVerbose     = pPars->fVerbose;
    pParsFra->fVeryVerbose = pPars->fVeryVerbose;
    pParsFra->fCheckMiter  = 1;
    pParsFra->fDualOut     = 1;
    pNew = Cec_ManSatSweeping( p, pParsFra, pPars->fSilent );
    pPars->iOutFail = pParsFra->iOutFail;
    // update
    pInit->pCexComb = p->pCexComb; p->pCexComb = NULL;
    Gia_ManStop( p );
    p = pInit;
    // continue
    if ( pNew == NULL )
    {
        if ( p->pCexComb != NULL )
        {
            if ( p->pCexComb && !Gia_ManVerifyCex( p, p->pCexComb, 1 ) )
                Abc_Print( 1, "Counter-example simulation has failed.\n" );
            if ( !pPars->fSilent )
            {
            Abc_Print( 1, "Networks are NOT EQUIVALENT.  " );
            Abc_PrintTime( 1, "Time", Abc_Clock() - clk );
            }
            return 0;
        }
        p = Gia_ManDup( pInit );
        Gia_ManEquivFixOutputPairs( p );
        p = Gia_ManCleanup( pNew = p );
        Gia_ManStop( pNew );
        pNew = p;
    }
    if ( pPars->fVerbose )
    {
        Abc_Print( 1, "Networks are UNDECIDED after the new CEC engine.  " );
        Abc_PrintTime( 1, "Time", Abc_Clock() - clk );
    }
    if ( fDumpUndecided )
    {
        ABC_FREE( pNew->pReprs );
        ABC_FREE( pNew->pNexts );
        Gia_AigerWrite( pNew, "gia_cec_undecided.aig", 0, 0, 0 );
        Abc_Print( 1, "The result is written into file \"%s\".\n", "gia_cec_undecided.aig" );
    }
    if ( pPars->TimeLimit && (Abc_Clock() - clkTotal)/CLOCKS_PER_SEC >= pPars->TimeLimit )
    {
        Gia_ManStop( pNew );
        return -1;
    }
    // call other solver
    if ( pPars->fVerbose )
        Abc_Print( 1, "Calling the old CEC engine.\n" );
    fflush( stdout );
    RetValue = Cec_ManVerifyOld( pNew, pPars->fVerbose, &pPars->iOutFail, clkTotal, pPars->fSilent );
    p->pCexComb = pNew->pCexComb; pNew->pCexComb = NULL;
    if ( p->pCexComb && !Gia_ManVerifyCex( p, p->pCexComb, 1 ) )
        Abc_Print( 1, "Counter-example simulation has failed.\n" );
    Gia_ManStop( pNew );
    return RetValue;
}

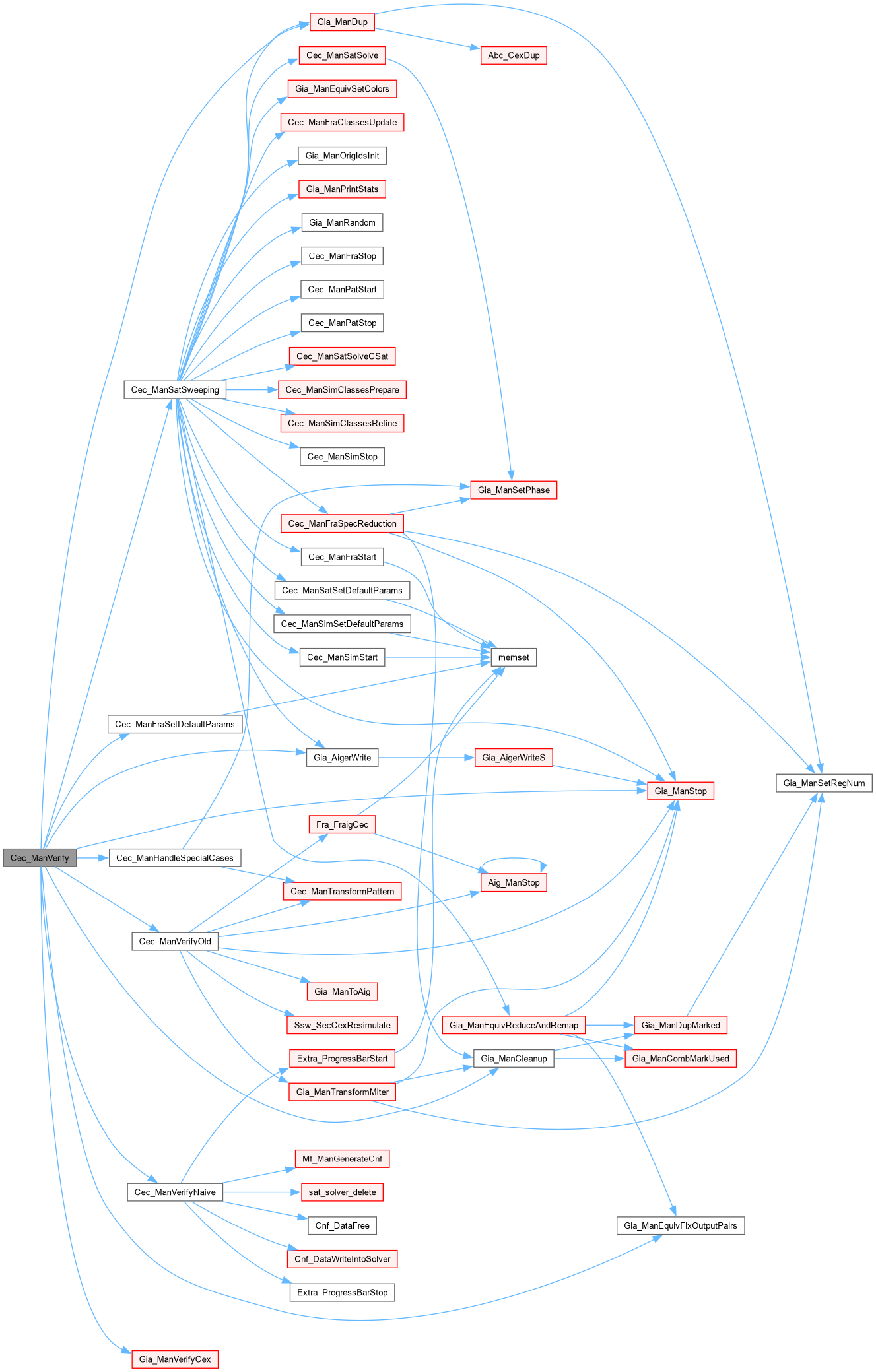

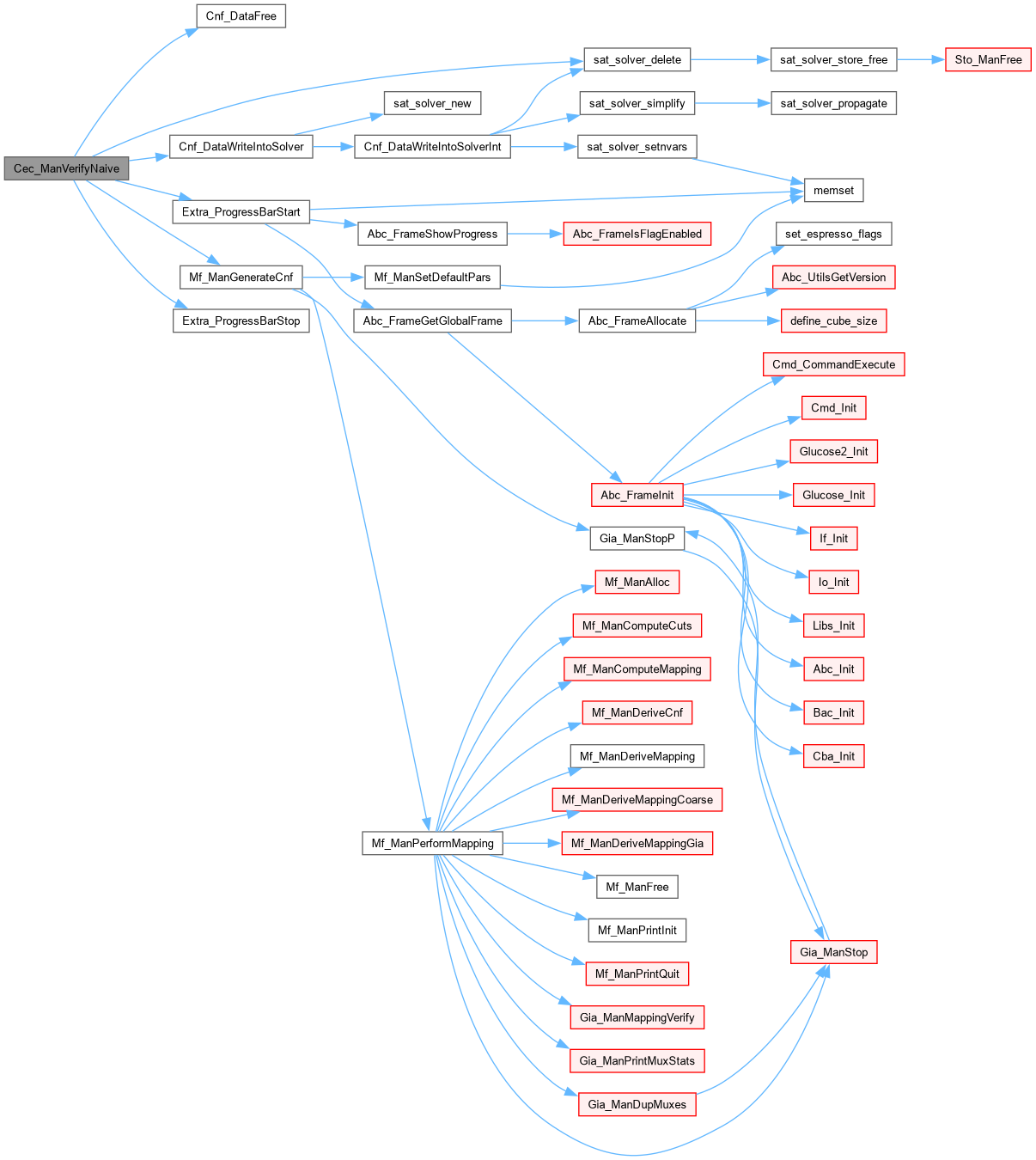

Here is the call graph for this function:

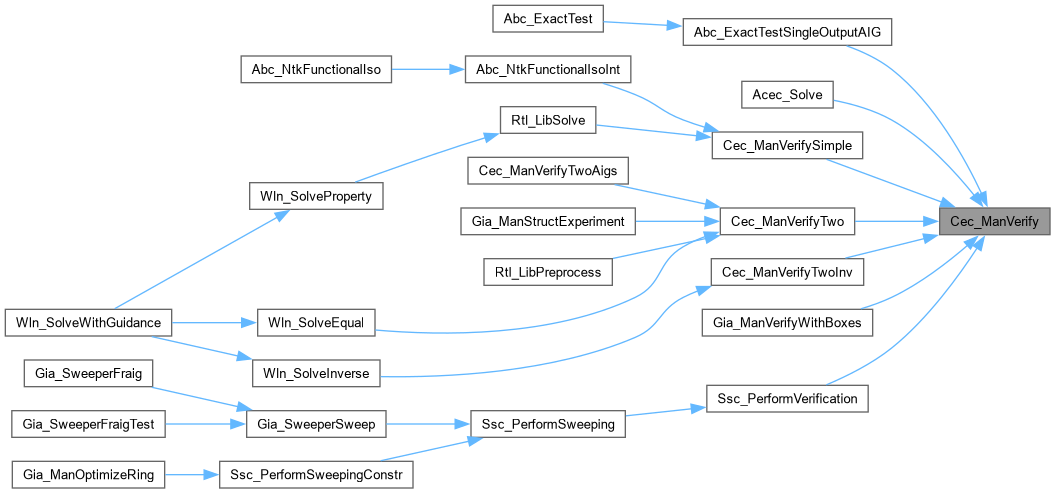

Here is the caller graph for this function:

Cec_ManVerifyNaive()

int Cec_ManVerifyNaive	(	Gia_Man_t *	p,
		Cec_ParCec_t *	pPars )

Function*************************************************************

Synopsis [Performs naive checking.]

Description []

SideEffects []

SeeAlso []

Definition at line 226 of file cecCec.c.

{
    Cnf_Dat_t * pCnf = (Cnf_Dat_t *)Mf_ManGenerateCnf( p, 8, 0, 0, 0, 0 );
    sat_solver * pSat = (sat_solver *)Cnf_DataWriteIntoSolver( pCnf, 1, 0 );
    Gia_Obj_t * pObj0, * pObj1;
    abctime clkStart = Abc_Clock();
    int nPairs = Gia_ManPoNum(p)/2;
    int nUnsats = 0, nSats = 0, nUndecs = 0, nTrivs = 0;
    int i, iVar0, iVar1, pLits[2], status, RetValue;
    ProgressBar * pProgress = Extra_ProgressBarStart( stdout, nPairs );
    assert( Gia_ManPoNum(p) % 2 == 0 );
    for ( i = 0; i < nPairs; i++ )
    {
        if ( (i & 0xFF) == 0 )
            Extra_ProgressBarUpdate( pProgress, i, NULL );
        pObj0 = Gia_ManPo(p, 2*i);
        pObj1 = Gia_ManPo(p, 2*i+1);
        if ( Gia_ObjChild0(pObj0) == Gia_ObjChild0(pObj1) )
        {
            nUnsats++;
            nTrivs++;
            continue;
        }
        if ( pPars->TimeLimit && (Abc_Clock() - clkStart)/CLOCKS_PER_SEC >= pPars->TimeLimit )
        {
            printf( "Timeout (%d sec) is reached.\n", pPars->TimeLimit );
            nUndecs = nPairs - nUnsats - nSats;
            break;
        }
        iVar0 = pCnf->pVarNums[ Gia_ObjId(p, pObj0) ];
        iVar1 = pCnf->pVarNums[ Gia_ObjId(p, pObj1) ];
        assert( iVar0 >= 0 && iVar1 >= 0 );
        pLits[0] = Abc_Var2Lit( iVar0, 0 );
        pLits[1] = Abc_Var2Lit( iVar1, 0 );
        // check direct
        pLits[0] = lit_neg(pLits[0]);
        status = sat_solver_solve( pSat, pLits, pLits + 2, pPars->nBTLimit, 0, 0, 0 );
        if ( status == l_False )
        {
            pLits[0] = lit_neg( pLits[0] );
            pLits[1] = lit_neg( pLits[1] );
            RetValue = sat_solver_addclause( pSat, pLits, pLits + 2 );
            assert( RetValue );
        }
        else if ( status == l_True )
        {
            printf( "Output %d is SAT.\n", i );
            nSats++;
            continue;
        }
        else
        {
            nUndecs++;
            continue;
        }
        // check inverse
        status = sat_solver_solve( pSat, pLits, pLits + 2, pPars->nBTLimit, 0, 0, 0 );
        if ( status == l_False )
        {
            pLits[0] = lit_neg( pLits[0] );
            pLits[1] = lit_neg( pLits[1] );
            RetValue = sat_solver_addclause( pSat, pLits, pLits + 2 );
            assert( RetValue );
        }
        else if ( status == l_True )
        {
            printf( "Output %d is SAT.\n", i );
            nSats++;
            continue;
        }
        else
        {
            nUndecs++;
            continue;
        }
        nUnsats++;
    }
    Extra_ProgressBarStop( pProgress );
    printf( "UNSAT = %6d.  SAT = %6d.   UNDEC = %6d.  Trivial = %6d.  ", nUnsats, nSats, nUndecs, nTrivs );
    Abc_PrintTime( 1, "Time", Abc_Clock() - clkStart );
    Cnf_DataFree( pCnf );
    sat_solver_delete( pSat );
    if ( nSats )
        return 0;
    if ( nUndecs )
        return -1;
    return 1;
}

Here is the call graph for this function:

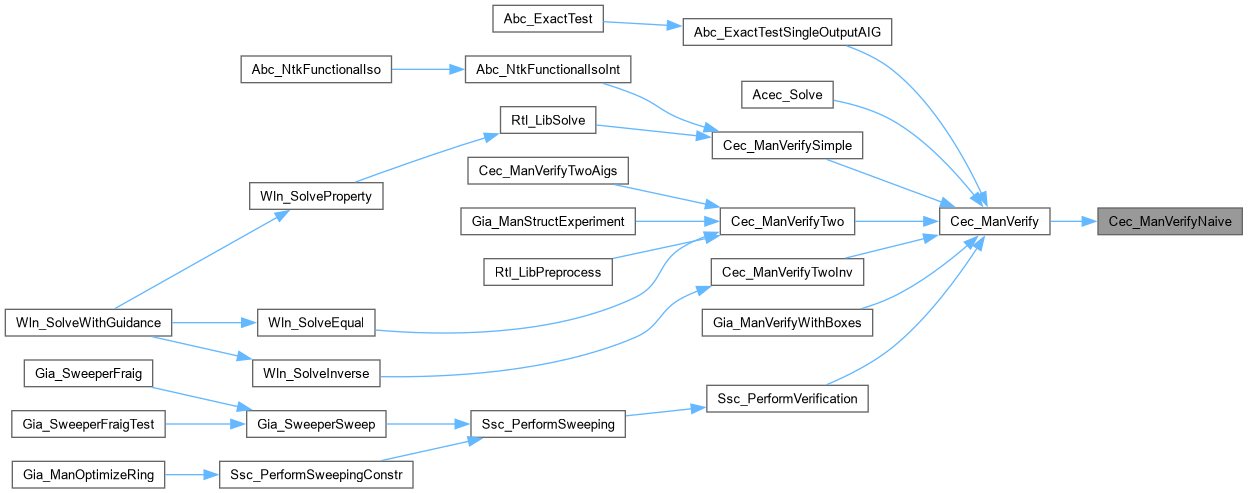

Here is the caller graph for this function:

Cec_ManVerifyOld()

int Cec_ManVerifyOld	(	Gia_Man_t *	pMiter,
		int	fVerbose,
		int *	piOutFail,
		abctime	clkTotal,
		int	fSilent )

Function*************************************************************

Synopsis [Interface to the old CEC engine]

Description []

SideEffects []

SeeAlso []

Definition at line 71 of file cecCec.c.

{
//    extern int Fra_FraigCec( Aig_Man_t ** ppAig, int nConfLimit, int fVerbose );
    extern int Ssw_SecCexResimulate( Aig_Man_t * p, int * pModel, int * pnOutputs );
    Gia_Man_t * pTemp = Gia_ManTransformMiter( pMiter );
    Aig_Man_t * pMiterCec = Gia_ManToAig( pTemp, 0 );
    int RetValue, iOut, nOuts;
    if ( piOutFail )
        *piOutFail = -1;
    Gia_ManStop( pTemp );
    // run CEC on this miter
    RetValue = Fra_FraigCec( &pMiterCec, 10000000, fVerbose );
    // report the miter
    if ( RetValue == 1 )
    {
        if ( !fSilent )
        {
            Abc_Print( 1, "Networks are equivalent.  " );
            Abc_PrintTime( 1, "Time", Abc_Clock() - clkTotal );
        }
    }
    else if ( RetValue == 0 )
    {
        if ( !fSilent )
        {
            Abc_Print( 1, "Networks are NOT EQUIVALENT.  " );
            Abc_PrintTime( 1, "Time", Abc_Clock() - clkTotal );
        }
        if ( pMiterCec->pData == NULL )
            Abc_Print( 1, "Counter-example is not available.\n" );
        else
        {
            iOut = Ssw_SecCexResimulate( pMiterCec, (int *)pMiterCec->pData, &nOuts );
            if ( iOut == -1 )
                Abc_Print( 1, "Counter-example verification has failed.\n" );
            else
            {
                if ( !fSilent )
                {
                    Abc_Print( 1, "Primary output %d has failed", iOut );
                    if ( nOuts-1 >= 0 )
                        Abc_Print( 1, ", along with other %d incorrect outputs", nOuts-1 );
                    Abc_Print( 1, ".\n" );
                }
                if ( piOutFail )
                    *piOutFail = iOut;
            }
            Cec_ManTransformPattern( pMiter, iOut, (int *)pMiterCec->pData );
        }
    }
    else if ( !fSilent )
    {
        Abc_Print( 1, "Networks are UNDECIDED.  " );
        Abc_PrintTime( 1, "Time", Abc_Clock() - clkTotal );
    }
    fflush( stdout );
    Aig_ManStop( pMiterCec );
    return RetValue;
}

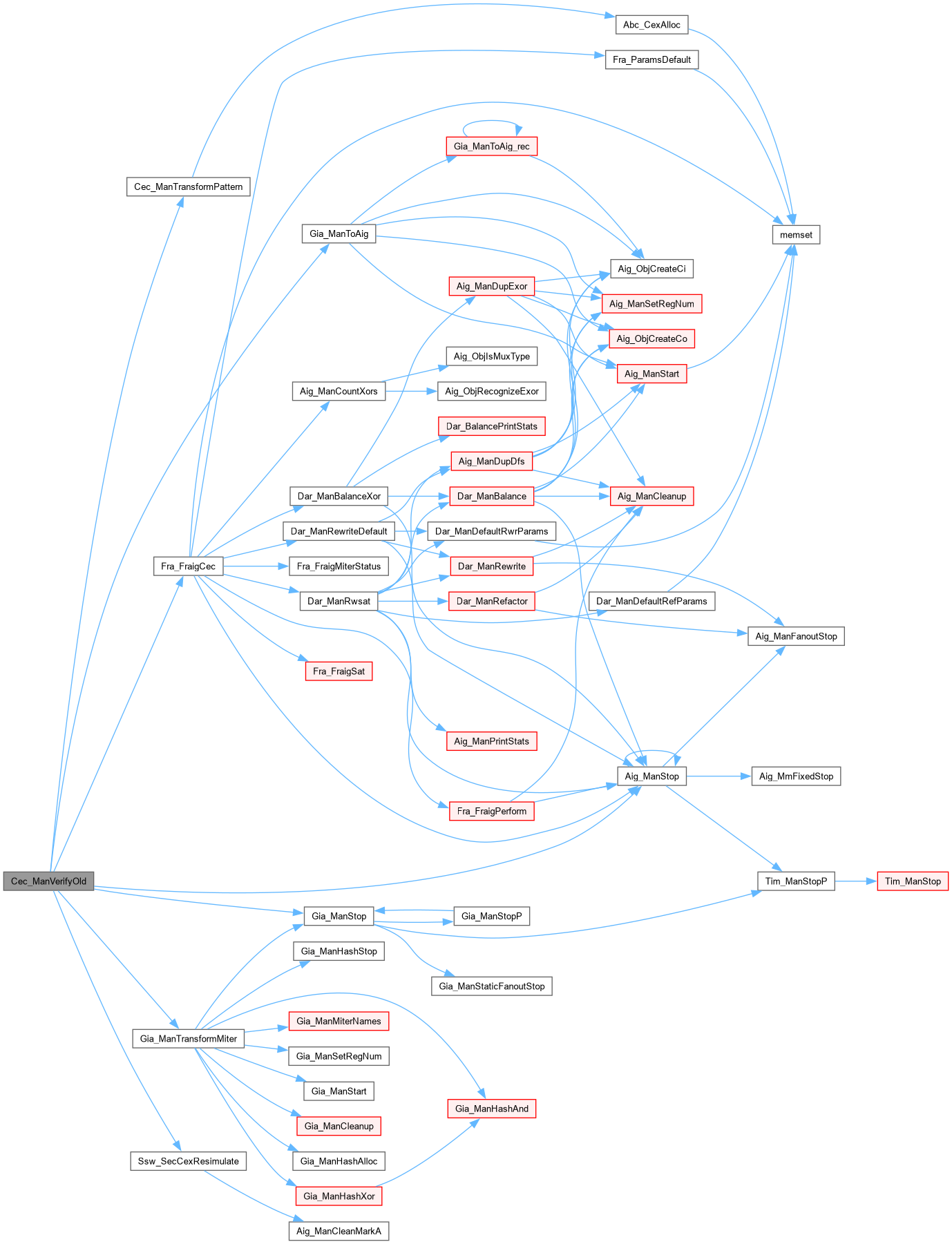

Here is the call graph for this function:

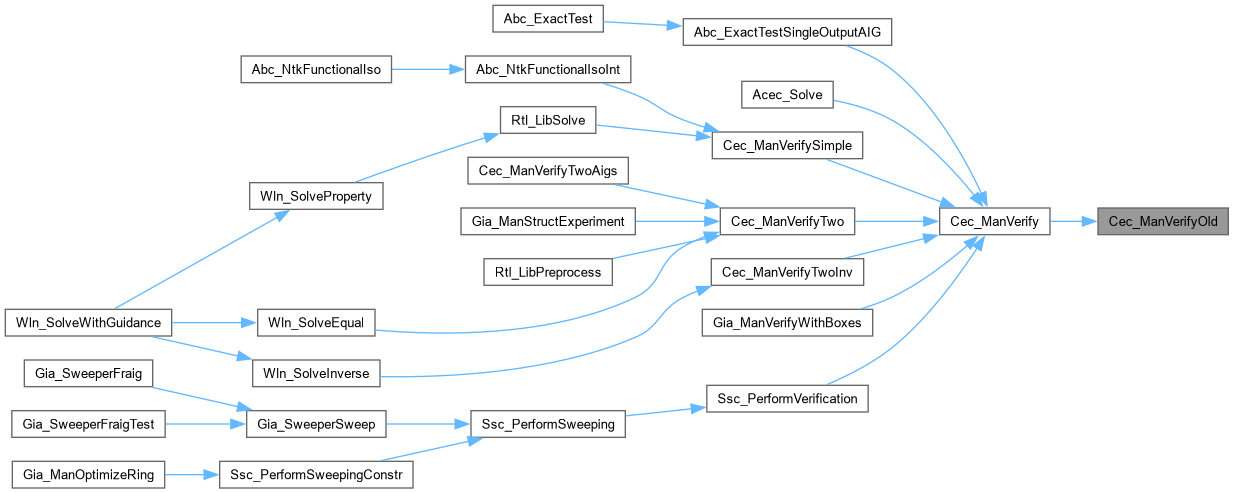

Here is the caller graph for this function:

Cec_ManVerifySimple()

int Cec_ManVerifySimple

(

Gia_Man_t *

p

)

Function*************************************************************

Synopsis [Simple SAT run to check equivalence.]

Description []

SideEffects []

SeeAlso []

Definition at line 432 of file cecCec.c.

{
    Cec_ParCec_t ParsCec, * pPars = &ParsCec;
    Cec_ManCecSetDefaultParams( pPars );
    pPars->fSilent = 1;
    assert( Gia_ManCoNum(p) == 2 );
    assert( Gia_ManRegNum(p) == 0 );
    return Cec_ManVerify( p, pPars );
}

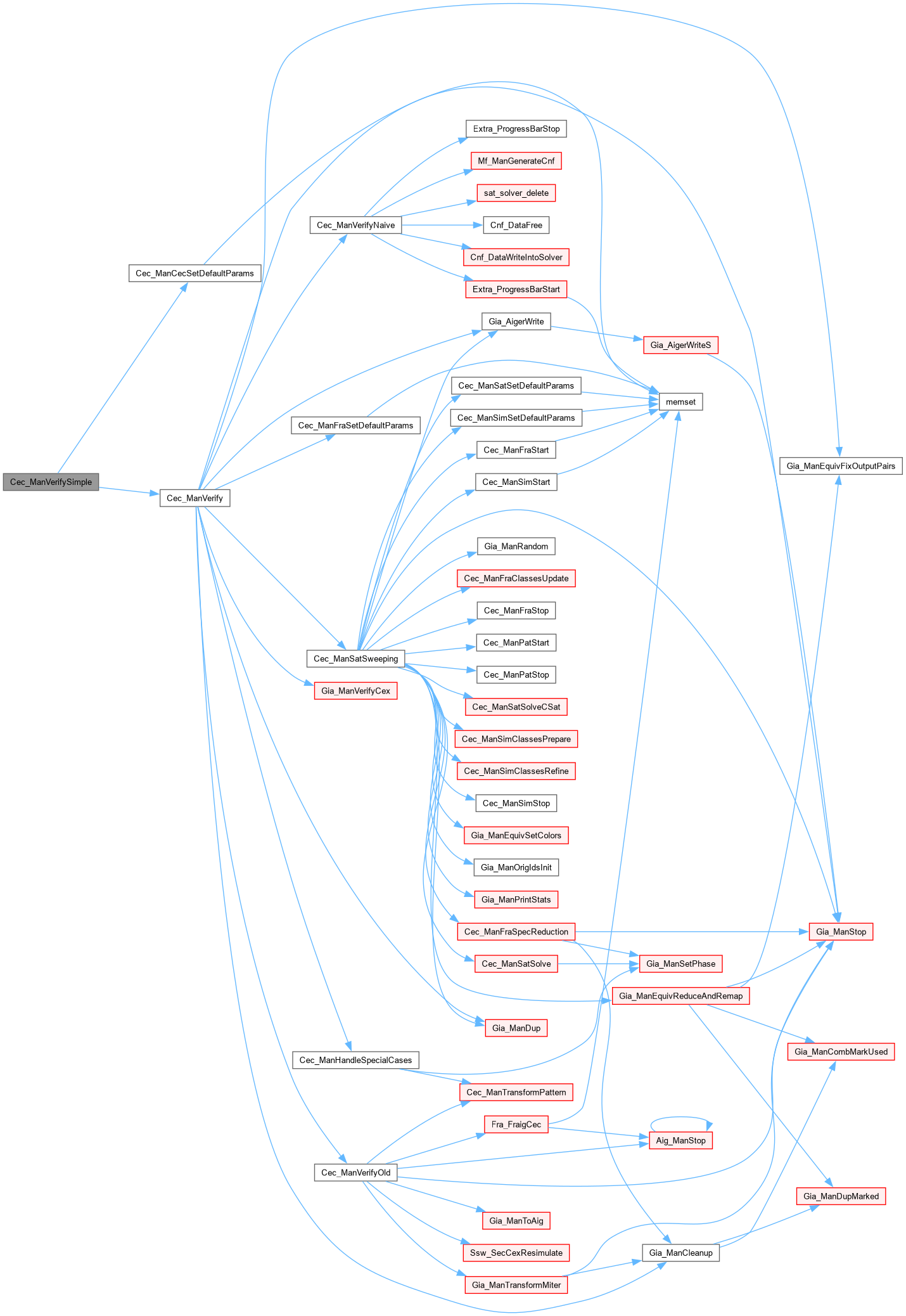

Here is the call graph for this function:

Here is the caller graph for this function:

Cec_ManVerifyTwo()

int Cec_ManVerifyTwo	(	Gia_Man_t *	p0,
		Gia_Man_t *	p1,
		int	fVerbose )

Function*************************************************************

Synopsis [New CEC engine applied to two circuits.]

Description []

SideEffects []

SeeAlso []

Definition at line 453 of file cecCec.c.

{
    Cec_ParCec_t ParsCec, * pPars = &ParsCec;
    Gia_Man_t * pMiter;
    int RetValue;
    Cec_ManCecSetDefaultParams( pPars );
    pPars->fVerbose = fVerbose;
    pMiter = Gia_ManMiter( p0, p1, 0, 1, 0, 0, pPars->fVerbose );
    if ( pMiter == NULL )
        return -1;
    RetValue = Cec_ManVerify( pMiter, pPars );
    p0->pCexComb = pMiter->pCexComb; pMiter->pCexComb = NULL;
    Gia_ManStop( pMiter );
    return RetValue;
}

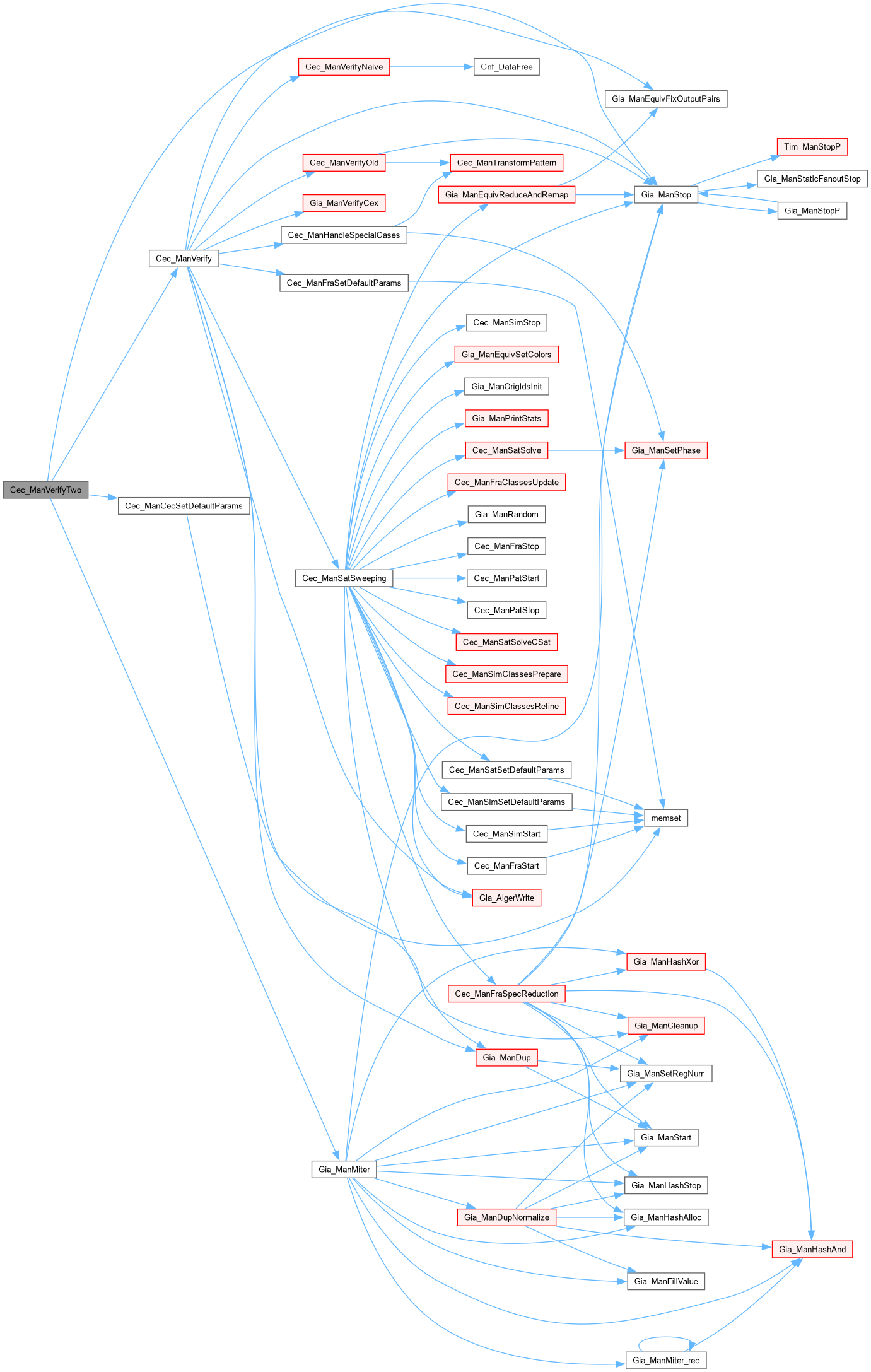

Here is the call graph for this function:

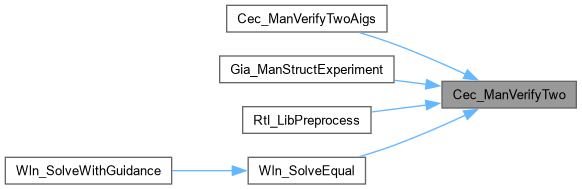

Here is the caller graph for this function:

Cec_ManVerifyTwoAigs()

int Cec_ManVerifyTwoAigs	(	Aig_Man_t *	pAig0,
		Aig_Man_t *	pAig1,
		int	fVerbose )

Function*************************************************************

Synopsis [New CEC engine applied to two circuits.]

Description [Returns 1 if equivalent, 0 if counter-example, -1 if undecided. Counter-example is returned in the first manager as pAig0->pSeqModel. The format is given in Abc_Cex_t (file "abc\src\aig\gia\gia.h").]

SideEffects []

SeeAlso []

Definition at line 497 of file cecCec.c.

{
    Gia_Man_t * p0, * p1, * pTemp;
    int RetValue;

    p0 = Gia_ManFromAig( pAig0 );
    p0 = Gia_ManCleanup( pTemp = p0 );
    Gia_ManStop( pTemp );

    p1 = Gia_ManFromAig( pAig1 );
    p1 = Gia_ManCleanup( pTemp = p1 );
    Gia_ManStop( pTemp );

    RetValue = Cec_ManVerifyTwo( p0, p1, fVerbose );
    pAig0->pSeqModel = p0->pCexComb; p0->pCexComb = NULL;
    Gia_ManStop( p0 );
    Gia_ManStop( p1 );
    return RetValue;
}

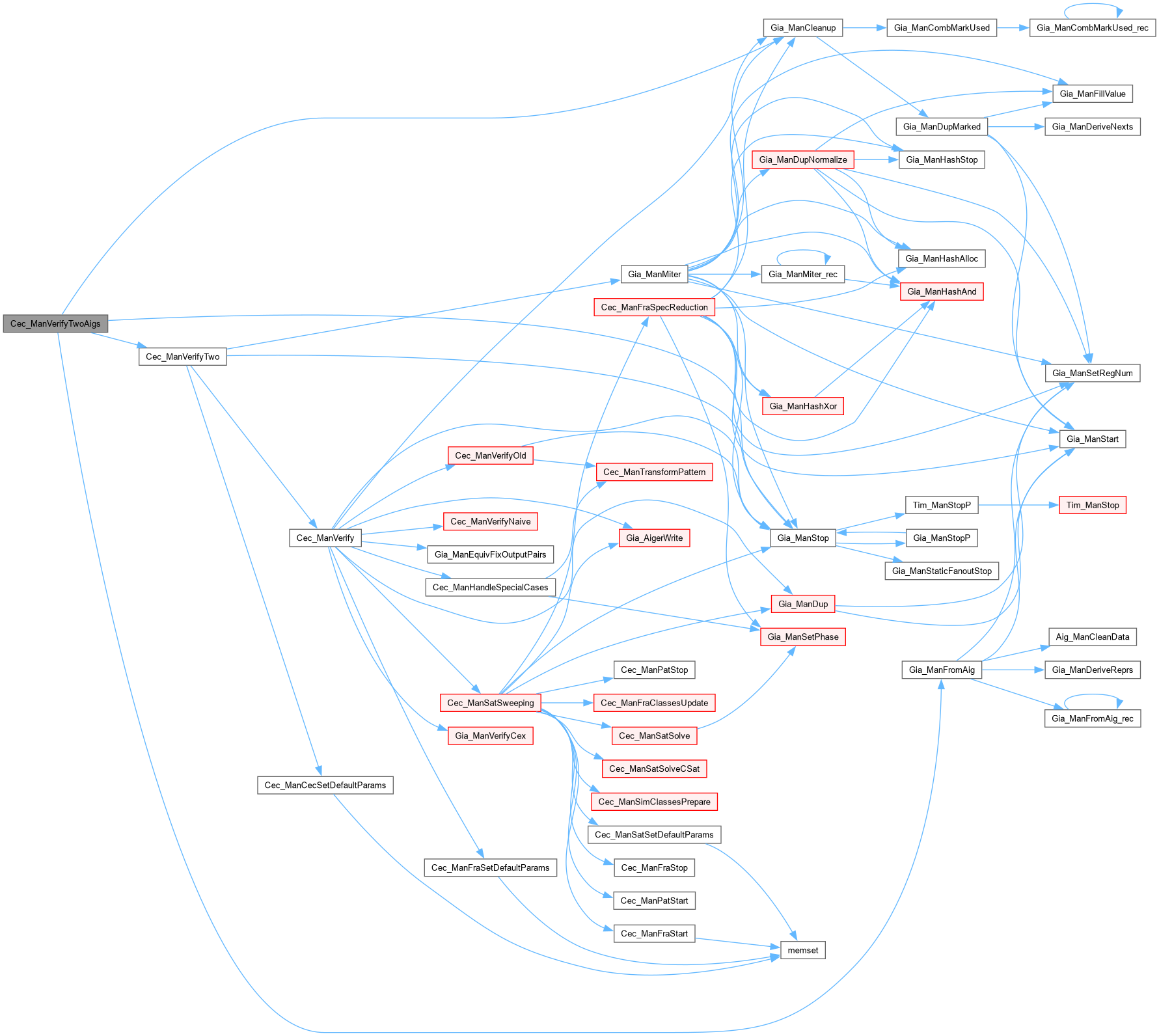

Here is the call graph for this function:

Cec_ManVerifyTwoInv()

int Cec_ManVerifyTwoInv	(	Gia_Man_t *	p0,
		Gia_Man_t *	p1,
		int	fVerbose )

Definition at line 468 of file cecCec.c.

{
    Cec_ParCec_t ParsCec, * pPars = &ParsCec;
    Gia_Man_t * pMiter;
    int RetValue;
    Cec_ManCecSetDefaultParams( pPars );
    pPars->fVerbose = fVerbose;
    pMiter = Gia_ManMiterInverse( p0, p1, 1, pPars->fVerbose );
    if ( pMiter == NULL )
        return -1;
    RetValue = Cec_ManVerify( pMiter, pPars );
    p0->pCexComb = pMiter->pCexComb; pMiter->pCexComb = NULL;
    Gia_ManStop( pMiter );
    return RetValue;
}

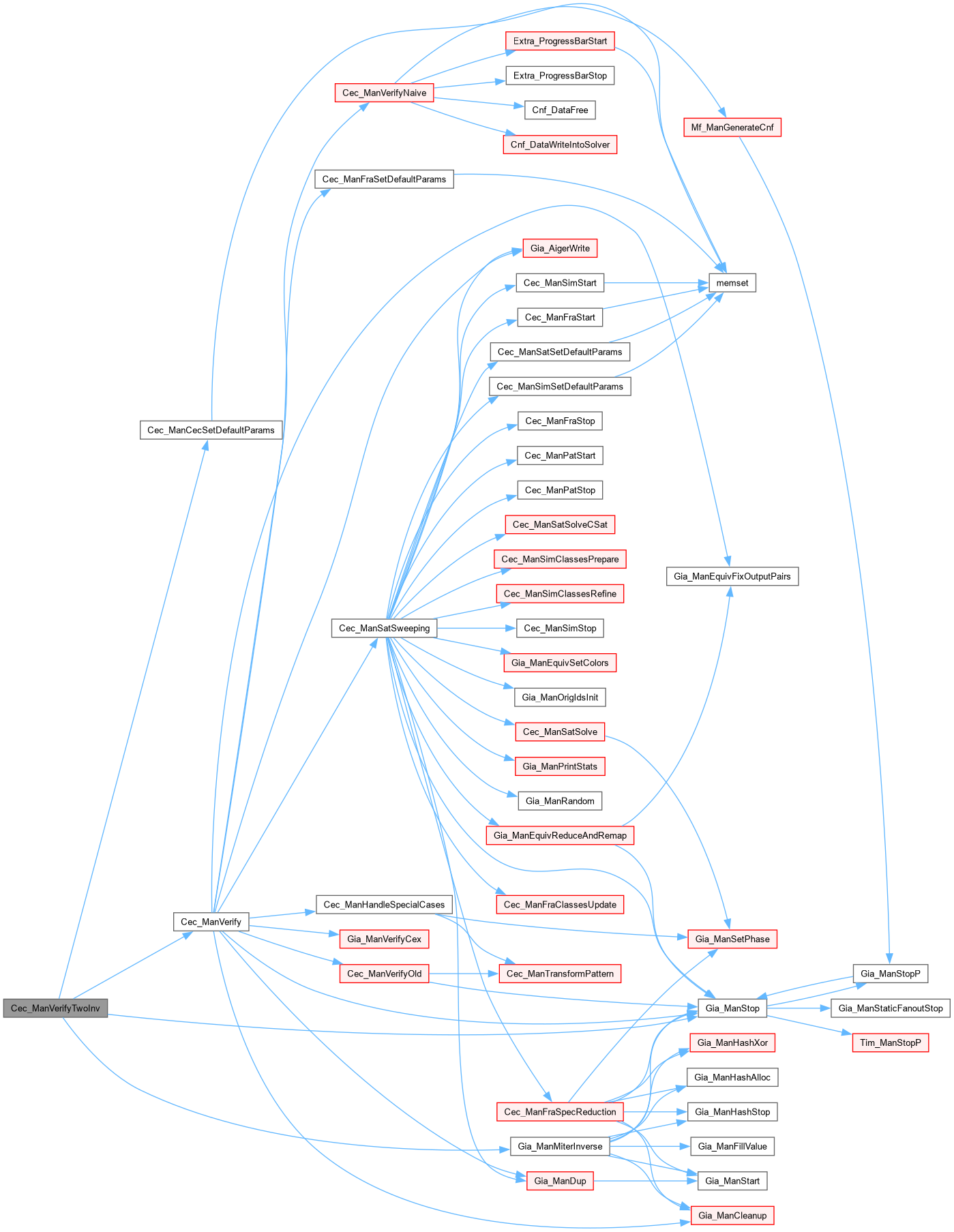

Here is the call graph for this function:

Here is the caller graph for this function:

Cec_SignalCorrespondence()

Aig_Man_t * Cec_SignalCorrespondence	(	Aig_Man_t *	pAig,
		int	nConfs,
		int	fUseCSat )

Function*************************************************************

Synopsis [Implementation of new signal correspodence.]

Description []

SideEffects []

SeeAlso []

Definition at line 554 of file cecCec.c.

{
    Gia_Man_t * pGia;
    Cec_ParCor_t CorPars, * pCorPars = &CorPars;
    Cec_ManCorSetDefaultParams( pCorPars );
    pCorPars->fUseCSat  = fUseCSat;
    pCorPars->nBTLimit  = nConfs;
    pGia = Gia_ManFromAigSimple( pAig );
    Cec_ManLSCorrespondenceClasses( pGia, pCorPars );
    Gia_ManReprToAigRepr( pAig, pGia );
    Gia_ManStop( pGia );
    return Aig_ManDupSimple( pAig );
}

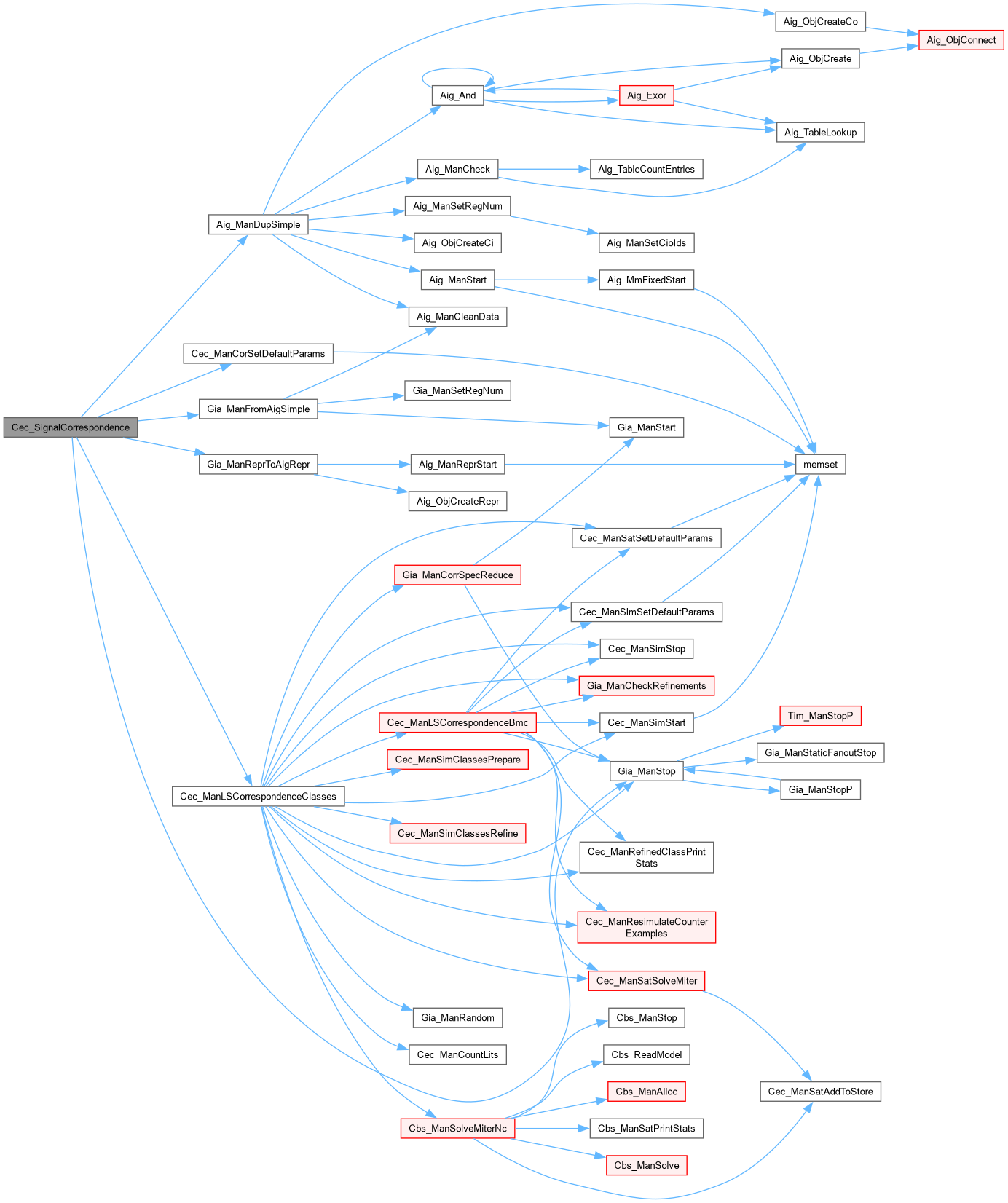

Here is the call graph for this function:

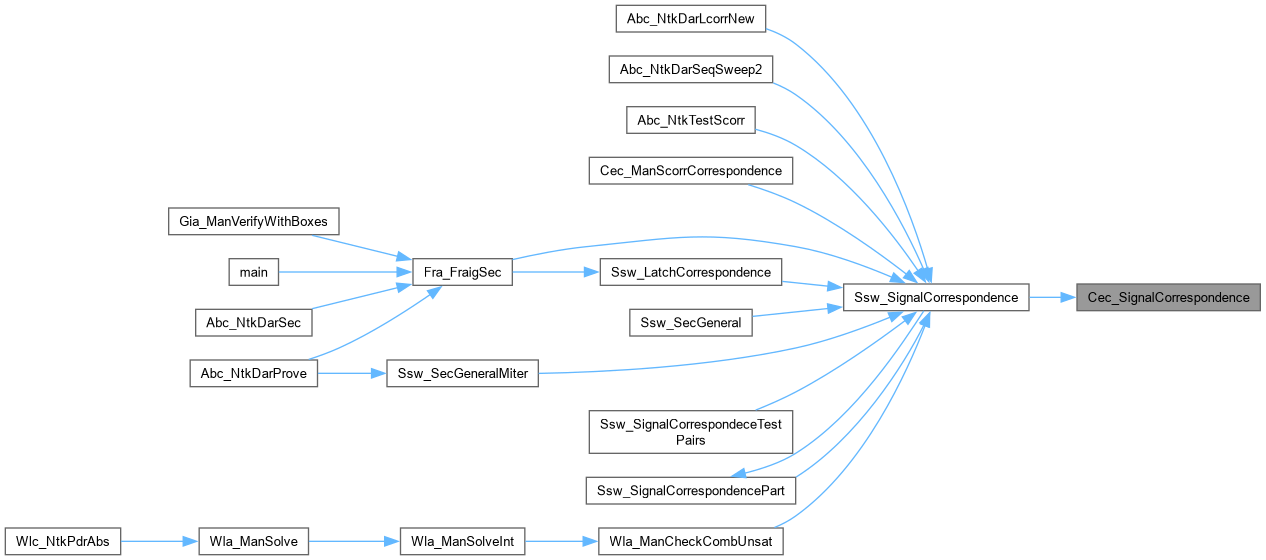

Here is the caller graph for this function:
