giaIf.c File Reference

#include "gia.h"
#include "aig/aig/aig.h"
#include "map/if/if.h"
#include "bool/kit/kit.h"
#include "base/main/main.h"
#include "sat/bsat/satSolver.h"

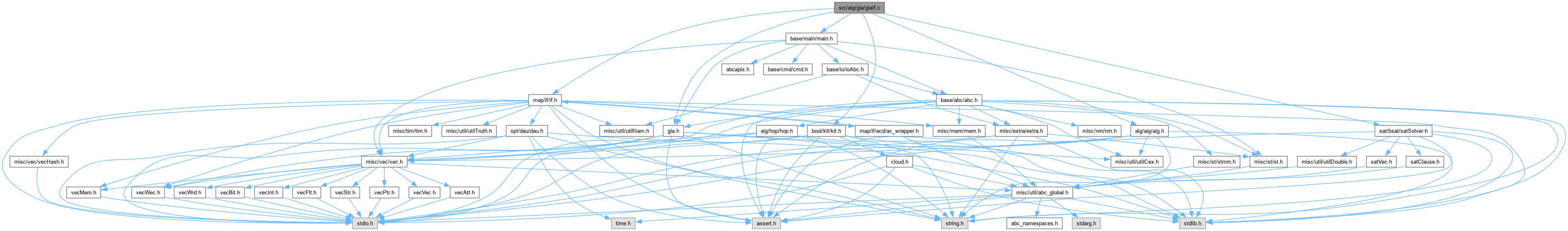

Include dependency graph for giaIf.c:

Go to the source code of this file.

Functions
ABC_NAMESPACE_IMPL_START int	Kit_TruthToGia (Gia_Man_t *pMan, unsigned *pTruth, int nVars, Vec_Int_t *vMemory, Vec_Int_t *vLeaves, int fHash)
	DECLARATIONS ///.
int	Abc_RecToGia3 (Gia_Man_t *pMan, If_Man_t *pIfMan, If_Cut_t *pCut, Vec_Int_t *vLeaves, int fHash)
void	Gia_ManPrintGetMuxFanins (Gia_Man_t *p, Gia_Obj_t *pObj, int *pFanins)
void	Gia_ManSetIfParsDefault (void *pp)
	FUNCTION DEFINITIONS ///.
int	Gia_ManLutFaninCount (Gia_Man_t *p)
int	Gia_ManLutSizeMax (Gia_Man_t *p)
int	Gia_ManLutNum (Gia_Man_t *p)
int	Gia_ManLutLevel (Gia_Man_t *p, int **ppLevels)
void	Gia_ManLutParams (Gia_Man_t *p, int *pnCurLuts, int *pnCurEdges, int *pnCurLevels)
void	Gia_ManSetRefsMapped (Gia_Man_t *p)
void	Gia_ManSetLutRefs (Gia_Man_t *p)
int	Gia_ManComputeOverlap2One_rec (Gia_Man_t *p, int iObj, Vec_Str_t *vLabel, Vec_Int_t *vVisit)
int	Gia_ManComputeOverlap2One (Gia_Man_t *p, int iObj, Vec_Str_t *vLabel, Vec_Int_t *vVisit)
int	Gia_ManComputeOverlap2 (Gia_Man_t *p)
int	Gia_ManComputeOverlapOne_rec (Gia_Man_t *p, int iObj)
int	Gia_ManComputeOverlapOne (Gia_Man_t *p, int iObj)
int	Gia_ManComputeOverlap (Gia_Man_t *p)
int	Gia_ManCountDupLut (Gia_Man_t *p)
void	Gia_ManCollectLuts_rec (Gia_Man_t *p, int iObj, Vec_Int_t *vLuts)
int	Gia_ManCountLutLevels (Gia_Man_t *p, Vec_Int_t *vLuts, Vec_Int_t *vLevel)
void	Gia_ManPrintOutputLutStats (Gia_Man_t *p)

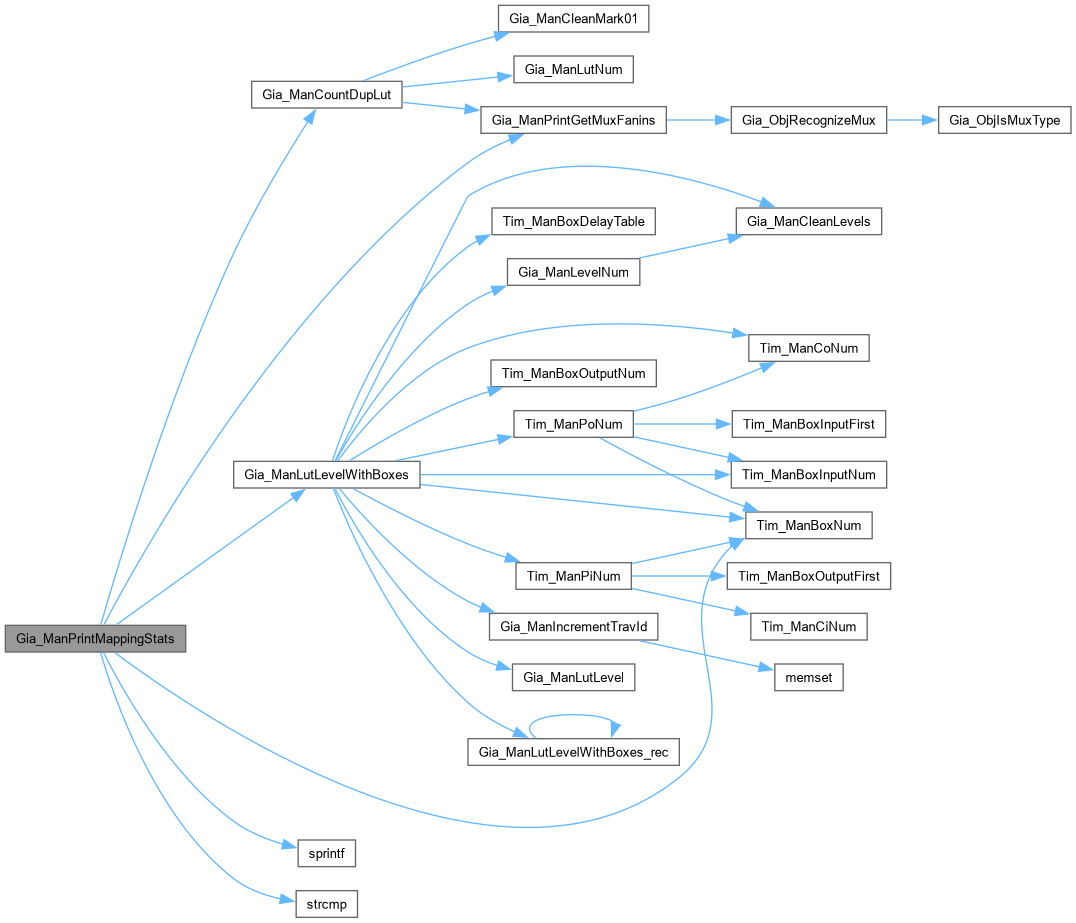

void	Gia_ManPrintMappingStats (Gia_Man_t *p, char *pDumpFile)
void	Gia_ManPrintPackingStats (Gia_Man_t *p)
void	Gia_ManPrintNodeProfile (int *pCounts, int nSizeMax)
void	Gia_ManPrintLutStats (Gia_Man_t *p)
void	Gia_ManChoiceLevel_rec (Gia_Man_t *p, Gia_Obj_t *pObj)
int	Gia_ManChoiceLevel (Gia_Man_t *p)
void	If_ManCheckChoices_rec (If_Man_t *pIfMan, If_Obj_t *pIfObj)
void	If_ManCheckChoices (If_Man_t *pIfMan)
If_Man_t *	Gia_ManToIf (Gia_Man_t *p, If_Par_t *pPars)
int	Gia_ManBuildFromMiniInt (Gia_Man_t *pNew, Vec_Int_t *vLeaves, Vec_Int_t *vAig, int fHash)
int	Gia_ManBuildFromMini (Gia_Man_t *pNew, If_Man_t *pIfMan, If_Cut_t *pCut, Vec_Int_t *vLeaves, Vec_Int_t *vAig, int fHash, int fUseDsd)
int	Gia_ManFromIfAig_rec (Gia_Man_t *pNew, If_Man_t *pIfMan, If_Obj_t *pIfObj)
Gia_Man_t *	Gia_ManFromIfAig (If_Man_t *pIfMan)
int	Gia_ManFromIfLogicCreateLut (Gia_Man_t *pNew, word *pRes, Vec_Int_t *vLeaves, Vec_Int_t *vCover, Vec_Int_t *vMapping, Vec_Int_t *vMapping2)
int	Gia_ManFromIfLogicCreateLutSpecial (Gia_Man_t *pNew, word *pRes, Vec_Int_t *vLeaves, Vec_Int_t *vLeavesTemp, Vec_Int_t *vCover, Vec_Int_t *vMapping, Vec_Int_t *vMapping2, Vec_Int_t *vPacking)
int	Gia_ManFromIfLogicNode (void *pIfMan, Gia_Man_t *pNew, int iObj, Vec_Int_t *vLeaves, Vec_Int_t *vLeavesTemp, word *pRes, char *pStr, Vec_Int_t *vCover, Vec_Int_t *vMapping, Vec_Int_t *vMapping2, Vec_Int_t *vPacking, int fCheck75, int fCheck44e)
int	Gia_ManFromIfLogicHop (Gia_Man_t *pNew, If_Man_t *pIfMan, If_Cut_t *pCutBest, Vec_Int_t *vLeaves, Vec_Int_t *vLeavesTemp, Vec_Int_t *vCover, Vec_Int_t *vMapping, Vec_Int_t *vMapping2)
int	Gia_ManNodeIfToGia_rec (Gia_Man_t *pNew, If_Man_t *pIfMan, If_Obj_t *pIfObj, Vec_Ptr_t *vVisited, int fHash)
int	Gia_ManNodeIfToGia (Gia_Man_t *pNew, If_Man_t *pIfMan, If_Obj_t *pIfObj, Vec_Int_t *vLeaves, int fHash)
int	Gia_ManFromIfLogicFindLut (If_Man_t *pIfMan, Gia_Man_t *pNew, If_Cut_t *pCutBest, sat_solver *pSat, Vec_Int_t *vLeaves, Vec_Int_t *vLits, Vec_Int_t *vCover, Vec_Int_t *vMapping, Vec_Int_t *vMapping2, Vec_Int_t *vPacking)

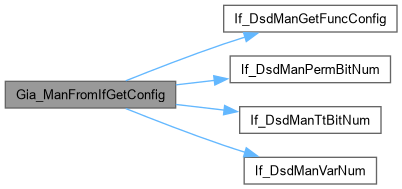

void	Gia_ManFromIfGetConfig (Vec_Int_t *vConfigs, If_Man_t *pIfMan, If_Cut_t *pCutBest, int iLit, Vec_Str_t *vConfigsStr)
int	Gia_ManFromIfLogicFindCell (If_Man_t *pIfMan, Gia_Man_t *pNew, Gia_Man_t *pTemp, If_Cut_t *pCutBest, Ifn_Ntk_t *pNtkCell, int nLutMax, Vec_Int_t *vLeaves, Vec_Int_t *vLits, Vec_Int_t *vCover, Vec_Int_t *vMapping, Vec_Int_t *vMapping2, Vec_Int_t *vConfigs)
int	Gia_ManFromIfLogicCofVars (Gia_Man_t *pNew, If_Man_t *pIfMan, If_Cut_t *pCutBest, Vec_Int_t *vLeaves, Vec_Int_t *vLeaves2, Vec_Int_t *vCover, Vec_Int_t *vMapping, Vec_Int_t *vMapping2)
int	Gia_ManFromIfLogicAndVars (Gia_Man_t *pNew, If_Man_t *pIfMan, If_Cut_t *pCutBest, Vec_Int_t *vLeaves, Vec_Int_t *vLeaves2, Vec_Int_t *vCover, Vec_Int_t *vMapping, Vec_Int_t *vMapping2)
Gia_Man_t *	Gia_ManFromIfLogic (If_Man_t *pIfMan)
int	Gia_ManMappingVerify_rec (Gia_Man_t *p, Gia_Obj_t *pObj)
void	Gia_ManMappingVerify (Gia_Man_t *p)
void	Gia_ManTransferMapping (Gia_Man_t *p, Gia_Man_t *pGia)
void	Gia_ManTransferPacking (Gia_Man_t *p, Gia_Man_t *pGia)
void	Gia_ManTransferTiming (Gia_Man_t *p, Gia_Man_t *pGia)
void	Abc_FrameMiniAigSetCiArrivals (Abc_Frame_t *pAbc, int *pArrivals)
void	Abc_FrameMiniAigSetCoRequireds (Abc_Frame_t *pAbc, int *pRequireds)
int *	Abc_FrameMiniAigReadCoArrivals (Abc_Frame_t *pAbc)
void	Abc_FrameMiniAigSetAndGateDelay (Abc_Frame_t *pAbc, int Delay)
Gia_Man_t *	Gia_ManPerformMappingInt (Gia_Man_t *p, If_Par_t *pPars)
Gia_Man_t *	Gia_ManPerformMapping (Gia_Man_t *p, void *pp)
Gia_Man_t *	Gia_ManPerformSopBalance (Gia_Man_t *p, int nCutNum, int nRelaxRatio, int fVerbose)
Gia_Man_t *	Gia_ManPerformDsdBalance (Gia_Man_t *p, int nLutSize, int nCutNum, int nRelaxRatio, int fVerbose)
void	Gia_ManTestStruct (Gia_Man_t *p)
Gia_Man_t *	Gia_ManDupHashMapping (Gia_Man_t *p)

Function Documentation

Abc_FrameMiniAigReadCoArrivals()

int * Abc_FrameMiniAigReadCoArrivals

(

Abc_Frame_t *

pAbc

)

Definition at line 2447 of file giaIf.c.

{
    Vec_Int_t * vArrs; int * pArrs;
    Gia_Man_t * pGia;
    if ( pAbc == NULL )
        { printf( "ABC framework is not initialized by calling Abc_Start()\n" ); return NULL; }
    pGia = Abc_FrameReadGia( pAbc );
    if ( pGia == NULL )
        { printf( "Current network in ABC framework is not defined.\n" ); return NULL; }
    if ( pGia->vCoArrs == NULL )
        { printf( "Current network in ABC framework has no CO arrival times.\n" ); return NULL; }
    vArrs = Vec_IntDup( pGia->vCoArrs );
    pArrs = Vec_IntReleaseArray( vArrs );
    Vec_IntFree( vArrs );
    return pArrs;
}

Here is the call graph for this function:

Abc_FrameMiniAigSetAndGateDelay()

void Abc_FrameMiniAigSetAndGateDelay	(	Abc_Frame_t *	pAbc,
		int	Delay )

Definition at line 2463 of file giaIf.c.

{
    Gia_Man_t * pGia;
    if ( pAbc == NULL )
        printf( "ABC framework is not initialized by calling Abc_Start()\n" );
    pGia = Abc_FrameReadGia( pAbc );
    if ( pGia == NULL )
        printf( "Current network in ABC framework is not defined.\n" );
    pGia->And2Delay = Delay;
}

Here is the call graph for this function:

Abc_FrameMiniAigSetCiArrivals()

void Abc_FrameMiniAigSetCiArrivals	(	Abc_Frame_t *	pAbc,
		int *	pArrivals )

Function*************************************************************

Synopsis []

Description []

SideEffects []

SeeAlso []

Definition at line 2421 of file giaIf.c.

{
    Gia_Man_t * pGia;
    if ( pArrivals == NULL )
        { printf( "Arrival times are not given.\n" ); return; }
    if ( pAbc == NULL )
        { printf( "ABC framework is not initialized by calling Abc_Start().\n" ); return; }
    pGia = Abc_FrameReadGia( pAbc );
    if ( pGia == NULL )
        { printf( "Current network in ABC framework is not defined.\n" ); return; }
    Vec_IntFreeP( &pGia->vCiArrs );
    pGia->vCiArrs = Vec_IntAllocArrayCopy( pArrivals, Gia_ManCiNum(pGia) );
}

Here is the call graph for this function:

Abc_FrameMiniAigSetCoRequireds()

void Abc_FrameMiniAigSetCoRequireds	(	Abc_Frame_t *	pAbc,
		int *	pRequireds )

Definition at line 2434 of file giaIf.c.

{
    Gia_Man_t * pGia;
    if ( pRequireds == NULL )
        { printf( "Required times are not given.\n" ); return; }
    if ( pAbc == NULL )
        { printf( "ABC framework is not initialized by calling Abc_Start().\n" ); return; }
    pGia = Abc_FrameReadGia( pAbc );
    if ( pGia == NULL )
        { printf( "Current network in ABC framework is not defined.\n" ); return; }
    Vec_IntFreeP( &pGia->vCoReqs );
    pGia->vCoReqs = Vec_IntAllocArrayCopy( pRequireds, Gia_ManCoNum(pGia) );
}

Here is the call graph for this function:

Abc_RecToGia3()

int Abc_RecToGia3 ( Gia_Man_t * pMan, If_Man_t * pIfMan, If_Cut_t * pCut, Vec_Int_t * vLeaves, int fHash )

extern

Function*************************************************************

Synopsis [Reexpresses the best structure of the cut in the GIA manager.]

Description []

SideEffects []

SeeAlso []

Definition at line 1105 of file abcRec3.c.

{
    Lms_Man_t * p = s_pMan3;
    char pCanonPerm[LMS_VAR_MAX];
    unsigned uCanonPhase = 0;
    int iFan0, iFan1, iGiaObj;
    Gia_Man_t * pGia = p->pGia;
    Gia_Obj_t * pGiaPo, * pGiaTemp = NULL;
    int i, uSupport, BestPo = -1, nLeaves = If_CutLeaveNum(pCut);
    assert( pIfMan->pPars->fCutMin == 1 );
    assert( nLeaves == Vec_IntSize(vLeaves) );

    // compute support
    uSupport = Abc_TtSupport( If_CutTruthW(pIfMan, pCut), nLeaves );
    if ( uSupport == 0 )
        return Abc_LitNotCond( 0, If_CutTruthIsCompl(pCut) );
    if ( !Abc_TtSuppIsMinBase(uSupport) || uSupport == 1 )
    {
        assert( Abc_TtSuppOnlyOne(uSupport) );
        return Abc_LitNotCond( Vec_IntEntry(vLeaves, Abc_TtSuppFindFirst(uSupport)), If_CutTruthIsCompl(pCut) );
    }
    assert( Gia_WordCountOnes(uSupport) == nLeaves );

    // get the best output for this node
    If_CutFindBestStruct( pIfMan, pCut, pCanonPerm, &uCanonPhase, &BestPo );
    assert( BestPo >= 0 );
    pGiaPo = Gia_ManCo( pGia, BestPo );

    // collect internal nodes into pGia->vTtNodes
    if ( pGia->vTtNodes == NULL )
        pGia->vTtNodes = Vec_IntAlloc( 256 );
    assert( Gia_ObjIsAnd( Gia_ObjFanin0(pGiaPo) ) );
    Gia_ObjCollectInternal( pGia, Gia_ObjFanin0(pGiaPo) );
    assert( Vec_IntSize(pGia->vTtNodes) > 0 );

    // collect GIA nodes for leaves
    Vec_IntClear( p->vLabels );
    for (i = 0; i < nLeaves; i++)
        Vec_IntPush( p->vLabels, Abc_LitNotCond(Vec_IntEntry(vLeaves, pCanonPerm[i]), (uCanonPhase >> i) & 1) );

    // compute HOP nodes for internal nodes
    Gia_ManForEachObjVec( pGia->vTtNodes, pGia, pGiaTemp, i )
    {
        pGiaTemp->fMark0 = 0; // unmark node marked by Gia_ObjCollectInternal()
        if ( Gia_ObjIsAnd(Gia_ObjFanin0(pGiaTemp)) )
            iFan0 = Vec_IntEntry(p->vLabels, Gia_ObjNum(pGia, Gia_ObjFanin0(pGiaTemp)) + nLeaves);
        else
            iFan0 = Vec_IntEntry(p->vLabels, Gia_ObjCioId(Gia_ObjFanin0(pGiaTemp)));
        iFan0 = Abc_LitNotCond(iFan0, Gia_ObjFaninC0(pGiaTemp));
        if ( Gia_ObjIsAnd(Gia_ObjFanin1(pGiaTemp)) )
            iFan1 = Vec_IntEntry(p->vLabels, Gia_ObjNum(pGia, Gia_ObjFanin1(pGiaTemp)) + nLeaves);
        else
            iFan1 = Vec_IntEntry(p->vLabels, Gia_ObjCioId(Gia_ObjFanin1(pGiaTemp)));
        iFan1 = Abc_LitNotCond(iFan1, Gia_ObjFaninC1(pGiaTemp));
        if ( fHash )
            iGiaObj = Gia_ManHashAnd(pMan, iFan0, iFan1);
        else
            iGiaObj = Gia_ManAppendAnd(pMan, iFan0, iFan1);
        Vec_IntPush(p->vLabels, iGiaObj);
    }
    // get the final result
    assert( Gia_ObjIsAnd(pGiaTemp) );
    iGiaObj = Vec_IntEntry(p->vLabels, Gia_ObjNum(pGia, pGiaTemp) + nLeaves);
    // complement the result if needed
    return Abc_LitNotCond( iGiaObj,  Gia_ObjFaninC0(pGiaPo) ^ ((uCanonPhase >> nLeaves) & 1) ^ pCut->fCompl );
}

Here is the call graph for this function:

Here is the caller graph for this function:

Gia_ManBuildFromMini()

int Gia_ManBuildFromMini	(	Gia_Man_t *	pNew,
		If_Man_t *	pIfMan,
		If_Cut_t *	pCut,
		Vec_Int_t *	vLeaves,
		Vec_Int_t *	vAig,
		int	fHash,
		int	fUseDsd )

Definition at line 1000 of file giaIf.c.

{
    if ( fUseDsd )
        If_CutDsdBalanceEval( pIfMan, pCut, vAig );
    else
        If_CutSopBalanceEval( pIfMan, pCut, vAig );
    return Gia_ManBuildFromMiniInt( pNew, vLeaves, vAig, fHash );
}

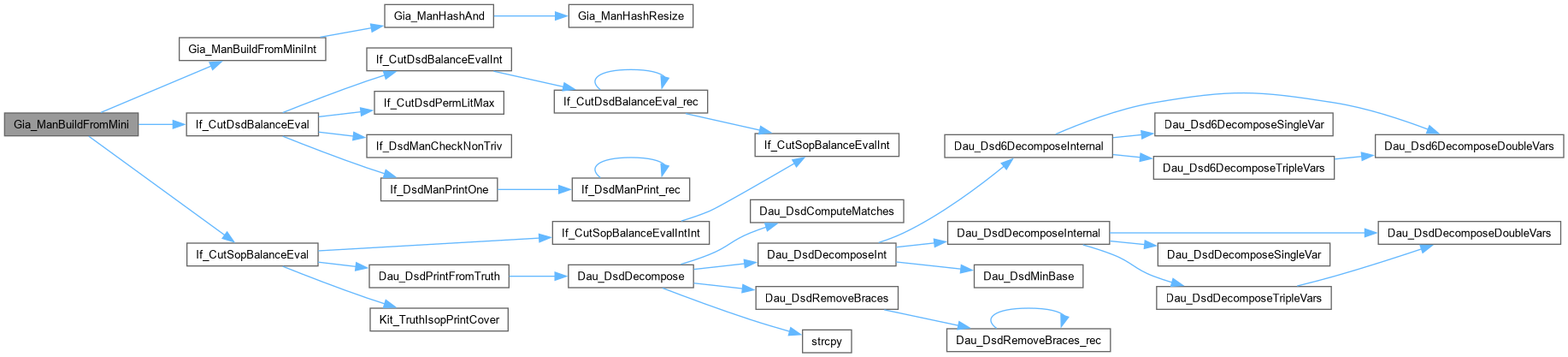

Here is the call graph for this function:

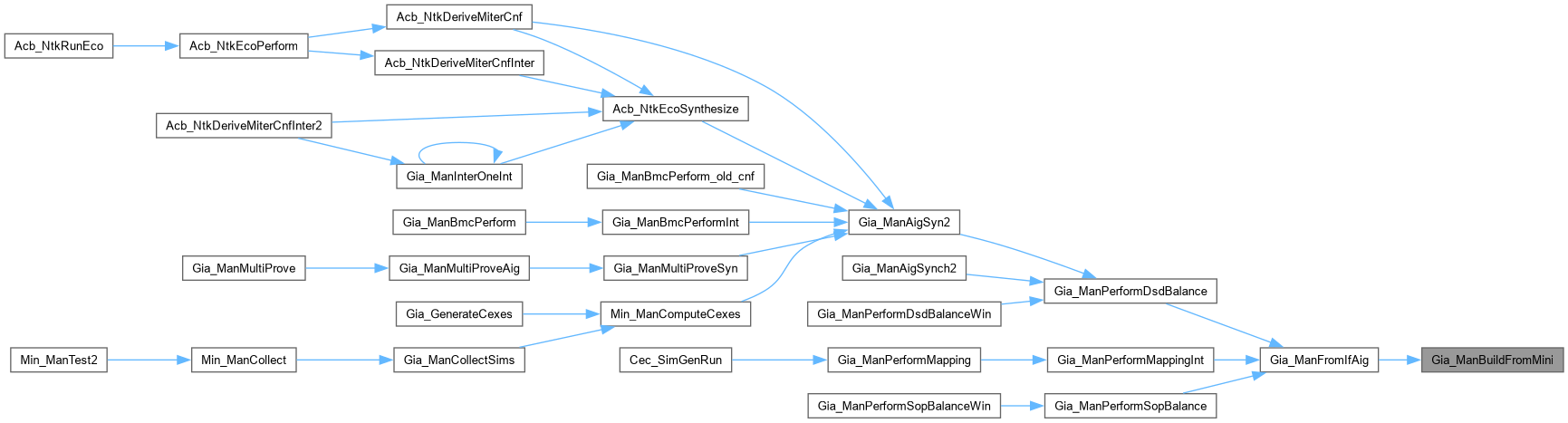

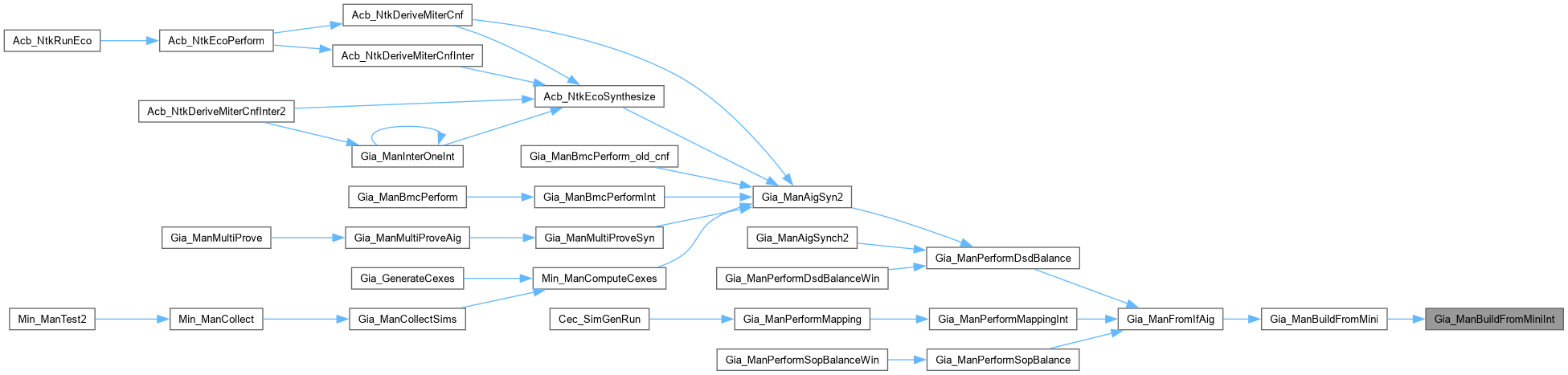

Here is the caller graph for this function:

Gia_ManBuildFromMiniInt()

int Gia_ManBuildFromMiniInt	(	Gia_Man_t *	pNew,
		Vec_Int_t *	vLeaves,
		Vec_Int_t *	vAig,
		int	fHash )

Function*************************************************************

Synopsis [Rebuilds GIA from mini AIG.]

Description []

SideEffects []

SeeAlso []

Definition at line 962 of file giaIf.c.

{
    assert( Vec_IntSize(vAig) > 0 );
    assert( Vec_IntEntryLast(vAig) < 2 );
    if ( Vec_IntSize(vAig) == 1 ) // const
        return Vec_IntEntry(vAig, 0);
    if ( Vec_IntSize(vAig) == 2 ) // variable
    {
        assert( Vec_IntEntry(vAig, 0) == 0 );
        assert( Vec_IntSize(vLeaves) == 1 );
        return Abc_LitNotCond( Vec_IntEntry(vLeaves, 0), Vec_IntEntry(vAig, 1) );
    }
    else
    {
        int nLeaves = Vec_IntSize(vLeaves);
        int i, iVar0, iVar1, iLit0, iLit1, iLit = 0;
        assert( Vec_IntSize(vAig) & 1 );
        Vec_IntForEachEntryDouble( vAig, iLit0, iLit1, i )
        {
            iVar0 = Abc_Lit2Var( iLit0 );
            iVar1 = Abc_Lit2Var( iLit1 );
            iLit0 = Abc_LitNotCond( iVar0 < nLeaves ? Vec_IntEntry(vLeaves, iVar0) : Vec_IntEntry(vAig, iVar0 - nLeaves), Abc_LitIsCompl(iLit0) );
            iLit1 = Abc_LitNotCond( iVar1 < nLeaves ? Vec_IntEntry(vLeaves, iVar1) : Vec_IntEntry(vAig, iVar1 - nLeaves), Abc_LitIsCompl(iLit1) );
            if ( fHash )
                iLit = Gia_ManHashAnd( pNew, iLit0, iLit1 );
            else if ( iLit0 == iLit1 )
                iLit = iLit0;
            else
                iLit = Gia_ManAppendAnd( pNew, iLit0, iLit1 );
            assert( (i & 1) == 0 );
            Vec_IntWriteEntry( vAig, Abc_Lit2Var(i), iLit );  // overwriting entries
        }
        assert( i == Vec_IntSize(vAig) - 1 );
        iLit = Abc_LitNotCond( iLit, Vec_IntEntry(vAig, i) );
        Vec_IntClear( vAig ); // useless
        return iLit;
    }
}

Here is the call graph for this function:

Here is the caller graph for this function:

Gia_ManChoiceLevel()

int Gia_ManChoiceLevel

(

Gia_Man_t *

p

)

Definition at line 813 of file giaIf.c.

{
    Gia_Obj_t * pObj;
    int i, LevelMax = 0;
//    assert( Gia_ManRegNum(p) == 0 );
    Gia_ManCleanLevels( p, Gia_ManObjNum(p) );
    Gia_ManIncrementTravId( p );
    Gia_ManForEachCo( p, pObj, i )
    {
        Gia_ManChoiceLevel_rec( p, pObj );
        if ( LevelMax < Gia_ObjLevel(p, pObj) )
            LevelMax = Gia_ObjLevel(p, pObj);
    }
    // account for dangling boxes
    Gia_ManForEachCi( p, pObj, i )
    {
        Gia_ManChoiceLevel_rec( p, pObj );
        if ( LevelMax < Gia_ObjLevel(p, pObj) )
            LevelMax = Gia_ObjLevel(p, pObj);
//        Abc_Print( 1, "%d ", Gia_ObjLevel(p, pObj) );
    }
//    Abc_Print( 1, "\n" );
    Gia_ManForEachAnd( p, pObj, i )
        assert( Gia_ObjLevel(p, pObj) > 0 );
//    printf( "Max level %d\n", LevelMax );
    return LevelMax;
}

Here is the call graph for this function:

Here is the caller graph for this function:

Gia_ManChoiceLevel_rec()

void Gia_ManChoiceLevel_rec	(	Gia_Man_t *	p,
		Gia_Obj_t *	pObj )

Function*************************************************************

Synopsis [Computes levels for AIG with choices and white boxes.]

Description []

SideEffects []

SeeAlso []

Definition at line 752 of file giaIf.c.

{
    Tim_Man_t * pManTime = (Tim_Man_t *)p->pManTime;
    Gia_Obj_t * pNext;
    int i, iBox, iTerm1, nTerms, LevelMax = 0;
    if ( Gia_ObjIsTravIdCurrent( p, pObj ) )
        return;
    Gia_ObjSetTravIdCurrent( p, pObj );
    if ( Gia_ObjIsCi(pObj) )
    {
        if ( pManTime )
        {
            iBox = Tim_ManBoxForCi( pManTime, Gia_ObjCioId(pObj) );
            if ( iBox >= 0 ) // this is not a true PI
            {
                iTerm1 = Tim_ManBoxInputFirst( pManTime, iBox );
                nTerms = Tim_ManBoxInputNum( pManTime, iBox );
                for ( i = 0; i < nTerms; i++ )
                {
                    pNext = Gia_ManCo( p, iTerm1 + i );
                    Gia_ManChoiceLevel_rec( p, pNext );
                    if ( LevelMax < Gia_ObjLevel(p, pNext) )
                        LevelMax = Gia_ObjLevel(p, pNext);
                }
                LevelMax++;
            }
        }
//        Abc_Print( 1, "%d ", pObj->Level );
    }
    else if ( Gia_ObjIsCo(pObj) )
    {
        pNext = Gia_ObjFanin0(pObj);
        Gia_ManChoiceLevel_rec( p, pNext );
        if ( LevelMax < Gia_ObjLevel(p, pNext) )
            LevelMax = Gia_ObjLevel(p, pNext);
    }
    else if ( Gia_ObjIsAnd(pObj) )
    {
        // get the maximum level of the two fanins
        pNext = Gia_ObjFanin0(pObj);
        Gia_ManChoiceLevel_rec( p, pNext );
        if ( LevelMax < Gia_ObjLevel(p, pNext) )
            LevelMax = Gia_ObjLevel(p, pNext);
        pNext = Gia_ObjFanin1(pObj);
        Gia_ManChoiceLevel_rec( p, pNext );
        if ( LevelMax < Gia_ObjLevel(p, pNext) )
            LevelMax = Gia_ObjLevel(p, pNext);
        LevelMax++;

        // get the level of the nodes in the choice node
        if ( (pNext = Gia_ObjSiblObj(p, Gia_ObjId(p, pObj))) )
        {
            Gia_ManChoiceLevel_rec( p, pNext );
            if ( LevelMax < Gia_ObjLevel(p, pNext) )
                LevelMax = Gia_ObjLevel(p, pNext);
        }
    }
    else if ( !Gia_ObjIsConst0(pObj) )
        assert( 0 );
    Gia_ObjSetLevel( p, pObj, LevelMax );
}

Here is the call graph for this function:

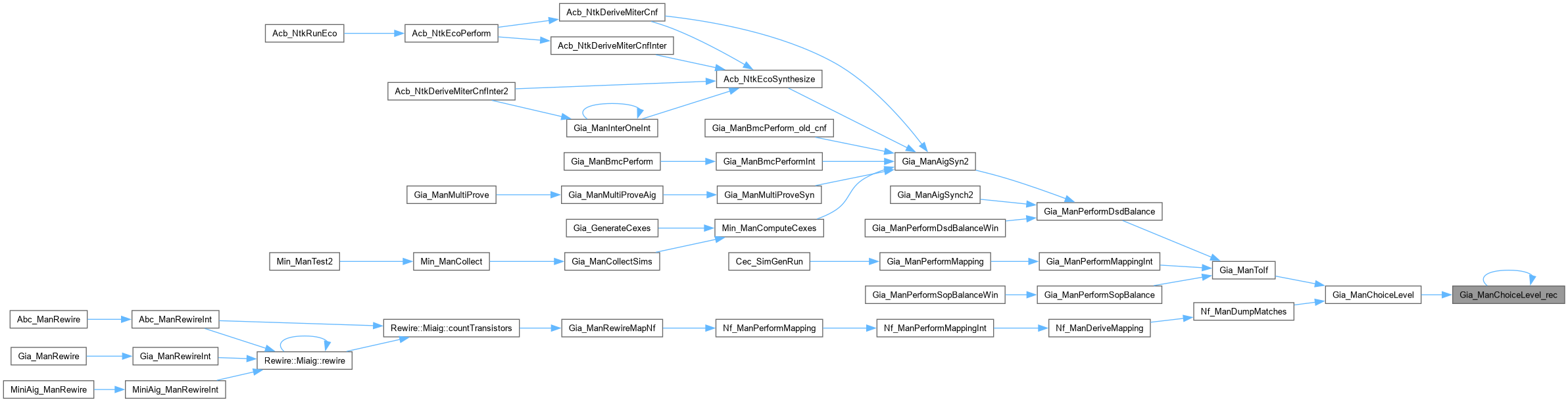

Here is the caller graph for this function:

Gia_ManCollectLuts_rec()

void Gia_ManCollectLuts_rec	(	Gia_Man_t *	p,
		int	iObj,
		Vec_Int_t *	vLuts )

Definition at line 473 of file giaIf.c.

{
    if ( Gia_ObjIsTravIdCurrentId( p, iObj ) || !Gia_ObjIsAnd(Gia_ManObj(p, iObj)) )
        return;
    Gia_ObjSetTravIdCurrentId( p, iObj );
    int k, iFan;
    Gia_LutForEachFanin( p, iObj, iFan, k )
        Gia_ManCollectLuts_rec( p, iFan, vLuts );
    Vec_IntPush( vLuts, iObj );
}

Here is the call graph for this function:

Here is the caller graph for this function:

Gia_ManComputeOverlap()

int Gia_ManComputeOverlap

(

Gia_Man_t *

p

)

Definition at line 391 of file giaIf.c.

{
    int i, Count = -Gia_ManAndNum(p);
    assert( Gia_ManHasMapping(p) );
    Gia_ManForEachLut( p, i )
        Count += Gia_ManComputeOverlapOne( p, i );
    return Count;
}

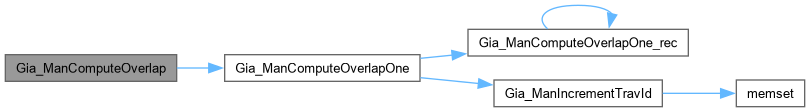

Here is the call graph for this function:

Gia_ManComputeOverlap2()

int Gia_ManComputeOverlap2

(

Gia_Man_t *

p

)

Definition at line 346 of file giaIf.c.

{
    Vec_Int_t * vVisit;
    Vec_Str_t * vLabel;
    int i, Count = -Gia_ManAndNum(p);
    assert( Gia_ManHasMapping(p) );
    vVisit = Vec_IntAlloc( 100 );
    vLabel = Vec_StrStart( Gia_ManObjNum(p) );
    Gia_ManForEachLut( p, i )
        Count += Gia_ManComputeOverlap2One( p, i, vLabel, vVisit );
    Vec_StrFree( vLabel );
    Vec_IntFree( vVisit );
    return Count;
}

Here is the call graph for this function:

Gia_ManComputeOverlap2One()

int Gia_ManComputeOverlap2One	(	Gia_Man_t *	p,
		int	iObj,
		Vec_Str_t *	vLabel,
		Vec_Int_t *	vVisit )

Definition at line 333 of file giaIf.c.

{
    int iFan, k, Counter;
    Vec_IntClear( vVisit );
    Gia_LutForEachFanin( p, iObj, iFan, k )
        Vec_StrWriteEntry( vLabel, iFan, 1 );
    Counter = Gia_ManComputeOverlap2One_rec( p, iObj, vLabel, vVisit );
    Gia_LutForEachFanin( p, iObj, iFan, k )
        Vec_StrWriteEntry( vLabel, iFan, 0 );
    Vec_IntForEachEntry( vVisit, iFan, k )
        Vec_StrWriteEntry( vLabel, iFan, 0 );
    return Counter;
}

Here is the call graph for this function:

Here is the caller graph for this function:

Gia_ManComputeOverlap2One_rec()

int Gia_ManComputeOverlap2One_rec	(	Gia_Man_t *	p,
		int	iObj,
		Vec_Str_t *	vLabel,
		Vec_Int_t *	vVisit )

Function*************************************************************

Synopsis [Calculate mapping overlap.]

Description []

SideEffects []

SeeAlso []

Definition at line 319 of file giaIf.c.

{
    Gia_Obj_t * pObj;
    int Counter;
    if ( Vec_StrEntry(vLabel, iObj) )
        return 0;
    Vec_StrWriteEntry( vLabel, iObj, 1 );
    pObj = Gia_ManObj( p, iObj );
    assert( Gia_ObjIsAnd(pObj) );
    Counter  = Gia_ManComputeOverlap2One_rec( p, Gia_ObjFaninId0(pObj, iObj), vLabel, vVisit );
    Counter += Gia_ManComputeOverlap2One_rec( p, Gia_ObjFaninId1(pObj, iObj), vLabel, vVisit );
    Vec_IntPush( vVisit, iObj );
    return Counter + 1;
}

Here is the call graph for this function:

Here is the caller graph for this function:

Gia_ManComputeOverlapOne()

int Gia_ManComputeOverlapOne	(	Gia_Man_t *	p,
		int	iObj )

Definition at line 383 of file giaIf.c.

{
    int iFan, k;
    Gia_ManIncrementTravId(p);
    Gia_LutForEachFanin( p, iObj, iFan, k )
        Gia_ObjSetTravIdCurrentId( p, iFan );
    return Gia_ManComputeOverlapOne_rec( p, iObj );
}

Here is the call graph for this function:

Here is the caller graph for this function:

Gia_ManComputeOverlapOne_rec()

int Gia_ManComputeOverlapOne_rec	(	Gia_Man_t *	p,
		int	iObj )

Function*************************************************************

Synopsis [Calculate mapping overlap.]

Description []

SideEffects []

SeeAlso []

Definition at line 372 of file giaIf.c.

{
    Gia_Obj_t * pObj;
    if ( Gia_ObjIsTravIdCurrentId(p, iObj) )
        return 0;
    Gia_ObjSetTravIdCurrentId( p, iObj );
    pObj = Gia_ManObj( p, iObj );
    assert( Gia_ObjIsAnd(pObj) );
    return 1 + Gia_ManComputeOverlapOne_rec( p, Gia_ObjFaninId0(pObj, iObj) )
          + Gia_ManComputeOverlapOne_rec( p, Gia_ObjFaninId1(pObj, iObj) );
}

Here is the call graph for this function:

Here is the caller graph for this function:

Gia_ManCountDupLut()

int Gia_ManCountDupLut

(

Gia_Man_t *

p

)

Definition at line 419 of file giaIf.c.

{
    Gia_Obj_t * pObj, * pFanin;
    int i, pFanins[3], nCountDup = 0, nCountPis = 0, nCountMux = 0;
    Gia_ManCleanMark01( p );
    Gia_ManForEachLut( p, i )
        if ( Gia_ObjLutIsMux(p, i) )
        {
            pObj = Gia_ManObj( p, i );
            pObj->fMark1 = 1;
            if ( Gia_ObjLutSize(p, i) == 3 )
            {
                Gia_ManPrintGetMuxFanins( p, pObj, pFanins );

                pFanin = Gia_ManObj(p, pFanins[1]);
                nCountPis += Gia_ObjIsCi(pFanin);
                nCountDup += pFanin->fMark0;
                nCountMux += pFanin->fMark1;
                pFanin->fMark0 = 1;

                pFanin = Gia_ManObj(p, pFanins[2]);
                nCountPis += Gia_ObjIsCi(pFanin);
                nCountDup += pFanin->fMark0;
                nCountMux += pFanin->fMark1;
                pFanin->fMark0 = 1;
            }
            else if ( Gia_ObjLutSize(p, i) == 2 )
            {
                pFanin = Gia_ObjFanin0(pObj);
                if ( pFanin->fMark0 || pFanin->fMark1 )
                {
                    pFanin = Gia_ObjFanin1(pObj);
                    nCountPis += Gia_ObjIsCi(pFanin);
                    nCountDup += pFanin->fMark0;
                    nCountMux += pFanin->fMark1;
                    pFanin->fMark0 = 1;
                }
                else
                {
                    nCountPis += Gia_ObjIsCi(pFanin);
                    nCountDup += pFanin->fMark0;
                    nCountMux += pFanin->fMark1;
                    pFanin->fMark0 = 1;
                }
            }
            else assert( 0 );
        }
    Gia_ManCleanMark01( p );
    if ( nCountDup + nCountPis + nCountMux )
        printf( "Dup fanins = %d.  CI fanins = %d.  MUX fanins = %d.  Total = %d.  (%.2f %%)\n",
            nCountDup, nCountPis, nCountMux, nCountDup + nCountPis, 100.0 * (nCountDup + nCountPis + nCountMux) / Gia_ManLutNum(p) );
    return nCountDup + nCountPis;
}

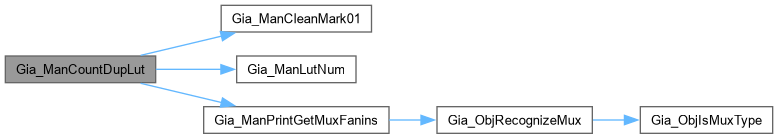

Here is the call graph for this function:

Here is the caller graph for this function:

Gia_ManCountLutLevels()

int Gia_ManCountLutLevels	(	Gia_Man_t *	p,
		Vec_Int_t *	vLuts,
		Vec_Int_t *	vLevel )

Definition at line 483 of file giaIf.c.

{
    int i, iObj, k, iFan, LevelMax = 0;
    Vec_IntForEachEntry( vLuts, iObj, i ) {
        int Level = 0;
        Gia_LutForEachFanin( p, iObj, iFan, k )
            Level = Abc_MaxInt( Level, Vec_IntEntry(vLevel, iFan) );
        Vec_IntWriteEntry( vLevel, iObj, Level+1 );
        LevelMax = Abc_MaxInt( LevelMax, Level+1 );
    }
    Vec_IntForEachEntry( vLuts, iObj, i )
        Vec_IntWriteEntry( vLevel, iObj, 0 );
    return LevelMax;
}

Here is the caller graph for this function:

Gia_ManDupHashMapping()

Gia_Man_t * Gia_ManDupHashMapping

(

Gia_Man_t *

p

)

Function*************************************************************

Synopsis [Performs hashing for a mapped AIG.]

Description []

SideEffects []

SeeAlso []

Definition at line 2772 of file giaIf.c.

{
    Gia_Man_t * pNew;
    Vec_Int_t * vMapping;
    Gia_Obj_t * pObj, * pFanin;
    int i, k;
    assert( Gia_ManHasMapping(p) );
    // copy the old manager with hashing
    pNew = Gia_ManStart( Gia_ManObjNum(p) );
    pNew->pName = Abc_UtilStrsav( p->pName );
    pNew->pSpec = Abc_UtilStrsav( p->pSpec );
    Gia_ManHashAlloc( pNew );
    Gia_ManFillValue( p );
    Gia_ManConst0(p)->Value = 0;
    Gia_ManForEachCi( p, pObj, i )
        pObj->Value = Gia_ManAppendCi( pNew );
    Gia_ManForEachAnd( p, pObj, i )
        pObj->Value = Gia_ManHashAnd( pNew, Gia_ObjFanin0Copy(pObj), Gia_ObjFanin1Copy(pObj) );
    Gia_ManForEachCo( p, pObj, i )
        Gia_ManAppendCo( pNew, Gia_ObjFanin0Copy(pObj) );
    Gia_ManHashStop( pNew );
    Gia_ManSetRegNum( pNew, Gia_ManRegNum(p) );
    // recreate mapping
    vMapping = Vec_IntAlloc( Vec_IntSize(p->vMapping) );
    Vec_IntFill( vMapping, Gia_ManObjNum(p), 0 );
    Gia_ManForEachLut( p, i )
    {
        pObj = Gia_ManObj( p, i );
        Vec_IntWriteEntry( vMapping, Abc_Lit2Var(pObj->Value), Vec_IntSize(vMapping) );
        Vec_IntPush( vMapping, Gia_ObjLutSize(p, i) );
        Gia_LutForEachFaninObj( p, i, pFanin, k )
            Vec_IntPush( vMapping, Abc_Lit2Var(pFanin->Value)  );
        Vec_IntPush( vMapping, Abc_Lit2Var(pObj->Value) );
    }
    pNew->vMapping = vMapping;
    return pNew;
}

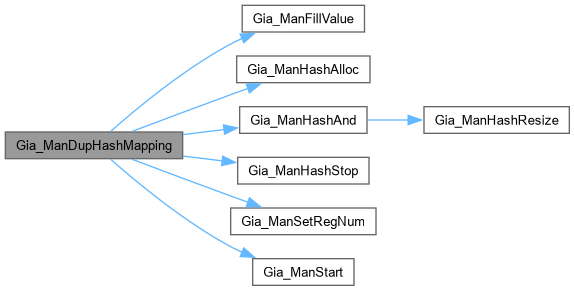

Here is the call graph for this function:

Here is the caller graph for this function:

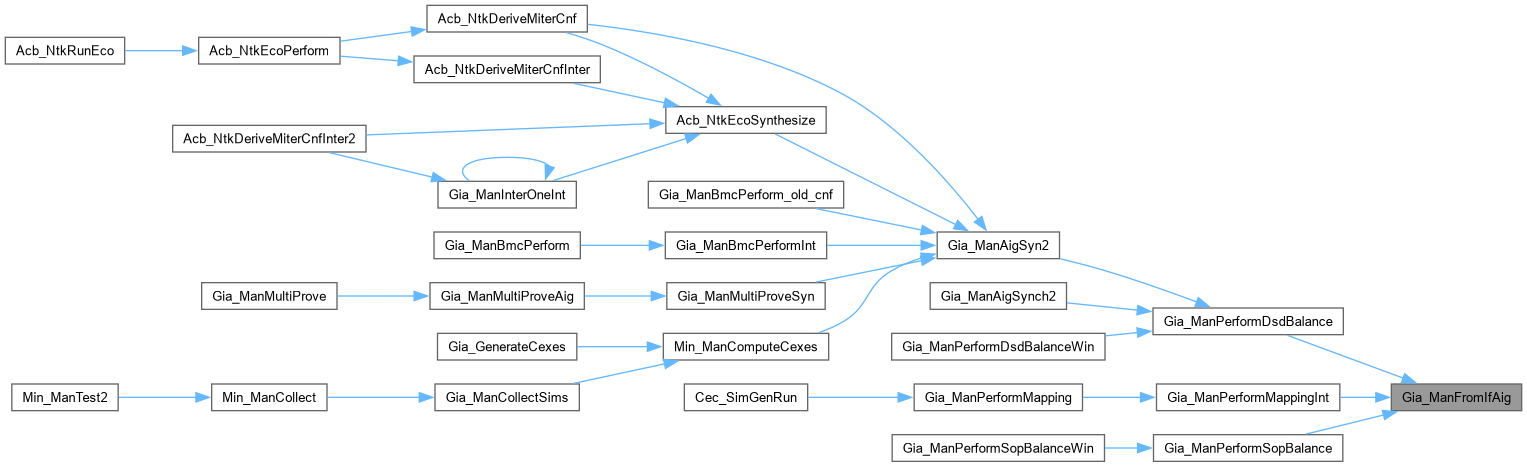

Gia_ManFromIfAig()

Gia_Man_t * Gia_ManFromIfAig

(

If_Man_t *

pIfMan

)

Definition at line 1032 of file giaIf.c.

{
    int fHash = 0;
    Gia_Man_t * pNew, * pTemp;
    If_Obj_t * pIfObj, * pIfLeaf;
    If_Cut_t * pCutBest;
    Vec_Int_t * vLeaves;
    Vec_Int_t * vAig;
    int i, k;
    assert( pIfMan->pPars->pLutStruct == NULL );
    assert( pIfMan->pPars->fDelayOpt || pIfMan->pPars->fDsdBalance || pIfMan->pPars->fUserRecLib || pIfMan->pPars->fUserSesLib );
    // create new manager
    pNew = Gia_ManStart( If_ManObjNum(pIfMan) );
    Gia_ManHashAlloc( pNew );
    // iterate through nodes used in the mapping
    vAig = Vec_IntAlloc( 1 << 16 );
    vLeaves = Vec_IntAlloc( 16 );
//    If_ManForEachObj( pIfMan, pIfObj, i )
//        pIfObj->iCopy = 0;
    If_ManForEachObj( pIfMan, pIfObj, i )
    {
        if ( pIfObj->nRefs == 0 && !If_ObjIsTerm(pIfObj) )
            continue;
        if ( If_ObjIsAnd(pIfObj) )
        {
            pCutBest = If_ObjCutBest( pIfObj );
            // if the cut does not offer delay improvement
//            if ( (int)pIfObj->Level <= (int)pCutBest->Delay )
//            {
//                Gia_ManFromIfAig_rec( pNew, pIfMan, pIfObj );
//                continue;
//            }
            // collect leaves of the best cut
            Vec_IntClear( vLeaves );
            If_CutForEachLeaf( pIfMan, pCutBest, pIfLeaf, k )
                Vec_IntPush( vLeaves, pIfLeaf->iCopy );
            // get the functionality
            if ( pIfMan->pPars->fDelayOpt )
                pIfObj->iCopy = Gia_ManBuildFromMini( pNew, pIfMan, pCutBest, vLeaves, vAig, fHash, 0 );
            else if ( pIfMan->pPars->fDsdBalance )
                pIfObj->iCopy = Gia_ManBuildFromMini( pNew, pIfMan, pCutBest, vLeaves, vAig, fHash, 1 );
            else if ( pIfMan->pPars->fUserRecLib )
                pIfObj->iCopy = Abc_RecToGia3( pNew, pIfMan, pCutBest, vLeaves, fHash );
            else assert( 0 );
        }
        else if ( If_ObjIsCi(pIfObj) )
            pIfObj->iCopy = Gia_ManAppendCi(pNew);
        else if ( If_ObjIsCo(pIfObj) )
            pIfObj->iCopy = Gia_ManAppendCo( pNew, Abc_LitNotCond(If_ObjFanin0(pIfObj)->iCopy, If_ObjFaninC0(pIfObj)) );
        else if ( If_ObjIsConst1(pIfObj) )
            pIfObj->iCopy = 1;
        else assert( 0 );
    }
    Vec_IntFree( vAig );
    Vec_IntFree( vLeaves );
    pNew = Gia_ManRehash( pTemp = pNew, 0 );
    Gia_ManStop( pTemp );
    return pNew;
}

Here is the call graph for this function:

Here is the caller graph for this function:

Gia_ManFromIfAig_rec()

int Gia_ManFromIfAig_rec	(	Gia_Man_t *	pNew,
		If_Man_t *	pIfMan,
		If_Obj_t *	pIfObj )

Function*************************************************************

Synopsis [Converts IF into GIA manager.]

Description []

SideEffects []

SeeAlso []

Definition at line 1020 of file giaIf.c.

{
    int iLit0, iLit1;
    if ( pIfObj->iCopy )
        return pIfObj->iCopy;
    iLit0 = Gia_ManFromIfAig_rec( pNew, pIfMan, pIfObj->pFanin0 );
    iLit1 = Gia_ManFromIfAig_rec( pNew, pIfMan, pIfObj->pFanin1 );
    iLit0 = Abc_LitNotCond( iLit0, pIfObj->fCompl0 );
    iLit1 = Abc_LitNotCond( iLit1, pIfObj->fCompl1 );
    pIfObj->iCopy = Gia_ManHashAnd( pNew, iLit0, iLit1 );
    return pIfObj->iCopy;
}

Here is the call graph for this function:

Here is the caller graph for this function:

Gia_ManFromIfGetConfig()

void Gia_ManFromIfGetConfig	(	Vec_Int_t *	vConfigs,
		If_Man_t *	pIfMan,
		If_Cut_t *	pCutBest,
		int	iLit,
		Vec_Str_t *	vConfigsStr )

Function*************************************************************

Synopsis [Converts IF into GIA manager.]

Description []

SideEffects []

SeeAlso []

Definition at line 1747 of file giaIf.c.

{
    If_Obj_t * pIfObj = NULL;
    word * pPerm = If_DsdManGetFuncConfig( pIfMan->pIfDsdMan, If_CutDsdLit(pIfMan, pCutBest) ); // cell input -> DSD input
    char * pCutPerm = If_CutDsdPerm( pIfMan, pCutBest ); // DSD input -> cut input
    word * pArray;  int v, i, Lit, Var;
    int nVarNum = If_DsdManVarNum(pIfMan->pIfDsdMan);
    int nTtBitNum = If_DsdManTtBitNum(pIfMan->pIfDsdMan);
    int nPermBitNum = If_DsdManPermBitNum(pIfMan->pIfDsdMan);
    int nPermBitOne = nPermBitNum / nVarNum;
    // prepare storage
    int nIntNum = Vec_IntEntry( vConfigs, 1 );
    for ( i = 0; i < nIntNum; i++ )
        Vec_IntPush( vConfigs, 0 );
    pArray = (word *)Vec_IntEntryP( vConfigs, Vec_IntSize(vConfigs) - nIntNum );
    assert( nPermBitNum % nVarNum == 0 );
    // set truth table bits
    for ( i = 0; i < nTtBitNum; i++ )
        if ( Abc_TtGetBit(pPerm + 1, i) )
            Abc_TtSetBit( pArray, i );
    // set permutation bits
    for ( v = 0; v < nVarNum; v++ )
    {
        // get DSD variable
        Var = ((pPerm[0] >> (v * 4)) & 0xF);
        assert( Var < (int)pCutBest->nLeaves );
        // get AIG literal
        Lit = (int)pCutPerm[Var];
        assert( Abc_Lit2Var(Lit) < (int)pCutBest->nLeaves );
        // complement if polarity has changed
        pIfObj = If_ManObj( pIfMan, pCutBest->pLeaves[Abc_Lit2Var(Lit)] );
        Lit = Abc_LitNotCond( Lit, Abc_LitIsCompl(pIfObj->iCopy) );
        // create config literal
        for ( i = 0; i < nPermBitOne; i++ )
            if ( (Lit >> i) & 1 )
                Abc_TtSetBit( pArray, nTtBitNum + v * nPermBitOne + i );
    }
    // remember complementation
    assert( nTtBitNum + nPermBitNum < 32 * nIntNum );
    if ( Abc_LitIsCompl(If_CutDsdLit(pIfMan, pCutBest)) ^ pCutBest->fCompl ^ Abc_LitIsCompl(iLit) )
        Abc_TtSetBit( pArray, nTtBitNum + nPermBitNum );
    // update count
    Vec_IntAddToEntry( vConfigs, 0, 1 );
    // write configs
    if ( vConfigsStr )
    {
        Vec_StrPrintF( vConfigsStr, "%d", Abc_Lit2Var(iLit) );
        Vec_StrPush( vConfigsStr, ' ' );
        for ( i = 0; i < nTtBitNum; i++ )
            Vec_StrPush( vConfigsStr, (char)(Abc_TtGetBit(pArray, i) ? '1' : '0') );
        Vec_StrPush( vConfigsStr, ' ' );
        Vec_StrPush( vConfigsStr, ' ' );
        for ( v = 0; v < nVarNum; v++ )
        {
            for ( i = 0; i < nPermBitOne; i++ )
            {
                Vec_StrPush( vConfigsStr, (char)(Abc_TtGetBit(pArray, nTtBitNum + v * nPermBitOne + i) ? '1' : '0') );
                if ( i == 0 )
                    Vec_StrPush( vConfigsStr, ' ' );
            }
            Vec_StrPush( vConfigsStr, ' ' );
            Vec_StrPush( vConfigsStr, ' ' );
        }
        Vec_StrPush( vConfigsStr, (char)(Abc_TtGetBit(pArray, nTtBitNum + nPermBitNum) ? '1' : '0') );
        Vec_StrPush( vConfigsStr, '\n' );
    }
}

Here is the call graph for this function:

Here is the caller graph for this function:

Gia_ManFromIfLogic()

Gia_Man_t * Gia_ManFromIfLogic

(

If_Man_t *

pIfMan

)

Function*************************************************************

Synopsis [Converts IF into GIA manager.]

Description []

SideEffects []

SeeAlso []

Definition at line 2000 of file giaIf.c.

{
    int fWriteConfigs = 1;
    Gia_Man_t * pNew, * pHashed = NULL;
    If_Cut_t * pCutBest;
    If_Obj_t * pIfObj, * pIfLeaf;
    Vec_Int_t * vMapping, * vMapping2, * vPacking = NULL, * vConfigs = NULL;
    Vec_Int_t * vLeaves, * vLeaves2, * vCover, * vLits;
    Vec_Str_t * vConfigsStr = NULL;
    Ifn_Ntk_t * pNtkCell = NULL;
    sat_solver * pSat = NULL;
    int i, k, Entry;
    assert( !pIfMan->pPars->fDeriveLuts || pIfMan->pPars->fTruth );
//    if ( pIfMan->pPars->fEnableCheck07 )
//        pIfMan->pPars->fDeriveLuts = 0;
    // start mapping and packing
    vMapping  = Vec_IntStart( If_ManObjNum(pIfMan) );
    vMapping2 = Vec_IntStart( 1 );
    if ( pIfMan->pPars->fDeriveLuts && (pIfMan->pPars->pLutStruct || pIfMan->pPars->fEnableCheck75 || pIfMan->pPars->fEnableCheck75u || pIfMan->pPars->fEnableCheck07) )
    {
        vPacking = Vec_IntAlloc( 1000 );
        Vec_IntPush( vPacking, 0 );
    }
    if ( pIfMan->pPars->fUseDsdTune )
    {
        int nTtBitNum = If_DsdManTtBitNum(pIfMan->pIfDsdMan);
        int nPermBitNum = If_DsdManPermBitNum(pIfMan->pIfDsdMan);
        int nConfigInts = Abc_BitWordNum(nTtBitNum + nPermBitNum + 1);
        vConfigs = Vec_IntAlloc( 1000 );
        Vec_IntPush( vConfigs, 0 );
        Vec_IntPush( vConfigs, nConfigInts );
        if ( fWriteConfigs )
            vConfigsStr = Vec_StrAlloc( 1000 );
    }
    // create new manager
    pNew = Gia_ManStart( If_ManObjNum(pIfMan) );
    // iterate through nodes used in the mapping
    vLits    = Vec_IntAlloc( 1000 );
    vCover   = Vec_IntAlloc( 1 << 16 );
    vLeaves  = Vec_IntAlloc( 16 );
    vLeaves2 = Vec_IntAlloc( 16 );
    If_ManCleanCutData( pIfMan );
    If_ManForEachObj( pIfMan, pIfObj, i )
    {
        if ( pIfObj->nRefs == 0 && !If_ObjIsTerm(pIfObj) )
            continue;
        if ( If_ObjIsAnd(pIfObj) )
        {
            pCutBest = If_ObjCutBest( pIfObj );
            // perform sorting of cut leaves by delay, so that the slowest pin drives the fastest input of the LUT
            if ( !pIfMan->pPars->fUseTtPerm && !pIfMan->pPars->fDelayOpt && !pIfMan->pPars->fDelayOptLut && !pIfMan->pPars->fDsdBalance &&
                 !pIfMan->pPars->pLutStruct && !pIfMan->pPars->fUserRecLib && !pIfMan->pPars->fUserSesLib && !pIfMan->pPars->nGateSize &&
                 !pIfMan->pPars->fEnableCheck75 && !pIfMan->pPars->fEnableCheck75u && !pIfMan->pPars->fEnableCheck07 && !pIfMan->pPars->fUseDsdTune &&
                 !pIfMan->pPars->fUseCofVars && !pIfMan->pPars->fUseAndVars && !pIfMan->pPars->fUseCheck1 && !pIfMan->pPars->fUseCheck2 && !pIfMan->pPars->fUserLutDec )
                If_CutRotatePins( pIfMan, pCutBest );
            // collect leaves of the best cut
            Vec_IntClear( vLeaves );
            If_CutForEachLeaf( pIfMan, pCutBest, pIfLeaf, k )
                Vec_IntPush( vLeaves, pIfLeaf->iCopy );
            // perform one of the two types of mapping: with and without structures
            if ( pIfMan->pPars->fUseDsd && pIfMan->pPars->pLutStruct )
            {
                if ( pSat == NULL )
                    pSat = (sat_solver *)If_ManSatBuildXY( (int)(pIfMan->pPars->pLutStruct[0] - '0') );
                if ( pIfMan->pPars->pLutStruct && pIfMan->pPars->fDeriveLuts )
                    pIfObj->iCopy = Gia_ManFromIfLogicFindLut( pIfMan, pNew, pCutBest, pSat, vLeaves, vLits, vCover, vMapping, vMapping2, vPacking );
                else
                    pIfObj->iCopy = Gia_ManFromIfLogicCreateLut( pNew, If_CutTruthW(pIfMan, pCutBest), vLeaves, vCover, vMapping, vMapping2 );
                pIfObj->iCopy = Abc_LitNotCond( pIfObj->iCopy, pCutBest->fCompl );
            }
/*
            else if ( pIfMan->pPars->fUseDsd && pIfMan->pPars->fUseDsdTune && pIfMan->pPars->fDeriveLuts )
            {
                if ( pNtkCell == NULL )
                {
                    assert( If_DsdManGetCellStr(pIfMan->pIfDsdMan) != NULL );
                    pNtkCell = Ifn_NtkParse( If_DsdManGetCellStr(pIfMan->pIfDsdMan) );
                    nLutMax = Ifn_NtkLutSizeMax( pNtkCell );
                    pHashed = Gia_ManStart( 10000 );
                    Vec_IntFillExtra( &pHashed->vCopies, 10000, -1 );
                    for ( k = 0; k < pIfMan->pPars->nLutSize; k++ )
                        Gia_ManAppendCi( pHashed );
                    Gia_ManHashAlloc( pHashed );
                }
                pIfObj->iCopy = Gia_ManFromIfLogicFindCell( pIfMan, pNew, pHashed, pCutBest, pNtkCell, nLutMax, vLeaves, vLits, vCover, vMapping, vMapping2, vConfigs );
                pIfObj->iCopy = Abc_LitNotCond( pIfObj->iCopy, pCutBest->fCompl );
            }
*/
            else if ( pIfMan->pPars->fUseAndVars && pIfMan->pPars->fUseCofVars && pIfMan->pPars->fDeriveLuts && (int)pCutBest->nLeaves > pIfMan->pPars->nLutSize/2 )
            {
                int truthId = Abc_Lit2Var(pCutBest->iCutFunc);
                int Mask = Vec_IntEntry(pIfMan->vTtDecs[pCutBest->nLeaves], truthId);
                if ( Mask )
                    pIfObj->iCopy = Gia_ManFromIfLogicAndVars( pNew, pIfMan, pCutBest, vLeaves, vLeaves2, vCover, vMapping, vMapping2 );
                else
                    pIfObj->iCopy = Gia_ManFromIfLogicCofVars( pNew, pIfMan, pCutBest, vLeaves, vLeaves2, vCover, vMapping, vMapping2 );
            }
            else if ( pIfMan->pPars->fUseAndVars && pIfMan->pPars->fDeriveLuts && (int)pCutBest->nLeaves > pIfMan->pPars->nLutSize/2 )
            {
                pIfObj->iCopy = Gia_ManFromIfLogicAndVars( pNew, pIfMan, pCutBest, vLeaves, vLeaves2, vCover, vMapping, vMapping2 );
            }
            else if ( pIfMan->pPars->fUseCofVars && pIfMan->pPars->fDeriveLuts && (int)pCutBest->nLeaves > pIfMan->pPars->nLutSize/2 )
            {
                pIfObj->iCopy = Gia_ManFromIfLogicCofVars( pNew, pIfMan, pCutBest, vLeaves, vLeaves2, vCover, vMapping, vMapping2 );
            }
            else if ( pIfMan->pPars->fUserLutDec && (int)pCutBest->nLeaves > pIfMan->pPars->nLutDecSize )
            {
                pIfObj->iCopy = Gia_ManFromIfLogicHop( pNew, pIfMan, pCutBest, vLeaves, vLeaves2, vCover, vMapping, vMapping2 );
            }
            else if ( (pIfMan->pPars->fDeriveLuts && pIfMan->pPars->fTruth) || pIfMan->pPars->fUseDsd || pIfMan->pPars->fUseTtPerm || pIfMan->pPars->pFuncCell2 )
            {
                word * pTruth = If_CutTruthW(pIfMan, pCutBest);
                if ( pIfMan->pPars->fUseTtPerm )
                    for ( k = 0; k < (int)pCutBest->nLeaves; k++ )
                        if ( If_CutLeafBit(pCutBest, k) )
                            Abc_TtFlip( pTruth, Abc_TtWordNum(pCutBest->nLeaves), k );
                // perform decomposition of the cut
                pIfObj->iCopy = Gia_ManFromIfLogicNode( pIfMan, pNew, i, vLeaves, vLeaves2, pTruth, pIfMan->pPars->pLutStruct, vCover, vMapping, vMapping2, vPacking, (pIfMan->pPars->fEnableCheck75 || pIfMan->pPars->fEnableCheck75u), pIfMan->pPars->fEnableCheck07 );
                pIfObj->iCopy = Abc_LitNotCond( pIfObj->iCopy, pCutBest->fCompl );
                if ( vConfigs && Vec_IntSize(vLeaves) > 1 && !Gia_ObjIsCi(Gia_ManObj(pNew, Abc_Lit2Var(pIfObj->iCopy))) && pIfObj->iCopy > 1 )
                    Gia_ManFromIfGetConfig( vConfigs, pIfMan, pCutBest, pIfObj->iCopy, vConfigsStr );
            }
            else
            {
                pIfObj->iCopy = Gia_ManNodeIfToGia( pNew, pIfMan, pIfObj, vLeaves, 0 );
                // write mapping
                Vec_IntSetEntry( vMapping, Abc_Lit2Var(pIfObj->iCopy), Vec_IntSize(vMapping2) );
                Vec_IntPush( vMapping2, Vec_IntSize(vLeaves) );
                Vec_IntForEachEntry( vLeaves, Entry, k )
                    assert( Abc_Lit2Var(Entry) < Abc_Lit2Var(pIfObj->iCopy) );
                Vec_IntForEachEntry( vLeaves, Entry, k )
                    Vec_IntPush( vMapping2, Abc_Lit2Var(Entry)  );
                Vec_IntPush( vMapping2, Abc_Lit2Var(pIfObj->iCopy) );
            }
        }
        else if ( If_ObjIsCi(pIfObj) )
            pIfObj->iCopy = Gia_ManAppendCi(pNew);
        else if ( If_ObjIsCo(pIfObj) )
            pIfObj->iCopy = Gia_ManAppendCo( pNew, Abc_LitNotCond(If_ObjFanin0(pIfObj)->iCopy, If_ObjFaninC0(pIfObj)) );
        else if ( If_ObjIsConst1(pIfObj) )
        {
            pIfObj->iCopy = 1;
            // create const LUT
            Vec_IntWriteEntry( vMapping, 0, Vec_IntSize(vMapping2) );
            Vec_IntPush( vMapping2, 0 );
            Vec_IntPush( vMapping2, 0 );
        }
        else assert( 0 );
    }
    Vec_IntFree( vLits );
    Vec_IntFree( vCover );
    Vec_IntFree( vLeaves );
    Vec_IntFree( vLeaves2 );
    if ( pNtkCell )
        ABC_FREE( pNtkCell );
    if ( pSat )
        sat_solver_delete(pSat);
    if ( pHashed )
        Gia_ManStop( pHashed );
//    printf( "Mapping array size:  IfMan = %d. Gia = %d. Increase = %.2f\n",
//        If_ManObjNum(pIfMan), Gia_ManObjNum(pNew), 1.0 * Gia_ManObjNum(pNew) / If_ManObjNum(pIfMan) );
    // finish mapping
    if ( Vec_IntSize(vMapping) > Gia_ManObjNum(pNew) )
        Vec_IntShrink( vMapping, Gia_ManObjNum(pNew) );
    else
        Vec_IntFillExtra( vMapping, Gia_ManObjNum(pNew), 0 );
    assert( Vec_IntSize(vMapping) == Gia_ManObjNum(pNew) );
    Vec_IntForEachEntry( vMapping, Entry, i )
        if ( Entry > 0 )
            Vec_IntAddToEntry( vMapping, i, Gia_ManObjNum(pNew) );
    Vec_IntAppend( vMapping, vMapping2 );
    Vec_IntFree( vMapping2 );
    // attach mapping and packing
    assert( pNew->vMapping == NULL );
    assert( pNew->vPacking == NULL );
    assert( pNew->vConfigs == NULL );
    assert( pNew->pCellStr == NULL );
    pNew->vMapping = vMapping;
    pNew->vPacking = vPacking;
    pNew->vConfigs = vConfigs;
    pNew->pCellStr = vConfigs ? Abc_UtilStrsav( If_DsdManGetCellStr(pIfMan->pIfDsdMan) ) : NULL;
    assert( !vConfigs || Vec_IntSize(vConfigs) == 2 + Vec_IntEntry(vConfigs, 0) * Vec_IntEntry(vConfigs, 1) );
    // verify that COs have mapping
    {
        Gia_Obj_t * pObj;
        Gia_ManForEachCo( pNew, pObj, i )
           assert( !Gia_ObjIsAnd(Gia_ObjFanin0(pObj)) || Gia_ObjIsLut(pNew, Gia_ObjFaninId0p(pNew, pObj)) );
    }
    // verify that internal nodes have mapping
    {
        Gia_Obj_t * pFanin;
        Gia_ManForEachLut( pNew, i )
            Gia_LutForEachFaninObj( pNew, i, pFanin, k )
                assert( !Gia_ObjIsAnd(pFanin) || Gia_ObjIsLut(pNew, Gia_ObjId(pNew, pFanin)) );
    }
    // verify that CIs have no mapping
    {
        Gia_Obj_t * pObj;
        Gia_ManForEachCi( pNew, pObj, i )
           assert( !Gia_ObjIsLut(pNew, Gia_ObjId(pNew, pObj)) );
    }
    // dump configuration strings
    if ( vConfigsStr )
    {
        FILE * pFile; int status;
        char * pStr, Buffer[1000] = {0};
        const char * pNameGen = pIfMan->pName? Extra_FileNameGeneric( pIfMan->pName ) : "nameless_";
        sprintf( Buffer, "%s_configs.txt", pNameGen );
        ABC_FREE( pNameGen );
        pFile = fopen( Buffer, "wb" );
        if ( pFile == NULL )
        {
            Vec_StrFree( vConfigsStr );
            printf( "Cannot open file \"%s\".\n", Buffer );
            return pNew;
        }
        Vec_StrPush( vConfigsStr, '\0' );
        pStr = Vec_StrArray(vConfigsStr);
        status = fwrite( pStr, strlen(pStr), 1, pFile );
        Vec_StrFree( vConfigsStr );
        fclose( pFile );
        printf( "Finished dumping configs into file \"%s\".\n", Buffer );
    }
    return pNew;
}

Here is the call graph for this function:

Here is the caller graph for this function:

Gia_ManFromIfLogicAndVars()

int Gia_ManFromIfLogicAndVars	(	Gia_Man_t *	pNew,
		If_Man_t *	pIfMan,
		If_Cut_t *	pCutBest,
		Vec_Int_t *	vLeaves,
		Vec_Int_t *	vLeaves2,
		Vec_Int_t *	vCover,
		Vec_Int_t *	vMapping,
		Vec_Int_t *	vMapping2 )

Definition at line 1944 of file giaIf.c.

{
    word pFunc[64], uTruth[2];
    int nLeaves = pCutBest->nLeaves;
    int truthId = Abc_Lit2Var(pCutBest->iCutFunc);
    int c, k, Mask = Vec_IntEntry(pIfMan->vTtDecs[nLeaves], truthId);
    int MaskOne[2] = { Mask & 0xFFFF, (Mask >> 16) & 0x3FFF };
    int iLitCofs[2], iTemp, fOrDec = (Mask >> 30) & 1, RetValue = -1;
    assert( Mask > 0 && nLeaves <= 2 * (pIfMan->pPars->nLutSize/2) && pIfMan->pPars->nLutSize <= 13 );
    Abc_TtCopy( pFunc, If_CutTruthWR(pIfMan, pCutBest), pIfMan->nTruth6Words[nLeaves], fOrDec );
    Abc_TtDeriveBiDec( pFunc, nLeaves, MaskOne[0], MaskOne[1], pIfMan->pPars->nLutSize/2, &uTruth[0], &uTruth[1] );
    uTruth[0] = fOrDec ? ~uTruth[0] : uTruth[0];
    uTruth[1] = fOrDec ? ~uTruth[1] : uTruth[1];
    for ( c = 0; c < 2; c++ )
    {
        Vec_IntClear( vLeaves2 );
        for ( k = 0; k < nLeaves; k++ )
            if ( (MaskOne[c] >> k) & 1 )
                Vec_IntPush( vLeaves2, Vec_IntEntry(vLeaves, k) );
        assert( Vec_IntSize(vLeaves2) >= 1 );
        iLitCofs[c] = Kit_TruthToGia( pNew, (unsigned *)&uTruth[c], Vec_IntSize(vLeaves2), vCover, vLeaves2, 0 );
        if ( Vec_IntSize(vLeaves2) == 1 )
            continue;
        // create mapping
        assert( Gia_ObjIsAnd(Gia_ManObj(pNew, Abc_Lit2Var(iLitCofs[c]))) );
        Vec_IntSetEntry( vMapping, Abc_Lit2Var(iLitCofs[c]), Vec_IntSize(vMapping2) );
        Vec_IntPush( vMapping2, Vec_IntSize(vLeaves2) );
        Vec_IntForEachEntry( vLeaves2, iTemp, k )
            Vec_IntPush( vMapping2, Abc_Lit2Var(iTemp) );
        Vec_IntPush( vMapping2, Abc_Lit2Var(iLitCofs[c]) );
    }
    iLitCofs[0] = Abc_LitNotCond( iLitCofs[0], fOrDec );
    iLitCofs[1] = Abc_LitNotCond( iLitCofs[1], fOrDec );
    RetValue = Gia_ManAppendAnd( pNew, iLitCofs[0], iLitCofs[1] );
    RetValue = Abc_LitNotCond( RetValue, fOrDec ^ Abc_LitIsCompl(pCutBest->iCutFunc) );
    // create mapping
    Vec_IntSetEntry( vMapping, Abc_Lit2Var(RetValue), Vec_IntSize(vMapping2) );
    Vec_IntPush( vMapping2, 2 );
    Vec_IntPush( vMapping2, Abc_Lit2Var(iLitCofs[0]) );
    Vec_IntPush( vMapping2, Abc_Lit2Var(iLitCofs[1]) );
    Vec_IntPush( vMapping2, -Abc_Lit2Var(RetValue) );
    RetValue = Abc_LitNotCond( RetValue, pCutBest->fCompl );
    return RetValue;
}

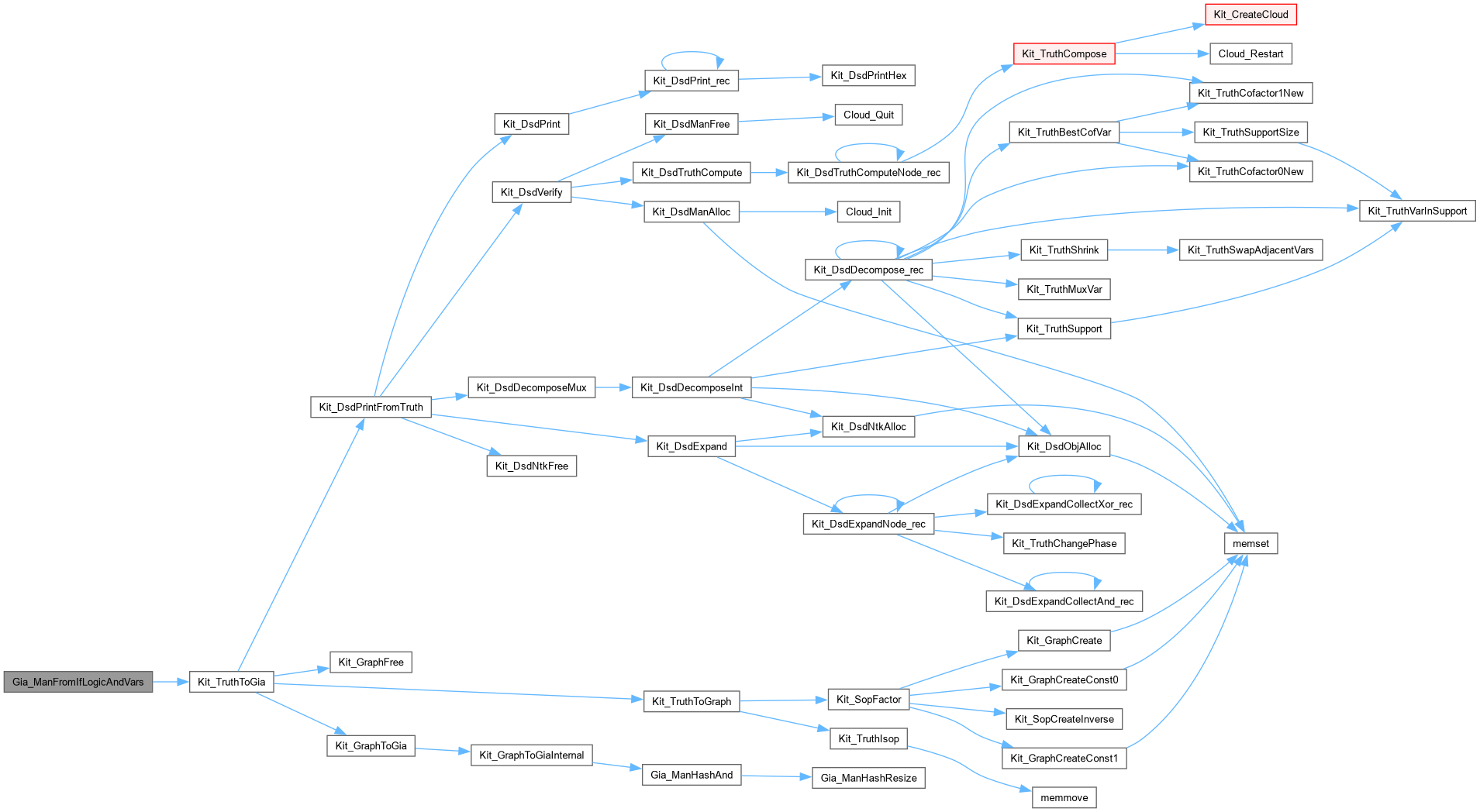

Here is the call graph for this function:

Here is the caller graph for this function:

Gia_ManFromIfLogicCofVars()

int Gia_ManFromIfLogicCofVars	(	Gia_Man_t *	pNew,
		If_Man_t *	pIfMan,
		If_Cut_t *	pCutBest,
		Vec_Int_t *	vLeaves,
		Vec_Int_t *	vLeaves2,
		Vec_Int_t *	vCover,
		Vec_Int_t *	vMapping,
		Vec_Int_t *	vMapping2 )

Function*************************************************************

Synopsis [Converts IF into GIA manager.]

Description []

SideEffects []

SeeAlso []

Definition at line 1868 of file giaIf.c.

{
    word pTruthCof[128], * pTruth = If_CutTruthW(pIfMan, pCutBest);
    int pVarsNew[16], nVarsNew, iLitCofs[3];
    int nLeaves = pCutBest->nLeaves;
    int nWords  = Abc_Truth6WordNum(nLeaves);
    int truthId = Abc_Lit2Var(pCutBest->iCutFunc);
    int c, iVar = Vec_StrEntry(pIfMan->vTtVars[nLeaves], truthId), iTemp, iTopLit;
    int k, RetValue = -1;
    assert( iVar >= 0 && iVar < nLeaves && pIfMan->pPars->nLutSize <= 13 );
    for ( c = 0; c < 2; c++ )
    {
        for ( k = 0; k < nLeaves; k++ )
            pVarsNew[k] = k;
        if ( c )
            Abc_TtCofactor1p( pTruthCof, pTruth, nWords, iVar );
        else
            Abc_TtCofactor0p( pTruthCof, pTruth, nWords, iVar );
        nVarsNew = Abc_TtMinBase( pTruthCof, pVarsNew, pCutBest->nLeaves, Abc_MaxInt(6, pCutBest->nLeaves) );
        // derive LUT
        Vec_IntClear( vLeaves2 );
        for ( k = 0; k < nVarsNew; k++ )
            Vec_IntPush( vLeaves2, Vec_IntEntry(vLeaves, pVarsNew[k]) );
        iLitCofs[c] = Kit_TruthToGia( pNew, (unsigned *)pTruthCof, nVarsNew, vCover, vLeaves2, 0 );
        if ( nVarsNew < 2 )
            continue;
        // create mapping
        assert( Gia_ObjIsAnd(Gia_ManObj(pNew, Abc_Lit2Var(iLitCofs[c]))) );
        Vec_IntSetEntry( vMapping, Abc_Lit2Var(iLitCofs[c]), Vec_IntSize(vMapping2) );
        Vec_IntPush( vMapping2, Vec_IntSize(vLeaves2) );
        Vec_IntForEachEntry( vLeaves2, iTemp, k )
            Vec_IntPush( vMapping2, Abc_Lit2Var(iTemp) );
        Vec_IntPush( vMapping2, Abc_Lit2Var(iLitCofs[c]) );
    }
    iLitCofs[2]  = Vec_IntEntry(vLeaves, iVar);
    // derive MUX
    if ( iLitCofs[0] > 1 && iLitCofs[1] > 1 )
    {
        pTruthCof[0] = ABC_CONST(0xCACACACACACACACA);
        Vec_IntClear( vLeaves2 );
        Vec_IntPush( vLeaves2, iLitCofs[0] );
        Vec_IntPush( vLeaves2, iLitCofs[1] );
        Vec_IntPush( vLeaves2, iLitCofs[2] );
        RetValue = Kit_TruthToGia( pNew, (unsigned *)pTruthCof, Vec_IntSize(vLeaves2), vCover, vLeaves2, 0 );
        iTopLit = RetValue;
    }
    else
    {
        assert( iLitCofs[0] > 1 || iLitCofs[1] > 1 );
        // collect leaves
        Vec_IntClear( vLeaves2 );
        for ( k = 0; k < 3; k++ )
            if ( iLitCofs[k] > 1 )
                Vec_IntPush( vLeaves2, iLitCofs[k] );
        assert( Vec_IntSize(vLeaves2) == 2 );
        // consider three possibilities
        if ( iLitCofs[0] == 0 )
            RetValue = Gia_ManAppendAnd( pNew, iLitCofs[2], iLitCofs[1] );
        else if ( iLitCofs[0] == 1 )
            RetValue = Gia_ManAppendOr( pNew, Abc_LitNot(iLitCofs[2]), iLitCofs[1] );
        else if ( iLitCofs[1] == 0 )
            RetValue = Gia_ManAppendAnd( pNew, Abc_LitNot(iLitCofs[2]), iLitCofs[0] );
        else if ( iLitCofs[1] == 1 )
            RetValue = Gia_ManAppendOr( pNew, iLitCofs[2], iLitCofs[0] );
        else assert( 0 );
        iTopLit = iLitCofs[2];
    }
    // create mapping
    Vec_IntSetEntry( vMapping, Abc_Lit2Var(RetValue), Vec_IntSize(vMapping2) );
    Vec_IntPush( vMapping2, Vec_IntSize(vLeaves2) );
    Vec_IntForEachEntry( vLeaves2, iTemp, k )
        Vec_IntPush( vMapping2, Abc_Lit2Var(iTemp) );
    Vec_IntPush( vMapping2, -Abc_Lit2Var(iTopLit) );
    RetValue = Abc_LitNotCond( RetValue, pCutBest->fCompl );
    return RetValue;
}

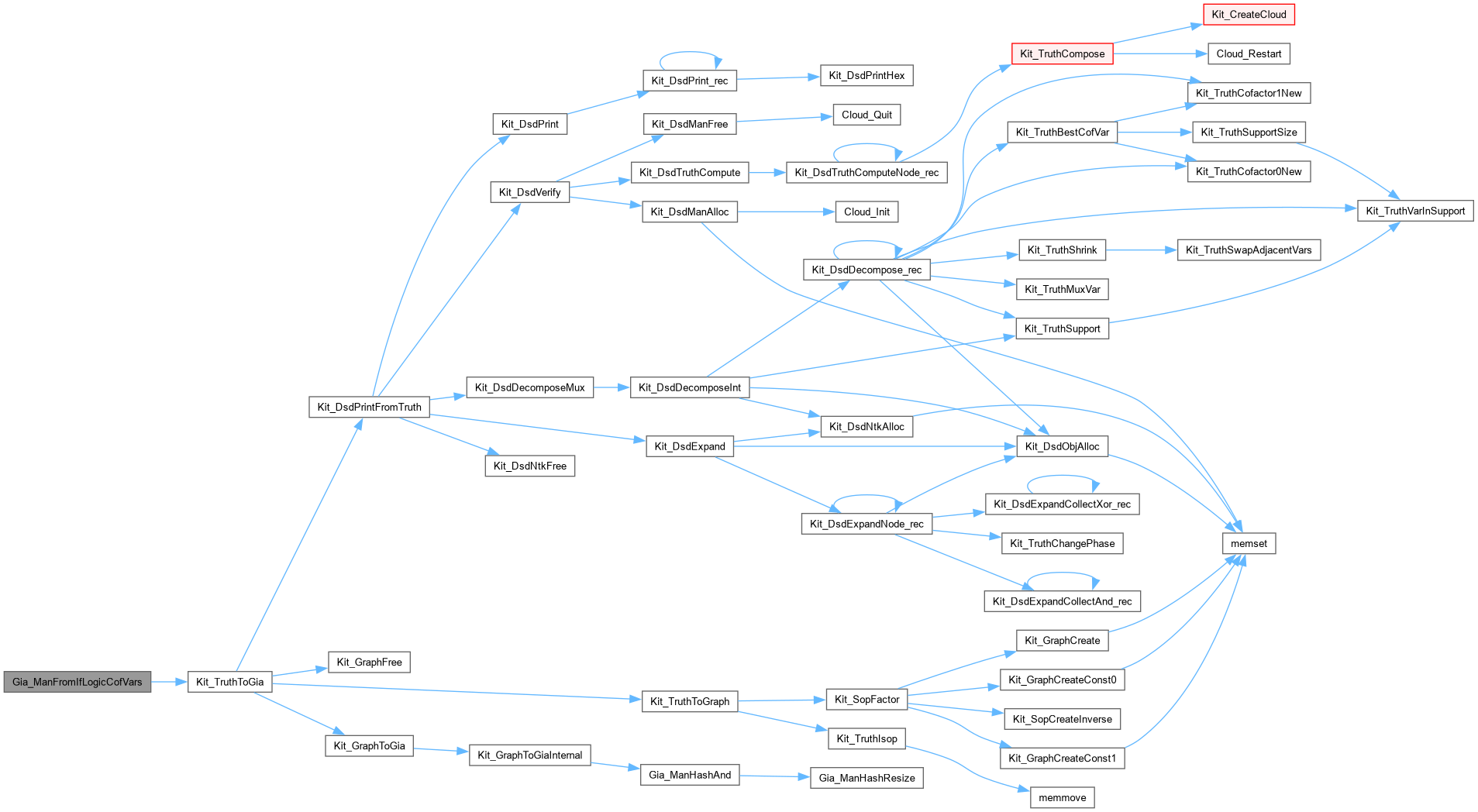

Here is the call graph for this function:

Here is the caller graph for this function:

Gia_ManFromIfLogicCreateLut()

int Gia_ManFromIfLogicCreateLut	(	Gia_Man_t *	pNew,
		word *	pRes,
		Vec_Int_t *	vLeaves,
		Vec_Int_t *	vCover,
		Vec_Int_t *	vMapping,
		Vec_Int_t *	vMapping2 )

Function*************************************************************

Synopsis [Write mapping for LUT with given fanins.]

Description []

SideEffects []

SeeAlso []

Definition at line 1104 of file giaIf.c.

{
    int i, iLit, iObjLit1;
    iObjLit1 = Kit_TruthToGia( pNew, (unsigned *)pRes, Vec_IntSize(vLeaves), vCover, vLeaves, 0 );
    // do not create LUT in the simple case
    if ( Abc_Lit2Var(iObjLit1) == 0 )
        return iObjLit1;
    Vec_IntForEachEntry( vLeaves, iLit, i )
        if ( Abc_Lit2Var(iObjLit1) == Abc_Lit2Var(iLit) )
            return iObjLit1;
    // write mapping
    Vec_IntSetEntry( vMapping, Abc_Lit2Var(iObjLit1), Vec_IntSize(vMapping2) );
    Vec_IntPush( vMapping2, Vec_IntSize(vLeaves) );
//    Vec_IntForEachEntry( vLeaves, iLit, i )
//        assert( Abc_Lit2Var(iLit) < Abc_Lit2Var(iObjLit1) );
    Vec_IntForEachEntry( vLeaves, iLit, i )
        Vec_IntPush( vMapping2, Abc_Lit2Var(iLit)  );
    Vec_IntPush( vMapping2, Abc_Lit2Var(iObjLit1) );
    return iObjLit1;
}

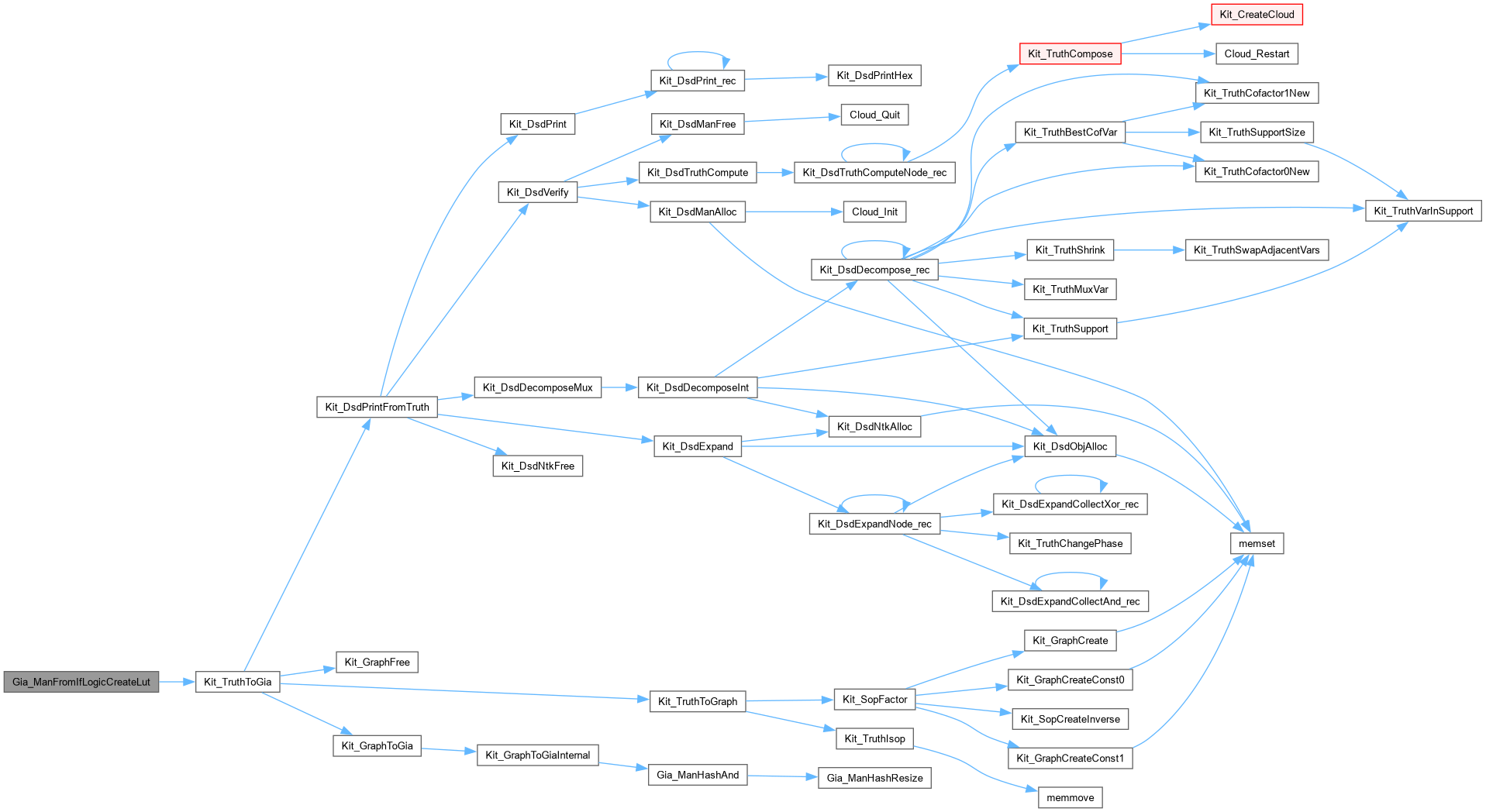

Here is the call graph for this function:

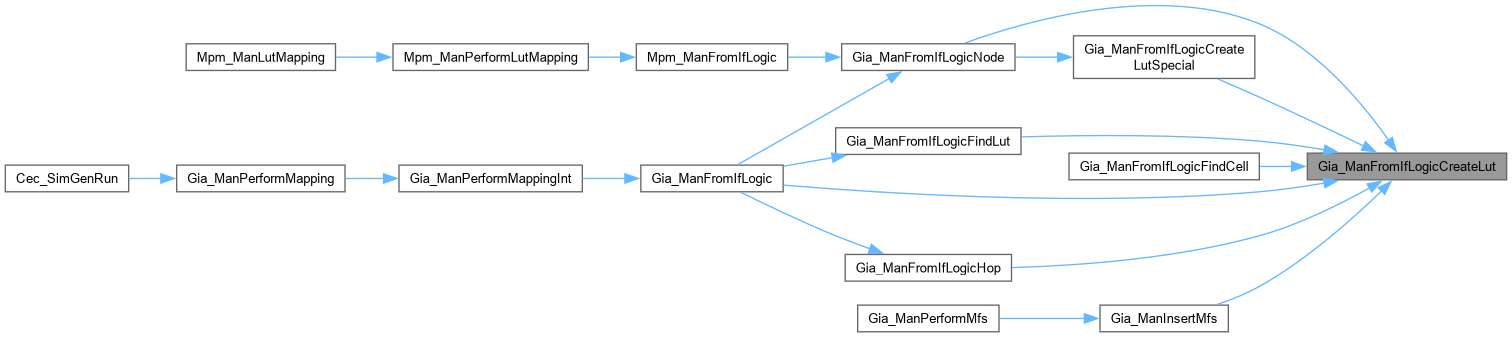

Here is the caller graph for this function:

Gia_ManFromIfLogicCreateLutSpecial()

int Gia_ManFromIfLogicCreateLutSpecial	(	Gia_Man_t *	pNew,
		word *	pRes,
		Vec_Int_t *	vLeaves,
		Vec_Int_t *	vLeavesTemp,
		Vec_Int_t *	vCover,
		Vec_Int_t *	vMapping,
		Vec_Int_t *	vMapping2,
		Vec_Int_t *	vPacking )

Function*************************************************************

Synopsis [Write mapping for LUT with given fanins.]

Description []

SideEffects []

SeeAlso []

Definition at line 1136 of file giaIf.c.

{
    word z = If_CutPerformDerive07( NULL, (unsigned *)pRes, Vec_IntSize(vLeaves), Vec_IntSize(vLeaves), NULL );
    word Truth;
    int i, iObjLit1, iObjLit2;
    // create first LUT
    Vec_IntClear( vLeavesTemp );
    for ( i = 0; i < 4; i++ )
    {
        int v = (int)((z >> (16+(i<<2))) & 7);
        if ( v == 6 && Vec_IntSize(vLeaves) == 5 )
            continue;
        Vec_IntPush( vLeavesTemp, Vec_IntEntry(vLeaves, v) );
    }
    Truth = (z & 0xffff);
    Truth |= (Truth << 16);
    Truth |= (Truth << 32);
    iObjLit1 = Gia_ManFromIfLogicCreateLut( pNew, &Truth, vLeavesTemp, vCover, vMapping, vMapping2 );
    // create second LUT
    Vec_IntClear( vLeavesTemp );
    for ( i = 0; i < 4; i++ )
    {
        int v =  (int)((z >> (48+(i<<2))) & 7);
        if ( v == 6 && Vec_IntSize(vLeaves) == 5 )
            continue;
        if ( v == 7 )
            Vec_IntPush( vLeavesTemp, iObjLit1 );
        else
            Vec_IntPush( vLeavesTemp, Vec_IntEntry(vLeaves, v) );
    }
    Truth = ((z >> 32) & 0xffff);
    Truth |= (Truth << 16);
    Truth |= (Truth << 32);
    iObjLit2 = Gia_ManFromIfLogicCreateLut( pNew, &Truth, vLeavesTemp, vCover, vMapping, vMapping2 );
    // write packing
    Vec_IntPush( vPacking, 2 );
    Vec_IntPush( vPacking, Abc_Lit2Var(iObjLit1) );
    Vec_IntPush( vPacking, Abc_Lit2Var(iObjLit2) );
    Vec_IntAddToEntry( vPacking, 0, 1 );
    return iObjLit2;
}

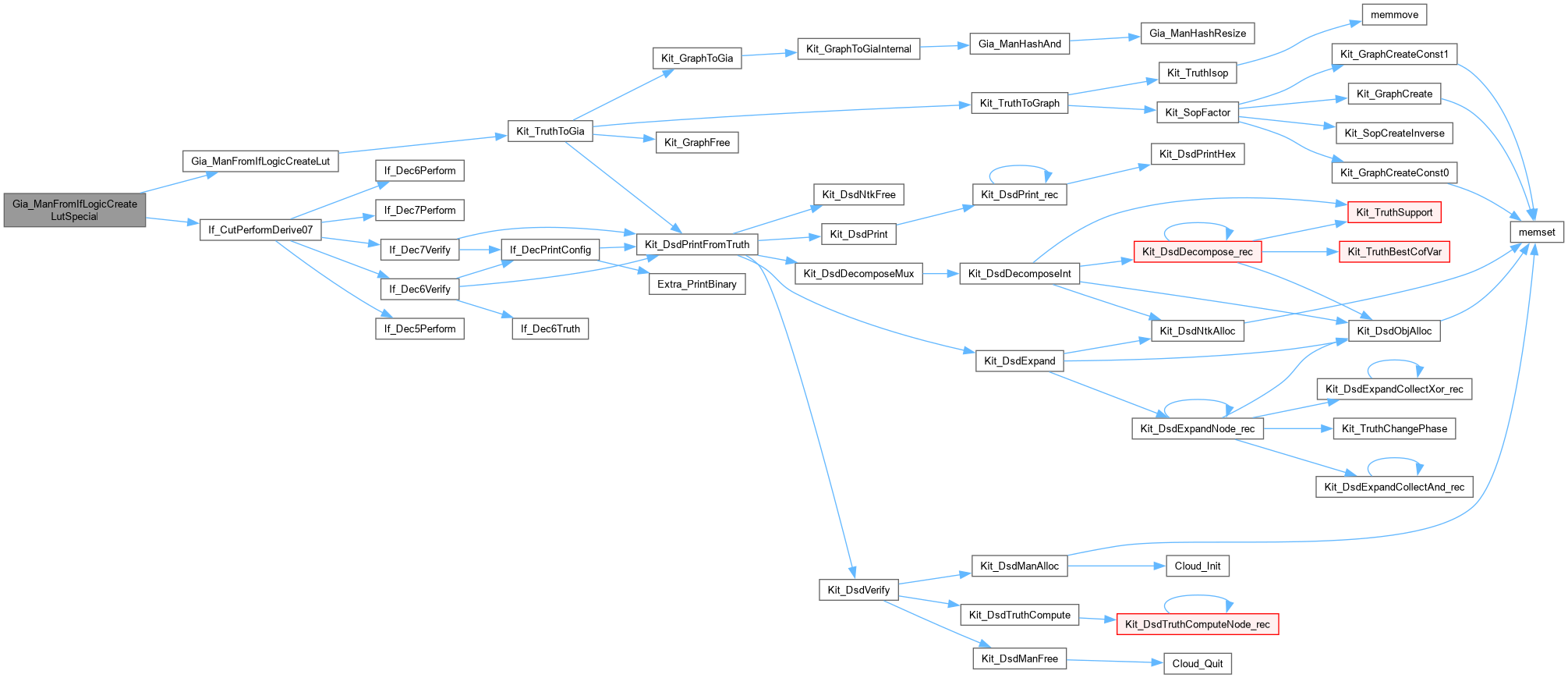

Here is the call graph for this function:

Here is the caller graph for this function:

Gia_ManFromIfLogicFindCell()

int Gia_ManFromIfLogicFindCell	(	If_Man_t *	pIfMan,
		Gia_Man_t *	pNew,
		Gia_Man_t *	pTemp,
		If_Cut_t *	pCutBest,
		Ifn_Ntk_t *	pNtkCell,
		int	nLutMax,
		Vec_Int_t *	vLeaves,
		Vec_Int_t *	vLits,
		Vec_Int_t *	vCover,
		Vec_Int_t *	vMapping,
		Vec_Int_t *	vMapping2,
		Vec_Int_t *	vConfigs )

Definition at line 1814 of file giaIf.c.

{
    int iLit;
    assert( 0 );
    if ( Vec_IntSize(vLeaves) <= nLutMax )
        iLit = Gia_ManFromIfLogicCreateLut( pNew, If_CutTruthW(pIfMan, pCutBest), vLeaves, vCover, vMapping, vMapping2 );
    else
    {
        Gia_Obj_t * pObj;
        int i, Id, iLitTemp;
        // extract variable permutation
        //char * pCutPerm = If_CutDsdPerm( pIfMan, pCutBest ); // DSD input -> cut input
        word * pPerm = If_DsdManGetFuncConfig( pIfMan->pIfDsdMan, If_CutDsdLit(pIfMan, pCutBest) ); // cell input -> DSD input
        //int nBits = If_DsdManTtBitNum( pIfMan->pIfDsdMan );
        // use config bits to generate the network
        iLit = If_ManSatDeriveGiaFromBits( pTemp, pNtkCell, pPerm + 1, vLeaves, vCover );
        // copy GIA back into the manager
        Vec_IntFillExtra( &pTemp->vCopies, Gia_ManObjNum(pTemp), -1 );
        Gia_ObjSetCopyArray( pTemp, 0, 0 );
        Vec_IntForEachEntry( vLeaves, iLitTemp, i )
            Gia_ObjSetCopyArray( pTemp, Gia_ManCiIdToId(pTemp, i), iLitTemp );
        // collect nodes
        Gia_ManIncrementTravId( pTemp );
        Id = Abc_Lit2Var( iLit );
        Gia_ManCollectAnds( pTemp, &Id, 1, vCover, NULL );
        Vec_IntPrint( vCover );
        Gia_ManForEachObjVec( vCover, pTemp, pObj, i )
            Gia_ObjPrint( pTemp, pObj );
        // copy GIA
        Gia_ManForEachObjVec( vCover, pTemp, pObj, i )
        {
            iLit = Gia_ManAppendAnd( pNew, Gia_ObjFanin0CopyArray(pTemp, pObj), Gia_ObjFanin1CopyArray(pTemp, pObj) );
            Gia_ObjSetCopyArray( pTemp, Gia_ObjId(pTemp, pObj), iLit );
        }
        iLit = Abc_LitNotCond( Gia_ObjCopyArray(pTemp, Id), Abc_LitIsCompl(iLit) );
    }
    // write packing
//    if ( vConfigs && !Gia_ObjIsCi(Gia_ManObj(pNew, Abc_Lit2Var(iLit))) && iLit > 1 )
//        Gia_ManFromIfGetConfig( vConfigs, pIfMan, pCutBest );
    return iLit;
}

Here is the call graph for this function:

Gia_ManFromIfLogicFindLut()

int Gia_ManFromIfLogicFindLut	(	If_Man_t *	pIfMan,
		Gia_Man_t *	pNew,
		If_Cut_t *	pCutBest,
		sat_solver *	pSat,
		Vec_Int_t *	vLeaves,
		Vec_Int_t *	vLits,
		Vec_Int_t *	vCover,
		Vec_Int_t *	vMapping,
		Vec_Int_t *	vMapping2,
		Vec_Int_t *	vPacking )

Function*************************************************************

Synopsis [Converts IF into GIA manager.]

Description []

SideEffects []

SeeAlso []

Definition at line 1657 of file giaIf.c.

{
    word uBound, uFree;
    int nLutSize = (int)(pIfMan->pPars->pLutStruct[0] - '0');
    int nVarsF = 0, pVarsF[IF_MAX_FUNC_LUTSIZE];
    int nVarsB = 0, pVarsB[IF_MAX_FUNC_LUTSIZE];
    int nVarsS = 0, pVarsS[IF_MAX_FUNC_LUTSIZE];
    unsigned uSetNew, uSetOld;
    int RetValue, RetValue2, k;
    char * pPerm;
    if ( Vec_IntSize(vLeaves) <= nLutSize )
    {
        RetValue = Gia_ManFromIfLogicCreateLut( pNew, If_CutTruthW(pIfMan, pCutBest), vLeaves, vCover, vMapping, vMapping2 );
        // write packing
        if ( !Gia_ObjIsCi(Gia_ManObj(pNew, Abc_Lit2Var(RetValue))) && RetValue > 1 )
        {
            Vec_IntPush( vPacking, 1 );
            Vec_IntPush( vPacking, Abc_Lit2Var(RetValue) );
            Vec_IntAddToEntry( vPacking, 0, 1 );
        }
        return RetValue;
    }
    assert( If_DsdManSuppSize(pIfMan->pIfDsdMan, If_CutDsdLit(pIfMan, pCutBest)) == (int)pCutBest->nLeaves );
    // find the bound set
    if ( pIfMan->pPars->fDelayOptLut )
        uSetOld = pCutBest->uMaskFunc;
    else
        uSetOld = If_DsdManCheckXY( pIfMan->pIfDsdMan, If_CutDsdLit(pIfMan, pCutBest), nLutSize, 1, 0, 1, 0 );
    // remap bound set
    uSetNew = 0;
    pPerm = If_CutDsdPerm( pIfMan, pCutBest );
    for ( k = 0; k < If_CutLeaveNum(pCutBest); k++ )
    {
        int iVar = Abc_Lit2Var((int)pPerm[k]);
        int Value = ((uSetOld >> (k << 1)) & 3);
        if ( Value == 1 )
            uSetNew |= (1 << (2*iVar));
        else if ( Value == 3 )
            uSetNew |= (3 << (2*iVar));
        else assert( Value == 0 );
    }
    RetValue = If_ManSatCheckXY( pSat, nLutSize, If_CutTruthW(pIfMan, pCutBest), pCutBest->nLeaves, uSetNew, &uBound, &uFree, vLits );
    assert( RetValue );
    // collect variables
    for ( k = 0; k < If_CutLeaveNum(pCutBest); k++ )
    {
        int Value = ((uSetNew >> (k << 1)) & 3);
        if ( Value == 0 )
            pVarsF[nVarsF++] = k;
        else if ( Value == 1 )
            pVarsB[nVarsB++] = k;
        else if ( Value == 3 )
            pVarsS[nVarsS++] = k;
        else assert( Value == 0 );
    }
    // collect bound set variables
    Vec_IntClear( vLits );
    for ( k = 0; k < nVarsS; k++ )
        Vec_IntPush( vLits, Vec_IntEntry(vLeaves, pVarsS[k]) );
    for ( k = 0; k < nVarsB; k++ )
        Vec_IntPush( vLits, Vec_IntEntry(vLeaves, pVarsB[k]) );
    RetValue = Gia_ManFromIfLogicCreateLut( pNew, &uBound, vLits, vCover, vMapping, vMapping2 );
    // collecct free set variables
    Vec_IntClear( vLits );
    Vec_IntPush( vLits, RetValue );
    for ( k = 0; k < nVarsS; k++ )
        Vec_IntPush( vLits, Vec_IntEntry(vLeaves, pVarsS[k]) );
    for ( k = 0; k < nVarsF; k++ )
        Vec_IntPush( vLits, Vec_IntEntry(vLeaves, pVarsF[k]) );
    // add packing
    RetValue2 = Gia_ManFromIfLogicCreateLut( pNew, &uFree, vLits, vCover, vMapping, vMapping2 );
    // write packing
    Vec_IntPush( vPacking, 2 );
    Vec_IntPush( vPacking, Abc_Lit2Var(RetValue) );
    Vec_IntPush( vPacking, Abc_Lit2Var(RetValue2) );
    Vec_IntAddToEntry( vPacking, 0, 1 );
    return RetValue2;
}

Here is the call graph for this function:

Here is the caller graph for this function:

Gia_ManFromIfLogicHop()

int Gia_ManFromIfLogicHop	(	Gia_Man_t *	pNew,
		If_Man_t *	pIfMan,
		If_Cut_t *	pCutBest,
		Vec_Int_t *	vLeaves,
		Vec_Int_t *	vLeavesTemp,
		Vec_Int_t *	vCover,
		Vec_Int_t *	vMapping,
		Vec_Int_t *	vMapping2 )

Function*************************************************************

Synopsis [Implements delay-driven decomposition of the cut.]

Description []

SideEffects []

SeeAlso []

Definition at line 1497 of file giaIf.c.

{
    word * pTruth = If_CutTruthW(pIfMan, pCutBest);
    unsigned char decompArray[92];
    int val;

    assert( pCutBest->nLeaves > pIfMan->pPars->nLutDecSize );

    unsigned delayProfile = pCutBest->decDelay;
    val = acd_decompose( pTruth, pCutBest->nLeaves, pIfMan->pPars->nLutDecSize, &(delayProfile), decompArray );
    assert( val == 0 );

    // convert the LUT-structure into a set of logic nodes in Gia_Man_t
    unsigned char bytes_check = decompArray[0];
    assert( bytes_check <= 92 );

    int byte_p = 2;
    unsigned char i, j, k, num_fanins, num_words, num_bytes;
    int iObjLits[5];
    int fanin;
    word *tt;

    for ( i = 0; i < decompArray[1]; ++i )
    {
        num_fanins = decompArray[byte_p++];
        Vec_IntClear( vLeavesTemp );
        for ( j = 0; j < num_fanins; ++j )
        {
            fanin = (int)decompArray[byte_p++];
            if ( fanin < If_CutLeaveNum(pCutBest) )
            {
                Vec_IntPush( vLeavesTemp, Vec_IntEntry(vLeaves, fanin) );
            }
            else
            {
                Vec_IntPush( vLeavesTemp, iObjLits[fanin - If_CutLeaveNum(pCutBest)] );
            }
        }

        /* extract the truth table */
        tt = pIfMan->puTempW;
        num_words = ( num_fanins <= 6 ) ? 1 : ( 1 << ( num_fanins - 6 ) );
        num_bytes = ( num_fanins <= 3 ) ? 1 : ( 1 << ( Abc_MinInt( (int)num_fanins, 6 ) - 3 ) );
        for ( j = 0; j < num_words; ++j )
        {
            tt[j] = 0;
            for ( k = 0; k < num_bytes; ++k )
            {
                tt[j] |= ( (word)(decompArray[byte_p++]) ) << ( k << 3 );
            }
        }

        /* extend truth table if size < 5 */
        assert( num_fanins != 1 );
        if ( num_fanins == 2 )
        {
            tt[0] |= tt[0] << 4;
        }
        while ( num_bytes < 4 )
        {
            tt[0] |= tt[0] << ( num_bytes << 3 );
            num_bytes <<= 1;
        }

        iObjLits[i] = Gia_ManFromIfLogicCreateLut( pNew, tt, vLeavesTemp, vCover, vMapping, vMapping2 );
    }

    /* check correct read */
    assert( byte_p == decompArray[0] );

    return iObjLits[i-1];
}

Here is the call graph for this function:

Here is the caller graph for this function:

Gia_ManFromIfLogicNode()

int Gia_ManFromIfLogicNode	(	void *	pIfMan,
		Gia_Man_t *	pNew,
		int	iObj,
		Vec_Int_t *	vLeaves,
		Vec_Int_t *	vLeavesTemp,
		word *	pRes,
		char *	pStr,
		Vec_Int_t *	vCover,
		Vec_Int_t *	vMapping,
		Vec_Int_t *	vMapping2,
		Vec_Int_t *	vPacking,
		int	fCheck75,
		int	fCheck44e )

Function*************************************************************

Synopsis [Write the node into a file.]

Description []

SideEffects []

SeeAlso []

Definition at line 1189 of file giaIf.c.

{
    int nLeaves = Vec_IntSize(vLeaves);
    int i, Length, nLutLeaf, nLutLeaf2, nLutRoot, iObjLit1, iObjLit2, iObjLit3;
    // workaround for the special case
    if ( fCheck75 )
        pStr = "54";
    // perform special case matching for 44
    if ( fCheck44e )
    {
        if ( Vec_IntSize(vLeaves) <= 4 )
        {
            // create mapping
            iObjLit1 = Gia_ManFromIfLogicCreateLut( pNew, pRes, vLeaves, vCover, vMapping, vMapping2 );
            // write packing
            if ( !Gia_ObjIsCi(Gia_ManObj(pNew, Abc_Lit2Var(iObjLit1))) && iObjLit1 > 1 )
            {
                Vec_IntPush( vPacking, 1 );
                Vec_IntPush( vPacking, Abc_Lit2Var(iObjLit1) );
                Vec_IntAddToEntry( vPacking, 0, 1 );
            }
            return iObjLit1;
        }
        return Gia_ManFromIfLogicCreateLutSpecial( pNew, pRes, vLeaves, vLeavesTemp, vCover, vMapping, vMapping2, vPacking );
    }
    if ( ((If_Man_t *)pIfMan)->pPars->fLut6Filter && Vec_IntSize(vLeaves) == 6 )
    {
        extern word If_Dec6Perform( word t, int fDerive );
        extern void If_Dec6Verify( word t, word z );
        Vec_Int_t * vLeaves2 = Vec_IntAlloc( 4 );
        word t = pRes[0];
        word z = If_Dec6Perform( t, 1 );
        //If_DecPrintConfig( z );
        If_Dec6Verify( t, z );

        t = Abc_Tt6Stretch( z & 0xffff, 4 );
        Vec_IntClear( vLeaves2 );
        for ( i = 0; i < 4; i++ )
            Vec_IntPush( vLeaves2, Vec_IntEntry( vLeaves, (int)((z >> (16+i*4)) & 7) ) );
        iObjLit1 = Gia_ManFromIfLogicCreateLut( pNew, &t, vLeaves2, vCover, vMapping, vMapping2 );

        t = Abc_Tt6Stretch( (z >> 32) & 0xffff, 4 );
        Vec_IntClear( vLeaves2 );
        for ( i = 0; i < 4; i++ )
            if ( ((z >> (48+i*4)) & 7) == 7 )
                Vec_IntPush( vLeaves2, iObjLit1 );
            else
                Vec_IntPush( vLeaves2, Vec_IntEntry( vLeaves, (int)((z >> (48+i*4)) & 7) ) );
        iObjLit1 = Gia_ManFromIfLogicCreateLut( pNew, &t, vLeaves2, vCover, vMapping, vMapping2 );

        Vec_IntFree( vLeaves2 );
        return iObjLit1;
    }
    // check if there is no LUT structures
    if ( pStr == NULL )
        return Gia_ManFromIfLogicCreateLut( pNew, pRes, vLeaves, vCover, vMapping, vMapping2 );
    // quit if parameters are wrong
    Length = strlen(pStr);
    if ( Length != 2 && Length != 3 )
    {
        printf( "Wrong LUT struct (%s)\n", pStr );
        return -1;
    }
    for ( i = 0; i < Length; i++ )
        if ( pStr[i] - '0' < 3 || pStr[i] - '0' > 6 )
        {
            printf( "The LUT size (%d) should belong to {3,4,5,6}.\n", pStr[i] - '0' );
            return -1;
        }

    nLutLeaf  =                   pStr[0] - '0';
    nLutLeaf2 = ( Length == 3 ) ? pStr[1] - '0' : 0;
    nLutRoot  =                   pStr[Length-1] - '0';
    if ( nLeaves > nLutLeaf - 1 + (nLutLeaf2 ? nLutLeaf2 - 1 : 0) + nLutRoot )
    {
        printf( "The node size (%d) is too large for the LUT structure %s.\n", nLeaves, pStr );
        return -1;
    }

    // consider easy case
    if ( nLeaves <= Abc_MaxInt( nLutLeaf2, Abc_MaxInt(nLutLeaf, nLutRoot) ) )
    {
        // create mapping
        iObjLit1 = Gia_ManFromIfLogicCreateLut( pNew, pRes, vLeaves, vCover, vMapping, vMapping2 );
        // write packing
        if ( !Gia_ObjIsCi(Gia_ManObj(pNew, Abc_Lit2Var(iObjLit1))) && iObjLit1 > 1 )
        {
            Vec_IntPush( vPacking, 1 );
            Vec_IntPush( vPacking, Abc_Lit2Var(iObjLit1) );
            Vec_IntAddToEntry( vPacking, 0, 1 );
        }
        return iObjLit1;
    }
    else
    {
        extern int If_CluMinimumBase( word * t, int * pSupp, int nVarsAll, int * pnVars );

        static word TruthStore[16][1<<10] = {{0}}, * pTruths[16];
        word Func0, Func1, Func2;
        char pLut0[32], pLut1[32], pLut2[32] = {0};

        if ( TruthStore[0][0] == 0 )
        {
            static word Truth6[6] = {
                0xAAAAAAAAAAAAAAAA,
                0xCCCCCCCCCCCCCCCC,
                0xF0F0F0F0F0F0F0F0,
                0xFF00FF00FF00FF00,
                0xFFFF0000FFFF0000,
                0xFFFFFFFF00000000
            };
            int nVarsMax = 16;
            int nWordsMax = (1 << 10);
            int i, k;
            assert( nVarsMax <= 16 );
            for ( i = 0; i < nVarsMax; i++ )
                pTruths[i] = TruthStore[i];
            for ( i = 0; i < 6; i++ )
                for ( k = 0; k < nWordsMax; k++ )
                    pTruths[i][k] = Truth6[i];
            for ( i = 6; i < nVarsMax; i++ )
                for ( k = 0; k < nWordsMax; k++ )
                    pTruths[i][k] = ((k >> (i-6)) & 1) ? ~(word)0 : 0;
        }
        // derive truth table
        if ( Kit_TruthIsConst0((unsigned *)pRes, nLeaves) || Kit_TruthIsConst1((unsigned *)pRes, nLeaves) )
        {
//            fprintf( pFile, ".names %s\n %d\n", Abc_ObjName(Abc_ObjFanout0(pObj)), Kit_TruthIsConst1((unsigned *)pRes, nLeaves) );
            iObjLit1 = Abc_LitNotCond( 0, Kit_TruthIsConst1((unsigned *)pRes, nLeaves) );
            // write mapping
            if ( Vec_IntEntry(vMapping, 0) == 0 )
            {
                Vec_IntSetEntry( vMapping, 0, Vec_IntSize(vMapping2) );
                Vec_IntPush( vMapping2, 0 );
                Vec_IntPush( vMapping2, 0 );
            }
            return iObjLit1;
        }
        // check for elementary truth table
        for ( i = 0; i < nLeaves; i++ )
        {
            if ( Kit_TruthIsEqual((unsigned *)pRes, (unsigned *)pTruths[i], nLeaves) )
                return Vec_IntEntry(vLeaves, i);
            if ( Kit_TruthIsOpposite((unsigned *)pRes, (unsigned *)pTruths[i], nLeaves) )
                return Abc_LitNot(Vec_IntEntry(vLeaves, i));
        }

        // perform decomposition
        if ( fCheck75 )
        {
//            if ( nLeaves < 8 && If_CutPerformCheck16( p, (unsigned *)pTruth, nVars, nLeaves, "44" ) )
            if ( nLeaves < 8 && If_CluCheckExt( NULL, pRes, nLeaves, 4, 4, pLut0, pLut1, &Func0, &Func1 ) )
            {
                nLutLeaf = 4;
                nLutRoot = 4;
            }
//            if ( If_CutPerformCheck45( p, (unsigned *)pTruth, nVars, nLeaves, pStr ) )
            else if ( If_CluCheckExt( NULL, pRes, nLeaves, 5, 4, pLut0, pLut1, &Func0, &Func1 ) )
            {
                nLutLeaf = 5;
                nLutRoot = 4;
            }
//            if ( If_CutPerformCheck54( p, (unsigned *)pTruth, nVars, nLeaves, pStr ) )
            else if ( If_CluCheckExt( NULL, pRes, nLeaves, 4, 5, pLut0, pLut1, &Func0, &Func1 ) )
            {
                nLutLeaf = 4;
                nLutRoot = 5;
            }
            else
            {
                Extra_PrintHex( stdout, (unsigned *)pRes, nLeaves );  printf( "    " );
                Kit_DsdPrintFromTruth( (unsigned*)pRes, nLeaves );  printf( "\n" );
                printf( "Node %d is not decomposable. Deriving LUT structures has failed.\n", iObj );
                return -1;
            }
        }
        else
        {
            if ( Length == 2 )
            {
                if ( ((If_Man_t *)pIfMan)->pPars->fEnableStructN )
                {
                    if ( !If_CluCheckXXExt( NULL, pRes, nLeaves, nLutLeaf, nLutRoot, pLut0, pLut1, &Func0, &Func1 ) )
                    {
                        Extra_PrintHex( stdout, (unsigned *)pRes, nLeaves );  printf( "    " );
                        Kit_DsdPrintFromTruth( (unsigned*)pRes, nLeaves );  printf( "\n" );
                        printf( "Node %d is not decomposable. Deriving LUT structures has failed.\n", iObj );
                        return -1;
                    }
                }
                else
                {
                    if ( !If_CluCheckExt( NULL, pRes, nLeaves, nLutLeaf, nLutRoot, pLut0, pLut1, &Func0, &Func1 ) )
                    {
                        Extra_PrintHex( stdout, (unsigned *)pRes, nLeaves );  printf( "    " );
                        Kit_DsdPrintFromTruth( (unsigned*)pRes, nLeaves );  printf( "\n" );
                        printf( "Node %d is not decomposable. Deriving LUT structures has failed.\n", iObj );
                        return -1;
                    }
                }
            }
            else
            {
                if ( !If_CluCheckExt3( pIfMan, pRes, nLeaves, nLutLeaf, nLutLeaf2, nLutRoot, pLut0, pLut1, pLut2, &Func0, &Func1, &Func2 ) )
                {
                    Extra_PrintHex( stdout, (unsigned *)pRes, nLeaves );  printf( "    " );
                    Kit_DsdPrintFromTruth( (unsigned*)pRes, nLeaves );  printf( "\n" );
                    printf( "Node %d is not decomposable. Deriving LUT structures has failed.\n", iObj );
                    return -1;
                }
            }
        }

/*
        // write leaf node
        Id = Abc2_NtkAllocObj( pNew, pLut1[0], Abc2_ObjType(pObj) );
        iObjLit1 = Abc_Var2Lit( Id, 0 );
        pObjNew = Abc2_NtkObj( pNew, Id );
        for ( i = 0; i < pLut1[0]; i++ )
            Abc2_ObjSetFaninLit( pObjNew, i, Abc2_ObjFaninCopy(pObj, pLut1[2+i]) );
        Abc2_ObjSetTruth( pObjNew, Func1 );
*/
        // write leaf node
        Vec_IntClear( vLeavesTemp );
        for ( i = 0; i < pLut1[0]; i++ )
            Vec_IntPush( vLeavesTemp, Vec_IntEntry(vLeaves, pLut1[2+i]) );
        iObjLit1 = Gia_ManFromIfLogicCreateLut( pNew, &Func1, vLeavesTemp, vCover, vMapping, vMapping2 );

        if ( Length == 3 && pLut2[0] > 0 )
        {
        /*
            Id = Abc2_NtkAllocObj( pNew, pLut2[0], Abc2_ObjType(pObj) );
            iObjLit2 = Abc_Var2Lit( Id, 0 );
            pObjNew = Abc2_NtkObj( pNew, Id );
            for ( i = 0; i < pLut2[0]; i++ )
                if ( pLut2[2+i] == nLeaves )
                    Abc2_ObjSetFaninLit( pObjNew, i, iObjLit1 );
                else
                    Abc2_ObjSetFaninLit( pObjNew, i, Abc2_ObjFaninCopy(pObj, pLut2[2+i]) );
            Abc2_ObjSetTruth( pObjNew, Func2 );
        */

            // write leaf node
            Vec_IntClear( vLeavesTemp );
            for ( i = 0; i < pLut2[0]; i++ )
                if ( pLut2[2+i] == nLeaves )
                    Vec_IntPush( vLeavesTemp, iObjLit1 );
                else
                    Vec_IntPush( vLeavesTemp, Vec_IntEntry(vLeaves, pLut2[2+i]) );
            iObjLit2 = Gia_ManFromIfLogicCreateLut( pNew, &Func2, vLeavesTemp, vCover, vMapping, vMapping2 );

            // write packing
            Vec_IntPush( vPacking, 3 );
            Vec_IntPush( vPacking, Abc_Lit2Var(iObjLit1) );
            Vec_IntPush( vPacking, Abc_Lit2Var(iObjLit2) );
        }
        else
        {
            // write packing
            Vec_IntPush( vPacking, 2 );
            Vec_IntPush( vPacking, Abc_Lit2Var(iObjLit1) );
            iObjLit2 = -1;
        }
/*
        // write root node
        Id = Abc2_NtkAllocObj( pNew, pLut0[0], Abc2_ObjType(pObj) );
        iObjLit3 = Abc_Var2Lit( Id, 0 );
        pObjNew = Abc2_NtkObj( pNew, Id );
        for ( i = 0; i < pLut0[0]; i++ )
            if ( pLut0[2+i] == nLeaves )
                Abc2_ObjSetFaninLit( pObjNew, i, iObjLit1 );
            else if ( pLut0[2+i] == nLeaves+1 )
                Abc2_ObjSetFaninLit( pObjNew, i, iObjLit2 );
            else
                Abc2_ObjSetFaninLit( pObjNew, i, Abc2_ObjFaninCopy(pObj, pLut0[2+i]) );
        Abc2_ObjSetTruth( pObjNew, Func0 );
        Abc2_ObjSetCopy( pObj, iObjLit3 );
*/
        // write root node
        Vec_IntClear( vLeavesTemp );
        for ( i = 0; i < pLut0[0]; i++ )
            if ( pLut0[2+i] == nLeaves )
                Vec_IntPush( vLeavesTemp, iObjLit1 );
            else if ( pLut0[2+i] == nLeaves+1 )
                Vec_IntPush( vLeavesTemp, iObjLit2 );
            else
                Vec_IntPush( vLeavesTemp, Vec_IntEntry(vLeaves, pLut0[2+i]) );
        iObjLit3 = Gia_ManFromIfLogicCreateLut( pNew, &Func0, vLeavesTemp, vCover, vMapping, vMapping2 );

        // write packing
        Vec_IntPush( vPacking, Abc_Lit2Var(iObjLit3) );
        Vec_IntAddToEntry( vPacking, 0, 1 );
    }
    return iObjLit3;
}

Here is the call graph for this function:

Here is the caller graph for this function:

Gia_ManLutFaninCount()

int Gia_ManLutFaninCount

(

Gia_Man_t *

p

)

Function*************************************************************

Synopsis [Prints mapping statistics.]

Description []

SideEffects []

SeeAlso []

Definition at line 108 of file giaIf.c.

{
    int i, Counter = 0;
    Gia_ManForEachLut( p, i )
        Counter += Gia_ObjLutSize(p, i);
    return Counter;
}

Here is the caller graph for this function:

Gia_ManLutLevel()

int Gia_ManLutLevel	(	Gia_Man_t *	p,
		int **	ppLevels )

Function*************************************************************

Synopsis [Prints mapping statistics.]

Description []

SideEffects []

SeeAlso []

Definition at line 165 of file giaIf.c.

{
    Gia_Obj_t * pObj;
    int i, k, iFan, Level;
    int * pLevels = ABC_CALLOC( int, Gia_ManObjNum(p) );
    Gia_ManForEachLut( p, i )
    {
        Level = 0;
        Gia_LutForEachFanin( p, i, iFan, k )
            if ( Level < pLevels[iFan] )
                Level = pLevels[iFan];
        pLevels[i] = Level + 1;
    }
    Level = 0;
    Gia_ManForEachCo( p, pObj, k )
    {
        int LevelFan = pLevels[Gia_ObjFaninId0p(p, pObj)];
        Level = Abc_MaxInt( Level, LevelFan );
        pLevels[Gia_ObjId(p, pObj)] = LevelFan;
    }
    if ( ppLevels )
        *ppLevels = pLevels;
    else
        ABC_FREE( pLevels );
    return Level;
}

Here is the caller graph for this function:

Gia_ManLutNum()

int Gia_ManLutNum

(

Gia_Man_t *

p

)

Function*************************************************************

Synopsis [Prints mapping statistics.]

Description []

SideEffects []

SeeAlso []

Definition at line 146 of file giaIf.c.

{
    int i, Counter = 0;
    Gia_ManForEachLut( p, i )
        Counter ++;
    return Counter;
}

Here is the caller graph for this function:

Gia_ManLutParams()

void Gia_ManLutParams	(	Gia_Man_t *	p,
		int *	pnCurLuts,
		int *	pnCurEdges,
		int *	pnCurLevels )

Function*************************************************************

Synopsis [Prints mapping statistics.]

Description []

SideEffects []

SeeAlso []

Definition at line 203 of file giaIf.c.

{
    int fDisable2Lut = 1;
    if ( p->pManTime && Tim_ManBoxNum((Tim_Man_t *)p->pManTime) )
    {
        int i;
        *pnCurLuts = 0;
        *pnCurEdges = 0;
        Gia_ManForEachLut( p, i )
        {
            (*pnCurLuts)++;
            (*pnCurEdges) += Gia_ObjLutSize(p, i);
        }
        *pnCurLevels = Gia_ManLutLevelWithBoxes( p );
    }
    else
    {
        Gia_Obj_t * pObj;
        int i, k, iFan;
        int * pLevels = ABC_CALLOC( int, Gia_ManObjNum(p) );
        *pnCurLuts = 0;
        *pnCurEdges = 0;
        *pnCurLevels = 0;
        Gia_ManForEachLut( p, i )
        {
            if ( Gia_ObjLutIsMux(p, i) && !(fDisable2Lut && Gia_ObjLutSize(p, i) == 2) )
            {
                int pFanins[3];
                if ( Gia_ObjLutSize(p, i) == 3 )
                {
                    Gia_ManPrintGetMuxFanins( p, Gia_ManObj(p, i), pFanins );
                    pLevels[i] = Abc_MaxInt( pLevels[i], pLevels[pFanins[0]]+1 );
                    pLevels[i] = Abc_MaxInt( pLevels[i], pLevels[pFanins[1]] );
                    pLevels[i] = Abc_MaxInt( pLevels[i], pLevels[pFanins[2]] );
                }
                else if ( Gia_ObjLutSize(p, i) == 2 )
                {
                    pObj = Gia_ManObj( p, i );
                    pLevels[i] = Abc_MaxInt( pLevels[i], pLevels[Gia_ObjFaninId0(pObj, i)] );
                    pLevels[i] = Abc_MaxInt( pLevels[i], pLevels[Gia_ObjFaninId1(pObj, i)] );
                }
                *pnCurLevels = Abc_MaxInt( *pnCurLevels, pLevels[i] );
                (*pnCurEdges)++;
                //nMuxF++;
                continue;
            }
            (*pnCurLuts)++;
            (*pnCurEdges) += Gia_ObjLutSize(p, i);
            Gia_LutForEachFanin( p, i, iFan, k )
                pLevels[i] = Abc_MaxInt( pLevels[i], pLevels[iFan] );
            pLevels[i]++;
            *pnCurLevels = Abc_MaxInt( *pnCurLevels, pLevels[i] );
        }
        ABC_FREE( pLevels );
    }
}

Here is the call graph for this function:

Gia_ManLutSizeMax()

int Gia_ManLutSizeMax

(

Gia_Man_t *

p

)

Function*************************************************************

Synopsis [Prints mapping statistics.]

Description []

SideEffects []

SeeAlso []

Definition at line 127 of file giaIf.c.

{
    int i, nSizeMax = -1;
    Gia_ManForEachLut( p, i )
        nSizeMax = Abc_MaxInt( nSizeMax, Gia_ObjLutSize(p, i) );
    return nSizeMax;
}

Here is the caller graph for this function:

Gia_ManMappingVerify()

void Gia_ManMappingVerify

(

Gia_Man_t *

p

)

Definition at line 2257 of file giaIf.c.

{
    Gia_Obj_t * pObj, * pFanin;
    int i, Result = 1;
    assert( Gia_ManHasMapping(p) );
    Gia_ManIncrementTravId( p );
    Gia_ManForEachBuf( p, pObj, i )
    {
        pFanin = Gia_ObjFanin0(pObj);
        if ( !Gia_ObjIsAndNotBuf(pFanin) )
            continue;
        if ( !Gia_ObjIsLut(p, Gia_ObjId(p, pFanin)) )
        {
            Abc_Print( -1, "Gia_ManMappingVerify: Buffer driver %d does not have mapping.\n", Gia_ObjId(p, pFanin) );
            Result = 0;
            continue;
        }
        Result &= Gia_ManMappingVerify_rec( p, pFanin );
    }
    Gia_ManForEachCo( p, pObj, i )
    {
        pFanin = Gia_ObjFanin0(pObj);
        if ( !Gia_ObjIsAndNotBuf(pFanin) )
            continue;
        if ( !Gia_ObjIsLut(p, Gia_ObjId(p, pFanin)) )
        {
            Abc_Print( -1, "Gia_ManMappingVerify: CO driver %d does not have mapping.\n", Gia_ObjId(p, pFanin) );
            Result = 0;
            continue;
        }
        Result &= Gia_ManMappingVerify_rec( p, pFanin );
    }
//    if ( Result && Gia_NtkIsRoot(p) )
//        Abc_Print( 1, "Mapping verified correctly.\n" );
}

Here is the call graph for this function:

Here is the caller graph for this function:

Gia_ManMappingVerify_rec()

int Gia_ManMappingVerify_rec	(	Gia_Man_t *	p,
		Gia_Obj_t *	pObj )

Function*************************************************************

Synopsis [Verifies mapping.]

Description []

SideEffects []

SeeAlso []

Definition at line 2238 of file giaIf.c.

{
    int Id, iFan, k, Result = 1;
    if ( Gia_ObjIsTravIdCurrent(p, pObj) )
        return 1;
    Gia_ObjSetTravIdCurrent(p, pObj);
    if ( !Gia_ObjIsAndNotBuf(pObj) )
        return 1;
    if ( !Gia_ObjIsLut(p, Gia_ObjId(p, pObj)) )
    {
        Abc_Print( -1, "Gia_ManMappingVerify: Internal node %d does not have mapping.\n", Gia_ObjId(p, pObj) );
        return 0;
    }
    Id = Gia_ObjId(p, pObj);
    Gia_LutForEachFanin( p, Id, iFan, k )
        if ( Result )
            Result &= Gia_ManMappingVerify_rec( p, Gia_ManObj(p, iFan) );
    return Result;
}

Here is the call graph for this function:

Here is the caller graph for this function:

Gia_ManNodeIfToGia()

int Gia_ManNodeIfToGia	(	Gia_Man_t *	pNew,
		If_Man_t *	pIfMan,
		If_Obj_t *	pIfObj,
		Vec_Int_t *	vLeaves,
		int	fHash )

Definition at line 1619 of file giaIf.c.

{
    If_Cut_t * pCut;
    If_Obj_t * pLeaf;
    int i, iRes;
    // get the best cut
    pCut = If_ObjCutBest(pIfObj);
    assert( pCut->nLeaves > 1 );
    // set the leaf variables
    If_CutForEachLeaf( pIfMan, pCut, pLeaf, i )
        If_CutSetDataInt( If_ObjCutBest(pLeaf), Vec_IntEntry(vLeaves, i) );
    // recursively compute the function while collecting visited cuts
    Vec_PtrClear( pIfMan->vTemp );
    iRes = Gia_ManNodeIfToGia_rec( pNew, pIfMan, pIfObj, pIfMan->vTemp, fHash );
    if ( iRes == ~0 )
    {
        Abc_Print( -1, "Gia_ManNodeIfToGia(): Computing local AIG has failed.\n" );
        return ~0;
    }
    // clean the cuts
    If_CutForEachLeaf( pIfMan, pCut, pLeaf, i )
        If_CutSetDataInt( If_ObjCutBest(pLeaf), 0 );
    Vec_PtrForEachEntry( If_Cut_t *, pIfMan->vTemp, pCut, i )
        If_CutSetDataInt( pCut, 0 );
    return iRes;
}

Here is the call graph for this function:

Here is the caller graph for this function:

Gia_ManNodeIfToGia_rec()

int Gia_ManNodeIfToGia_rec	(	Gia_Man_t *	pNew,
		If_Man_t *	pIfMan,
		If_Obj_t *	pIfObj,
		Vec_Ptr_t *	vVisited,
		int	fHash )

Function*************************************************************

Synopsis [Recursively derives the local AIG for the cut.]

Description []

SideEffects []

SeeAlso []

Definition at line 1581 of file giaIf.c.

{
    If_Cut_t * pCut;
    If_Obj_t * pTemp;
    int iFunc, iFunc0, iFunc1;
    // get the best cut
    pCut = If_ObjCutBest(pIfObj);
    // if the cut is visited, return the result
    if ( If_CutDataInt(pCut) )
        return If_CutDataInt(pCut);
    // mark the node as visited
    Vec_PtrPush( vVisited, pCut );
    // insert the worst case
    If_CutSetDataInt( pCut, ~0 );
    // skip in case of primary input
    if ( If_ObjIsCi(pIfObj) )
        return If_CutDataInt(pCut);
    // compute the functions of the children
    for ( pTemp = pIfObj; pTemp; pTemp = pTemp->pEquiv )
    {
        iFunc0 = Gia_ManNodeIfToGia_rec( pNew, pIfMan, pTemp->pFanin0, vVisited, fHash );
        if ( iFunc0 == ~0 )
            continue;
        iFunc1 = Gia_ManNodeIfToGia_rec( pNew, pIfMan, pTemp->pFanin1, vVisited, fHash );
        if ( iFunc1 == ~0 )
            continue;
        // both branches are solved
        if ( fHash )
            iFunc = Gia_ManHashAnd( pNew, Abc_LitNotCond(iFunc0, pTemp->fCompl0), Abc_LitNotCond(iFunc1, pTemp->fCompl1) );
        else
            iFunc = Gia_ManAppendAnd( pNew, Abc_LitNotCond(iFunc0, pTemp->fCompl0), Abc_LitNotCond(iFunc1, pTemp->fCompl1) );
        if ( pTemp->fPhase != pIfObj->fPhase )
            iFunc = Abc_LitNot(iFunc);
        If_CutSetDataInt( pCut, iFunc );
        break;
    }
    return If_CutDataInt(pCut);
}

Here is the call graph for this function:

Here is the caller graph for this function:

Gia_ManPerformDsdBalance()

Gia_Man_t * Gia_ManPerformDsdBalance	(	Gia_Man_t *	p,
		int	nLutSize,
		int	nCutNum,
		int	nRelaxRatio,
		int	fVerbose )

Definition at line 2678 of file giaIf.c.

{
    Gia_Man_t * pNew;
    If_Man_t * pIfMan;
    If_Par_t Pars, * pPars = &Pars;
    If_ManSetDefaultPars( pPars );
    pPars->nCutsMax    = nCutNum;
    pPars->nRelaxRatio = nRelaxRatio;
    pPars->fVerbose    = fVerbose;
    pPars->nLutSize    = nLutSize;
    pPars->fDsdBalance = 1;
    pPars->fUseDsd     = 1;
    pPars->fCutMin     = 1;
    pPars->fTruth      = 1;
    pPars->fExpRed     = 0;
    if ( Abc_FrameReadManDsd2() == NULL )
        Abc_FrameSetManDsd2( If_DsdManAlloc(pPars->nLutSize, 0) );
    // perform mapping
    pIfMan = Gia_ManToIf( p, pPars );
    pIfMan->pIfDsdMan = (If_DsdMan_t *)Abc_FrameReadManDsd2();
    if ( pPars->fDsdBalance )
        If_DsdManAllocIsops( pIfMan->pIfDsdMan, pPars->nLutSize );
    If_ManPerformMapping( pIfMan );
    pNew = Gia_ManFromIfAig( pIfMan );
    If_ManStop( pIfMan );
    Gia_ManTransferTiming( pNew, p );
    // transfer name
    assert( pNew->pName == NULL );
    pNew->pName = Abc_UtilStrsav( p->pName );
    pNew->pSpec = Abc_UtilStrsav( p->pSpec );
    Gia_ManSetRegNum( pNew, Gia_ManRegNum(p) );
    return pNew;
}

Here is the call graph for this function:

Here is the caller graph for this function:

Gia_ManPerformMapping()

Gia_Man_t * Gia_ManPerformMapping	(	Gia_Man_t *	p,
		void *	pp )

Definition at line 2598 of file giaIf.c.

{
    Gia_Man_t * pNew;
    if ( p->pManTime && Tim_ManBoxNum((Tim_Man_t*)p->pManTime) && Gia_ManIsNormalized(p) )
    {
        pNew = Gia_ManDupUnnormalize( p );
        if ( pNew == NULL )
            return NULL;
        Gia_ManTransferTiming( pNew, p );
        p = pNew;
        // mapping
        pNew = Gia_ManPerformMappingInt( p, (If_Par_t *)pp );
        if ( pNew != p )
        {
            Gia_ManTransferTiming( pNew, p );
            Gia_ManStop( p );
        }
        // normalize
        pNew = Gia_ManDupNormalize( p = pNew, ((If_Par_t *)pp)->fHashMapping );
        Gia_ManTransferMapping( pNew, p );
        Gia_ManTransferPacking( pNew, p );
        Gia_ManTransferTiming( pNew, p );
        Gia_ManStop( p );
        assert( Gia_ManIsNormalized(pNew) );
    }
    else
    {
        pNew = Gia_ManPerformMappingInt( p, (If_Par_t *)pp );
        Gia_ManTransferTiming( pNew, p );
        if ( ((If_Par_t *)pp)->fHashMapping )
        {
            pNew = Gia_ManDupHashMapping( p = pNew );
            Gia_ManTransferPacking( pNew, p );
            Gia_ManTransferTiming( pNew, p );
            Gia_ManStop( p );
        }
    }
    pNew->MappedDelay = (int)((If_Par_t *)pp)->FinalDelay;
    pNew->MappedArea  = (int)((If_Par_t *)pp)->FinalArea;
    return pNew;
}

Here is the call graph for this function:

Here is the caller graph for this function:

Gia_ManPerformMappingInt()

Gia_Man_t * Gia_ManPerformMappingInt	(	Gia_Man_t *	p,
		If_Par_t *	pPars )

Function*************************************************************

Synopsis [Interface of LUT mapping package.]

Description []

SideEffects []

SeeAlso []

Definition at line 2485 of file giaIf.c.

{
    extern void Gia_ManIffTest( Gia_Man_t * pGia, If_LibLut_t * pLib, int fVerbose );
    Gia_Man_t * pNew;
    If_Man_t * pIfMan; int i, Entry;//, Id, EntryF;
    assert( pPars->pTimesArr == NULL );
    assert( pPars->pTimesReq == NULL );
    if ( p->vCiArrs )
    {
        assert( Vec_IntSize(p->vCiArrs) == Gia_ManCiNum(p) );
        pPars->pTimesArr = ABC_CALLOC( float, Gia_ManCiNum(p) );
        Vec_IntForEachEntry( p->vCiArrs, Entry, i )
            pPars->pTimesArr[i] = (float)Entry;
    }
/*  // uncommenting this leads to a mysterious memory corruption
    else if ( p->vInArrs )
    {
        assert( Vec_FltSize(p->vInArrs) == Gia_ManCiNum(p) );
        pPars->pTimesArr = ABC_CALLOC( float, Gia_ManCiNum(p));
        Gia_ManForEachCiId( p, Id, i )
            pPars->pTimesArr[i] = Vec_FltEntry(p->vInArrs, i);
    }
*/
    if ( p->vCoReqs )
    {
        assert( Vec_IntSize(p->vCoReqs) == Gia_ManCoNum(p) );
        pPars->pTimesReq = ABC_CALLOC( float, Gia_ManCoNum(p) );
        Vec_IntForEachEntry( p->vCoReqs, Entry, i )
            pPars->pTimesReq[i] = (float)Entry;
    }
/*  // uncommenting this leads to a mysterious memory corruption
    else if ( p->vOutReqs )
    {
        assert( Vec_FltSize(p->vOutReqs) == Gia_ManCoNum(p) );
        pPars->pTimesReq = ABC_CALLOC( float, Gia_ManCoNum(p) );
        Vec_FltForEachEntry( p->vOutReqs, EntryF, i )
            pPars->pTimesReq[i] = EntryF;
    }
*/
    ABC_FREE( p->pCellStr );
    Vec_IntFreeP( &p->vConfigs );
    // disable cut minimization when GIA strucure is needed
    if ( !pPars->fDelayOpt && !pPars->fDelayOptLut && !pPars->fDsdBalance && !pPars->fUserRecLib && !pPars->fUserSesLib && !pPars->fDeriveLuts && !pPars->fUseDsd && !pPars->fUseTtPerm && !pPars->pFuncCell2 )
        pPars->fCutMin = 0;
    // translate into the mapper
    pIfMan = Gia_ManToIf( p, pPars );
    if ( pIfMan == NULL )
        return NULL;
    // create DSD manager
    if ( pPars->fUseDsd )
    {
        If_DsdMan_t * p = (If_DsdMan_t *)Abc_FrameReadManDsd();
        assert( pPars->nLutSize <= If_DsdManVarNum(p) );
        assert( (pPars->pLutStruct == NULL && If_DsdManLutSize(p) == 0) || (pPars->pLutStruct && pPars->pLutStruct[0] - '0' == If_DsdManLutSize(p)) );
        pIfMan->pIfDsdMan = (If_DsdMan_t *)Abc_FrameReadManDsd();
        if ( pPars->fDsdBalance )
            If_DsdManAllocIsops( pIfMan->pIfDsdMan, pPars->nLutSize );
    }
    // compute switching for the IF objects
    if ( pPars->fPower )
    {
        if ( p->pManTime == NULL )
            If_ManComputeSwitching( pIfMan );
        else
            Abc_Print( 0, "Switching activity computation for designs with boxes is disabled.\n" );
    }
    if ( pPars->pReoMan )
        pIfMan->pUserMan = pPars->pReoMan;
    if ( p->pManTime )
        pIfMan->pManTim = Tim_ManDup( (Tim_Man_t *)p->pManTime, pPars->fDelayOpt || pPars->fDelayOptLut || pPars->fDsdBalance || pPars->fUserRecLib || pPars->fUserSesLib );
//    Tim_ManPrint( pIfMan->pManTim );
    if ( p->vCoAttrs )
    {
        assert( If_ManCoNum(pIfMan) == Vec_IntSize(p->vCoAttrs) );
        Vec_IntForEachEntry( p->vCoAttrs, Entry, i )
            If_ObjFanin0( If_ManCo(pIfMan, i) )->fSpec = (Entry != 0);
    }
    if ( !If_ManPerformMapping( pIfMan ) )
    {
        If_ManStop( pIfMan );
        return NULL;
    }
    if ( pPars->pFuncWrite )
        pPars->pFuncWrite( pIfMan );
    // transform the result of mapping into the new network
    if ( pIfMan->pPars->fDelayOpt || pIfMan->pPars->fDsdBalance || pIfMan->pPars->fUserRecLib || pIfMan->pPars->fUserSesLib )
        pNew = Gia_ManFromIfAig( pIfMan );
    else
        pNew = Gia_ManFromIfLogic( pIfMan );
    if ( p->vCiArrs || p->vCoReqs )
    {
        If_Obj_t * pIfObj = NULL;
        Vec_IntFreeP( &p->vCoArrs );
        p->vCoArrs = Vec_IntAlloc( Gia_ManCoNum(p) );
        If_ManForEachCo( pIfMan, pIfObj, i )
            Vec_IntPush( p->vCoArrs, (int)If_ObjArrTime(If_ObjFanin0(pIfObj)) );
    }
    If_ManStop( pIfMan );
    // transfer name
    assert( pNew->pName == NULL );
    pNew->pName = Abc_UtilStrsav( p->pName );
    ABC_FREE( pNew->pSpec );
    pNew->pSpec = Abc_UtilStrsav( p->pSpec );
    Gia_ManSetRegNum( pNew, Gia_ManRegNum(p) );
    // print delay trace
    if ( pPars->fVerboseTrace )
    {
        pNew->pLutLib = pPars->pLutLib;
        Gia_ManDelayTraceLutPrint( pNew, 1 );
        pNew->pLutLib = NULL;
    }
    return pNew;
}

Here is the call graph for this function:

Here is the caller graph for this function:

Gia_ManPerformSopBalance()

Gia_Man_t * Gia_ManPerformSopBalance	(	Gia_Man_t *	p,
		int	nCutNum,
		int	nRelaxRatio,
		int	fVerbose )

Function*************************************************************

Synopsis [Interface of other mapping-based procedures.]

Description []

SideEffects []

SeeAlso []

Definition at line 2651 of file giaIf.c.

{
    Gia_Man_t * pNew;
    If_Man_t * pIfMan;
    If_Par_t Pars, * pPars = &Pars;
    If_ManSetDefaultPars( pPars );
    pPars->nCutsMax    = nCutNum;
    pPars->nRelaxRatio = nRelaxRatio;
    pPars->fVerbose    = fVerbose;
    pPars->nLutSize    = 6;
    pPars->fDelayOpt   = 1;
    pPars->fCutMin     = 1;
    pPars->fTruth      = 1;
    pPars->fExpRed     = 0;
    // perform mapping
    pIfMan = Gia_ManToIf( p, pPars );
    If_ManPerformMapping( pIfMan );
    pNew = Gia_ManFromIfAig( pIfMan );
    If_ManStop( pIfMan );
    Gia_ManTransferTiming( pNew, p );
    // transfer name
    assert( pNew->pName == NULL );
    pNew->pName = Abc_UtilStrsav( p->pName );
    pNew->pSpec = Abc_UtilStrsav( p->pSpec );
    Gia_ManSetRegNum( pNew, Gia_ManRegNum(p) );
    return pNew;
}

Here is the call graph for this function:

Here is the caller graph for this function:

Gia_ManPrintGetMuxFanins()

void Gia_ManPrintGetMuxFanins ( Gia_Man_t * p, Gia_Obj_t * pObj, int * pFanins )

extern

Function*************************************************************

Synopsis [Prints mapping statistics.]

Description []

SideEffects []

SeeAlso []

Definition at line 411 of file giaIf.c.

{
    Gia_Obj_t * pData0, * pData1;
    Gia_Obj_t * pCtrl = Gia_ObjRecognizeMux( pObj, &pData1, &pData0 );
    pFanins[0] = Gia_ObjId(p, Gia_Regular(pCtrl));
    pFanins[1] = Gia_ObjId(p, Gia_Regular(pData1));
    pFanins[2] = Gia_ObjId(p, Gia_Regular(pData0));
}

Here is the call graph for this function:

Here is the caller graph for this function:

Gia_ManPrintLutStats()

void Gia_ManPrintLutStats

(

Gia_Man_t *

p

)

Definition at line 727 of file giaIf.c.

{
    int i, nSizeMax, pCounts[33] = {0};
    nSizeMax = Gia_ManLutSizeMax( p );
    if ( nSizeMax > 32 )
    {
        Abc_Print( 1, "The max LUT size (%d) is too large.\n", nSizeMax );
        return;
    }
    Gia_ManForEachLut( p, i )
        pCounts[ Gia_ObjLutSize(p, i) ]++;
    Gia_ManPrintNodeProfile( pCounts, nSizeMax );
}

Here is the call graph for this function:

Here is the caller graph for this function:

Gia_ManPrintMappingStats()

void Gia_ManPrintMappingStats	(	Gia_Man_t *	p,
		char *	pDumpFile )

Definition at line 532 of file giaIf.c.

{
    int fDisable2Lut = 1;
    Gia_Obj_t * pObj;
    int * pLevels;
    int i, k, iFan, nLutSize = 0, nLuts = 0, nFanins = 0, LevelMax = 0, Ave = 0, nMuxF = 0;
    if ( !Gia_ManHasMapping(p) )
        return;
    pLevels = ABC_CALLOC( int, Gia_ManObjNum(p) );
    Gia_ManForEachLut( p, i )
    {
        if ( Gia_ObjLutIsMux(p, i) && !(fDisable2Lut && Gia_ObjLutSize(p, i) == 2) )
        {
            int pFanins[3];
            if ( Gia_ObjLutSize(p, i) == 3 )
            {
                Gia_ManPrintGetMuxFanins( p, Gia_ManObj(p, i), pFanins );
                pLevels[i] = Abc_MaxInt( pLevels[i], pLevels[pFanins[0]]+1 );
                pLevels[i] = Abc_MaxInt( pLevels[i], pLevels[pFanins[1]] );
                pLevels[i] = Abc_MaxInt( pLevels[i], pLevels[pFanins[2]] );
            }
            else if ( Gia_ObjLutSize(p, i) == 2 )
            {
                pObj = Gia_ManObj( p, i );
                pLevels[i] = Abc_MaxInt( pLevels[i], pLevels[Gia_ObjFaninId0(pObj, i)] );
                pLevels[i] = Abc_MaxInt( pLevels[i], pLevels[Gia_ObjFaninId1(pObj, i)] );
            }
            LevelMax = Abc_MaxInt( LevelMax, pLevels[i] );
            nFanins++;
            nMuxF++;
            continue;
        }
        nLuts++;
        nFanins += Gia_ObjLutSize(p, i);
        nLutSize = Abc_MaxInt( nLutSize, Gia_ObjLutSize(p, i) );
        Gia_LutForEachFanin( p, i, iFan, k )
            pLevels[i] = Abc_MaxInt( pLevels[i], pLevels[iFan] );
        pLevels[i]++;
        LevelMax = Abc_MaxInt( LevelMax, pLevels[i] );
    }
    Gia_ManForEachCo( p, pObj, i )
        Ave += pLevels[Gia_ObjFaninId0p(p, pObj)];
    ABC_FREE( pLevels );

#ifdef WIN32
    {
    HANDLE hConsole = GetStdHandle(STD_OUTPUT_HANDLE);
    Abc_Print( 1, "Mapping (K=%d)  :  ", nLutSize );
    SetConsoleTextAttribute( hConsole, 14 ); // yellow
    Abc_Print( 1, "lut =%7d  ",  nLuts );
    if ( nMuxF )
    Abc_Print( 1, "muxF =%7d  ",  nMuxF );
    SetConsoleTextAttribute( hConsole, 10 ); // green
    Abc_Print( 1, "edge =%8d  ", nFanins );
    SetConsoleTextAttribute( hConsole, 12 ); // red
    Abc_Print( 1, "lev =%5d ",   LevelMax );
    Abc_Print( 1, "(%.2f)  ",    (float)Ave / Gia_ManCoNum(p) );
//    Abc_Print( 1, "over =%5.1f %%  ", 100.0 * Gia_ManComputeOverlap(p) / Gia_ManAndNum(p) );
    if ( p->pManTime && Tim_ManBoxNum((Tim_Man_t *)p->pManTime) )
        Abc_Print( 1, "levB =%5d  ", Gia_ManLutLevelWithBoxes(p) );
    SetConsoleTextAttribute( hConsole, 7 );  // normal
    Abc_Print( 1, "mem =%5.2f MB", 4.0*(Gia_ManObjNum(p) + 2*nLuts + nFanins)/(1<<20) );
    Abc_Print( 1, "\n" );
    }
#else
    Abc_Print( 1, "Mapping (K=%d)  :  ", nLutSize );
    Abc_Print( 1, "%slut =%7d%s  ",  "\033[1;33m", nLuts,    "\033[0m" );  // yellow
    Abc_Print( 1, "%sedge =%8d%s  ", "\033[1;32m", nFanins,  "\033[0m" );  // green
    Abc_Print( 1, "%slev =%5d%s ",   "\033[1;31m", LevelMax, "\033[0m" );  // red
    Abc_Print( 1, "%s(%.2f)%s  ",    "\033[1;31m", (float)Ave / Gia_ManCoNum(p), "\033[0m" );
//    Abc_Print( 1, "over =%5.1f %%  ", 100.0 * Gia_ManComputeOverlap(p) / Gia_ManAndNum(p) );
    if ( p->pManTime && Tim_ManBoxNum((Tim_Man_t *)p->pManTime) )
        Abc_Print( 1, "%slevB =%5d%s  ", "\033[1;31m", Gia_ManLutLevelWithBoxes(p), "\033[0m" );
    Abc_Print( 1, "mem =%5.2f MB", 4.0*(Gia_ManObjNum(p) + 2*nLuts + nFanins)/(1<<20) );
    Abc_Print( 1, "\n" );
#endif

    if ( nMuxF )
        Gia_ManCountDupLut( p );

    //return;
    if ( pDumpFile )
    {
        static char FileNameOld[1000] = {0};
        static abctime clk = 0;
        FILE * pTable = fopen( pDumpFile, "a+" );
        if ( strcmp( FileNameOld, p->pName ) )
        {
            sprintf( FileNameOld, "%s_out", p->pName );
            fprintf( pTable, "\n" );
            fprintf( pTable, "%s ", p->pName );
            fprintf( pTable, " " );
            //fprintf( pTable, "%d ", Gia_ManAndNum(p) );
            fprintf( pTable, "%d ", Gia_ManRegNum(p) );
            fprintf( pTable, "%d ", nLuts           );
            fprintf( pTable, "%d ", Gia_ManLutLevelWithBoxes(p) );
            //fprintf( pTable, "%d ", Gia_ManRegBoxNum(p) );
            //fprintf( pTable, "%d ", Gia_ManNonRegBoxNum(p) );
            //fprintf( pTable, "%.2f", 1.0*(Abc_Clock() - clk)/CLOCKS_PER_SEC );
            clk = Abc_Clock();
        }
        else
        {
            //printf( "This part of the code is currently not used.\n" );
            //assert( 0 );
            fprintf( pTable, " " );
            fprintf( pTable, " " );
            fprintf( pTable, "%d ", Gia_ManRegNum(p) );
            fprintf( pTable, "%d ", nLuts           );
            fprintf( pTable, "%d ", Gia_ManLutLevelWithBoxes(p) );
            //fprintf( pTable, "%d ", Gia_ManRegBoxNum(p) );
            //fprintf( pTable, "%d ", Gia_ManNonRegBoxNum(p) );
//            fprintf( pTable, "%.2f", 1.0*(Abc_Clock() - clk)/CLOCKS_PER_SEC );
            clk = Abc_Clock();
        }
        fclose( pTable );
    }

}

Here is the call graph for this function:

Here is the caller graph for this function:

Gia_ManPrintNodeProfile()

void Gia_ManPrintNodeProfile	(	int *	pCounts,
		int	nSizeMax )

Function*************************************************************

Synopsis []

Description []

SideEffects []

SeeAlso []

Definition at line 714 of file giaIf.c.

{
    int i, SizeAll = 0, NodeAll = 0;
    for ( i = 0; i <= nSizeMax; i++ )
    {
        SizeAll += i * pCounts[i];
        NodeAll += pCounts[i];
    }
    Abc_Print( 1, "LUT = %d : ", NodeAll );
    for ( i = 2; i <= nSizeMax; i++ )
        Abc_Print( 1, "%d=%d %.1f %%  ", i, pCounts[i], 100.0*pCounts[i]/NodeAll );
    Abc_Print( 1, "Ave = %.2f\n", 1.0*SizeAll/(NodeAll ? NodeAll : 1) );
}

Here is the caller graph for this function:

Gia_ManPrintOutputLutStats()

void Gia_ManPrintOutputLutStats

(

Gia_Man_t *

p

)

Definition at line 497 of file giaIf.c.

{
    int Limit = 100000;
    int nLutSize = Gia_ManLutSizeMax(p);
    Vec_Int_t * vLuts = Vec_IntAlloc( 1000 );
    Vec_Int_t * vNodes = Vec_IntStart( Limit );
    Vec_Int_t * vLevels = Vec_IntStart( Limit );
    Vec_Int_t * vLevel = Vec_IntStart( Gia_ManObjNum(p) );
    int i, DriverId, Value, nTotalLuts = 0;
    Gia_ManForEachCoDriverId( p, DriverId, i ) {
        Vec_IntClear( vLuts );
        Gia_ManIncrementTravId(p);
        Gia_ManCollectLuts_rec( p, DriverId, vLuts );
        if ( Vec_IntSize(vLuts) < Limit )
            Vec_IntAddToEntry( vNodes, Vec_IntSize(vLuts), 1 );
        int Level = Gia_ManCountLutLevels( p, vLuts, vLevel );
        if ( Level < Limit )
            Vec_IntAddToEntry( vLevels, Level, 1 );
        nTotalLuts += Vec_IntSize(vLuts);
    }
    printf( "Level count statistics for %d AIG outputs:\n", Gia_ManCoNum(p) );
    Vec_IntForEachEntry( vLevels, Value, i )
        if ( Value )
            printf( "   %2d level : Function count = %8d (%6.2f %%)\n", i, Value, 100.0*Value/Gia_ManCoNum(p) );
    printf( "LUT count statistics for %d AIG outputs:\n", Gia_ManCoNum(p) );
    Vec_IntForEachEntry( vNodes, Value, i )
        if ( Value )
            printf( "   %2d LUT%d  : Function count = %8d (%6.2f %%)\n", i, nLutSize, Value, 100.0*Value/Gia_ManCoNum(p) );
    printf( "Sum total of LUT counts for all outputs = %d. Shared LUT count = %d.\n", nTotalLuts, Gia_ManLutNum(p) );
    Vec_IntFree( vLuts );
    Vec_IntFree( vNodes );
    Vec_IntFree( vLevels );
    Vec_IntFree( vLevel );
}

Here is the call graph for this function:

Here is the caller graph for this function:

Gia_ManPrintPackingStats()

void Gia_ManPrintPackingStats

(

Gia_Man_t *

p

)

Function*************************************************************

Synopsis [Prints mapping statistics.]

Description []

SideEffects []

SeeAlso []

Definition at line 663 of file giaIf.c.

{
    int fVerbose = 0;
    int nObjToShow = 200;
    int nNumStr[5] = {0};
    int i, k, Entry, nEntries, nEntries2, MaxSize = -1, Count = 0;
    if ( p->vPacking == NULL )
        return;
    nEntries = Vec_IntEntry( p->vPacking, 0 );
    nEntries2 = 0;
    Vec_IntForEachEntryStart( p->vPacking, Entry, i, 1 )
    {
        assert( Entry > 0 && Entry < 4 );
        nNumStr[Entry]++;
        i++;
        if ( fVerbose && nEntries2 < nObjToShow ) Abc_Print( 1, "{ " );
        for ( k = 0; k < Entry; k++, i++ )
            if ( fVerbose && nEntries2 < nObjToShow ) Abc_Print( 1, "%d ", Vec_IntEntry(p->vPacking, i) );
        if ( fVerbose && nEntries2 < nObjToShow ) Abc_Print( 1, "}\n" );
        i--;
        nEntries2++;
    }
    assert( nEntries == nEntries2 );
    if ( nNumStr[3] > 0 )
        MaxSize = 3;
    else if ( nNumStr[2] > 0 )
        MaxSize = 2;
    else if ( nNumStr[1] > 0 )
        MaxSize = 1;
    Abc_Print( 1, "Packing (N=%d)  :  ", MaxSize );
    for ( i = 1; i <= MaxSize; i++ )
    {
        Abc_Print( 1, "%d x LUT = %d   ", i, nNumStr[i] );
        Count += i * nNumStr[i];
    }
    Abc_Print( 1, "Total = %d   ", nEntries2 );
    Abc_Print( 1, "Total LUT = %d", Count );
    Abc_Print( 1, "\n" );
}

Here is the caller graph for this function:

Gia_ManSetIfParsDefault()

void Gia_ManSetIfParsDefault

(

void *

pp

)

FUNCTION DEFINITIONS ///.

Function*************************************************************

Synopsis [Load the network into FPGA manager.]

Description []

SideEffects []

SeeAlso []

Definition at line 59 of file giaIf.c.

{
    If_Par_t * pPars = (If_Par_t *)pp;
//    extern void * Abc_FrameReadLibLut();
    If_Par_t * p = (If_Par_t *)pPars;
    // set defaults
    memset( p, 0, sizeof(If_Par_t) );
    // user-controlable paramters
    p->nLutSize    = -1;
//    p->nLutSize    =  6;
    p->nCutsMax    =  8;
    p->nFlowIters  =  1;
    p->nAreaIters  =  2;
    p->DelayTarget = -1;
    p->Epsilon     =  (float)0.005;
    p->fPreprocess =  1;
    p->fArea       =  0;
    p->fFancy      =  0;
    p->fExpRed     =  1;
    p->fLatchPaths =  0;
    p->fEdge       =  1;
    p->fPower      =  0;
    p->fCutMin     =  0;
    p->fVerbose    =  0;
    p->pLutStruct  =  NULL;
    // internal parameters
    p->fTruth      =  0;
    p->nLatchesCi  =  0;
    p->nLatchesCo  =  0;
    p->fLiftLeaves =  0;
    p->fUseCoAttrs =  1;   // use CO attributes
    p->pLutLib     =  NULL;
    p->pTimesArr   =  NULL;
    p->pTimesReq   =  NULL;
    p->pFuncCost   =  NULL;
}

Here is the call graph for this function:

Here is the caller graph for this function:

Gia_ManSetLutRefs()

void Gia_ManSetLutRefs

(

Gia_Man_t *

p

)

Function*************************************************************

Synopsis [Assigns levels.]

Description []

SideEffects []

SeeAlso []

Definition at line 295 of file giaIf.c.

{
    Gia_Obj_t * pObj;
    int i, k, iFan;
    ABC_FREE( p->pLutRefs );
    p->pLutRefs = ABC_CALLOC( int, Gia_ManObjNum(p) );
    Gia_ManForEachCo( p, pObj, i )
        Gia_ObjLutRefIncId( p, Gia_ObjFaninId0p(p, pObj) );
    Gia_ManForEachLut( p, i )
        Gia_LutForEachFanin( p, i, iFan, k )
            Gia_ObjLutRefIncId( p, iFan );
}

Here is the caller graph for this function:

Gia_ManSetRefsMapped()

void Gia_ManSetRefsMapped

(

Gia_Man_t *

p

)

Function*************************************************************

Synopsis [Assigns levels.]

Description []

SideEffects []

SeeAlso []

Definition at line 271 of file giaIf.c.

{
    Gia_Obj_t * pObj;
    int i, k, iFan;
    ABC_FREE( p->pRefs );
    p->pRefs = ABC_CALLOC( int, Gia_ManObjNum(p) );
    Gia_ManForEachCo( p, pObj, i )
        Gia_ObjRefIncId( p, Gia_ObjFaninId0p(p, pObj) );
    Gia_ManForEachLut( p, i )
        Gia_LutForEachFanin( p, i, iFan, k )
            Gia_ObjRefIncId( p, iFan );
}

Here is the caller graph for this function:

Gia_ManTestStruct()

void Gia_ManTestStruct

(

Gia_Man_t *

p

)

Function*************************************************************

Synopsis [Tests decomposition structures.]

Description []

SideEffects []

SeeAlso []

Definition at line 2723 of file giaIf.c.

{
    int nCutMax = 7;
    int LutCount[8] = {0}, LutNDecomp[8] = {0};
    int i, k, iFan, nFanins, Status;
    Vec_Int_t * vLeaves;
    word * pTruth;

    vLeaves = Vec_IntAlloc( 100 );
    Gia_ObjComputeTruthTableStart( p, nCutMax );
    Gia_ManForEachLut( p, i )
    {
        nFanins = Gia_ObjLutSize(p, i);
        assert( nFanins <= 7 );
        LutCount[Abc_MaxInt(nFanins, 5)]++;
        if ( nFanins <= 5 )
            continue;
        Vec_IntClear( vLeaves );
        Gia_LutForEachFanin( p, i, iFan, k )
            Vec_IntPush( vLeaves, iFan );
        pTruth = Gia_ObjComputeTruthTableCut( p, Gia_ManObj(p, i), vLeaves );
        // check if it is decomposable
        Status = If_CutPerformCheck07( NULL, (unsigned *)pTruth, 7, nFanins, NULL );
        if ( Status == 1 )
            continue;
        LutNDecomp[nFanins]++;
        if ( LutNDecomp[nFanins] > 10 )
            continue;
        Kit_DsdPrintFromTruth( (unsigned *)pTruth, nFanins ); printf( "\n" );
    }
    Gia_ObjComputeTruthTableStop( p );

    printf( "LUT5 = %d    ", LutCount[5] );
    printf( "LUT6 = %d  NonDec = %d (%.2f %%)    ", LutCount[6], LutNDecomp[6], 100.0 * LutNDecomp[6]/Abc_MaxInt(LutCount[6], 1) );
    printf( "LUT7 = %d  NonDec = %d (%.2f %%)    ", LutCount[7], LutNDecomp[7], 100.0 * LutNDecomp[7]/Abc_MaxInt(LutCount[7], 1) );
    printf( "\n" );
}

Here is the call graph for this function:

Gia_ManToIf()

If_Man_t * Gia_ManToIf	(	Gia_Man_t *	p,
		If_Par_t *	pPars )

Definition at line 893 of file giaIf.c.

{
    If_Man_t * pIfMan;
    If_Obj_t * pIfObj = NULL;
    Gia_Obj_t * pObj;
    int i;
    // create levels with choices
    Gia_ManChoiceLevel( p );
    // mark representative nodes
    if ( Gia_ManHasChoices(p) )
        Gia_ManMarkFanoutDrivers( p );
    // start the mapping manager and set its parameters
    pIfMan = If_ManStart( pPars );
    pIfMan->pName = Abc_UtilStrsav( Gia_ManName(p) );
    // print warning about excessive memory usage
    if ( 1.0 * Gia_ManObjNum(p) * pIfMan->nObjBytes / (1<<30) > 1.0 )
        printf( "Warning: The mapper will allocate %.1f GB for to represent the subject graph with %d AIG nodes.\n",
            1.0 * Gia_ManObjNum(p) * pIfMan->nObjBytes / (1<<30), Gia_ManObjNum(p) );
    // load the AIG into the mapper
    Gia_ManFillValue( p );
    Gia_ManConst0(p)->Value = If_ObjId( If_ManConst1(pIfMan) );
    Gia_ManForEachObj1( p, pObj, i )
    {
        if ( Gia_ObjIsAnd(pObj) )
            pIfObj = If_ManCreateAnd( pIfMan, If_ManFanin0Copy(pIfMan, pObj), If_ManFanin1Copy(pIfMan, pObj) );
        else if ( Gia_ObjIsCi(pObj) )
        {
            pIfObj = If_ManCreateCi( pIfMan );
            If_ObjSetLevel( pIfObj, Gia_ObjLevel(p, pObj) );
//            Abc_Print( 1, "pi%d=%d\n ", If_ObjId(pIfObj), If_ObjLevel(pIfObj) );
            if ( pIfMan->nLevelMax < (int)pIfObj->Level )
                pIfMan->nLevelMax = (int)pIfObj->Level;
        }
        else if ( Gia_ObjIsCo(pObj) )
        {
            pIfObj = If_ManCreateCo( pIfMan, If_NotCond( If_ManFanin0Copy(pIfMan, pObj), Gia_ObjIsConst0(Gia_ObjFanin0(pObj))) );
//            Abc_Print( 1, "po%d=%d\n ", If_ObjId(pIfObj), If_ObjLevel(pIfObj) );
        }
        else assert( 0 );
        assert( i == If_ObjId(pIfObj) );
        Gia_ObjSetValue( pObj, If_ObjId(pIfObj) );
        // set up the choice node
        if ( Gia_ObjSibl(p, i) && pObj->fMark0 )
        {
            Gia_Obj_t * pSibl, * pPrev;
            for ( pPrev = pObj, pSibl = Gia_ObjSiblObj(p, i); pSibl; pPrev = pSibl, pSibl = Gia_ObjSiblObj(p, Gia_ObjId(p, pSibl)) )
                If_ObjSetChoice( If_ManObj(pIfMan, Gia_ObjValue(pPrev)), If_ManObj(pIfMan, Gia_ObjValue(pSibl)) );
            If_ManCreateChoice( pIfMan, If_ManObj(pIfMan, Gia_ObjValue(pObj)) );
            pPars->fExpRed = 0;
        }
//        assert( If_ObjLevel(pIfObj) == Gia_ObjLevel(pNode) );
    }
    if ( Gia_ManHasChoices(p) )
        Gia_ManCleanMark0( p );
    //If_ManCheckChoices( pIfMan );
    return pIfMan;
}

Here is the call graph for this function:

Here is the caller graph for this function:

Gia_ManTransferMapping()

void Gia_ManTransferMapping	(	Gia_Man_t *	p,
		Gia_Man_t *	pGia )

Function*************************************************************

Synopsis [Transfers mapping from hie GIA to normalized GIA.]

Description [Hie GIA (pGia) points to normalized GIA (p).]

SideEffects []

SeeAlso []

Definition at line 2305 of file giaIf.c.

{
    Gia_Obj_t * pObj;
    int i, k, iFan, iPlace;
    if ( !Gia_ManHasMapping(pGia) )
        return;
    Gia_ManMappingVerify( pGia );
    Vec_IntFreeP( &p->vMapping );
    p->vMapping = Vec_IntAlloc( 2 * Gia_ManObjNum(p) );
    Vec_IntFill( p->vMapping, Gia_ManObjNum(p), 0 );
    Gia_ManForEachLut( pGia, i )
    {
        if ( Gia_ObjValue(Gia_ManObj(pGia, i)) == ~0 ) // handle dangling LUT
            continue;
        assert( !Abc_LitIsCompl(Gia_ObjValue(Gia_ManObj(pGia, i))) );
        pObj = Gia_ManObj( p, Abc_Lit2Var(Gia_ObjValue(Gia_ManObj(pGia, i))) );
        Vec_IntWriteEntry( p->vMapping, Gia_ObjId(p, pObj), Vec_IntSize(p->vMapping) );
        iPlace = Vec_IntSize( p->vMapping );
        Vec_IntPush( p->vMapping, Gia_ObjLutSize(pGia, i) );
        Gia_LutForEachFanin( pGia, i, iFan, k )
        {
            if ( Gia_ObjValue(Gia_ManObj(pGia, iFan)) == ~0 ) // handle dangling LUT fanin
                Vec_IntAddToEntry( p->vMapping, iPlace, -1 );
            else
                Vec_IntPush( p->vMapping, Abc_Lit2Var(Gia_ObjValue(Gia_ManObj(pGia, iFan))) );
        }
        iFan = Abc_Lit2Var( Gia_ObjValue(Gia_ManObj(pGia, Abc_AbsInt(Gia_ObjLutMuxId(pGia, i)))) );
        Vec_IntPush( p->vMapping, Gia_ObjLutIsMux(pGia, i) ? -iFan : iFan );
    }
    Gia_ManMappingVerify( p );
}

Here is the call graph for this function:

Here is the caller graph for this function:

Gia_ManTransferPacking()

void Gia_ManTransferPacking	(	Gia_Man_t *	p,
		Gia_Man_t *	pGia )

Definition at line 2336 of file giaIf.c.

{
    Vec_Int_t * vPackingNew;
    Gia_Obj_t * pObj, * pObjNew;
    int i, k, Entry, nEntries, nEntries2;
    if ( pGia->vPacking == NULL )
        return;
    nEntries = Vec_IntEntry( pGia->vPacking, 0 );
    nEntries2 = 0;
    // create new packing info
    vPackingNew = Vec_IntAlloc( Vec_IntSize(pGia->vPacking) );
    Vec_IntPush( vPackingNew, nEntries );
    Vec_IntForEachEntryStart( pGia->vPacking, Entry, i, 1 )
    {
        assert( Entry > 0 && Entry < 4 );
        Vec_IntPush( vPackingNew, Entry );
        i++;
        for ( k = 0; k < Entry; k++, i++ )
        {
            pObj = Gia_ManObj(pGia, Vec_IntEntry(pGia->vPacking, i));
            pObjNew = Gia_ManObj(p, Abc_Lit2Var(Gia_ObjValue(pObj)));
            assert( Gia_ObjIsLut(pGia, Gia_ObjId(pGia, pObj)) );
            assert( Gia_ObjIsLut(p, Gia_ObjId(p, pObjNew)) );
            Vec_IntPush( vPackingNew, Gia_ObjId(p, pObjNew) );
//            printf( "%d -> %d  ", Vec_IntEntry(pGia->vPacking, i), Gia_ObjId(p, pObjNew) );
        }
        i--;
        nEntries2++;
    }
    assert( nEntries == nEntries2 );
    // attach packing info
    assert( p->vPacking == NULL );
    p->vPacking = vPackingNew;
}

Here is the caller graph for this function:

Gia_ManTransferTiming()

void Gia_ManTransferTiming	(	Gia_Man_t *	p,
		Gia_Man_t *	pGia )

Definition at line 2370 of file giaIf.c.

{
    if ( p == pGia )
        return;
    if ( pGia->vCiArrs || pGia->vCoReqs || pGia->vCoArrs || pGia->vCoAttrs )
    {
        p->vCiArrs     = pGia->vCiArrs;     pGia->vCiArrs    = NULL;
        p->vCoReqs     = pGia->vCoReqs;     pGia->vCoReqs    = NULL;
        p->vCoArrs     = pGia->vCoArrs;     pGia->vCoArrs    = NULL;
        p->vCoAttrs    = pGia->vCoAttrs;    pGia->vCoAttrs   = NULL;
        p->And2Delay   = pGia->And2Delay;
    }
    if ( pGia->vInArrs || pGia->vOutReqs )
    {
        p->vInArrs     = pGia->vInArrs;     pGia->vInArrs     = NULL;
        p->vOutReqs    = pGia->vOutReqs;    pGia->vOutReqs    = NULL;
        p->DefInArrs   = pGia->DefInArrs;
        p->DefOutReqs  = pGia->DefOutReqs;
        p->And2Delay   = pGia->And2Delay;
    }
    if ( pGia->vNamesIn || pGia->vNamesOut || pGia->vNamesNode )
    {
        p->vNamesIn     = pGia->vNamesIn;     pGia->vNamesIn     = NULL;
        p->vNamesOut    = pGia->vNamesOut;    pGia->vNamesOut    = NULL;
        p->vNamesNode   = pGia->vNamesNode;   pGia->vNamesNode   = NULL;
    }
    if ( pGia->vConfigs || pGia->pCellStr )
    {
        p->vConfigs     = pGia->vConfigs;     pGia->vConfigs     = NULL;
        p->pCellStr     = pGia->pCellStr;     pGia->pCellStr     = NULL;
    }
    if ( pGia->pManTime == NULL )
        return;
    p->pManTime    = pGia->pManTime;    pGia->pManTime    = NULL;
    p->pAigExtra   = pGia->pAigExtra;   pGia->pAigExtra   = NULL;
    p->vRegClasses = pGia->vRegClasses; pGia->vRegClasses = NULL;
    p->vRegInits   = pGia->vRegInits;   pGia->vRegInits = NULL;
    p->nAnd2Delay  = pGia->nAnd2Delay;  pGia->nAnd2Delay  = 0;
}

Here is the caller graph for this function:

If_ManCheckChoices()

void If_ManCheckChoices

(

If_Man_t *

pIfMan

)

Definition at line 862 of file giaIf.c.

{
    If_Obj_t * pIfObj;
    int i, fFound = 0;
    If_ManForEachObj( pIfMan, pIfObj, i )
        pIfObj->fDriver = 0;
    If_ManForEachCo( pIfMan, pIfObj, i )
        If_ManCheckChoices_rec( pIfMan, If_ObjFanin0(pIfObj) );
    If_ManForEachNode( pIfMan, pIfObj, i )
        if ( !pIfObj->fDriver )
            printf( "Object %d is dangling.\n", i ), fFound = 1;
    if ( !fFound )
        printf( "There are no dangling objects.\n" );
    If_ManForEachObj( pIfMan, pIfObj, i )
        pIfObj->fDriver = 0;
}

Here is the call graph for this function:

If_ManCheckChoices_rec()

void If_ManCheckChoices_rec	(	If_Man_t *	pIfMan,
		If_Obj_t *	pIfObj )

Function*************************************************************

Synopsis [Checks integrity of choice nodes.]

Description []

SideEffects []

SeeAlso []

Definition at line 853 of file giaIf.c.

{
    if ( !pIfObj || pIfObj->Type != IF_AND || pIfObj->fDriver )
        return;
    pIfObj->fDriver = 1;
    If_ManCheckChoices_rec( pIfMan, If_ObjFanin0(pIfObj) );
    If_ManCheckChoices_rec( pIfMan, If_ObjFanin1(pIfObj) );
    If_ManCheckChoices_rec( pIfMan, pIfObj->pEquiv );
}

Here is the call graph for this function:

Here is the caller graph for this function:

Kit_TruthToGia()

ABC_NAMESPACE_IMPL_START int Kit_TruthToGia ( Gia_Man_t * pMan, unsigned * pTruth, int nVars, Vec_Int_t * vMemory, Vec_Int_t * vLeaves, int fHash )

extern

DECLARATIONS ///.

CFile****************************************************************

FileName [giaMap.c]

SystemName [ABC: Logic synthesis and verification system.]

PackageName [Scalable AIG package.]

Synopsis [Manipulation of mapping associated with the AIG.]

Author [Alan Mishchenko]

Affiliation [UC Berkeley]

Date [Ver. 1.0. Started - June 20, 2005.]

Revision [

Id

giaMap.c,v 1.00 2005/06/20 00:00:00 alanmi Exp

]

Definition at line 80 of file kitHop.c.

{
    int iLit;
    Kit_Graph_t * pGraph;
    // transform truth table into the decomposition tree
    if ( vMemory == NULL )
    {
        vMemory = Vec_IntAlloc( 0 );
        pGraph = Kit_TruthToGraph( pTruth, nVars, vMemory );
        Vec_IntFree( vMemory );
    }
    else
        pGraph = Kit_TruthToGraph( pTruth, nVars, vMemory );
    if ( pGraph == NULL )
    {
        printf( "Kit_TruthToGia(): Converting truth table to AIG has failed for function:\n" );
        Kit_DsdPrintFromTruth( pTruth, nVars ); printf( "\n" );
    }
    // derive the AIG for the decomposition tree
    iLit = Kit_GraphToGia( pMan, pGraph, vLeaves, fHash );
    Kit_GraphFree( pGraph );
    return iLit;
}

Here is the call graph for this function:

Here is the caller graph for this function:
